Development of a NonꢀIonic Azobenzene Amphiphile for Remote
Photocontrol of a Model Biomembrane.
7
8
9
1
1
2
2
Luciano A. Benedini ‡, M. Alejandra Sequeira ‡, Maria Laura Fanani , Bruno Maggio ,
Verónica I. Dodero 1 † *.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1
Instituto de Química del Sur (INQUISURꢀCONICET), Departamento de Química, Universidad Nacional del Sur,
8000FTN Bahía Blanca, Argentina.
2
Centro de Investigaciones en Química Biológica de Córdoba (CIQUIBICꢀCONICET), Departamento de Química
Biológica, Facultad de Ciencias Químicas, Universidad Nacional del Córdoba, Haya de la Torre y Medina Allende,
Ciudad Universitaria, X5000HUA Córdoba, Argentina
*Corresponding author:
1
ACS Paragon Plus Environment

The Journal of Physical Chemistry
Page 2 of 33
1
2
3
4
ABSTRACT:
5
6
7
8
We report the synthesis and characterization of a simple nonꢀionic azoamphiphile, C12OazoE3OH
which behaves as an opticallyꢀcontrolled molecule alone and in a biomembraneꢀenvironment. First,
Langmuir monolayer and Brewster angle microscopy (BAM) experiments showed that pure
C12OazoE3OH enriched in the (E) isomer was able to form solidꢀlike mesophase even at low surface
pressure associated with supramolecular organization of the azobenzene derivative at the interface.
On the other hand, pure C12OazoE3OH enriched in the (Z) isomer formed a less solidꢀlike
monolayer due to the bent geometry around the azobenzene moiety. Second, C12OazoE3OH is wellꢀ
mixed in a biological membrane model, Lipoids75TM (up to 20 %mol), and photoisomerization
among the lipids proceeded smoothly depending on light conditions. It is proposed that the crossꢀ
sectional area of the hydroxyl triethylenglycol head of C12OazoE3OH inhibits azobenzenes Hꢀ
aggregation in the model membrane, thus the tails conformation change due to photoisomerization
is transferred efficiently to the lipid membrane. We showed that the lipid membrane effectively
senses the azobenzene geometrical change photoꢀmodulating some properties, like compressibility
modulus, transition temperature and morphology. In addition, photomodulation proceeds with a
color change from yellow to orange, providing the possibility to externally monitoring the system.
Finally, Gibbs monolayers showed that C12OazoE3OH is able to penetrate the highly packing
biomembrane model, thus C12OazoE3OH might be used as photoswitchable molecular probe in real
systems.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2
ACS Paragon Plus Environment

Page 3 of 33
The Journal of Physical Chemistry
1
2
3
4
INTRODUCTION:
5
6
7
8
Molecular selfꢀassembly is the preferred tool of nature to build nanoꢀmachines like enzymatic
complexes, ribosomes and DNA transcription machinery, biomembranes among others. 1 By simple
observation of nature, it is clear that, it is possible to obtain molecular devices with exquisite
spatiotemporal control from molecules. This encourages chemists to design new molecules or use
nature building blocks like lipids in order to build devices in the nanoꢀ and microꢀrange. 2ꢀ4
In this context, π conjugated building blocks with amphiphilic features are employed because their
selfꢀassembly in water is accomplished by thermodynamically driven separation between the polar
medium and the rigid πꢀsurface. On the other hand, as π – π interactions are directional such selfꢀ
assembly can produce structurally precise nanoꢀstructures from small molecules.5. If the azobenzene
moiety is incorporated into an amphiphile structure, the inherent photoꢀresponsive capability of
azobenzene group might be transferred to the whole molecule, giving as a result a photoꢀresponsible
amphiphilic molecule.5 Under visible light, the azobenzene adopts its E (trans) configuration, and
the molecular geometry resembles a rodꢀtype; whereas upon UVꢀlight illumination, the molecular
geometry around the azobenzene moiety changes to bent configuration known as Z (cis). The
change in the length is really important, varying from 9 Å in E configuration to 5 Å in Z
configuration.6 Singleꢀtailed azobenzene amphiphiles are the simplest building blocks to develop
photoꢀtunable chemical systems, often combining guestꢀhost interactions or the presence of lipids.7ꢀ
12 The photoswitchable ability is predictable mainly in organic solvent;13 however, in the aggregate
state it will depend strongly on the interaction among molecules. If the azoamphiphile head is ionic
in character, the head effective size has a very strong effect on the system packing causing that, if
photoisomerization occurs, the molecular geometry change cannot be effectively sensed, especially
in mixtures with phospholipids.14ꢀ17 Recently, an ammonium salt head connected to a azobenzene
was reported to build up nonꢀphospholipid fluid liposomes with switchable photoꢀcontrolled
release.18
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3
ACS Paragon Plus Environment

The Journal of Physical Chemistry
Page 4 of 33
1
2
3
4
5
6
7
8
9
Nonꢀionic azoamphiphiles are seldom investigated. A successful example was reported based on a
azobenzene with simple hydroxyl diethyleneglycol head able to form nanoꢀvesicles which, upon
photoisomerization, turned into bicontinuous phase.19 More recently, other azoamphiphile based on
dendritic glycerol head has emerged as suitable building block to obtain photoresponsible spherical
micelles.20, 21 Both systems showed efficient photoꢀcontrol of the water surface tension.22, 23 The
success of the responsiveness and the resulted functionality were due to the size of the head and the
nonꢀionic character which play an essential role in the packing parameter of both selfꢀassembled
systems.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Our general research goals are the application of azoamphiphiles as membrane photoꢀswitches to
control spatioꢀtemporarily lipid membranes and cells. In this context, Langmuir and Gibbs
monolayers have offered great potential for the study of the organization of soft amphiphilic
materials24 and in particular of lipids to understand the packing of molecules based on their
chemical structure, intermolecular interactions, and interactions with the supporting subphase.25ꢀ27
In fact, Langmuir monolayers have been used to model azobenzenes selfꢀassembly at the interface
and processes occurring within them.28ꢀ30 However, their use to evaluate the behavior of
azobenzene/lipids mixtures was not reported.
The aim of the present work is to present a simple nonꢀionic photoswichtable azoamphiphile, 4ꢀ

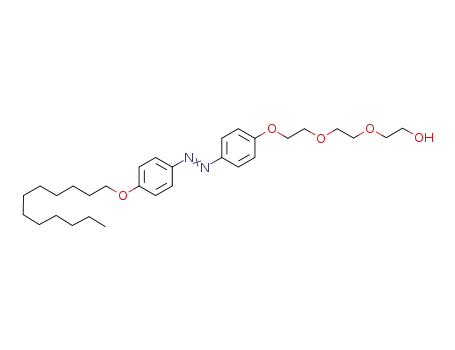

dodecyloxiꢀ4’ꢀ(1ꢀhydroxy triethylenglycol) azobenzene (C12OazoE3OH) which behaves as photoꢀ
switchable probe alone and when it is mixed with a biological membrane mimetic, Lipoids 75TM.
The photoisomerization of C12OazoE3OH among the lipids induces interfacial, morphological and
thermal changes of the biomimetic membrane. Importantly, we showed that C12OazoE3OH is not
only well mixed in the biomembrane, but also it is able to penetrate it from the subphase.
Altogether, our findings show that C12OazoE3OH might be an efficient photoꢀresponsible probe to
remote control of biological membrane properties.
4
ACS Paragon Plus Environment

Page 5 of 33
The Journal of Physical Chemistry
1
2
3
4
5
EXPERIMENTAL SECTION
Material and Synthesis:
6
7
8
9
All manipulations were carried out under an atmosphere of nitrogen. Acetonitrile was dried over
K2CO3 and distilled immediately before use.
1ꢀdodecyloxiꢀ4ꢀnitrobenzeno (1): To a solution containing 886.3 mg (6.38 mmol) of nitrophenol
and 5.28 g (38.28 mmol) K2CO3 in 20 ml acetonitrile under stirring was added 1.85 ml (7.66 mmol)
dodecyl bromide in 10 ml acetonitrile. The reaction mixture was refluxed for 27 hours and
subsequently filtered through Celite. The solvent was removed by reduced pressure and the crude
product was obtained as a solid. This solid was further purified by column chromatography on
neutral aluminum oxide (hexane: diethyl ether) and 1 was recovered as a white solid in 90% yield.
1H NMR (CDCl3, 300 MHz) δ (ppm): 0.88 (t, 3H, J3= 6.9 Hz, CH3), 1.27ꢀ1.47(m, 18H, CH2), 1.82
(m, 2H, CH2), 4.05 (t, 2H, J3= 6.0 Hz, OCH2), 6.93 (d, 2H, J3= 9.0 Hz, ArꢀH), 8.19 (d, 2H, J3= 9.0
Hz, ArꢀH). 13CꢀNMR (CDCl3) δ (ppm): 14.07 (CH3), 22.67, 25.91, 28.98, 29.29, 29.32, 29.52,
29.56, 29.62, 29.63, 31.91 (CH2), 68.93 (OCH2), 114.41, 125.8, 141.4, 164.26 (ArꢀC).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
4ꢀdodecyloxiꢀaniline (2): To a solution of 300.0 mg (0.98 mmol) 1ꢀdodecyloxyꢀ4ꢀnitrobenzeno (1)
dissolved in 10 ml anhydrous CHCl3 was added 8.6 ml methanol. The reaction was stirred in the
presence of 50.0 mg of 10% Pd/C under hydrogen atmosphere for 4ꢀ6 hours at room temperature.
Then, it was filtered off and the solvent was removed under reduced pressure with quantitative
yield. The bright grey solid (2) was used without further purification in the following step.
4ꢀdodecyloxyꢀ4’ꢀhydroxyl azobenzene (3): To 271.5 mg (0.98 mmol) of (2) in 4.50 ml of 1:1
aqueous acetone was added 0.45 ml of hydrochloric acid concentrated. To this mixture 2.25 mL of
aqueous NaNO2 (93.15 mg, 1.35 mmol) was added and the solution was maintained at 0ºC for 1 h.
The resulting diazonium slurry was then added to the following mixture: phenol 131.6 mg (1.40
mmol), NaOH 52.9 mg (1.32 mmol), Na2CO3 229.0 mg (2.16 mmol) in 3.80 ml of MilliQ water
maintaining the temperature at 0ºC for an additional 1 h. Then, the mixture was stirred for further
16 h at room temperature. After this, it was neutralized with acetic acid and the precipitate
containing compound (3) was well washed with MilliQ water. Further purification was not
necessary, 40% yield (mp 96ꢀ97 ºC). 1H NMR (CDCl3, 300 MHz) δ (ppm): 0.88 (t, 3H, J3= 6.9 Hz,
CH3), 1.27ꢀ1.47 (m, 18H, CH2), 1.81 (m, 2H, CH2), 4.03 (t, 2H, J3= 6.0 Hz, OCH2), 4.63 (s, 1H,
OH), 6.93 (d, 2H, J3 = 9 Hz, ArꢀH), 6.98 (d, 2H, J3 = 9 Hz, ArꢀH), 7.81 (d, 2H, J3 = 9 Hz, ArꢀH),
7.85 (d, 2H, J3 = 9 Hz, ArꢀH). 13CꢀNMR (CDCl3) δ (ppm): 14.07 (CH3), 22.67, 26.025, 29.22,
29.33, 29.38, 29.56, 29.58, 29.62, 29.65, 31.91 (CH2), 68.40 (OCH2), 114.72, 115.76, 124.33,
124.51, 146.91, 147.23, 161.27 (ArꢀC).
5
ACS Paragon Plus Environment

The Journal of Physical Chemistry
Page 6 of 33
1
2
3
4
5
6
7
8
9
4ꢀdodecyloxiꢀ4’ꢀ(1ꢀhydroxy triethylenglycol) azobenzene (4): To 75.0 mg (0.197 mmol) of 4ꢀ
dodecyloxyꢀ4’ꢀhydroxyl azobenzene (3) and 300 mg (2.17 mmol) K2CO3 suspension was added
63.0 mg (0.207 mmol) triethylene glycol pꢀtoluenesulfonate in 10 mL of dry acetonitrile The
reaction mixture was allowed to react at reflux for 80 hours and then filtered out. The solid was
further purified by column chromatography on neutral aluminum oxide (hexane: diethyl ether) and
pure (4) in 55% yield was obtained. C12OazoE3OH shows thermotropic behaivor: CrꢀSmC at 91.67°C
(ꢁH= 88.10 J g−1) SmCꢀPI at 107.28 °C (ꢁH= 33.77 J g−1). The LC behavior is not described here.
1H NMR (400 MHz; CDCl3): δ (ppm)= 0.88 (t, 3H, J3= 6.9 Hz, CH3), 1.27ꢀ1.47 (m, 18H, CH2),
1.81 (m, 2H, CH2), 2, 08 (s, 1Hꢀ, OH); 3,61ꢀ3,74 (m, 8H, CH2); 3,90 (t, 2H, J3= 6.0 Hz, OCH2);
4.03 (t, 2H, J3= 6.0 Hz, CH2), 4,22 (t, 2H, J3= 6.0 Hz, CH2); 6.99 (d, 2H, J3 = 9 Hz, ArꢀH), 7.00 (d,
2H, J3 = 9 Hz, ArꢀH), 7.86 (d, 2H, J3 = 9 Hz, ArꢀH), 7.87 (d, 2H, J3 = 9 Hz, ArꢀH). 13CꢀNMR
(CDCl3): δ (ppm) = 14.10 (CH3), 22.68, 26.00, 29.22, 29.33, 29.40, 29.50, 29.60, 29.63, 29.65,
31.91 (CH2), 61.8, 69.15, 69.71, 70.45, 70.59, 70.90, 72.50 (OCH2), 114.71, 114.85, 124.26,
124.32, 146.97, 147.32, 160.65, 161.275 (ArꢀC). EMꢀFAB: (m/z): 515, 40 (M+1H+) EMAR:
calculated for C30H46N2O5 515, 34 found. 515, 35.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Synthesis of Vesicular Membranes
Lipoid s75TM containing 69ꢀ75% phosphatidylcholine was purchased from Lipoid Co. (Germany).
Other constituents of Lipoid s75TM are: 9.8% phosphatidylethanolamine and 2.1%,
lysophosphatidylcholine and had a fatty acid composition of palmitic (17%–20%), stearic (2%–
5%), oleic (8%–12%), linoleic (58%–65%) and linolenic (4%–6%) acid. 31 Chloroform was HPLC
grade. Water was purified by using a MilliꢀQ (Millipore, Billerica, MA) system, giving a product
with a resistivity of ~ 18.5 Mꢂ/cm.
TM
Mixtures of C12OazoE3OH: Lipoid s75
were conducted following the technique for obtaining a
thin film. The procedure involves the formation of a homogeneous organic film by vacuum
evaporation at room temperature of a chloroform solution of the C12OazoE3OH amphiphile (ZꢀE: 5ꢀ
95, 20 mol %) exposed to white light and Lipoid s75TM (80 mol %). To hydrate the film, MilliꢀQ
water at the lipid transition temperature (55ºC) is added to the round bottom flask, under slow
rotatory movement for 2 hrs. The next process involves vigorous shaking using a vortex, and then
6
ACS Paragon Plus Environment

Page 7 of 33
The Journal of Physical Chemistry
1
2
3
4
5
6
7
8
sonication of the sample to obtain the suspension of the film. Finally it is necessary at least two
days aging to achieve formation of the vesicular membranes, multilayers (approximately 0.5 mM).
The same procedure was performed to form pure Lipoid s75TM vesicular membranes.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Methods:
UV-Vis Spectroscopy: Switching experiments were done with an 8 watts mercury arc lamp with
filter of 360 nm from Pleuger Antwerp Brussels and a white light bulb of 60 watts. UVꢀVis
spectroscopy data were recorded on a JASCO Vꢀ630BIO Spectrophotometer equipped with an
EHCSꢀ760 peltier.
Surface Pressure-Area Isotherms of Langmuir Monolayers: The first compression isotherms at 24
°C and 13 °C were performed for both C12OazoE3OH (4) and C12OazoOH (3) compounds. These
compounds were dissolved in a methanol/ chloroform (2:1) mixture to obtain a solution of 1 mg/ml
total concentration which was spread onto a 266 cm2 Teflon trough filled with 200 ml of subphase.
Concentration of 1 mg/ml of a mixture of Lipoid s75TM. The same protocol were used for mixed
monolayers of Lipoid s75TM: C12OazoE3OH (4) (80:20 mol%). The aqueous solution used as the
subphase was pH ~ 5.5 (NaCl 145 mM) for all the monolayer experiments. The film was allowed to
stand 5 min for solvent evaporation and monolayer relaxation at < 0.1 mN/m before being
subsequently compressed isometrically at a compression rate of 2 ± 1 Å2 moleculeꢀ1 minꢀ1.
The surface pressure was determined with a Pt plate using the Wilhelmy method, and the film total
area was continuously measured and recorded using a KSV Minitrough apparatus (KSV, Helsinski,
Finland) enclosed in an acrylic box which was continuously enriched with N2 gas in order to
prevent lipid oxidation. The subphase temperature (±0.5 ºC) was controlled by an external
circulation bath and kept at 25 ºC, unless indicated.
A representative experiment is shown in all figures from a set of three independent experiments that
differed in mean molecular area (MMA) and surface pressure measurements by less than 2 Å2 and
7
ACS Paragon Plus Environment

The Journal of Physical Chemistry
Page 8 of 33
1
2
3
4
0.2 mN/m, respectively. In order to analyze the film elastic behavior of the adsorbed molecules, the
5
6
compressibility modulus Csꢀ1 was calculated from the isotherm data as, 32
7
8
9
−1
d
π
Cs = −MMA
(
)
dMMA T
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
where π represents the surface pressure. Measurements were carried out in darkness for
C12OazoE3OH (Z).
Brewster Angle Microscopy (BAM) Measurements: Monolayers of C12OazoE3OH (E), (Z) and
C12OazoOH (E) were prepared as described above using a KSV Minitrough apparatus (KSV,
Helsinski, Finland). The Langmuir apparatus was mounted on the stage of a Nanofilm EP3 imaging
elipsometer (Accurion, Goettingen, Germany) used in the BAM mode. Zero reflection was set with
a polarized 532 λ laser incident on the bare aqueous surfaces at the experimentally calibrated
Brewster angle (~53.1º). After monolayer formation and compression, the reflected light was
collected with a 20X objective. Under the required calibration, the gray level of each pixel of the
BAM images is directly related to the square of the film thickness and refraction index, in films that
do not show optical activity; 33 otherwise, the gray level also depends on the orientation of the 2D
crystal.
Adsorption of Azo-amphiphiles to Bare Air/Water Interface: Gibbs Monolayers. After injection of
25 µl of C12OazoE3OH (E) or 50 ꢀl of C12OazoE3OH (Z) to the aqueous subphase of a Teflon
trough under continuous stirring (trough volume: 15 ml; final subphase concentration 3.2 ꢃM for
C12OazoE3OH (E) and 6.39 ꢃM for C12OazoE3OH (Z), the changes in surface pressure and surface
potential at constant area were registered as a function of time, while a Gibbs monolayer was
established. Surface pressure was determined as described above. The equipment used was a
homemade circular Langmuir balance controlled by an electronic unit (Monofilmetter). All
experiments were performed at 23 ± 2 °C. Measurements were carried out in darkness for
C12OazoE3OH (Z).
8
ACS Paragon Plus Environment

Page 9 of 33
The Journal of Physical Chemistry
1
2
3
4
5
6
7
8
9
Penetration of Azo-amphiphiles to Phospholipid Monolayers: Penetration time curves were
performed by deposition of a chloroform solution of Lipoid s75TM at the air/water interface, in order
to form a monolayer previous to the injection of C12OazoE3OH (25µL of (Z) and 50 µL of (Z)) in
the subphase. Measurements were carried out in darkness for C12OazoE3OH (Z).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Differential Scanning Calorimetry (DSC): Calorimetric measurements were performed with a Q20
Differential Scanning Calorimeter (TA Instruments). Samples were prepared using closed hermetic
aluminum pans which had been weighted with a ± 0.00001 g precision balance adding 10 mg of the
corresponding compound or water dispersion (2.8 mg/ml) to the pan: a) C12OazoE3OH (E) solid, b)
Lipoid s75TM multilamellar vesicular dispersion alone c) Mixtures of Lipoid s75 TM: C12OazoE3OH
(E) multilamellar vesicular dispersion and d) Mixtures of Lipoid s75 TM: C12OazoE3OH (Z)
multilamellar vesicular dispersion obtained by irradiating the Lipoid s75 TM: C12OazoE3OH (E) for
40 minutes with UV light (360 nm, 8 watts). The same procedure was performed to Lipoid s75 TM
vesicular membranes alone, showing no significant physical changes. The calorimetric
measurements were performed at a rate of 5°C/min.
Polarized Optical Microscopy (POM): A drop of the corresponding dispersion of 2.8 mg/ml
concentration was placed on glass and cover. POM were performed at 25°C using a Nikon Eclipse
E200 POL polarizing microscope.
RESULTS and DISCUSSION
Design, Synthesis and Photoisomerization. Regarding to potential applications, we designed a
structural simple amphiphile, C12OazoE3OH (4), by a simple and versatile methodology (Scheme
1). C12OazoE3OH was obtained directly from commercial 4ꢀnitrophenol in four steps, with an
overall yield of 86 %. The introduction of oxygen atoms as connectors between the azobenzene
moiety and the head and tail is synthetically simple and allows efficient photoisomerization with
slow thermal backꢀisomerization. Based on previous reports, 19ꢀ22 we hypothesized that the hydroxyl
9
ACS Paragon Plus Environment

The Journal of Physical Chemistry
Page 10 of 33
1
2
3
4
5
6
7
8
9
triethylenglycol head would increase the effective cross section area, thus favoring the molecular
motion of the tails in the aggregate due to light illumination. Finally, the incorporation of a C12
hydrophobic tail will favor bilayer formation and potential good mixing with natural lipids in
biological membranes.34
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 1: Synthetic pathway to C12OazoE3OH (4).
In chloroform, C12OazoE3OH (4) is a yellow solution composed of isomeric mixture of E: Z (95:5)
determinated by 1HꢀRMN which is named for simplicity as C12OazoE3OH (E) (see ESI). Upon UVꢀ
light illumination (360 nm, 8watts, 1 min) a photostationary state (pss) of E: Z (10:90) is reached,
named as C12OazoE3OH (Z) (orange solution). The photoconvertion ratio from E to Z isomer was
1
evident from HꢀRMN experiments and UVꢀVis spectra (Figure 1). UVꢀVis spectrum of
C12OazoE3OH (E) showed a characteristic πꢀ π* transition centered in 358 nm and a small band at
450 nm corresponding to nꢀ π* transition. The Z→E isomerization was accelerated by illumination
with ordinary white light bulb of 60 watts (λ > 445 nm, 3 h, see ESI). The new πꢀ π* transition was
blueshifted to 311 nm and the band corresponding to nꢀ π* transition at 450 nm was more evident.
Thermal Z→E isomerization is slow enough allowing the evaluation of both pss separately (stable
10
ACS Paragon Plus Environment

Page 11 of 33
The Journal of Physical Chemistry
1
2
3
4
5
6
18 h in darkness). This experiment suggests that C12OazoE3OH could be used as optically
controlled probe.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. UVꢀVis spectra of C12OazoE3OH before (●) and after (△) UVꢀlight illumination in
chloroform (7, 5 ꢃM). Optical stability was achieved up to five cycles.

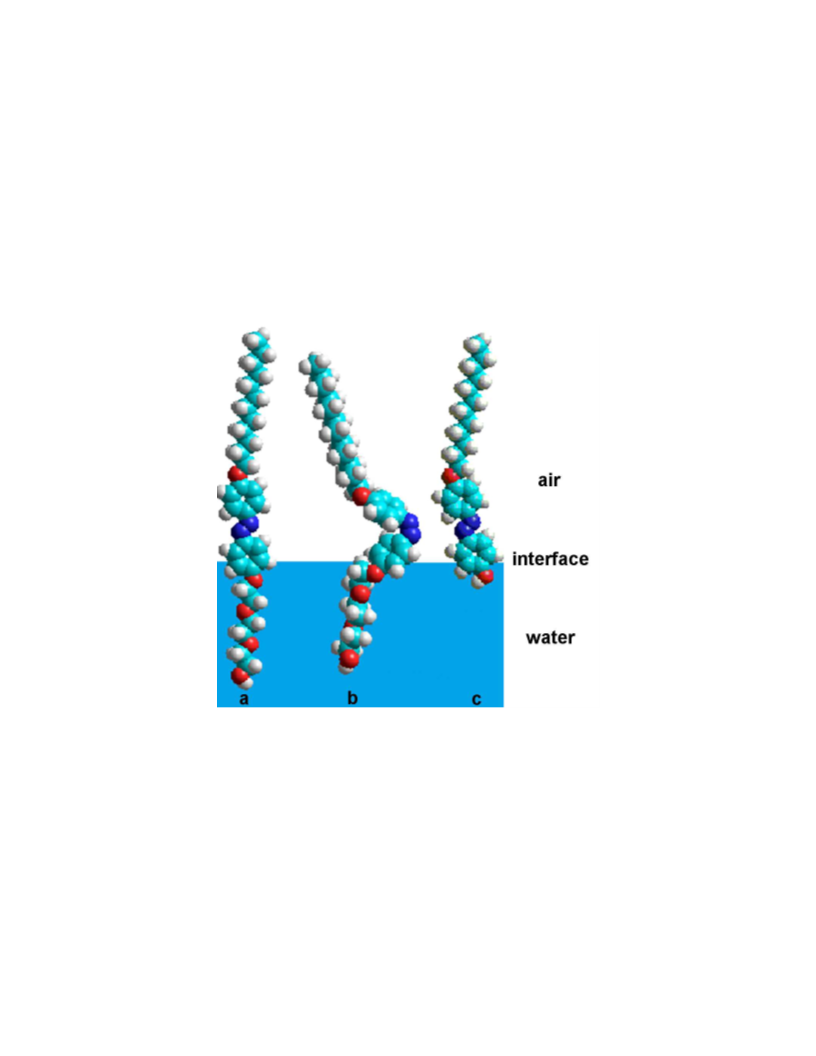

Langmuir Monolayers. First compression curves of Langmuir monolayers at 24 °C shown in
Figure 2a exhibited higher values of collapse pressure for C12OazoE3OH (E) (~53mN/m) than
C12OazoE3OH (Z) (42 mN/m). The mean molecular area (MMA) at such high pressures for both
C12OazoE3OH (E) and C12OazoE3OH (Z) are similar (~23 ± 2 Å2/molecule), showing that the
azobenzene group is perpendicular to the surface plane at collapse pressure.35 This value is in
22
agreement with those reported previously for a compound with a hydroxyl diethylenglycol head
and different linkers between the azo moiety and the hydroxyl head, (C4azoOLinkerE2OH).
Moreover, it is close to the crossꢀsection area of hydrocarbon chain ~18 Å2/molecule. 32
The compression isotherms of compound 3 C12OazoOH (E) (E: Z (90:10)) were included to
compare the influence of the head length. Both C12OazoE3OH (E) (▲) and C12OazoOH (E) (●)
monolayers were similar in saline solution pHb~ 5.5, showing a phase transition at low surface
pressure (π ≤ 5 mN/ m) and a collapse at ~ 55 and 60 mN/ m, respectively. However, C12OazoOH
(E) monolayers showed no sign of a pressure decrease after collapse, showing high stability of the
film at 24 °C (not shown). This effect has been reported previously in monolayers of azobenzeneꢀ
11
ACS Paragon Plus Environment

The Journal of Physical Chemistry
Page 12 of 33
1
2
3
4
35
polyvinyl alcohol and for ureaꢀazobenzene derivatives
and it was associated with strong
5
6
7
8
intermolecular interactions. Here, the πꢀπ stacking of the aromatic rings of C12OazoOH (E) may be
maximal due to the minor steric repulsion of the small OH head. The phase transition of
C12OazoE3OH (E) occurred at 50 Å2/molecules, whereas for C12OazoOH (E) it occurred at 40
Å2/molecules. In this case, the larger hydroxyl triethylenglycol group in C12OazoE3OH (E) had to
exert stronger head group repulsion than the hydroxyl head in C12OazoOH (E), resulting in a higher
MMA when phase transition occurs. C12OazoOH (3) showed a fast thermal ZꢀE isomerization rate
after UV illumination, thus the Z enriched pss was not measured at the air/water interface.
Langmuir monolayer compression curves of C12OazoE3OH (Z) showed a smooth slope with no
transition until the collapse. The bent geometry around the azobenzenes of C12OazoE3OH (Z) could
be the reason of such behavior. Similar results for E and Z isomers were described previously for
other azobenzenes amphiphiles and it was explained considering supramolecular organization at the
air/water interface.36, 37
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For C12OazoE3OH (E), C12OazoE3OH (Z) and C12OazoOH (E) films, the solubility into the
subphase was evaluated by assessing the rate of monolayer area loss when kept at the constant
surface pressure of 35 mN/m (ESI, Fig. S7). The films composed by C12OazoE3OH (E) and
C12OazoOH (E) show a rate of area loss of 13 % and 5% after 23 min, respectively, being aprox.
28% for C12OazoE3OH (Z) monolayers. This experiment evidenced a higher solubility of the isomer
(Z) at a constant high constant pressure compared with the (E) isomers, which can be explained by
the increase of dipole moment of the Z isomer. 6
Monolayer curves of C12OazoE3OH (E) at 13 °C displayed essentially the same collapse
characteristics (MMA and surface pressure) than those at 24 °C; however, at 13 °C the phase
transition at 50 Å2/molecule was not observed (ESI, Fig. 6). Nevertheless, the monolayers at 13 °C
were more suitable for BAM experiments due to their reproducibility.
12
