Host Differential Sensitization toward Color/Lifetime-Tuned
Lanthanide Coordination Polymers for Optical Multiplexing
[
a]+
[a]+
[b]
[a]
[a]
[a]
[c]
Yiyi Ou, Weijie Zhou, Zece Zhu, Fengkai Ma, Rongfu Zhou, Fang Su, Lirong Zheng, Li
[
d]
[a]
Ma, and Hongbin Liang*
[
[
a]
b]
Y. Ou, Dr. W. Zhou, Dr. F. Ma, Dr. R. Zhou, F. Su, Prof. H. Liang
MOE Key Laboratory of Bioinorganic and Synthetic Chemistry, KLGHEI of Environment and Energy Chemistry, School of Chemistry, Sun Yat-sen
University, Guangzhou 510275, China
E-mail: cesbin@mail.sysu.edu.cn
Dr. Z. Zhu
Wuhan National Laboratory for Optoelectronics, School of Optical and Electronic Information, Huazhong University of Science and Technology, Wuhan
430074, China
[
[
[
c]
d]
+]
Dr. L. Zheng
Beijing Synchrotron Radiation Facility, Institute of High Energy Physics, Chinese Academy of Sciences, Beijing 100039, China
Prof. L. Ma
Department of Physics, Georgia Southern University, Statesboro, Georgia 30460, United States
These authors contributed equally to this work.
Supporting information for this article is given via a link at the end of the document.

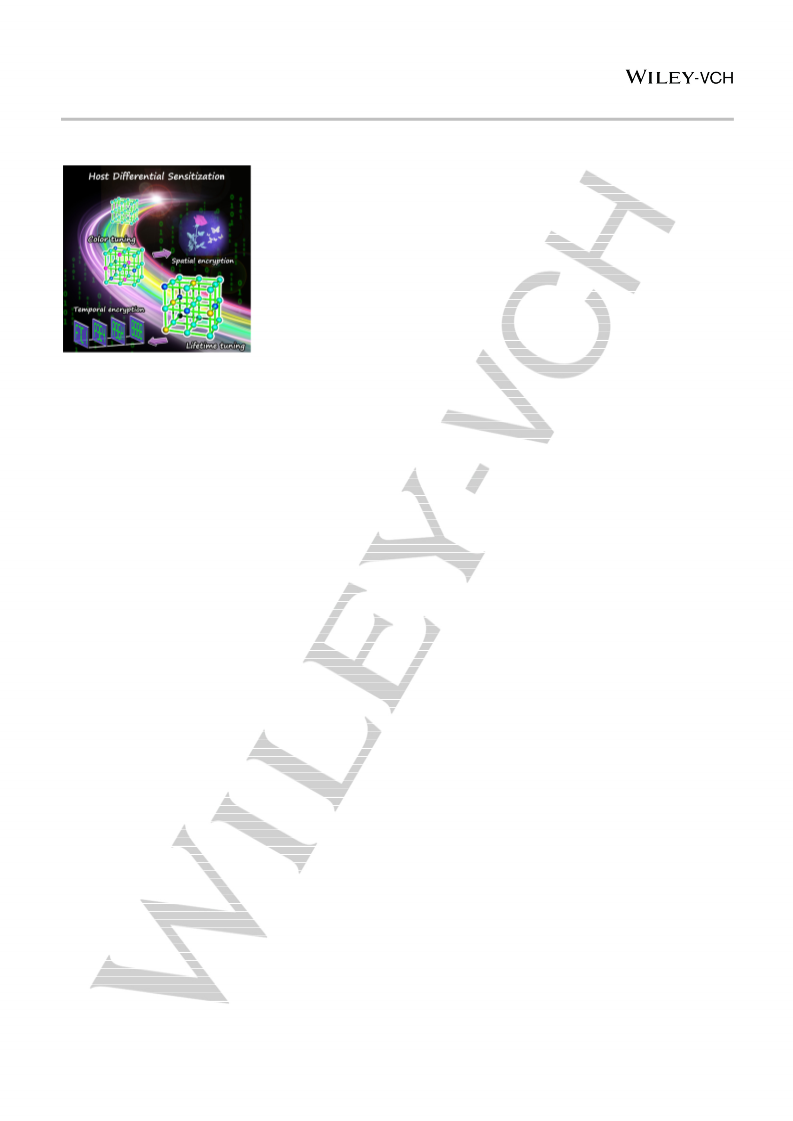

Abstract: Optical multiplexing based on luminescent materials with
tunable color/lifetime holds potential applications in information
storage and security. However, the available tunable luminescent
materials reported so far still suffer from several drawbacks of low
efficiency or poor stability, thus restraining their further applications.
Here, we demonstrate a strategy to develop the efficient and stable
lanthanide coordination polymers (LCPs) with tunable luminescence
as a new option for optical multiplexing. Their multicolor emission from
green to red and naked-eye-sensitive green emission with tunable
lifetime (from ~ 300 to ~ 600 μs) can be controlled by host differential
sensitization and energy transfer between lanthanide ions. The
environment and high toxicity of QDs, and tedious synthesis.
Therefore, it is urgently desired to further expand the alternative
luminescent materials to meet the demand of optical multiplexing
technology innovation.
Lanthanide coordination polymers (LCPs) including lanthanide
metal-organic frameworks (Ln-MOFs), constructed with
lanthanide-ion nodes and organic linkers, have drawn much
attention in the applications of chemical sensing, visible and near
infrared light-emitting devices, and so on.[17-21] With the merits of
lanthanide 4f-4f sharp emission with μs lifetime, antenna effect of
organic ligands [22, 23] and robust structure framework, the efficient
quantum efficiencies of developed samples range from ~ 20% to ~ 46% and stable LCPs are also endowed with the large potential to be
and the luminescence intensity/lifetime appear quite stable in polar
solvents up to ten weeks. Furthermore, with the aids of inkjet printing
and concepts of luminescence lifetime imaging and time-gated
imaging, we also illustrate their inspiring and promising applications
of information storage and security in spatial and temporal domains.
These results will open up an avenue to the efficient and stable LCPs
with tunable luminescence toward optical multiplexing applications.
the candidate for optical multiplexing applications. Recently,
substantial efforts have been devoted to the achievement of large-
scale color tunability in spatial domain in some Ln-MOF systems.
For example, a series of Ln-MOF hierarchical single crystals with
different lanthanide ions were designed to possess domain- and
orientation-controlled multicolor luminescence, which gives
possibility for multiplexed coding capability in a 3D way.[24]
A
heteroepitaxial growth of multiblock Ln-BTC microrods were also
developed for multicolor and thermally-responsive barcodes.[25, 26]
Further, a layer-by-layer approach was proposed to construct Ln-
surface-anchored MOFs (Ln-SURMOFs) to achieve tunable
Introduction
emission while suppressing the unwanted energy transfer
Optical multiplexing has attracted tremendous interests owing
to its potential applications in biodetection, information storage
and security, and so on.[1-4] The ever-increasing demand for the
superior multiplexing mode, i. e. the stable and high-degree
multiplexing in both spatial and temporal domains, calls for
luminescent materials with small size in nano/micrometer range,
excellent physicochemical stability, tunable emission with sharp
peaks, tunable lifetime in microsecond (μs) range, and high
luminous efficiency.[5-7] Hitherto, a range of promising materials
including the lanthanide-doped upconversion nanoparticles [8-10],
inorganic perovskite quantum dots (QDs) [11, 12], and inorganic-
organic hybrid composites [13-16] have been rationally designed
and played the significant roles in promoting the multiplexing
technologies. However, these state-of-the-art materials also
suffer from several drawbacks, such as low efficiency of
upconversion emission, poor resistance to polar solvent
between lanthanide ions.[27] However, to pursue the superior
multiplexing applications, only tunable color or multicolor in spatial
distribution is not enough, the color/intensity evolution in temporal
dimension based on the tunable lifetime of materials is much more
requisite.[1, 28] Unfortunately, there is still an absence of good
experience and feasible strategy in finely tailoring the lifetime of
LCPs emission. Furthermore, manipulating the emission color
and lifetime individually in one LCP system also becomes an open
question.
In this work, we demonstrate a strategy to design the
color/lifetime-tuned LCPs for optical multiplexing applications via
energy transfer (ET) manipulation based on host differential
sensitization, as schematically illustrated in Scheme 1. In our
3+
3+
strategy, several possible lanthanide (Ln) ions (such as Pr , Sm ,
3+
3+
3+
3+
3+
3+
Eu , Tb , Dy , Ho , Er , and Tm ) with different characteristic
emissions can be selected, among which the inter-ionic ET could
1
This article is protected by copyright. All rights reserved.

Angewandte Chemie International Edition
10.1002/anie.202011559
RESEARCH ARTICLE
intensity/lifetime appear quite stable in polar solvents up to ten
weeks (the emission intensities keep at least ~ 79% of pristine
samples and the lifetime values have small relative standard
deviations < 0.5%). Basically, the crystal structure, local bonding
properties and ET dynamics of synthesized samples are studied
in depth by applying Rietveld refinement, X-ray absorption
spectroscopy (XAS) and statistical ET theory, respectively, to
elucidate their structure-property relationship. Finally, these
efficient and stable color/lifetime-tuned LCPs are used to fabricate

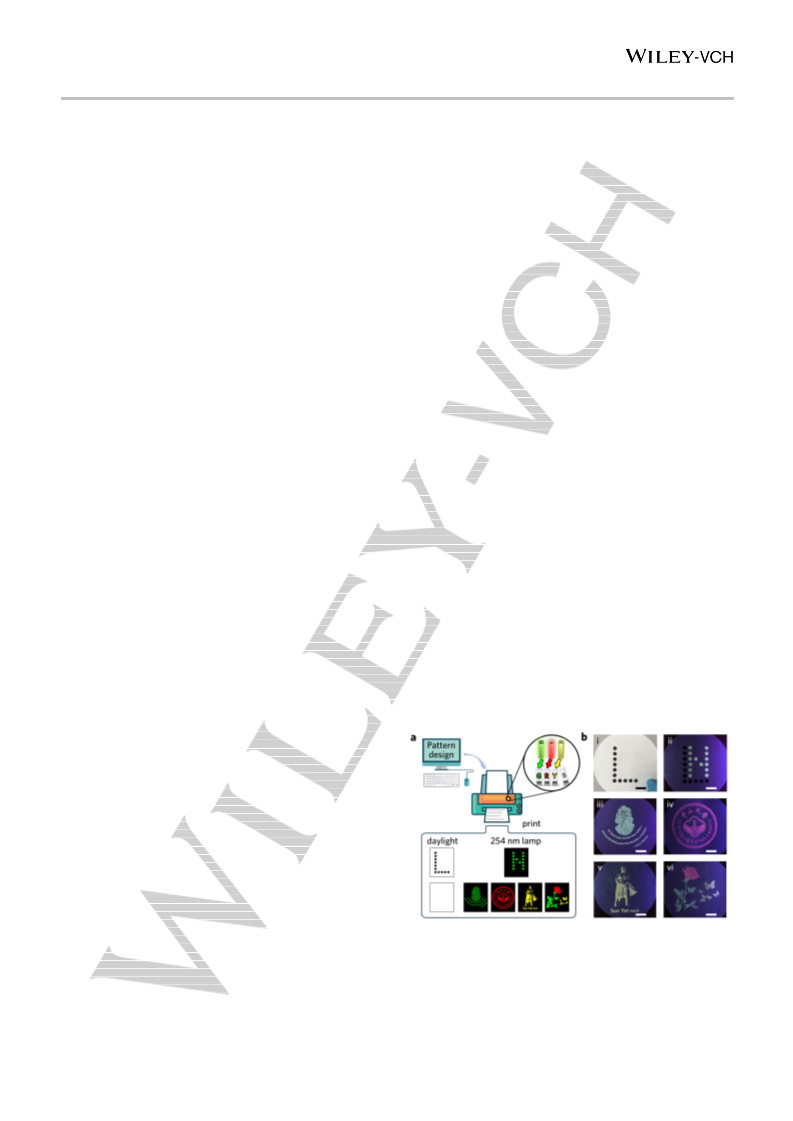

the colorless security inks. With the aids of inkjet printing

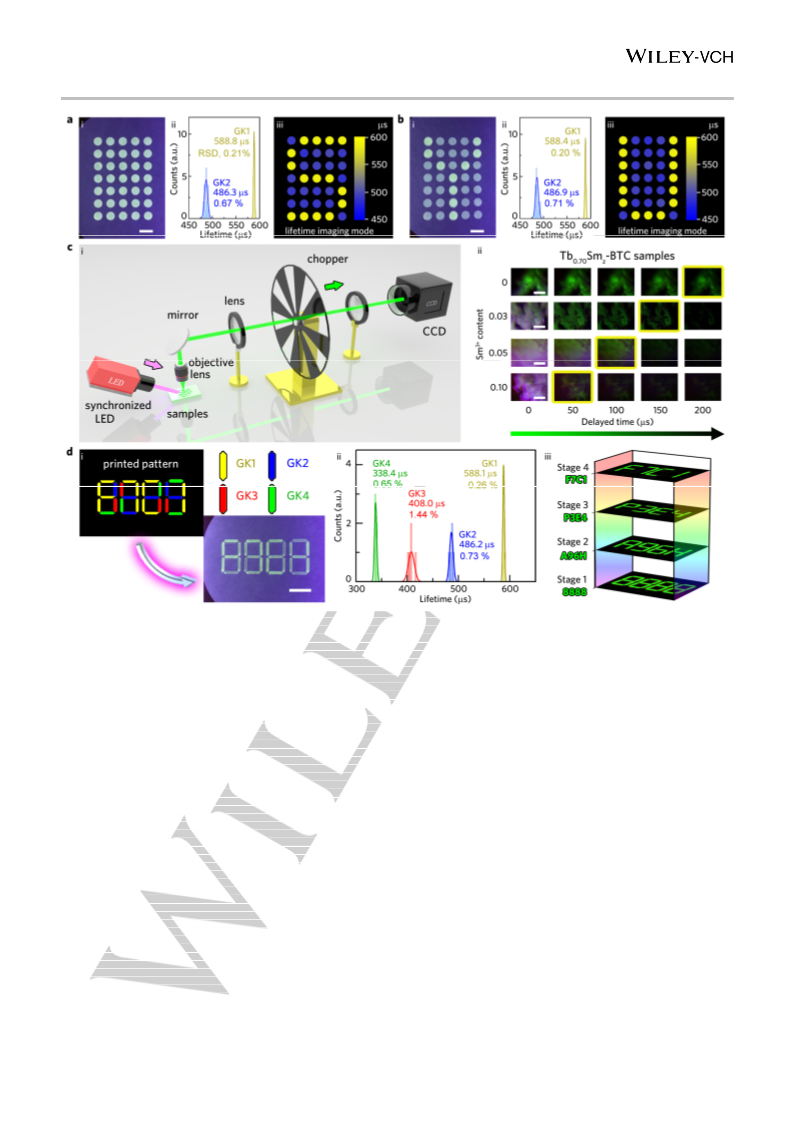

technique and concepts of luminescence lifetime imaging and
time-gated imaging, some interesting and enlightening
prototypical application patterns are demonstrated, implying that
these LCPs have decent performance in information storage and
security in both spatial and temporal domains.
Results and Discussion
Crystal Structure and Bonding Properties. The crystal
structures of synthesized samples were studied via powder X-ray
diffraction (XRD) technique at room temperature (RT), and the
corresponding Rietveld refinement was performed by using the

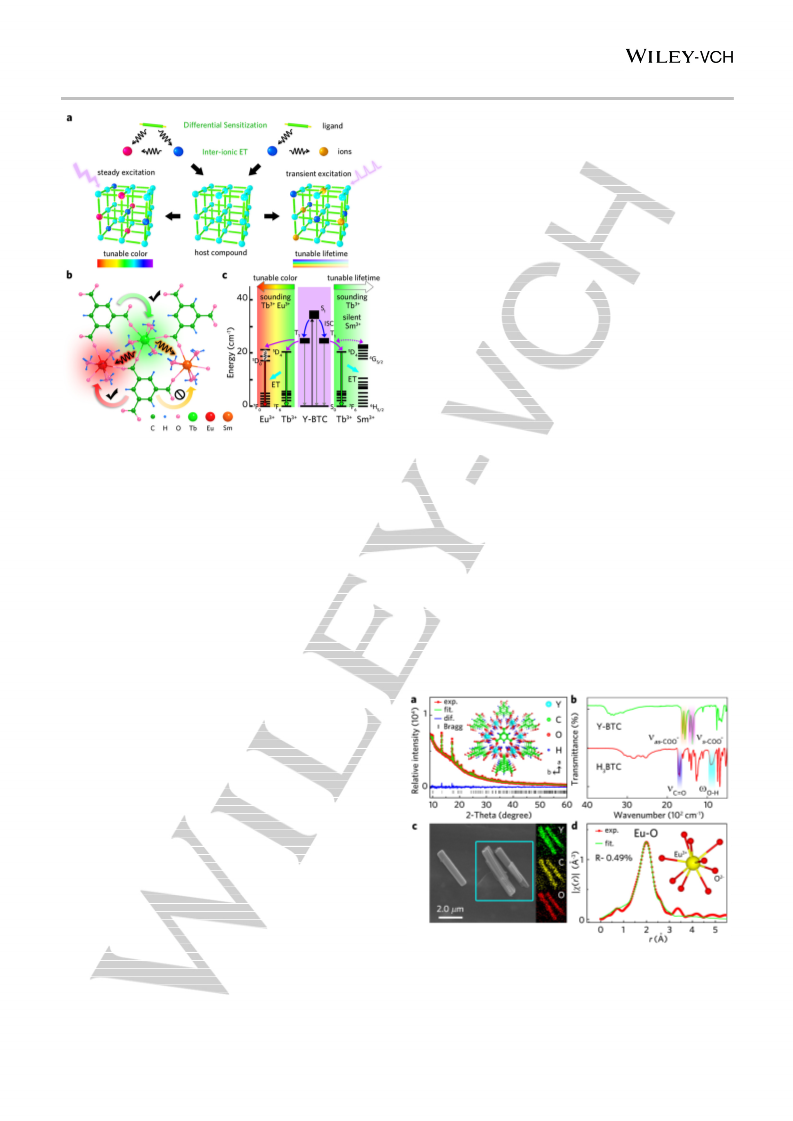

Scheme 1. (a) Schematic illustration of the design strategy for color/lifetime-
tuned LCPs. (b) Coordination environment of the lanthanide ions in Y-BTC host
and the energy transfer between lanthanide ions and organic ligands. (c)
Jablonski diagram with detailed energy levels and energy transfer processes in
color/lifetime-tuned lanthanide-ions-activated Y-BTC.
La(BTC)(H

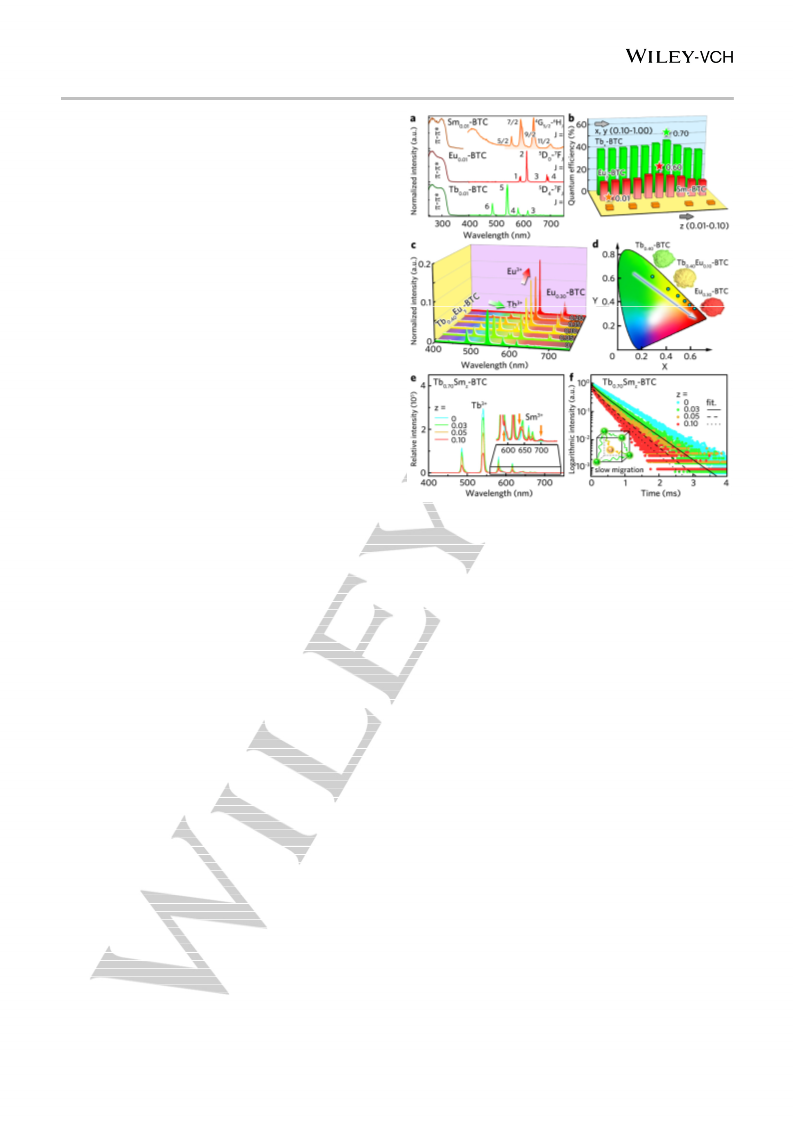

model.[30] Typically, the refined pattern of Y-BTC host compound
in Figure 1a shows a good fitting quality (Rwp = 2.47%, R = 1.58%,
= 0.93%) and no other impurity phase is found, indicating the
2 6
O) (CCDC number: 290771) structure as an initial
p
R
b
successful synthesis of Y-BTC single phase. The refined
structural parameters are given in Table S1. The Y-BTC host
crystallizes in a monoclinic structure with space group Cc (9) and
occur. More importantly, the LCPs host should exhibit a so-called
differential sensitization effect for lanthanide emissions.
Specifically, the lanthanide ions that are efficiently sensitized by
cell parameters a = 11.32(1) Å, b = 17.79(2) Å, c = 7.12(1) Å, β =
3
1
