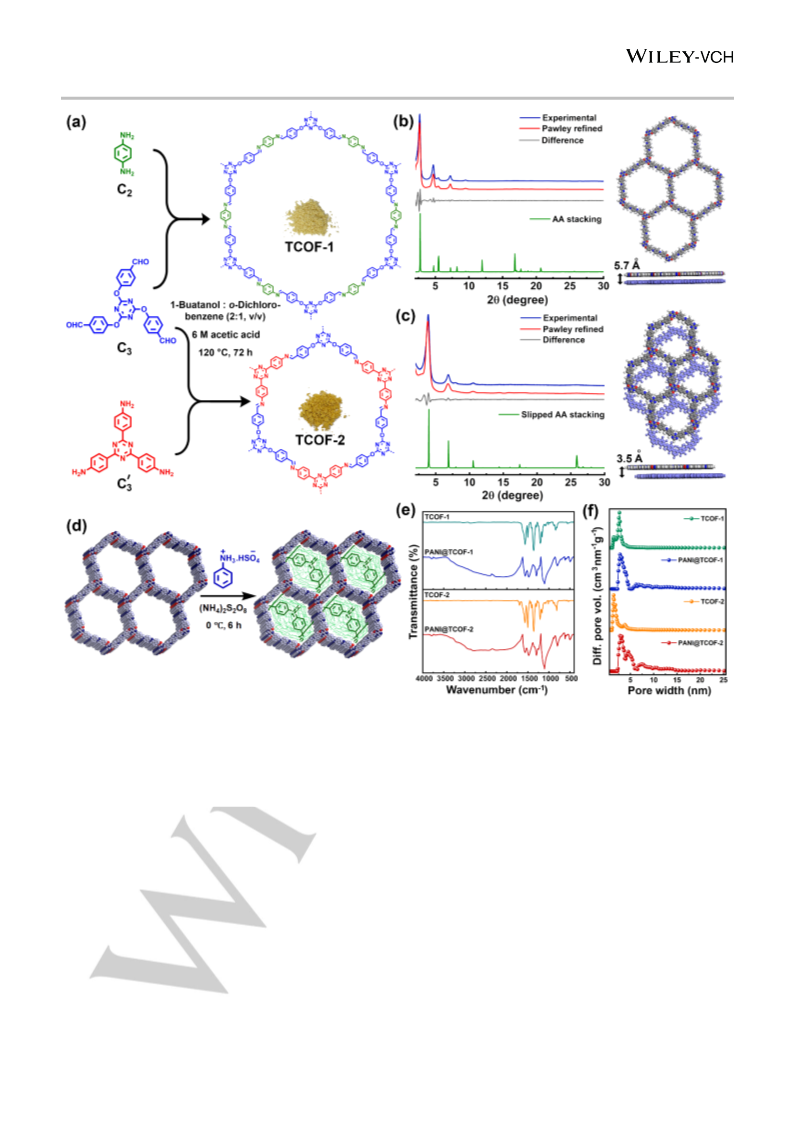

Fourier transform infrared (FTIR) spectroscopy was used to
confirm the formation of TCOFs and PANI@TCOFs. The
disappearance of the C=O (1704 cm-1) and N-H (3460-3210 cm-
1) stretching bands indicated the consumption of aldehyde and
amino groups of the monomers (Figure S1). Whereas, the
appearance of the C=N stretching band at 1622-1626 cm-1
confirmed the imine bond formation in TCOFs via condensation
reaction (Figure S1). Similar stretching bands were observed in a
triazine-based model compound involving TFPOT and p-
phenylenediamine (Scheme S5, Figure S1). The FTIR spectra of
polyaniline-TCOF
composites
(PANI@TCOFs)
showed
characteristic benzenoid–quinonoid nitrogen vibration at 1568 cm-
and aromatic amine peak at 1298 cm-1 (Figure 1e, and S10).
1
The blue shift of characteristic bands of polyaniline (8-12 cm-1) in
composite materials ascertained the inclusion of polyaniline within
the TCOFs (Table S1).[26,27]

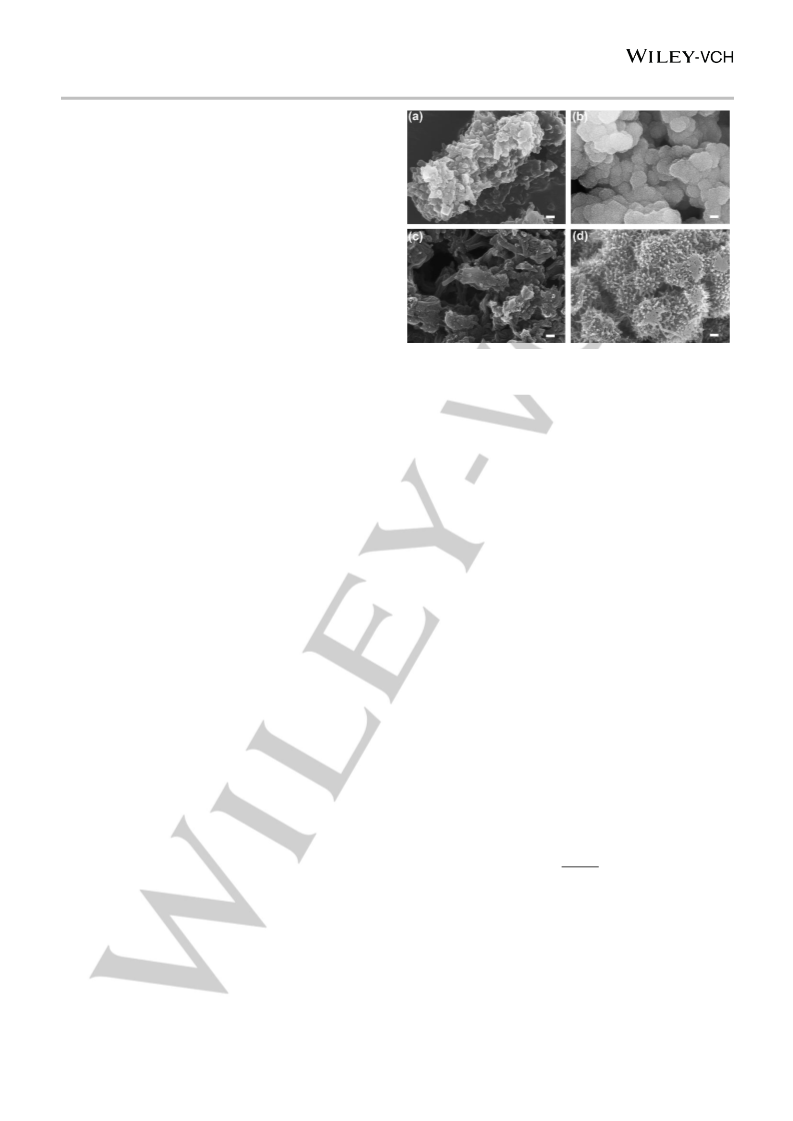

Figure 2. Field emission scanning electron microscopy (FESEM) images of a)
TCOFs were characterized by powder X-ray diffraction (PXRD)
analysis. The PXRD pattern of TCOF-1 showed an intense
diffraction peak at 2.68° attributed to the (100) plane (Figure 1b).
The other diffraction peaks appearing at 4.69°, 5.43°, 7.21°, and
9.46° corresponded to the (110), (200), (210), and (220) facets,
respectively. The PXRD profile of TCOF-2 exhibited a prominent
peak at 3.98° and relatively weak peaks at 6.87°, 7.96°, and
10.56°, which were indexed to (100), (110), (200), and (210)
facets, respectively (Figure 1c). The experimental PXRD pattern
accorded well with the simulated pattern based on the AA
stacking for TCOF-1 and slipped AA stacking for TCOF-2 (Figure
1b, 1c, and S2, S3). Pawley refinement of experimental PXRD
data using Materials Studio (version 6.1) resulted in the unit cell
parameters of a = 37.4 Å, b = 37.9 Å, c = 5.7 Å, and α = 90.7°, β
= 90.4°, γ = 117.1° for TCOF-1. The unit cell parameters of TCOF-
2 were found to be a = 26.2 Å, b = 26.3 Å, c = 3.5 Å, and α =90.2°,
β = 89.5°, γ = 120.6°. The interlayer spacings of 5.7 and 3.5 Å
corresponding to (001) plane were observed at 2θ = 16.6° and
25.8° for TCOF-1 and TCOF-2, respectively (Figure 1b, 1c). The
PXRD data and the structural analysis of TCOF-1 and TCOF-2
were consistent with the earlier reports.[25] The suppression of the
high intensity peaks at low 2θ in PXRD suggests a lowering of the
crystallinity in PANI@TCOFs (Figure S4).
TCOF-1, b) TCOF-2, c) PANI@TCOF-1, and d) PANI@TCOF-2; scale = 200
nm.
TCOF-1 and fused flake-like morphology for TCOF-2 (Figure 2a,
2b).
A distinctly different morphology was noticeable for
PANI@TCOFs compared to the pristine TCOFs (Figure 2c, 2d).
PANI@TCOF-1 and PANI@TCOF-2 showed the well-distributed
intricate network structure attributing to polyaniline loading with
the porous framework. PANI@TCOF-2 exhibited whisker-like
morphology of polyaniline that grew over the framework of TCOF-
2, resulting in faster ion diffusion through the nanochannels.[26]
The transmission electron microscopy (TEM) images of TCOFs
and PANI@TCOFs further revealed the porous nature of the
frameworks (Figure S8).
The heteroatom rich porous framework structure of TCOFs and
PANI@TCOFs motivated us to explore the electrochemical
performance of TCOFs and PANI@TCOFs as active electrode
materials
for
supercapacitors.
The
electrochemical
measurements were carried out using a typical three-electrode
electrolytic cell with 1 M H2SO4 as an aqueous electrolyte. TCOFs
and PANI@TCOFs were coated on a platinum-foil and used as
the working electrode. A platinum wire and saturated calomel
electrode (SCE) were employed as the counter and reference
electrodes, respectively. The dispersion of composite
PANI@TCOF, PVDF binder, and acetylene black (mass ratio of
3:1:1) was drop-casted, having the PANI content on the working
electrode as 30-32 wt%. The electrochemical performances of the
electrodes were investigated by cyclic voltammetry (CV),
galvanostatic charge-discharge (GCD) measurements, and
electrochemical impedance spectroscopy (EIS).
Thermogravimetric analysis (TGA) profiles of TCOFs showed
high thermal stability up to 400 ℃ (Figure S5). The surface area
and porosity of TCOFs and PANI@TCOFs were estimated by the
nitrogen adsorption−desorption isotherms at 77 K (Figure S6 and
S7). The sorption curves of both TCOFs showed type-IV
isotherms (Figure S6a, S6c). The TCOF-1 sorption curves having
the H1 hysteresis loop indicated the cylindrical-like pore
channels.[28] The H4 hysteresis loop of TCOF-2 suggested the
The cyclic voltammetry was carried out at different scan rates,
and specific capacitance from the cyclic voltammograms was
calculated using the following equation.
presence
of
narrow
slit-shaped
pores.[28a]
The
Brunauer−Emmett−Teller (BET) specific surface area of TCOF-1
and TCOF-2 were found to be 1756 and 1110 m2 g−1, respectively.
The pore volumes were 1.64 cm3 g−1 for TCOF-1 and 0.85 cm3
g−1 for TCOF-2, estimated from the nitrogen adsorption amount at
P/P0 = 0.95 (Figure S6b, S6d). The uniform pore size distribution
(2.6 nm for TCOF-1; 1.4 and 3.9 nm for TCOF-2) was obtained
based on the non-local density functional theory (NLDFT) method.
The lowering of BET specific surface area and the changes in the
pore size distribution of PANI@TCOFs infer the successful
integration of PANI within the porous framework of TCOFs (Figure
1f, and S7).
퐼 . 푑퐸
∫
퐶푠 =
[1]
2휈푚퐸
Cs, I, ν, m, and E denote the specific capacitance, current, scan
rate, mass of active material deposited on the electrodes, and the
potential applied, respectively. Figure 3a and 3c depict the cyclic
voltammograms of PANI@TCOF-1 and PANI@TCOF-2,
respectively, recorded at different scan rates from 10 to 100 mV
s−1 in the potential window from 0 to 0.8 V. The CV curves of the
composite materials showed a rectangular shape featuring redox
peaks. As revealed from cyclic voltammograms, the capacitive
response was due to the combined effect of both electric double-
layer capacitance and pseudocapacitance (Figure S10c). Here,
