Tumor Environment-Responsive Hyaluronan Conjugated Zinc
Protoporphyrin for Targeted Anticancer Photodynamic Therapy
Shanghui Gao , Rayhanul Islam † and Jun Fang *
†
Faculty of Pharmaceutical Sciences, Sojo University, Ikeda 4-22-1, Nishi-ku, Kumamoto 860-0082, Japan;
g2031d01@m.sojo-u.ac.jp (S.G.); rayhanulislam88@gmail.com (R.I.)
*
†
Correspondence: fangjun@ph.sojo-u.ac.jp; Tel.: +81-96-326-4137
S.G. and R.I. contributed equally to this work.
Abstract: Targeted tumor accumulation, tumor environment responsive drug release, and effective
internalization are critical issues being considered in developing anticancer nanomedicine. In this
context, we synthesized a tumor environment-responsive nanoprobe for anticancer photodynamic
therapy (PDT) that is a hyaluronan conjugated zinc protoporphyrin via an ester bond (HA-es-ZnPP),
and we examined its anticancer PDT effect both in vitro and in vivo. HA-es-ZnPP exhibits high
water-solubility and forms micelles of ~40 nm in aqueous solutions. HA-es-ZnPP shows fluorescence
1
quenching without apparent O generation under light irradiation because of micelle formation.
2
1
However, O was extensively generated when the micelle is disrupted, and ZnPP is released.
2
Compared to native ZnPP, HA-es-ZnPP showed lower but comparable intracellular uptake and
cytotoxicity in cultured mouse C26 colon cancer cells; more importantly, light irradiation resulted
in 10-time increased cytotoxicity, which is the PDT effect. In a mouse sarcoma S180 solid tumor
model, HA-es-ZnPP as polymeric micelles exhibited a prolonged systemic circulation time and
the consequent tumor-selective accumulation based on the enhanced permeability and retention
ꢀ
ꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀ
ꢁꢂꢃꢄꢅꢆ
(EPR) effect was evidenced. Consequently, a remarkable anticancer PDT effect was achieved using
Citation: Gao, S.; Islam, R.; Fang, J.
Tumor Environment-Responsive
Hyaluronan Conjugated Zinc
HA-es-ZnPP and a xenon light source, without apparent side effects. These findings suggest the
potential of HA-es-ZnPP as a candidate anticancer nanomedicine for PDT.
Protoporphyrin for Targeted
Keywords: EPR effect; tumor targeting; photodynamic; hyaluronan; zinc protoporphyrin
Anticancer Photodynamic Therapy. J.
Pers. Med. 2021, 11, 136. https://doi.
org/10.3390/jpm11020136
1
. Introduction
Academic Editor: Hiroshi Maeda
Received: 29 January 2021
Targeted cancer therapy has been recognized as a key issue for achieving a successful
anticancer outcome and is becoming a trend for developing anticancer drugs. In the past
few decades, molecular target drugs designed to selectively inhibit the oncogene products
and other molecules involved in tumor growth have attracted attention, and many such
drugs get approved and used in clinics. However, the tumor heterogeneity, diversity, and
frequent mutation of tumor-related molecules largely limit the application and availability
Accepted: 12 February 2021
Published: 17 February 2021
Publisher’s Note: MDPI stays neutral
with regard to jurisdictional claims in
published maps and institutional affil-
iations.
of molecular target drugs [
molecular target drugs, personalized medicine or precision medicine has recently been
proposed to intensely focus on the major genes/molecules in a single cancer patient [ ].
1,2]. To solve these problems and to increase the efficacy of
3
This strategy is promising. However, there is still a long way to go, and extensive efforts
and costs are needed to achieve success.
Recently, an alternative tumor-targeting strategy has drawn considerable interest,
which targets the tumor tissues as a whole by using macromolecular drugs or nano-
Copyright: © 2021 by the authors.
Licensee MDPI, Basel, Switzerland.
This article is an open access article
distributed under the terms and
conditions of the Creative Commons
Attribution (CC BY) license (https://
creativecommons.org/licenses/by/
designed drugs, i.e., nanomedicine [
on the unique phenomenon of tumor vasculature’s pathophysiological nature called the
enhanced permeability and retention (EPR) effect [ ]. Compared to normal blood vessels,
4,5]. The principle of tumor tissue targeting is based
6–9
tumor blood vessels have larger fenestration along with high vascular permeability due to
the extensively produced vascular mediators such as nitric oxide (NO), bradykinin (BK),
vascular endothelial growth factor (VEGF), etc. These vascular mediators contribute to
4
.0/).
J. Pers. Med. 2021, 11, 136. https://doi.org/10.3390/jpm11020136
https://www.mdpi.com/journal/jpm

J. Pers. Med. 2021, 11, 136
2 of 15
macromolecules’ selective entry and accumulation in tumor tissues [
7–
9]. Furthermore,
because of the dysfunctional lymphatic recovery system in tumors, macromolecules accu-
mulated in tumor tissues could not be removed effectively, resulting in prolonged retention
times [7,10]. Thus, by using nanomedicines, one could achieve much higher tumor con-
centrations of drugs than using conventional low molecular drugs. At the same time, a
decreased distribution of nanomedicines in normal tissues could also be achieved because
nanomedicines could not cross normal blood vessels, a benefit of their larger size, which is
vastly different from conventional low molecular drugs that distribute indiscriminately
in normal tissues. Consequently, a superior antitumor effect, as well as greatly lowered
side effects, could be achieved for nanomedicines compared to conventional low molecular
anticancer drugs [4,5,9,11,12]. To date, many anticancer nanomedicines have been devel-
oped, some are approved in the clinic, and more are in clinical trials or under preclinical
evaluation [4,5,9].
Photodynamic therapy (PDT) is a promising therapeutic regimen for cancer. Singlet
1
oxygen ( O ) and other reactive oxygen species (ROS) generated from photosensitizers
2
(
PS) upon light irradiation, are the effector molecules of PDT [13,14]. Namely, a PS is first
administered, followed by irradiation using light with the appropriate wavelength, where
PS in the tumor is excited, and the energy is transferred to molecular oxygen to generate
1
1
O . As a group of highly reactive molecules, ROS, including O rapidly react with and
2
2,
damage different biomolecules, including proteins, DNA, and lipids, which leads to the
apoptosis of tumor cells [14]. Now PDT is already in use for the treatment of some cancers,
for example early-stage lung (bronchogenic) and superficial skin cancers [15–17]. However,
to achieve the ideal PDT effect, PS must be delivered selectively into the tumor, otherwise
an insufficient tumor concentration of PS will not generate enough ROS to kill cancer cells.
Also, an unpreferable distribution may induce adverse side effects. For overcoming this
drawback, EPR effect-based nano-designed PS is becoming popular for the targeted deliv-
ery of PS to tumor tissues. Many nano-platforms have been utilized to modify PS, including
polymer conjugates, polymer micelles, liposomes, and antibody-drug conjugates [18–21]
.
In our group, by utilizing zinc protoporphyrin (ZnPP) and pyropheophorbide-a as PS, we
have developed several polymeric micellar types of nanoprobes for PDT using different
polymers, including polyethylene glycol (PEG), styrene maleic acid copolymer (SMA),
N-(2-Hydroxypropyl) methacrylamide (HPMA) copolymer, and hyaluronan (HA), all of
which showed a superior tumor-selective accumulation and thus therapeutic effect in
different murine solid tumor models [22–27].
Among different polymers for preparing nanomedicines, HA as a natural polydis-
accharide composed of alternative repeating units of d-glucuronic acid and N-acetyl-d-
glucosamine, has attracted substantial interest as a biomaterial for medical applications as
well as drug delivery systems because of its high biocompatibility, non-immunogenicity,
non-toxicity, biodegradability, high water-solubility, and so on [28]. Many nanomedicines
or nanoparticles using HA have been reported for the treatment of various diseases, includ-
ing cancer and inflammatory diseases [29,30]. In our laboratory, we previously developed a
HA conjugated ZnPP through an amide bond (HA-ZnPP), which formed micelles of 156 nm
in aqueous solutions [27]. The micelle formation was relatively stable in physiological
solution (e.g., circulation), and thus accumulated in tumors more selectively than free
ZnPP [27]. Subsequently, after being taken up by tumor cells, the micelle formation was
disrupted by lipid components in the cell membrane (i.e., lecithin), consequently fulfilling
tumoricidal activity under xenon light irradiation [27]. However, compared to native
ZnPP, the in vivo therapeutic effect of HA-ZnPP was not significantly improved, which
is considered mostly due to its much lower rate of internalization than native ZnPP [27].
Namely, because of the stable uncleavable amide bond, HA-ZnPP could not release free
ZnPP in tumors, thus remaining as a micelle, which quenched the activity of PS (ZnPP)
and hindered ROS generation. It is thus of necessity and reasonable to further improve the
therapeutic efficacy of HA-ZnPP by modulating the release of free ZnPP in tumor tissues.

J. Pers. Med. 2021, 11, 136
3 of 15
In this context, tumor environment responsive release of free drugs from nanomedicines
is known as a key issue for the design of anticancer nanomedicines. One focus is on the pH
of tumor tissues that is weakly acidic (6~7) compared to the neutral pH (~7.4) of normal
tissues [31,32]. Utilization of acidic pH-responsive chemical bonds such as the hydrazone
bond is becoming a consensus for the development of anticancer nanomedicines, which
have been proven to be an excellent strategy with high tumor targeting and therapeutic
efficacy by many research groups and by using different polymers and drugs [12
other strategy focuses on the proteases in tumors. It is known that many tumors exhibit
high levels of various proteinases, such as cathepsin B, cathepsin K, and esterase [13 34].
Thus, a protease/esterase-sensitive linker can be used to increase the tumor-specific release
of free drugs, which has been proven as an effective approach in many studies [34 35]. As
,33]. An-
,
,
a proof of concept, in previous studies, we compared PEGylated ZnPP (PEG-ZnPP) with
different chemical bonds (i.e., ester bond, ether bond, and amide bond) for the release
properties under different conditions and in different tissues, including cancer [36]. The
results clearly showed that PEG-ZnPP with ether bond and amide bond rarely released
ZnPP derivatives in tumors as well as normal tissues, whereas, in the case of PEG-ZnPP
with ester bond, cleaved ZnPP derivatives became the major components in the tumor but
not in normal tissues except for liver due to its high esterase expression [36]; consequently,
this tumor-responsive cleavage of the free drug resulted in a much stronger anticancer
effect than those PEG-ZnPP with ether and amide bonds [36].
Along this line, in this study, we designed and synthesized a HA conjugated ZnPP via
ester bond (HA-es-ZnPP) and investigated its potential as a nanoprobe for tumor-targeted
PDT, especially focusing on its tumor environment-responsive release properties. Also, the
tumor imaging capacity of HA-es-ZnPP toward anticancer theranostics was evaluated and
is discussed here.
2. Materials and Methods
2.1. Materials
HA with a mean molecular weight of 30,000 (polydispersity index of 1.212) was
purchased from MRC polysaccharide Corp., Ltd (Toyama, Japan). RPMI 1640 medium, 4-
dimethylaminopyridine (DMAP) isoflurane, 3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetra-
zolium bromide (MTT), Tween 20, sodium dodecyl sulfate (SDS) and zinc acetate were pur-
chased from Wako pure chemical (Osaka, Japan). Protoporphyrin IX (PP) and cetyltrimethy-
lammonium bromide (CTA) were from Sigma-Aldrich Chemical (St. Louis, MO, USA).
Water-soluble carbodiimide (WSC) was purchased from Dojindo Laboratory, Kumamoto,
Japan. Additionally, 2,2,6,6-Tetramethyl-4-piperidone (4-oxo-TEMP) was purchased from
Tokyo Chemical Industry (Tokyo, Japan). Esterase from porcine liver was purchased from
Roche Diagnostics GmbH (Mannheim, Germany). The other reagents and solvents of a
reagent grade were from commercial sources and were used without further purification.
2.2. Synthesis of HA Conjugated ZnPP via Ester Bond (HA-es-ZnPP)
Cetyltrimethylammonium salt of HA (CTA-HA) was first synthesized according to
a previous report [37] with some modifications. Briefly, 110 mg of CTA bromide was
◦
dissolved in 1.5 mL of deionized water at 40 C, to which an aqueous solution of HA
(
100 mg, 0.5% w/v) was added dropwise. The white precipitate thus formed was collected
after centrifugation (10,000 g, 5 min), and washed three times with 40 mL of hot water,
×
and finally dried under vacuum.
ZnPP was prepared by inserting zinc into PP as described previously [38]. In brief,
a 10-time molar excess of zinc acetate was added to PP in dimethyl sulfoxide (DMSO)
◦
and stirred at 60 C for 24 h. After cooling, cold deionized water was added 5-fold to the
volume of DMSO to precipitate the product ZnPP, which was purified by centrifugation to
remove excess zinc acetate and washed thrice with cold deionized water.
CTA-HA obtained as described above was dissolved in 20 mL of DMSO, and 10 mg of
ZnPP that was dissolved in 1 mL of DMSO was added dropwise, then DMAP (500 mg)

J. Pers. Med. 2021, 11, 136
4 of 15
and WSC (500 mg) were added to the reaction mixture. The reaction was continued for
◦
3
days at 50 C. The solution was then subjected to dialysis using a dialysis bag with an
average cutoff of 8000 (Wako) against a 1:1 (v/v) sodium phosphate buffer (0.3 M, pH = 7.4):
DMSO mixture for 1 day, then against 5% sodium bicarbonate for 1 day, and finally against
deionized water for 1 day. Each solvent was changed every 8 h. The solution was then
lyophilized to give a brown powder. Figure 1 shows the synthetic scheme of HA-es-ZnPP.
During the reaction, high-performance liquid chromatography (HPLC) was performed to
monitor the reaction by using LC-2000Plus series HPLC system (JASCO, Tokyo, Japan)
with an Asahipak GF-310 HQ column (7.5
a mobile phase of 70% methanol/30% DMSO with 0.001% trifluoroacetic acid (Wako) at a
flow rate of 0.8 mL/min, the eluate was monitored at 415 nm for ZnPP.
×
300 mm) (Showa Denko, Tokyo, Japan). Using
Na+
O-
Na+
HO
O
O-
OH
O
OH
N
HN
N
O
O
O
O
O
O
O
O
OH
NH
OH
OH
OH
n
HO
OH
OH
O
HA
PP
O
O
CTA-Br
Zinc acetate
o
60
o
C, 24 h
40 C
CTA
O-
O-
CTA
OH
O
OH
HO
O
O
N
N-
N
O
O
O
O
O
O
O
OH
Zn
OH
OH
OH
n
N-
OH
OH
HO
CTA-HA
O
O
O
ZnPP
DMAP, WSC
50 C, 3 days
o
Ionic exchange of CTA by using sodium
phosphate buffer/DMSO followed by
successive dialysis
Free ZnPP
RT = 7.940 min
HO
O
N-
N
HA-es-ZnPP
RT = 5.453 min
Zn
N
N-
O
0
5
10
Elution time (min)
O-
CTA
O
O
O-
CTA
OH
O
O
O
O
O
O
O
O
OH
OH
OH
OH
n
OH
OH
O
O
HA-es-ZnPP
Figure 1. Synthesizing protocol of hyaluronan (HA) conjugated ZnPP through ester bond (HA-es-
ZnPP). Inset shows the gel permeation chromatograph of HA-es-ZnPP and free ZnPP, by using a
high-performance liquid chromatography (HPLC) system with an Asahipak GF-310 HQ column.
2.3. Characterization of HA-es-ZnPP
2.3.1. UV–Visible Spectrophotometry and Fluorescence Spectroscopy
UV/vis absorption spectra and fluorescence spectrum of ZnPP and HA-es-ZnPP were
measured by a spectrophotometer (Hitachi U-3900, Tokyo, Japan), and a spectrofluorometer
model FP-6600 (Jasco Corp., Tokyo, Japan), respectively. For spectroscopy, the sample
solution was excited at 420 nm, and emissions from 550 to 700 nm were recorded.
2.3.2. Determination of the ZnPP Content in HA-es-ZnPP
Standard ZnPP solutions at 0.05–1 mg/mL and HA-es-ZnPP (1 mg/mL) were pre-
pared in DMSO. The standard curve of ZnPP was then created by measuring the absorbance
of samples at 421 nm (absorption maximum of ZnPP), and the content of ZnPP in HA-es-
ZnPP was calculated according to the standard curve.

J. Pers. Med. 2021, 11, 136
5 of 15
2
.3.3. Dynamic Light Scattering (DLS) and Zeta Potential
HA-es-ZnPP was dissolved in phosphate-buffered saline (PBS) at 5 mg/mL and
filtered through a 0.45 m filter. The particle size and surface charge (zeta potential) were
µ
measured by using an electrophoretic light-scattering analyzer (ELS-Z2, Otsuka Electronics
Co., Ltd., Osaka, Japan).
2.4. Release of ZnPP from HA-es-ZnPP
To investigate the release of ZnPP from HA-es-ZnPP conjugate, HA-es-ZnPP of
mg/mL was dissolved in a 0.2 M sodium phosphate buffer (PB) of different pHs (i.e.,
.5, 7.4, 8.5) with 0.5% Tween 20. For the study of an enzymatic effect on drug release,
5
6
porcine liver esterase solution (10 units/ml) was added to a HA-es-ZnPP solution in a
pH 7.4 PB buffer with 0.5% Tween 20. In some experiments, HA-es-ZnPP was added to
1
00% fetal bovine serum (FBS) or supernatant of tumor homogenate from mouse sarcoma
S180 as described below, to the final concentration of 5 mg/mL. All samples (each of
5
mL) were then placed in dialysis tubes with a cutoff of ~8000 Da and were dialyzed
◦
against PBS (25 mL) with shaking (1 Hz) at 37 C. At each indicated time point, 0.1 mL
of the solution outside the dialysis bag was collected, which was diluted by 2 mL DMSO
followed by fluorescence measurement as described above. The amount of released ZnPP
was quantified according to a standard curve using standard ZnPP samples.
O Generation from HA-es-ZnPP as Measured by Electron Spin Resonance
2
(
ESR) Spectroscopy
HA-es-ZnPP (40
µg/mL ZnPP equivalent) was dissolved in PBS with/without 0.5%
Tween 20, to which 20 mM of 4-oxo-TEMP (spin trapping agent) was added. Samples were
placed in a flat quartz cell (Labotec, Tokyo, Japan), and then subjected to light irradiation,
using a xenon light source (MAX-303; Asahi Spectra Co. Ltd., Tokyo, Japan) at a wavelength
of 400–700 nm. The ESR spectra were recorded by using a JEOL JES FA-100 spectrometer
◦
(
Tokyo, Japan) at 25 C, with a microwave power of 1.0 mW, amplitude of 100 kHz, and
field modulation width of 0.1 mT.
2
.5. Intracellular Uptake of HA-es-ZnPP
5
Mouse colon cancer C26 cells were seeded in a 12-well plate (5
×
10 cells/well).
After overnight pre-incubation, 20 µg/mL (ZnPP equivalent) of ZnPP dissolved in DMSO,
or HA-es-ZnPP dissolved in PBS was added to the cells. After washing thrice with cold
PBS at the scheduled time point, the cells were harvested, collected, and sonicated (30 W,
3
0 s, Dr.Hielscher, UP50H homogenizer, tip drip type) in ethanol on ice, followed by
centrifugation (10,000 g, 5 min). The amount of ZnPP/HA-es-ZnPP in the supernatant
was quantified by measuring fluorescence intensity as described above.
×
2.6. In Vitro Cytotoxicity Assay
Mouse colon cancer C26 cells were maintained in RPMI-1640 medium supplemented
with 10% fetal bovine serum (FBS, Nichirei Biosciences Inc.,Tokyo, Japan) under 5%
◦
CO /air at 37 C. For cytotoxicity assay. Cells were seeded in 96-well plates (3000 cells/well).
2
After overnight incubation, HA-es-ZnPP or free ZnPP of different concentrations was
added, and the cells were cultured for 24 h. Irradiation was then carried out by using
fluorescent blue light with a peak emission at 420 nm (TL-D; Philips, Eindhoven, The
2
2
Netherland), at a total energy of 1.0 J/cm (3.3 mW/ cm , 5 min). After a further 24 h of
culture, cell viability was measured by MTT assay.
2.7. In Vivo Tissue Distribution of HA-es-ZnPP
Male ddY mice that were 6 weeks old were purchased from SLC Inc., Shizuoka, Japan.
◦
All animals were maintained at 22
±
1 C and a 55%
±
5% relative humidity, with a 12-h
light/dark cycle. All of the experiments were approved by the Animal Ethics Committees

J. Pers. Med. 2021, 11, 136
6 of 15
of Sojo University (no. 2020-P-009, approved on April 01, 2020) and were carried out
according to the Laboratory Protocol for Animal Handling of Sojo University.
A mouse sarcoma S180 solid tumor model was established by injecting S180 cells
6
(
2
×
10 ) that were maintained in the ascitic form in the ddY mice into the dorsal skin of
the ddY mice. After 10-12 days of tumor cell inoculation, when the tumor grew to ~10 mm
in diameter, HA-es-ZnPP (5 mg/kg, ZnPP equivalent) dissolved in physiological saline
was injected intravenously (i.v.) via the tail vein. For comparison, free ZnPP (5 mg/kg) that
was dissolved in 0.01 N NaOH with 10% DMSO was injected i.v. At 24 h after i.v. injection,
mice were killed, and tumors as well as normal tissues (e.g., liver, spleen, kidney, etc.) were
collected. Tissues were first subjected to fluorescence imaging using IVIS XR (Caliper Life
Science, Hopkinton, MA, USA) with Ex-420 nm/Em-DsRed. Then, to 100 mg of each tissue,
1
1
mL of DMSO was added, followed by homogenization. After centrifugation (10,000× g,
0 min), the extracted HA-es-ZnPP in the supernatant was quantified by fluorescence
intensity (Ex 420 nm/Em 630 nm).
2.8. In Vivo Antitumor Activity of HA-es-ZnPP
Mouse sarcoma S180 solid tumor model, as described above, was used in this assay. At
–10 days after tumor inoculation, when the diameters of the tumors became 8–10 mm, HA-
7
es-ZnPP dissolved in physiological saline at indicated concentrations was administered i.v.
Physiological saline was used for control mice. At 24 and 48 h after injection of HA-es-ZnPP,
irradiation to the tumors was carried out using xenon light (MAX-303; Asahi Spectra) at
2
4
(
00–700 nm for 5 min (36 J/cm ), under anesthesia with isoflurane gas. The tumor volume
3
2
mm ), which was calculated as (W
the tumor, and body weight of mice were recorded every 2–3 days during the study period.
×
L)/2 by measuring the width (W) and length (L) of
2.9. Statistical Analyses
All data were expressed as means
±
SD. Statistical analyses were performed by using
GraphPad Prism 8.0 (GraphPad Software, Inc. La Jolla, CA, USA). Data were analyzed by
using ANOVA followed by the Bonferroni correction for multiple comparisons (p-value
was corrected by multiplying it by the number of comparisons), and unpaired Student’s
t-test for dual comparisons. A difference was considered to be statistically significant when
p < 0.05.
3. Results
3.1. Synthesis and Characterization of HA-es-ZnPP
HA-es-ZnPP was synthesized by using the carboxyl group of ZnPP and hydroxyl
group of HA, which forms an ester bond (Figure 1). Gel permeation chromatograph using
a HPLC system with an Asahipak GF-310 HQ column as described above, showed a
single peak of the product HA-es-ZnPP with a retention time of 5.453 min, whereas ZnPP
exhibited a retention time of 7.940 min (inset of Figure 1), suggesting the completion of the
conjugation.
The resulted HA-es-ZnPP had a ZnPP loading of 10% (wt/wt, 5–6 ZnPP units in one
HA molecule) based on absorbance of ZnPP at 421 nm in DMSO, and showed very good
water-solubility (>20 mg/mL). In an aqueous solution, HA-es-ZnPP showed an average
particle size of 41.2 nm by DLS with a polydispersity index of 0.012 (Figure 2A), and the
zeta potential of HA-es-ZnPP was
of HA-es-ZnPP in which ZnPP creates the hydrophobic core and hydrophilic HA forms
the outer surface, as similarly seen in other examples of polymeric ZnPP reported in our
−
37.12 mV. These results indicated the micelle formation
previous studies [24,26,27,38–40]. The decreased absorbance of ZnPP supported the micelle
formation in PBS compared to that in DMSO (Figure 2B). More pieces of evidence were
obtained by quenching of fluorescence from HA-es-ZnPP in an aqueous solution (i.e., PBS)
compared to the strong fluorescence of DMSO solution of HA-es-ZnPP (Figure 2C,D). The
micelle formation would be disrupted by detergent SDS and Tween 20 in a concentration-
dependent manner, as evidenced by the increased fluorescence (Figure 2C,D). However, no

J. Pers. Med. 2021, 11, 136
7 of 15
apparent change was found in the presence of urea (Figure 2E). These findings suggested
the micelle was formed mostly by the hydrophobic interactions, but hydrogen bond is not
involved. Moreover, increased fluorescence intensity was found in the presence of 10%
FBS, but an increase of FBS concentration did not result in a further increase of fluorescence
intensity (Figure 2E), suggesting that micelle formation could be partially disrupted in
the circulation.

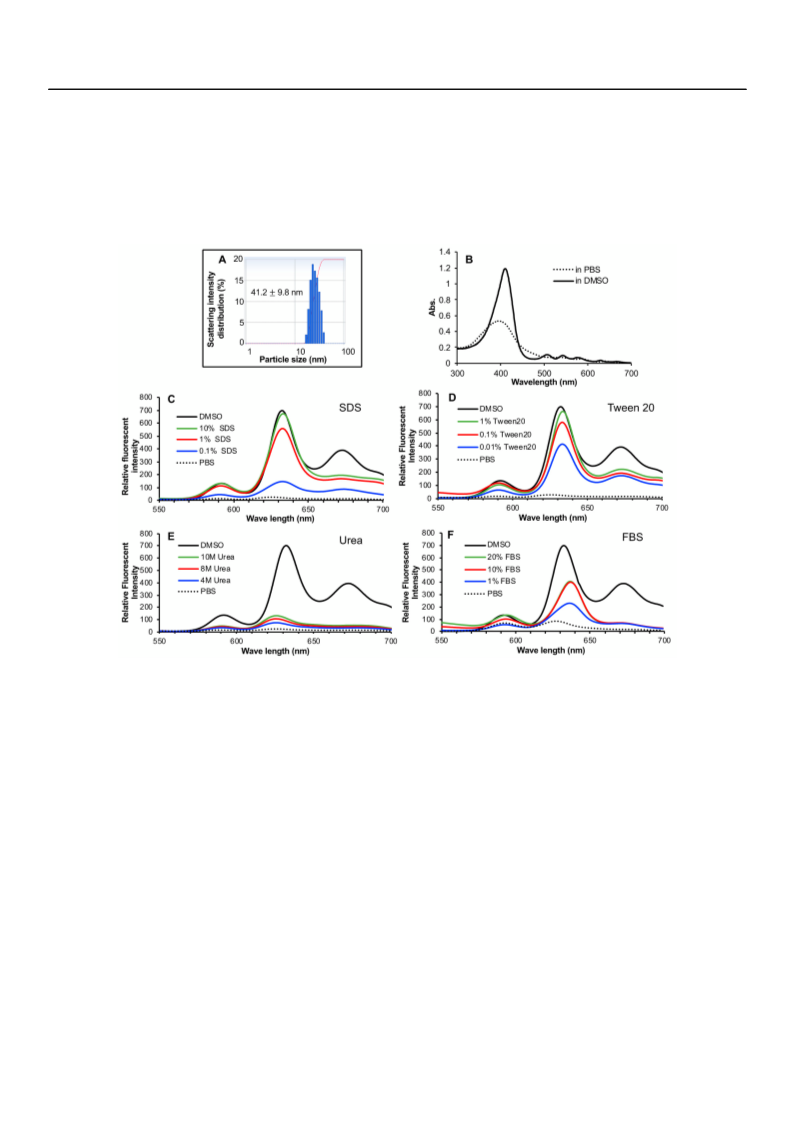

Figure 2. Micelle formation of HA-es-ZnPP. HA-es-ZnPP showed a hydrodynamic diameter in physiological saline of
1.2 nm, as measured by DLS ( ). The micelle formation was supported by decreased absorbance as seen in UV/vis
spectra ( ), and more importantly, fluorescence quenching, the fluorescence intensity of HA-es-ZnPP in PBS was almost
undetectable compared to that in DMSO ( ). The micelle formation could be effectively disrupted by detergent SDS (
and Tween 20 ( ), as evidenced by increased fluorescence, but it could not be affected by urea ( ). Increased fluorescence
intensity/disruption of micelles was also found in the presence of FBS (F). See text for details.
4
A
B
C
,D
C)
D
E
3
.2. Release Profiles of HA-es-ZnPP
As shown in Figure 3, in PB of physiological pH (7.4) and weak acidic pH (6.5), almost
no release of ZnPP from HA-es-ZnPP was found till 12 h, while the release reached to
.7–1.4% in 36 h. However, in the presence of esterase, a significant increase of ZnPP
0
release was triggered; almost 10% of ZnPP was released in 36 h (Figure 3), which is another
side supported that ZnPP was conjugated to HA via an ester bond. In parallel with this
finding, in 100% FBS, which is known to exhibit esterase activity [41], increased release
was observed, which were 6.5% and 8.6% in 24 h and 48 h, respectively (Figure 3). More
importantly, when HA-es-ZnPP was incubated in the homogenate of mouse solid tumor
(
S180), relatively high levels of ZnPP release were achieved, e.g., 3.5% after 36 h incubation
which is about 3-time higher that in PB (Figure 3), suggesting a preferable release behavior
of HA-es-ZnPP in the tumor site.

J. Pers. Med. 2021, 11, 136
8 of 15
1
1
2
0
8
6
4
2
0
FBS
PB with esterase
Tumor homogenate
PB (pH 6.5)
PB (pH 7.4)
0
6
12
18
24
30
36
Time after incubation (h)
Figure 3. ZnPP release from HA-es-ZnPP at different conditions. In sodium phosphate buffer, almost
no ZnPP was released from the conjugate at both physiological pH and weak acidic pH up to 12 h.
Much rapid release of ZnPP occurred in presence of either esterase or FBS having esterase activities.
A relatively high level of ZnPP release was also found in tumor homogenate.
1
3
.3. Generation of O from HA-es-ZnPP after Light Irradiation
2
1
The capacity of HA-es-ZnPP to generate O was evaluated by means of ESR spec-
2
troscopy under light irradiation using a xenon light source. Similar to our previous studies
of polymeric ZnPP using HPMA copolymer [24
,
27], as the micelle form in aqueous so-
1
lution (i.e., PBS), no apparent generation of O was observed even after 6 min of light
2
irradiation (Figure 4). However, when micelle formation was disrupted in the presence of
1
0
.5% of Tween 20, a strong ESR signal of O was found in an irradiation time-dependent
2
manner (Figure 4). These findings agree with those of fluorescence spectroscopy showing
fluorescence quenching in PBS and appearance of fluorescence in Tween 20 (Figure 2D).
In PBS
In 0.5% Tween 20
Times after
light irradiation
6
min
4
min
2
min
0
min
Figure 4. Electron Spin Resonance (ESR) spectra of HA-es-ZnPP in phosphate-buffered saline (PBS)
1
in the presence/absence of Tween 20 under light irradiation. O generation from HA-es-ZnPP was
2
1
captured by 4-oxo-TEMP, and triplet 4-oxo-TEMP signal as the indicator of O was detected by ESR
2
1
spectra. In the presence of Tween 20, a relatively high level of O generation was observed in an
2
1
irradiation time-dependent manner, whereas no O generation occurred in PBS without Tween 20,
2
in which HA-es-ZnPP behaves as micelles.

J. Pers. Med. 2021, 11, 136
9 of 15
3.4. Intracellular Uptake of HA-es-ZnPP
Free ZnPP was rapidly and extensively internalized into C26 colon cancer cells as early
as 1 h after incubation and maintained similar levels for up to 8 h (Figure 5A). Compared
to free ZnPP, HA-es-ZnPP exhibited a slower but constant uptake by C26 cells, at 8 h
after incubation, the intracellular fluorescence from internalized ZnPP in cells treated with
HA-es-ZnPP was one-third of that in free ZnPP treated cells (Figure 5A).
A
B
2
2
1
1
50
1
00
90
HA-es-ZnPP
Free ZnPP
HA-es-ZnPP
00
50
00
8
7
6
5
0
0
0
0
HA-es-ZnPP (light)
40
ZnPP
3
0
5
0
0
20
ZnPP (light)
1
0
0
0
.3
3
30
I h
2 h
4 h
8 h
Concentration (μg/ml ZnPP equivalent)
Time after incubation (h)
Figure 5. Intracellular uptake (
or HA-es-ZnPP (20
HA-es-ZnPP was detected and quantified by measuring fluorescence intensity. (
A
) and in vitro cytotoxicity (B) of HA-es-ZnPP in C26 colon cancer cells. (A), free ZnPP
µ
g/mL ZnPP equivalent) was added to C26 cells for the indicated time. The intracellular ZnPP or
B
), free ZnPP or HA-es-ZnPP at different
concentrations was added into the cells, and the cells were treated for 48 h. In a separate plate, cells were irradiated by
2
using fluorescent blue light (1.0 J/cm , 5 min irradiation) at 24 h after HA-es-ZnPP treatment followed by further 24 h
incubation. The cell viability was then measured by MTT assay. Data are mean ± SD.
3.5. In Vitro Cytotoxicity of HA-es-ZnPP
In vitro cytotoxicity of HA-es-ZnPP was examined in a C26 colon cancer cell line. As
shown in Figure 5B, without light irradiation, ZnPP per se showed a cell-killing effect
with an inhibitory concentration (IC ) of 12.5 g/mL, whereas a more than 15-time
µ
50
increased cytotoxicity was achieved after light irradiation, indicating a remarkable PDT
effect. Compared to free ZnPP, HA-es-ZnPP itself exhibited lower cytotoxicity with an IC50
of 50
µg/ml (ZnPP equivalent). However, after light irradiation, significantly increased
cytotoxicity (IC50 of 4.5
µg/mL) was observed, which is 10-fold higher than that of HA-es-
ZnPP per se (Figure 5B). These results are parallel with the findings of intracellular uptake
shown in Figure 5B.
3.6. In Vivo Tissue Distribution of HA-es-ZnPP after I.V. Injection
Tissue distribution of HA-es-ZnPP in mice bearing sarcoma S180 solid tumor at 24
h after i.v. administration of HA-es-ZnPP was shown in Figure 6. Compared with native
ZnPP which showed very low or negligible distribution in all tested tissues, including
tumor (Figure 7A), HA-es-ZnPP exhibited a significantly prolonged circulation time, while
the blood concentration of HA-es-ZnPP was 2.5-times more than that of ZnPP (Figure 7A).

J. Pers. Med. 2021, 11, 136
10 of 15
1
1
1
1
600
400
200
000
Tumor
HA-es-ZnPP
Free ZnPP
HA-es-ZnPP
Free ZnPP
8
6
4
2
00
00
00
00
0
*
**
*
*
Figure 6. In vivo tissue distribution of HA-es-ZnPP in S180 solid tumor-bearing ddY mice. HA-es-
ZnPP or free ZnPP was injected i.v. in the mice. After 24 h, mice were killed, and tissues, including
tumors were collected. Tissue samples were homogenated using DMSO, and extracted HA-es-ZnPP
or ZnPP in the supernatant was quantified by fluorescence spectroscopy. Inset shows the fluorescence
images of mice-tumors treated with free ZnPP or HA-es-ZnPP. The tumors were cut in the middle
of tumor nodules, and the cross-sectional views were shown. Data are mean
**, p < 0.001.
±
SD. **, p < 0.01;
*
More importantly, tumor accumulation of HA-es-ZnPP was 10-times higher than that
of free ZnPP (Figure 7A). Moreover, the amount of HA-es-ZnPP in the tumor was higher
than those in most of the normal tissues except the liver, which is rich in reticuloendothelial
systems and is the primary organ for the protoporphrin metabolism [24,39,42]. These
findings suggest a preferentially targeted delivery of HA-es-ZnPP in the tumor by taking
advantage of the EPR effect. The tumor-selective delivery of HA-es-ZnPP was also visual-
ized and confirmed by using fluorescence imaging involving detecting the fluorescence
from ZnPP, during which much-intensified fluorescence was detected in tumors from mice
treated by HA-es-ZnPP compared to those in free ZnPP treated mice (inset of Figure 6).
In addition, the pictures shown in the inset of Figure 6 were the cross-sectional view of
tumors, which clearly showed a strong fluorescence of HA-es-ZnPP in the core of the tumor
(
inset of Figure 6).
3.7. In Vivo Antitumor Effect of PDT Using HA-es-ZnPP
The in vivo therapeutic effect of PDT using HA-es-ZnPP was evaluated in a mouse
sarcoma S180 solid tumor model. Irradiation was carried out twice at 24 h and 48 h
2
after HA-es-ZnPP administration using a xenon light source, at 36 J/cm , which is a
relatively low irradiation dose [25]. By using this protocol, a dose-dependent PDT effect
was observed, i.e., one round of treatment resulted in a slight suppression of tumor growth,
whereas significantly delayed tumor growth was found when the treatment protocol was
repeated 3 times (Figure 7A). Moreover, three injections of HA-es-ZnPP alone without light
irradiation, or light irradiation alone without HA-es-ZnPP did not show apparent tumor
suppression (Supplemental data Figure S1). In addition, a weight gain but no loss of body
weight was observed in all groups during the treatment (Figure 7B).

J. Pers. Med. 2021, 11, 136
11 of 15
5
4
4
3
3
2
2
1
1
000
A
B
Control
Control
6
5
5
4
4
0
5
0
5
0
500
000
500
000
500
000
500
000
HA-es-ZnPP (5 mg/kg) × 1
HA-es-ZnPP (5 mg/kg) × 3
HA-es-ZnPP (5 mg/kg) × 3
HA-es-ZnPP (5 mg/kg) × 1
*
*
*
5
00
0
*
35
0
3
6
9
12
15
18
0
3
6
9
12 15 18
Days after treatment
Days after treatment
Figure 7. In vivo therapeutic effect of HA-es-ZnPP based PDT. In a mouse sarcoma S180 solid tumor model, HA-es-ZnPP (5
mg/kg, ZnPP equivalent) was injected i.v. when the tumor grew to 8–10 mm in diameter. At 24 and 48 h after injection of
HA-es-ZnPP, irradiation to the tumors was carried out using xenon light (MAX-303; Asahi Spectra) at 400–700 nm for 5 min
2
(
36 J/cm ). This treatment protocol was carried out 1 time or 3 times in different groups. The tumor volume (
A
) and body
) of mice were recorded every 2–3 days during the study period. Arrows indicate the PDT treatments. Data are
mean ± SD. *, p < 0.05; **, p < 0.01.
weight (
B
4. Discussion
For the development of anticancer nanomedicine, several critical issues must be con-
sidered. The first necessary step is the EPR effect-based tumor accumulation. For this
aim, nanomedicine must be stable enough in circulation to ensure there is a sufficient
circulation time that is essential for achieving the EPR effect. Otherwise, disruption of
unstable nano-formulation in circulation will result in similar behaviors to those of small
molecular drugs [10
,12,43]. In this context, HA-es-ZnPP behaves as micelles of ~40 nm
(Figure 2A) and maintains the stable micelle formation in an aqueous solution as evidenced
by the fluorescence quenching (Figure 2C,D). In the presence of FBS, though fluorescence
quenching was partly liberated, complete disruption of micelles was not seen (Figure 2F),
indicating HA-es-ZnPP could maintain at least a partially stable micelle formation in circu-
lation. As a consequence, relatively large amount of HA-es-ZnPP remained in circulation
compared to ZnPP at 24 h after i.v. injection, indicating a much longer blood half-life of
HA-es-ZnPP than native ZnPP (Figure 6). In accordance with this finding, HA-es-ZnPP
remarkably accumulated in the tumor, which showed a 10-times higher concentration than
that of native ZnPP (Figure 6). Moreover, when we cut the tumors, we found stronger fluo-
rescence (HA-es-ZnPP) in the tumor center than in the peripheral area (inset of Figure 6).
It is known that the core of tumors is usually poor in blood vessels with many necroses,
while the peripheral areas are actively growing parts with rich vasculature. This finding
suggests that HA-es-ZnPP could penetrate tumor tissue effectively after extravasation
from tumor blood vessels, which is probably due to its relatively small size (i.e., 40 nm)
as demonstrated by Kataoka’s group; smaller nano micelles (i.e., 30 nm) penetrate much
deeper into tumor tissues than larger micelles (i.e., 80 nm) [44]. Together, these findings
strongly indicate the preferable properties of HA-es-ZnPP as a nanomedicine to target
tumors by the EPR effect.
However, nanomedicine should quickly and effectively unload active pharmaceutical
ingredients (API) to fulfill a therapeutical effect after reaching the tumor in a way that
benefitted from the EPR effect. Otherwise, too stable nanomedicines with little API release

J. Pers. Med. 2021, 11, 136
12 of 15
in tumor sites will suffer from insufficient therapeutic activity [10
,12
,45]. In this context,
nanomedicines with tumor environment responsive linkers have attracted more and more
attention. Many strategies have been developed by utilizing, as examples, acidic pH-
sensitive bond (e.g., hydrazone bond) or a protease cleavable peptide linker [31,32,34,35],
as described above in “Introduction”. Besides, other strategies such as using magnetically
responsive peptide [46], thermosensitive nano-platform [47], and Arg-Gly-Asp (RGD)
linker [48] have been challenged which showed promising results. In the present study,
we focused on the relatively high esterase activity in tumors [36], and designed a HA
conjugated ZnPP with ester bond, i.e., HA-es-ZnPP. As expected, the covalent bond of
HA-es-ZnPP ensures little release of ZnPP in water solutions, but ZnPP release could be
triggered in the presence of esterase as well as FBS (Figure 3), indicating that HA-es-ZnPP
will release ZnPP in circulation and more importantly, in tumor tissues. However, it
should also be noted that the release of ZnPP in FBS was less than 10% in 36 h (Figure 3),
which again supported that HA-es-ZnPP behaves as a relatively stable nano-micelles in
circulation.
Intracellular uptake of API released from nanomedicines is also a critical matter for
achieving a satisfactory anticancer effect, because in most cases, entering the cell and
accessing the cellular components are necessary for anticancer drugs’ actions. Regarding
this issue, low molecular weight hydrophobic drugs usually show rapid and extensive
internalization. In contrast, most nano-drugs modified with hydrophilic polymers such
as PEG suffer from the low cellular absorption and thus therapeutic effect, as known as
“
PEG dilemma” [49]. Our previous studies also showed that polymer conjugated ZnPP
with covalent bonds exhibited much lower intracellular uptake than the corresponding
native drugs [24 50]. Given this situation, the release of API from nanomedicine in the
,
tumor site is an important matter of concern for developing anticancer nanomedicines,
as described above. By use of the ester bond, in this study, we found that although the
intracellular uptake of HA-es-ZnPP was slower and lower than free ZnPP, the uptake
increased gradually in a time-dependent manner, which reached a level of one-third of that
of ZnPP after 8 h (Figure 5). This result is partly parallel with the release profiles in the
presence of FBS (Figure 3), suggesting that effective internalization of active drug (ZnPP)
could be achieved in HA-es-ZnPP by benefiting from the esterase-dependent cleavage
of ester bond and release of ZnPP. In addition, it is well known that CD44, the primary
membrane receptor of HA, is highly expressed in many tumor cells [51]; thus, the CD44
mediated endocytosis may also contribute to the internalization of HA-es-ZnPP. As a
consequence, HA-es-ZnPP alone showed relatively potent cytotoxicity to tested cancer
cells with a IC50 of 50
µg/mL, which is one fourth the cytotoxicity of free ZnPP (12.5
µg/mL) (Figure 5B), and is much more potent than polymer conjugate of ZnPP using
uncleavable bonds previously developed in our laboratory (i.e., IC50 > 100
HPMA conjugated ZnPP) [24].
µg/mL for
More importantly, after light irradiation, the cytotoxicities of both free ZnPP and HA-
es-ZnPP were remarkably (10–15 times) augmented (Figure 5B). The increased cytotoxicity
1
was attributed to the generation of O , i.e., PDT effect, which was confirmed in ESR
2
measurement as indicated by the time-dependent intensified spin-polarized triplet signal
1
(
Figure 4). One concern about anticancer PDT is the off-target generation of toxic O ,
2
1
namely, generation of O in normal tissues will induce adverse side effects. This could be
2
substantially improved by nano-designed PS to target tumor tissue by taking advantage of
the EPR effect as discussed in “Introductions”. In this regard, HA-es-ZnPP, as a micellar
type nanomedicine, exhibited much higher accumulation in tumors than most normal
tissues, which could not be seen in case of small molecule free ZnPP (Figure 6). In addition,
1
interestingly, we found that HA-es-ZnPP in micellar form did not emit O as well as
2
fluorescence under light irradiation (Figures 2 and 4). This was probably due to a π–π
stacked structure of ZnPP in the core of micelles, in which excited fluorochrome dissipates
the energy [24]. This property will further ensure the safety of anticancer PDT using
HA-es-ZnPP. Namely, in circulation HA-es-ZnPP behaves mostly as micelles with relative

J. Pers. Med. 2021, 11, 136
13 of 15
1
stability, so no or largely reduced O will be generated under ambient light. During
2
circulation, HA-es-ZnPP will accumulate and retain in the tumor due to the EPR effect,
during which micelles will be gradually disrupted and free ZnPP is released and is then
taken up by tumor cells. The following light irradiation will thus trigger the generation
1
of O mostly in the tumor to fulfill the anticancer effect, whereas less side effects to
2
normal tissues and organs will be induced. Thus, the PDT using HA-es-ZnPP will confer a
superior therapeutic effect over conventional PDT using low molecular weight PS as well
the improved safety of the treatment and quality of life in patients. As expected, we found
significant suppression of tumor growth by PDT using HA-es-ZnPP (Figure 7A), whereas
we did not observe body weight loss in this treatment regimen that indicates no apparent
side effects (Figure 7B). It should be noted that the dose of HA-es-ZnPP (i.e., 5 mg/kg)
2
and intensity of light irradiation (36 J/cm ) are relatively low compared to many other
studies [25]; we thus believe the therapeutic effect could be optimized by modulating the
dosing/irradiation regimen which will be investigated in future studies.
Compared to other polymeric PS, HA-es-ZnPP also potentially has some other advan-
tages beyond the PDT effect. Besides the EPR effect-based tumor targeting and CD44-driven
tumor targeting as described above [52], HA could also work in a tumor microenvironment
to trigger the reprogramming of tumor-associated macrophages towards anti-tumor M1
type macrophages. Thus, a synergistic anticancer effect could be achieved using HA-based
nanomedicine [53]. Moreover, because of the extensive tumor accumulation of HA-es-ZnPP
(
Figure 6), it may become possible to visualize tumors, especially tiny metastatic tumor
nodules and disseminated cancer by using fluorescence imaging, as indicated in Figure 6
inset). Namely, HA-es-PDT could be a theranostic nanoprobe for PDT as well as for
(
photodynamic diagnosis, which warrants further investigations.
Taken together, in this study, we successfully synthesized a HA conjugated ZnPP via an
ester bond, (Figure 1), which exhibits high water-solubility and forms micelles in aqueous
solutions (Figure 2). As micellar formation, HA-es-ZnPP shows fluorescence quenching,
1
and O generation does not occur under light irradiation. However, it is extensively
2
generated when the micelle is disrupted, and ZnPP is released (Figure 4). On the other
hand, the micelle formation imposes a prolonged circulation time and tumor-selective
accumulation upon HA-es-ZnPP based on the EPR effect (Figure 6). Consequently, a
remarkable anticancer PDT effect is achieved both in vitro (Figure 5) and in vivo (Figure 7),
suggesting the potential of HA-es-ZnPP as a candidate anticancer nanomedicine for PDT.
Supplementary Materials: The following are available online at https://www.mdpi.com/2075-442
6/11/2/136/s1, Figure S1: Tumor environment-responsive hyaluronan conjugated zinc protopor-
phyrin for targeted anticancer photodynamic therapy.
Author Contributions: Conceptualization, J.F.; Data curation, S.G. and R.I.; Formal analysis, S.G.,
R.I., and J.F.; Funding acquisition, J.F.; Investigation, S.G., R.I., and J.F.; Methodology, S.G. and J.F.;
Project administration, J.F.; Resources, J.F.; Software, S.G.; Validation, S.G. and R.I.; Visualization, S.G.
and R.I.; Writing—original draft, J.F.; Writing—review & editing, R.I. and J.F. All authors have read
and agreed to the published version of the manuscript.
Funding: This research was funded by Japan Society for the Promotion of Science (JSPS) KAKENHI
grant number JP22700927 and JP25430162.
Institutional Review Board Statement: The animal study was conducted according to the guidelines
of the Laboratory Protocol for Animal Handling of Sojo University, and approved by the Animal
Ethics Committees of Sojo University (no. 2020-P-009, approved on 1 April 2020).
Informed Consent Statement: Not applicable.
Data Availability Statement: The data presented in this study are available on request from the
corresponding author.
Conflicts of Interest: The authors declare no conflict of interest.

J. Pers. Med. 2021, 11, 136
14 of 15
References
1
2
.
.
Vogelstein, B.; Papadopoulos, N. Cancer genome landscapes. Science 2013, 339, 1546–1558. [CrossRef] [PubMed]
Gerlinger, M.; Rowan, A.J. Intratumor heterogeneity and branched evolution revealed by multiregion sequencing. N. Engl. J. Med.
012, 366, 883–892. [CrossRef] [PubMed]
2
3.
4.
5.
6.
Cutler, D.M. Early returns from the era of precision medicine. JAMA 2020, 323, 109–110. [CrossRef] [PubMed]
Germain, M.; Caputo, F. Delivering the power of nanomedicine to patients today. J. Control. Release 2020, 326, 164–171. [CrossRef]
Lammers, T.; Ferrari, M. The success of nanomedicine. Nano Today 2020, 31, 100853. [CrossRef]
Matsumura, Y.; Maeda, H. A new concept for macromolecular therapeutics in can- cer chemotherapy: Mechanism of tumoritropic
accumulation of proteins and the antitumor agent smancs. Cancer Res. 1986, 46, 6387–6392.
7
8
9
1
1
1
.
.
.
Fang, J.; Nakamura, H. The EPR effect: Unique features of tumor blood vessels for drug delivery, factors involved, and limitations
and augmentation of the effect. Adv. Drug Deliv. Rev. 2011, 63, 136–151. [CrossRef]
Maeda, H. Toward a full understanding of the EPR effect in primary and metastatic tumors as well as issues related to its
heterogeneity. Adv. Drug Deliv. Rev. 2015, 91, 3–6. [CrossRef]
Fang, J.; Islam, W. Exploiting the dynamics of the EPR effect and strategies to improve the therapeutic effects of nanomedicines
by using EPR effect enhancers. Adv. Drug Deliv. Rev. 2020, 157, 142–160. [CrossRef]
0. Noguchi, Y.; Wu, J. Early phase tumor accumulation of macromolecules: A great difference in clearance rate between tumor and
normal tissues. Jpn. J. Cancer Res 1998, 89, 307–314. [CrossRef]
1. Duncan, R.; Vicent, M.J. Polymer therapeutics-prospects for 21st century: The end of the beginning. Adv. Drug Deliv. Rev. 2013
,
6
5, 60–70. [CrossRef] [PubMed]
2. Hare, J.I.; Lammers, T. Challenges and strategies in anti-cancer nanomedicine development: An industry perspec- tive. Adv. Drug
Deliv. Rev. 2017, 108, 25–38. [CrossRef] [PubMed]
13. Dolmans, D.E.; Fukumura, D. Photodynamic therapy for cancer. Nat. Rev. Cancer 2003, 3, 380–387. [CrossRef]
14. Wilson, B.C.; Can, J. Photodynamic therapy for cancer: Principles. Gastroenterology 2020, 16, 393–396. [CrossRef] [PubMed]
15. Tsukagoshi, S. Development of a novel photosensitizer, talaporfin sodium, for the photodynamic therapy (PDT). Gan Kagaku
Ryoho 2004, 31, 979–985.
1
1
6. Usuda, J.; Kato, H. Photodynamic therapy (PDT) for lung cancers. J. Thorac. Oncol. 2006, 1, 489–493. [CrossRef]
7. Del Duca, E.; Manfredini, M. Daylight Photodynamic Therapy with 5-aminolevulinic acid 5% gel for the treatment of mild-to-
moderate inflammatory acne. G Ital. Derm. Venereol. 2019, 12.
1
8. Sibani, S.A.; McCarron, P.A. Photosensitiser delivery for photodynamic therapy. Part 2: Systemic carrier platforms. Expert Opin.
Drug Deliv. 2008, 5, 1241–1254. [CrossRef]
1
9. Nishiyama, N.; Morimoto, Y. Design and development of dendrimer photosensitizer-incorporated polymeric micelles for
enhanced photodynamic therapy. Adv. Drug Deliv. Rev. 2009, 61, 327–338. [CrossRef]
20. Ghosh, S.; Carter, K.A. Liposomal formulations of photosensitizers. Biomaterials 2009, 218, 119341. [CrossRef]
21. Kobayashi, H.; Choyke, P.L. Near-Infrared Photoimmunotherapy of Cancer. Acc. Chem. Res. 2019, 52, 2332–2339. [CrossRef]
22. Regehly, M.; Greish, K. Water-soluble polymer conjugates of ZnPP for photodynamic tumor therapy. Bioconjug. Chem. 2007, 18,
4
94–499. [CrossRef]
2
2
2
2
2
2
2
3
3
3
3
3. Iyer, A.K.; Greish, K. Polymeric micelles of zinc protoporphyrin for tumor targeted delivery based on EPR effect and singlet
oxygen generation. Drug Target 2007, 15, 496–506. [CrossRef]
4. Nakamura, H.; Liao, L. Micelles of zinc protoporphyrin conjugated to N-(2-hydroxypropyl) methacrylamide (HPMA) copolymer
for imaging and light- induced antitumor effects in vivo. J. Control. Release 2013, 165, 191–198. [CrossRef]
5. Fang, J.; Liao, L. Photodynamic therapy and imaging based on tumor-targeted nanoprobe, polymer-conjugated zinc protopor-
phyrin. Future Sci. OA 2015, 1. [CrossRef]
6. Fang, J.; Šubr, V. N-(2-hydroxypropyl) methacrylamide polymer conjugated pyropheophorbide-a, a promising tumor-targeted
theranostic probe for photodynamic therapy and imaging. Pharm. Biopharm. 2018, 130, 165–176. [CrossRef] [PubMed]
7. Eguchi, K.; Nakamura, H. Hyaluronic Acid-zinc Protoporphyrin Conjugates for Photodynamic Antitumor Therapy. Nanomed.
Nanotechnol. 2007, 8, 100400.
8. Choi, K.Y.; Saravanakumar, G. Hyaluronic acid-based nanocarriers for intracellular targeting: Interfacial interactions with proteins
in cancer. Colloids Surf. B Biointerfaces 2012, 99, 82–94. [CrossRef]
9. Rao, N.V.; Rho, J.G. Hyaluronic acid nanoparticles as nanomedicine for treatment of inflammatory diseases. Pharmaceutics 2020
2, 931. [CrossRef] [PubMed]
0. Lee, S.Y.; Kang, M.S. Hyaluronic acid-based theranostic nanomedicines for targeted cancer therapy. Cancers 2020, 12, 940.
CrossRef] [PubMed]
,
1
[
1. Racker, E. Bioenergetics and the Problem of Tumor Growth: An understanding of the mechanism of the generation and control of
biological energy may shed light on the problem of tumor growth. Am. Sci. 1972, 60, 56–63.
2. Fang, J.; Quinones, Q.J. The H+-linked monocarboxylate transporter (MCT1/SLC16A1): A potential therapeutic target for
high-risk neuroblastoma. Mol. Pharmacol. 2006, 70, 2108–2115. [CrossRef] [PubMed]
3. Bae, Y.; Nishiyama, N. Preparation and biological characterization of polymeric micelle drug carriers with intracellular pH-
triggered drug release property: Tumor permeability, controlled subcellular drug distribution, and enhanced in vivo antitumor
efficacy. Bioconjug. Chem. 2005, 16, 122–130. [CrossRef] [PubMed]

J. Pers. Med. 2021, 11, 136
15 of 15
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
4. Duncan, R.; Sat-Klopsch, Y.N. Validation of tumour models for use in anticancer nanomedicine evaluation: The EPR effect and
cathepsin B-mediated drug release rate. Cancer Chemother. Pharmacol. 2013, 72, 417–427. [CrossRef] [PubMed]
5. Pola, O.; Janoušková, T. Etrych, The pH-dependent and enzymatic release of cytarabine from hydrophilic polymer conjugates.
Physiol. Res 2016, 65, S225–S232. [CrossRef]
6. Tsukigawa, K.; Nakamura, H. Effect of different chemical bonds in pegylation of zinc protoporphyrin that affects drug release,
intracellular uptake, and therapeutic effect in the tumor. Pharm. Biopharm. 2015, 89, 259–270. [CrossRef]
7. Pravata, L.; Braud, C. New amphiphilic lactic acid oligomer-hyaluronan conjugates: Synthesis and physicochemical characteriza-
tion. Biomacromolecules 2008, 9, 340–348. [CrossRef]
8. Iyer, A.K.; Greish, K. High-loading nanosized micelles of copoly(styrene-maleic acid)-zinc protoporphyrin for targeted delivery
of a potent heme oxygenase inhibitor. Biomaterials 2007, 28, 1871–1881. [CrossRef]
9. Fang, J.; Tsukigawa, K. Styrene-maleic acid-copolymer conjugated zinc protoporphyrin as a candidate drug for tumor-targeted
therapy and imaging. Drug Target 2016, 24, 399–407. [CrossRef]
0. Sahoo, S.K.; Sawa, T. Pegylated zinc protoporphyrin: A water-soluble heme oxygenase inhibitor with tumor-targeting capacity.
Bioconjug. Chem. 2002, 13, 1031–1038. [CrossRef]
1. Cordova, J.; Ryan, J.D. Esterase activity of bovine serum albumin up to 160 degrees C: A new benchmark for biocatalysis. Enzym.
Microb. Technol. 2008, 42, 278–283. [CrossRef]
2. Fang, J.; Sawa, T. In vivo antitumor activity of pegylated zinc protoporphyrin: Targeted inhibition of heme oxygenase in solid
tumor. Cancer Res. 2003, 63, 3567–3574.
3. Matsumura, Y.; Hamaguchi, T. Phase I clinical trial and pharmacokinetic evaluation of NK911, a micelle-encapsulated doxorubicin.
Br. J. Cancer 2004, 91, 1775–1781. [CrossRef]
4. Cabral, H.; Matsumoto, Y. Accumulation of sub-100 nm polymeric micelles in poorly permeable tumours depends on size. Nat.
Nanotechnol. 2011, 6, 815–823. [CrossRef] [PubMed]
5. Barenholz, Y. Doxil®-the first FDA-approved nano-drug: Lessons learned. J. Control. Release 2012, 160, 117–134. [CrossRef]
[PubMed]
6. Lim, Z.W.; Varma, V.B.; Ramanujan, R.V.; Miserez, A. Magnetically responsive peptide coacervates for dual hyperthermia and
chemotherapy treatments of liver cancer. Acta Biomater. 2020, 110, 221–230. [CrossRef] [PubMed]
7. Pradhan, L.; Srivastava, R.; Bahadur, D. pH- and thermosensitive thin lipid layer coated mesoporous magnetic nanoassemblies as
a dual drug delivery system towards thermochemotherapy of cancer. Acta Biomater. 2014, 10(7), 2976–2987. [CrossRef] [PubMed]
8. Lin, W.; Ma, G.; Kampf, N.; Yuan, Z.; Chen, S. Development of Long-Circulating Zwitterionic Cross-Linked Micelles for
Active-Targeted Drug Delivery. Biomacromolecules 2016, 17, 2010–2018. [CrossRef] [PubMed]
9. Hatakeyama, H.; Akita, H. The polyethyleneglycol dilemma: Advantage and disadvantage of PEGylation of liposomes for
systemic genes and nucleic acids delivery to tumors. Biol Pharm Bull 2013, 36, 892–899. [CrossRef]
0. Nakamura, H.; Fang, J. Intracellular uptake and behavior of two types zinc protoporphyrin (ZnPP) micelles, SMA-ZnPP and
PEG-ZnPP as anticancer agents; unique intracellular disintegration of SMA micelles. J. Control Release 2011, 155, 367–375.
[CrossRef]
5
5
1. Bayer, I.S. Hyaluronic Acid and Controlled Release: A Review. Molecules 2020, 25, 2649. [CrossRef] [PubMed]
2. Luo, Z.; Dai, Y. Development and application of hyaluronic acid in tumor targeting drug delivery. Acta Pharm. Sin. B 2019, 9,
1
099–1112. [CrossRef] [PubMed]
5
3. Ai, X.; Hu, M. Enhanced Cellular Ablation by Attenuating Hypoxia Status and Reprogramming Tumor-Associated Macrophages
via NIR Light-Responsive Upconversion Nanocrystals. Bioconjug. Chem. 2018, 29, 928–938. [CrossRef] [PubMed]
