Facile conversion of layered ruddlesden-popper-related structure y 2O3-doped Sr2CeO4 into fast oxide ion-conducting fluorite-type y2O3-doped CeO2

Article abstract of DOI:10.1021/ic801729x

The present work shows a new solid- and gas-phase reaction technique for the preparation of a fast oxide-ion-conducting Y₂O₃-doped Ce_1-x-Y_xO_2-δ (x = 0.1, 0.2) (YCO), which involves the reaction of lay

Full text of DOI:10.1021/ic801729x

Inorg. Chem. 2009, 48, 257-266
Facile Conversion of Layered Ruddlesden-Popper-Related Structure
Y2O3-Doped Sr2CeO4 into Fast Oxide Ion-Conducting Fluorite-Type
Y2O3-Doped CeO2
Ryan Georg Gerlach, Surinderjit Singh Bhella, and Venkataraman Thangadurai*
UniVersity of Calgary, Department of Chemistry, 2500 UniVersity DriVe NW,
Calgary, Alberta, T2N 1N4, Canada
Received September 8, 2008
The present work shows a new solid- and gas-phase reaction technique for the preparation of a fast oxide-ion-
conducting Y2O3-doped Ce1-xYxO2-δ (x ) 0.1, 0.2) (YCO), which involves the reaction of layered (Ruddlesden-Popper
K2NiF4-type) structure Y2O3-doped Sr2CeO4 (YSCO) with CO2 at an elevated temperature and subsequent acid-
washing. A powder X-ray diffraction study revealed the formation of a single-phase cubic fluorite-type YCO for the

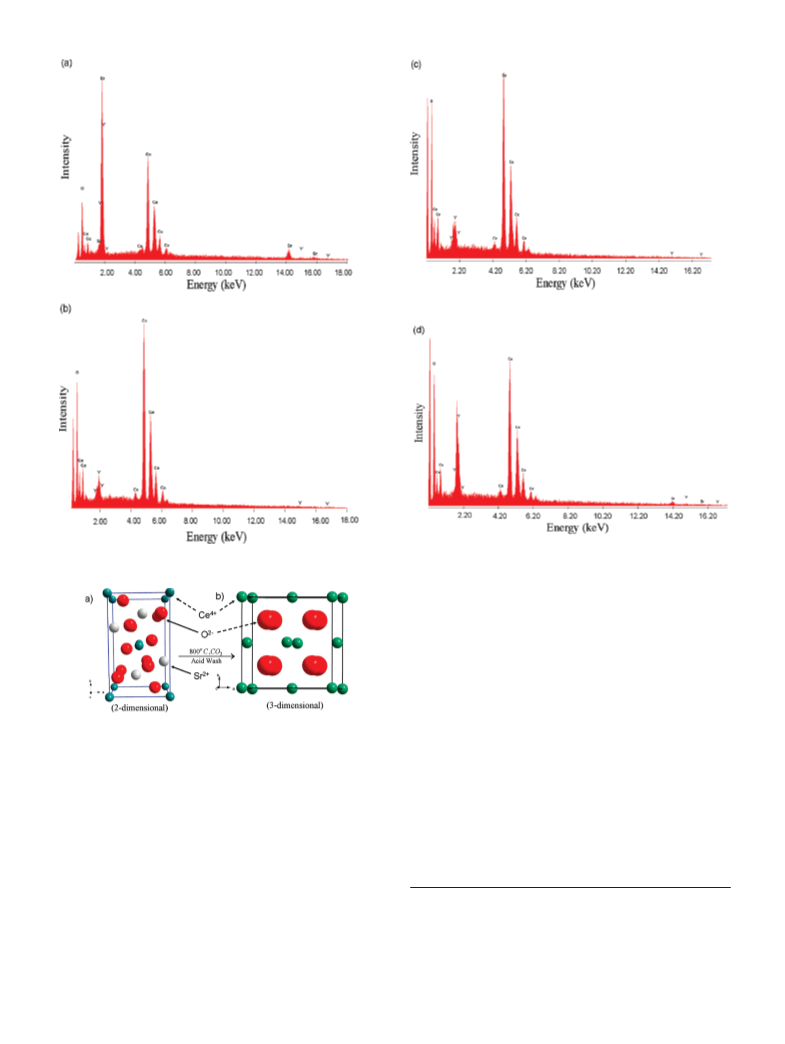

CO2-reacted and subsequent acid-washed product. Energy dispersive X-ray analysis showed the absence of Sr in
the CO2-treated and subsequent acid-washed product, confirming the transformation of layered YSCO into YCO.
The cubic lattice constant was found to decrease with increasing Y content in YCO, which is consistent with the

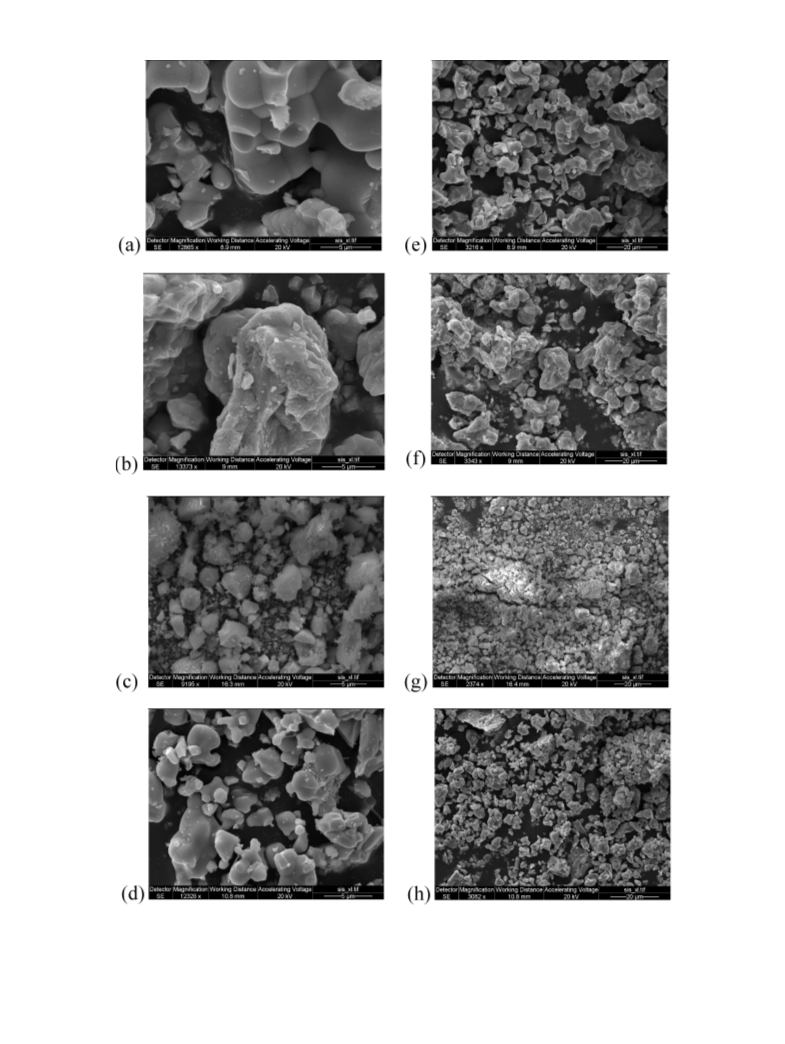

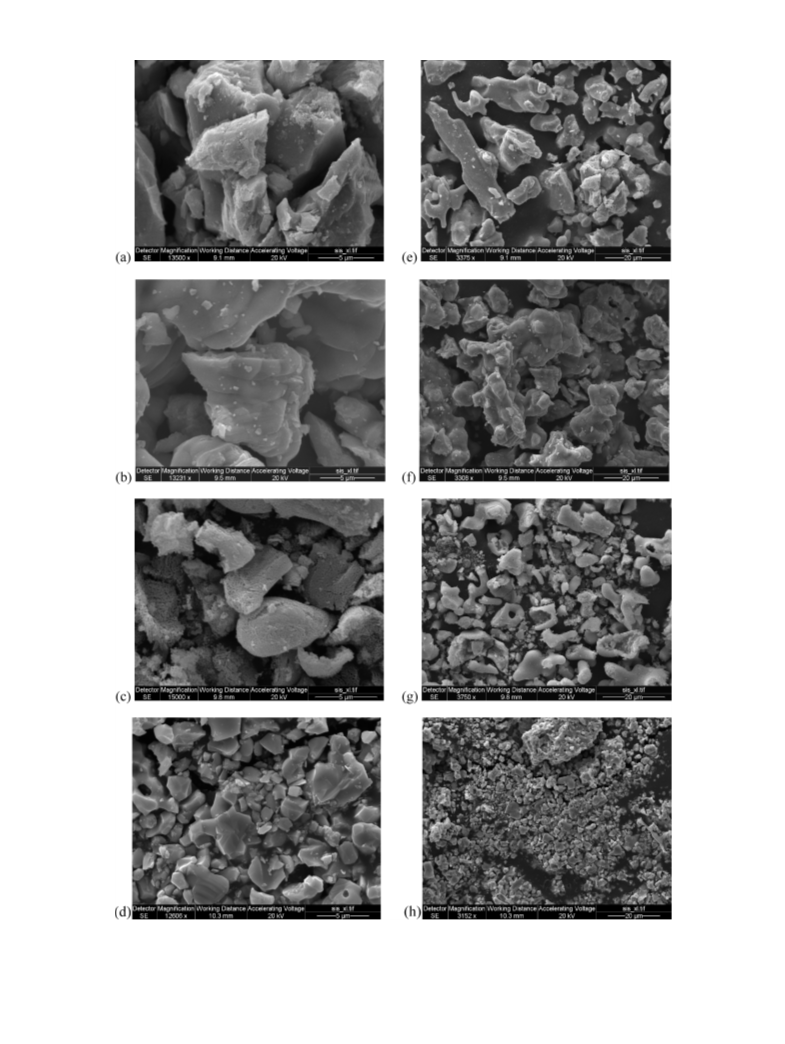

other YCO samples reported in the literature. The scanning electron microscopy study showed smaller-sized particles
for the product obtained after CO2- and acid-washed YCO samples, while the high-temperature sintered YCO and

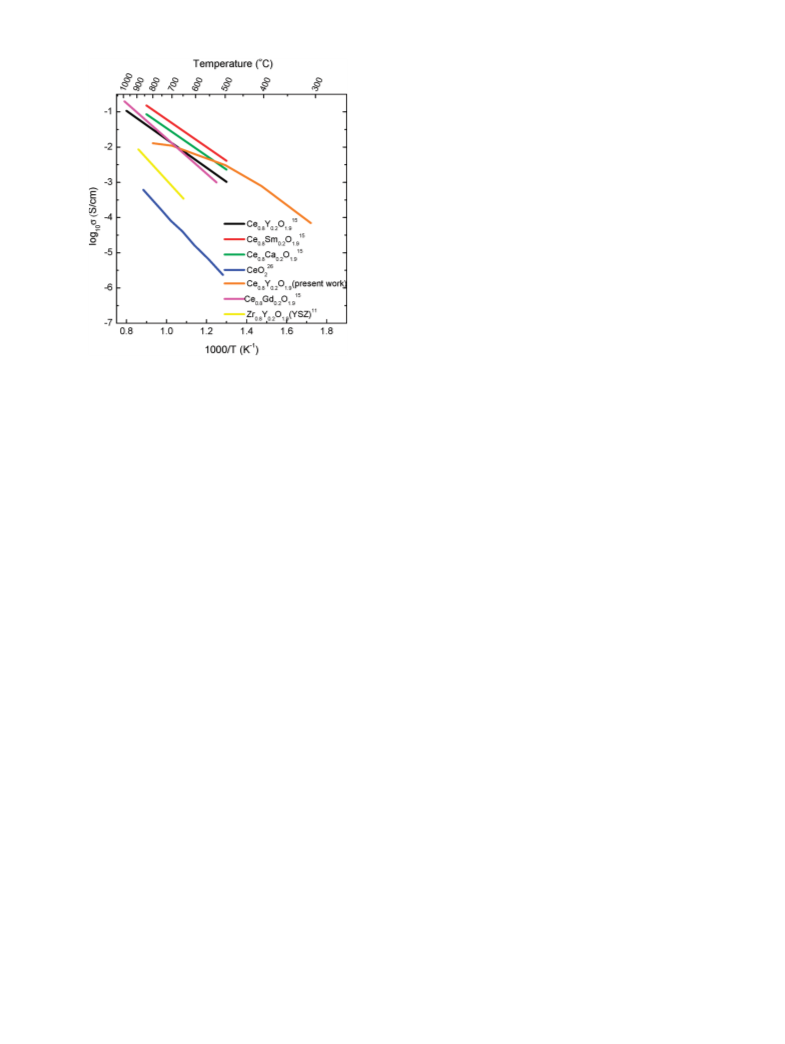

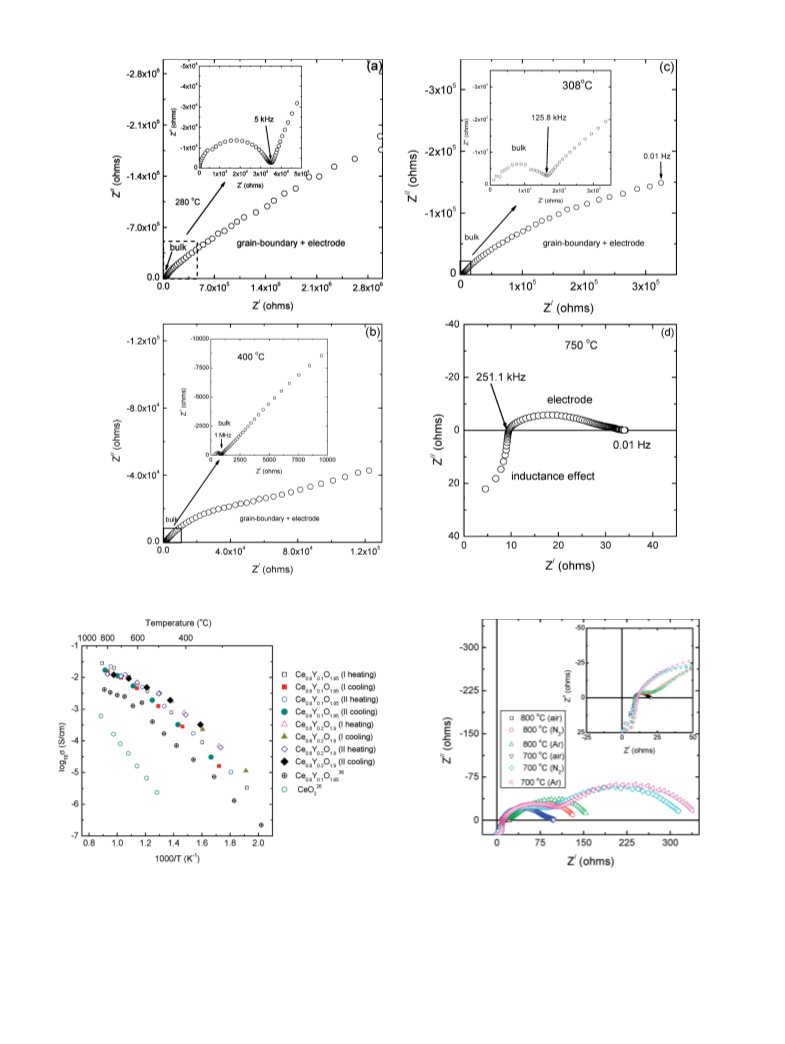

the precursor YSCO exhibit larger-sized particles. The bulk ionic conductivity of the present CO2-capture-method-
prepared YCO exhibits about one and half orders of magnitude higher electrical conductivity than that of the
undoped CeO2 and was found to be comparable to those of ceramic- and wet-chemical-method synthesized rare-
earth-doped CeO2.
Introduction
fluorite-type Y2O3-doped ZrO2 (YSZ) oxide ion electrolyte,
which can be operated in a temperature range of about
800-1000 °C.2,4,5 The YSZ-based SOFC exhibits several
disadvantages that are attributed to the high temperature of
operation. They are detrimental as mechanical stress is
induced because of different thermal expansion coefficients
of the electrolyte and electrodes, interfacial diffusion of Sr
and La from the cathode to the electrolyte, a lack of
appropriate sealing materials, and a high cost of bipolar
separators.2,3 Therefore, there is a great deal of interest in
developing new materials with desired physical, chemical,
and mechanical properties for the development of advanced
intermediate temperature (IT) SOFCs (500-750 °C).9-11
A number of inorganic crystal structures that include
perovskites, fluorites, pyrochlores, perovskite-related brown-
millerites, layered perovskite (K2NiF4-related), and Aurivilius
Oxide ion electrolytes are ionic conductors in which the
current is carried by the migration of oxide ions through the
oxide ion vacancies.1 They find applications in several solid-
state ionic devices such as solid oxide fuel cells (SOFCs),
electrolysis, gas sensors (e.g., O2, H2, CH4, etc.), and oxygen
pumps.2-8 Presently, SOFC technology has generated im-
mense interests due to its high efficiency and clean conver-
sion of energy and potential to be powered by a wide variety
of fuels (e.g., H2, NH3, hydrocarbons, CO). The current
SOFC commercialization is mainly based on the conventional
* Author to whom correspondence should be addressed. Phone: 001 403
210 8649. E-mail: vthangad@ucalgary.ca.
(1) Goodenough, J. B. Annu. ReV. Mater. Res. 2003, 33, 91–128.
(2) Minh, N. Q. J. Am. Ceram. Soc. 1993, 76, 563–588.
(3) Carrette, L.; Friedrich, K. A.; Stimming, U. Fuel Cells 2001, 1, 5–39.
(4) Singhal, S. C. Solid State Ionics 2002, 152-153, 405–410.
(5) Ormerod, R. M. Chem. Soc. ReV. 2003, 32, 17–28.
(6) Weber, A.; Ivers-Tiffee, E. J. Power Sources 2004, 127, 273–283.
(7) Yano, M.; Tomita, A.; Sano, M.; Hibino, T. Solid State Ionics 2007,
177, 3351–3359.
(9) Kendrick, E.; Kendrick, J.; Knight, K. S.; Islam, M. S.; Slater, P. R.
Nat. Mater. 2007, 6, 871–875.
(10) Kuang, X.; Green, M. A.; Niu, H.; Zajdel, P.; Dickinson, C.; Claride,
J. B.; Jantsky, L.; Rosseinsky, M. J. Nat. Mater. 2008, 7, 498–504.
(11) Brett, D. J. L.; Atkinson, A.; Brandon, N. P.; Skinner, S. J. Chem.
Soc. ReV. 2008, 37, 1568–1578.
(8) Ni, M.; Leung, M. K. H.; Leung, D. Y. C. Int. J. Hydrogen Energy
2008, 33, 2337–2354.
10.1021/ic801729x CCC: $40.75  2009 American Chemical Society
Inorganic Chemistry, Vol. 48, No. 1, 2009 257
Published on Web 12/05/2008

Gerlach et al.
phases and apatites are being considered for the development
of fast oxide ion electrolytes with superior functional
properties for applications in IT-SOFCs.12-21 Among them,
the fluorite-type structured rare-earth (RE)-doped CeO2
materials have been investigated as a potential electrolyte
for IT-SOFCs.22-26 For example, Y-, Sm-, and Gd-doped
CeO2 show a bulk oxide ion conductivity of about 10-2 S/cm
above 500 °C, which is about 15 times higher than that of
YSZ at 500 °C and about 4 times higher than that above
750 °C.22 There are several synthesis methods, including
conventional ceramic (solid-state) and soft-chemical methods
such as glycine-nitrate,27 coprecipitation,28 and polymeriza-
tion,29 that are employed to prepare doped ceria electrolytes.
These preparation methods play a significant role in deter-
mining the microstructure and particle size distributions,
which influence the electrical conductivity,30-33 and particle-
size-dependent conductivity was explained using the space
charge model.34,35
type structure precursors, we have prepared novel meta-stable
In-doped CeO2 and Ca+Sm-doped CeO2 at 800 °C using
the new CO2 capture method.38 It is pertinent to mention
here that our attempt to prepare single-phase In-doped CeO2
using a ceramic (solid-state) method at elevated temperatures
was unsuccessful.26,38 Unlike BaCeO3,37a the Ba-containing
double perovskite-like Ba3Ca1+xNb2-xO
9-δ (BCN)37c and Ta-
doped BCN exhibit excellent chemical stability in 100% CO2
at 800 °C and in boiling water for a long period of time.39
With our own continuing interest in understanding the
thermodynamic stability of alkaline-earth-containing metal
oxides possessing three-dimensional perovksite and layered
(two-dimensional) perovskite-related structures in CO2, we
have investigated the chemical and structural stability of a
new layered-structure Y2O3-doped Sr2CeO4 (YSCO). Our
work clearly demonstrates the formation of fluorite-type
oxide-ion-conducting YCO from the layered perovskite-
related YSCO by reaction with CO2 at an elevated temper-
ature and subsequent acid-washing. The parent Sr2CeO4 is
a well-known blue-color-emitting phosphore, and its crystal
structure and thermodynamic stability have been character-
ized.40-43 Also, the present work shows a path for a new
precursor route synthesis of doped CeO2 materials by
designing appropriate precursor compounds that are reactive
in CO2 at elevated temperatures.
Recently, we have re-examined the chemical stability of
Y-doped BaCeO3 in CO2 at a temperature range of 600-1000
°C.36 Our investigation was found to be consistent with the
literature37 on the formation of BaCO3 and fluorite-type
Y2O3-doped CeO2 (YCO). During the course of our studies
toward a further understanding of the formation of fluorite-
type doped CeO2 oxide ion electrolytes from the perovskite-
Experimental Section
(12) Estell, T. H.; Flengas, S. N. Chem. ReV. 1970, 70, 339–376.
(13) Kendall, K. R.; Navas, C.; Thomas, J. K.; Zur Loye, H. C. Solid State
Ionics 1995, 82, 215–223.
Preparation and Characterization. Sr2Ce0.9Y0.1O3.95 and
Sr2Ce0.8Y0.2O3.9 were prepared by a conventional ceramic (solid-
state) method using stoichiometric amounts of CeO2 (>99.9% Alfa
Aesar), Y2O3 (>99.9% Alfa Aesar; dried at 800 °C in the air and
cooled to room temperature in a desiccator), and SrCO3 (99% Alfa
Aesar) at elevated temperatures in the air. The desired amount of
2-propanol was added to the starting materials in a zirconia bowl
and was ball-milled (Pulverisette, Fritsch, Germany) for about 2 h
at 150 rotations per minute using zirconia balls. The sample was
then taken out of the ball mill, dried in ambient air, and placed in
a clean alumina crucible and heated at 800 °C for 12 h. The resultant
product was then reground and sintered at 1350 °C for 24 h with
a heating and cooling rate of 10 °C per min. In the final stage of
heat treatment, the reaction products were pressed into pellets by
isostatic pressure. The sintered pellets were crushed into powder
for phase characterization employing a powder X-ray diffractometer
(PXRD; Bruker D8 powder X-ray diffractometer (Cu KR, 40 kV,
40 mA)).
