Recognition selectivities of lasso-type pseudo[1]rotaxane based on a mono-ester-functionalized pillar[5]arene

Article abstract of DOI:10.3390/molecules24152693

Two types of mono-ester-functionalized pillar[5]arenes, P1 and P2, bearing different side-chain groups, were synthesized. Their host–guest complexation and self-inclusion properties were studied by ¹H NMR and 2D nuclear overhauser effect spectr

Full text of DOI:10.3390/molecules24152693

molecules
Article
Recognition Selectivities of Lasso-Type
Pseudo[1]rotaxane Based on a
Mono-Ester-Functionalized Pillar[5]arene
Wen-Xue Zhang 1, Lu-Zhi Liu 1,
*
, Wen-Gui Duan 1,*, Qing-Qing Zhou 1, Cui-Guang Ma 1
and Yan Huang 2,
*
1
School of Chemistry and Chemical Engineering, Guangxi University, Nanning 530004, China
Guangxi Institute of Chinese Traditional Medical & Pharmaceutical Science and Guangxi Key Laboratory of
Tradtitional Chinese Medicine Quality Standards, Nanning 530022, China
2
*
Correspondence: llzh068@163.com (L.-Z.L.); wgduan@gxu.edu.cn (W.-G.D.); hy2002-2006@163.com (Y.H.)
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 19 June 2019; Accepted: 20 July 2019; Published: 24 July 2019
Abstract: Two types of mono-ester-functionalized pillar[5]arenes, P1 and P2, bearing different
side-chain groups, were synthesized. Their host–guest complexation and self-inclusion properties
were studied by 1H NMR and 2D nuclear overhauser effect spectroscopy (NOESY) NMR measurements.
The results showed that the substituents on their phenolic units have a great influence on the
self-assembly of both pillar[5]arenes, although they both could form stable pseudo[1]rotaxanes at
room temperature. When eight bulky 4-brombutyloxy groups were capped on the cavity, instead of
methoxy groups, pseudo[1]rotaxane P1 became less stable and its locked ester group in the inner
space of cavity was not as deep as P2, leading to distinctly different host–guest properties between
P1 and P2 with 1,6-dibromohexane. Moreover, pillar[5]arene P1 displayed effective molecular
recognition toward 1,6-dichlorohexane and 1,2-bromoethane among the guest dihalides. In addition,
the self-complex models and stabilities between P1 and P2 were also studied by computational
modeling and experimental calculations.
Keywords: pillar[5]arenes; pseudo[1]rotaxane; host–guest behavior; self-assembly
1. Introduction
Pseudo[n]rotaxanes (n
mechanically interlocked. Due to the characteristic topological structures and great application
in molecular switches [ ] and molecular muscles [ ], mechanically interlocked molecules,
especially pseudo[ ]rotaxanes (one of lasso-type self-inclusion complexes formed by intramolecular
interaction) using traditional macrocycles, such as crown ethers and calixarenes, as their own
wheels [ 10], have become a central topic in supramolecular chemistry. Pillar[n]arenes, a new
generation of macrocyclic hosts having a pillar architecture and -rich cavities, have been widely
applied in drug delivery [11 14], chemosensors [15 17], materials [18 20], and supramolecular
≥
2), a lasso-type of complexes, are two molecules or multiple molecules
1
–
3
4–6
1
7–
π
–
–
–
polymers [21–23]. Now, pillararene-based pseudo[1]rotaxanes have attracted remarkable attention due
to their simple interlocked structures and reversible conversion behavior. Cao et al. [24] found that a
mono-ester pillar[5]arene could successfully form a stable pseudo[1]rotaxane which exhibited selective
complexation with dihalogen alkanes. A similar compound, with an amino group instead of the ester
group, also produced a stable pseudo[1]rotaxane by intramolecular hydrogen bonding in a study by
Hou [25]. Moreover, Wang et al. [26–28] designed three dynamic pseudo[1]rotaxanes by introducing
different groups, including the urea, N-Boc, and biotin moieties to the side-chain of pillar[5]arenes,
of which some showed a dynamic, slow disassembly process upon adding competitive guests or
Molecules 2019, 24, 2693; doi:10.3390/molecules24152693
www.mdpi.com/journal/molecules

Molecules 2019, 24, 2693
2 of 10
strong-polar solvents. Recently, Wang et al. [29] reported a mono-alkyl-functionalized pillar[5]arene
that could form a stable pseudo[1]rotaxane in a strong-polar solvent dimethyl sulfoxide (DMSO) and
showed responsiveness to sodium cations.
Obviously, pseudo[1]rotaxanes of pillar[n]arene-type have an important application in molecular
switches and host–guest complexation. Their mono-substituent groups play an essential role in the
self-assembly of the formed pseudo[1]rotaxanes. In fact, the host–guest complexation and self-assembly
properties of the pillar[5]arenes is affected by the side-chain groups. However, until now, very little has
been known about the influence on the self-inclusion complex properties of pseudo[1]rotaxanes by the
other unlocked groups on the benzene ring. In particular, the pillar[n]arene-based pseudo[1]rotaxanes
of which molecular recognition can be achieved through controlling their unlocked groups have not
yet been reported on.
In our previous studies [30
to linear guests such as
(for instance, with 1,4-dibromobutane) was affected by the different substituents on the rings.
Furthermore, in mono-( -hydroxyalkoxy)-functionalized pillar[5]arenes, the pillar[5]arene bearing a
–
34], we found that pillar[5]arene showed good binding properties
α,ω-dihaloalkane. Their complexation behavior with the guest
ω
6-hydroxyhexyloxy group exhibited a reversible hugging dimer by the intermolecular self-assembly;
whereas the pillar[5]arene bearing a short 4-hydroxybutyloxy group did not show such a self-assembly.
Thus, we expect that, when an ethyl acetate moiety (as a locked group) is introduced to the side-chain
of pillar[5]arene, a stable pseudo[1]rotaxane can be obtained. More importantly, if we used bulky
4-brombutyloxy groups, having a similar-length chain to the ethyl acetate, as other unlocked groups,
we could manipulate the stability or self-inclusion behavior, and achieve molecular recognition.
In this paper, we synthesized a pillar[5]arene P1 bearing an acetate chain and multi-bromoalkyl
chain groups and investigated its self-inclusion behavior and host–guest properties with dihalides
such as 1,6-dibromohexane (G1), 1,4-dibromobutane (G2), 1,2-bromoethane (G3), 1,6-dichlorohexane
1
(G4), and 1,6-diiodohexane (G5) (see Scheme 1) by H NMR and 2D nuclear overhauser effect
spectroscopy (2D NOESY) NMR measurements. For comparison, the mono-ester pillar[5]arene P2 [31
]
was synthesized. In addition, the self-complex models and stabilities between pseudo[1]rotaxane P1
and pseudo[1]rotaxane P2 were also studied by computational modeling and experimental calculations.
The syntheses of P1 and P2 are shown in Figure S1.
Scheme 1. Chemical structures of the hosts and the guests.

Molecules 2019, 24, 2693
3 of 10
2. Results and Discussion
2.1. Self-Assembly Behavior of P1 and P2
The inclusion behavior of P1 was first studied by 1H NMR spectroscopy. As shown in Figure 1,
the proton signals of the ethyl acetate chain (Hj and Hk) on pillar[5]arene showed a very substantial
upfield shift (∆δHj = 1.26 ppm, ∆δHk = 1.98 ppm) compared to M, indicating that the ethyl acetate
moiety was locked in the shielded space of cavity of the pillar[5]arene in CDCl3. This result was
also consistent with the 2D NOESY NMR spectroscopy of P1, as shown in Figure S15, based on the
strong nuclear overhauser effect (NOE) correlation of the proton Hj with the protons Hg and Hd,
respectively. Meanwhile, correlations between the proton Hk and protons He, Hf, Hg, and Hd could be
also observed, which demonstrated that the alkyl chain was included into the inner space of cavity
of pillar[5]arene to form a self-inclusion complex. To further confirm the self-assembly model of P1,
1
the H NMR spectroscopy at variable concentration was measured (see Figure S9). It was found
that the self-inclusion structure formed by P1 was very stable at a low concentration (3.72 mM) in
CDCl3. As the concentration increased, the proton resonances did not exhibit apparent changes,
even at a higher concentration of 89.28 mM, suggesting that the self-inclusion complex of P1 was
concentration-independent. Thus, a stable pseudo[1]rotaxane of P1 was formed by intramolecular
self-assembly in CHCl3 solution at room temperature (see Scheme 2).
1
Figure 1. The H NMR (600 MHz, CDCl3, 298 k) spectra of (
and (c) P2 (11.16 mM).
a) P1 (11.16 mM), (b) M (11.16 mM),
Scheme 2. Self-assembly of pilar[5]arenes P1 and P2.
Similarly, pillar[5]arene P2 also could form a stable pseudo[1]rotaxane in CHCl3 solution, according
to the obvious upfield chemical shifts of the protons of the ethyl acetate group (see Figure 1c). In contrast
to P1, the proton signals of Hh’, Hj’, and Hk’ in P2 showed a larger upfield shift (Figure 1a,c), indicating
that the locked ethyl acetate group of P2 in the inner space of cavity was deeper than that in P1.

Molecules 2019, 24, 2693
4 of 10
These results showed that the unlocked substituents on their phenolic units had a great influence on
the self-inclusion behavior of pseudo[1]rotaxane. When eight bulky 4-brombutyloxy groups were
capped on the cavity, instead of methoxy groups, the locked ethyl acetate group of P1 was inhibited
from threading into the deeper cavity, leading to a less-stable self-inclusion structure.
When the transformation process between self-inclusion complex (S) and uncomplex (U) occurred
in the system (see Scheme 2), the self-assembly behavior such as disassembly rate of pillar[5]arenes
could be reflected by 1H NMR method (OCH2CH3) according to Equation (1) due to the shielded and
deshielded protons, which were located in the inner and outer electron-rich cavity, respectively. To better
understand the influence of solvents on the self-assembly of the pillar[5]arene P1 and P2, we studied
their self-inclusion behavior in different ratios of CDCl3/DMSO solvents by 1H NMR spectroscopy
(see Figures S16 and S17). The result showed that partial pseudo[1]rotaxane P1 was disassembled
when DMSO-d6 was added to CDCl3. As the DMSO increased, the relative disassembly rate (α) of P1
from S to U was enhanced sharply at first (∆α = 63.62%, DMSO/CDCl3 = 0~75%, see Figure S18) and
then slowly (∆α = 0.68%, DMSO/CDCl3 = 75~90%). When the ratio of DMSO/CDCl3 further increased
to 90%, the dynamic equilibrium process of S
ꢀU was almost saturated and the disassembly rate was
as high as 64.39%. Similarly, the disassembly behavior of P2 also occurred in DMSO/CDCl3 system.
Since the lower relative disassembly rate of P2 compared to the P1 system, we can conclude that
pseudo[n]rotaxane of P1 is easier to disassemble than P2 in the same ratio of DMSO/CHCl3 solvents.
It meant that pseudo[n]rotaxane P1 is less stable compared to P2. The disassembly rate
DMSO/CDCl3 system relative to CDCl3 was calculated according to Equation (1). Here, δS and
the chemical shifts of self-inclusion complex P1 (Hk) or P2 (Hk’) in chloroform and different ratios of
α
of SꢀU in
δ
are
0
DMSO/CDCl3, respectively. The δU are the chemical shifts of uncomplex P1 (Hk) or P2 (Hk ), which is
0
close to the chemical shift of the M (Hk ’
)
δ = (1 − α) × δS + α × δ
(1)
2.2. Host–Guest Properties
1
The H NMR spectra of G1 in CDCl3, in the presence and in the absence of approximately 1
equivalent of P2 (3.72 mmol/L), respectively, are shown in Figure 2. The protons in G1 showed a
substantial upfield shift (∆δ = 0.10, 0.16, and 0.28 ppm for H1, H2, and H3, respectively), as well as a
broadening effect in the presence of P2, compared to that of free G1. Meanwhile, the proton signals Hj’
and Hk’ in the acetate group of P2 displayed a downfield displacement (∆δ = 0.18 and 0.23 ppm for Hj’
and Hk’, respectively). This result clearly indicated that the inclusion structure was destroyed and the
guest G1 was locked in the cavity to form a pseudo[2]rotaxane P2. In contrast, the binding behavior
of P1 with G1 was very different. When an equimolar guest G1 was mixed with P1, the protons
on the phenyl rings of P1 were shifted to the downfield region. Surprisingly, the protons (H1, H2,
and H3) of G1 and the proton signals of the acetate chain (Hj and Hk) all disappeared completely
in the 1H NMR spectra (
2~10 ppm), possibly due to a remarkable broadening effect (these protons
−
are in intermediate exchange in the NMR time scale, and therefore the signals broaden and seem to
disappear in the baseline). It has been suggested that the guest G1 was locked into the cavity, which
also agrees with the literature [33
inclusion complexes. And the 1:1 complexation stoichiometry of G1
plots (Figure S14). In addition, we have investigated the host–guest properties of P1 and P2 with G3
by 1H NMR spectra (Figure S19). As shown in Table S3, the chemical shift of the guest proton H1 in
,
35], such that the protons of the guests could not be observed in the
P1 was obtained by the Job’s
⊂
G3
of the ∆δH1 of 1.36 ppm in G3
stronger than that of G3 P1. These results showed that the host–guest complexation properties of
pseudo[1]rotaxanes were also influenced by alkyl bromide side-chains.
⊂
P2 system showed substantial upfield shift (∆δH1 = 1.91 ppm), which was larger than the value
⊂
P1 system, indicating that the complexation of G3 P2 system was
⊂
⊂

Molecules 2019, 24, 2693
5 of 10
Figure 2. The 1H NMR (600 MHz, CDCl3, 298 k) spectra of (
(d) P2 + 1eq G1 (3.72 mM), and (e) P2.
a) P1, (b) P1 + 1eq G1 (3.72 mM), (c) G1,
Generally, in the formation of a pseudo[2]rotaxane by pillar[5]arene and a guest, the rotation of
the phenolic units around the CH2 bridge would be inhibited, resulting in less-shielded protons in
the pillar[5]arene in the host–guest system [32]. Thus, the protons of the phenolic units were usually
shifted downfield and the chemical shift change value (∆δ
evaluate the conformational characteristics of pillar[5]arenes. In G1
the protons of the phenolic units slightly changed, compared to their corresponding pseudo[1]rotaxanes
(see Figure 2), indicating that the rotation of the benzene rims had been well-inhibited in P1 and
P2, but not immobilized absolutely. This result also further proved that both the pillar[5]arenes P1
and P2 can form a stable pseudo[1]rotaxane, in the absence of G1. In addition, according to the
=
δcomplex − δuncomplex) could be used to
⊂
P1 and G1 P2 systems, most of
⊂
0
smaller downfield shifts (∆δmaxHa = 0.087 ppm and ∆δmaxHa = 0.001 ppm) of the phenyl proton, we
can demonstrate that the freedom of the phenolic unit rotations in P2 was lower than that in P1. This
meant better stability for P2, in agreement with the above experiment.
The visible influence of the self-inclusion properties of P1 by substituents on its phenolic units
and its extraordinary host–guest behavior made us interested in its molecule complexation. Thus,
the interactions of P1 with G2–G5 were also investigated (see Table S4 and Figures S10–S13). It was
found that all guests can form complexes with P1, resulting in pseudo[2]rotaxane structures based
on the obvious downfield shift for the protons of phenyl groups (Ha) and methylene bridges (Hb).
However, the proton signals of the guests and the ethyl acetate chain (Hj and Hk) showed evident
differences in the different host–guest systems. Similar to the NMR changes in the G1
the protons of the guests and the ethyl acetate chain of P1 in the G2 P1 and G5 P1 systems, were not
observed. On the other hand, for 1,2-dibromoethane (G3), when the host–guest complex G3 P1 was
⊂
P1 system,
⊂
⊂
⊂
formed, the protons of G3 showed an obvious upfield shift and the proton Hk was shifted downfield.
1
However, the proton Hj was not observed in the H NMR, which was similar to G1
⊂
P1system.
In addition, the binding behavior between 1,6-dichlorohexane (G4) and P1 was also very interesting.
After 1eq guest was added to P1 in CHCl3, all the guest protons and Hk could not be found and the
chemical shift of the proton Hj was nearly unchanged, which distinguished this system, compared
to the other systems, very much. According to the above results, P1 showed molecular recognition
toward G3 and G4 among the α,ω-dihalides (G1–G5).
2.3. Quantum Chemical Calculations
The mono-locked and other unlocked groups on the side-chain of pillar[5]arene played an essential
role in determining the self-inclusion and molecular-complex properties of the hosts. In order to
further understand the spatial structure, with the goal of designing functional pseudo[1]rotaxanes of

Molecules 2019, 24, 2693
6 of 10
pillar[5]arene, density functional theory (DFT) calculations were carried out to optimize the structures
of P1 and P2 at the B3LYP/6-31G(d, p) level in CHCl3, by employing the Gaussian 09 program
package [36]. The optimized pillar[5]arene-based pseudo[1]rotaxane structures are shown in Figure 3,
and some selected geometric parameters are listed in Table 1.The cavities of P1 and P2 showed highly
regular and symmetric pentagons, which are made up of five para-methylene bridges (A, B, C, D, and E;
see Figure 3). However, the five points A, B, C, D, and E were not completely in a plane, based on their
inner angles (
ψ
). The ∆ψ
(
ψ
max − ψmin) value of P1 was 8.11◦, larger than that of P2 (3.79◦), indicating
that the cavity of P1 showed more variation and less stability compared to P2. This result was assisted
by the previous analysis and further proved by the direct proof that the energy is 266.357 KJ/moL and
154.608 KJ/moL for P1 and P2, respectively. In addition, all the distances between the locked-CH3
group (O) and the para-methylene bridges (A, B, C, D, and E) in P1 were longer than those in P2 except
for O–B, which demonstrates that the locked ethyl acetate group of P1 in the inner space of cavity was
not deeper than that in P2.

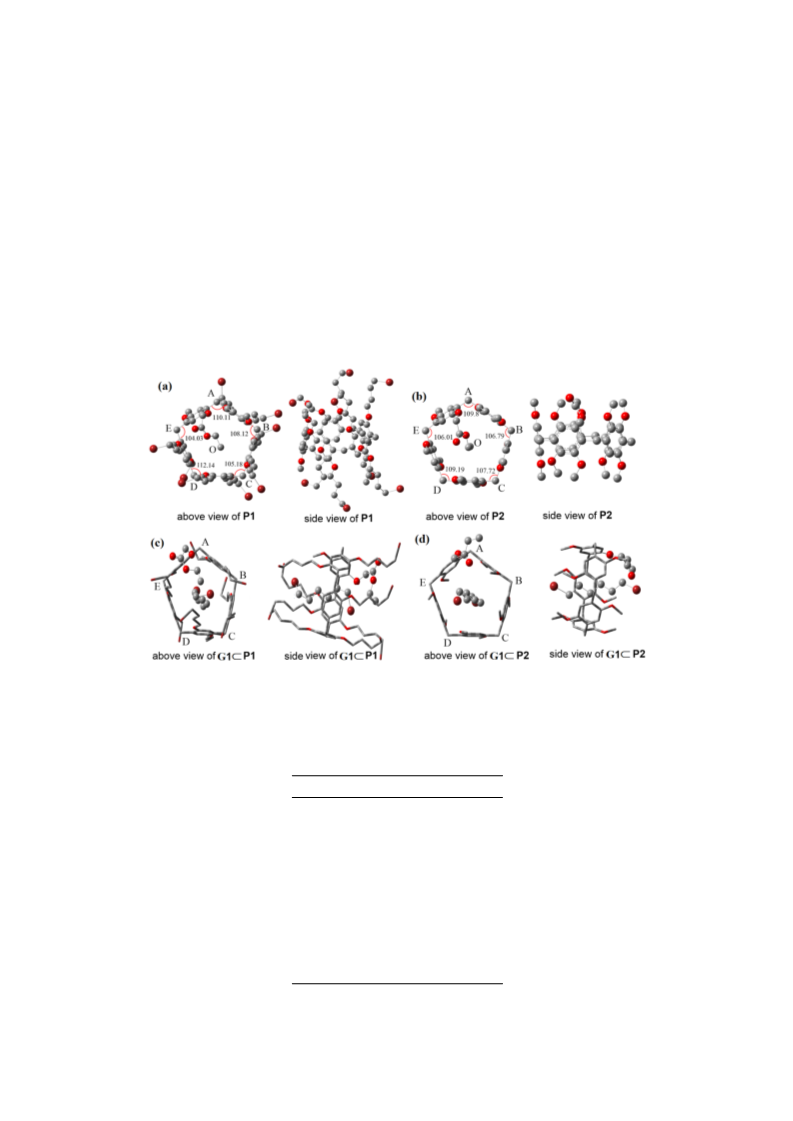

Figure 3. Optimized geometries of the self-inclusion and/or host–guest structures of (
) G1 P1, and ( ) G1 P2. (Oxygen atoms are shown in red, bromine atoms are shown in red brown.
Note that the H atoms are not presented in the figure for convenience.)
a) P1, (b) P2,
(
c
⊂
d
⊂
Table 1. The distances between the locked-CH3 group (O) and the para-methylene bridges (A, B, C, D,
and E), and the inner angles of P1and P2.
P1
P2
Bond lengths (Å)
O–A
5.91
5.53
5.27
5.62
6.33
5.13
5.04
4.81
4.83
5.20
O–B
O–C
O–D
O–E
Inner angles (◦)
E–A–B
110.11 109.80
108.12 106.79
105.18 107.72
112.14 109.20
104.03 106.01
A–B–C
B–C–D
C–D–E
D–E–A

Molecules 2019, 24, 2693
7 of 10
In host–guest systems, after formation of the host–guest complexes, the locked ester groups of P1
and P2 were squeezed out the cavities (see Figure 3c,d). However, the model structures G1 P1 and
G1 P2 were quite different. For G1 P1, the locked guest G1 in the cavity was closer to the ester group
⊂
⊂
⊂
due to the greater steric hindrance of other 4-brombutyloxy substituents. In addition, the Br· · · CH2
(and CH3) interaction between G1 and ester occurred in the system. And the CH2CH3 group of ester,
located in the shielded region projected by the cavity, was almost perpendicular to G1, effectively
blocking the guest G1 deeper into the cavity from the other side. Thus, the locked guest G1 was
significantly different in depth in both sides of the cavity and its chain length on the ester side was
shorter than the one on the OCH3 group side (see Figure S21, Tables S5 and S6). In contrast, the guest
G1 was naturally locked inside the cavity and the ethyl ester group was located at the edge of cavity
where was a deshielding area in G1 P2 system. Interestingly, the longer length of G1 was on the
⊂
ester side of cavity, although the ethyl ester was a bulky group compared to OCH3. These calculated
binding modes were benefit to understand the effective influence for the host–guest complexation
performance of pseudo[1]rotaxanes by their unlocked groups.
Two electrostatic potential (ESP) maps each of P1 and P2 (see Figure 4) were also calculated to
study their self-inclusion mechanisms, on the basis of previously optimized configurations, using
the same theory level in the self-consistent field (SCF) density matrix. For P1, a low electron cloud
density (ECD) region was formed along the upper or lower rim of the cavity, due to the effect of the
4-brombutyloxy groups, leading to strong repulsion for –CH2CH3 of the ethyl acetic group. Thus,
pillar[5]arene P1 did not form a self-inclusion structure as easily as pillar[5]arene P2. In addition, when
guests were threaded into the cavity to form the pseudo[2]rotaxane P1 complex, they did not only
need to overcome the ethyl acetate barrier, but also the low ECD of the alkyl chain groups would be
strongly repulsed by the outside of the cavity. These ESP models fairly explicated the higher variation
and lesser stability of P1 compared to P2.

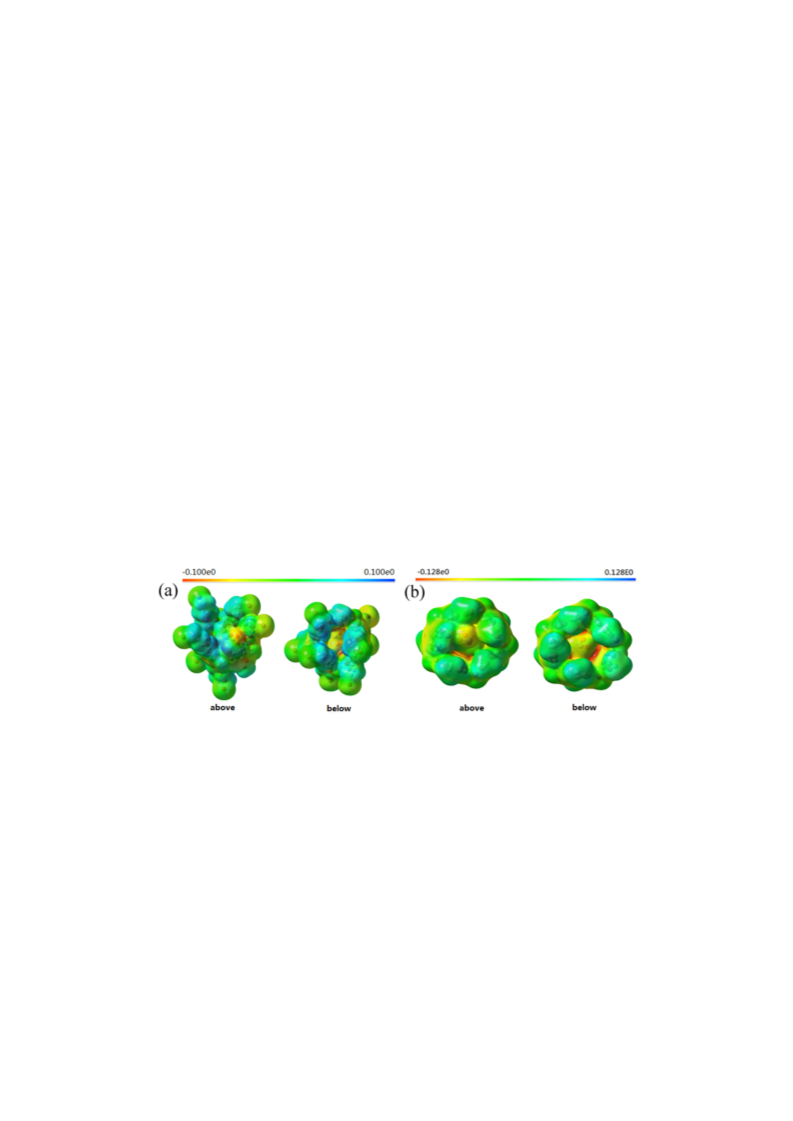

Figure 4. Electrostatic potential (ESP) maps of (a) P1 and (b) P2.
3. Experimental Section
3.1. General
The IR spectra (KBr pellet method) were recorded on a Nicolet iS50 FT-IR spectrometer
1
(Thermo Scientific Co., Ltd., Madison, WI, USA). The H NMR, 13C NMR, and NOESY spectra
were recorded in CDCl3 solvent on a Bruker Avance III HD 600 MHz spectrometer (Bruker Co., Ltd.,
Zurich, Switzerland), and the chemical shifts are expressed in ppm (δ) downfield relative to TMS, as
an internal standard. The mass spectra were recorded on a TSQ Quantum Access MAX HPLC-MS
instrument (Thermo Scientific Co., Ltd., Waltham, MA, USA). The UV–vis absorption spectra were
performed on a Shimadzu UV-1800 spectrometer (Shimadzu Corp., Kyoto, Japan). Melting points
were determined on a MP420 automatic melting point apparatus (Hanon Instruments Co., Ltd., Jinan,
China), and were not corrected. Other reagents were purchased from commercial suppliers and used
as received.

Molecules 2019, 24, 2693
8 of 10
3.2. Synthesis of P1 and P2
Compounds P1 and P2 were synthesized according to existing procedures [31], and can be found
in the Supplementary Information.
◦
P1. White solid. Yield: 19.3%; melting point: 97.1–99.8 C; IR (KBr) cm−1: 2939, 2865 (C–H),
1726.53 (C=O), 1611, 1505, 1470 (Ar–C=C), 1249, 1213, 1047 (Ar–O, C–O); 1H-NMR (600 MHz, CDCl3):
δ
= 6.98 (s, 1H, H–a), 6.86 (d, J = 2.8 Hz, 2H, H–a), 6.84 (s, 1H, H–a), 6.83 (s, 2H, H–a), 6.79 (s, 1H, H–a),
6.77 (s, 1H, H–a), 6.67 (s, 1H, H–a), 6.65 (s, 1H, H–a), 4.54 (s, 2H, H–h), 3.94–3.88 (m, 16H, H–d), 3.80 (s,
3H, H–c), 3.76–3.72 (m, 10H, H–b), 3.51–3.42 (m, 16H, H–g), 3.00 (d, J = 4.9 Hz, 2H, H–j), 2.12–1.94 (m,
32H, H–f, H–e), δ = 168.94 (C–i), 150.16,
0.69 (t, J = 7.1 Hz, 3H, H–k); 13C-NMR (151 MHz, CDCl3):
−
150.05, 150.01, 149.87, 149.68, 149.66, 149.49, 149.40, 149.30, 149.15, 129.11, 129.00, 128.86, 128.62, 128.52,
128.35, 128.19, 128.05, 127.60, 127.51, 115.90, 115.27, 115.02, 114.81, 114.75, 114.64, 114.62, 114.12, 113.99,
112.97 (C–a), 67.87, 67.82, 67.77, 67.70, 67.45, 67.42, 67.39, 67.34 (C–d), 65.18 (C–h), 60.67 (C–j), 56.36
(C–c), 33.79, 33.76, 33.73, 33.70 (C–b, C–g), 30.98, 30.11, 29.85, 29.83, 29.81, 29.74, 29.64 (C–f), 29.26,
29.06, 28.54, 28.48, 28.43, 28.36, 27.88 (C–e), 11.91 (C–k); ESI–MS m/z: C72H94Br8O12: 1806.38 ([M +
NH3–H]−).
P2. White solid. Yield: 30.2%; melting point: 207.3–209.7 ◦C; IR (KBr)
ν
/cm−1: 3044.81 (Ar–H),
2987.05, 2939.60, 2828.19 (C–H), 1726.53 (C=O), 1615.13, 1503.72, 1466.59 (Ar–C=C), 1214.90, 1047.79
(C–O); 1H NMR (600 MHz, CDCl3)
δ/ppm: 6.91 (s, 1H, Ca–H), 6.89 (d, J = 3.42 Hz, 2H, Ca–H), 6.88 (s,
1H, Ca–H), 6.87 (s, 1H, Ca–H), 6.81 (s, 1H, Ca’–H), 6.79 (s, 1H, Ca’–H), 6.74 (s, 1H, Ca0–H), 6.58 (s, 1H,
Ca0–H), 6.57 (s, 1H, Ca0–H), 4.50 (s, 1H, Ch0–H), 3.80 – 3.76 (m, 18H, Cb0–H, Cc0–H), 3.72–3.69 (m, 13H,
Cc0–H), 3.63 (s, 3H, Cc0–H), 3.61 (s, 3H, Cc0–H), 2.17 (q, J = 7.02 Hz, 2H, Cj0–H), –1.48 (t, J = 7.02 Hz,
3H, Ck0–H); 13C NMR (151 MHz, CDCl3) /ppm: 169.08 (C–i0), 151.29, 150.81, 150.76, 150.45, 150.43,
δ
150.15, 149.94, 149.92, 149.87, 149.65, 129.32, 129.21, 129.01, 128.65, 128.56, 128.43, 128.03, 127.74, 127.15,
127.12, 115.29, 115.24, 114.17, 114.02, 113.89, 113.42, 113.40, 113.11, 112.68, 112.33 (C–a0), 64.78 (C–h’),
60.56 (C–j0), 56.51, 56.04, 55.95, 55.88, 55.85, 55.71, 55.58, 55.49, 55.20 (C–c0), 31.85, 30.36, 28.99, 28.71,
27.24 (C–b0), 10.77 (C–k0).
4. Conclusions
In summary, we synthesized two types of mono-ester-functionalized pillar[5]arens (P1 and
P2) bearing different side-chain groups and studied their self-inclusion properties and host–guest
complexation. Both of these pillar[5]arenes can form stable pseudo[1]rotaxanes, but their self-inclusion
behaviors were greatly affected by the unlocked substituents on their phenolic units. When eight bulky
4-brombutyloxy groups were capped on the cavity, instead of methoxy groups, pseudo[1]rotaxane P1
became less stable and its locked ester group in the inner space of cavity was not as deep as P2, leading
to distinctly different host–guest properties between P1 and P2 with 1,6-dibromohexane. In addition,
complexation studies revealed that P1 showed good molecular recognition toward the studied guests
(G1–G5). The significant information obtained in this study will promote further understanding of the
formation of pseudo[1]rotaxanes and the development of their molecular recognition. More importantly,
P1, possessing eight 4-brombutyloxy groups, can easily be functionalized by many hosts.
Supplementary Materials: Supplementary materials are available online.
Author Contributions: W.-X.Z. carried out the experimental work, participated in the discussion of host–guest
complexes, and wrote the paper; L.-Z.L. and W.-G.D. constructed the target compounds’ structures, designed
the experimental scheme, directed, and supervised the whole experimentation. Q.-Q.Z. and C.-G.M. discussed
host–guest complex. L.-Z.L. revised the paper; Y.H. participated in the work of synthesis and characterization.
Funding: This study was supported by the National Natural Science Foundation of China (No. 21402033),
and supported by the high-performance computing platform of Guangxi University.
Conflicts of Interest: The authors declare no conflict of interest.

Molecules 2019, 24, 2693
9 of 10
References
1.
2.
3.
Amirjalayer, S.; Martinez-Cuezva, A.; Berna, J.; Woutersen, S.; Buma, W.J. Photoinduced pedalo-type motion
in an azodicarboxamide-based molecular switch. Angew. Chem. Int. Ed. 2018, 57, 1792–1796. [CrossRef]
Pazos, E.; Novo, P.; Peinador, C.; Kaifer, A.E.; Garcia, M.D. Cucurbit[8]uril (CB[8])-based supramolecular
switches. Angew. Chem. Int. Ed. 2019, 58, 403–416. [CrossRef]
Ren, J.M.; Knight, A.S.; van Ravensteijn, B.G.P.; Kohl, P.; Bou Zerdan, R.; Li, Y.L.; Lunn, D.J.; Abdilla, A.;
Qiao, G.G.; Hawker, C.J. DNA-inspired strand-exchange for switchable pmma-based supramolecular
morphologies. J. Am. Chem. Soc. 2019, 141, 2630–2635. [CrossRef]
4.
5.
6.
Goujon, A.; Du, G.Y.; Moulin, E.; Fuks, G.; Maaloum, M.; Buhler, E.; Giuseppone, N. Hierarchical self-assembly
of supramolecular muscle-like fibers. Angew. Chem. Int. Ed. 2016, 55, 703–707. [CrossRef]
Chang, J.C.; Tseng, S.H.; Lai, C.C.; Liu, Y.H.; Peng, S.M.; Chiu, S.H. Mechanically interlocked daisy-chain-like
structures as multidimensional molecular muscles. Nature Chemistry 2016, 9, 128–134. [CrossRef]
Chen, J.W.; Leung, F.K.C.; Stuart, M.C.A.; Kajitani, T.; Fukushima, T.; van der Giessen, E.; Feringa, B.L.
Artificial muscle-like function from hierarchical supramolecular assembly of photoresponsive molecular
motors. Nature Chemistry 2017, 10, 132–138. [CrossRef]
7.
8.
Schröder, H.V.; Wollschlager, J.M.; Schalley, C.A. Redox-controlled self-inclusion of a lasso-type
pseudo[1]rotaxane. Chem. Commun. 2017, 53, 9218–9221. [CrossRef]
Madhu, V.; Das, S.K. Diverse supramolecular architectures having well-defined void spaces formed from a
pseudorotaxane cation: Influential role of metal dithiolate coordination complex anions. Cryst. Growth Des.
2014, 14, 2343–2356. [CrossRef]
9.
Zanichelli, V.; Ragazzon, G.; Orlandini, G.; Venturi, M.; Credi, A.; Silvi, S.; Arduini, A.; Secchi, A.
Efficient active-template synthesis of calix[6]arene-based oriented pseudorotaxanes and rotaxanes.
Cryst. Growth Des. 2017, 15, 6753–6763. [CrossRef]
10. Talotta, C.; De Simone, N.A.; Gaeta, C.; Neri, P. Calix[6]arene threading with weakly interacting tertiary
ammonium axles: Generation of chiral pseudorotaxane architectures. Org. Lett. 2015, 17, 1006–1009.
[CrossRef]
11. Wang, Y.; Du, J.W.; Wang, Y.X.; Jin, Q.; Ji, J. Pillar[5]arene based supramolecular prodrug micelles with pH
induced aggregate behavior for intracellular drug delivery. Chem. Commun. 2015, 51, 2999–3002. [CrossRef]
[PubMed]
12. Liu, X.; Jia, K.K.; Wang, Y.C.; Shao, W.; Yao, C.H.; Peng, L.M.; Zhang, D.M.; Hu, X.Y.;
Wang, L.Y. Dual-Responsive bola-type supra-amphiphile constructed from water-soluble pillar[5]arene and
naphthalimide-containing amphiphile for intracellular drug delivery. ACS Appl. Mater. Interfaces 2017, 9,
4843–4850. [CrossRef] [PubMed]
13. He, J.P.; Chen, J.Z.; Lin, S.L.; Niu, D.C.; Hao, J.N.; Jia, X.B.; Li, N.; Gu, J.L.; Li, Y.S.; Shi, J.L. Synthesis of a
Pillar[5]arene-based polyrotaxane for enhancing the drug loading capacity of pcl-based supramolecular
amphiphile as an excellent drug delivery platform. Biomacromolecules 2018, 19, 2923–2930. [CrossRef]
[PubMed]
14. Li, H.H.; Wei, R.Y.; Yan, G.H.; Sun, J.; Li, C.J.; Wang, H.F.; Shi, L.Y.; Capobianco, J.A.; Sun, L.N.
Smart self-assembled nanosystem based on water-soluble pillararene and rare-earth-doped upconversion
nanoparticles for ph-responsive drug delivery. ACS Appl. Mater. Interfaces 2018, 10, 4910–4920. [CrossRef]
[PubMed]
15. Chen, J.F.; Lin, Q.; Zhang, Y.M.; Yao, H.; Wei, T.B. Pillararene-based fluorescent chemosensors: Recent advances
and perspectives. Chem. Commun. 2017, 53, 13296–13311. [CrossRef]
16. Yao, Q.F.; Lü, B.Z.; Ji, C.D.; Cai, Y.; Yin, M.Z. Supramolecular host-guest system as ratiometric fe3+ ion sensor
based on water-soluble pillar[5]arene. ACS Appl. Mater. Interfaces 2017, 9, 36320–36326. [CrossRef] [PubMed]
17. Li, X.; Li, Z.; Yang, Y.W. Tetraphenylethylene-interweaving conjugated macrocycle polymer materials as
two-photon fluorescence sensors for metal ions and organic molecules. Adv. Mater. 2018. [CrossRef]
18. Lin, Q.; Jiang, X.M.; Liu, L.; Chen, J.F.; Zhang, Y.M.; Yao, H.; Wei, T.B. A novel supramolecular organogel
based on acylhydrazone functionalized pillar[5]arene acts as an I– responsive smart material. Soft Matter
2017, 13, 7222–7226. [CrossRef]

Molecules 2019, 24, 2693
10 of 10
19. Cui, W.; Tang, H.; Xu, L.X.; Wang, L.Y.; Meier, H.; Cao, D.R. Pillar[5]arene-diketopyrrolopyrrole fluorescent
copolymer: A promising recognition and adsorption material for adiponitrile by selective formation of a
conjugated polypseudorotaxane. Macromol. Rapid Commun. 2017. [CrossRef]
20. Song, N.; Kakuta, T.; Yamagishi, T.A.; Yang, Y.W.; Ogoshi, T. Molecular-scale porous materials based on
pillar[n]arenes. Chem 2018, 4, 2029–2053. [CrossRef]
21. Li, C. Pillararene-based supramolecular polymers: From molecular recognition to polymeric aggregates.
Chem. Commun. 2014, 50, 12420–12433. [CrossRef] [PubMed]
22. Jiang, Y.Q.; Wu, K.; Zhang, Q.; Li, K.Q.; Li, Y.Y.; Xin, P.Y.; Zhang, W.W.; Guo, H.M. A dual-responsive
hyperbranched supramolecular polymer constructed by cooperative host-guest recognition and
hydrogen-bond interactions. Chem. Commun. 2018, 54, 13821–13824. [CrossRef] [PubMed]
23. Li, H.; Yang, Y.; Xu, F.F.; Liang, T.X.; Wen, H.R.; Tian, W. Pillararene-based supramolecular polymers.
Chem. Commun. 2019, 55, 271–285. [CrossRef] [PubMed]
24. Chen, Y.; Cao, D.R.; Wang, L.Y.; He, M.Q.; Zhou, L.X.; Schollmeyer, D.; Meier, H. Monoester copillar[5]arenes:
Synthesis, unusual self-inclusion behavior, and molecular recognition. Chem. Eur. J. 2013, 19, 7064–7070.
[CrossRef] [PubMed]
25. Chen, L.; Li, Z.M.; Chen, Z.X.; Hou, J.L. Pillar[5]arenes with an introverted amino group: A hydrogen
bonding tuning effect. Org. Biomol. Chem. 2013, 11, 248–251. [CrossRef] [PubMed]
26. Ni, M.F.; Hu, X.Y.; Jiang, J.L.; Wang, L.Y. The self-complexation of mono-urea-functionalized pillar[5]arenes
with abnormal urea behaviors. Chem. Commun. 2014, 50, 1317–1319. [CrossRef] [PubMed]
27. Guan, Y.F.; Liu, P.Y.; Deng, C.; Ni, M.F.; Xiong, S.H.; Lin, C.; Hu, X.Y.; Ma, J.; Wang, L.Y. Dynamic self-inclusion
behavior of pillar[5]arene-based pseudo[1]rotaxanes. Org. Biomol. Chem. 2014, 12, 1079–1089. [CrossRef]
[PubMed]
28. Wu, X.; Ni, M.F.; Xia, W.; Hu, X.Y.; Wang, L.Y. A novel dynamic pseudo[1]rotaxane based on a
mono-biotin-functionalized pillar[5]arene. Org. Chem. Front. 2015, 2, 1013–1017. [CrossRef]
29. Wu, X.; Gao, L.; Sun, J.Z.; Hu, X.Y.; Wang, L.Y. Stable pillar[5]arene-based pseudo[1]rotaxanes formed in
polar solution. Chinese Chem. Lett. 2016, 27, 1655–1660. [CrossRef]
30. Liu, L.Z.; Wang, L.Y.; Liu, C.C.; Fu, Z.Y.; Meier, H.; Cao, D.R. Dimerization control in the self-assembly
behavior of copillar[5]arenes bearing omega-hydroxyalkoxy groups. J. Org. Chem. 2012, 77, 9413–9417.
[CrossRef] [PubMed]
31. Liu, L.Z.; Cao, D.R.; Jin, Y.; Tao, H.Q.; Kou, Y.H.; Meier, H. Efficient synthesis of copillar[5]arenes and their
host-guest properties with dibromoalkanes. Org. Biomol. Chem. 2011, 9, 7007–7010. [CrossRef] [PubMed]
32. Liu, L.Z.; Hua, Z.Z.; Duan, W.G.; Huang, H.F.; Huang, Y.; Lin, G.S.; Cen, B. Selective and effective rotation
mode of copillar[5]arene by mono-functionalizing bulky substituent. Tetrahedron Letters 2016, 57, 2969–2971.
[CrossRef]
33. Liu, L.Z.; Duan, W.G.; Kou, Y.H.; Wang, L.Y.; Meier, H.; Cao, D.R. Crystal Structure and Host-Guest Binding
Ability of Three Types of Pillar[5]arenes. Chin. J. Chem. 2015, 33, 346–350. [CrossRef]
34. Huang, H.F.; Liu, L.Z.; Duan, W.G.; Huang, Y.; Lin, G.S. Synthesis of copillar[5]arenes and their host-guest
complexation with two types of guests. Chin. J. Chem. 2015, 33, 384–388. [CrossRef]
35. Li, C.J.; Shu, X.Y.; Li, J.; Fan, J.Z.; Chen, Z.X.; Weng, L.H.; Jia, X.S. Selective and effective binding of
pillar[5,6]arenes toward secondary ammonium salts with a weakly coordinating counteranion. Org. Lett.
2012, 14, 4126–4129. [CrossRef] [PubMed]
36. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.;
Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09; Revision, A. 02; Gaussian, Inc.: Wallingford, CT, USA, 2009.
Sample Availability: Samples of the compounds P1 and P2 are available from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
