CHEMSUSCHEM
FULL PAPERS

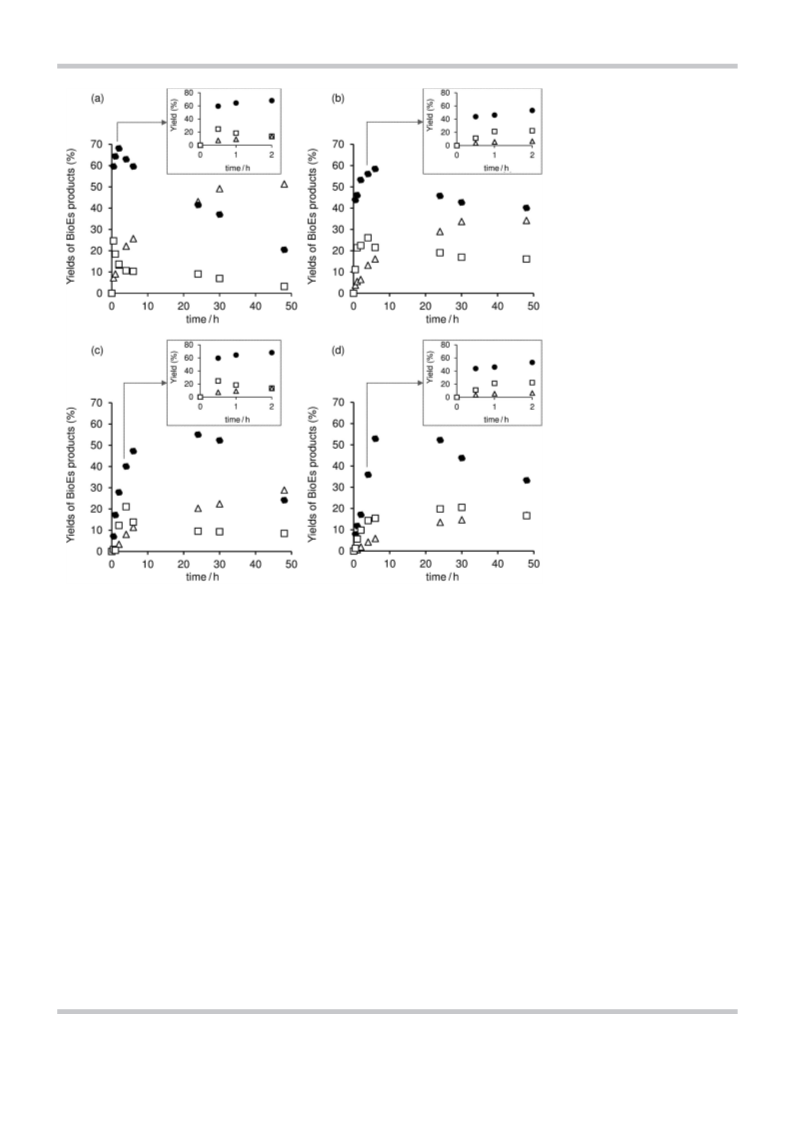

The superior catalytic performance of S-RGO for the conver-
sion of HMF to bioEs was also observed and it was compared
with Amberlyst-15 based on approximately equivalent total
amount of acid sites (5 and 10 gcat. dmꢀ3 S-RGO and Amberlyst-
15 loading, respectively). Although the acid resin catalyst led
to 80% bioEs yield at 100% conversion (Figure S5), S-RGO led
to 97% bioEs yield.
Experimental Section
Preparation of the catalysts
GO was prepared from graphite by
a modified Hummers
method[63] as described in a previous paper.[64] RGO was obtained
by the treatment of GO with benzyl alcohol under microwave irra-
diation at 1908C for 20 min. The solid was then collected by centri-
fugation, washed with ethanol, and dried at 658C. Sulfuric acid
treatment was performed as follows:[65] RGO (1.5 g) was heated in
H2SO4 (30 mL, 97 wt%) at 1608C for 5 h under N2. The suspension
was then centrifuged, and the solid was washed thoroughly with
hot distilled water (808C) and finally dried at 1008C. This process
was repeated twice more. Carbon black Vulcan XC72 (CB, Cabot)
and stacked-cups carbon nanotubes (CNTs, PR24-PS, Pyrograf Prod-
ucts) were also treated in the same way. Prior to the sulfuric acid
treatment, the CNTs were oxidized with concentrated nitric acid ac-
cording to the following procedure: CNTs (5 g) were added to
nitric acid (250 mL, 70%) and heated at 1008C for 10 h; the solid
was recovered by filtration, washed with distilled water until neu-
tral pH, and dried at 1008C.
The comparatively superior catalytic performance of S-RGO
cannot be explained by acid site content or strength. Amber-
lyst-15 has a much higher sulfonic acids content (4.3 mmolgꢀ1
)

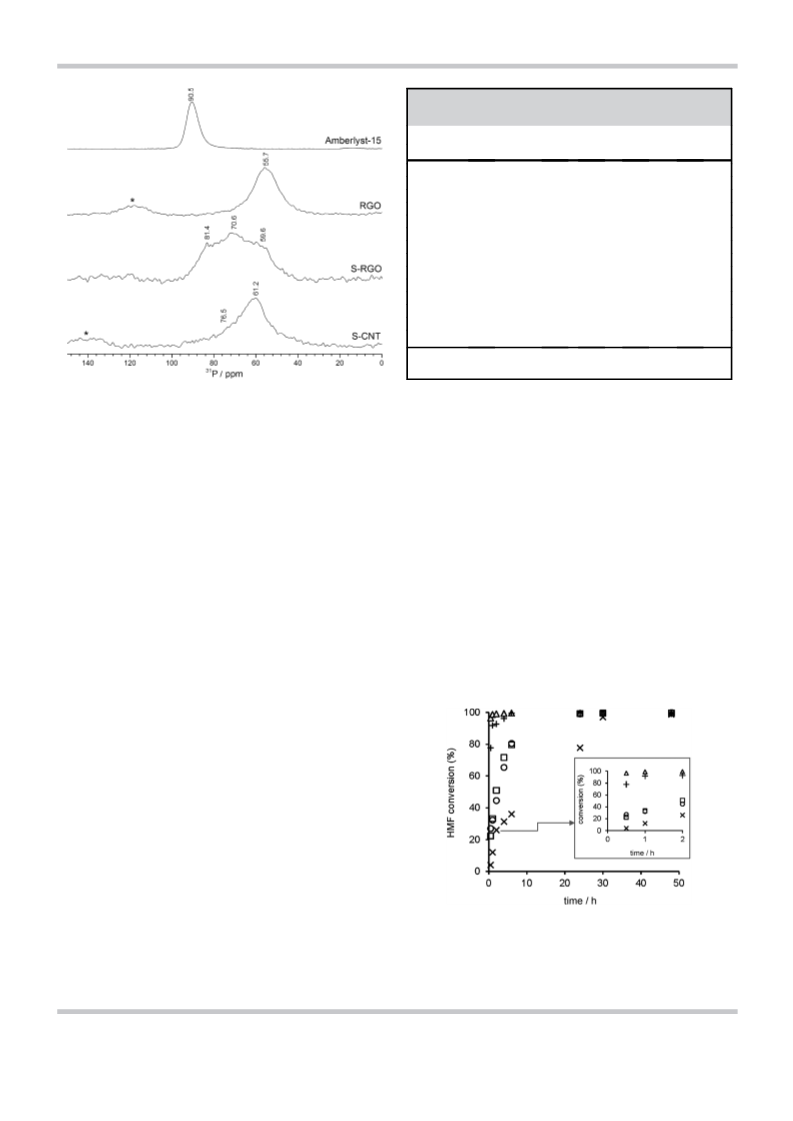

than S-RGO. Moreover, the 31P MAS NMR spectrum confirmed
the presence of stronger acid sites in Amberlyst-15 than in S-
RGO (Figure 3). The 2D structure of S-RGO may contribute to
the higher activity as it results in readily accessible acid sites,
which avoids mass-transfer limitations as proposed by other
authors.[44] However, this factor does not fully explain the supe-
rior performance of S-RGO. The 31P MAS NMR spectrum of
TEPO adsorbed on S-RGO reflects the existence of acid sites
with a wide range of strengths on the surface of the solid, es-
pecially the acid sites incorporated upon sulfuric acid treat-
ment. Moreover, it indicates the presence of acid sites in a vari-
ety of different chemical environments (specifically, different
amounts and types of surface functionalities). This is a conse-
quence of the large amount of oxygen functional groups pres-
ent on RGO that was further increased by sulfuric acid treat-
ment, as indicated by the low carbon content of the S-RGO
material (64 wt%). Although the O-acid sites are relatively
weak and do not solely lead to high catalytic activities and se-
lectivities, an excellent catalytic performance is achieved if
they are associated with the presence of sulfonic acid groups.
Therefore, the superior performance of the S-RGO material in
the conversion of HMF to bioEs may be partly attributed to co-
operative effects of the sulfonic acid sites and O-acid sites in
their surroundings.
The lignosulfonate sample tested possesses the empirical formula
(per phenylpropane unit) C9H9.77O3.92S0.10(SO3H)0.36(OCH3)1.51 (denot-
ed LSF); the preparation and characterization of this sample is de-
scribed elsewhere.[60,61] For comparative purposes, catalytic tests
were performed by using the cation-exchange resin Amberlyst-15,
a macroreticular styrene-divinylbenzene copolymer that bears ben-
zenesulfonic acid groups. Prior to use, the commercial Amberlyst-
15 (FlukaChemika) was ground and sieved to give a powder with
particle sizes smaller than 106 mm.
Characterization of the carbon materials
The carbon and sulfur content of the samples was determined by

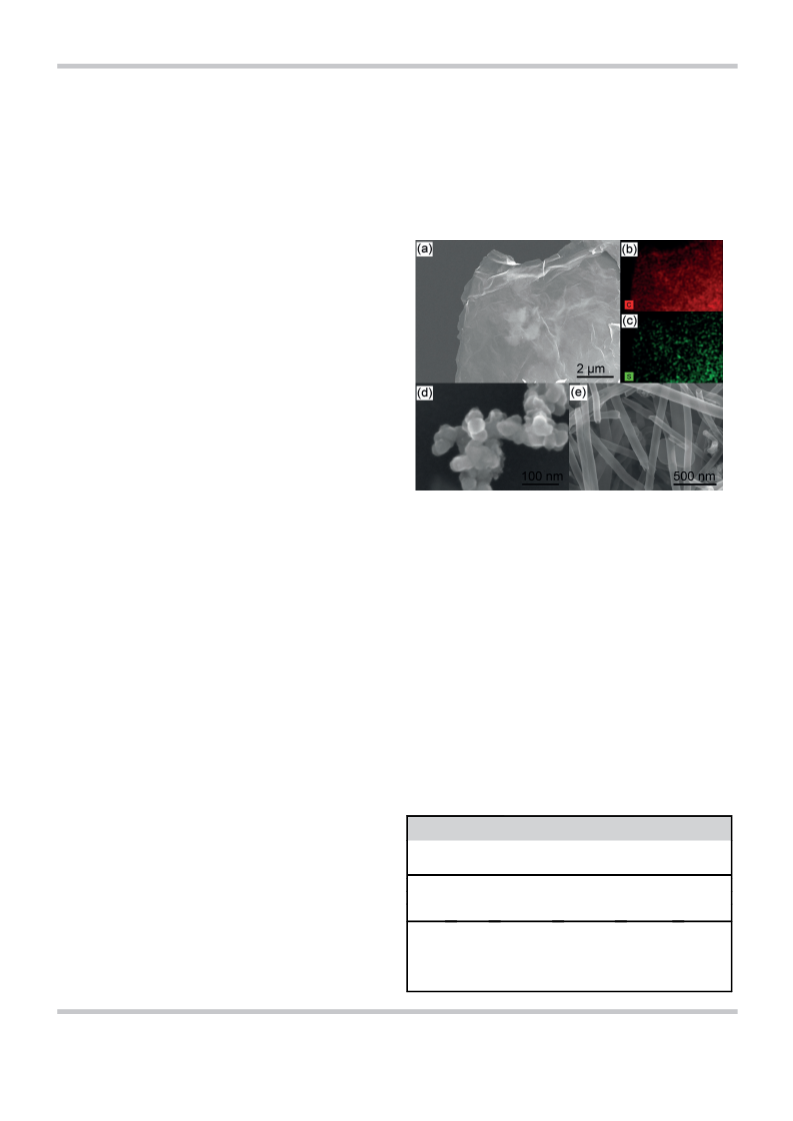

elemental analysis by using a TruSpec 630 elemental analyzer. SEM
images were recorded by using a Hitachi SU-70 HR microscope op-
erated at 10 or 15 kV coupled with a Bruker Quantax 400 EDS
system. BET specific surface areas were calculated from N2 adsorp-
tion isotherms measured at ꢀ1968C by using a Micromeritics
Gemini 2380 (prior to the measurements, the samples were de-
gassed at 1208C overnight). The external surface area and micro-
pore volumes were calculated by application of the as method by
using standard data for N2 adsorption on nonporous carbon. Ther-
mogravimetric analysis (TGA) was performed from RT to 6008C
with a heating rate of 58Cminꢀ1 under a N2 flow (20 mLminꢀ1) by
using a Shimadzu TGA-50 instrument. The total acid sites content
was determined by acid–base titration. In a typical experiment,
NaCl (20 mL, 0.1m) was added to the sample (0.1 g), the mixture
was stirred for 24 h at RT and then titrated with NaOH (0.01m).
The acid properties of the solids were evaluated by 31P MAS NMR
spectroscopy of chemically adsorbed TEPO. The adsorption of
TEPO was performed as follows: solid (0.1 g) was dehydrated at
110–1208C under vacuum. TEPO (0.015 g) dissolved in anhydrous
n-pentane (5 mL) was added to the solid, and the mixture was
stirred for 30 min under N2 and then dried at 508C under vacuum.
Solid-state NMR spectra were acquired by using a Bruker Avance III
400 spectrometer using a 4 mm double resonance probe operating
at a B0 field of 9.4 T (400 MHz) with a 31P Larmor frequency of
161.9 MHz. 31P {1H} MAS NMR spectra were recorded by using a ro-
tation speed of 12 kHz, a single excitation pulse width of 1.9 ms,
a radio-frequency field strength of 56 kHz (608 flip angle), and 15 s
recycle delay. A two-pulse phase modulation scheme (TPPM-15)
was used for 1H heteronuclear decoupling. FTIR spectra were re-
Conclusions
Partially reduced graphene oxide was modified by treatment
with sulfuric acid to introduce sulfonic acid surface groups.
The resultant material (S-RGO) contained a total amount of
acid sites of 2.2 mmolgꢀ1 (ꢀSO3H, ꢀCOOH, ꢀOH) and exhibited
high activity for the conversion of 5-(hydroxymethyl)-2-furfural
into 5-ethoxymethylfurfural, 5-(ethoxymethyl)furfural diethyla-
cetal, and ethyl levulinate (bioEs), and led to high bioEs yields
in the range 110–1408C. In particular, the catalytic performance
of S-RGO was superior to that of carbon black and carbon
nanotubes modified by the same procedure and of the stron-
ger solid acid Amberlyst-15 (4.3 mmol gꢀ1). This was ex-
SO3H
plained by cooperative effects of the different acid sites and
the 2D structure of the S-RGO material. The acidic surface func-
tionalities of S-RGO were stable, and, consequently, the catalyst
maintained its performance over consecutive catalytic runs, in
contrast to the other catalysts tested.
ꢁ 2014 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
ChemSusChem 2014, 7, 804 – 812 810
