Catalysis Science & Technology
Paper
References
1 A. Martin and V. N. Kalevaru, ChemCatChem, 2010, 2, 1504–1522.
2 A. Kagarlitskii, L. Krichevskii and A. Amirkhanova, Pharm.
Chem. J., 1999, 33, 381–383.
3 V. M. Bondareva, T. V. Andrushkevich, E. A. Paukshtis,
N. A. Paukshtis, A. A. Budneva and V. N. Parmon, J. Mol.
Catal. A: Chem., 2007, 269, 240–245.
4 V. M. Bondareva, T. V. Andrushkevich, O. B. Lapina, A. A. Vlasov
and L. S. Dovlitova, React. Kinet. Catal. Lett., 2003, 79, 165–173.
5 N. Lingaiah, K. M. Reddy, P. Nagaraju, P. S. Sai Prasad and
I. E. Wachs, J. Phys. Chem. C, 2008, 112, 8294–8300.
6 P. Nagaraju, N. Lingaiah, M. Balaraju and P. S. Sai Prasad,
Appl. Catal., A, 2008, 339, 99–107.
7 Global Tuberculosis Report of WHO, 2012.
8 I. E. Wachs, Catal. Today, 2005, 100, 79–94.
9 E. Heracleous and A. A. Lemonidou, J. Catal., 2010, 270,
67–75.
Fig.
9 A comparison of conversion of MP, product yields and
selectivity as well as space–time yields of CP obtained over different
Nb–V–O catalysts at 380 °C (reaction conditions: MP: H2O : NH3 : air : N2 =
1 : 13 : 7 : 26 : 22; cat. wt. 1 g; MP = methylpyrazine, CP = cyanopyrazine,
Py = pyrazine, PyA = pyrazinamide).
10 G. V. Isaguliants and I. P. Belomestnykh, Catal. Today, 2005,
100, 441–445.
characteristics (e.g. porosity, phase composition, crystallinity,
nature of VOx species, reducibility, surface composition, mor-
phology etc.) of the catalysts and thereby catalytic activity and
selectivity as well. In the present study, the catalytic proper-
ties of Nb–V–O solids were evaluated for the ammoxidation

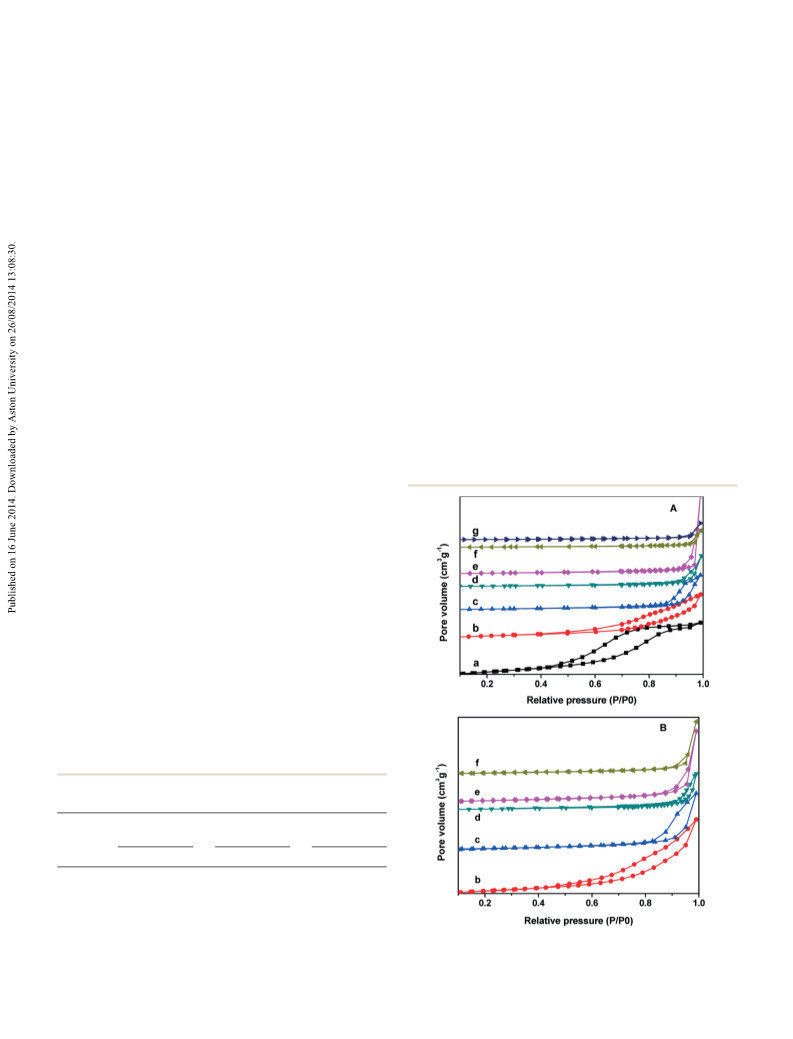

of MP to CP. Surface areas and pore volumes were found to
decrease with the dropping Nb/V ratio of the solids. More-
over, the type of VOx species formed and the crystalline
phases present in the calcined solids were observed to
depend strongly on the content of vanadium (i.e. Nb/V ratio)
in the catalyst. The XPS analysis exhibited a clear enrichment
of vanadium in the near-surface region in the best catalyst
(Nb/V = 1), which appeared to be responsible for an enhanced

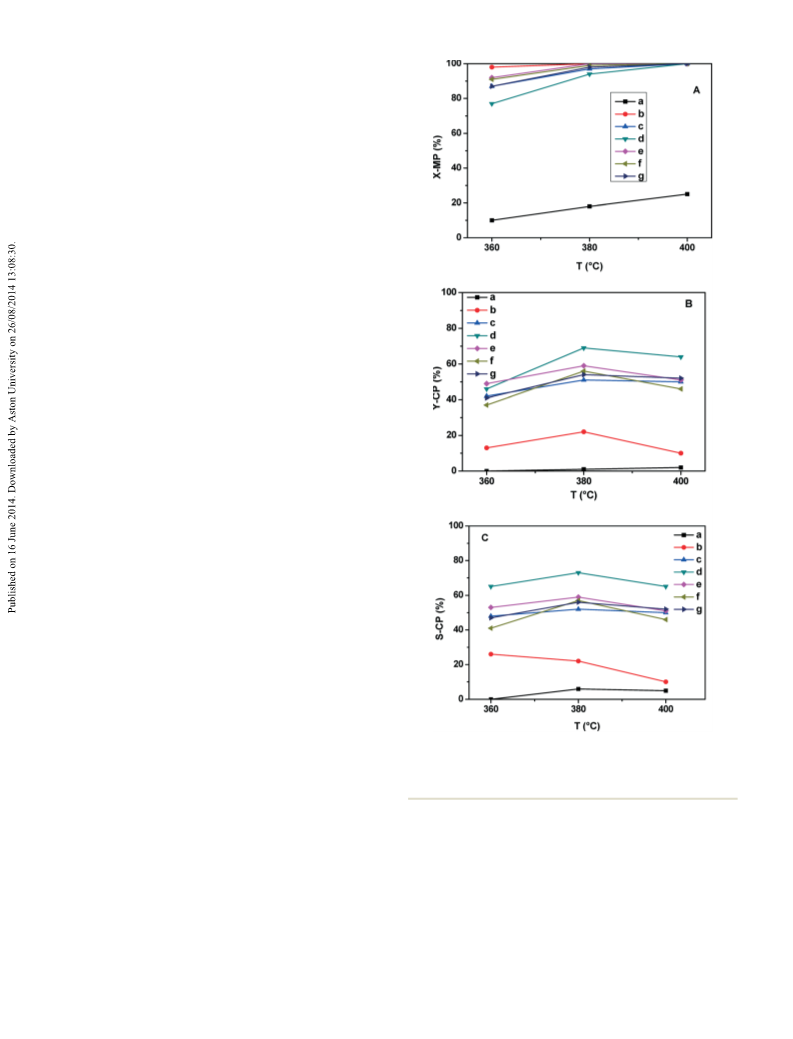

selectivity of CP. The catalytic results demonstrated that the
ratio of Nb/V in the final catalyst played a key role on the cata-
lytic performance. The results showed that the nature of the
vanadium–oxygen sites changed with vanadia content, too.
The oligomeric/polymeric vanadia species were considered to
be selective for the formation of CP during the ammoxidation
of MP. Among all the catalysts tested, the best performance
was achieved over the catalyst having an Nb/V ratio of 1
(which corresponds to the NbVO5 phase). Furthermore,
almost a total conversion of MP and ca. 70% yield of CP (close
to 90% for aggregated yield of CP and PyA) along with
11 J. M. Amarilla, B. Casal and E. Ruiz-Hitzky, J. Mater. Chem.,
1996, 6, 1005–1011.
12 Z. Zhao, X. Gao and I. E. Wachs, J. Phys. Chem. B, 2003, 107,
6333–6342.
13 F. Barbieri, D. Cauzzi, F. De Smet, M. Devillers, P. Moggi,
G. Predieri and P. Ruiz, Catal. Today, 2000, 61, 353–360.
14 J. Holmberg, R. Häggblad and A. Andersson, J. Catal., 2006,
243, 350–359.
15 V. M. Bondareva, T. V. Andrushkevich, O. B. Lapina,
D. F. Khabibulin, A. A. Vlasov, L. S. Dovlitova and E. B. Burgina,
Kinet. Catal., 2004, 45, 104–113.
16 C. Hong and Y. Li, Chin. J. Chem. Eng., 2006, 14, 670–675.
17 K. Mohan Reddy, N. Lingaiah, K. N. Rao, P. Nagaraju,
P. S. Sai Prasad and I. Suryanarayana, Catal. Lett., 2009, 130,
154–160.
18 Ch. Srilakshmi, N. Lingaiah, P. Nagaraju, P. S. Sai Prasad,
K. V. Narayana, A. Martin and B. Lücke, Appl. Catal. A, 2006,
309, 247–253.
19 K. N. Rao, K. M. Reddy, N. Lingaiah, I. Suryanarayana and
P. S. Sai Prasad, Appl. Catal. A, 2006, 300, 139–146.
20 P. Nagaraju, Ch. Srilakshmi, N. Pasha, N. Lingaiah,
I. Suryanarayana and P. S. Sai Prasad, Appl. Catal. A, 2008,
334, 10–19.
21 P. Nagaraju, Ch. Srilakshmi, N. Pasha, N. Lingaiah,
I. Suryanarayana and P. S. Sai Prasad, Appl. Catal. A, 2008,
334, 10–19.
−1
extremely high space–time yield of CP (440 gCP kgcat h−1 or
600 gCP+PyA kgcat−1 h−1) was successfully achieved. Finally, the
conclusion is that 1Nb1VO (NbVO5) is the best composition
for delivering the high productivity of the desired product
(CP). This might be due to the involvement of all Nb5+ and V5+
22 B. Manohar, J. Chem. Pharm. Res., 2012, 4, 2781–2788.
23 Ch. Srilakshmi, P. Nagaraju, B. Sreedhar, P. S. Saiprasad,
V. N. Kalevaru, B. Lücke and A. Martin, Catal. Today, 2009,
141, 337–343.
24 B. M. Reddy, B. Manohar, E. P. Reddy, K. S. Patil and
A. V. Ramarao, Ind. Pat. 182 185 A1, 1999, CSIR, New Delhi,
India.
25 V. M. Bondareva, T. V. Andrushkevich, O. B. Lapina,
A. A. Vlasov, L. S. Dovlitova and E. B. Burgina, React. Kinet.
Catal. Lett., 2003, 78, 355–363.
ions in the bond formation of Nb–V–O oxide, and also due to
3−
the surface enrichment of vanadium species as a VO4
.
Acknowledgements
Dr. M. Schneider and Dr. J. Radnik both of LIKAT are thanked
for XRD and XPS measurements.
This journal is © The Royal Society of Chemistry 2014
Catal. Sci. Technol., 2014, 4, 3306–3316 | 3315
