For all reactions described, leaching values were determined
for Fe, Cr and Ni, respectively, by using ICP-OES analysis:
Average values for Fe: 4.15 ppm; Cr: 1.75 ppm; Ni: 0.15 ppm.
Selected reviews on chemically functionalized flow-through
systems: a) G. Jas, A. Kirschning, Chem. Eur. J. 2003, 9, 5708–
5723; b) A. Kirschning, G. Jas, Top. Curr. Chem. 2004, 242,
209–239; c) I. R. Baxendale, S. V. Ley in New Avenues to Ef-
ficient Chemical Synthesis: Emerging Technologies (Eds.: P. H.
Seeberger, T. Blume), Springer, Berlin, Heidelberg, 2007, pp.
151–185; d) I. R. Baxendale, J. J. Hayward, S. Lanners, S. V.
Ley, C. D. Smith in Microreactors in Organic Synthesis and Ca-
talysis (Eds.: T. Wirth), Wiley-VCH, Weinheim, 2008, chapter
4.2, pp. 84–122; e) B. Ahmed-Omed, J. C. Brandt, T. Wirth,
Org. Biomol. Chem. 2007, 5, 733–740; f) B. P. Mason, K. E.
Price, J. L. Steinbacher, A. R. Bogdan, D. T. MacQuade, Chem.
Rev. 2007, 107, 2300–2318; g) T. Fukuyama, M. T. Rahman,
M. Sato, I. Ryu, Synlett 2008, 151–163; h) J. Yoshida, A. Na-
gaki, T. Yamada, Chem. Eur. J. 2008, 14, 7450–7459; i) X. Y.
Mak, P. Laurino, P. H. Seeberger, Beilstein J. Org. Chem. 2009,
5, 19; j) S. Ceylan, A. Kirschning in Recoverable and Recyclable
Catalysts (Ed.: M. Benaglia), John Wiley & Sons Ltd., Chich-
ester, 2009, chapter 13, pp. 379–411.
When two identical fixed-bed reactors are employed in a paral-
lel setup, the flow can be switched to the second reactor once
the oxidant inside the first flow reactor is exhausted. This reac-
tor can then be reactivated; see also: R. Lee, D. Donald, Tetra-
hedron Lett. 1997, 38, 3857–3860 for MagTrieveTM; K. Naka-
gawa, R. Konaka, T. Nakata, J. Org. Chem. 1962, 27, 1597–
1601 for NiO2. In an integrated flow system the LC-online de-
termination can be used to determine, when the oxidant is
exhausted, and the reactor has to be exchanged.
loading is difficult to estimate because mainly the surface of the
oxidant reacts. Commonly, a large excess of oxidant is employed as
reported in literature examples.[9] All reactions were performed on
a 0.5–1.0 mmolar scale.

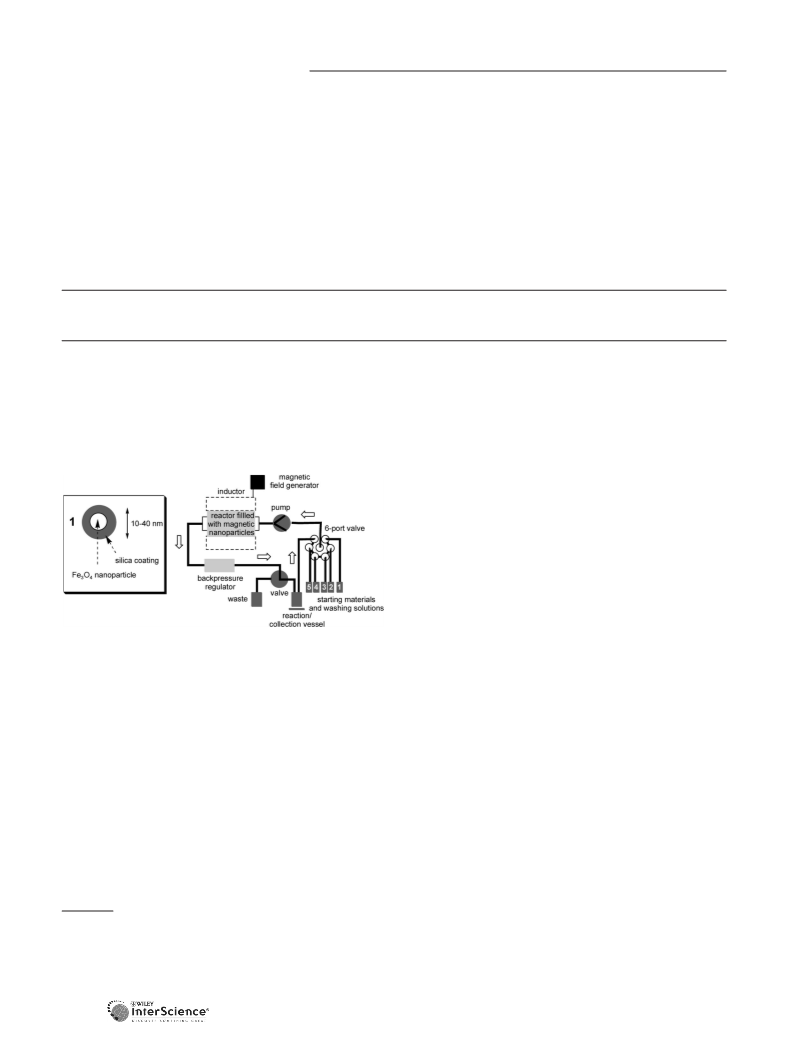

Typical Procedure for CrO2 Oxidations: See Scheme 2, Equation
(1). A PEEK reactor was filled with a mixture of nanoparticles 1
and MagTrieveTM (2:1 wt.-%) and incased with the inductor. The
reactor (void volume: 4 mL) was connected to a pump and on the
opposite side to a back-pressure device (100 psi), which led to the
collection vial. The flow device was flushed with acetonitrile, and
the temperature was adjusted to 135 °C. Once the temperature of
the flow (flow rate 0.1 mL/min) had reached constancy, a solution
of alcohol 10 in acetonitrile (0.15 ) was pumped through the sys-
tem (residence time ca. 40 min). The reaction mixture was col-
lected, and, after removal of the solvent under reduced pressure,
the crude product was purified by flash chromatography (silica gel)
to yield ketone 11 in 92% yield.
Typical Procedure for NiO2 Oxidations: The procedure is identical
to the CrO2 oxidation with the exception that NiO2 was used in-
stead of CrO2.
[9]
