Synthesis and matrix properties of α-cyano-5-phenyl-2,4-pentadienic acid (CPPA) for intact proteins analysis by matrix-assisted laser desorption/ionization mass spectrometry

Article abstract of DOI:10.3390/molecules25246054

The effectiveness of a synthesized matrix, α-cyano-5-phenyl-2,4-pentadienic acid (CPPA), for protein analysis by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) in complex samples such as foodstuff and bacterial

Full text of DOI:10.3390/molecules25246054

molecules
Article
Synthesis and Matrix Properties of
α-Cyano-5-phenyl-2,4-pentadienic Acid (CPPA) for
Intact Proteins Analysis by Matrix-Assisted Laser
Desorption/Ionization Mass Spectrometry
Antonio Monopoli 1, Angelo Nacci 2 , Tommaso R. I. Cataldi 2,3 and Cosima D. Calvano 3,4,
*
1
Agenzia delle Dogane e dei Monopoli, Ufficio delle Dogane di Bari, Corso De Tullio, 70122 Bari, Italy;
antomono@libero.it
2
Dipartimento di Chimica, Università degli Studi di Bari Aldo Moro, Via Orabona, 70126 Bari, Italy;
angelo.nacci@uniba.it (A.N.); tommaso.cataldi@uniba.it (T.R.I.C.)
Centro Interdipartimentale di Ricerca S.M.A.R.T., 70126 Bari, Italy
Dipartimento di Farmacia-Scienze del Farmaco, Università degli Studi di Bari Aldo Moro, Via Orabona,
70126 Bari, Italy
3
4
*
Correspondence: cosimadamiana.calvano@uniba.it
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Academic Editors: Susy Piovesana, Carmela Maria Montonea and Andrea Cerrato
Received: 30 October 2020; Accepted: 15 December 2020; Published: 21 December 2020
Abstract: The effectiveness of a synthesized matrix, α-cyano-5-phenyl-2,4-pentadienic acid (CPPA),
for protein analysis by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry
(MALDI-TOF MS) in complex samples such as foodstuff and bacterial extracts, is demonstrated.
Ultraviolet (UV) absorption along with laser desorption/ionization mass spectrometry (LDI-MS)
experiments were systematically conducted in positive ion mode under standard Nd:YLF laser
excitation with the aim of characterizing the matrix in terms of wavelength absorption and proton
affinity. Besides, the results for standard proteins revealed that CPPA significantly enhanced the protein
signals, reduced the spot-to-spot variability and increased the spot homogeneity. The CPPA matrix
was successful employed to investigate intact microorganisms, milk and seed extracts for protein
profiling. Compared to conventional matrices such as sinapinic acid (SA),
α-cyano-4-hydroxycinnamic
acid (CHCA) and 4-chloro- -cyanocinnamic acid (CClCA), CPPA exhibited better signal-to-noise
α
(S/N) ratios and a uniform response for most examined proteins occurring in milk, hazelnut and in
intact bacterial cells of E. coli. These findings not only provide a reactive proton transfer MALDI
matrix with excellent reproducibility and sensitivity, but also contribute to extending the battery of
useful matrices for intact protein analysis.
Keywords: MALDI matrix; mass spectrometry; proteomics; bacteria; hazelnut; milk
1. Introduction
In the last three decades, matrix-assisted laser desorption/ionization time-of-flight mass
spectrometry (MALDI-TOF MS) [
such as oligonucleotides, peptides and proteins in complex samples [
have been predominantly developed in clinical, food and microbiological fields for biomarker
discovery [ ], food authentication [ ], control of the technological processes [ ], bacterial species
identification [ ], etc. These approaches are based on the acquisition of protein “fingerprints” directly
1
] has become a suitable technique to analyse large biomolecules
2]. Proteomics strategies
3,
4
5,
6
7
8,9
from biological fluids [10], foodstuffs or intact microorganisms relating two or more inherent features
(e.g., healthy/diseased, authentic/adulterated, Gram-positive/Gram-negative, etc.) [11]. Compared to
DNA-based protocols [12,13], protein fingerprinting by MALDI-MS was demonstrated to be easier,
Molecules 2020, 25, 6054; doi:10.3390/molecules25246054
www.mdpi.com/journal/molecules

Molecules 2020, 25, 6054
2 of 18
cheaper, faster and more reliable. For instance, the identification of bacteria and fungi for diagnostic
purposes is currently achieved by MALDI-MS profiling due to its high resolution and low cost for
single determination making it an effective alternative to false negative/positive biochemical tests [14].
MALDI-MS is considered a valuable tool in routine clinical microbiology laboratories for rapid and
cost-effective species identification, either directly from cultures or from clinical specimens such
as plasma, blood, and urine or for the recognition of antibiotic resistance and bacterial typing [15].
Moreover, this technique has been included in conventional proteomic strategies applied to food
analysis [16] with the aim of safety and quality control in identifying adulteration, authentication,
occurrence of hidden allergens and so on [17–19].
Despite the large use of MALDI-MS in many analytical areas, some major drawbacks remain;
for instance, the variability of signal intensities and resolution between different spots of the same
sample. Furthermore, the resulting inhomogeneous crystallization is one of the major factors limiting the
application of MALDI-MS for quantification and for spatially resolved imaging [20]. Numerous efforts
have been ended to overcome these limitations of MALDI-MS, such as the use of ionic liquids to
improve spot homogeneity [21
background signals in the analysis of low-molecular-weight analytes [23
of strong base matrices as proton sponges [27] or an electron transfer matrix [28] to facilitate the
ionization of nonpolar compounds [29 30]. While several alternative approaches have been proposed
,
22], the exploration of novel matrices able to produce few interfering
–
26] and the application
,
to obtain better performances in terms of reproducibility, resolution, sensitivity and dynamic mass
range of low-mass compounds, the use in proteomic MALDI-MS investigations of sinapinic acid (SA)
and α-cyano-4-hydroxycinnamic acid (CHCA), either in dried-droplet or surface preparation mode,
still constitutes the ‘gold standard’. Moreover, the whole bacterial cell analysis by CHCA matrices
gives rise to a homogeneous sample/matrix spot on the target compared to “hot spots” formation by
SA, which leads to shot-to-shot and spot-to-spot lack of reproducibility [31]. A main drawback of
CHCA is represented by its marked preference for strongly basic arginine-containing peptides [32] and
the attendant suppression of acidic peptides, limiting the sequence coverage and thus hindering the
identification of low-abundance proteins. Indeed, a rationally designed chloro-cinnamic derivative
of CHCA, namely 4-chloro-α-cyanocinnamic acid (CClCA), was introduced to overcome this issue,
demonstrating better performances in ionizing acidic peptides thanks to its lower proton affinity [32].
Therefore, the search for a matrix exhibiting a uniform response for intact proteins of different basicity
and weight is still demanded.
In this work, α-cyano-5-phenyl-2,4-pentadienic acid (CPPA) was synthesized, characterized by
laser desorption ionisation (LDI) mass spectrometry and tested as a MALDI matrix for large
biomolecule analysis. CPPA performed very successfully when employed as a matrix for intact
proteins, exhibiting satisfactory signal-to-noise ratios compared to SA, CHCA and CClCA and an
improved intra-spot and spot-to-spot repeatability. Higher sensitivity at a lower laser energy was also
ascertained, leading to good resolution and reduced fragmentation.
2. Results and Discussion
2.1. Synthesis and Characterisation of CPPA
The targeted CPPA matrix was synthesized by following the standard Knoevenagel condensation
reaction using cyanoacetic acid and cinnamaldehyde [33]. Upon the chemical synthesis and ensuing
sample purification by repeated recrystallization, CPPA was examined by 1H-NMR by dissolving it in
DMSO-d6; the acquired spectrum was in good agreement with previous literature data [34].
Regarding the UV spectrum of CPPA in acetonitrile/water mixture, 2:1 (v:v), a good absorption
efficiency at the laser excitation wavelength of 345 nm was evidenced (Figure 1), which seems
comparable to that of CHCA. Indeed, CPPA exhibits a relatively strong absorption at the applied laser
wavelength with a molar extinction coefficient of
ε
= 22,500 L/mol
·
cm, which is roughly equivalent to
that of CHCA ( = 20,200 L/mol cm) evaluated in the same experimental conditions. Note that the
ε
·

Molecules 2020, 25, 6054
3 of 18
extinction coefficients of CPPA and CHCA were evaluated at 345 nm even though other Nd:YLF lasers
stated an emission wavelength at 349 or 351 nm. For the sake of comparison, we also estimated the
ε
values at both these last wavelengths; while at 349 nm, the same value (
CPPA and CHCA was obtained, a higher extinction coefficient for CPPA at 351 nm was estimated,
i.e., εCPPA = 16,700 vs εCHCA = 15,400 L/mol cm. A similar trend was reported by Bahr and Jaskolla [35],
who calculated values at different wavelengths even if the results are not directly comparable to
ε
= 17,530 L/mol
·
cm) for
·
ε
our estimations due to diverse experimental conditions employed, such as matrix concentration and
solvent used [36]. Apparently, the extinction coefficients of CPPA at 345 nm CPPA meets one of
the basic requirements of being a good UV-absorption MALDI matrix. Note that a previous study
demonstrated that CPPA acts as a strong absorbing organic chromophore in addition to liquid matrices
for the analysis of polyglycols and poly(dimethylsiloxane) [37]. Here, we demonstrated that CPPA
can work as a good performing matrix itself for the analysis of intact proteins (vide infra). Therefore,
its behaviour was investigated by laser desorption ionisation (LDI) MS experiments.
（
（
Figure 1. UV absorption spectra of (A) CPPA and (B) CHCA with relevant molecular structures.
The laser wavelength used in MALDI-MS at 345 nm is marked with a vertical dotted line. (A) CPPA:
α-cyano-5-phenyl-2,4-pentadienic acid; (B) CHCA: α-cyano-4-hydroxycinnamic acid.
Figure 2A shows the LDI mass spectrum of CPPA in positive ion mode in the range 100–800 m/z
.
Three main peaks were observed in the MS spectrum, namely at m/z 200.07, assigned to a protonated
adduct ([M + H]+), where M represents the neutral compound; at m/z 182.06, corresponding to a
species having lost a water molecule ([M
−
H2O + H]+); and at m/z 113.06, likely ascribed to a
2,4-hexa-2,4-dienoyl-oxonium product ion with the raw formula [C6H9O2]+. The low background
signals of CPPA (Figure 2A) can be attributed to the lower laser fluence (ca 3 mJ/cm2 for CPPA vs.

Molecules 2020, 25, 6054
4 of 18
10 mJ/cm2 for CHCA) required for the ionization/desorption processes, which reduce the energy of
intermolecular collisions, thus limiting the adduct formation [38 40]. Figure 2B shows the LDI mass
–
spectrum of the CHCA matrix using the same experimental conditions. As evident, the spectrum
reveals a consistent number of peaks besides the expected protonated adduct at m/z 190.05; these peaks
were generated from complex structures identified as dimers and trimers also including sodium and
potassium adducts [41,42]. An additional series of experiments was performed by mixing different
molar ratios of CHCA and CPPA followed by LDI-MS. As an example, the LDI mass spectrum of
Figure 2C was acquired with an equimolar ratio of CHCA and CPPA. Looking at the protonated
adducts of both matrices, it is evident that the mass spectrum is not dominated by CHCA or CPPA
peak signals, suggesting a possible mutual proton transfer. However, both the signals related to
CHCA ([M + H]+ at m/z 190.04 and [M
−
H2O + H]+ at m/z 172.04) showed a slightly higher intensity
H2O + H]+
compared to the same corresponding ions of CPPA (i.e., [M + H]+ at m/z 200.07 and [M
−
at m/z 182.06), thus suggesting a favoured proton transfer to CHCA related to differences in proton
affinities. Using density functional theory (DFTB3) calculations, the theoretical proton affinity (PA) of
both CPPA and CHCA were estimated to be 841
±
3 kJ/mol and 866
±
3 kJ/mol, respectively; the PA
value of CHCA is in good agreement with previous data of Mirabelli and Zenobi [43] estimated by a
B3LYP/6-311++G(3df,3pd) function. It is expected that in both cases, the positive charge of protonated
matrices initially located either at the carboxylic or at the cyano residue is delocalized over the entire
conjugated π-electron system; however, the electron-donating effect of the 4-OH group in CHCA can
stabilize the protonated CHCA matrix molecule more, resulting in a slightly larger PA than CPPA,
where the charge delocalization is much less pronounced due to the absence of the functional group
in the para position. Conceivably, we speculate that a more efficient proton transfer process from
CPPA matrix ions to analytes might occur because of its PA resulting in a more uniform protonation of
low-basicity compounds (vide infra). Indeed, a low PA corresponds to a high protonation power of the
[M + H]+ matrix ion that allows a better proton transfer with consequently more sensitive analyte
detection. The minimum requirements for a compound to behave as a matrix was investigated here,
but of course, many other critical factors should be considered to explain primary ion formation from
the matrix (M) and secondary ion formation of the analyte (A) [44]. For instance, the observation of a
small contribution of the odd-electron molecular ion M•+ of CPPA at m/z 199.06 (see inset in Figure 2A)
suggests the occurrence of a multiple photon absorption or an “energy pooling” mechanism [43] that is
either difficult to invoke or rule out, since the ionization energy of CPPA is not available. Another likely
mechanism that can be considered is the electronic excitation proton transfer (ESPT), where only one
photon is required, that generally results in an increase of the matrix acidity, promoting the proton
transfer to the analyte [45]. Since ESPT does not affect carboxylic acids [46], it cannot be invoked as an
effective mechanism for the proton transfer of CPPA. Further, the plume processes can be examined
from both a thermodynamic and a kinetic point of view, but without having a special instrument setup,
such as a split sample probe [43], any data attained should be expected as the result of both primary
and secondary ionization processes.

Molecules 2020, 25, 6054
5 of 18
（
（
Figure 2.
Positive LDI-MS spectra of matrices: (
) an equimolar mixture of CPPA and CHCA (5 mJ/cm2). LDI-MS:
A
) CPPA with a fluence of 3 mJ/cm2,
(
B
) CHCA at 10 mJ/cm2 and (
C
laser desorption/ionization mass spectrometry.
2.2. CPPA as a MALDI Matrix of Standard Proteins
Once CPPA was chemically characterized, its capability as a MALDI matrix was examined using
a standard protein mixture (100 fmol/
µL of each) of cytochrome c (12,361 Da), bovine myoglobin
(16,953 Da) and trypsinogen (23,981 Da), and results were compared to SA, CClCA and CHCA matrices.
In the relevant spectrum of Figure 3A, three main peaks at m/z 12,362, 16,954 and 23,983 were easily
detected, corresponding to the protonated adducts of each target protein, respectively. CPPA promoted
monomeric singly charged ions to a high degree, leading to uniform data; the absolute intensity of
protein peaks was relatively lower when using CHCA (Figure 3B) and CClCA (Figure 3C), where the
lower-molecular-weight proteins cytochrome c and bovine myoglobin were easily ionised, while the
trypsinogen ion was not at all detected at 100 fmol/µL concentration. Typically, the spectral quality
obtained using CPPA in replicate analyses was better than that obtained using CHCA in terms
of signal-to-noise (S/N) ratio and threshold laser fluences. While CPPA provided a ca. threefold
improvement in the S/N ratio in comparison to CHCA, a twenty-fold higher value was obtained
compared to SA (data not shown). These better values of the S/N ratios may be related to a different
crystallization behaviour, since a more homogenous spot is formed using the CPPA matrix. The optical
microscope images of CPPA and CHCA at 100 magnification are reported in Figure 4A,B, respectively.
×

Molecules 2020, 25, 6054
6 of 18
A thin and homogeneous layer of the matrix was found on the target plate covered with CPPA
(Figure 4A), while small crystals evenly homogeneously distributed all over the matrix spot were
discernible with CHCA (Figure 4B). The crystal size inspected microscopically was larger in CHCA
compared with CPPA, which is in agreement with the fact that a benefit is achieved for this last matrix
over the normal preparation of dried droplets that was found to be the simplest and most effective
deposition technique and was thoroughly used in this work.
（
（
（
Figure 3. Positive MALDI-TOF MS spectra of a standard equimolar (100 fmol/µL) mix of cytochrome c
(cytC), bovine myoglobin (Myo) and trypsinogen (Tryp) using (
the matrix.
A
) CPPA, (
B
) CHCA or ( ) CClCA as
C

Molecules 2020, 25, 6054
7 of 18
（
（
Figure 4. Microscope images of (A) CPPA and (B) CHCA matrices after mixing with the standard
protein solution.
2.3. CPPA as a Matrix for Complex Samples by MALDI-TOF MS
Once the matrix was successfully tested on standard purified proteins, we applied the CPPA
matrix to the analysis of more complex protein-containing samples, including milk and hazelnuts.
Milk proteins are key components providing essential amino acids vital for energy, tissue growth and
cellular function, also acting as hormones or displaying antimicrobial properties. A promising outcome
of milk proteome analysis is the discovery of biomarkers of disease conditions, thus enabling farmers
and veterinarians to easily screen diseases and suggest novel treatment options. In dairy science,
proteomics is also largely used to characterize low-abundance proteins to monitor the changes in protein
composition during storage or processing, to identify adulteration in high-quality milk, to discriminate
milk source for cheese manufacturing or to recognize allergic proteins [47]. On average, cow’s milk
contains approximately 3–4% of protein, even if this level can fluctuate with breed, primary source
of nutrition, stage of lactation and health and dietary status of the animal [48]. Caseins represent
approximately 80% of total bovine milk and approximately 18% of whey proteins [48
casein (CN) are present in bovine milk: -S1-CN, -S2-CN, -CN, k-CN and -CN; the latter being
breakdown products cleaved from -CN by the proteolytic plasmin enzyme [42]; they are found
usually in the following relative content: -S1-CN > -CN > k-CN > -S2-CN. The most abundant
whey proteins are -lactoglobulin ( -LG) and -lactalbumin ( -LA), which represent approximately
,49]. Five types of
α
α
β
γ
β
α
β
α
β
β
α
α
60% and 20% of total whey proteins, respectively, followed by a small amount of bovine serum albumin
(BSA) and immunoglobulins (Igs).
Here, bovine milk samples were simply diluted with water and analysed without any
further purification by using CPPA in comparison with other conventional matrices. In Figure 5,
the MALDI mass spectrum obtained in the same experimental conditions using CPPA, CHCA or
CClCA are compared. All milk proteins were observed as protonated adducts when CPPA was
employed as a matrix: γ-casein (m/z 11,600), α-lactalbumin (m/z 14,195), β-lactoglobulin (m/z 18,360),

Molecules 2020, 25, 6054
8 of 18
k-casein (m/z 19,100)
,
α
-S1-casein (m/z 236–50),
β-casein (m/z 23,980) and
α
-S2-casein (m/z 25,150).
Only whey proteins were promptly detected with the CHCA, CClCA or SA matrix (data not shown);
furthermore, a small signal of -S1-casein was detected using CHCA (Figure 5B), while the other
caseins were greatly suppressed because of their high degree of phosphorylation that limits the
ionization efficiency of conventional matrices [50]. Conversely, -casein at m/z 11,600 Da was observed
α
γ
by employing CClCA (Figure 5C), also suggesting a preferential ionization by this matrix to lower
molecular weight (MW) proteins or polypeptides.
（
（
（

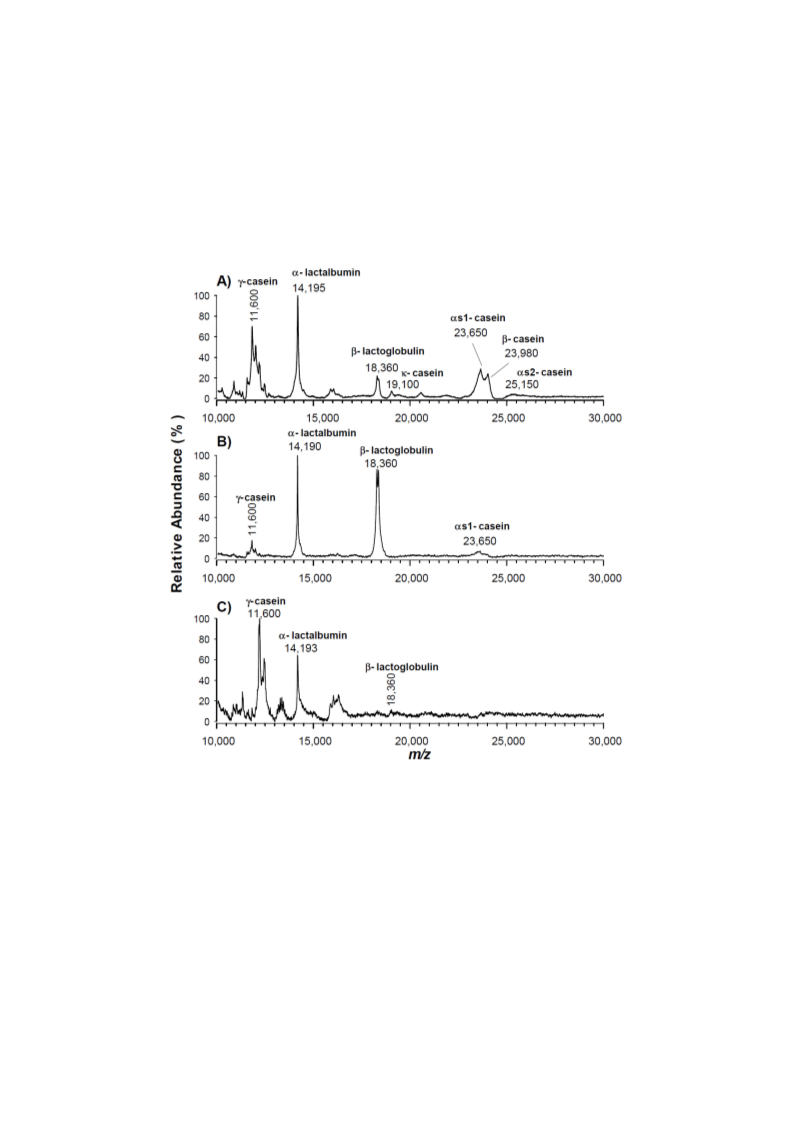

Figure 5. Positive MALDI-TOF MS spectra of an aqueous extract of cow milk proteins after mixing with
(A) CPPA, (B) CHCA or (C) CClCA as the matrix. The identified proteins are labelled in the subfigures.
Hazelnut (Corylus avellana) is among the most common tree nuts that induce food allergic
reactions in sensitized people [51]. It is widely used in prepackaged pastry and ice cream products;
traces of hazelnuts can accidentally be introduced into products across the whole food chain due to
cross-contamination. The main allergenic proteins known in hazelnuts have been identified as Cor a 1
(17 kDa), Cor a 2 (14 kDa), Cor an 8 (12 kDa), Cor a 9 (globulin 11S), Cor an 11 (globulin 7S), a lipid
transfer protein (LTP), two oleosin isoforms (Cor 12, Cor 13), an isoflavone reductase homologue
(Cor 6), a luminal binding protein (Cor a10), a 2S albumin (Cor a 14) and a Cor a 9 isoform [52].
Even if the detection technique for allergen quantitation is liquid chromatography coupled to MS by
electrospray ion source (LC-ESI-MS), which allows a sensitive multiplexed quantitation of allergen
proteins, the use of MALDI-MS hold great interest due to the key advantage of rapidly screening a
huge number of samples. Indeed, MALDI-MS can represent a promising alternative to antibody-based

Molecules 2020, 25, 6054
9 of 18
assays or LC-ESI-MS commonly employed in searching for declared or hidden allergen, owing to its
ability to detect multiple proteins in complex matrices if a high sensitivity is guaranteed. To this aim,
an aqueous extract of hazelnut proteins was prepared as described in the experimental section and
analysed by MALDI-TOF MS using each of the novel CPPA (A), CHCA (B) and CClCA (C) matrices
(see Figure 6). By comparing the experimental m/z values with literature data [52–55] and a dedicated
database (https://www.anallergo.it/en/patients/allergens/tree-pollen/corylus-avellana.html), we were
able to assign the main proteins occurring in a crude hazelnut extract. As can be ascertained from
Figure 6, the use of CPPA allowed a more informative spectrum, with the detection of seven proteins
compared to three ones observed using CHCA as a matrix; the use of CClCA caused a poorly resolved
peak around 12 kDa. While the proteins Cor 8 (m/z 11,800), Cor 14 (m/z 12,500), Cor 2 (m/z 14,100),
Cor 13 (m/z 14,700), Cor 12 (m/z 16,700), Cor a 15 (m/z 17,700) and Cor a 9 (m/z 24,900) were detectable
with the CPPA matrix, only Cor 22, Cor a13 and Cor a12 were observed in the presence of CHCA as
the matrix. No good signals were obtained using the SA matrix, which offered even worse results than
CHCA (data not shown).
（
（
（

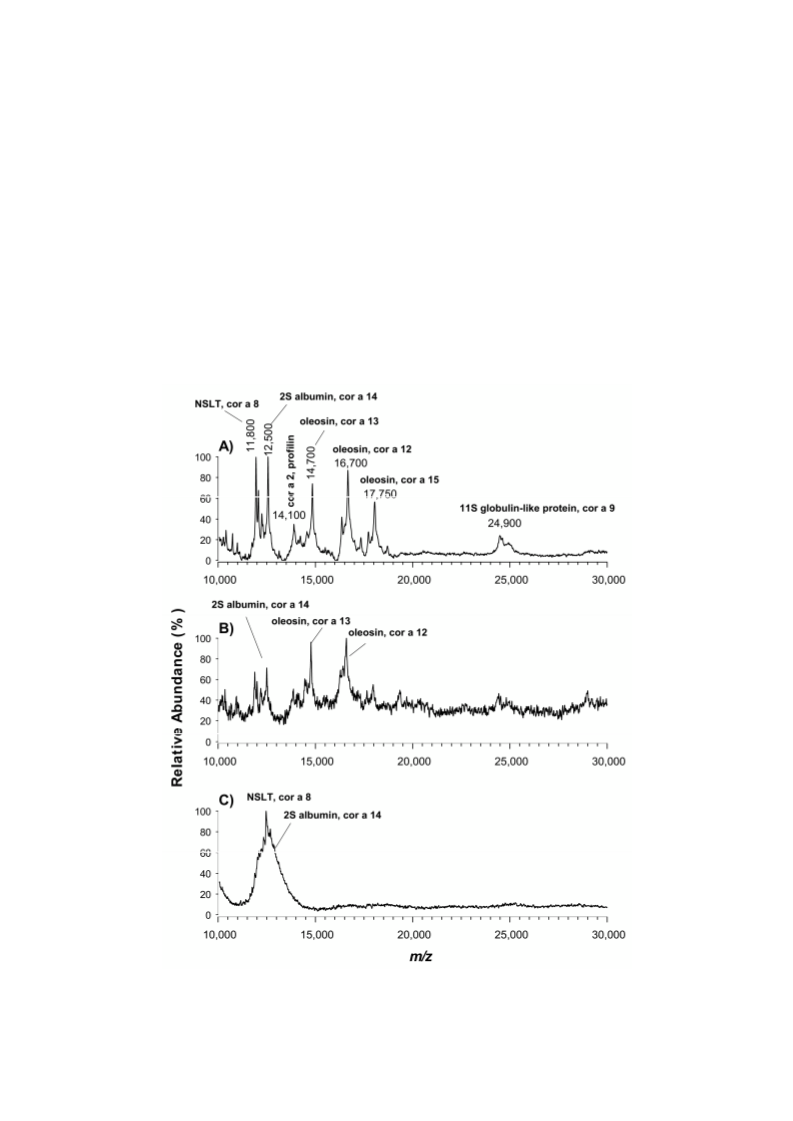

Figure 6. Positive MALDI-TOF MS spectra of the extract of hazelnut proteins mixed with (
CPPA, ( ) CHCA or ( ) CClCA as the matrix. The identified proteins are labelled in the subfigures,
NSLP (Non-specific lipid transfer protein).
A)
B
C

Molecules 2020, 25, 6054
10 of 18
2.4. CPPA as a Matrix for Intact Bacterial Cells in MALDI-TOF MS
The key features of ease of use, rapidity, high throughput and low cost have permitted a
formidable development of MALDI-TOF MS for the routine identification of microorganisms in clinical
microbiology and diagnostic laboratories. Several studies have reported the capability of MALDI
MS to replace and complement conventional techniques for the identification of bacterial and fungal
strains, yeast isolates, filamentous fungi and dermatophytes, providing that detailed homogenization
procedures are established. Two approaches have been proposed to characterize microorganisms:
(i) mass spectra comparison with fingerprint database and (ii) matching of biomarker masses to
a proteome database. In the first one, unique spectra generated from intact cells are compared
with formerly collected fingerprint libraries commercially available today. This solution is simple,
rapid and easily adjustable for routine use in diagnostic laboratories. Likewise, this method focuses in
developing specific databases of unique and conserved peaks for species and subspecies identification,
independently of the culture growth conditions [9]. In the second approach, the biomarker masses
associated with an unidentified microorganism are recognized by matching experimental protein
molecular masses with protein molecular masses predicted from sequenced genomes [56]. This method
is based on the observation that many biomolecules detected between 4000 m/z and 15,000 m/z in
MALDI-MS mass spectra of whole-cell extracts correspond to singly charged protonated proteins,
as demonstrated by Ryzhov and Fenselau [57] and more recently by Momo et al. [58]. A systematic
characterization of biomarkers performed on intact E. coli cells established that the biomolecules
observed in MALDI-TOF mass spectra, namely abundant, basic, and medium-hydrophobicity ribosomal
proteins from the inside of the bacterial cell [57], were efficiently ionized during the MALDI process [59].
Furthermore, the use of organic solvents and acidic conditions or acidic matrices facilitates the extraction
of ribosomal proteins during the lysis of bacterial cells [60], and thus intact microorganisms can be
directly processed without further pretreatment. The size and intensities of peaks depend on the matrix
chosen; 2,5-dihydroxybenzoic acid (DHBA) and CHCA are optimal matrices for detecting lower-mass
ions [61], with a detection of up to 10 kDa, while SA is preferred for ions with mass greater than
15 kDa [62], providing a lower sensitivity than CHCA.
Recent studies have focused on determining the microbiological quality and the prevalence of
potential human pathogenic bacteria occurring at low concentrations in lettuce salads, drinking wate
r
and surfaces in food markets [47]. Currently, the number of cultured cells needed to produce
useful MALDI-MS reference spectra is around 108–109 cells/mL, but improved sensitivity is required.
To investigate the capability of the CPPA matrix in bacterial profiling, we performed an acidic extraction
of a diluted sample of E. coli (104 cells/mL) and analysed the resulting solution by MALDI-TOF MS.
For comparison, in Figure 7 are displayed the mass spectra using CPPA (A), CHCA (B) and CClCA (C).
A higher number of significant peak signals was obtained in the case of CPPA and CClCA compared
to CHCA, where a noisy uninformative spectrum was registered. Here, since the detected proteins
exhibit relatively low MWs (i.e., <10 kDa), CClCA produced a good spectrum, confirming its efficacy
in promoting the ionization of peptides or small proteins compared to CHCA [32]. Although it
is not possible to distinguish a protein from its intact molecular weight, a tentative assignment of
peaks detected in Figure 7A was pursued by combining literature data [58
Specifically, the experimental m/z values were used as search parameters and were matched with
sequence-derived theoretical MW values in the UniProtKB/Swiss-Prot database [58 64]. In Table 1,
,63] with database mining.
,
these results are summarized: 11 out of 15 of the matches corresponded to intracellular ribosomal
proteins released after E. coli cell lysis. The experimental findings are fully consistent with the fact that
ribosomal proteins are the most abundant proteins in E. coli, constituting up to 45% of the total mass of
cells and up to 20% of the cells’ protein content [57,62].

Molecules 2020, 25, 6054
11 of 18

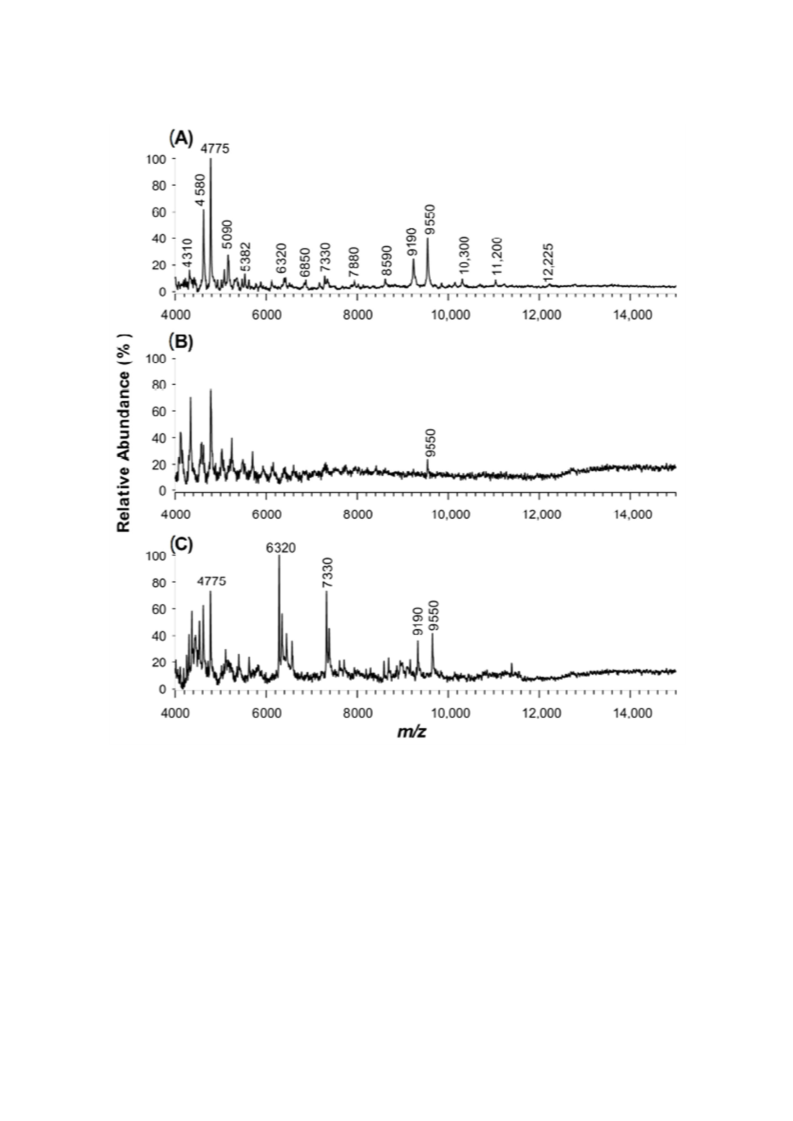

Figure 7. Positive MALDI-TOF MS spectra of E. coli cell culture (104 cfu/mL) after mixing with (
CPPA, (B) CHCA or (C) CClCA as the matrix. For signal attribution, see Table 1.
A)
Regarding MALDI-TOF mass spectra comparison, CPPA enabled obtaining a better protein
fingerprint using lower laser energy and improved intra-spot and spot-to-spot repeatabilities,
eliminating the laborious searching for ‘sweet’ points, with a resulting tenfold higher S/N ratio.
Through this targeted approach, MALDI-MS can be used as a fast-analytical tool to generate protein
profiling of different microorganisms, fungi and food compounds in a relatively short time and without
significant sample pretreatment.

Molecules 2020, 25, 6054
12 of 18
Table 1. Proteins identified after matching the experimental m/z values obtained in MALDI-TOF
mass spectra of E. coli cell samples with selected m/z from literature [32 58] after a Swiss-Prot/TrEMBL
database search.
,
Literature m/z Value
Experimental m/z Value
Identified Protein
4309.3
4580.04
-
5095.33
5380.55
6314.92
6855.88
4310
4580
50S ribosomal protein L36
Osmotically inducible lipoprotein B
30S ribosomal protein S16
Protein S22
4775 ([M + 2H]2+
)
5090
5382
6320
6850
50S ribosomal protein L34
50S ribosomal protein L32
Carbon storage regulator
7332.3
7872.22
-
7330
7880
8590
Cold shock-like protein CspE
50S ribosomal protein L31
50S ribosomal protein L2
9190.21
9553.44
9190
9550
30S ribosomal protein S16
30S ribosomal protein S20
10,298.28
11,199.26
1227.40
10,300
11,200
12,225
50S ribosomal protein L25
50S ribosomal protein L23
50S ribosomal protein L22
3. Materials and Methods
3.1. Materials
α
-Cyano-4-hydroxycinnamic acid (CHCA), α-cyano-4-chlorocinnamic acid (CClCA), 3,5-
dimethoxy-4-hydroxycinnamic acid (sinapinic acid, SA), ACTH 18-39 fragment, angiotensin I, renin,
cytochrome c (horse heart), bovine myoglobin and trypsinogen were obtained from Sigma-Aldrich
(Sigma Aldrich, St. Louis, MO, USA). Dimethyl sulphoxide (DMSO) used as solvent for NMR analysis
was purchased from VARIAN. Water, acetonitrile (ACN), trifluoroacetic acid (TFAA), methanol (MeOH)
,
tetrahydrofuran (THF) and chloroform (CHCl3) (Sigma Aldrich, St. Louis, MO, USA) were HPLC-grade
and were used without further purification.
3.2. Chemical Synthesis of CPPA
CPPA was synthesized according to a standard Knoevenagel condensation reaction using
cyanoacetic acid and cinnamaldehyde [32,33]. Ammonium acetate was used as a catalyst. Two grams
of cyanoacetic acid (1 equiv.), 0.9 equiv. of the cinnamaldehyde and 0.15 equiv. of ammonium acetate
were refluxed under stirring in sufficient amounts of toluene (ca. 50 mL). After quantitative separation
of the reaction water by a Dean-Stark apparatus (ca. 3 h), the reaction mixture was cooled to 50 ◦C
and filtered. The crude product was washed with enough amounts of distilled water and purified
by recrystallization in 70% acetonitrile/30% water. A saturated solution of the reaction product was
heated until boiling. When the solid was dissolved, the solution was cooled to room temperature and
then on ice, since a precipitate was observed. Finally, the precipitate was filtered, and the procedure
repeated thrice.
3.3. Matrix Characterization
A solution of CPPA (0.015 mM) was prepared in ACN:H2O (2:1) and the UV spectrum was
acquired for both samples. For 1H-NMR analysis, CPPA was dissolved in deuterated DMSO (DMSO-d6)
and a spectrum was registered. Laser desorption ionization analysis was carried out using a saturated
solution of matrix in an ACN:H2O (2:1) mixture containing 0.1% TFA, which was spotted (1
MALDI target plate.
µL) on the

Molecules 2020, 25, 6054
13 of 18
3.4. Sample Preparations
3.4.1. Standard Proteins
Stock solutions of 10
µM of each analyte in 0.1% TFA were prepared, diluted and mixed (1:1 v/v
ratio) with the matrix prepared as above. Then, 1 µL of the sample was spotted directly on the target
plate and analysed by MALDI-TOF MS. The same preparation was followed using CHCA (10 mg/mL
in ACN:H2O, 2:1, 0.1% TFA), CClCA or SA as the matrix.
3.4.2. Milk Proteins
One millilitre of bovine fresh milk was diluted in water (10 times), then 5
µL of the sample was
mixed with CPPA or CHCA or SA (10 mg/mL in ACN:H2O (2:1)), and 1
µL was spotted directly on the
target plate and analysed by MALDI-TOF MS.
3.4.3. Hazelnut Proteins
First, the raw hazelnut samples were ground using a laboratory blender. To avoid sample
overheating and to obtain good homogeneity, the grinding was carried out in 5 steps of 30 s each,
interspersed with a 5 s pause by setting the speed to the maximum value. The ground product was
finally sieved with a 2 mm sieve. The extraction procedure used was the following: 20 mL of extraction
buffer 20 mM Tris-HCl pH 8.2 was added to 1 g of sample, mixed for 2 min, stirred at 26 ◦C for 1 h at a
speed of 250 rpm, sonicated for 10 min and centrifuged for 15 min at 3000 rpm at a temperature of
18 ◦C. In this phase, the sample stratified into three phases: a bottom one consisting mostly of protein
aggregates, a turbid central phase and a foamy surface phase constituted by the lipid component.
The central phase was withdrawn, diluted 1:20 with ultra-pure water and filtered on 0.45
(polytetrafluoroethylene) syringe filters (13 mm diameter).
µm PTFE
3.4.4. Bacterial Proteins
E. coli (ATCC 25992) standard culture bacteria were obtained from LGC ATCC Standards (LGC
Standards S.r.l., Milano, Italy). Glassware and media were subjected to autoclaving at 15 lbs of pressure
for 15 min prior to bacterial culture. One colony of E. coli was carefully taken up from a freshly prepared
agar plate using a sterile loop. The collected bacteria were cultured on nutrient broth (Oxoid) for 48 h
at 42 ◦C up to a typical cell density of 1010 cells/mL. Serial dilutions were set up in saline solution (NaCl
0.9%) and 1 mL of the resulting dilution was inoculated into a nutrient medium (nutrient agar, Oxoid,
Dublin, Ireland); the plates were then incubated at 42 ◦C for 24 h. After the incubation, the colonies
were counted for each dilution, and the concentration of E. coli was deduced from the primary culture
broth. To extract proteins, 500 µL of bacterial culture was centrifuged at 15,000 rpm for 5 min to
pellet the cells. The supernatant was discarded, and the cells were washed twice with 1 mL of water.
After each step, the cells were pelleted by centrifugation at 15,000 rpm for 5 min. The pellet was
dissolved by vortexing for 2 min in 50–100 µL of 1.25% TFA.
3.5. Instrumentations
UV–visible spectra acquisition in the range 250–500 nm was performed using a UV1601
spectrophotometer (Shimadzu Italia S.r.l., Milan, Italy). 1H-NMR spectra were recorded with a
Varian Unity Plus spectrometer (1H 400 MHz). Chemical shifts of 1H (
δH) in parts per million were
determined relative to DMSO-d6. A MALDI TOF/TOF 5800 system (AB SCIEX, Darmstadt, Germany)
equipped with a neodymium-doped yttrium lithium fluoride (Nd:YLF) laser (345 nm), operating in
linear positive ion mode, was used (typical mass accuracy was 100 ppm). At least 5000 laser shots
≤
were typically accumulated by a random rastering pattern, with a laser pulse rate of 400 Hz and
a laser fluence of 1 mJ/cm2 in the MS mode. The delayed extraction (DE) time was set at 450 ns.

Molecules 2020, 25, 6054
14 of 18
Calibration in linear mode was carried out using a protein mixture composed of insulin beta chain
(3497.0 Da), insulin (5735.0 Da) and cytochrome c (12361.1 Da).
3.6. Detailed Data Description and Computation Methods
DataExplorer 4.0 (AB Sciex, Darmstadt, Germany) was used to control data acquisitions and initial
elaboration; SigmaPlot 14.5 was used to graph final mass spectra. ChemDraw Pro 8.0.3 (CambridgeSoft
Corporation, Cambridge, MA, USA) was employed to draw chemical structures. Visualization and
initial building were done by using ChemDraw Pro 10.0 and Chem3D Ultra 10.0. Initial geometries of
the neutral and protonated compounds were created and optimized energetically by density functional
theory (DFT) calculations. For proton affinity, DFTB3, based on a third-order expansion of the DFT
total energy around a reference density, was used.
4. Conclusions
The α-cyano-5-phenyl-2,4-pentadienic acid (CPPA) matrix was synthetized and employed for
intact proteins analysis by MALDI-TOF MS in positive ion mode. Unlike conventional organic
matrices, CPPA showed a lower background signal, higher signal-to-noise ratio, and good spot-to-spot
repeatability. Homogeneous spots provided by CPPA eliminated the laborious searching for ‘sweet’
points allowing qualitative determination. The successful performance of the CPPA matrix indicates
its potential for protein detection in foodstuffs, which was demonstrated by the examination of cow
milk and hazelnut samples. Most interesting is that CPPA was an efficient matrix for the analysis of
intact microorganisms in clinical samples. Large-scale proteomic analysis by MALDI-MS using a CPPA
matrix holds great promise.
Author Contributions: Conceptualization, A.M.; methodology, C.D.C. and A.M.; formal analysis, C.D.C. and
A.M.; investigation, C.D.C. and A.M.; writing—original draft preparation, C.D.C.; writing—review & editing,
A.N. and T.R.I.C.; funding acquisition, A.N. and T.R.I.C. All authors have read and agreed to the published version
of the manuscript.
Funding: This research received no external funding. The APC was funded by the authors.
Acknowledgments: Work was carried out with partial financial support from Università degli Studi di Bari
Aldo Moro. E. Bonerba and G. Tantillo are gratefully acknowledged for providing cultured bacterial strains.
Many thanks go to Professor Francesco Palmisano for helpful discussions. F. Goumans is acknowledged for
the Amsterdam Modeling Suite trial evaluation, which allowed us to calculate the theoretical proton affinities.
This work was supported by the project PONa3_00395/1 “BIOSCIENZE & SALUTE (B&H)” of Ministero Italiano
per l’Università e la Ricerca (MUR).
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
Kaufmann, R. Matrix-assisted laser desorption ionization (MALDI) mass spectrometry: A novel analytical
tool in molecular biology and biotechnology. J. Biotechnol. 1995, 41, 155–175. [CrossRef]
Webster, J.; Oxley, D. Protein identification by MALDI-TOF mass spectrometry. Methods Mol. Biol. 2012
800, 227–240.
,
Calvano, C.D.; Aresta, A.; Iacovone, M.; De Benedetto, G.E.; Zambonin, C.G.; Battaglia, M.; Ditonno, P.;
Rutigliano, M.; Bettocchi, C. Optimization of analytical and pre-analytical conditions for MALDI-TOF-MS
human urine protein profiles. J. Pharm. Biomed. Anal. 2010, 51, 907–914. [CrossRef] [PubMed]
Hajduk, J.; Matysiak, J.; Kokot, Z.J. Challenges in biomarker discovery with MALDI-TOF MS. Clin. Chim. Acta
2016, 458, 84–98. [CrossRef] [PubMed]
Calvano, C.D.; De Ceglie, C.; Monopoli, A.; Zambonin, C.G. Detection of sheep and goat milk adulterations
by direct MALDI-TOF MS analysis of milk tryptic digests. J. Mass Spectrom. 2012, 47, 1141–1149. [CrossRef]
[PubMed]
4.
5.
6.
Siciliano, R.A.; d’Esposito, D.; Mazzeo, M.F. Food authentication by MALDI MS: MALDI-TOF MS analysis of
fish species. In Advances in MALDI and Laser-Induced Soft Ionization Mass Spectrometry; Springer International
Publishing: Cham, Switzerland, 2015; pp. 263–277. ISBN 9783319048192.

Molecules 2020, 25, 6054
15 of 18
7.
8.
9.
Camarasa, C.G.; Cobo, F. Application of MALDI-TOF Mass Spectrometry in Clinical Virology. In The Use of
Mass Spectrometry Technology (MALDI-TOF) in Clinical Microbiology; Elsevier: Amsterdam, The Netherlands,
2018; pp. 167–180. ISBN 9780128144527.
Mortelmaier, C.; Panda, S.; Robertson, I.; Krell, M.; Christodoulou, M.; Reichardt, N.; Murder, I.
Identification performance of MALDI-ToF-MS upon mono- and bi-microbial cultures is cell number and
culture proportion dependent. Anal. Bioanal. Chem. 2019, 411, 7027–7038. [CrossRef]
Singhal, N.; Kumar, M.; Kanaujia, P.K.; Virdi, J.S. MALDI-TOF mass spectrometry: An emerging technology
for microbial identification and diagnosis. Front. Microbiol. 2015, 6, 791. [CrossRef]
10. Aresta, A.; Calvano, C.D.; Palmisano, F.; Zambonin, C.G.; Monaco, A.; Tommasi, S.; Pilato, B.; Paradiso, A.
Impact of sample preparation in peptide/protein profiling in human serum by MALDI-TOF mass spectrometry.
J. Pharm. Biomed. Anal. 2008, 46, 157–164. [CrossRef]
11. Mehta, A.; Silva, L.P. MALDI-TOF MS profiling approach: How much can we get from it? Front. Plant Sci.
2015, 6, 184–186. [CrossRef]
12. Böhme, K.; Calo-Mata, P.; Barros-Velázquez, J.; Ortea, I. Review of Recent DNA-Based Methods for Main
Food-Authentication Topics. J. Agric. Food Chem. 2019, 67, 3854–3864. [CrossRef]
13. Kohl, C.; Brinkmann, A.; Dabrowski, P.W.; Radonic´, A.; Nitsche, A.; Kurth, A. Protocol for metagenomic
virus detection in clinical specimens. Emerg. Infect. Dis. 2015, 21, 48–57. [CrossRef]
14. Tang, W.; Ranganathan, N.; Shahrezaei, V.; Larrouy-Maumus, G. MALDI-TOF mass spectrometry on intact
bacteria combined with a refined analysis framework allows accurate classification of MSSA and MRSA.
PLoS ONE 2019, 14, e0218951. [CrossRef] [PubMed]
15. Calderaro, A.; Arcangeletti, M.C.; Rodighiero, I.; Buttrini, M.; Gorrini, C.; Motta, F.; Germini, D.;
Medici, M.C.; Chezzi, C.; De Conto, F. Matrix-assisted laser desorption/ionization time-of-flight
(MALDI-TOF) mass spectrometry applied to virus identification. Sci. Rep. 2014, 4, 1–10. [CrossRef]
[PubMed]
16. Dom
Anal. Methods 2020, 12, 1148–1162. [CrossRef]
17. Shao, M.; Bi, H. Direct identification of fish species by surface molecular transferring. Analyst 2020
145, 4148–4155. [CrossRef] [PubMed]
ínguez, I.; Frenich, A.G.; Romero-González, R. Mass spectrometry approaches to ensure food safety.
,
18. De Ceglie, C.; Calvano, C.D.; Zambonin, C.G. Determination of Hidden Hazelnut Oil Proteins in Extra Virgin
Olive Oil by Cold Acetone Precipitation Followed by In-Solution Tryptic Digestion and MALDI-TOF-MS
Analysis. J. Agric. Food Chem. 2014, 62, 9401–9409. [CrossRef] [PubMed]
19. Calvano, C.D.; Ceglie, C.D.; D’Accolti, L.; Zambonin, C. MALDI-TOF mass spectrometry detection of
extra-virgin olive oil adulteration with hazelnut oil by analysis of phospholipids using an ionic liquid as
matrix and extraction solvent. Food Chem. 2012, 134, 1192–1198. [CrossRef]
20. Liébana-Martos, C. Indications, Interpretation of Results, Advantages, Disadvantages, and Limitations of
MALDI-TOF. In The Use of Mass Spectrometry Technology (MALDI-TOF) in Clinical Microbiology; Elsevier:
Amsterdam, The Netherlands, 2018; pp. 75–86. ISBN 9780128144527.
21. Tholey, A.; Heinzle, E. Ionic (liquid) matrices for matrix-assisted laser desorption/ionization mass
spectrometry-applications and perspectives. Anal. Bioanal. Chem. 2006, 386, 24–37. [CrossRef]
22. Monopoli, A.; Cotugno, P.; Cortese, M.; Calvano, C.D.; Ciminale, F.; Nacci, A. Selective N-alkylation of
arylamines with alkyl chloride in ionic liquids: Scope and applications. Eur. J. Org. Chem. 2012, 16, 3105–3111.
[CrossRef]
23. Calvano, C.D.; Monopoli, A.; Cataldi, T.R.I.; Palmisano, F. MALDI matrices for low molecular weight
compounds: An endless story? Anal. Bioanal. Chem. 2018, 410, 4015–4038. [CrossRef]
24. Monopoli, A.; Calvano, C.D.; Nacci, A.; Palmisano, F. Boronic acid chemistry in MALDI MS: A step forward
in designing a reactive matrix with molecular recognition capabilities. Chem. Commun. 2014, 50, 4322–4324.
[CrossRef]
25. Osaka, I.; Sakai, M.; Takayama, M. 5-Amino-1-naphthol, a novel 1,5-naphthalene derivative matrix suitable
for matrixassisted laser desorption/ionization insource decay of phosphorylated peptides. Rapid Commun.
Mass Spectrom. 2013, 27, 103–108. [CrossRef] [PubMed]

Molecules 2020, 25, 6054
16 of 18
26. Chen, S.; Chen, L.; Wang, J.; Hou, J.; He, Q.; Liu, J.; Wang, J.; Xiong, S.; Yang, G.; Nie, Z.
2,3,4,5-Tetrakis(30,40-dihydroxylphenyl)thiophene: A new matrix for the selective analysis of low molecular
weight amines and direct determination of creatinine in urine by MALDI-TOF MS. Anal. Chem. 2012
84, 10291–10297. [CrossRef] [PubMed]
,
27. Calvano, C.D.; Cataldi, T.R.I.; Kögel, J.F.; Monopoli, A.; Palmisano, F.; Sundermeyer, J.
Structural Characterization of Neutral Saccharides by Negative Ion MALDI Mass Spectrometry Using
a Superbasic Proton Sponge as Deprotonating Matrix. J. Am. Soc. Mass Spectrom. 2017, 28, 1666–1675.
[CrossRef] [PubMed]
28. Calvano, C.D.; Capozzi, M.A.M.; Punzi, A.; Farinola, G.M.; Cataldi, T.R.I.; Palmisano, F.
1,5-Diaminonaphtalene is a Highly Performing Electron-Transfer Secondary-Reaction Matrix for Laser
Desorption Ionization Mass Spectrometry of Indolenine-Based Croconaines. ACS Omega 2018, 3, 17821–17827.
[CrossRef]
29. Shroff, R.; Svatoš, A. Proton sponge: A novel and versatile MALDI matrix for the analysis of metabolites
using mass spectrometry. Anal. Chem. 2009, 81, 7954–7959. [CrossRef]
30. Calvano, C.D.; Cataldi, T.R.I.; Kögel, J.F.; Monopoli, A.; Palmisano, F.; Sundermeyer, J.; Kögel, J.F.
Superbasic alkyl-substituted bisphosphazene proton sponges: A new class of deprotonating matrices
for negative ion matrix-assisted ionization/laser desorption mass spectrometry of low molecular weight
hardly ionizable analytes. Rapid Commun. Mass Spectrom. 2017, 30, 1680–1686. [CrossRef]
31. Williams, T.L.; Andrzejewski, D.; Lay, J.O.; Musser, S.M. Experimental factors affecting the quality and
reproducibility of MALDI TOF mass spectra obtained from whole bacteria cells. J. Am. Soc. Mass Spectrom.
2003, 14, 342–351. [CrossRef]
32. Jaskolla, T.W.; Lehmann, W.D.; Karas, M. 4-Chloro-α-cyanocinnamic acid is an advanced, rationally designed
MALDI matrix. Proc. Natl. Acad. Sci. USA 2008, 105, 12200–12205. [CrossRef]
33. Jones, G. The Knoevenagel Condensation. In Organic Reactions; John Wiley & Sons, Inc.: Hoboken, NJ, USA,
2011; pp. 204–599.
34. Singh, N.; Sandhu, J.S. Studies in Conjugated Imines: Addition of Active Methylene Compounds. J. Indian
Chem. Soc. 1969, 46, 751–753.
35. Bahr, U.; Jaskolla, T.W. Employing ‘Second Generation’ Matrices. In Advances in MALDI and Laser-Induced
Soft Ionization Mass Spectrometry; Cramer, R., Ed.; Springer International Publishing: Cham, Switzerland, 2016.
[CrossRef]
36. Liu, X.; Cole, J.M.; Low, K.S. Solvent Effects on the UV–vis Absorption and Emission of Optoelectronic
Coumarins: A Comparison of Three Empirical Solvatochromic Models. J. Phys. Chem.
117, 14731–14741. [CrossRef]
C 2013,
37. Williams, J.B.; Gusev, A.I.; Hercules, D.M. Use of liquid matrices for matrix-assisted laser desorption
ionization of polyglycols and poly(dimethylsiloxanes). Macromolecules 1996, 29, 8144–8150. [CrossRef]
38. Knochenmuss, R.; Dubois, F.; Dale, M.J.; Zenobi, R. The Matrix Suppression Effect and Ionization
Mechanisms in Matrix-assisted Laser Desorptiod Ionization. Rapid Commun. Mass Spectrom. 1996
10, 871–877. [CrossRef]
,
39. Guo, Z.; He, L. A binary matrix for background suppression in MALDI-MS of small molecules.
Anal. Bioanal. Chem. 2007, 387, 1939–1944. [CrossRef]
40. Soltwisch, J.; Jaskolla, T.W.; Hillenkamp, F.; Karas, M.; Dreisewerd, K. Ion Yields in UV-MALDI Mass
Spectrometry as a Function of Excitation Laser Wavelength and Optical and Physico-Chemical Properties of
Classical and Halogen-Substituted MALDI Matrixes. Anal. Chem. 2012, 84, 6567–6576. [CrossRef]
41. Smirnov, I.P.; Zhu, X.; Taylor, T.; Huang, Y.; Ross, P.; Papayanopoulos, I.A.; Martin, S.A.; Pappin, D.J.
Suppression of α-Cyano-4-hydroxycinnamic Acid Matrix Clusters and Reduction of Chemical Noise in
MALDI-TOF Mass Spectrometry. Anal. Chem. 2004, 76, 2958–2965. [CrossRef]
42. Keller, B.O.; Li, L. Discerning matrix-cluster peaks in matrix-assisted laser desorption/ionization time-of-flight
mass spectra of dilute peptide mixtures. J. Am. Soc. Mass Spectrom. 2000, 11, 88–93. [CrossRef]
43. Mirabelli, M.F.; Zenobi, R. Observing Proton Transfer Reactions Inside the MALDI Plume: Experimental and
Theoretical Insight into MALDI Gas-Phase Reactions. J. Am. Soc. Mass Spectrom. 2017, 28, 1676–1686.
[CrossRef]
44. Knochenmuss, R. Ion formation mechanisms in UV-MALDI. Analyst 2006, 131, 966–986. [CrossRef]

Molecules 2020, 25, 6054
17 of 18
45. Molin, L.; Seraglia, R.; Czarnocki, Z.; Maurin, J.K.; Plucinski, F.A.; Traldi, P. On the Primary Ionization
Mechanism(s) in Matrix-Assisted Laser Desorption Ionization. J. Anal. Methods Chem. 2012, 2012, 1–8.
[CrossRef]
46. Karas, M.; Bachmann, D.; Hillekamp, F. Influence of the wavelength in high-irradiance ultraviolet laser
desorption mass spectrometry of organic molecules. Anal Chem. 1985, 57, 2935–2939. [CrossRef]
47. Abd El-Salam, M.H. Application of proteomics to the areas of milk production, processing and quality
control—A review. Int. J. Dairy Technol. 2014, 67, 153–166. [CrossRef]
48. Vincent, D.; Elkins, A.; Condina, M.R.; Ezernieks, V.; Rochfort, S. Quantitation and Identification of Intact
Major Milk Proteins for High-Throughput LC-ESI-Q-TOF MS Analyses. PLoS ONE 2016, 11, e0163471.
[CrossRef] [PubMed]
49. Fuquay, J.W. Encyclopedia of Dairy Sciences; Elsevier: Amsterdam, The Netherlands, 2011; pp. 1–4170.
ISBN 978-0-12-374407-4.
50. Olumee-Shabon, Z.; Boehmer, J.L. Proteomic Analysis of Goat Milk. In Goat Science; InTech: Rijeka, Croatia, 2018.
[CrossRef]
51. Flinterman, A.E.; Akkerdaas, J.H.; Knlsta, A.C.; Van Ree, R.; Pasmans, S.G. Hazelnut allergy:
From pollen-associated mild allergy to severe anaphylactic reactions. Curr. Opin. Allergy Clin. Immunol.
2008, 8, 261–265. [CrossRef]
52. Lauer, I.; Foetisch, K.; Kolarich, D.; Ballmer-Weber, B.K.; Conti, A.; Altmann, F.; Vieths, S.; Scheurer, S.
Hazelnut (Corylus avellana) vicilin Cor a 11: Molecular characterization of a glycoprotein and its allergenic
activity. Biochem. J. 2004, 383, 327–334. [CrossRef]
53. Dooper, M.M.B.W.; Plassen, C.; Holden, L.; Moen, L.H.; Namork, E.; Egaas, E. Antibody binding to hazelnut
(Corylus avellana) proteins: The effects of extraction procedure and hazelnut source. Food Agric. Immunol.
2008, 19, 229–240. [CrossRef]
54. Ribeiro, M.; Costa, J.; Mafra, I.; Cabo, S.; Silva, A.P.; Gonçalves, B.; Hillion, M.; Hébraud, M.; Igrejas, G.
Natural Variation of Hazelnut Allergenicity: Is There Any Potential for Selecting Hypoallergenic Varieties?
Nutrients 2020, 12, 2100. [CrossRef]
55. Costa, J.; Mafra, I.; Carrapatoso, I.; Oliveira, M.B.P.P. Hazelnut allergens: Molecular characterization,
detection, and clinical relevance. Crit. Rev. Food Sci. Nutr. 2016, 56, 2579–2605. [CrossRef]
56. Fenselau, C.; Demirev, F.A. Characterization of intact microorganisms by MALDI mass spectrometry.
Mass Spectrom. Rev. 2001, 20, 157–171. [CrossRef]
57. Ryzhov, V.; Fenselau, C. Characterization of the protein subset desorbed by MALDI from whole bacterial
cells. Anal. Chem. 2001, 73, 746–750. [CrossRef]
58. Momo, R.A.; Povey, J.F.; Smales, C.M.; O’Malley, C.J.; Montague, G.A.; Martin, E.B. MALDI-ToF mass
spectrometry coupled with multivariate pattern recognition analysis for the rapid biomarker profiling
of Escherichia coli in different growth phases. Anal. Bioanal. Chem. 2013, 405, 8251–8265. [CrossRef]
[PubMed]
59. Krause, E.; Wenschuh, H.; Jungblut, P.R. The dominance of arginine-containing peptides in
MALDI-derived tryptic mass fingerprints of proteins. Anal. Chem. 1999, 71, 4160–4165. [CrossRef]
[PubMed]
60. Suh, M.J.; Limbach, P.A. Investigation of methods suitable for the matrix-assisted laser desorption/ionization
mass spectrometric analysis of proteins from ribonucleoprotein complexes. Eur. J. Mass Spectrom. 2004
10, 89–99. [CrossRef] [PubMed]
,
61. Lavollay, M.; Rostane, H.; Compain, F.; Carbonnelle, E. Identification Methods: Identification of Clinical
Microorganisms with MALDI-TOF-MS in a Microbiology Laboratory. In Encyclopedia of Food Microbiology,
2nd ed.; Elsevier Ltd.: Amsterdam, The Netherlands, 2014; ISBN 9780123847331.
62. Vargha, M.; Tak
differentiation of Arthrobacter isolates. J. Microbiol. Methods 2006, 66, 399–409. [CrossRef]
63. Božik, M.; Cejnar, P.; Šaškov , M.; Nov , P.; Marš k, P.; Kloucˇek, P. Stress response of Escherichia coli to
áts, Z.; Konopka, A.; Nakatsu, C.H. Optimization of MALDI-TOF MS for strain level
á
ý
í
essential oil components-insights on low-molecular-weight proteins from MALDI-TOF. Sci. Rep. 2018
8, 13042–13050. [CrossRef] [PubMed]
,

Molecules 2020, 25, 6054
18 of 18
64. Calvano, C.D.; Picca, R.A.; Bonerba, E.; Tantillo, G.; Cioffi, N.; Palmisano, F. MALDI-TOF mass spectrometry
analysis of proteins and lipids in Escherichia coli exposed to copper ions and nanoparticles. J. Mass Spectrom.
2016, 51, 828–840. [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional
affiliations.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
