One-pot conversion of Epoxidized Soybean Oil (ESO) into soy-based polyurethanes by MoCl2O2 catalysis

Article abstract of DOI:10.3390/molecules22020333

An innovative and eco-friendly one-pot synthesis of bio-based polyurethanes is proposed via the epoxy-ring opening of epoxidized soybean oil (ESO) with methanol, followed by the reaction of methoxy bio-polyols intermediates with 2,6-tolyl-diisocyanate (TDI). Both synthetic steps, methanolysis and polyurethane linkage formation, are promoted by a unique catalyst, molybdenum(VI) dichloride dioxide (MoCl₂O₂), which makes this procedure an efficient, cost-effective, and environmentally safer method amenable to industrial scale-up.

Full text of DOI:10.3390/molecules22020333

molecules
Article
One-Pot Conversion of Epoxidized Soybean Oil (ESO)
into Soy-Based Polyurethanes by MoCl O Catalysis
2
2
Vincenzo Pantone , Cosimo Annese , Caterina Fusco , Paola Fini , Angelo Nacci 2,4,
1
2
2
3
Antonella Russo 1 and Lucia D’Accolti
2,4,
*
1
Greenswitch s.r.l., 75013 Ferrandina (MT), Italy; enzopantone@hotmail.it (V.P.);
antonella.russo@greenswitch.it (A.R.)
ICCOM-CNR, SS Bari, Via Orabona 4, 70126 Bari, Italy; annese@ba.iccom.cnr.it (C.A.);
fusco@ba.iccom.cnr.it (C.F.); angelo.nacci@uniba.it (A.N.)
IPCF-CNR, SS Bari, via E. Orabona 4, 70125 Bari, Italy; p.fini@ba.ipcf.cnr.it
Dipartimento di Chimica, Università di Bari “A. Moro”, Via Orabona 4, 70126 Bari, Italy
Correspondence: lucia.daccolti@uniba.it; Tel.: +39-080-544-2068
2
3
4
*
Academic Editor: Derek J. McPhee
Received: 14 January 2017; Accepted: 17 February 2017; Published: 21 February 2017
Abstract: An innovative and eco-friendly one-pot synthesis of bio-based polyurethanes is proposed
via the epoxy-ring opening of epoxidized soybean oil (ESO) with methanol, followed by the
reaction of methoxy bio-polyols intermediates with 2,6-tolyl-diisocyanate (TDI). Both synthetic
steps, methanolysis and polyurethane linkage formation, are promoted by a unique catalyst,
molybdenum(VI) dichloride dioxide (MoCl O ), which makes this procedure an efficient,
2
2
cost-effective, and environmentally safer method amenable to industrial scale-up.
Keywords: catalysis; oxidation; bio-based polyurethane; one-pot synthesis
1
. Introduction
In an era facing the depletion of fossil fuels and the increasing environmental concerns related
to their burning, much of the current efforts have been directed to the challenging search for more
sustainable sources that can ensure continuous manufacture of those commodities that have improved
the quality of human life. As an example, recent years have witnessed a rapid increase in the production
of bio-based plastics and polymers, entirely derived from renewable sources, such as starch, cellulose,
sugars, etc. [1,2]. In this context, vegetable oils, such as ricinoleic, linseed, soybean oils, etc., have also
been regarded as convenient source of renewable feedstocks to be employed in the development of
bio-based polyurethanes (PU) [3–9].
Bio-based polyurethanes are available in a wide range of hardnesses, as well as in several
formulations, to obtain different materials that allow energy savings, protect the environment, enhance
safety, lead to innovative building systems, as well as several polyurethanes that have been studied for
their preparation of composites [1,10–13].
A practical approach to PU from vegetable oils involves epoxidation of the carbon-carbon double
bonds of unsaturated fatty ester moieties and subsequent epoxide ring-opening reaction by nucleophilic
reagents, providing the hydroxyl functionalities that form the urethane network upon reaction with
isocyanates [3]. This is exemplified by the conversion of soybean oil (SO) into soy-based PU, through
preliminary epoxidation, followed by methanolysis of the epoxidized oil (ESO), and reaction of the
ensuing soy-methanol polyol 1 with suitable diisocyanates (Scheme 1).
Molecules 2017, 22, 333; doi:10.3390/molecules22020333
www.mdpi.com/journal/molecules

Molecules 2017, 22, 333
2 of 13
Scheme 1. Representation of a typical chemical approach to the conversion of soybean oil (SO) into
bio-based PU. For simplicity, only one of the possible regioisomers of soy-methanol polyol 1 is shown.
In this context, special attention has been paid to oxidation methods employing
organocatalysts [14
hydro)peroxides [18
strong Brønsted acids (e.g., p-Toluene sulfonic acid SA, H PO , and HBF ) to catalyze the epoxide
,15] or based on mild and safe oxidants, such as H O2 [ ,17] organic
16
2
(
–20] and even O2 [21]. On the other hand, typical protocols prescribe the use of
3
4
4
ring-opening reaction step, while hazardous Lewis acids (e.g., tin-, mercury-compounds) and/or toxic
bases (e.g., tertiary amines) are usually employed in the formation of urethane linkages [22–24].
In our ongoing efforts aimed at searching new green catalytic methods [25–28] our interest in
the area is driven by the search for an efficient, cost-effective, and environmentally safer conversion
of epoxidized soybean oil (ESO) into bio-polyol 1 and then into soy-based PU (Scheme 1), with the
ultimate goal of moving the whole process from laboratory bench to a pilot scale and then on to a
manufacturing scale. Bio-polyol 1 shows interesting physico-chemical properties that makes it an
excellent substitute for petrochemical polyols in the manufacture of some soy-based PUs.
In recent years, polyurethanes have been prepared by reacting a soybean oil-based polyol
with different isocyanates to give foams, elastomers, coatings, and adhesives [
the influence of a catalysts on gelling and blowing reactions was studied to compare the properties of
polymers [22–24]
By taking advantage of the high versatility of dichlorodioxo-molybdenum(VI), MoCl O , as well
1,8] in addition,
.
2
2
as Lewis acid catalyst [29], this work describes our efforts in applying MoCl O to the direct conversion
2
2
of epoxidized soybean oil (ESO) into PU in a one-pot reaction that encompasses both the epoxide
ring-opening stage and the subsequent urethane linkage formation step. In this way, the additional
steps of acid catalyst neutralization and removal of the ensuing salts are completely bypassed.
This, coupled with high efficiency and better environmental acceptance of MoCl O over other
2
2
metal-based catalysts, makes the whole process amenable to industrial scale-up.
2
. Results and Discussion
Molybdenum is much less toxic than typical heavy metals. For this reason, molybdenum-based
compounds have found several applications as clean alternatives to heavy metals in the petroleum

Molecules 2017, 22, 333
3 of 13
and plastic industries. In particular, MoCl O , and its related complexes, serve well as Lewis acid
2
2
catalysts for several organic transformations [29], ranging from oxidation to acylation, reduction,
and carbamylation [30–32]
Reportedly, MoCl O can efficiently catalyze the methanolysis of a range of terminal epoxides to
2
2
β
-methoxy alcohols, for which 5 mol % of catalyst generally suffices to drive reactions to completion
◦
within 1–5 h at 50 C or, in some cases, even at room temperature [33].
In order to test whether this protocol could be extended to the methanolysis of such internal
epoxides as those of ESO (Scheme 1), we deemed it useful to first study the MoCl O -catalyzed
2
2
epoxide-ring opening reaction of methyl oleate epoxide (
conditions. To this purpose, methyl oleate epoxide ( ) was prepared by reaction of commercial
methyl oleate ( ) with H O /formic acid, according to a widely-exploited industrial protocol [17].
Thus, upon treatment of epoxide
3) with methanol under the reported
3
2
2
2
◦
with 5 mol % MoCl O in CH OH at 50 C (Scheme 2, route a),
2 2 3
3
GC-MS analysis of the reaction mixture revealed that substrate conversion reached 93% after 4 h.
Additionally, the MS and spectral data of the crude product displayed the characteristic features of
methyl 10(9)-hydroxy-9(10)-methoxy-octadecanoate
roughly equimolar mixture of regioisomers. For unambiguous identification of
, a reference sample was made available upon subjecting methyl oleate epoxide (
methanolysis by tetrafluoroboric acid (HBF ) catalysis, according to route b of Scheme 2 [34–36].
4
, which was obtained with selectivity
-methoxy alcohol
) to conventional
≥
99% as a
β
4
3
4
Scheme 2. MoCl O -(route a) vs. HBF -catalyzed (route b) methanolysis of methyl oleate epoxide (3)
2
2
4
to β-methoxy alcohol 4.
Next, we turned to check whether the reaction conditions adopted were optimal for the case at
hand. Thus, the reaction was studied under variable conditions of catalyst loading (1–5 mol %) and
◦
temperature (20–65 C) at the fixed reaction time of 4 h. Results are collected in the diagram of Figure 1.

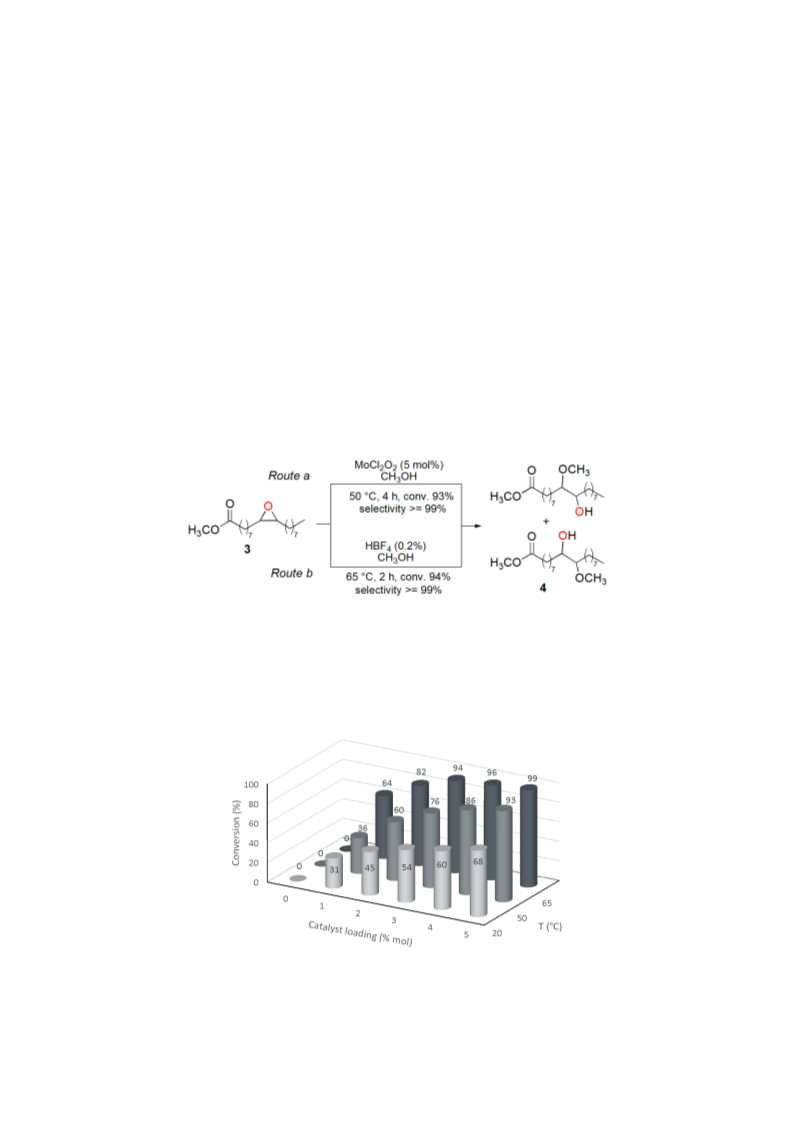

Figure 1. Diagram of the substrate conversion (%) vs. catalyst (MoO Cl ) loading and temperature in
2
2
the methanolysis of methyl oleate 3.

Molecules 2017, 22, 333
4 of 13
As shown in Figure 1, substrate conversion is directly correlated to catalyst loading and
temperature. The GC-MS analysis of the reaction mixtures revealed that, in the range of temperatures
and catalyst loading explored, product selectivity was retained, being always higher than 99%. Overall,
these results point out that an increase in temperature can compensate for the decrease of catalyst
loading, without significantly affecting product selectivity. This means that as long as the temperature
is increased, the amount of catalyst can be reduced, which is often the most desirable condition for
◦
the development of economical processes. For instance, using 3 mol % of MoCl O at 65 C allows
2
2
reaction to reach 94% conversion after 4 h (Figure 1), which is the same result as when the methanolysis
is carried out under typical conditions (Scheme 2, route b).
In light of these results, MoCl O appears well-suited to be employed in the methanolysis of
2
2
epoxidized fatty esters, as an alternative to HBF . Therefore, we turned to explore its catalytic
4
performance in the epoxide ring-opening reaction of ESO by methanol. Instructed by the new
experimental conditions found for the methanolysis of methyl oleate epoxide (Figure 1), we performed
◦
1
all experiments at 65 C, while catalyst loading was varied from 1 up to 3 mol %. H-NMR analysis of
reaction mixtures was preferred over GC-MS techniques, allowing us to estimate substrate conversion
and product identity, using the reference spectral data of bio-polyol
1 as obtained from typical
◦
HBF -catalyzed methanolysis of ESO at 65 C for 2 h [36
,37]. Shown in Figure 2, methanolysis
4
of ESO catalyzed by HBF attains a maximum of substrate conversion of 85% at 2 h, as estimated
4
1
based on signal integration of residual epoxide protons (3.15–2.74 ppm) in the H-NMR spectrum of
bio-polyol 1 (Figure 3b) in comparison with the corresponding signal integrations in the spectrum of
ESO (Figure 3a). The singlet at 3.65 ppm in the spectrum of Figure 3b can be assigned to the resonance
of methoxyl protons of fatty acid methyl esters (~7%), suggesting that transesterification is concomitant
to the epoxide ring-opening reaction. Yet, it is seen that longer reaction times cause transesterification
of triglycerides to take place at a rate of approximately 2% of fatty acid methyl esters formed per each
additional hour of reaction.

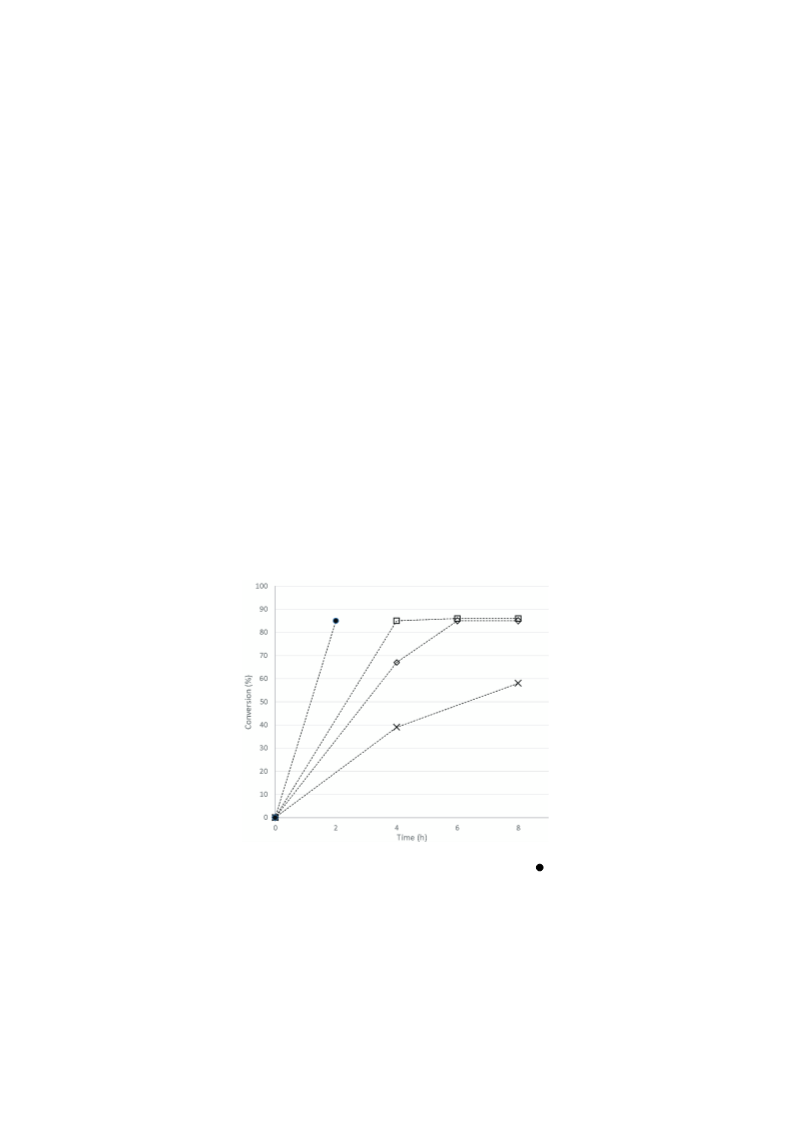

Figure 2. Conversion of substrate as function of time (h) and catalyst HBF ( ) or MoCl O (1 mol %
4
2
2
(
×), 2 mol % (♦), 3 mol % (ꢀ)) in the methanolysis of ESO.
◦
Figure 2 shows that, in the MoCl O -catalyzed methanolysis of ESO at 65 C, the maximum
2
2
substrate conversion achievable is still as high as 85%–86%, regardless of catalyst loading and reaction
time. However, the use of 1 mol % of MoCl O requires as long as 24 h to allow conversion to reach
2
2
8
0%, while on doubling or tripling the catalyst concentration, 85% conversion can be smoothly reached
within 4 or 6 h, respectively.

Molecules 2017, 22, 333
5 of 13
In all of the cases examined, reactions led to the selective conversion of ESO into bio-polyol 1,
1
as one can judge from the comparison of H-NMR spectral profiles of
1
obtained by HBF (Figure 3b) or
4
1
MoCl O (2 mol %, Figure 3c). In the H-NMR spectrum of Figure 3c, the signal at 3.65 ppm indicates
2
2
the presence of minor amounts (~3%) of methyl ester side products. Unlike the case with HBF catalyst,
4
their amount was found to not increase appreciably for prolonged reaction times, consistent with the
weak propensity of MoCl O to catalyze transesterification reactions [31,38].
2
2
Figure 3. 1H-NMR (CDCl , 400 MHz) spectrum of (
a) ESO; (
b) bio-polyol 1 from HBF -catalyzed
4
3
methanolysis of ESO at 2 h, and (c) from MoCl O -catalyzed methanolysis of ESO at 2 h.
2
2
Other hints of the conversion of ESO into bio-polyol
1 in the reaction with CH OH/MoCl O
3 2 2
come from the measurement of physicochemical properties, such as density, viscosity, and the average
number of hydroxyl and epoxy functionalities (Table 1).
Table 1. Physical and chemical characteristics of bio-polyol 1.
Density
Kg/dm )
Viscosity
(cP)
n. OH a
(mg of KOH/g)
n.
n.
E-Factor b
#
3
(
OH/Molecule Epoxy/Molecule
1
from HBF4
1.001761
1.003678
4551
4567
191
188
3.45
3.40
—-
—-
1.45
0.24
1
from MoCl O2
2
a
mg of KOH required to neutralize 1 g of polyol treated with excess acetic anhydride, according to ASTM, D4274.
b
For additional info, please refer [39] See experimental section for calculation.
Data reported in Table 1 indicate that it is possible to obtain the bio-polyol 1 with 3.45 hydroxyl
groups per molecule, instead of 4, as would expect based on the average number of epoxy groups.
This discrepancy has already been explained as result of the presence of ethereal bonds due to
concurrent intramolecular epoxide ring-opening (cross-linking process).
Next, we turned our attention to the “step 2” of the one-pot MoCl O -catalyzed soy-based
2
2
polyurethane production, i.e., the reaction of bio-polyol
Scheme 3).
1 with toluene 2,6-diisocyanate (2,6-TDI)
(

Molecules 2017, 22, 333
6 of 13

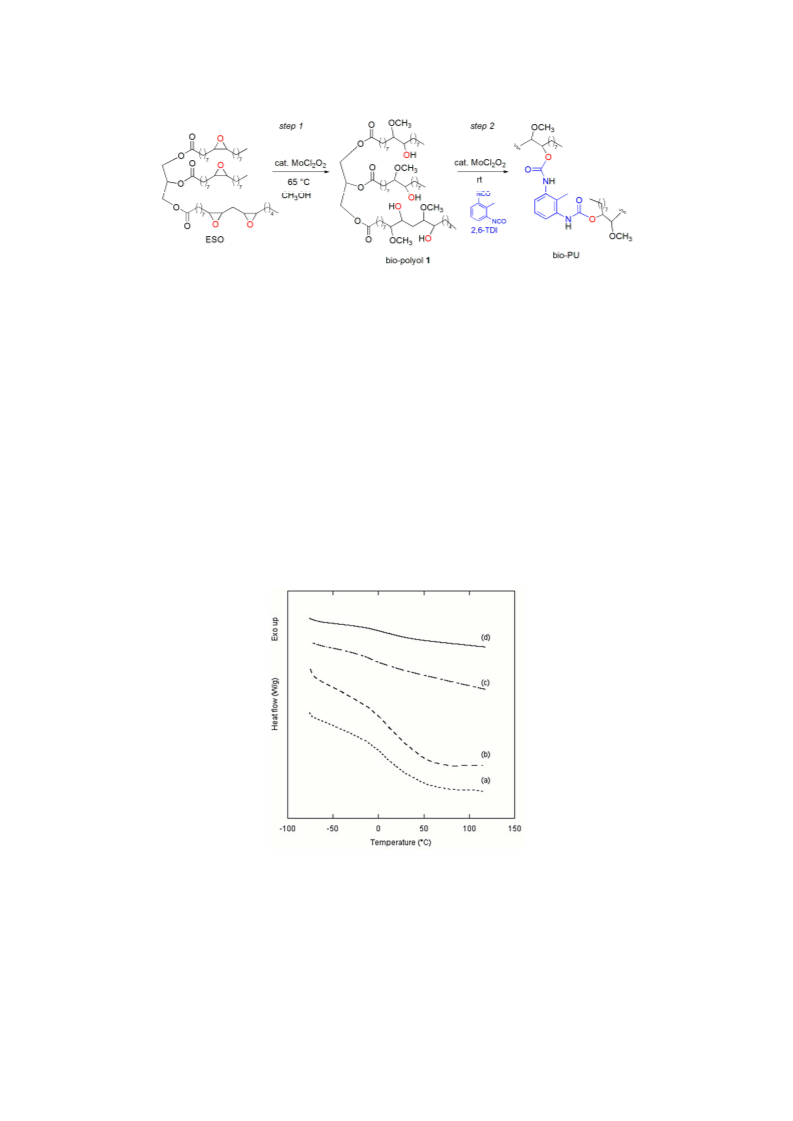

Scheme 3. One-Pot preparation of soy-based bio-PU from ESO by means of MoCl O catalysis.
2
2
Brückner and coworkers have recently studied catalytic activity of MoCl O and related
2
2
complexes in the formation of mono-, di-, tri-, and tetracarbamates from a variety of alcohols and
isocyanates [30]. They found that these reactions proceed to completion at room temperature in few
minutes using as little as 0.1–1 mol % of the catalyst in chlorinated solvents.
Polyurethanes were prepared according to a reported procedure in the experimental section,
where each polyol obtained by methanolysis reaction with 1–5 mol % of catalyst on respect to epoxide,
after evaporation in vacuo of methanol, was mixed in a plastic cup with 2,6-TDI for 30 s using a
high-speed mixer. The gel times at room temperature for each compound were 4–12 min.
Polyurethanes obtained from the polyols were quite similar, which was reflected in their physical
and mechanical properties.
The thermal properties of polyurethane samples, obtained using different amounts of catalyst,
were analyzed by DSC seven days after their synthesis (Figure 4). No thermal evidence of melting,
◦
crystallization or decomposition were detected in the studied range of temperature from
−
80 C to
◦
1
20 C. It turned out that all samples were in an amorphous state and thermally stable.
Figure 4. DSC curves for bio-PU made with bio-polyol
d) 5 mol % catalysts MoCl O .
1 and (a) 1 mol %; (b) 2 mol %; (c) 3 mol % and
(
2
2
Thermal events attributable to glass transitions were observed only for samples prepared at
◦
lower catalyst quantity, 1 mol % and 2 mol %, with midpoints in the range between 9.4 and 10.5 C
(
Figure 4a,b). These glass transition temperatures (Tg) indicate that polyurethane samples prepared
using the one-pot synthesis herein reported with 1 mol % and 2 mol % of catalyst are rubbery at
room temperature.

Molecules 2017, 22, 333
7 of 13
As a control experiment, we prepared the same bio-PU using the literature procedure [36] based
◦
on the thermal catalysis. In this case, heating of the mixture for 24 h at 110 C was necessary to
◦
complete the polymerization reaction, and a rubbery polymer with a Tg of 20 C was obtained.
Another piece of evidence supporting the suitability of the proposed method was obtained by
polymerizing bio-polyol 1, achieved with the HBF , in the presence of fresh 2 mol % of MoCl O .
4 2 2
The PU thus obtained displayed a Tg value very close to that of the polymer achieved using the
one-pot method.
TGA curves of polyurethane samples obtained using 1 mol % and 2 mol % of Mo catalyst and
literature procedure, analyzed by the first derivative (DTG), showed a multistep decomposition pattern
◦
in agreements with literature (Figure 5) [40
–
43]. At temperature lower than 200 C the weight loss was
due to small molecule products (not reacted isocyanates, water, ethers, etc.).

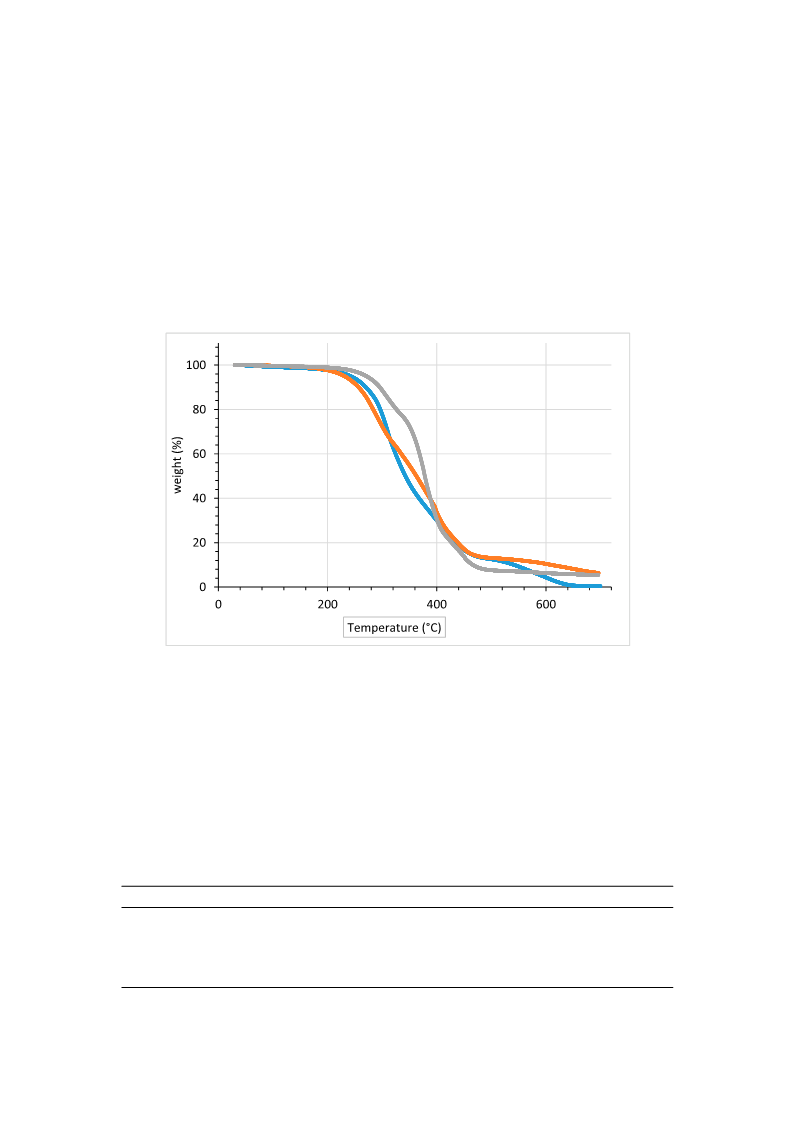

Figure 5. TGA curves for bio-PU made with bio-polyol
1 and 1 mol % (blue color), 2 mol % (red color)
MoO Cl catalysts and literature procedure (grey color) [36].
2
2
◦
The urethane bond groups break up into isocyanates and polyols from 200 C. At the same time,
the polyols segments decompose to same kinds of aliphatic alcohols and the products become more
◦
complex as the evolved products interact with each other. At temperature above 350 C, primary and
secondary amines, vinyl ethers, CO , HCN, and nitriles are the decomposition products [42,43].
2
The values of degradation temperatures for 5% weight loss (Td5%), for 70% weight loss (Td70%),
for 90% weight loss (Td90%), the maximum degradation temperature (Tmax) and the char yield at 700
◦
C are shown in Table 2.
Table 2. The thermal properties of the polyurethane samples.
◦
◦
◦
◦
Material
Td5% ( C)
Tmax ( C)
Td70% ( C)
Td90% ( C)
Mresidue (%)
Literature procedure
BIO PUR with 1 mol %
272.1
378.3
312.4
401.02
401.02
465.98
540.0
5.4
0.5
2
2
42.0
31.5
MoCl O catalyst
2
2
BIO PUR with 2 mol %
MoCl O catalyst
291.7
408.0
609.0
6.3
2
2

Molecules 2017, 22, 333
8 of 13
These results indicate that the polyurethane sample prepared using the literature procedure is
◦
initially the most stable. In fact, the 5% degradation weight loss is obtained at 272.1 C, thirty and forty
degrees above the weight loss temperatures observed for Bio-PU samples deriving from 1 mol % and
2
mol % catalyst. Moreover, temperatures at which the degradation process shows the maximum rate
◦
◦
follow the same order: 291.7 C for 2 mol % Bio-PU sample, 312.4 C for 1 mol % Bio-PU sample and
3
◦
78.3 C for literature samples.
At about the 70% weight loss the situation changes. The literature polyurethane sample
becomes less stable than polyurethane samples prepared using the one-pot synthesis herein reported.
In particular, the Bio-PU with 2 mol % MoCl O catalyst has the highest temperature at which
2
2
the 90% degradations weight loss is obtained. However, the shapes of the weight loss curves of
all polyurethanes are almost identical, and overall differences in thermal stability appear to be
small [44,45].
3
. Experimental Section
3
.1. Material and Methods
NMR spectra were recorded on a Varian Inova 400 MHz (Agilent company, Santa Clara, CA,
1
USA) or on an Agilent Technologies 500 MHz spectrometer (Agilent company); the H-NMR spectra
(
400 MHz) were referenced to residual isotopic impurity of CDCl (7.26 ppm). GC/MS experiments
3
were run on a Shimadzu GLC 17-A instrument connected with a Shimadzu ITALIA GLC/MS QP5050A
selective mass detector (Shimadzu, Milan, Italy) using a SLB-5MS column (30 m 0.25 mm id,
film thickness 0.25 m). Mass spectra were performed in EI mode (70 eV). FTIR spectra (Perkin Elmer,
Milan, Italy) are relative to KBr pellets or films (deposited on KBr plates).
×
µ
Acetone and other common solvents were purified by standard methods. Commercial starting
materials were purchased in highest purity available from scientific chemicals suppliers (Aldrich,
Milan, Italy) and were used without purification. Soybean oil was provided by Valsoia (iodine number
of 130 g I /100 g).
2
A Viscometer Cannon-Fenske reverse flows YNT instrument (Koehlerinstrument, NY, USA) was
used to determine the viscosity using the standard method ASTM D445 (Standard Test Methods for
Kinematic Viscosity of Transparent and Opaque Liquids). The determination of density was obtained
with the pycnometer method EN ISO 1675.
Iodine number value, oxirane number (ON) and hydroxyl number of pre-polymers were
determined by EN ISO 661, ASTM D 1652, and ASTM D4274 methods, respectively [36,37].
3
.2. Synthesis of the Epoxide of Methyl Oleate (3)
The epoxide was prepared using H O /HCOOH and phosphoric acid as catalyst. To a stirred
2
2
◦
solution of methyl oleate (2) (34.6 g) at 60 C, and 75% aqueous phosphoric acid (1.14 g) was added
5
0% hydrogen peroxide, H O (18.11 g), in mixture with 85% formic acid (2.53 g) at regular intervals
2 2
◦
over two h. Then, the solution was heated at 75 C and left to react for two h. Next, the temperature
was lowered to 64 C and 1.85 g of aqueous NaOH (24.9%) was added dropwise during 1 h, and the
temperature slowly raised to 85 C. Then, oxalic acid (0.12 g) was added and the mixture was left
◦
◦
to react for 30 min. Next, reaction mixture was transferred into a separating funnel, and layered for
◦
1
h. Finally, the aqueous phase was removed and the epoxide
3
was dried in vacuo at 98 C for 1 h.
Chemical properties of
3
were reported: number of oxirane oxygen: 5.3 g O /100 g; number of epoxy
2
groups: 1 per molecule; and amount of iodine: 1.1 g I /100 g. The spectral data of epoxide
3
was in
2
agreement with the literature [34,35].
3
.3. Synthesis of 10(9)-Hydroxy-9(10)-methoxy-octadecanoate (4)
Starting from the corresponding epoxides, methanolysis reaction was performed using HBF as
4
the catalyst, following a procedure from the literature [36,37]. The molar ratio of epoxy groups to

Molecules 2017, 22, 333
9 of 13
OH was 1:11. The catalyst loading was 0.2% with respect to the total weight of the reaction mixture.
Chemical properties of methyl 10(9)-hydroxy-9(10)-methoxy-octadecanoate ( ) were reported: the
4
number of epoxy groups: 0.03 per molecule; the amount of –OH: 161 mg KOH/g; and fn (hydroxyl
functionality/molecule): 1. The spectral data of 4 were in agreement with the literature [34,35,37].
3
.4. Synthesis of ESO
To a stirred solution of soybean oil (110.31 g) and 75% aqueous phosphoric acid (1.21 g) heated at
◦
6
3 C, a mixture of 50% hydrogen peroxide H O (71.31 g) and 85% formic acid (9.89 g) was added at
2
2
◦
regular intervals of 4 h. Then, the solution was warmed at 75 C for 2 h and, subsequently, an aqueous
solution of NaOH at 25% was added dropwise for 1 h while the temperature was raised slowly up
to 85 C. Then, oxalic acid (0.29 g) was added and the mixture was left to react for 30 min. Then,
◦
the mixture was transferred into a separating funnel, and layered for 2 h. Finally, the aqueous phase
◦
was removed and the ESO was dried in vacuo at 98 C for 1 h. The spectral data of ESO were in
agreement with the literature [36] and with an authentic sample provided by Greenswitch Industry
(Greenswicht, Ferrandina (MT), Italy).
Chemical properties of ESO were reported: amount of oxirane oxygen: 6.3 g O /100 g; number
2
of epoxy groups: 4 per molecule; amount of iodine: 1.5 g I /100 g; and the number of double
2
bonds/molecule: 0.05.
3
.5. Methanolysis of ESO Using HBF4
Methanol 151.10 g (4.72 mol) and 1.11 g of 48% aqueous solution of HBF (0.006 mol) were
4
added to a 500-mL, three-necked flask equipped with a refluxing column, a mechanical stirrer, and a
thermometer [14]. To the refluxing mixture, heated with a water bath, 97.80 g of ESO (oxirane oxygen
6
.3 g O /100 g) were added and left to react for 2 h. After cooling to room temperature, aqueous
2
ammonia (30%) was added to neutralize the catalyst and avoid hydroxylation. The mixture was
◦
washed with water and then purified on a rotary evaporator under a low vacuum at 98 C for 1.5 h [14],
yielding 102 g of bio-polyol 1. Finally, the E-factor was determined using the Sheldon rules. [46,47].
Estimation of the E-factor:
Mass of reactants: 48% aqueous HBF : 0.5328 g (solvent (water) has been excluded from this
4
calculation); 30% aqueous NH : 0.225 g (solvent (water) has been excluded from this calculation);
3
CH OH: 151.1 g; ESO: 97.8 g; total amount of reactants: 0.5328 g + 0.225 g + 151.1 g + 97.8 g = 249.6578 g.
3
Mass of product: bio-polyol 1: 102 g; total amount of final products: 102 g.
Amount of waste: (249.6578 − 102): 147.6578 g.
E-Factor = Amount of waste/Amount of product = 147.6578/102 = 1.45.
3
.6. Synthesis of Methyl 10(9)-Hydroxy-9(10)-methoxy-octadecanoate (4) Using MoCl O2
2
The following procedure was representative for methanolysis of
3. To a stirred solution of methyl
oleate epoxide (
3) (1.0 g, oxirane oxygen value with 5.3 g O /100 g) in methanol (1.2 g, 37.5 mmol)
2
◦
heated at 65 C, 32 mg of MoCl O (5 mol % respect to epoxide) were added in one portion. The reaction
progress was monitored by GC/MS. After 4 h (conv. 98%), the solvent was removed in vacuo at 98 C
for 1.5 h, thus obtaining methyl 10(9)-hydroxy-9(10)-methoxy-octadecanoate ( ) [34 35] as a colorless
2
2
◦
4
,
oil (number of oxirane oxygen: 0.04 g O /100 g; number of epoxy groups: 0.02 per molecule; amount
2
of –OH: 164 mg KOH/g; fn (hydroxyl functionality/molecule): 1).
3
.7. Methanolysis of ESO Using MoCl O2
2
To a stirred solution of ESO (1.0 g, oxirane oxygen value 6.3 g O /100 g) in methanol (1.4 g,
2
◦
4
0 mmol) heated at 50 C, 8.48–42.3 mg of MoCl O (1–5 mol % with respect to epoxide) were added
in one portion. The reaction progress was monitored by H-NMR. After 4 h (conv. 98%), the solvent
2
2
1

Molecules 2017, 22, 333
10 of 13
◦
was removed in vacuo at 98 C for 1.5 h, thus obtaining bio-polyol
1
(1.11 g); amount of OH: 191 mg
KOH/g; fn (hydroxyl functionality/molecule): 3.45; number of epoxy groups: 0.03 per molecule;
◦
3
◦
oxirane oxygen value: 0.05; density at 25 C: 1.001761 (kg/dm ); kinematic viscosity at 25 C: 4543 (cSt);
◦
dynamic viscosity at 25 C: 4551 (cP) [12]. The same reaction was repeated with 100 g of ESO, yielding
110 g of bio-polyol 1, and 84 g of methanol was recovered using the column with structured packing
MellapakPlus™. The E-factor was determined using the Sheldon rules. [46,47].
Estimation of the E-Factor:
Mass of reactants: MoCl O : 1.7 g (2 mol %); CH OH: 140 g; ESO: 100 g; total amount of reactants:
2
2
3
1
.7g + 140 g + 100 g = 241.7 g.
Mass of products: bio-polyol 1: 110 g; MoCl O : 1.70 g; CH OH: 84 g; total amount of final
2 2 3
product: 110 g + 1.70 g + 84 g = 195.7 g.
Amount of waste: (241.7 − 195.7) = 46 g.
E-Factor = amount of waste/amount of product = 46/195.7 = 0.24.
3
.8. One-Pot Synthesis of Bio-Based PU
The consecutive steps of methanolysis of ESO and the reaction of the polyolic products with
,6-TDI were performed in a one-pot manner as follows: (a) methanolysis of ESO according to the
2
previous procedure using the desired MoCl O catalyst concentration (1–5 mol %); (b) reaction of the
2
2
as prepared bio-polyol
NCO/-OH molar ratio of 1.1: 1. Reaction mixture was left to react at room temperature, without
stirring, for 24 h, yielding the Bio-PU, which was characterized by DSC (Q200 TA Instruments, Perkin
Elmer, Milan, Italy) and TGA (Pyris 1 Perkin Elmer, Milan, Italy) analysis under N atmosphere with
1 (containing the catalyst) by mixing with 2,6-TDI at room temperature in a
-
2
◦
◦
heating rate of 20 C/min (Tg 10–12 C are better evident in the second heating scan). The thermal
analysis of all samples were performed 7 days after their synthesis in order to have consistent results.
3
.9. Synthesis Bio-Based PU without Catalyst
Bio-PU was prepared using bio-polyol 1 and 2,6-TDI in a NCO/OH molar ratio of 1.1:1. The polyol
and the isocyanate components were stirred for 2 min, then the mixture was poured into a mold and
◦
the unit was left in vacuo to evacuate bubbles (5 min at 60 C). The sample was put into an oven
◦
for 24 h at 110 C to complete the reaction. The sample was then cooled to room temperature and
◦
remolded. The Tg after seven days was found to be equal to 20 C, unlike what is reported in literature
◦
(
ca. 50 C) [37].
4
. Conclusions
In conclusion, an atom-economical, cascade, one-pot, and two-step method for polyurethane
synthesis has been developed using the inexpensive and environmentally friendly catalyst
MoCl O , [10], as also confirmed by the safety data given in databases of ECHA (European CHemistry
2
2
Agency) [48]. Physicochemical properties of PURs obtained with this method are quite similar to those
of materials prepared by procedures in the literature.
Other important advantages of the present method are summarized as follows:
•
•
The synthesis of PU is carried out in a short time and at room temperature, a great advantage
when compared with reactions carried out without catalysts;
The efficiency and selectivity of the methanolysis step provides a pure polyol intermediate,
which could be used directly in subsequent reactions, avoiding the costly and time-consuming
purification procedures that are necessary when using the classical method based on HBF ; and
4
•
Methanol can be easily recovered and reused, thus increasing the atom economy of the process.
The E-factor for these reactions is completely different [46,47] indeed, the MoCl O allows
2 2

Molecules 2017, 22, 333
11 of 13
the recovery of methanol (purity 99.9%), which can be recycled (see experimental section for
each procedure).
The final goal of this work is the construction of a pilot apparatus located at Greenswitch S.r.l.
Company in Ferrandina (ITALY), of which only a part is shown in Figure 6 [49].
Figure 6. Pilot apparatus [49].
Acknowledgments: This research was supported by: Regione Puglia MIUR PON Ricerca e Competitività 20072013
Avviso 254/Ric. del 18/05/2011, Project PONa3 00369 “Laboratorio SISTEMA”, Project PON03PE_00004_1,
“
MAIND” MAteriali eco-innovativi e tecnologie avanzate per l’INDustria Manifatturiera e delle costruzioni.
Thanks to Salvatore Pepe, owner of Greenswitch, for the “PIANI di SVILUPPO INDUSTRIALI attraverso
PACCHETTI INTEGRATI di AGEVOLAZIONE (PIA) Regione Basilicata codice progetto 227179” fund.
Thanks to Lucia Vurro (manager for chemical safety, University of Bari) for helpful discussions regarding the
environmental data.
Author Contributions: V.P. and A.R. performed the experiments, C.A., C.F., A.N., analyzed the NMR and MS
data and conceived and designed the experiments, P.F. analyzed the DSC and TGA data, L.D. conceived and
designed the experiments and wrote the paper.
Conflicts of Interest: The authors declare no conflict of interest.
References and Notes
1
2
.
.
Petrovic, Z.S. Polyurethanes from Vegetable Oils. Polym. Rev. 2008, 48, 109–155. [CrossRef]
Imhof, P.; van der Waal, J.C. (Eds.) Catalytic Process Development for Renewable Materials; Wiley-VCH Verlag
GmbH & Co. KGaA: Weinheim, Germany, 2013.
3.
4.
5.
6.
7.
8.
9.
Noreen, A.; Zia, K.M.; Zuber, M.; Tabasum, S.; Zahoor, A.F. Bio-based polyurethane: An efficient and
environment friendly coating systems: A review. Prog. Org. Coat. 2016, 91, 25–32. [CrossRef]
Miao, S.; Wang, P.; Su, Z.; Zhang, S. Vegetable-oil-based polymers as future polymeric biomaterials.
Acta Biomater. 2014, 10, 1692–1704. [CrossRef] [PubMed]
Kong, X.; Liu, G.; Qi, H.; Curtis, J.M. Preparation and characterization of high-solid polyurethane coating
systems based on vegetable oil derived polyols. Prog. Org. Coat. 2013, 76, 1151–1160. [CrossRef]
Nohra, B.; Candy, L.; Blanco, J.-F.; Guerin, C.; Raoul, Y.; Mouloungui, Z. From Petrochemical Polyurethanes
to Biobased Polyhydroxyurethanes. Macromolecules 2013, 46, 3771–3792. [CrossRef]
Desroches, M.; Escouvois, M.; Auvergne, R.; Caillol, S.; Boutevin, B. From Vegetable Oils to Polyurethanes:
Synthetic Routes to Polyols and Main Industrial Products. Polym. Rev. 2012, 52, 38–79. [CrossRef]
Pfister, D.P.; Xia, Y.; Larock, R.C. Recent Advances in Vegetable Oil-Based Polyurethanes. ChemSusChem
2
011, 4, 703–717. [CrossRef] [PubMed]
Bradley, D.; Levin, E.; Rodriguez, C.; Williard, P.G.; Stanton, A.; Socha, A.M. Equilibrium studies of canola oil
transesterification using a sodium glyceroxide catalyst prepared from a biodiesel waste stream. Fuel Process.
Technol. 2016, 146, 70–75. [CrossRef]

Molecules 2017, 22, 333
12 of 13
1
1
0. Fowler, P.; Hughes, J.M.; Elias, R.M. Biocomposite: Technology, enviromental credentials and marked forces.
J. Sci. Food Agric. 2006, 86, 1781–1789. [CrossRef]
1. Liu, Z.; Bai, G.; Huang, Y.; Ma, Y.; Du, F.; Li, F. Reflection and absorption contributions to the electromagnetic
interference shielding of single-walled carbon nanotube/polyurethane composites. Carbon 2007, 45, 821–827.
[
CrossRef]
2. Annese, C.; D’Accolti, L.; Giambastiani, G.; Mangone, A.; Milella, A.; Tuci, G.; Fusco, C. Tunable Epoxidation
of Single-Walled Carbon Nanotubes by Isolated Methyl (trifluoromethyl) dioxirane. Eur. J. Org. Chem. 2014
666–1671. [CrossRef]
3. Bloise, E.; Becerra-Herrera, M.; Mele, G.; Sayago, A.; Carbone, L.; D’Accolti, L.; Mazzetto, S.E.; Vasapollo, G.
Sustainable preparation of cardanol-based nanocarriers with embedded natural phenolic compounds.
ACS Sustain. Chem. Eng. 2014, 2, 1299–1304. [CrossRef]
4. D’Accolti, L.; Annese, C.; De Riccardis, A.; De Giglio, E.; Cafagna, D.; Fanelli, F.; Fusco, C. Dioxirane-Mediated
Heterogeneous Epoxidations with Potassium Caroate: A Solid Catalyst Bearing Anchored Ketone Moieties.
Eur. J. Org. Chem. 2012, 4616–4621.
1
1
1
,
1
1
5. Limnios, D.; Kokotos, C.G. 2,2,2-Trifluoroacetophenone: An organocatalyst for an environmentally friendly
epoxidation of alkenes. J. Org. Chem. 2014, 79, 4270–4276. [CrossRef] [PubMed]
1
6. He, W.; Fang, Z.; Ji, D.; Chen, K.; Wan, Z.; Li, X.; Gan, H.; Tang, S.; Zhang, K.; Guo, K. Epoxidation of
Soybean Oil by Continuous Micro-Flow System with Continuous Separation. Org. Process Res. Dev. 2013, 17,
1
137–1141. [CrossRef]
1
1
1
7. Khot, S.N.; Lascala, J.J.; Can, E.; Morye, S.S.; Williams, G.I.; Palmese, G.R.; Kusefoglu, S.H.; Wool, R.P.
Development and application of triglyceride-based polymers and composites. J. Appl. Polym. Sci. 2001, 82,
7
03–723. [CrossRef]
8. Neves, P.; Amarante, T.R.; Valente, A.A.; Pillinger, M.; Gonçalves, I.S. Catalytic Application of an
0
Octamolybdate Salt (H biim) [
β
-Mo O ] in Olefin Epoxidation (H biim = 2,2 -biimidazole). Catal. Lett.
3
4
8
26
2
2
016, 146, 841–850. [CrossRef]
9. Amarante, T.R.; Neves, P.; Tomé, C.; Abrantes, M.; Valente, A.A.; Almeida Paz, F.A.; Pillinger, M.;
0
0
Gonçalves, I.S. Novel Heterotetranuclear V Mo or V W Complexes with 4,4 -Di-tert-butyl-2,2 -bipyridine:
2
2
2
2
Syntheses, Crystal Structures, and Catalytic Activities. Inorg. Chem. 2012, 51, 3666–3676. [CrossRef]
0. Farias, M.; Martinelli, M.; Pagliocchi Bottega, D. Epoxidation of soybean oil using a homogeneous catalytic
system based on a molybdenum (VI). Appl. Catal. A Gen. 2010, 384, 213–219. [CrossRef]
1. Vanoye, L.; Hamami, Z.E.; Wang, J.; de Bellefon, C.; Fongarland, P.; Favre-Réguillon, A. Epoxidation of methyl
oleate with molecular oxygen: Implementation of Mukaiyama reaction in flow. Eur. J. Lipid Sci. Technol.
2
2
2
016, 118. [CrossRef]
2
2
2
2
2. Silva, A.L.; Bordado, J.C. Recent Developments in Polyurethane Catalysis: Catalytic Mechanisms Review.
Catal. Rev. 2004, 46, 31–51. [CrossRef]
3. Blank, W.J.; He, Z.A.; Hessell, E.T. Catalysis of the isocyanate-hydroxyl reaction by non-tin catalysts.
Prog. Org. Coat. 1999, 35, 19–29. [CrossRef]
4. Dworakowska, S.; Bogdał, D.; Zaccheria, F.; Ravasio, N. The role of catalysis in the synthesis of polyurethane
foams based on renewable raw materials. Catal. Today 2014, 223, 148–156. [CrossRef]
5. Cotugno, P.; Monopoli, A.; Ciminale, F.; Milella, A.; Nacci, A. Palladium-Catalyzed Cross-Coupling of
Styrenes with Aryl Methyl Ketones in Ionic Liquids: Direct Access to Cyclopropanes. Angew. Chem. 2014, 53,
1
3563–13567. [CrossRef] [PubMed]
2
6. Annese, C.; D’Accolti, L.; Fusco, C.; Curci, R. Selective Hydroxylation of Methane by Dioxiranes under Mild
Conditions. Org. Lett. 2011, 13, 2142–2144. [CrossRef] [PubMed]
2
7. Mele, G.; Annese, C.; De Riccardis, A.; Fusco, C.; Palmisano, L.; Vasapollo, G.; D’Accolti, L. Turning lipophilic
phthalocyanines/TiO composites into efficient photocatalysts for the conversion of CO into formic acid
2
2
under UV–Vis light irradiation. Appl. Catal. A 2014, 481, 169–172. [CrossRef]
2
2
8. Monopoli, A.; Cotugno, P.; Palazzo, G.; Ditaranto, N.; Mariano, B.; Cioffi, N.; Ciminale, F.; Nacci, A. Ullmann
homocoupling catalysed by gold nanoparticles in water and ionic liquid. Adv. Synth. Catal. 2012, 354,
2
777–2788. [CrossRef]
9. Jeyakumar, K.; Chand, D.K. Application of molybdenum (VI) dichloride dioxide (MoO Cl ) in organic
2
2
transformations. J. Chem. Sci. 2009, 121, 111–123. [CrossRef]

Molecules 2017, 22, 333
13 of 13
3
3
0. Stock, C.; Brückner, B. Mild and High-Yielding Molybdenum (VI) Dichloride Dioxide-Catalyzed Formation
of Mono-, Di-, Tri-, and Tetracarbamates from Alcohols and Aromatic or Aliphatic. Adv. Synth. Catal. 2012
54, 2309–2330. [CrossRef]
1. D’Accolti, L.; Denora, N.; La Piana, G.; Marzulli, D.; Siwy, Z.S.; Fusco, C.; Annese, C. Synthesis and Biological
Evaluation of a Valinomycin Analog Bearing a Pentafluorophenyl Active Ester Moiety. J. Org. Chem. 2015
0, 12646–12650. [CrossRef] [PubMed]
,
3
,
8
3
3
3
3
2. Annese, C.; Fanizza, I.; Calvano, C.D.; D’Accolti, L.; Fusco, C.; Curci, R.; Williard, P.G. Selective synthesis of
hydroxy analogues of valinomycin using dioxiranes. Org. Lett. 2011, 13, 5096–5099. [CrossRef] [PubMed]
3. Jeyakumar, K.; Chand, D.K. Ring-opening reactions of epoxides catalyzed by molybdenum (VI) dichloride
dioxide. Synthesis 2008, 807–819.
4. Bunker, S.P.; Wool, R.P. Synthesis and characterization of monomers and polymers for adhesives from methyl
oleate. J. Polym. Sci. Part A Polym. Chem. 2002, 40, 451–458. [CrossRef]
5. Palaskar, D.V.; Boyer, A.; Cloutet, E.; Alfos, C.; Cramail, H. Synthesis of Biobased Polyurethane from
Oleic and Ricinoleic Acids as the Renewable Resources via the AB-Type Self-Condensation Approach.
Biomacromolecules 2010, 11, 1202–1211. [CrossRef] [PubMed]
3
3
3
6. Dai, H.; Yang, L.; Lin, B.; Wang, C.; Shi, G. Synthesis and characterization of the different soy-based polyols
by ring opening of epoxidized soybean oil with methanol, 1,2-ethanediol and 1,2-propanediol. J. Am. Oil
Chem. Soc. 2009, 86, 261–267. [CrossRef]
7. Wang, C.S.; Yang, L.T.; Ni, B.L.; Shi, G. Polyurethane networks from different soy-based polyols by the ring
opening of epoxidized soybean oil with methanol, glycol, and 1,2-propanediol. J. Appl. Polym. Sci. 2009, 114,
1
25–131. [CrossRef]
8. Chen, C.T.; Kuo, J.H.; Pawar, V.D.; Munot, Y.S.; Weng, S.S.; Ku, C.H.; Liu, C.Y. Nucleophilic acyl substitutions
of anhydrides with protic nucleophiles catalyzed by amphoteric, oxomolybdenum species. J. Org. Chem.
2
005, 70, 1188–1197. [CrossRef] [PubMed]
3
4
9. Helping Our World Work Better. Available online: https://www.astm.org/ (accessed on 20 February 2017).
0. Sattar, R.; Kausar, A.; Siidiq, M. Thermal, mechanical and electrical studies of novel shape memory
polyurethane/polyaniline blends. Chin. J. Polym. Sci. 2015, 33, 1313–1324. [CrossRef]
4
4
4
4
4
1. Sakulsaknirmitr, W.; Wirasate, S.; Pipatpanyanugoon, K.; Atorngitjawat, P. Structure and thermal properties
of polyurethanes synthesized from cardanol diol. J. Polym. Environ. 2015, 23, 216–226. [CrossRef]
2. Jiao, L.; Xiao, H.; Wang, Q.; Sun, J. Thermal Degradation Characteristics of Rigid Polyurethane Foam and the
Volatile Products Analysis with TG-FTIR-MS. Polym. Degrad. Stab. 2013, 98, 2687–2696. [CrossRef]
3. He, J.-J.; Jiang, L.; Sun, J.-H.; Lo, S. Thermal degradation study of pure rigid polyurethane in oxidative and
non-oxidative atmospheres. J. Anal. Appl. Pyrolysis 2016, 120, 269–283. [CrossRef]
4. Zlatanic
Polyurethanes Based on Different Vegetable Oils. J. Polym. Sci. B Polym. Phys. 2004, 42, 809–819. [CrossRef]
5. Javni, I.; Petrovic , Z.S.; Guo, A.; Fuller, R. Thermal Stability of Polyurethanes Based on Vegetable Oils. J.
´, A.; Lava, C.; Zhang, W.; Petrovic´, Z.S. Effect of Structure on Properties of Polyols and
´
Appl. Polym. Sci. 2000, 77, 1723–1734. [CrossRef]
4
4
6. Sheldon, R.A. The E Factor: Fifteen years on. Green Chem. 2007, 9, 1273–1283. [CrossRef]
7. Maity, P.; Gopinath, C.S.; Bhaduri, S.; Lahiri, G.K. Applications of a high performance platinum nanocatalyst
for the oxidation of alcohols in water. Green Chem. 2009, 11, 554–561.
4
8. For HBF . Available online: https://echa.europa.eu/it/substance-information/-/substanceinfo/100.037.
4
1
65 (accessed on 20 February 2017). For MoO Cl . Available online: https://echa.europa.eu/it/substance-
2 2
information/-/substanceinfo/100.157.480 (accessed on 20 February 2017).
4
9. Pilot apparatus designed by Eng. Luciano Vassallo—Piazza Fontana 14/H, 23868 Valmadrera (LC).
Sample Availability: Samples of the compounds bio-polyol 1 and Bio-PU are available from the authors.
©
2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
CC BY) license (http://creativecommons.org/licenses/by/4.0/).
(
