One-pot synthesis of 2-aryl-1,2-fused pyrimidones

Article abstract of DOI:10.1007/s12039-017-1244-z

A facile and versatile method for the synthesis of alicyclic fused pyrimidones from aminoacrylates and lactams in the presence of phosphorous oxychloride is described. The results suggest that this method is widely applicable except for cyclobutyl fused s

Full text of DOI:10.1007/s12039-017-1244-z

c
J. Chem. Sci. ꢀ Indian Academy of Sciences.
DOI 10.1007/s12039-017-1244-z
REGULAR ARTICLE
One-pot synthesis of 2-aryl-1,2-fused pyrimidones
SAMIKANNU RAMESHa, PON SARAVANAKUMARa, RAMASAMY DURAISAMYa,
ARVIND MATHURb and PIRAMA NAYAGAM ARUNACHALAMa,∗
aBiocon Bristol-Myers Squibb Research Center, Syngene International Pvt. Ltd., Biocon Park,
Plot No. 2 &3, Bommasandra–Jigani Road, Bangalore 560 100, India
bResearch and Development, Bristol-Myers Squibb, P.O. Box 5400, Princeton, New Jersey 08543, USA
Email: pn.arunachalam@syngeneintl.com
MS received 22 September 2016; revised 8 December 2016; accepted 29 January 2017
Abstract. A facile and versatile method for the synthesis of alicyclic fused pyrimidones from aminoacrylates
and lactams in the presence of phosphorous oxychloride is described. The results suggest that this method
is widely applicable except for cyclobutyl fused systems. This method gives better yield than the method of
condensing aminopyrrolidines with the beta keto esters.
Keywords. Alicyclic fused pyrimidone; aminoacrylates; lactams; phosphorus oxychloride; cyclisation.
1. Introduction
the aminoacrylates were successfully condensed with,
either the open chain alkyl chlorimines derived from
the amides,6 or with the cyclised alkyl chloramines
derived from the lactams which are same as the ones
mentioned in our current study,7 to form the substituted
4-pyrimidones in good yields. The latter example,
though resembled our present work, used phosphorous
oxychloride as a solvent, was not an exhaustive one,
and covered no more than four examples. In addition
to these examples, we also came across an example in
which 3-aminothiophene-2-esters were condensed with
lactams in the presence of phosphorous oxychloride.8
Even though this example was not directly related to
our present work; it did confirm the requirement of a
chlorinating reagent such as phosphorous oxychloride
to effect the condensation. These literature examples
led us to think that the treatment of a lactam with the
calculated quantity of phosphorous oxychloride in a
suitable solvent would generate a cyclized chlorimine
which could be reacted in situ with the aminoacrylates
2 to give the desired pyrimidone intermediates 3 as
shown in the Scheme 3. This enabled us to synthesise a
wide range of fused pyrimidones which were all hith-
erto not reported. Indeed, when we treated pyrrolidin-
2-one (1a, n = 1) with phosphorous oxychloride, it did
result in the formation of the corresponding cyclized
chlorimine,9 intermediate A as evidenced by the
GCMS of the reaction mixture. To confirm the reaction
pathway, we carried out the addition of ethyl 3-amino-
3-(2-chloro-5-nitrophenyl) acrylate, 2a, to this reactive
intermediate at ambient temperature and followed the
reaction by LCMS. Over a couple of hours, this resulted
Pyrrolopyrimidinone derivatives are ubiquitously found
across a range of bioactive molecules. For example,
TLR-9 antagonists takes advantage of the fused core
structure of pyrrolopyrimidinone. This takes care of
the selective corticotrophin-releasing factor-1 (CRF)
receptor antagonism.1 4
In the course of our drug discovery program, we
were interested in the rapid synthesis of 2-aryl substi-
tuted tetrahydropyrrolo[1,2-a] pyrimidone derivatives
as key templates (Figure 1). Initially we attempted to
synthesize these targets through the condensation of
the beta keto esters with the corresponding 2-amino-
3,4-tetrahydropyrrole derivatives as reported in the
literature.5 This is shown in Scheme 1. However, this
methodology required very long duration (72 h) for
the synthesis of 2-amino-3,4-tetrahydropyrrole deriva-
tive that too with a poor yield of 10%, besides, poorer
yield for the condensation step itself (8%).
We thought that a faster approach to the substituted
fused pyrimidones 3 could be achieved by interchang-
ing the reacting groups of both the reactants. That is to
react a lactam 1 with an aminoacrylate 2 as shown in
Scheme 2.
To support this view and to find a suitable reaction
condition, keeping lactams as substrates, we searched
the literature without much success. Broader search of
the literature keeping the substituted pyrimidones as tar-
get molecules, led us to a couple of examples in which
∗For correspondence

Samikannu Ramesh et al.
in the formation of the adduct B as evidenced by the
LCMS analysis of the crude reaction mixture. Though
the intermediate B could not be isolated for further
analysis due to its instability, upon heating at 90◦C it
was smoothly converted to 3aa. Based on these obser-
vations, it is clear that the nucleophilic attack of the
aminoacrylates on the cyclic chloro intermediate A, fol-

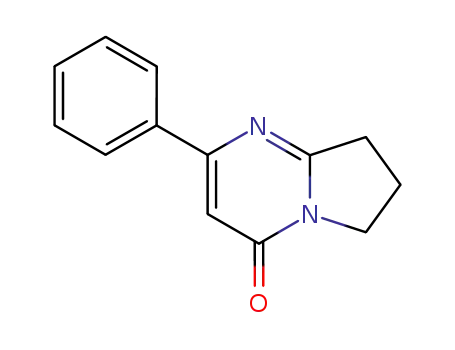

Figure 1. 2-aryl substituted tetrahydropyrrolo[1,2-a] lowed by the intramolecular condensation at the ester
pyrimidone.
group at higher temperature resulted in the formation of
pyrimidone derivatives 3aa as illustrated in Scheme 3.
This approach is attractive since a variety of
aminoacrylates 2 could be easily synthesized via decar-
boxylative Blaise reaction from the arylnitriles,10 16 and
can be condensed with lactams 1 of various ring sizes in
the presence of phosphorous oxychloride. Using about
2.0 equivalents of phosphorus oxychloride instead of a
large excess, ensures that a wider range of lactams with
sensitive substitutions such as ester groups as in exam-
ple 1b also can be successfully derivatized. As such,
this methodology had the potential for synthesizing a
large number of examples since we do not need to iso-
late the cyclic chlorimines which are not very stable as
shown in Scheme 4.
Scheme 1. Synthesis of fused pyrimidones via β-keto ester.
2. Experimental
2.1 Materials and instrumentation
Melting points were recorded on Buchi melting point B-545
apparatus. 1H NMR and 13C NMR spectra were recorded on
a 300/400-MHz Bruker DRX-400 instrument and DMSO-d6,
Scheme 2. Retrosynthesis of fused pyrimidone.
Scheme 3. Possible reaction pathway for the synthesis of fused pyrimidones.
Scheme 4. General scheme for the preparation of 2-aryl-1,2-fused pyrimidones.

Transformation of 2-aryl-1,2-fused pyrimidones derivatives
CDCl3, CD3OD as solvents, wherever applicable, with δ 2.17–2.52 (m, 2 H, -CH2), 3.26 (t, J=7.9 Hz, 2 H,
tetramethylsilane (TMS) as an internal standard. Liquid -CH2), 4.10–4.33 (m, 2 H, -CH2), 6.66 (s, 1 H, -Ar-H),
Chromatography Mass Spectrometry (LC-MS) data were 7.82 (d, J=9.1 Hz, 1 H, -Ar-H), 8.18–8.38 (m, 1 H, -Ar-
recorded on Agilent Technologies 1200 series.
H), 8.48 (d, J=2.6 Hz, 1 H, -Ar-H); 13C NMR (75 MHz,
CD3OD): δ 168.05, 163.75, 161.88, 140.30, 139.74, 133.30,
127.29, 126.74, 113.99, 34.13, 20.27; (LCMS m/z (ESI);
292[M+H]+; Anal. Calcd for C13H10ClN3O3: C, 53.53; H,
3.46; N, 14.41%. Found: C, 53.63; H, 3.59; N, 14.49%.
Results for the remaining compounds are given in
Supplementary Information
2.2 Typical procedure exemplified by the synthesis of
2-(2-chloro-5-nitrophenyl)-7,8-dihydropyrrolo[1,2-a]
pyrimidin-4(6H)-one (Table 1, Entry 1, 3aa)
A mixture of (ethyl 3-amino-3-(2-chloro-5-nitrophenyl)
acrylate (200 mg, 0.739 mmol) (2a), 1,2-dichloroethane (5 mL),
pyrrolidin-2-one (1a) (62.9 mg, 0.739 mmol), POCl3 (0.2 mL,
1.5 mmol) was taken in a round bottom flask and stirred
at 90◦C for 12 h under nitrogen. After completion of the
reaction, as monitored by the LCMS, the reaction mixture
was cooled to room temperature. It was quenched with 10%
sodium bicarbonate solution and extracted with ethyl acetate
(3 × 25 mL). The combined organic layers were washed
with brine, dried over sodium sulphate, and concentrated on
a rotary evaporator. The crude product was purified by ISCO
chromatography on silica gel to give the pure product.
3. Results and Discussion
To optimize the reaction condition, we screened the
amounts (in equivalents) of substrates and reagents as
well as the reaction temperature. The best condition
observed was as follows: 2-pyrrolidone (1a) (1 equiv.)
and ethyl 3-amino-3-(2-chloro-5-nitrophenyl)acrylate
(2a) (1 equiv.) in the presence of 2 equiv. of phospho-
rous oxychloride in ethylene dichloride was heated at
90◦C for 12 h to afford the 2-(2-chloro-5-nitrophenyl)-
7,8-dihydropyrrolo[1,2-a]pyrimidin-4(6H)-one 3aa in
68% isolated yield (Table 1 Entry 1). With the above
result in hand, we examined the reaction scope. As
shown in Table 1, aryl amino acrylates, with both
2.3 Spectral data of selected compounds
2.3a 2-(2-chloro-5-nitrophenyl)-7,8-dihydropyrrolo[1,2-a]
pyrimidin-4(6H)-one (3aa): Light brown solid, 147 mg,
68% Yield; M.p.184◦C;1H NMR (300 MHz, CD3OD): the electron donating as well as electron withdrawing
Table 1. One pot synthesis of 2-Aryl-1,2-fused pyrimidones.
Entry
Lactam= (1a–e)
R (2a–e)
Product (3a–k)
Yield (%)a
M.p.(◦C) Found/Reported
1
1a
1a
1a
1a
1b
1c
1c
1c
1c
1c
1c
1c
1c
1c
1c
1d
1d
1d
1d
1d
1d
1d
1d
1d
1e
2a (2-Cl,5-NO2C6H3)
2b (C6H5)
3aa
3ab
3ac
3ad
3ba
3cb
3ce
3cf
68
35
57
38
40
53
40
53
41
58
88
56
45
40
42
45
47
48
46
56
71
51
36
40
32
184.0
2
162.5/161.017
3
2c (4-Cl,2-F-C6H3)
2d (7-azaindole)
2a (2-Cl,5-NO2-C6H3)
2b (C6H5)
168.8
4
181.0
5
143.0
6
128.2/(382 45;B.p./◦C)18
7
2e (4-F-C6H4)
153.1
8
2f (4-Br-C6H4)
141.1
9
2g (4-COCH3-C6H4)
2h (2-F-C6H4)
3cg
3ch
3ca
3cc
3ci
141.5
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
138.2
2a (2-Cl,5-NO2C6H3)
2c (4-Cl,2-F-C6H3)
2i (3,4-F-C6H3)
2j (4-py)
182.3
159.1
164.7
3cj
165.9/(407 55;B.p./◦C)19
2d (7-azaindole)
2b (C6H5)
2e (4-F-C6H4)
2g (4-COCH3-C6H4)
2h (2-F-C6H4)
2c (4-Cl,2-F-C6H3)
2a (2-Cl,5-NO2C6H3)
2i (3,4-F-C6H3)
2k (2-pyrimidin)
2d (7-azaindole)
2a (2-Cl-5-NO2C6H3)
3cd
3db
3de
3dg
3dh
3dc
3da
3di
178.0
134.2/(396 45;B.p./◦C)20
130.8/(392 52;B.p./◦C)20
128.5
120.9
153.2
192.8
118.5
143.7
153.5
175.3
3dk
3dd
3ea
=
(1a) pyrrolidin-2-one; (1b) ethyl 5-oxopyrrolidine-2-carboxylate; (1c) piperidin-2-one; (1d) azepan-2-one; (1e) 3,4-
dihydroisoquinolin-1(2H)-one.a Isolated yield.

Samikannu Ramesh et al.
valuable support and, Jianqing Li, Richard Rampulla and Bei
Wang of Bristol Myers Squibb for logistic help.
References
1. Roberto A, Roberto B, Giorgio B and Anna M C 2007
Cyclopenta[d]pyrimidines and dihydropyrrolo[2,3-
d]pyrimidines as potent and selective corticotropin-
releasing factor 1 receptor antagonists Chem. Med.
Chem. 2 528
Figure 2. 2-aryl substituted tetrahydropyrrolo[1,2-a]
pyrimidones.
substituents, gave satisfactory yields. However, the lac-
tam ring size played a crucial role. Improved yields
were observed with the increase in the size of the lac-
tam ring with the six membered lactams generally giv-
ing better yields than the five membered lactams for
the same aminoacrylate. However, the seven membered
lactam gave marginally lower yield than the six mem-
bered lactam but more than the five membered lactams,
as shown in the example of 3db. No product formation
was observed with the four membered lactam under the
same set of reaction conditions, presumably due to the
ring strain associated with the cyclisation step. To check
the generality of this method, we also tried a lactam
with the ester functionality. This gave the correspond-
ing pyrrolopyrimidine ester 3ba in a moderate yield of
40%. We extended this methodology to a bicyclic lac-
tam 1e which gave the corresponding tricyclic pyrimi-
done 3ea in 32% yield. Both these are the exceptions
and are represented in the Table 1 as entries 5 and 25 as
well as in Figure 2.
2. Chen C, Wilcoxen K M, Huang C Q, Xie Y-F, McCarthy
J R, Webb T R, Zhu Y-F, Saunders J, Liu X-J, Chen T-K,
Bozigian H and Grigoriadis D E 2004 Design of 2,5-
Dimethyl-3-(6-dimethyl-4-methylpyridin-3-yl)-7-dipro-
pylaminopyrazolo[1,5-a]pyrimidine (NBI 30775/R121919)
and Structure−Activity Relationships of a Series of
Potent and Orally Active Corticotropin-Releasing
Factor Receptor Antagonists J. Med. Chem. 47 4787
3. Michael C L, Yili, David L S, Maureen K S, Amy
N F, Wei L, Richard L W, Kofi A O, Christopher D E,
Mark W B, Steven V O, John A W and Thomas 2005
Synthesis and evaluation of tricyclic pyrrolopyrimidi-
nones as dipeptide mimetics: Inhibition of interleukin-
1β-converting enzyme P D Bio. Med. Chem. Lett. 15
4322
4. Bashir A D, Praveen P, Sunil K, Mohammad A W,
Akshay K S, Parduman R S, Sanjay P, Meena S
and Baldev S 2013 Fe–Al/clay as an efficient het-
erogeneous catalyst for solvent-free synthesis of 3, 4-
dihydropyrimidones J. Chem. Sci. 125 545
5. Steve C, Chris Y, Stuart F, Gareth B, John B, Osamu I,
Elise G, Anthony R, Takashi K, Akira I, Shingo N, Ryo
S and Sho K 2013 Pyridinone and pyrimidinone deriva-
tives as factor xia inhibitors Int. Appl. WO2013093484
A1
6. Benjamin S and Henry S 1956 A new synthesis of 2 : 3
4. Conclusions
: 5 : 6-substituted 4-pyrimidones J. Chem. Soc. 4708
7. Oripov E O, Zakhidov K A and Shakhidoyatov Kh M
1991 Synthesis of bicyclic analogues of deoxyvasici-
none Chem. Nat. Comp. 27 341
8. Abdillahi I and Kirsch G 2011 Synthesis of a Series
of Novel Thieno- and Benzothieno[3,2-d]pyrimidin-
4(3H)-ones Synthesis 1314
9. Rokach J, Hamel P, Hunter N R, Reader G and Rooney
C S 1979 Cyclic amidine inhibitors of indolamine N-
methyltransferase J. Med. Chem. 22 237
In summary, we have developed a convenient proce-
dure for the synthesis of alicyclic fused pyrimidone.
While the condition is not suitable for the synthe-
sis of cyclobutyl fused pyrimidone derivatives, this
method gives quick access to other variously substituted
pyrrolopyrimidones in moderate to high yields. Cur-
rently, this is a better alternative to the existing method-
ology of reacting the aminopyrrolidines with the beta
keto esters.
10. Blaise E E 1901 New reactions of the organo metal
derivatives C.R. Hebd. Seances Acad. Sci. 132 478
11. Lee J H, Choi B S, Chang J H, Lee J B, Yoon J Y, Lee J
and Shin H 2007 The Decarboxylative Blaise Reaction
J. Org. Chem. 72 1026
12. Toussaint O, Capdevielle P and Maumy M 1986
The Copper(I)-catalyzed decarboxylation of malonic
acids; A new mild and quantitative method Synthesis
1029
Supplementary Information (SI)
Characerization data and Figures S1–S25 for all the com-
pounds are provided in the Supplementary Information
which is available at www.ias.ac.in/chemsci.
13. Darensbourg D J, Holtcamp M W, Khandelwal B and
Reibenspies J H 1994 Intramolecular and intermolecular
hydrogen-bonding in triphenylphosphine derivatives of
Acknowledgements
Authors thank Department of Discovery Analytical Services
of Biocon Bristol-Myers Squibb Research Center for their
Copper(I) carboxylates, (Ph
3P)2CuO2C(CH2)nCOOH.

Transformation of 2-aryl-1,2-fused pyrimidones derivatives
Role of copper(I) in the decarboxylation of malonic-acid 18. Jozsef V, Pal K, Miklos J and Gyorgy S 1988 Effect
and its derivatives Inorg. Chem. 33 531
of changes in phase composition on retention values.
I. Reproducibility of RMO values in open and closed
chromatographic systems Acta Pharm. Hung. 58 8
14. Hassner A and Stumer C 2002 In Organic synthesis
based on name reactions 2nd Ed. (Oxford: Elsevier)
15. Mundy B P, Ellerd M G and Favaloro F G 2005 In Name 19. Aude F, Thierry G, Alistair L, Mourad S, Corinne V
reactions and reagents in organic synthesis (Canada:
Wiley Interscience)
16. Rao H S P, Rafi S and Padmavathy K 2008 The Blaise
Reaction Tetrahedron 64 8037
17. Andre E, Andre L B and Christian R 1966 Synthe-
sis of pyrrolopyrimidinones from 2-amino-1-pyrroline
1966 C. R. Sean. Acad. Sci., Serie. C: Sci. Chim.
262 365
and Assignee Y P 2008 Sanofi-Aventis, Fr.; Mitsubishi
Tanabe Pharma Corporation, substituted heteroaryl pyri-
dopyrimidone derivatives WO 2008078196
20. Grigoryan N P, Tarzyan L A, Markosyan A I,
Paronikyan R G and Sukasyan R S 2011 Synthesis
and psychotropic activity of 5-cyclohexyl-5-methyl-
2-sulfanyl-3,4,5,6-tetrahydrobenzo[h]quinazolin-4-one
Pharm. Chem. J. 45 79
