Organic dyes containing fused acenes as building blocks: Optical, electrochemical and photovoltaic properties

Article abstract of DOI:10.1016/j.cclet.2017.09.056

Two D-π-A dyes based on fused acenes (carbazole, cyclopenta[2,1-b:3,4-b’]dithiophene (CPDT) and dithieno[3,2-b:2’,3’-d]pyrrole (DTP)) were synthesized, characterized using UV-vis absorption spectroscopy and electrochemistry, density function theory (DFT) calculations, and used as sensitizers in dye-sensitized solar cells (DSSCs). The two sensitizers were compared thoroughly over physicochemical properties and DSSC performance. Although the DTP dye has slightly blue-shifted and weaker incident photon-to-collected electron (IPCE) conversion efficiency responses, the much increased open-circuit photovoltage values and improved charge-transfer kinetics relative to the CPDT systems result in superior power conversion efficiencies. This work reveals the potential of DTP as a bridge in the design of sensitizers.

Full text of DOI:10.1016/j.cclet.2017.09.056

Accepted Manuscript
Title: Organic dyes containing fused acenes as building
blocks: Optical, electrochemical and photovoltaic properties
Authors: Peng Gao, Hoi Nok Tsao, Joel Teuscher, Michael
¨
Gratzel
PII:
DOI:
Reference:
S1001-8417(17)30406-0
https://doi.org/10.1016/j.cclet.2017.09.056
CCLET 4262
To appear in:
Chinese Chemical Letters
Received date:
Revised date:
Accepted date:
1-8-2017
22-9-2017
26-9-2017
Please cite this article as: Peng Gao, Hoi Nok Tsao, Joel Teuscher,
¨
Michael Gratzel, Organic dyes containing fused acenes as building blocks:
Optical, electrochemical and photovoltaic properties, Chinese Chemical
Letters https://doi.org/10.1016/j.cclet.2017.09.056
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

Communication
Organic dyes containing fused acenes as building blocks: Optical, electrochemical
and photovoltaic properties
Peng Gaoa,b,, Hoi Nok Tsaob, Joel Teuscherb, Michael Grätzelb
a
Laboratory of Advanced Functional Materials, Xiamen Institute of Rare Earth Materials, Chinese Academy of Sciences, Xiamen 361024, China
Laboratory for Photonics and Interfaces, School of Basic Sciences, Swiss Federal Institute of Technology, Lausanne 1015, Switzerland
b
ARTICLE INFO
Article history:
Received
Received in revised form
Accepted
Available online
Graphical Abstract
ABSTRACT
Two D--A dyes based on fused acenes (carbazole, cyclopenta[2,1-b:3,4-b']dithiophene (CPDT) and dithieno[3,2-b:2',3'-d]pyrrole (DTP)) were
synthesized, characterized using UV-vis absorption spectroscopy and electrochemistry, density function theory (DFT) calculations, and used as
sensitizers in dye-sensitized solar cells (DSSCs). The two sensitizers were compared thoroughly over physicochemical properties and DSSC
performance. Although the DTP dye has slightly blue-shifted and weaker incident photon-to-collected electron (IPCE) conversion efficiency responses,
the much increased open-circuit photovoltage values and improved charge-transfer kinetics relative to the CPDT systems result in superior power
conversion efficiencies. This work reveals the potential of DTP as a bridge in the design of sensitizers.
Keywords:
Dye-sensitized solar cells
Fused acene
D--A
9-Phenyl carbazole
Dithienopyrrole
Dye-sensitized solar cell (DSSC), since it was firstly reported in 1991 by O’Reagan and Grätzel [1], initiated the possibility of
maximizing the harnessing of solar light in a cost-efficient way. The principle of the DSSC is based on a broadband inorganic
semiconductor scaffold, e.g., TiO2, which is sensitized with a strongly absorbing dye. High efficiencies up to 13% have been achieved
by employing a meso-substituted porphyrin dye in conjunction with a tris(2,2'-bipyridine)cobalt(II/III)redox couple [2]. Recently,
Hanaya et al. [3–5] developed a collaborative sensitization strategy combining ADEKA-1 and LEG4 dyes in DSSC with silyl-anchor
and carboxy-anchor respectively. They realized a high light-to-electric power conversion efficiency (PCE) of over 14.5% under one
sun illumination due to successful pinhole filling by dye layers with multiple coadsorbates to reduce interfacial charge recombination.
Among the five key components of DSSC: Transparent conductive oxide such as fluorine-doped SnO2 (FTO), mesoporous
semiconductor metal oxide (such as nanocrystalline TiO2), sensitizer (dye), electrolyte/hole transporter, and counter electrode
(platinum or carbon on FTO), the dye takes up a big fraction of the total cost. Despite the excellent light harvesting ability, the tedious
synthesis of porphyrin dyes labels itself as a luxurious choice for DSSC community. In the meantime, the easily accessible metal-free
organic dyes based on arylamines especially triphenylamine (TPA) (Fig. 1) as electron donating fragments have shown excellent
electronic properties [6–14].
———
 Corresponding author.
E-mail address: peng.gao@fjirsm.ac.cn (P. Gao).

On the other hand, organic dyes based on fused TPA, such as 9-phenyl carbazole donors, have also been subjects of investigations
over the last decade [15–18]. This could be explained by its interesting features such as low cost of the starting material (9H-
carbazole), good chemical and environmental stability provided by the fully aromatic unit, easy substitution of the nitrogen atom or the
aromatic rings with a wide range of functional groups permitting a better solubility and a fine tuning of the electronic and optical
properties. At the same time, a more directional charge separation can be found in the molecular orbital (MO) of 9-phenyl carbazole
than TPA based on density function theory (DFT) simulation (Fig. 1). The effect of ring fusion can also be observed in the choosing of
-bridge units.

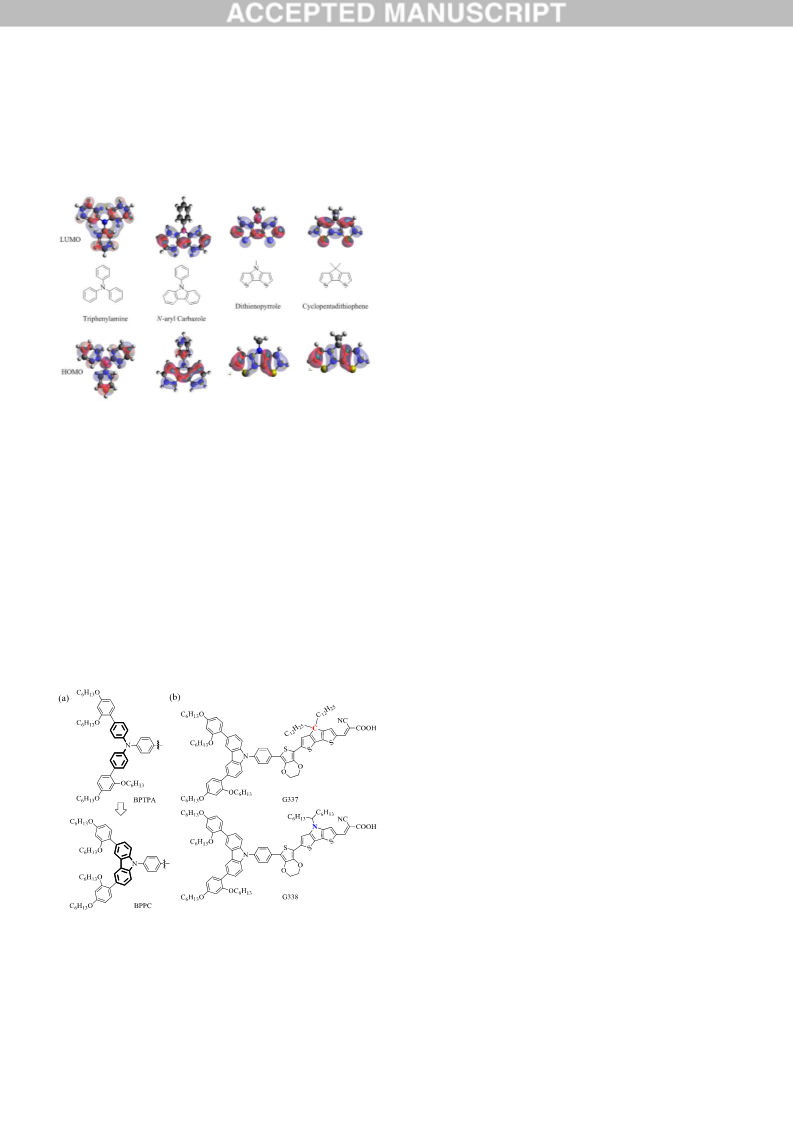

Fig. 1. Comparison of triphenylamine and various fused-acenes (structures and DFT calculated highest occupied molecular orbitals (HOMO) and lowest
unoccupied molecular orbitals (LUMO)).
The most successful example can be found in the work by Wang et al. [19] that by employing 4,4-dihexyl-4H-cyclopenta[2,1-b:3,4-
b']dithiophene (CPDT) instead of the prevailing 2,2'-dithiophene (DT) as the building block they got extremely high-molar-absorption-
coefficient organic sensitizer C218. Dithieno[3,2-b:2',3'-d]pyrrole (DTP) has also been evaluated as a promising -bridge in sensitizers
[20]. The calculated MO shows that a bigger node is shown on the N atom of DTP in LUMO orbital of than that of CPDT although
they have very similar HOMO orbitals (Fig. 1). In this work, we designed two new dyes combining substituted carbazole (3,6-bis(2,4-
bis(hexyloxy)phenyl)-9-phenyl-9H-carbazole, BPPC) as donor moiety mimicking the famous (N-(2',4'-bis(hexyloxy)-[1,1'-biphenyl]-4-
yl)-N-(4-bromophenyl)-2',4'-bis(hexyloxy)-[1,1'-biphenyl]-4-amine) (BPTPA) [7] to reduce charge recombination in the device by
preventing the oxidized redox mediator to access the TiO2 surface (Fig. 2a) and two kinds of fused acenes (CPDT and DTP) as the -
bridges to evaluate their compatibility with cobalt-based electrolyte. Additionally, 3,4-ethoxylene dioxythiophene (EDOT) is
introduced into sensitizers to broaden the spectral response [21] (Fig. 2b). The DSSCs using these dyes and ([CoII/III(bpy)3]2+/3+ redox
mediator (tris(2,2'-bipyridine)cobalt(II) and tris(2,2'-bipyridine)cobalt(III) complexes) were characterized by transient absorption
spectroscopy, and transient photovoltage decay, revealing the potential of DTP as a bridge in the design of sensitizers and efficiency up
to 7.45%.
Fig. 2. Structures of (a) evolution from BPTPA to BPPC, (b) G337 and G338.
The synthetic pathways that lead to the formation of the targeted dyes are shown in Scheme 1. Detailed synthetic routes to the
intermediate compounds 7 are described in Supporting information. Carbazole-substituted donor moiety 4 was synthesized according
to a four-step synthesis as illustrated in Scheme 1 in an overall yield of 50%. The differences between 4 and previously reported
BPTPA donor is the donor moiety in which the diphenylamine is fused to form a carbazole structure. Palladium-catalyzed Suzuki
coupling of 4 with bridging units 5 and 6 respectively gave aldehydes 7 and 8 in 65% and 60% isolated yield. A Knoevenagel

condensation of the aldehydes with cyanoacetic acid, in the presence of piperidine, afforded the title sensitizers G337 and G338 in 45%
and 47% yield, respectively. These target sensitizer dyes were well characterized by 1H NMR, 13C NMR, and HRMS.

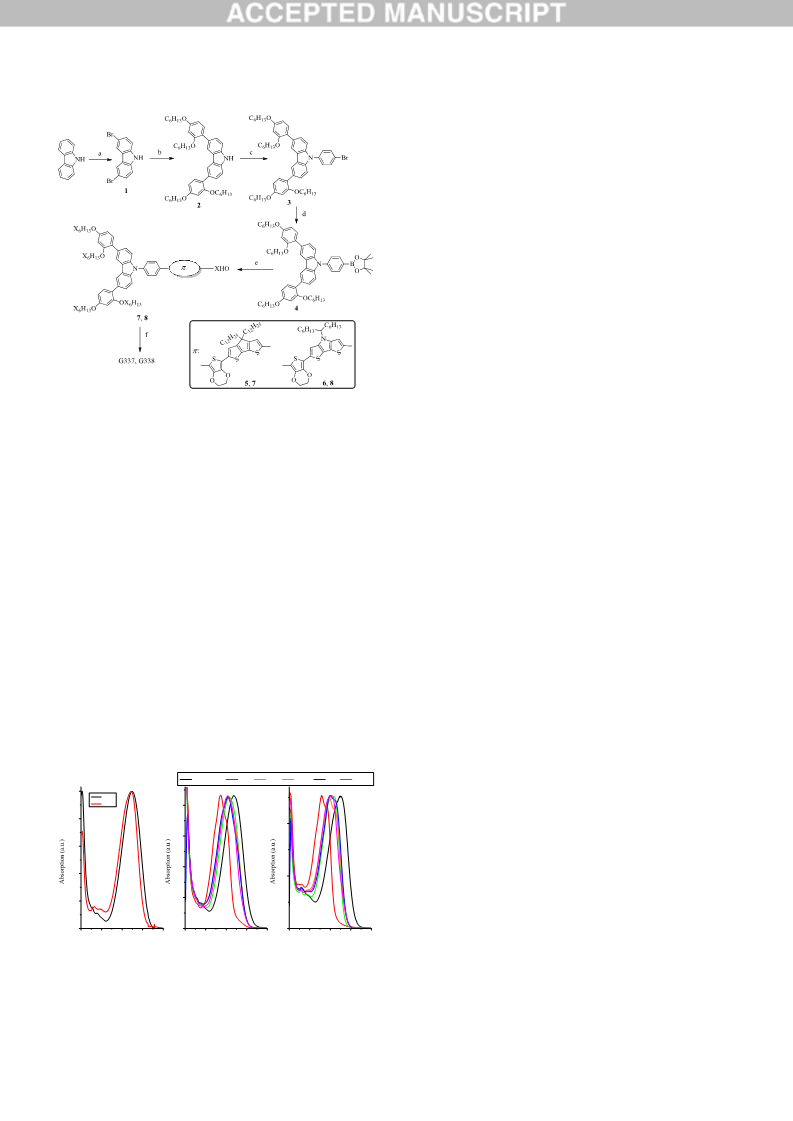

Scheme 1. Synthesis of dyes G337 and G338. Reagents and conditions: (a) NBS, DMF, r.t.; (b) Bis(hexyloxy)phenyl)-tetramethyl-dioxaborolane, K2CO3, Pd(0);
o
(c) K3PO4, CuI, 110 C; (d) n-BuLi, 2-isobutyl-4,4,5,5-tetramethyl-1,3,2-dioxaborolane, THF; (e) Pd(0), toluene, 2 mol/L K2CO3, reflux; (f) Cyano-acetic acid,
piperidine, CHCl3, reflux.
The optical properties of G337 and G338 are strongly solvent- and pH-dependent (Fig. 3 and Table 1) due to changes in the
protonation state of the cyano-acrylic acceptor. The absorption spectra in dichloromethane solution exhibit maxima at 548 nm and 544
nm, respectively (Fig. 3a and Table 1, and Table S1 in Supporting information). With 3,6-carbazole as donor group, dyes G337 and
G338 exhibit higher molar extinction coefficients than the dyes with the same bridge but TPA as donor groups, owing to their electron-
rich and rigid 2,7-disubstituted carbazole framework [6], which enhances the transition probability for both the -* and charge-
transfer transitions. In particular, the absorption maxima of G338 is blue-shifted by 4 nm compared to that of G337. The unexpected
hypsochromic shift observed for the DTP relative to the CPDT dyes indicates that the nitrogen bridge weakens charge transfer effect,
which confirms the intramolecular charge transfer (ICT) character of the main transition.
Both dyes showed one significant charge-transfer transition around 550 nm. To further confirm the charge-transfer nature of the low-
energy absorption band, absorption spectra of the dyes were measured in solvents of different polarity. The absorption curves were
illustrated in Fig. 3b and c and the corresponding data are compiled in Table S1. Both dyes showed negative solvatochromism for the
longer-wavelength absorption band. The most red-shifted absorption was observed in dichloromethane and the absorption peak shifted
to shorter wavelength on increasing the polarity. This result suggests an effective solvation of the dyes with increasing solvent polarity.
The blue-shift in polar solvents may be induced by the acid-base equilibrium that is exhibited by the dyes. We speculate that the
carboxylic-acid unit is partially deprotonated in polar solvents that are capable of abstracting the acidic hydrogen atom, either by
hydrogen bonding or owing to the basic nature of the solvent. This abstraction may, in turn, impede the donor-acceptor interactions in
the dye and produce a hypsochromic shift of the charge-transfer transition [22–24]. The absorption spectra of the dyes in N,N-
dimethylformamide (DMF) displayed a prominent blue-shift for the charge-transfer transition compared to those in other solvents,
which was consistent with the basicity of DMF.
CH2Cl2+TFA,
DMF,
Ether,
EtOAc,
THF,
Toluene
(a) 1.0
G337
G338
(b)
2.0
(c)
0.8
1.0
1.5
1.0
0.5
0.0
0.6
0.4
0.2
0.0
0.5
0.0
300
400
500
600
700
300
400
500
600
700
300
400
500
600
700
Wavelength (nm)
Wavelength (nm)
Wavelength (nm)
Fig. 3. (a) Steady-state absorption in dichloromethane solution. Solvatochromic effect in the absorption of (b) G337 and (c) G338 in various solvents.
The energy levels of the dyes with respect to the electrochemical potential of the electrolyte and conduction band of TiO2 (0.5 V vs.
NHE) [25] also play an important role in the resulting DSSC performance. The ground state oxidation potential (Eox) of G337 and

G338 are measured at 0.83 V and 0.91 V vs. NHE [26]. These values could provide ample driving force for regeneration from a
[CoII/III(bpy)3]2+/3+ electrolyte (0.56 V vs. NHE). Using the Eox of the dyes and the estimated E0-0 value, the excited-state oxidation
potentials (ES+/S*) for the carbazole donor dyes were estimated at 1.15 and 1.14 V, respectively. The driving force for injection of the
photoexcited electron into the TiO2 conduction band is similar to their TPA analogs, thus ensuring quantitative injection quantum
yields into TiO2 [6].
Table 1
Photophysical and electrochemical properties of the dyes.
Absorption
max (nm)  (L mol-1 cm-1)
Electrochemical datab
Dye
G337
G338
Eox (V) vs. NHE E0-0 (V)a Eox-E0-0 (V) vs. NHE HOMO/LUMO (eV)

548
544
68352
65466
0.83
0.91
1.98
2.05
−1.15
−1.14
−5.33/−3.35
−5.41/−3.36
a Estimated from onset wavelength in absorption spectra. b NHE vs. the vacuum level is set to 4.5 V.
In order to gain further insight into the photophysical properties, theoretical calculations of molecular energy levels and orbital
distributions was carried out based on DFT and the results are illustrated in Fig. S1 (Supporting information). In the ground state, the
electron density of the HOMO in the dyes is mainly populated over the carbazole donor and EDOT unit with few contributions from
the latter bridging blocks, whereas the LUMO orbital is delocalized through the EDOT, CPDT (DTP) fragments, and finally on
cyanoacrylic acid groups. . This spatially directed separation of the frontier orbitals strongly promotes intramolecular charge
separation, hence favoring efficient electron injection from the excited state of the dye into the semiconducting oxide, and limiting
charge recombination processes. In addition, the hole localization on the carbazole fragment facilitates the electron donor to approach,
promoting the fast dye regeneration.
We performed transient absorption (TA) measurements and estimated the time constants of charge recombination and dye
regeneration (Fig. 4 and Fig. S2 in Supporting information). Following excitation at 470 nm, the oxidized forms of the dyes have
absorption spectra that sharply contrast with their neutral counterparts. The signals that appear at ca. 600−1000 nm are characteristic of
TA of 9-phenylcarbazole radicals. Time constants are derived from TA decays of the corresponding radical. The signals were fitted
with a single exponential component decay, A(t) ∝ A0exp[−(t/)], where A0 is the pre-exponential factor and  is the characteristic
time [27]. The fits are represented as solid lines in Fig. 4a and b, with data reported in Table 2. In the absence of electrolyte (dummy
cells in acetonitrile), the time constants rec of G338 is higher than that of G337, indicating a slower recombination rate between
electrons injected into the TiO2 and the oxidized form of the G338. The lower rec value measured for G337 suggests that charges could
recombine slightly faster when the CPDT bridge is used. In the presence of active cobalt(II/III) electrolyte, the TA decays were
accelerated, with reg values of 95 s and 30 s for G337 and G338, respectively. The DTP bridge appears more favorable for the
regeneration of the oxidized dye than CPDT case according to its short reg. Also in the case of G338, the reg/rec ratio is much larger,
suggesting extremely favorable charge-transfer kinetics compared to the other system, which results in nearly quantitative regeneration
quantum yields.

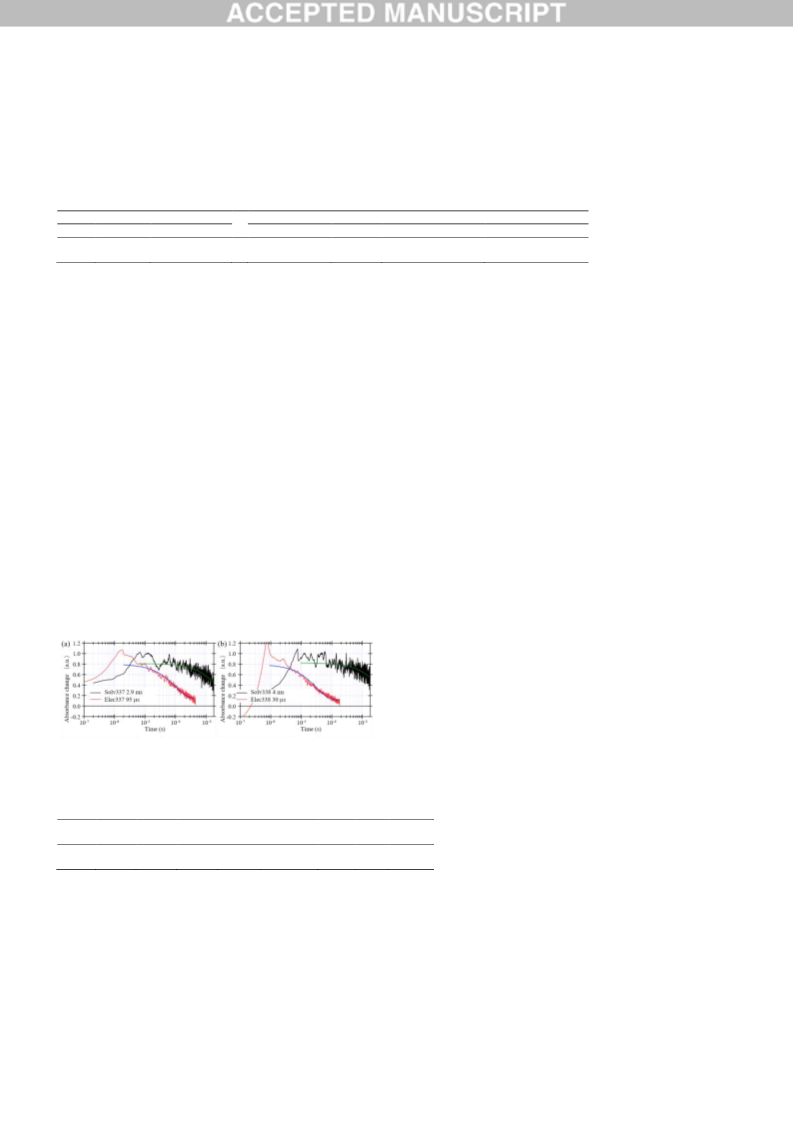

Fig. 4. TA decay traces of 8.0 m thick TiO2 films sensitized with G337 (a) and G338 (b). Decays in inert (black) and [CoII/III(bpy)3]2+/3+ (red) electrolytes.
Excited with a laser pulse of 50 J/cm2 (exc = 530 nm), probe at 750 nm.
Table 2
Detailed photovoltaic parametersa.
JSC
VOC

Dye
FF
rec/s
reg/s
reg/rec
 (%)
(mA/cm2) (mV)
G337
G338
2900
4000
95
30
31
133
11.05
12.36
779
850
0.74 6.67
0.69 7.45
a Simulated AM 1.5 G conditions.
The incident photon-to-current efficiency (IPCE) spectra were measured on films coated with G337 and G338 with an optimized
[CoII/III(bpy)3]2+/3+ electrolyte composition. The IPCEs exhibit a similar shape for the two dyes with intensity maxima around 60%−80%
(Fig. 5a). A blue-shift of 30 nm in the onset is observed for the given DTP dye (G338) compared to its CPDT analog (G337), which is
in agreement with their estimated E0−0 values.
The PCEs of these DSSCs were evaluated by recording the J-V characteristics under simulated AM 1.5 G illumination (Fig. 5b). The
detailed output parameters of short-circuit current density (JSC), open-circuit voltage (VOC), fill factor (FF), and PCEs () are
summarized in Table 2. Unexpectedly, both the photocurrent densities (JSC) and open circuit voltage (VOC) measured for the G338 are

higher despite the low IPCE. The higher VOC from the device based on G338 arises from the low recombination rate according to the
TA measurement. The low JSC of G337 contrasting to the high IPCE response can be explained by its larger regeneration time scale
than G338 [28]. In the meantime, the two bulky dodecyl chains in G337 decreased the loading of the dye molecules on the surface,
which additionally contributes to the low JSC of G337.

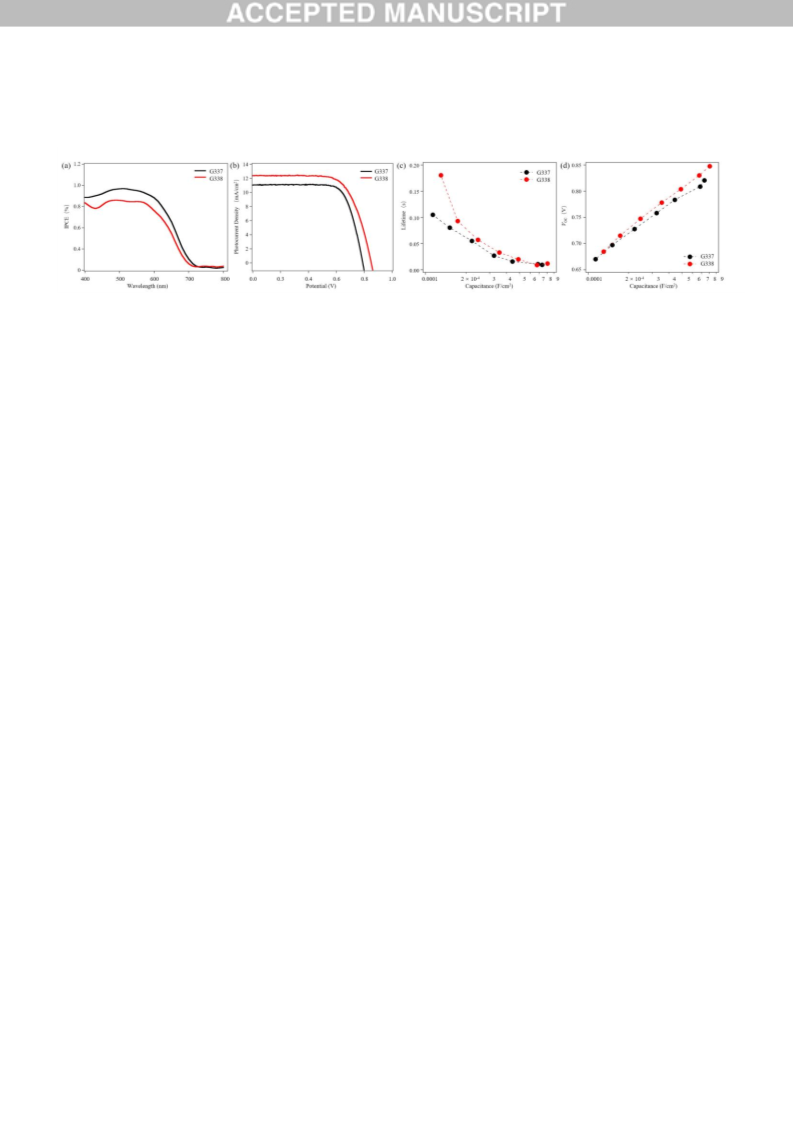

Fig. 5. (a) IPCE spectra of the sensitizers and (b) Photovoltaic performance obtained at 100 mW/cm2 AM 1.5G illumination. (c) Electron lifetimes and (d)
changes in VOC as measured by transient photovoltage and photocurrent decay respectively.
To further provide a rationale for the origin of the different VOC, the dependence of TiO2 electron lifetimes on capacitance as
recorded from photocurrent decay measurements for the investigated dyes was measured (Fig. 5c). The use of DTP instead of CPDT
gave a device with longer electron lifetimes, indicating that the recombination reaction between the electrons on the TiO2 surface and
the trivalent cobalt complex in the presence of dyes with CPDT as the bridge was considerably faster than that with DTP. The dye with
DTP bridge also exhibited relatively lower dark current density (Fig. S3 in Supporting information). As can be seen from Fig. 5d,
similar to our previous result [29], the introduction of CPDT bridge lowers the conduction band of TiO2 (EF) more significantly, which
will further depress the VOC of G337 based devices.
To conclude, we developed two new sensitizers with three kinds of fused acenes as both donor and -bridge groups. The
molecularly designed donor group provide compatibility with cobalt-based redox shuttles. Both the transient absorption spectroscopy
and transient photovoltage decay revealed the potential of DTP dyes in providing a large VOC (~ 850 mV). This feature can overcome
the nettlesome phenomenon that large VOC values are usually obtained with high oxidation redox mediators, which is detrimental to dye
regeneration and current densities. A promising PCE of 7.45% is obtained with G338 and further work is currently underway to
improve the spectral response of such DTP dyes.
References
[1] B. O’Regan, M. Grätzel, Nature 353 (1991) 737–740.
[2] S. Mathew, A. Yella, P. Gao, et al., Nat. Chem. 6 (2014) 242–247.
[3] K. Kakiage, Y. Aoyama, T. Yano, et al., Chem. Commun. 50 (2014) 6379-6381.
[4] K. Kakiage, Y. Aoyama, T. Yano, et al., Chem. Commun. 51 (2015) 6315–6317.
[5] K. Kakiage, Y. Aoyama, T. Yano, et al., Chem. Commun. 51 (2015) 15894–15897.
[6] A. Kaeser, B. Delavaux-Nicot, C. Duhayon, Y. Coppel, J.F. Nierengarten, Inorg. Chem. 52 (2013) 14343–14354.
[7] P. Gao, Y.J. Kim, J.H. Yum, et al., J. Mater. Chem. A 1 (2013) 5535-5544.
[8] P. Gao, H.N. Tsao, M. Grätzel, M.K. Nazeeruddin, Org. Lett. 14 (2012) 4330–4333.
[9] A. Yella, R. Humphry-Baker, B.F.E. Curchod, et al., Chem. Mater. 25 (2013) 2733–2739.
[10]N. Cai, Y. Wang, M. Xu, et al., Adv. Funct. Mater. 23 (2013) 1846–1854.
[11]M. Zhang, J. Zhang, Y. Fan, et al., Energy Environ. Sci. 6 (2013) 2939-2943.
[12]Y. Xie, L. Han, C.S. Ge, Y.H. Cui, J.R. Gao, Chin. Chem. Lett. 28 (2017) 285–292.
[13]Y. Wu, X. Li, Chin. Chem. Lett. 27 (2016) 927–932.
[14]J.S. Luo, Z.Q. Wan, C.Y. Jia, Chin. Chem. Lett. 27 (2016) 1304–1318.
[15]N. Koumura, Z.S. Wang, S. Mori, et al., J. Am. Chem. Soc. 128 (2006) 14256–14257.
[16]N. Koumura, Z.S. Wang, M. Miyashita, et al., J. Mater. Chem. 19 (2009) 4829-4836.
[17]K. Hara, Z.S. Wang, Y. Cui, A. Furube, N. Koumura, Energy Environ. Sci. 2 (2009) 1109.
[18]M. Liang, J. Chen, Chem. Soc. Rev. 42 (2013) 3453–88.
[19]R. Li, J. Liu, N. Cai, M. Zhang, P. Wang, J. Phys. Chem. B 114 (2010) 4461–4464.
[20]L.E. Polander, A. Yella, J. Teuscher, et al., Chem. Mater. 25 (2013) 2642–2648.
[21]M.W. Lee, J.Y. Kim, D.H. Lee, M.J. Ko, ACS Appl. Mater. Interfaces 6 (2014) 4102–4108.
[22]Q. Feng, X. Lu, G. Zhou, Z.S. Wang, Phys. Chem. Chem. Phys. 14 (2012) 7993-7999.
[23]E. Miyazaki, T. Okanishi, Y. Suzuki, et al., Bull. Chem. Soc. Jpn. 84 (2011) 459–465.
[24]A. Baheti, P. Tyagi, K.R.J. Thomas, Y.C. Hsu, J.T. Lin, J. Phys. Chem. C 113 (2009) 8541–8547.
[25]A. Hagfeldt, G. Boschloo, L. Sun, L. Kloo, H. Pettersson, Chem. Rev. 110 (2010) 6595–6663.
[26]N.G. Connelly, W.E. Geiger, Chem. Rev. 96 (1996) 877–910.
[27]A.Y. Anderson, P.R.F. Barnes, J.R. Durrant, B.C. O’Regan, J. Phys. Chem. C 115 (2011) 2439–2447.
[28]S. Aghazada, P. Gao, A. Yella, et al., Inorg. Chem. 55 (2016) 6653–6659.

[29]P. Gao, H.N. Tsao, C. Yi, M. Grätzel, M.K. Nazeeruddin, Adv. Energy Mater. 4 (2014) 1301485.
