Thermal and emission properties of a series of lanthanides complexes with n-biphenyl-alkylated-4-pyridone ligands: Crystal structure of a terbium complex with n-benzyl-4-pyridone

Article abstract of DOI:10.3390/molecules26072017

This work focuses on the investigation of the liquid crystalline behavior and luminescence properties of the lanthanide complexes of Eu(III), Sm(III) and Tb(III) with N-biphenyl-alkylated-4-pyridone ligands. The organic ligands having a biphenyl group att

Full text of DOI:10.3390/molecules26072017

molecules
Article
Thermal and Emission Properties of a Series of Lanthanides
Complexes with N-Biphenyl-Alkylated-4-Pyridone Ligands:
Crystal Structure of a Terbium Complex with
N-Benzyl-4-Pyridone
1
Florentina L. Chiriac 1,2 , Monica Ilis¸ , Augustin Madalan 1, Doina Manaila-Maximean 3 , Mihail Secu 4
and Viorel Cîrcu 1,
*
1
Department of Inorganic Chemistry, University of Bucharest, 23 Dumbrava Rosie st., Sector 2,
020484 Bucharest, Romania; laura.badea88@yahoo.com (F.L.C.); monica.ilis@chimie.unibuc.ro (M.I.);
augustin.madalan@chimie.unibuc.ro (A.M.)
National Research and Development Institute for Industrial Ecology-ECOIND,
71-73 Drumul Podul Dambovitei Str., 060652 Bucharest, Romania
Department of Physics, University Politehnica of Bucharest, 313 Spl. Independentei,
060042 Bucharest, Romania; doina.manaila@physics.pub.ro
National Institute of Materials Physics, P.O. Box MG-7, 077125 Magurele, Romania; msecu@infim.ro
Correspondence: viorel.circu@chimie.unibuc.ro
2
3
4
*
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: This work focuses on the investigation of the liquid crystalline behavior and luminescence
properties of the lanthanide complexes of Eu(III), Sm(III) and Tb(III) with N-biphenyl-alkylated-4-
pyridone ligands. The organic ligands having a biphenyl group attached via a long flexible spacer
with either 9 or 10 carbon atoms were synthesized by the reaction between 4-hydroxypyridine and
the corresponding bromide compounds. The chemical structures of the organic and lanthanide
complexes were assigned based on elemental analysis, single-crystal X-ray diffraction, 1H, 13C NMR
and IR spectroscopies, and thermogravimetric analysis (TGA). The X-ray diffraction analysis of a
parent compound shows that the lanthanide ions are surrounded by three monodentate pyridone
ligands and three bidentate nitrate ions, giving a 9-coordinate environment. The mesogenic behavior
and the type of liquid crystalline phases exhibited by the new complexes were analyzed by differential
scanning calorimetry (DSC) and polarizing optical microscopy (POM), and powder X-ray diffraction
(XRD) studies. Only the lanthanide complexes with ◦longer spacer (10) display a monotropic SmA
phase, typically on a short thermal range (less than 10 C). The complexes with shorter flexible chains
(9) show no liquid crystalline properties with melting temperatures lower than their analogs with
longer spacers. The emission spectra recorded in solid state at room temperatures show typical
emission bands for each lanthanide ion employed (Eu(III), Tb(III) and Sm(III)).
Citation: Chiriac, F.L.; Ilis¸, M.;
Madalan, A.; Manaila-Maximean, D.;
Secu, M.; Cîrcu, V. Thermal and
Emission Properties of a Series of
Lanthanides Complexes with
N-Biphenyl-Akylated-4-Pyridone
Ligands: Crystal Structure of a
Terbium Complex with
N-Benzyl-4-Pyridone. Molecules 2021,
26, 2017. https://doi.org/10.3390/
molecules26072017
Academic Editors: Lidia Armelao and
Jorge H. Monteiro
Received: 26 February 2021
Accepted: 29 March 2021
Published: 1 April 2021
Keywords: lanthanides; liquid crystals; 4-pyridone; lanthanidomesogen; emission
Publisher’s Note: MDPI stays neutral
with regard to jurisdictional claims in
published maps and institutional affil-
iations.
1. Introduction
Liquid crystals based on lanthanide complexes (lanthanidomesogens) are well-investigated
anisotropic materials that develop interesting photophysical properties [1–8]. Along the
time, the unique photophysical properties of the lanthanide ions provided a strong fun-
dament for the design and study of their complexes with liquid crystal properties and
these compounds are mainly built around several categories of organic ligands, among the
Copyright:
© 2021 by the authors.
Licensee MDPI, Basel, Switzerland.
This article is an open access article
distributed under the terms and
conditions of the Creative Commons
Attribution (CC BY) license (https://
creativecommons.org/licenses/by/
4.0/).
most used were the Schiff bases,
β-diketonates, alkanoates, different macrocyclic ligands
(phthalocyanine, porphyrin, etc.), or bis-(benzimidazolyl)pyridines [6,7
]. The design of
such complexes must take into account the use of suitable organic ligands that act on
two different complementary perspectives: first, providing thermodynamic stability to
the products and second, the capacity to exploit the antenna effect, where the organic
Molecules 2021, 26, 2017. https://doi.org/10.3390/molecules26072017
https://www.mdpi.com/journal/molecules

Molecules 2021, 26, 2017
2 of 16
chromophore acts as a light-harvesting antenna able to transfer the absorbed energy to the
emitting levels of the lanthanide ions.
Based on these considerations, the lanthanide complexes with monodentate 4-pyridone
ligands represent a recently developed class of lanthanidomesogens with several strong and
appealing features, such as high thermal stability and their easily adjustable mesomorphic
behavior [9–12]. These new materials’ mesogenic properties can be tuned by specifically
choosing the mesogenic groups attached to the 4-pyridone ring. For example, the incor-
poration of the 3,4,5-tris(alkoxy)benzyl unit give columnar or lamellar phases depending
on the length of the terminal alkoxy groups, while the cynobiphenyl group attached via
long flexible aliphatic spacers gave lamellar phases [10]. In fact, liquid crystals based on
the 4-pyridone platform have been well investigated for a long time [13
polar 4-pyridone platform delivers several versatile functionalities: intermolecular interac-
tions through hydrogen bonding [19 20], strong coordination properties to various metal
ions [21 23], and last, but not least, useful intermediates to liquid crystalline methylene-
–18]. Moreover, the
,
–
1,4-dihydropyridines [14] or to ionic liquid crystals based on pyridinium salts [24–27].
The present study is dedicated to the systematic investigation of a new series of lanthanide
complexes based on 4-pyridone ligands that contain one biphenyl unit attached via a flexible
spacer with different lengths (9 and 10 carbon atoms). The biphenyl unit is a widely used
building block for the design and preparation of calamitic liquid crystals [28–31], in particular
for main chain or side-chain liquid crystalline polymers [32] and their composites (polymer
dispersed liquid crystals—PDLC) [33], and, in few cases, in the construction of metallome-
sogens (metal complexes with liquid crystals properties) [34]. This work reports on the
synthesis and characterization of new N-alkylated-4-pyridone ligands and their lanthanide
complexes with europium(III), samarium(III), and terbium(III) ions. The X-ray diffraction
analysis of the terbium(III) compound with the related N-benzyl-4-pyridone ligand re-
vealed a nine-coordinate environment of the lanthanide ions. Moreover, these complexes
have mesomorphic properties and exhibit a monotropic lamellar (SmA) mesophase, de-
pending on the length of the aliphatic spacer, over a short temperature range, as supported
by differential scanning calorimetry (DSC) analysis and polarizing optical microscopy
(POM) observations.
2. Results and Discussion
Recently, we have described a new class of lanthanidomesogens based on lanthanide
nitrate complexes with 4-pyridone monodentate ligands, which are coordinated to the
lanthanide ions via the carbonyl oxygen atom. The present study is a continuation of
our investigation of this topic, lanthanidomesogens derived from 4-pyridone compounds.
In this work, we report the preparation and characterization of a series of 4-pyridone
ligands carrying one biphenyl group linked to the pyridone ring via a flexible spacer with
9 and 10 methylene groups and the corresponding lanthanide complexes (europium(III),
samarium(III), terbium(III)). The chemical structures of the organic ligands and their
complexes together with the corresponding notation are presented in Scheme 1.
2.1. Synthesis and Characterization of the Organic Ligands and the Lanthanide Complexes
The synthetic procedure for the 4-pyridone ligands 2a
the 4-hydroxypyridine and the corresponding bromide derivative, 4-(
biphenyl derivatives for 2a and benzyl bromide for 2c, in the presence of NaOH and
–c
involved the reaction between
ω-bromoalkyloxy)-
,b
tetrabutylammonium bromide (TBABr) as phase transfer catalyst (Scheme 1) [9,24,35].
Numerous previous reports indicated that the 4-hydroxypyridine precursors could
be either N- or O-alkylated with various halide compounds giving either N-alkylated
4-pyridones or O-substituted pyridines, respectively [24,36–39].

Molecules 2021, 26, 2017
3 of 16

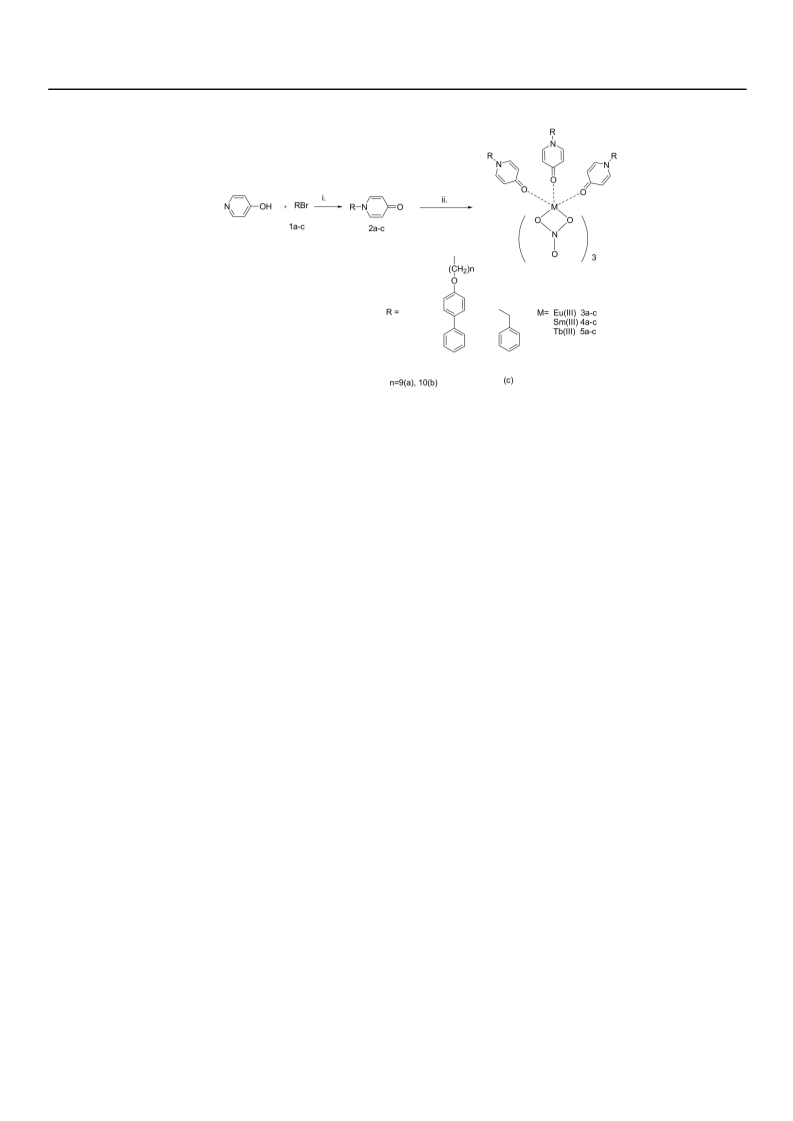

Scheme 1. Synthetic protocol for the preparation of 4-pyridone ligands and the corresponding lanthanide
.
complexes: (i) THF/H2O, NaOH 2 N, TBABr, reflux 24 h, 75 ◦C; (ii) M(NO3)3
stirring 2 h at room temperature.
×
H2O (×
= 5.6), EtOH,
The 4-(ω-bromoalkyloxy)-biphenyl precursors 1a,b were prepared by the O-alkylation
of 4-hydroxybiphenyl with a large excess of 1,9-dibromononane or 1,10-dibromodecane
in butanone and K2CO3. The monosubstituted reaction product was isolated from the
reaction mixture by repeated recrystallization from a combination of dichloromethane and
ethyl ether. Finally, the organic ligands’ chemical structure and the bromide intermediates
were attributed based on the results provided by the elemental analyses, 1H-, 13C-NMR
and IR spectroscopies. The position of the signals assigned to the aromatic protons of the
biphenyl unit is almost unchanged in the 1H-NMR spectra of the 4-pyridone derivatives
2a and 2b compare to the positions found in the 1H-NMR spectra of the starting bromide
derivatives 1a and 1b. As a result of the formation of the new 4-pyridone products, the
triplet signal of the BrCH2 group protons with the chemical shift
δ = 3.42 ppm for 1a
and 1b is replaced with the triplet signal at
δ = 3.75 ppm for 2a and 2b assigned to the
NCH2 protons. Several useful features could be observed in the 13C-NMR spectra of the
4-pyridone compounds. The aromatic region of the 13C-NMR spectra shows characteristic
signals assigned to the carbons of the pyridone ring:
directly bound to the oxygen atom; = 139.6 ppm for the carbon atoms in the
relative to the nitrogen atom and = 118.6 ppm to the carbon atoms in the
δ = 178.8 ppm for the carbon atoms
δ
α
position
δ
β position.
Moreover, the formation of the N-alkylated product was confirmed by the presence of a
new signal at 58.9 ppm assigned to the carbon atom of the NCH2 group.
Several regions of interest were followed in the IR spectra of the 4-pyridone ligands
in order to confirm their coordination to the lanthanide ions: t−h1e stretching vibrations
assigned to the pyridone ring were observed in the 1670–1600 cm region as very intense
absorption bands; the
1568 cm for 2b [40]. In the IR spectra of the lanthanide complexes, the
ν
(C=O) absorption bands were found at 1566 cm−1 for 2a and at
−1
ν
(C=O) frequency
is significantly shifted towards lower wavenumbers, with almost 35 cm−1, due to the
weakening of the C=O bond resulting from the coordination of the pyridone ring to the
lanthanide ion through the oxygen atom. In addition, the IR spectra of all lanthanide
complexes show new characteristic absorption bands in the 1310–1320 cm−1 interval,
assigned to the bidentate coordination of the nitrate ions providing additional strong
support in favor of the proposed structure [41,42].
2.2. Crystal Structure of 5c
To get further insights into these lanthanide complexes’ molecular structure, a ter-
bium(III) complex with a simple N-benzyl-4-pyridone ligand was successfully isolated as
single crystals that were subjected to X-ray diffraction analysis. A summary of the crystal-

Molecules 2021, 26, 2017
4 of 16
lographic data and the structure refinement for the compound 5c·2CH3CN are given in
Table 1. This product was synthesized by following the same protocol as for the other
lanthanide complexes, and the colorless block crystals suitable for X-ray diffraction were

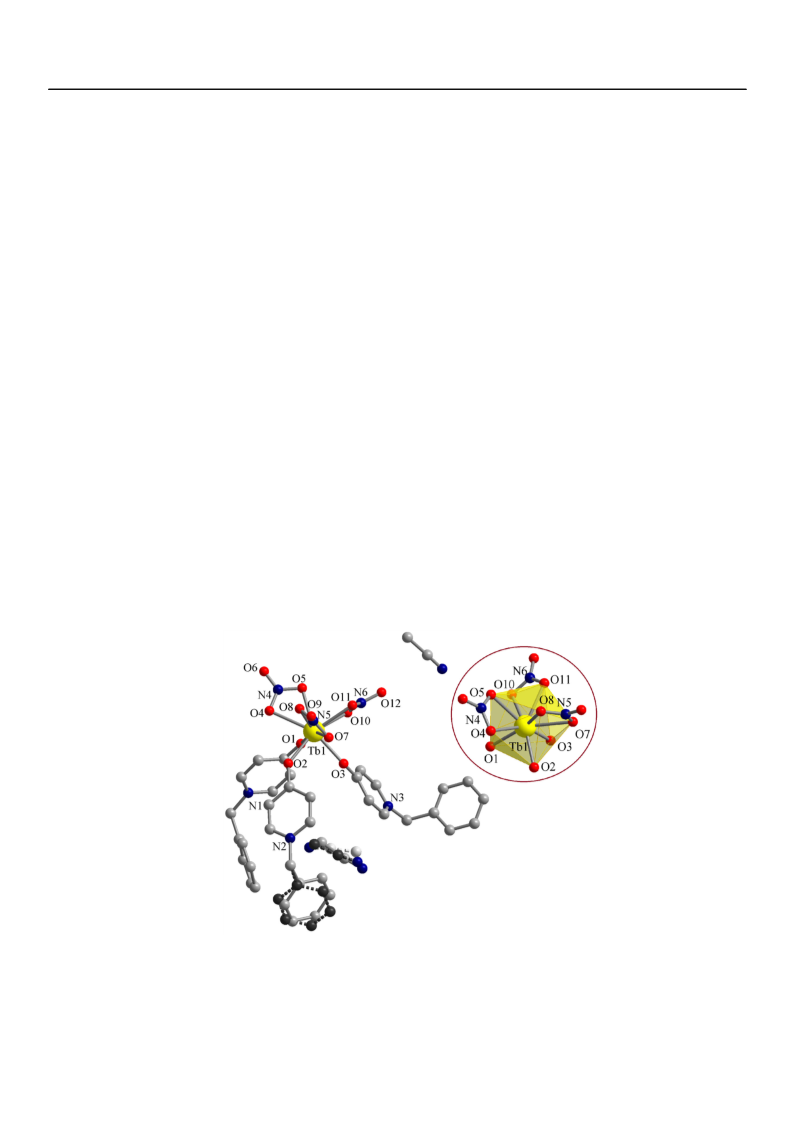

obtained from acetonitrile solution by slow evaporation. The molecular structure of the
terbium(III) complex 5c is shown in Figure 1, and the most significant bond lengths are
given in Table 2. Single-crystal X-ray diffraction investigation reveals that the complex
crystallizes in triclinic space group P-1. The compound crystallizes with two solvent
molecules. One acetonitrile molecule is disordered on three crystallographic positions
with site occupancy factors of 0.3333 each. These crystallization solvent molecules are lost
relatively fast by exposure to air. As it is evident from the structure shown in Figure 1, the
terbium(III) complex is a nine-coordinated species with the lanthanide ion surrounded by
nine oxygen atoms, six oxygen atoms of the three nitrate ions coordinated in a bidentate
fashion and three oxygen atoms of the three monodentate 4-pyridone ligands. The complex
presents a polar distribution of the ligands around the metal ion. The inorganic ligands
(the nitrate anions) are placed on one side of the metal ion, while the organic ligands are
coordinating on the other side of the lanthanide. The disordered acetonitrile molecules are
located in the “pocket” formed between the organic ligands due to their angular shape
(Figure 1). The results of the structural analysis of the terbium(III) complex show a similar
coordination sphere as found previously for the related europium(III) complex. Moreover,
the Tb–O (4-pyridone) bond distances (2.262(3)–2.284(3) Å) are in the normal range and
similar to the Eu–O (4-pyridone) bond distances (2.298(2)–2.318(3) Å) and to many others
lanthanide complexes with carbonyl-type ligands [43,44] or pyridone-type ligands [45,46].
The slightly shorter Tb–O bond distances compare to Eu–O bond distances for the related
compound, as expected, could be attributed to the lanthanide contraction. It was found that
the shortest Tb–O bond distances are those toward the three 4-pyridone ligands, followed
by the longer Tb–ONO2 bonds (2.450(3)–2.573(3) Å). In addition, the benzyl fragment of
one 4-pyridone ligand (the ligand containing the oxygen atom labeled with O2 and the
nitrogen labeled N2) is disordered over two crystallographic positions with site occupancy
factors of 0.7 and 0.3, respectively.
Figure 1. Molecular structure of the compound 5c·2CH3CN (the hydrogen atoms were omitted for
clarity). The phenyl ring depicted with dark gray and dotted lines represents the crystallographic
position with a site occupancy factor of 0.3. The inset shows a detail of the coordination environment
of the metal ion.

Molecules 2021, 26, 2017
5 of 16
Table 1. Crystallographic data, details of data collection and structure refinement parameters for
compound 5c·2CH3CN.
Compound
5c·2CH3CN
Chemical formula
C40H39N8O12Tb
982.71
−1
M (g mol
)
Temperature, (K)
Wavelength, (Å)
Crystal system
Space group
a (Å)
200(2)
0.71073
Triclinic
P-1
13.1960(8)
13.2839(8)
14.5787(10)
78.722(5)
80.321(5)
61.273(4)
2189.6(3)
2
b (Å)
c (Å)
◦
α ( )
◦
β ( )
◦
γ ( )
V (Å3)
Z
Dc (g cm-3)
1.491
1.684
−1
µ (mm
)
F(000)
992
Goodness-of-fit on F2
Final R1, wR2 [I > 2σ(I)]
R1, wR2 (all data)
1.042
0.0411, 0.1039
0.0461, 0.1067
2.217, −2.174
−3
Largest diff. peak and hole (eÅ
)
Table 2. Selected bond lengths for compound 5c·2CH3CN.
Tb1–O1 = 2.284(3); Tb1–O2 = 2.262(3); Tb1–O3
= 2.272(3)
Tb–O (4-pyridone)
Tb1–O4 = 2.557(3); Tb1–O5 = 2.455(3);
Tb1–O7 = 2.573(3); Tb1–O8 = 2.465(3);
Tb1–O10 = 2.560(3); Tb1–O11 = 2.450(3)
Tb–O (NO3)
At the examination of the packing diagrams, CH-π and π-π interactions between
neighboring molecules were evidenced in the crystallographic ab plane (Figure 2). The
CH-π contact for the rings A and B is 2.95 Å, while the separation for the π-π interactions
between the rings A and C is approximately 3.57 Å.
Figure 2. View of the packing diagram of the compound 5c along the crystallographic c axis.

Molecules 2021, 26, 2017
6 of 16
2.3. Thermal Behavior and Liquid Crystals Properties
The thermal behavior of the newly synthesized 4-pyridone organic ligands and their
corresponding lanthanide complexes was investigated by thermogravimetric analysis
(TGA) and differential scanning calorimetry (DSC). The nature of the liquid crystal phase
was assigned based on polarizing optical microscopy (POM) observations.
Thermogravimetric analysis of the nine lanthanide comple◦xes was carried out in the
◦
◦
25 C–550 C temperature range under nitrogen with a rate of 10 C/min. The TG curves of
all lanthanide complexes presented in Figure 3 show that these complexes are stable up to
◦
300 C, an exceptional thermal stability similar to the related lanthanide complexes with 4-
pyridone ligands. Importantly, the mesogenic complexes, 3–5b, exhibit a very good thermal
stability extended over the whole thermal range of the liquid crystalline phase and their
highest melting temperatures. In fact, during the repeating heating-cooling DSC cycles, no
shifting of the transition temperatures was observed, confirming the high stability over the
thermal interval used to investigate the mesomorphic properties. Moreover, the lack of any
◦
weight loss in the 25–250 C temperature range suggests that these products have no water
or any other crystallization solvent, providing strong support for the chemical structure
assigned to the lanthanide complexes.
Figure 3. The thermogravimetric (TG) curves for the europium(III) (
terbium(III) complexes (c).
a), samarium(III) (b) and
The thermal parameters, transition temperatures and the related enthalpies, measured
from the second heating-cooling DSC cycles of the organic ligands and the lanthanide
complexes, are collected in Table 3.

Molecules 2021, 26, 2017
7 of 16
◦
Table 3. Thermal parameters (a) (transition temperatures in C and the enthalpies (b) in kJ
the organic ligands and their lanthanide (III) complexes.
·
mol−1) of
◦
−1
Compound
M
n
Transition
T ( C)
∆H (kJ·mol
)
2a
2b
2c
-
-
-
9
10
-
Cr–Iso
Cr–Iso
Cr–Iso
Cr1–Cr2
Cr2–Iso
Cr–Iso
Iso–SmA
SmA–Cr
Cr–Iso
Cr1–Cr2
Cr2–Iso
Cr–Iso
Iso–SmA
SmA–Cr
Cr–Iso
Cr1–Cr2
Cr2–Iso
Cr–Iso
Iso–SmA
SmA–Cr
Cr–Iso
111
117
115
135
148
176
158 (c)
150
210
134
145
176
151
145
217
133
140
173
155 (c)
149
195
(b)
3.0
45.4
17.5
34.3
46.5
108.2
-
104.2
88.6
1.6
70.6
111.0
29.5
67.6
76.7
37.9
42.2
92.5
-
3a
Eu
9
Eu
10
3b
3c
4a
Eu
-
Sm
9
Sm
10
4b
4c
5a
Sm
Tb
-
9
10
-
5b
5c
Tb
Tb
95.4
83.4
(a)
Cr, SmA, Iso, denote crystalline, smectic A and isotropic phases, respectively.
the second heating-cooling DSC cycle; (c) The two transitions overlap, and the combined enthalpy is given.
These data are measured from
The three 4-pyridone ligands show no mesogenic properties, no matter the number
of carbon atoms contained in the flexible spacer, and the DSC curves display only one
transition during the heating or the cooling runs attributed to the melting or crystallization,
respectively. In Figure 4a, the second heating-cooling DSC cycle of compound 2b is
presented as a representative example. The lack of the mesogenic properties in the case of
the organic ligands was confirmed by POM observations as well when cooling the isotropic
liquids resulted in the formation of the crystalline phases.
Figure 4. The second differential scanning calorimetry (DSC) heating–cooling cycles for compounds
2b (a) and 5b (b).
The melting temperatures of the complexes are higher on increasing the number of
carbon atoms of the flexible spacer, and this trend was seen for all three lanthanides em-
ployed. The investigation of the lanthanide complexes’ thermal behavior revealed that only
the complexes with longer flexible spacers (10 carbon atoms,
liquid crystalline phase on cooling from the isotropic phase. These phase transitions, for
complexes 5b, are easily seen both on the cooling runs of the DSC thermograms and
3–5b) display a monotropic
3–

Molecules 2021, 26, 2017
8 of 16
during the POM observations. For example, the DSC thermogram of samarium(III) complex
5b shows two distinct transitions on the cooling run (Figure 4b) and these were assigned to
the isotropic to liquid crystal and liquid crystal-to-crystal phase transitions.
For the other two complexes, the europium(III) 3b and the terbium 5b complex, the
two phase transitions are too close and partially overlapped, so that it was not possible to
extract the enthalpy corresponding to the isotropic to the liquid crystal phase transition.
The liquid crystal phase was assigned to the SmA phase based on the POM observations.
POM pictures for selected lanthanide complexes are presented in Figure 5. On cooling, the
development from the isotropic phase of the texture evidenced the formation of typical
“battonets” that further led to a characteristic fan-shape texture with focal-conical defects.
The existence of dark homeotropic regions confirms the assignment of the SmA phase. The
monotropic nature of the liquid crystal phase prevented its characterization by powder
X-ray diffraction (XRD), but nevertheless, the assignment of the SmA is strongly supported
by the existence of the SmA phase in the case of the analogs lanthanide complexes with
4-pyridone derivatives having the cyanobiphenyl unit instead of the biphenyl unit. In fact,
the absence of the polar cyano group, by the replacement of the cyanobiphenyl unit with the
biphenyl unit in the construction of the 4-pyridone ligands, is the strongest argument for the
monotropic nature of the SmA phase and the lack of mesogenic properties for the analogs
with shorter spacer (9 carbon atoms, complexes 3–5a). Unlike the lanthanide complexes
presented in this study, the related complexes with cyanobiphenyl mesogenic groups show
enantiotropic SmA phases, even for shorter spacers (8, 9 or 10 carbon atoms) [11,12].

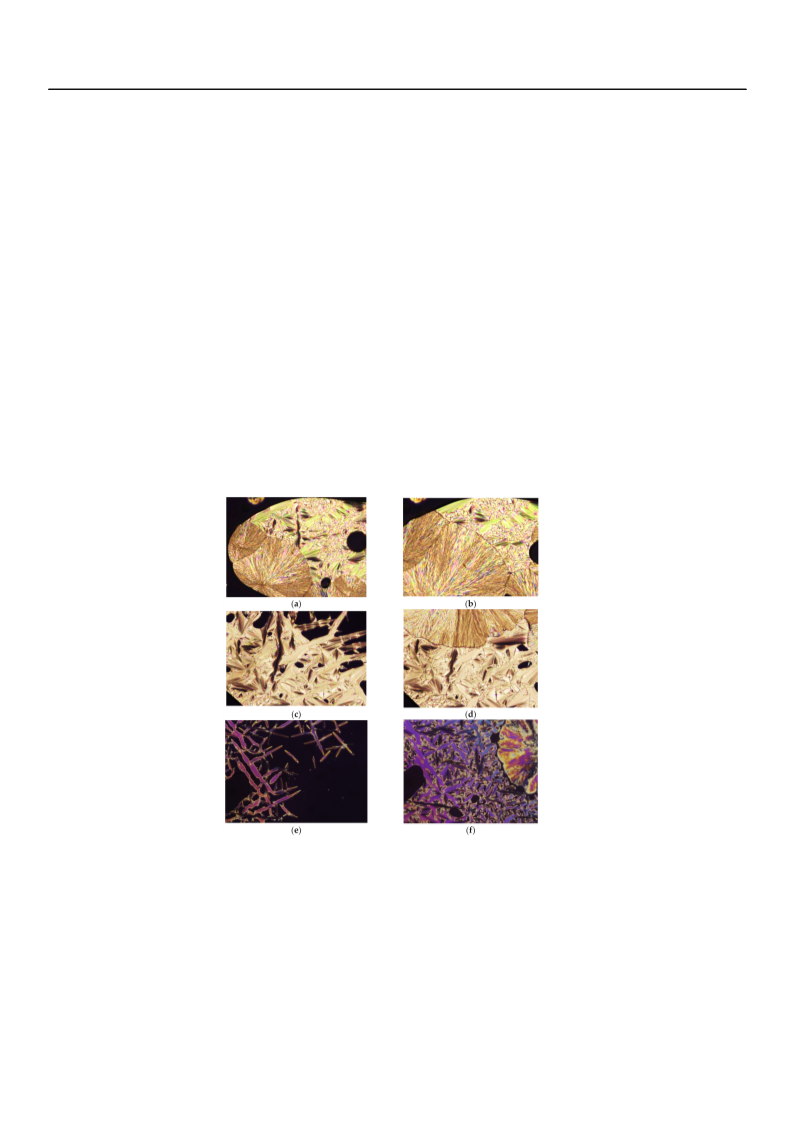

Figure 5. Polarized o◦ptical microscope (POM) pictures◦for mesogenic lanthanide complexes: 3b at
◦
◦
◦
◦
156 C (a) and at 150 C (b); 4b at 150 C (c) and at 145 C (d); 5b at 155 C (e) and at 150 C (f).
Clearly, this work demonstrates that the minimum spacer length required for sta-
bilizing the liquid crystal phases for lanthanide complexes based on 4-pyridone ligands
functionalized with biphenyl units is 10 carbon atoms, as complexes
atoms in the aliphatic spacer are non-mesomorphic.
3–5a with just 9 carbon
Generally, the prepared complexes’ thermal properties are similar for different lan-
thanide ions; the effect of changing the lanthanide ions on the thermal behavior is min-
imal, as previously reported for other lanthanide complexes with various 4-pyridone
ligands [9,11,12].

Molecules 2021, 26, 2017
9 of 16
2.4. Emission Properties
Stable luminescent complexes of trivalent lanthanide ions have been long time in-
vestigated in view of their promising applications based on their exceptional emission or
magnetic properties [47]. The most investigated Eu(III) and Tb(III) complexes show quite
sharp and intense luminescence in the visible spectral range, red and green, respectively,
while the less studied Sm(III) complexes exhibit a weaker orange emission. A correct
design of the emissive lanthanide complexes must take into account the antenna effect for
the sensitization of the luminescence in the lanthanide ions and, therefore, a good choice
of the organic chromophores capable of absorbing light in the UV region and efficiently
transferring excitation energy to the emitting levels of the lanthanide ions. The 4-pyridone
based ligands are good candidates to achieve this goal, and, so far, the reported lanthanide
complexes with this type of ligands showed intense luminescence properties characteristic
of each type of ion employed. Liquid crystals with emissive properties have been long
under scrutiny in the light of their very important applications, in particular, the polarized
emission after suitable alignment [48–51]. The emission and excitation spectra for all lan-
thanide complexes were measured in the solid-state at room temperature and are presented
in Figure 6. Two regions are easily identifiable in the luminescent excitation spectra of all
lanthanide complexes: 260–350 nm, where the broad bands were assigned to the energy
absorption of ligands, which can transfer energy via “ligand-to-metal” pattern, and the
350–450 nm region with very sharp peaks assigned to the absorptions of the lanthanide
ions. The excitation spectra recorded for the lanthanide complexes with ligands 2a and 2b
are similar but somehow different compared to the complexes with ligand 2c due to the
different nature of the ligands.

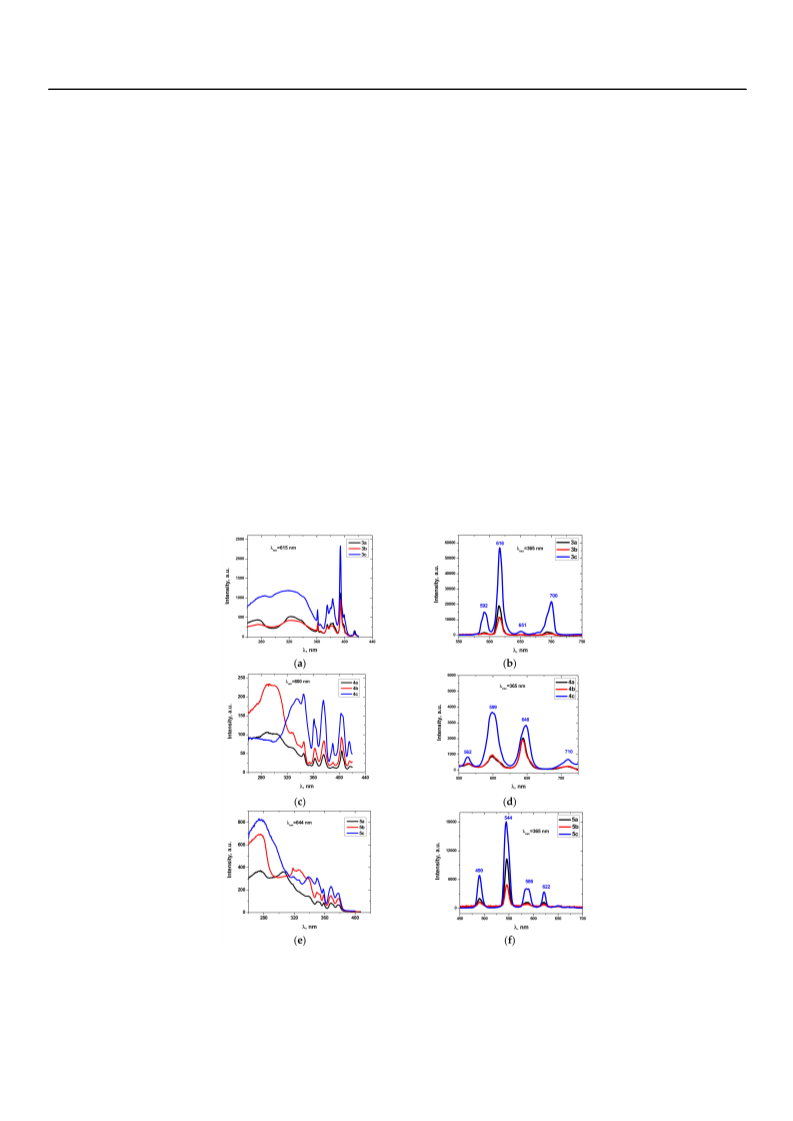

Figure 6. The excitation and emission spectra of the lanthanide complexes measured in solid-state
at room temperature (the wavelengths used for excitation and emission are indicated on each plot):
europium(III) complexes, excitation (a) and emission spectra (b); samarium(III) complexes, excitation
(c) and emission spectra (d); terbium(III) complexes, excitation (e) and emission spectra (f).

Molecules 2021, 26, 2017
10 of 16
On the other hand, the characteristic emission bands of each lanthanide ion were
observed in their emission spectra. For example, the emission spectra of the Eu(III) com-
plexes show several bands in the 550–750 nm spectral range assigned to the 5D0
→
7FJ
, recorded
in the solid-state, show characteristic emission bands of Sm(III) ion at 562, 599, 648 and
710 nm, assigned to 4G5/2 6H5/2, 4G5/2 6H7/2, 4G5/2 6H9/2 and 4G5/2 6H11/2
(J = 1
÷
4) transitions (Figure 6b). The luminescence spectra of complexes 4a–c
→
→
→
→
transitions, respectively. Orange luminescence was observed in the solid-state for Sm(III)
complexes due to the dominant 4G5/2 → H7/2 transition (Figure 6d).
6
5
The spectra of the Tb(III) complexes show the transitions from the D4 excitation
5
level to the 7FJ multiplets: D4
→
7F6 (490 nm); 5D4
→
7F5 (544 nm); 5D4
→
7F4 (586 nm);
5D4
→
7 F3 (622 nm) (Figure 6f). The samples irradiated with UV light (275 nm) emit the
characteristic green light, as for all Tb(III) complexes, the 5D4
transition is the most intense.
→
7F5 (544 nm) electric dipole
The decay curves for the nine samples were measured and fitted using mono-exponential
function, and the luminescence lifetime values measured for europium(III) complexes with
excitation at 394 nm, for samarium(III) complexes with excitation at 404 nm and for ter-
bium(III) complexes with excitation at 375 nm are collected in Table 4. The luminescence
lifetime values are characteristic for rare-earths, and the higher values observed for the
complexes with ligand 2c are consistent with the different nature of the ligands.
Table 4. The luminescence lifetime values for the lanthanide complexes 3a–5c.
Compound
M
τ (ms)
3a
3b
3c
0.716 ± 0.001
0.719 ± 0.001
1.493 ± 0.003
Eu
4a
4b
4c
0.055 ± 0.001
0.055 ± 0.001
0.071 ± 0.003
0.807 ± 0.003
0.624 ± 0.002
1.260 ± 0.001
Sm
Tb
5a
5b
5c
It is important to mention that no emission from the ligands in the emission spectra
of the prepared complexes was observed. The emission spectra of the related lanthanide
complexes with the 4-pyridone ligands having cyanobiphenyl terminal units in place of
biphenyl units are characterized by the blue emission originating from the cyanobiphenyl
group, which is dominant in the case of the Tb(III) and Sm(III) complexes [11,12]. Unlike
these complexes with 4-pyridone terminated with cyanobiphenyl units, their related lan-
thanide complexes having the 3,4,5-tris(alkoxy)benzyl mesogenic groups attached to the
4-pyridone platform exhibited the characteristic emission light, red for Eu(III), orange for
Sm(III) and green for Tb(III), respectively. For each lanthanide ion, the complexes’ emission
intensities with ligand 2c are the strongest among the three complexes of each series, and
these three complexes
The absolute quantum yields measured with an integrating sphere by excitation with
330 nm UV light are 7.0 0.5% for 3c, 3.0 0.5% for 4c and 16.0 0.5% for 5c, respectively.
3–5c were selected for the measurements of their quantum yields.
±
±
±
3. Materials and Methods
The chemicals used in this work were purchased from Sigma-Aldrich (Saint Louis,
MO, USA) and Merck (Darmstadt, Germany). The organic synthesis was monitored by
TLC that was performed on commercial coated aluminum plates with Silica Gel matrix
with fluorescent indicator 254 nm (Sigma-Aldrich). The visualization was done with a UV
lamp (operating at 254 nm and 365 nm). C, H, N analyses were performed with a EuroEA
3300 instrumnt (Eurovector, Pavia, Italy).

Molecules 2021, 26, 2017
11 of 16
A Bruker Tensor V-37 spectrophotometer (Bruker Optics Inc., Billerica, MA, USA) was
employed for recording the IR spectra of all compounds in the range of 4000–400 cm−1
.
1
The samples were measured by ATR technique or as KBr discs. H and 13C NMR spectra
were recorded on a Bruker Fourier 300 spectrometer (Bruker BioSpin NMR, Rheinstetten,
Germany) operating at 300 MHz, using CDCl3 as solvent. The solvent peak positions
1
1
(7.26 ppm H, 77.00 ppm 13C) were used to reference the H and 13C chemical shifts.
The proposed chemical structures of the 4-pyridone compounds are consistent with the
experimental data.
The liquid crystalline properties were analyzed by using a Nikon 50iPol (Nikon Instru-
ments, Melville, NY, USA) polarized optical microscope (POM) connected with a Linkam
THMS600 hot stage and TMS94 temperature control processor (Linkam Scientific Instru-
ments Ltd., Tadworth, UK). The POM observations were done on untreated glass slides
by successive heating and cooling runs. The thermal effects and enthalpies of the phase
transitions were measured with a Diamond DSC PerkinElmer instrument (Perkin Elmer,
Boston, MA, USA). At least two heating/cooling cycles at a scanning rate of 10 ◦C/min
were performed for each sample, which was initially encapsulated in aluminum pans. The
thermal stability of the new lanthanide complexes was checked by thermogravimetric
analysis using a TA◦Q50 TGA instrument. The s◦amples were placed in alumina crucibles
−1
◦
and heated with 10 C min in the 25 C to 550 C temperature range. The measurements
were done with nitrogen as purging gas. The emission properties of the lanthanide com-
plexes were analyzed at room temperature in a solid-state. The emission spectra of the
products placed on glass slides were measured with an OceanOptics QE65PRO spectrome-
ter (Ocean Optics Inc., Orlando, FL, USA) linked via an optic fiber to the polarizing optical
microscope. Two different excitation sources were used: Nikon Intensilight excitation
source (Nikon Instruments) or a LED light source (LLS-LED, OceanOptics Inc.,
λ = 365
and 270 nm). The excitation spectra and photoluminescence decay curves were recorded
at room temperature by using a FluoroMax 4P spectrophotometer (HORIBA Jobin Yvon,
Kyoto, Japan). The quantum yield (QY) analysis was performed by using the Quanta-
Phy accessory under 330 nm UV light excitation. X-ray diffraction measurements were
performed at 200 K on an STOE IPDS II diffractometer (STOE &Cie GmbH, Darmstadt,
Germany), operating with Mo-Kα (λ = 0.71073 Å) X-ray tube with graphite monochromator.
The structure was solved by direct methods using SHELXS-2014 crystallographic software
and refined by full-matrix least-squares techniques based on F2. The non-H atoms were
refined with anisotropic displacement parameters. Calculations were performed using the
SHELXL-2018 crystallographic software package. CCDC reference number: 2060438.
3.1. Synthesis of Intermediate Bromide Derivatives 1a,b
Compound 1a: 4-bromononyloxy-biphenyl compounds (1a) was obtained from the
reaction between 4-hydroxybiphenyl (3 g, 17.6 mmol) and dibromo nonane (8.95 mL,
31.3 mmol) in the presence of K2CO3 (3 g, 21.74 mmol) and molecular sieves (3 g), in
150 mL butanone. The reaction mixture was stirred under reflux for three days in a nitrogen
atmosphere. After this period, the insoluble compounds were filtered and washed with hot
butanone, and the filtrate was concentrated on a rotary evaporator. The product obtained
was recrystallized from DCM and ethyl ether, and the precipitate was filtered and washed
1
with pentane. A white compound was obtained, with a yield of 81%. Yield: 81%. H-RMN
(CDCl3, 300 MHz): 7.54 (m, 4H), 7.42 (t, 2H, J = 7.5 Hz), 7.30 (t, 1H, J = 7.3 Hz), 6.98 (d, 2H,
J = 8.6 Hz), 4.00 (t, 2H, J = 6.5 Hz), 3.42 (t, 2H, J = 6.8 Hz), 1.96–1.71 (m, 4H), 1.47–1.25 (m,
10H). 13C-RMN (CDCl3, 75 MHz): 158.7, 133.5, 128.7, 128.1, 126.6, 114.7, 68.0, 34.1, 32.8,
29.2, 28.7, 28.1, 26.0.
Compound 1b: For bromide derivative synthesis (4-bromodecyloxy-biphenyl, 1b),
4-hydroxybiphenyl (3 g, 17.6 mmol) was dissolved in 150 mL butanone, in the presence of
K2CO3 (3 g, 21.74 mmol) and molecular sieves (3 g). Di-bromodecane (9.8 mL, 32.6 mmol)
was added and the reaction mixture was stirred under reflux, in an inert atmosphere, for
three days. The insoluble compounds were filtered, and the residue was washed with hot

Molecules 2021, 26, 2017
12 of 16
butanone. The solvent was removed on a rotary evaporator and the crude product was
1
recrystallized from DCM/ethyl ether to yield a white solid. Yield 89%. H-RMN (CDCl3,
300 MHz): 7.54 (t, 4H, J = 9.6 Hz), 7.42 (t, 2H, J = 7.6 Hz), 7.30 (t, 1H, J = 7.3 Hz), 6.97 (d,
2H, J = 8.5 Hz), 4.14–3.88 (m, 2H), 3.42 (t, 2H, J = 6.8 Hz), 1.88–1.80 (m, 4H), 1.39 (dd, 12H,
J = 30.5, 5.0 Hz). 13C-RMN (CDCl3, 75 MHz): 158.7, 140.9, 133.6, 128.7, 128.1, 126.7, 114.8,
68.0, 34.1, 32.8, 29.3, 28.7, 28.2, 26.1.
3.2. Synthesis of 4-Pyridone Ligands 2a–c
Compound 2a: A mixture of NaOH (0.389 g, 9.7 mmol in 4.86 mL of water, 2 N) and
water was added to a mixture of 4-hydroxypyridine (0.924 g, 9.7 mmol) and TBABr (0.313 g,
0.94 mmol) in tetrahydrofuran (50 mL), until a clear solution was obtained. To this mixture,
the halogenated derivative 1a (2.919 g, 7.8 mmol) was added and heated under reflux for
24 h. The reaction solvent was evaporated using a rotary evaporator and the solid product
obtained was extracted using dichloromethane and water 1/0.8 (v/v). The organic layers
were combined, dried over Na2SO4, and then the solvent evaporated to dryness. Further,
the product 2a was purified by silica gel column chromatography, using a combination of
dichloromethane and methanol as eluent (95/5, v/v). The compound 2a was obtained as
1
a white solid with a yield of 73%. H-RMN(CDCl3, 300 MHz): 7.50 (m, 6H), 7.38 (t, 2H,
J = 7.5 Hz), 7.32–7.27 (m, 1H), 6.94 (d, 2H, J = 8.4 Hz), 6.35 (d, 2H, J = 7.4 Hz), 3.96 (t, 2H,
J = 6.4 Hz), 3.75 (t, 2H, J = 6.8 Hz,), 1.85–1.55 (m, 4H), 1.50–1.19 (m, 10H). 13C-RMN (CDCl3,
75 MHz): 178.8, 158.6, 139.6, 128.6, 127.9, 126.6, 118.6, 114.6, 67.8, 58.9, 30.8, 29.4, 25.9, 24.1,
19.7, 13.6. IR (KBr, cm−1): 2958, 2929, 2849, 1608, 1567, 1487, 1379, 1196, 1119, 1012, 882, 839,
771, 758. Anal. Calc. for C26H31NO2: C% 80.17; H% 8.02; N% 3.60; Found: C% 79.44; H%
7.99; N%.54. Yield: 61%.
Compound 2b: Compound 2b was obtained in a similar procedure as for 2a, by
the reaction of 4-hydroxypyridine (0.725 g, 7.6 mmol) and bromide derivative 1b (2.38 g,
6.1 mmol) in 50 mL of tetrahydrofuran and water, in the presence of NaOH (0.305 g,
7.6 mmol in 3.82 mL water, 2 N) and TBABr (0.245 g, 0.76 mmol). The reaction mixture
was heated under reflux for 24 h. After this period, the solvent was evaporated and the
solid product obtained was extracted using dichloromethane and water. The organic layers
were collected, dried over Na2SO4, and then the solvent was evaporated. Compound 2b
was purified by column chromatography using dichloromethane and methanol as eluent.
1
Yield 61%, white solid. H-RMN(CDCl3, 300 MHz): 7.49 (m, 6H), 7.38 (t, 2H, J = 7.5 Hz),
7.33–7.27 (m, 1H), 6.95 (d, 2H, J = 8.4 Hz), 6.36 (d, 2H, J = 7.4 Hz), 3.97 (t, 2H, J = 6.4 Hz),
3.75 (t, 2H, J = 6.8 Hz), 1.85–1.55 (m, 4H), 1.50–1.19 (m, 12H). 13C-RMN (CDCl3, 75 MHz):
178.8, 158.6, 140.8, 133.5, 128.7, 128.1, 126.6, 117.8, 114.7, 67.9, 57.9, 30.8, 29.3, 28.9, 26.1, 25.9.
IR (KBr, cm−1): 2923, 2850, 1609, 1566, 1485, 1391, 1175, 1115, 1012, 853, 835, 769, 721. Anal.
Calc. for C28H33NO2: C% 80.36; H% 8.24; N% 3.47; Found: C% 79.15; H% 7.93; N% 2.24.
Compound 2c: Compound 2c was obtained by adding to a solution of 4-hydroxypyridine
(1.73 g, 18.2 mmol) and TBABr (0.588 g, 1.8 mmol) (phase transfer catalyst) in THF (50 mL)
a 2 N aqueous solution of NaOH (0.730 g, 18.2 mmol in 1.735 mL of water). The mixture
was stirred, and water was added, the solution became clear. Benzyl bromide was added
to the mixture and heated under reflux for 24 h. The solvent was evaporated, and the
product was extracted with dichloromethane and water. The organic layer was combined,
and the solvent was removed in a vacuum; and finally, the residue was recrystallized from
dichloromethane and ethyl ether. Yield 65%, white crystalline solid. 1H-RMN (CDCl3,
300 MHz): 7.38–7.32 (m, 5H), 7.19–7.16 (m, 2H), 6.40 (d, 2H, J = 8.5 Hz), 4.94 (s, 2H).
13C-RMN (CDCl3, 75 MHz): 178.9; 140.0; 134.7; 129.4; 129.0; 127.3; 118.9; 60.2. IR (KBr,
cm−1): 1638, 1562, 1501, 1454, 1403, 1378, 1206, 1184, 972, 853, 731, 692, 596, 514, 483.
3.3. Synthesis and Analytical Data of Eu(III) Complexes 3a,b
Complexes 3a
(0.04 mmol) in water (2 mL) over a solution of 2a
(2 mL). The reaction mixture was stirred at 65–70 C for 2 h. 3a and 3b were obtained
,
b
were obtained by the dropwise addition of a solution of Eu (NO3)3 6H2O
·
,
b◦(0.12 mmol) dissolved in hot ethanol

Molecules 2021, 26, 2017
13 of 16
as precipitates, which were filtered and redissolved in dichloromethane, filtered through
Celite and isolated by addition of ethyl ether. The synthesis of compound 3c was re-
ported elsewhere.
Compound 3a: Yield 42%. Anal. Calc. for EuC78H93N6O15: C% 62.18, H% 6.22, N%
5.58. Found: C% 62.24, H% 6.29, N% 5.49. IR (ATR, cm−1): 2930, 2852, 1609, 1535, 1484,
1385, 1317, 1187, 856, 833, 764, 717.
Compound 3b: Yield 46%. Anal. Calc. for EuC81H99N6O15: C% 62.82, H% 6.44, N%
5.43. Found: C% 62.88, H% 6.52, N% 5.41
1320, 1186, 858, 834, 768, 718.
.
IR (ATR, cm−1): 2925, 2852, 1610, 1531, 1380,
3.4. Synthesis and Analytical Data of Sm(III) Complexes 4a–c
For the synthesis of complexes 4a , a solution of Sm(NO3)3 6H2O (0.04 mmol) in
–
c
·
water (2 mL) was added dropwise over a solution o◦f 4-pyridone ligands 2a
–c (0.12 mmol)
in hot ethanol (2 mL) and stirred for 2 h at 65–70 C. The compounds precipitated out
of the mixture. Complexes 4a and 4b were isolated as white solids and purified through
recrystallization from a mixture of dichloromethane and ethyl ether. Complex 4c was
filtered, washed with cold ethanol and recrystallized from hot acetonitrile.
Compound 4a: Yield 41%. Anal. Calc. for SmC78H93N6O15: C% 62.25, H% 6.23, N%
5.58. Found: C% 62.31, H% 6.12, N% 5.54. IR (ATR, cm−1): 2929, 2852, 1609, 1534, 1486,
1392, 1315, 1186, 856, 833, 717.
Compound 4b: Yield 47%. Anal. Calc. for SmC81H99N6O15: C% 62.89, H% 6.45, N%
5.43. Found: C% 63.05, H% 6.36, N% 5.43. IR (ATR, cm−1): 2925, 2852, 1610, 1531, 1468,
1391, 1319, 858, 834, 768.
Compound 4c: Yield 44%. Anal. Calc. for C36H33SmN6O12: %C 48.47; %H 3.73; %N
9.42; Found: %C 48.23; %H 3.88; %N 9.21. IR (KBr, cm−1): 1634, 1541, 1450, 1401, 1372,
1319, 1168, 1020, 819, 741, 701, 602, 500.
3.5. Synthesis and Analytical Data of Tb(III) Complexes 5a–c
The preparation procedure for terbium(III) complexes is similar to that used for the
preparation of europium(III0 and samarium(III) complexes. Tb(NO3)3
·
5H2O (0.04 mmol)
in water (2 mL) was added to a solution of 4-pyridone ligands 2a (0.12 mmol) in ethanol
–c
(2 mL). The reaction mixture was stirred at 65–70 ◦C for two hours. The white precipitates
formed were filtered off, redissolved in DCM and filtered over celite. The solvent was
removed, and the complexes 5a and 5b were recrystallized from dichloromethane/ethyl
ether, while the complex 5c was recrystallized from hot acetonitrile.
Compound 5a: Yield: 43%. Anal. Calc. for TbC78H93N6O15: C% 61.90, H% 6.19, N%
5.55. Found: C% 62.04, H% 6.08, N% 5.37. IR (ATR, cm−1): 2927, 2852, 1608, 1536, 1487,
1384, 1318, 1186, 857, 836, 763.
Compound 5b: Yield 49%. Anal. Calc. for TbC81H99N6O15: C% 62.54, H% 6.41, N%
5.40. Found: C% 62.36, H% 6.29, N% 5.44. IR (ATR, cm−1): 2925, 2851, 1611, 1536, 1472,
1391, 1320, 1188, 857, 832, 765.
Compound 5c: Yield 47%. Anal. Calc. for C36H33TbN6O12: %C 48.01; %H 3.69; %N
9.33; Found: %C 47.88; %H 3.77; %N 9.43. IR (KBr, cm−1): 1634, 1543, 1450, 1401, 1373,
1317, 1168, 1021, 818, 742, 701, 602, 501.
4. Conclusions
This work presents the study of the thermal behavior and emission properties of the
lanthanide complexes of europium(III), samarium(III) and terbium(III) with N-alkylated-4-
pyridone ligands containing a biphenyl unit linked to the pyridone ring via a long flexible
spacer with either 9 or 10 carbon atoms. For comparison purposes, the related lanthanide
complexes with N-benzyl-4-pyridone ligand were prepared and characterized, and the
terbium(III) complex was analyzed by single-crystal X-rays diffraction. The lanthanide ion
is nine-coordinate and surrounded by three bidentate nitrate ions and three monodentate
4-pyridone ligands coordinated via their oxygen atoms. All complexes exhibit a very

Molecules 2021, 26, 2017
14 of 16
good thermal stability, and the thermogravimetric analysis shows that their decomposition
◦
◦
starts at temperatures above 300 C, well above the highest melting temperature of 176 C
reported for the mesogenic compounds 3b and 4b. On the other hand, the lanthanide com-
plexes melting temperatures depend on the number of carbon atoms of the flexible spacer,
higher temperatures for longer chains; an observation confirmed for all three lanthanides
employed. The investigation of the thermal behavior of the lanthanide complexes revealed
that in the absence of the polar cyano group, by the replacement of the cyanobiphenyl unit
with the biphenyl unit in the construction of the 4-pyridone ligands, only the complexes
with longer flexible spacer (10 carbon atoms, 3–5b) display a monotropic SmA phase, while
the rest of complexes are non-mesomorphic. Moreover, similar to the related lanthanide
complexes with 4-pyridone ligands, the effect of changing the lanthanide ions on the
thermal behavior is minimal.
These complexes show no emission originating from the organic ligands and exhibit
the characteristic emission light, red for Eu(III), orange for Sm(III) and green for Tb(III), re-
spectively, similar to their related lanthanide complexes having the 3,4,5-tris(alkoxy)benzyl
mesogenic groups attached to the 4-pyridone platform. For each lanthanide ion series, the
emission intensities found for complexes 3–5c, with N-benzyl-4-pyridone ligand 2c, are the
strongest due to increased flexibility introduced by the aliphatic spacers in the molecular
structure of complexes 3–5a,b.
Author Contributions: Conceptualization, V.C.; methodology, F.L.C., D.M.-M., M.S. and M.I.; val-
idation, V.C., A.M. and M.S.; formal analysis, M.I., D.M.-M.; crystallography investigation, A.M.;
characterization of the luminescent properties, M.S.; writing—original draft preparation, V.C. and
F.L.C.; writing—review and editing, V.C.; supervision, V.C. All authors have read and agreed to the
published version of the manuscript.
Funding: This research received no external funding.
Institutional Review Board Statement: Not applicable.
Informed Consent Statement: Not applicable.
Conflicts of Interest: The authors declare no conflict of interest.
Sample Availability: Samples of the compounds reported in this work are available from the authors.
References
1.
2.
3.
Rajendiran, K.; Yoganandham, S.T.; Arumugam, S.; Arumugam, D.; Thananjeyan, K. An overview of liquid crytalline mesophase
transition and photophysical properties of “f block”, “d block” and (SCO) spin-crossover metallomesogens in the optoelectronics.
J. Mol. Liq. 2021, 321, 114793. [CrossRef]
Chakrabarty, R.; Dutta, A.; Roy, S.; Das, D.; Ledoux-Rak, I.; Mondal, P.; Prasad, S.K.; Rao, D.S.; Bhattacharjee, C.R. Multifuctional
lanthanide complexes: Mesomorphism, photoluminescence and second order NLO property. ChemistrySelect 2018, 3, 8245–8251.
[CrossRef]
Pramanik, H.A.R.; Chanda, C.; Paul, P.C.; Bhattacharjee, C.R.; Prasad, S.K.; Rao, D.S. Novel tris-buffer based Schiff base bearing
low flexible alkoxy arm and its lanthanide complexes: Mesomorphism and photoluminescence. J. Mol. Struct. 2019, 1180, 472–479.
[CrossRef]
4.
5.
Pramanik, H.A.R.; Das, G.; Bhattacharjee, C.R.; Paul, P.C.; Mondal, P.; Prasad, S.K.; Rao, D.S. Tunable emissive lanthanidomesogen
derived from a room-temperature liquid-crystalline Schiff-base ligand. Chem. Eur. J. 2013, 19, 13151–13159. [CrossRef]
Rao, N.V.; Choudhury, T.D.; Deb, R.; Paul, M.K.; Rao, T.R.; Francis, T.; Smalyukh, I.I. Fluorescent lanthanide complexes of Schiff
base ligands possesing N-aryl moiety: Influence of chain length on crossover (calamitic to discotic) phase behaviour. Liq. Cryst.
2010, 37, 1393–1410. [CrossRef]
6.
7.
Binnemans, K. Lanthanidomesogens. In Handbook on the Physics and Chemistry of Rare Earths; Bünzli, J.-C., Pecharsky, V.K., Eds.;
Elsevier: Amsterdam, The Netherlands, 2013; Volume 43, pp. 1–154.
Guerra, S.; Dutronc, T.; Terazzi, E.; KBuchwalder, K.-L.; Guénée, L.; Deschenaux, R.; Eliseeva, S.V.; Petoud, S.; Piguet, C. Taking a
last look at lanthanidomesogens? The use of basic thermodynamics from programming the temperature domains of existence of
luminescent liquid crystals. Coord. Chem. Rev. 2017, 340, 79–97. [CrossRef]
8.
9.
Knyazev, A.A.; Krupin, A.S.; Heinrich, B.; Donnio, B.; Galyametdinov, Y.G. Controlled polarized luminescence of smectic
lanthanide complexes. Dyes Pigm. 2018, 148, 492–500. [CrossRef]
Pană, A.; Chiriac, F.L.; Secu, M.; Pasuk, I.; Ferbinteanu, M.; Micutz, M.; Cîrcu, V. A new class of thermotropic lanthanidomesogensL
Eu (III) nitrate complexes with mesogenic 4-pyridone ligands. Dalton Trans. 2015, 44, 14196–14199. [CrossRef]

Molecules 2021, 26, 2017
15 of 16
10. Chiriac, F.L.; Pasuk, I.; Secu, M.; Micutz, M. Wide-range columnar and lamellar photoluminescent liquid-crystalline lanthanide
complexes with mesogenic 4-pyridone derivatives. Chem. Eur. J. 2018, 24, 13512–13522. [CrossRef]
11. Chiriac, L.F.; Ganea, P.C.; Manaila-Maximean, D.; Pasuk, I.; Cîrcu, V. Synthesis and thermal, emission and dielectric properties of
liquid crystalline Eu (III), Sm (III) and Tb (III) complexes based on mesogenic 4-pyridone ligands fuctionalized with cyanobiphenyl
groups. J. Mol. Liq. 2019, 290, 111184. [CrossRef]
12. Chiriac, L.F.; Ilis, M.; Cîrcu, V. Luminescent lanthanides complexes with mesogenic pyridone ligands: Emission and liquid
crystals properties. Polyhedron 2020, 190, 114748. [CrossRef]
13. Dyer, D.J.; Lee, V.Y.; Twieg, R.J. The forgotten liquid crystals of Daniel Vorlander: A new look at mesogenic 4-pyridones. Liq.
Cryst. 1997, 23, 551–560. [CrossRef]
14. You, F.; Twieg, R.J.; Dyer, D.; Lee, V. Synthesis and properties of liquid crystals containing the 4-pyridone and methylene-1,4-
dihydropyridine structure unit. Mol. Cryst. Liq. Cryst. 1999, 332, 399–406. [CrossRef]
15. Dyer, D.J.; Lee, V.Y.; Twieg, R.J. A new class of liquid crystals: Methylene-1,4-dihydripyridines. Liq. Cryst. 1998, 24, 271–281.
[CrossRef]
16. Wolf, J.R.; Dyer, D.J. Hydrogen boded liquid crystalline heterodimers incorporating alkoxystilbazoles and alkoxy-4pyridones. Liq.
Cryst. Today 2015, 24, 47–55. [CrossRef]
17. Yerrasani, R.; Karunakar, M.; Dubey, R.; Singh, A.K.; Nandi, R.; Singh, R.K.; Rao, T.R. Synthesis, characterization and photophysi-
cal studies of rare earth metal complexes with a mesogenic Schiff-base. J. Mol. Liq. 2016, 216, 510–515. [CrossRef]
18. Sáncheza, I.; Cuerva, C.; Marcelo, M.; Oliveira, E.; Santos, H.M.; Campo, J.A.; Lodeiro, C.; Cano, M. Designing Eu-β-diketonate
complexes as a support of ionic liquid crystals (ILCs) with additional luminescent properties. Dyes Pigm. 2018, 159, 395–405.
[CrossRef]
19. Li, C.; Robinson, P.D.; Dyer, D.J. A hydrogen-bonded heterodimer of 1-(4-hexyloxyphenyl)pyridin-4(1H)-one with 4-cyanobenzoic
acid. Acta Cryst. C 2006, C62, o596–o598. [CrossRef] [PubMed]
20. Robinson, P.D.; Li, C.; Wolf, J.R.; Dyer, D.J. 1-[4-(hexyloxy)pyridin-4(1H)-one monohydrate. Acta Cryst. 2005, E61, o1254–o1256.
[CrossRef]
21. Modec, B. Crystal chemistry of zinc quinaldinate complexes with pyridine-based ligands. Crystals 2018, 8, 52. [CrossRef]
22. Monroe, J.C.; Turnbull, M.M. Unusual coordination behavior by a hydroxypyridine/pyridone ligand: Synthesis and structure of
[(2-bromo4-hydroxypyridine)2(2-bromo-1(H)-4-pyridone)2copper(II)perchlorate
1(H)-4-pyridone). J. Coord. Chem. 2019, 72, 3210–3221. [CrossRef]
•
2(2-bromo-4-hydroxypyridine)
•
2(2-bromo-
23. Wang, J.; Chorazy, S.; Nakabayashi, K.; Sieklucka, B.; Ohkoshi, S.I. Achieving white light emission and incresed magnetic
anisotropy by transition metal substitution in functional materials based on dinuclear DyIII(4-pyridone)[MIII(CN)6]3- (M= Co,
Rh) molecules. J. Mater. Chem. C 2018, 6, 473–481. [CrossRef]
24. Lu, J.T.; Lee, C.K.; Lin, I.J.B. Ionic liquid crystals derived from 4-hydroxypyridine. Soft Matter. 2011, 7, 3491–3501. [CrossRef]
25. Pană, A.; Ilis¸, M.; Staicu, T.; Pasuk, I.; Cîrcu, V. Columnar bis (pyridinium) ionic liquid crystals derived from 4-hydroxypyridine:
Synthesis, mesomorphism and emission properties. Liq. Cryst. 2016, 43, 381–392. [CrossRef]
26. Pană, A.; Panait, A.L.; Cîrcu, V. Simple and double pyridinium salts with cyanobiphenyl groups as ionic liquids and ionic liquid
crystals: Synthesis and investigation of thermal behavior. Res. Chem. Intermed. 2018, 44, 2025–2038. [CrossRef]
27. Pană, A.; Pasuk, I.; Micutz, M.; Cîrcu, V. Nematic ionic liquid crystals based o pyridinium salts derived from 4-hydroxypyridine.
CrystEngComm 2016, 18, 5066–5069. [CrossRef]
28. Weng, Q.; Duan, L.; Chen, P.; Shi, D.; Gao, A.; Chen, X.; An, Z. Synthesis and mesomorphic properties of benzoxazole derivatives
with lateral multifluoto subtituents. Liq. Cryst. 2019, 46, 59–66. [CrossRef]
29. Kensuke, K.; Hideaki, H.; Yukiko, T.; Jun-ichi, H. Electronic conduction in biphenyl liquid crystals. Chem. Lett. 2006, 35, 1194–1195.
30. Thaker, B.T.; Kanojiya, J.B. Synthesis, characterization and mesophase behavior of new liquid crystalline compounds having
chalcone as a central linkage. Mol. Cryst. Liq. Cryst. 2011, 542, 84/[606]–98/[620]. [CrossRef]
31. Jiang, W.; Takayuki, U.; Akira, O.; Jun-ichi, H. Charge carrier transport properties of biphenyl liquid cystals with a dimer structure.
Chem. Lett. 2009, 38, 592–593.
32. Mouquinho, A.; Saavedra, M.; Maiau, A.; Petrova, K.; Barros, M.T.; Figueirinhas, J.L.; Sotomayor, J. Films based on new methacrylate
monomers: Synthesis, characterization and electro-optical properties. Mol. Cryst. Liq. Cryst. 2011, 542, 132/[654]–140/[662]. [CrossRef]
33. Barros, M.T.; Mouquinho, A.; Petrova, K.; Saavedra, M.; Sotomayor, J. Fast synthesis employing a microwave assisted neat
protocol of new monomers potentially useful for the preparation of PDLC films. Cent. Eur. J. Chem. 2011, 9, 557–566.
34. Mocanu, A.S.; Amela-Cortes, M.; Molard, Y.; Cîrcu, V.; Cordier, S. Liquid crystals properties resulting from synergetic effects
between non-mesogenic organic molecules and a one nanometre sized octahedral transition metal cluster. Chem. Commun.
2011, 47, 2056–2058. [CrossRef] [PubMed]
35. Pană, A.; Badea, F.L.; Ilis¸, M.; Staicu, T.; Micutz, M.; Pasuk, I.; Cîrcu, V. Effect of counterion on the mesomorphic behavior and
optical properties of columnar pyridinium ionic liquid crystals derived from 4-hydroxypyridine. J. Mol. Struct. 2015, 1083, 245–251.
[CrossRef]
36. You, F.; Twieg, R.J. Aromatic nucleophilic substitution with 4-hydroxypyridine. Tetrahedron Lett. 1999, 40, 8759–8762. [CrossRef]
37. Johnson, B.L.; Kitahara, J.; Weakley, T.R.J.; Keana, J.F.W. Intramolecular [2+2] photocycloaddition of juxtaposed 4-pyridone
moieties. Tetrahedron Lett. 1993, 34, 5555–5558. [CrossRef]

Molecules 2021, 26, 2017
16 of 16
38. Itahara, T. Synthesis and liquid crystalline properties of novel pyridine derivatives. J. Heterocycl. Chem. 2008, 45, 913–916.
[CrossRef]
39. Shao, W.; Wang, Y.; Yang, Z.-P.; Zhang, X.; You, S.-L. Efficient synthesis of N-alkylated 4-pyridones by copper-catalyzed
intermolecular asymmetric propargylic amination. Chem. Asian J. 2018, 13, 1103–1107. [CrossRef]
40. Katritzky, A.R.; Jones, A. Infrared absorption of heteroaromatic and benzenoid six-membered monocyclic nuclei. Part X.
Pyrirdones and pyridthiones. J. Chem. Soc. 1960, 2947–2953. [CrossRef]
41. Lothian, A.; Platt, A.W.G. Synthesis and spectroscopy of lanthanide nitrate complexes of thiethyl phosphonoacetate. Polyhedron
1992, 23, 2983–2987. [CrossRef]
42. Lees, A.M.J.; Kresinski, R.A.; Platt, A.W.G. Complexes of (EtO)2P(O)CH2P(O)(OEt)2 with lanthanide nitrates. New J. Chem.
2004, 28, 1457–1463. [CrossRef]
43. Xu, X.; Ma, Y.-F.; Liu, W.-S.; Tang, Y.; Tan, M.-Y. Preparation, crystal structures and luminescent properties of terbium and
europium complexes with a new amino-alkenone type ligand. J. Fluoresc. 2011, 21, 35–42. [CrossRef] [PubMed]
44. Law, G.-L.; Wong, K.-L.; Zhou, X.; Wong, W.-T.; Tanner, P.A. Crystal structure and luminescence of lanthanide monodentate
complexes [Ln(C(4)N(4)H(6)O)(2)(H(2)O)(6)]Cl(3) and [Ln(C(4)N(4)H(6)O)(2)(H(2)O)(3)(NO(3))(3)] (Ln = Tb or Eu). Inorg. Chem.
2005, 44, 4142–4144. [CrossRef] [PubMed]
45. Goodgame, D.M.L.; Lalia-Kantouri, M.; Williams, D.J. Crystal and molecular structures of the 4-(1H)-pyridone (= L) lanthanide
complexes {[GdL(NO3)3(H2O)]
[CrossRef]
·
CH3OH}2 and [DyL4(NO3)2](NO3) and of L2HNO3. J. Crystallogr. Spectrosc. Res. 1993, 23, 373–380.
46. Anjaneyulu, O.; Prasad, T.K.; Kumara Swamy, K.C. Tris(4-hydroxypyridinium) nitrato lanthanide complexes [M(4-O-
C6H4NH)3(NO3)2(H2O)2]]NO3] {M = La, Ce, Pr, Nd, Eu, Gd}- Synthesis and structural characterization. Inorg. Chim. Acta
2010, 363, 2990–2995. [CrossRef]
47. Armelao, L.; Quici, S.; Barigelletti, F.; Accorsi, G.; Bottaro, G.; Cavazzini, M.; Tondello, E. Design of luminescent lanthanide
complexes: From molecules to highly efficient photo-emitting materials. Coord. Chem. Rev. 2010, 254, 487–505. [CrossRef]
48. Wang, Y.; Shi, J.; Chen, J.; Zhu, W.; Baranoff, E. Recent progress in luminescent liquid crystal materials: Design, properties and
application for linearly polarised emission. J. Mater. Chem. C 2015, 3, 7993–8005. [CrossRef]
49. Wu, X.; Zhu, M.; Bruce, D.W.; Zhu, W.; Wang, Y. An overview pf phosphorescent matellomesogens based on platinum and
iridium. J. Mater. Chem. C 2018, 6, 9848–9860. [CrossRef]
50. Krupin, A.S.; Knyazev, A.A.; Galyametdinov, Y.G. Lanthanide-containing nematic phase with controlled polarized luminescence
at room temperature. Liq. Cryst. Their Appl. 2018, 18, 15–23. [CrossRef]
51. Knyazev, A.A.; Krupin, A.S.; Haase, W.; Galyametdinov, Y.G. Polarized Luminescence of alighned lanthanide containing nematic
mixtures. Liq. Cryst. Their Appl. 2019, 19, 31–39. [CrossRef]
