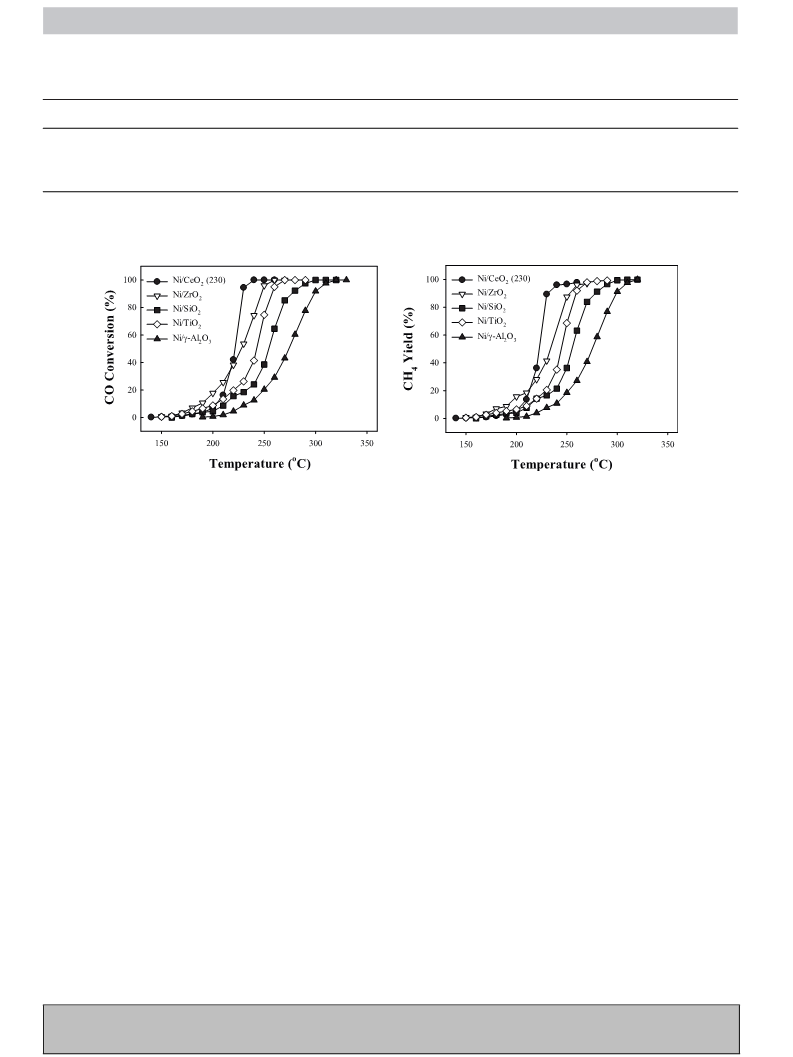

ports such as ␥-Al2O3, SiO2, TiO2, CeO2, and ZrO2. Among them, the
Ni/CeO2 catalyst was selected as the best catalyst. Furthermore,
we have also found that the methanation activity over Ni/CeO2 is
proportional to the surface area of CeO2. Since these methanation
reactions are exothermic and thermodynamically limited at high
temperatures, it is quite desirable to carry out these reactions at low
temperatures to achieve high conversions of CO and CO2. There-
fore, a number of series Ni-CeO2 catalysts containing different Ni
contents were prepared by co-precipitation method and applied to
CO and CO2 methanation to find out the optimum Ni content. The
stability test was also carried out for the selected catalyst.

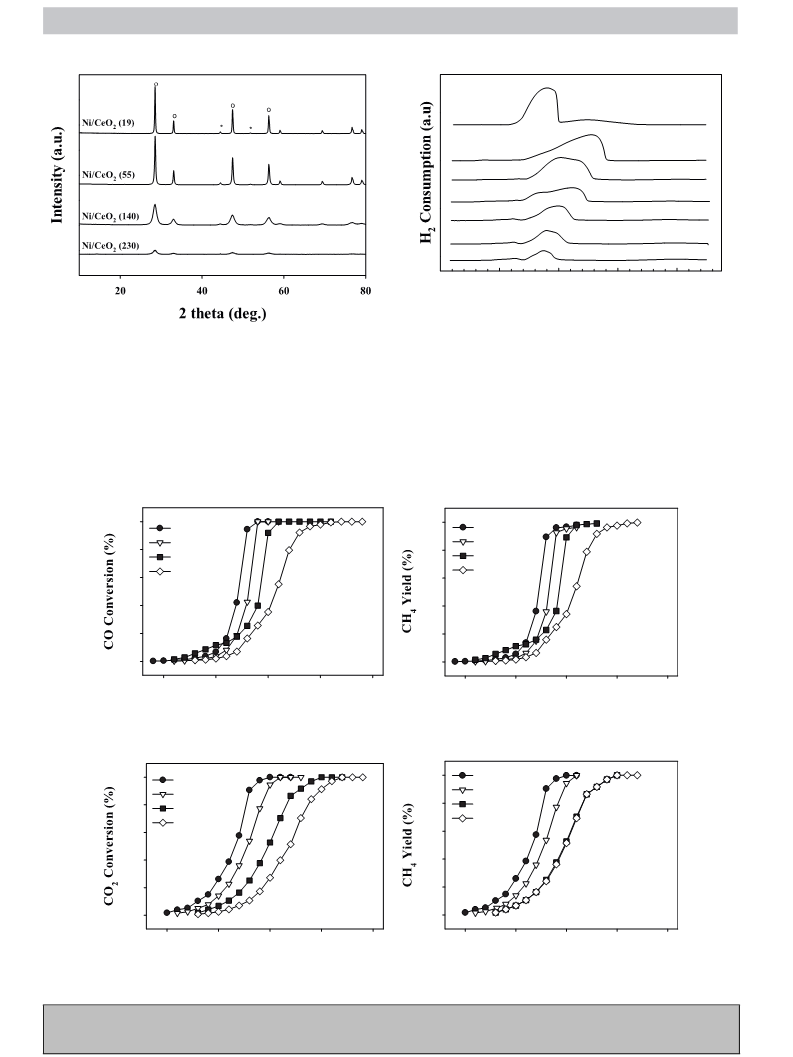

Powder X-ray diffraction (XRD) experiments were carried out
on a Rigaku D/Max instrument with a Cu K␣ source. The primary
crystallite sizes of the catalysts were determined using the Scherrer
equation [29],
0.9ꢀk˛1
B(2ꢁ) cos ꢁmax
L =
,
(3)
where L denotes the average particle size, 0.9 is the value in radians
when B(2) is the full width at half maximum (FWHM) of the peak,
is the wavelength of the X-ray radiation (0.15406 nm), and
is the angular position at the (111) peak maximum of Ni.
K␣1
max
The Ni content was confirmed using inductively coupled
plasma-atomic emission spectroscopy (ICP-AES) (Thermo Scientific
iCAP 6500).
2. Experimental

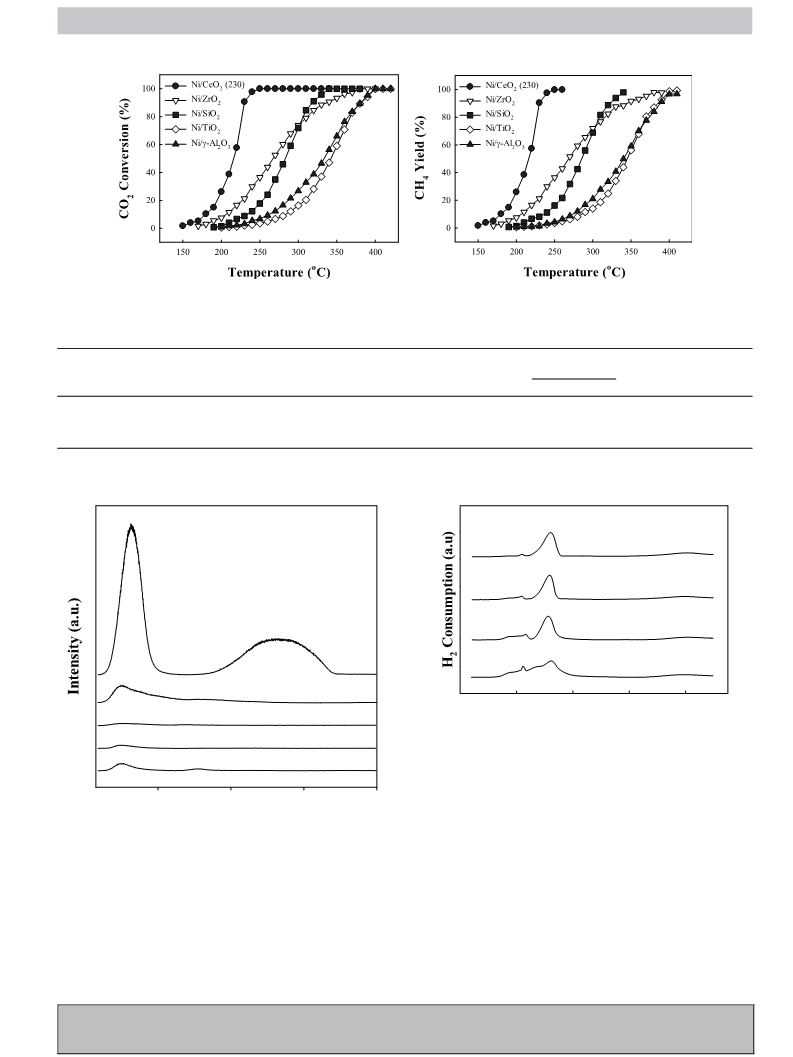

Hydrogen temperature-programmed reduction (H2-TPR) of the
sample was carried out on a Micromeritics Autochem 2910
equipped with a thermal conductivity detector (TCD). H2-TPR was
performed using 10 mol% H2/Ar at a flow rate of 30 mL/min in the
temperature range 40–900 ◦C at a heating rate of 10 ◦C/min. The
hydrogen consumption was calculated based on the H2-TPR pat-
terns of predetermined amount of Ag2O.
Temperature-programmed desorption (TPD) of the sample was
carried out on a Micromeritics Autochem 2910 equipped with a TCD
and mass spectrometric detector. A pulsed CO2 chemisorption was
conducted at room temperature by injection of 0.50 mL of 15 mol%
CO2 balanced with He in He stream. TPD was performed using He
at a flow rate of 30 mL/min in the temperature range 40–900 ◦C at a
heating rate of 10 ◦C/min. The ion signals recorded at m/e = 44 was
utilized for monitoring desorbed CO2.
2.1. Preparation of catalysts
Different supports, such as SiO2 (Zeochem, ZEOprep 60,
S
BET = 542 m2/g), TiO2 (Degussa, P25, SBET = 51 m2/g), ␥-Al2O3 (Alfa-
aesar, SBET = 162 m2/g), CeO2 (Rhodia, HSA20, SBET = 140 m2/g),
and CeO2 (Rhodia, SBET = 230 m2/g) were purchased and used as
received. Only ZrO2 (SBET = 50 m2/g) was prepared by precipita-
tion method from an aqueous solution of ZrO(NO3)2·2H2O (Junsei
Chemical) and Na2CO3 (Junsei Chemical). To change the surface
area of ceria, CeO2 (Rhodia, HSA20, SBET = 140 m2/g) was calcined
in air at 800 and 1000 ◦C, respectively. To differentiate each ceria
support with different surface areas, its surface area is denoted in
parenthesis, e.g. CeO2 (55) implies the ceria support with a surface
area of 55 m2/g, which was prepared through calcination of CeO2
(Rhodia, HSA20, SBET = 140 m2/g) at 800 ◦C.
Various supported Ni catalysts were prepared by wet impreg-
nation. 2.81 g of Ni(NO3)2·6H2O (Junsei Chemical) was dissolved
into 50 mL of deionized water and mixed with 5 g of support. The
excesswater was slowly removedusing a rotary evaporator(BUCHI,
Switzerland). The recovered powder was dried in an oven at 120 ◦C
for 12 h and calcined in an air stream at 500 ◦C for 3 h. These cal-
cined samples were reduced in a H2 stream at 500 ◦C for 1 h before
reaction. The Ni content was intended to be 10 wt% for supported
Ni catalysts.

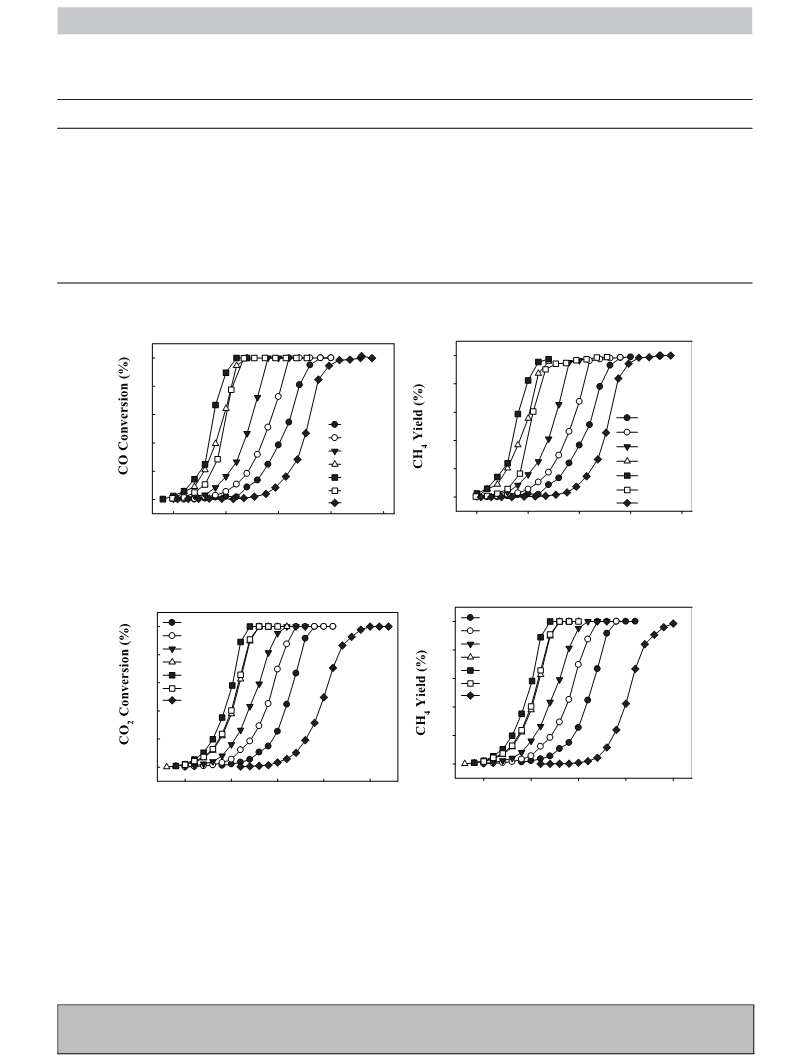

NiaCe1-aOx (0.3 ≤ a ≤ 0.9) catalysts were prepared using a co-
precipitation method at room temperature. Ni(NO3)2·6H2O (Junsei
Chemical) and Ce(NO3)3·6H2O (Junsei Chemical) were first dis-
solved in deionized water to make solutions with different mole
fractions of Ni. Then, aqueous Na2CO3 solution was added drop-
wise under vigorous stirring to reach a final pH 9 and the slurry was
was filtered and washed with deionized water and dried at 110 ◦C
and calcined in air at 500 ◦C for 5 h. All the prepared catalysts were
reduced in hydrogen at 500 ◦C before reaction.
For comparison, NiO nanoparticles were synthesized as
described in the previous work [28]. Briefly, an aqueous
Ni(NO3)2·6H2O (Junsei Chemical) solution was added drop-
wise to the poly(ethylene glycol)-block-poly (propylene)-block-
poly(ethylene glycol) (PEG-PPG-PEG, Mn = 8400, Aldrich) mixture
in which PEG-PPG-PEG was mixed with NaOH (Samchun Chemi-
cal) in deionized water. The resulting mixture was stirred at room
temperature for 1 h, centrifuged, washed three times with water
and then with isopropanol (Aldrich), and dried at 50 ◦C for 12 h.
The dried powder was calcined at 500 ◦C for 2 h in an air stream.
2.3. Catalytic activity test
The catalytic activity tests were conducted at atmospheric pres-
sure using a continuous fixed bed reactor system. Generally, 0.10 g
of the catalyst that had been retained between 45 and 80 mesh
sieves was loaded into the quartz reactor (internal diameter = 3 mm
and length = 345 mm) and brought into contact with a feed com-
posed of 1 mol% CO or CO2, 50 mol% H2, and 49 mol% He at a flow
rate of 100 mL/min. The mass flow rate of each gas was controlled
with a mass flow controller (MFC) (Brooks Instrument). The reac-
tion temperature was measured by a thermocouple placed in the
catalyst bed.
In order to obtain the kinetic data for CO and CO2 methanation,
50 mg of the catalyst was diluted with 0.15 g of ␣-Al2O3 to avoid the
generation of hot spot in the catalyst bed. The steady-state activity
data at different temperatures were measured only when CO or CO2
conversion was less than 15%.
The reactants and products were separated using a packed col-
umn filled with Carbosphere® and capillary Poraplot Q column, and
analyzed using an online gas chromatographer (HP 6890) fitted
with a TCD and flame ionization detector. The conversion of CO and
CO2 and carbon yields to CH4, CO, C2H6, and C3H8 were calculated
using the following equations:
CO conversion (%) = ([CO]in − [CO]out)/[CO]in × 100,
CO2 conversion (%) = ([CO2]in − CO2]out)/[CO2]in × 100,
(4)
(5)
Carbon yield to CH4(%) = [CH4]out/([CO]in + [CO2]in) × 100, (6)
Carbon yield to CO(%) = [CO]out/[CO2]in × 100,
(7)
2.2. Characterization of catalysts
Carbon yield to C2H6(%) = (2 × [C2H6]out)/([CO]in + [CO2]in
× 100,
)
The specific surface area of the sample was measured on a
Micromeritics ASAP 2020 system and calculated by the Brunauer-
Emmett-Teller (BET) method. Prior to the measurement, the sample
was degassed under vacuum for 6 h at 200 ◦C.
(8)
