Y. Xiong et al. / Chemical Physics Letters 440 (2007) 273–278
275
ing, the TEM grid or silicon wafer was transferred to a
gravity-fed flow cell and washed for 1 h with deionized
water to remove excess PVP. Finally, the sample was dried
and stored in vacuum for electron microscopy character-
ization. TEM images were captured using a Philips
CM100 transmission electron microscope operated at
100 kV, equipped with a Gatan Model 689 digital slow
scan camera. SEM images were taken on a FEI field-emis-
sion microscope (Sirion XL) operated at an accelerating
voltage of 20 kV. High-resolution TEM images were taken
on a JEOL 2010 LaB6 high-resolution transmission elec-
tron microscope operated at 200 kV.
morphology of the final product [8,9]. In the current syn-
thesis, palladium ions were reduced by ascorbic acid to
form palladium atoms, which subsequently aggregated to
generate nuclei. At small sizes, the twin defects – a single
atomic layer in the form of a mirror (111) plane – could
be formed or removed from the nuclei depending on the
variation in free energy [12]. Once the nuclei have grown
past a certain size, they will evolve into seeds with a sin-
gle-crystal, single twinned, or multiple twinned structure.
These seeds would further grow into a cube, right bipyra-
mid, and fivefold twinned rod, respectively. Alternatively
multiple twinned seeds could remain as MTPs during the
growth process to enable a greater surface coverage by
{111} facets, which are lowest in energy. Note that the
nanobars were also derived from the single-crystal seeds,
where the slightly anisotropic growth was induced by local-
ized oxidative etching [5]. A summary of these growth
pathways is shown in Fig. 2. From this perspective, both
the crystallinity of the seed and the ratio of {100} to
{111} facets on its surface play a vital role in forming a
fivefold twinned nanorod.
3. Results and discussion
The synthesis was typically conducted at 80 °C in an
aqueous solution containing ascorbic acid, KBr, and
PVP, with the addition of Na2PdCl4 as a precursor to pal-
ladium atoms. The PVP served as a colloidal stabilizer,
while the ascorbic acid acted as a reducing agent. Similar
to a recent demonstration [5], the bromide was mainly used
to promote the formation of {100} facets. Fig. 1a–c shows
TEM and SEM images of a typical product which con-
tained 30% fivefold twinned nanorods of ca. 8 nm in diam-
eter and lengths up to 150 nm, 17% 10-nm multiple
twinned particles (MTPs, including both icosahedrons
and decahedrons), 18% single twinned right bipyramids
(i.e., structures with two right tetrahedrons symmetrically
placed base-to-base) of ca.10 nm in edge length (at the
base), and 35% single-crystal nanocubes and nanobars
(i.e., anisotropic structures with a square cross-section
and aspect ratios of 1–1.2). It is worth pointing out that
the nanorods can be separated from other structures by fil-
tering through a membrane with a pore size of 100 nm,
thanks to their relatively long lengths and high yields (see
Fig. S1).

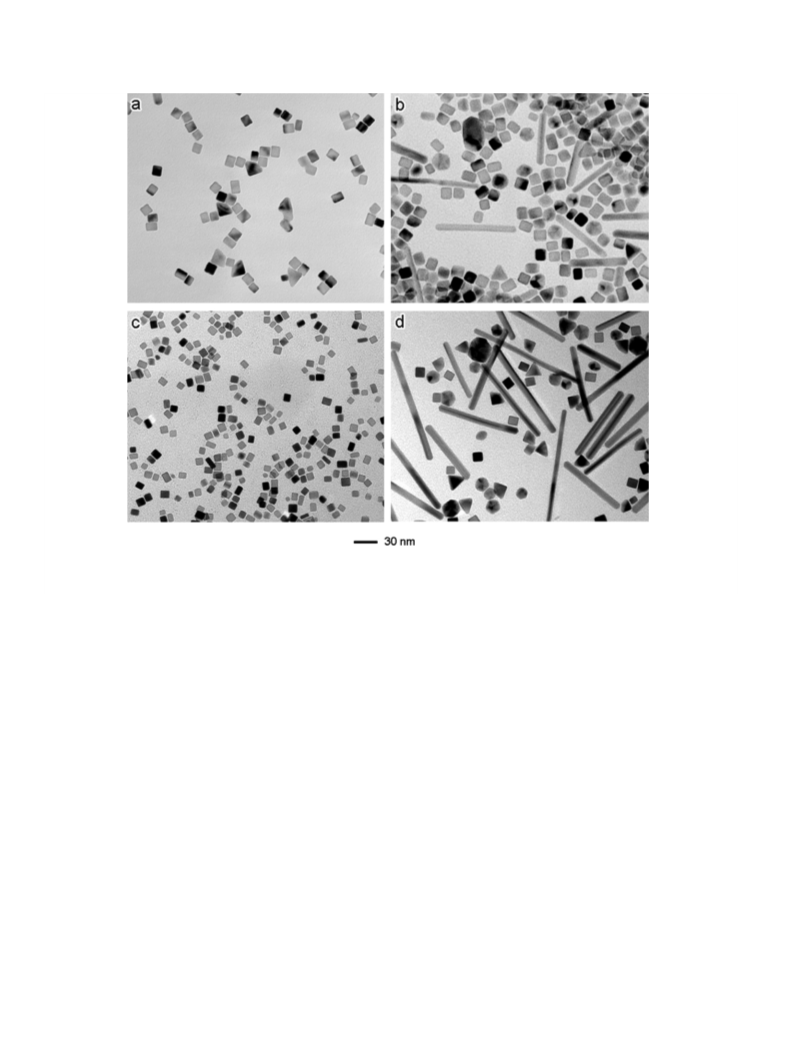

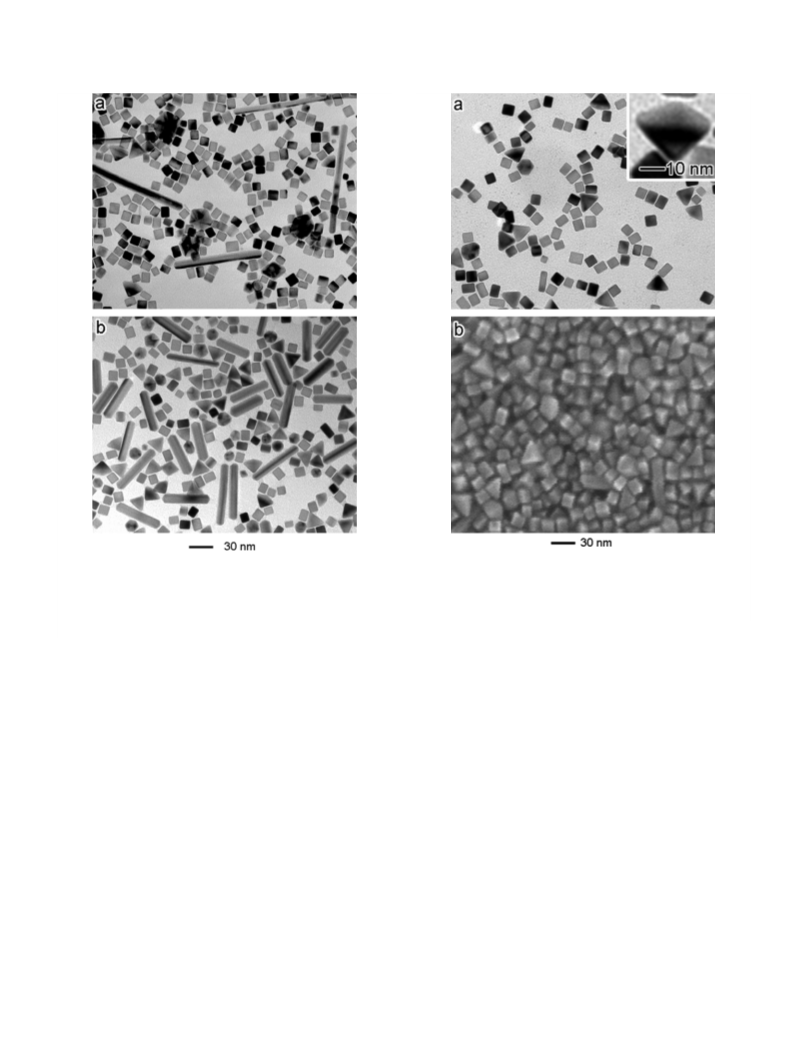

The reduction rate is critical to the formation of twinned
nanostructures. Theoretical analysis has suggested that the
extra energy caused by twins can be readily compensated
by maximizing {111} surface coverage when the seeds
are relatively small in size [13]. As the seeds grow bigger,
the low surface energy of {111} surface cannot remedy
the excessive strain energy, resulting in their evolution into
The structure of these palladium nanorods was further
studied using high-resolution TEM. Previous studies on sil-
ver and gold nanorods indicate that each fivefold twinned
nanorod is composed of five single-crystal subunits con-
nected by {111} twin planes, so that each nanorod has five
equivalently flat side {100} surfaces [6,7]. Such a nanorod
should preferentially lie on a flat surface against one of its
side faces rather than one of its edges. No matter which
side face is in contact with the TEM grid during sample
preparation, a twin boundary always appears in the middle
of the nanorod (see the inset of Fig. 1b). The high-resolu-
tion TEM image shown in Fig. 1d, recorded from the
end of a palladium nanorod, exhibits a (111) twin plane
oriented parallel to its longitudinal axis. Each side of this
twinned nanorod is a piece of single crystal with well-
resolved interference fringe spacing. It is worth emphasiz-
ing that the twin boundary is straight and continuous along
the entire longitudinal axis of each nanorod.
Fig. 2. Schematic illustrating the formation of Pd nanostructures with
various shapes observed in the present work. The green and gray colors
represent the {100} and {111} facets, respectively. Twins are delineated in
the figure with red lines. (For interpretation of the references to colour in
this figure legend, the reader is referred to the web version of this article.)
During the past several years, it has been demonstrated
that the structure of seeds involved in the synthesis of metal
nanostructures plays an important role in determining the
