in the presence of 0.5 vol% Me-EDA-Si in the base solution was only
5.86%. The ꢁ value decreased dramatically with higher Pt loading
on the FTO surface, indicating that most of the Pt became useless
due to Pt aggregation.
Comparison of data as shown in Table 1 further indicates the suc-
cessful decrease of Pt loading with the use of Me-EDA-Si without
loss of high cell efficiency under the similar preparation method.
Although there were efficiencies reported higher than 6–7% in the
literature, they usually involve optimal combination of all the com-
ponents in DSSC or usually on a very small substrate. In any case, a
higher ꢁ (7.39%) for our low Pt-loading counter electrode than the
corresponding sputtered-Pt counter electrode (6.01%) means we
should be able to further improve our cell efficiency with existing
technology.
4. Conclusions
We have developed a process whereby low Pt-loading counter
electrode can be prepared in very short period by dc electrode-
position with appropriate addition of Me-EDA-Si. The Me-EDA-Si
additive serves as an accelerator so that the counter electrode can

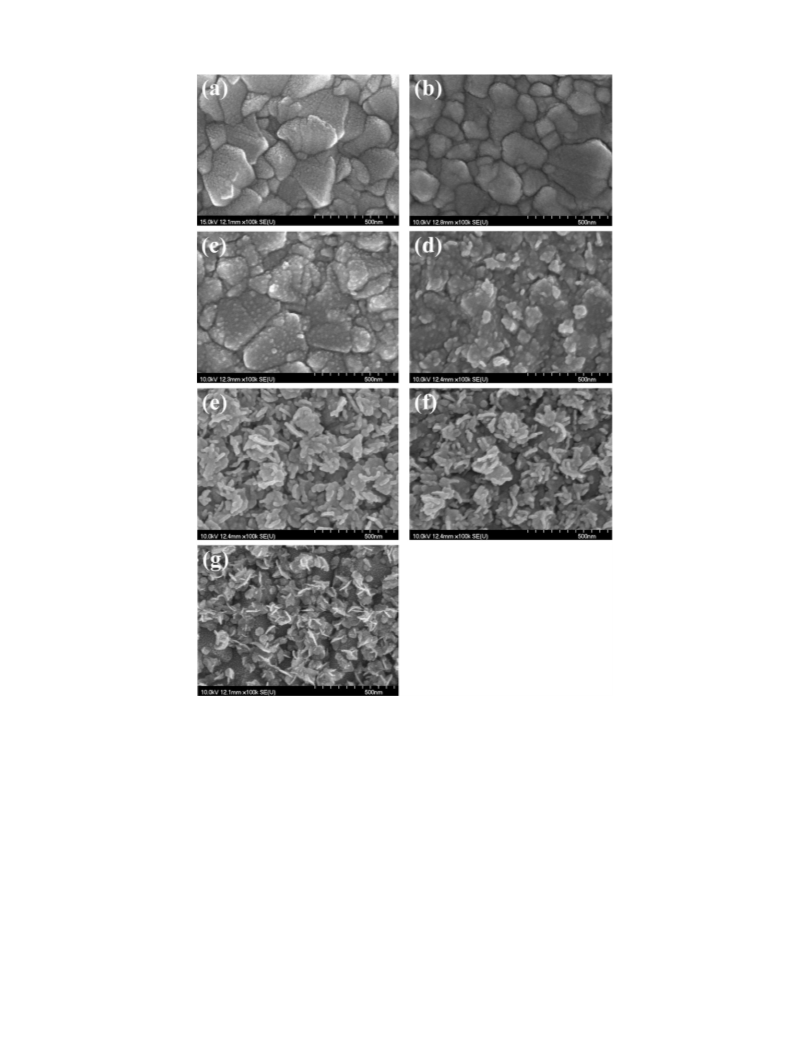

Me-EDA-Si can inhibit the growth of semicircle-like Pt grains, thus
resulting in the formation of high active surface area. The DSSC with
the electrodeposited-Pt counter electrode prepared in the presence
of 0.01 vol% Me-EDA-Si already demonstrated a fairly high cell effi-
ciency of 7.39% with very low Pt loading (∼4.76 g cm−2) in our
preliminary experiment without optimization. The improved per-
formance of the DSSC was attributed to the increased relative active
surface areas and the small charge-transfer resistance (1.39 ꢀ cm2).

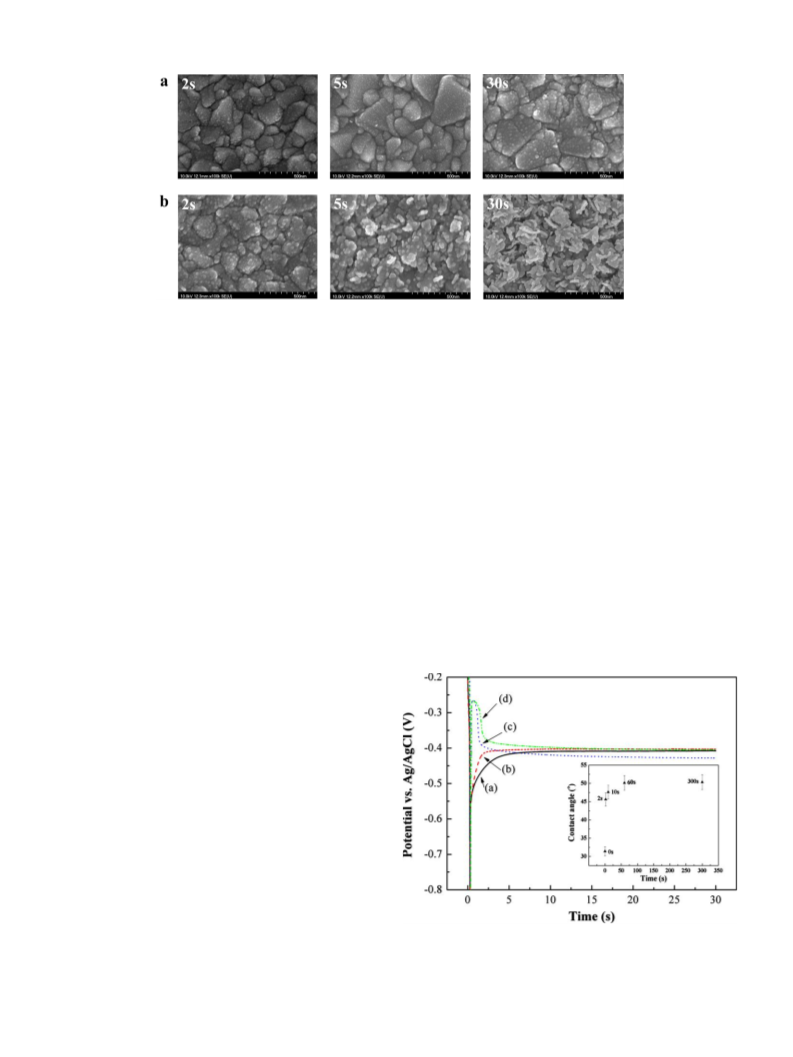

The whole process took only 30 s and was under ambient atmo-
sphere, and no high temperature post-annealing was required.
Fig. 6. Cyclic voltammetrics for the sputtered-Pt counter electrode and
electrodeposited-Pt counter electrodes prepared in the presence of 0 vol% and
0.01 vol% Me-EDA-Si.
presence of 0.01 vol% Me-EDA-Si as a working electrode indeed
demonstrated the largest current density for the reaction of I−/I3
.
−
The superior performance is related to high active surface area as
studied by other workers [7,13,19].
The I–V curves of the as-prepared DSSCs are shown in Fig. 7, and
the corresponding photovoltaic parameters are listed in Table 1.
The performance of the DSSC with Pt counter electrode electrode-
posited with 0.01% Me-EDA-Si additive (Pt loading ∼4.76 g cm−2
)
shows a short circuit current (Jsc) of 17.45 mA cm−2, open circuit
voltage (Voc) 0.68 V, fill factor (FF) 0.62, thus yielding a 7.39% cell
efficiency (ꢁ). As for the DSSC with a sputtered-Pt counter electrode
(Pt loading ∼100 g cm−2), the Jsc, Voc and FF were 14.9 mA cm−2
,
0.66 V, and 0.61 and a resultant ꢁ of 6.01% Moreover, we noticed
that the Jsc and the ꢁ values of the DSSCs with electrodeposited-Pt
counter electrodes increased gradually with the Me-EDA-Si con-
centration up to 0.01 vol% and then decreased with further addition

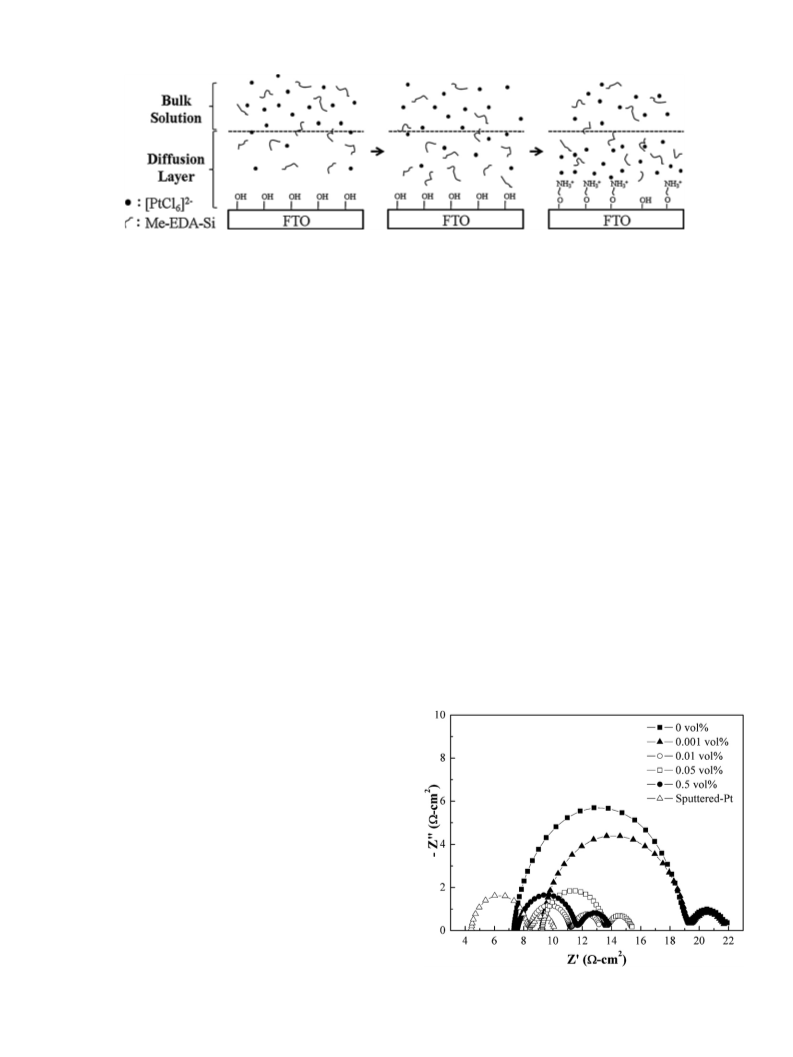

of Me-EDA-Si. This observation is indeed in consistency with the
EIS results. In addition, although the loading of Pt increased with
increasing Me-EDA-Si concentration, the cell efficiency reached a
maximum when 0.01 vol% Me-EDA-Si was added in the base solu-
tion. This might be attributed to the relative highest active surface
area in this particular case, as observed from the EIS and CV data,
