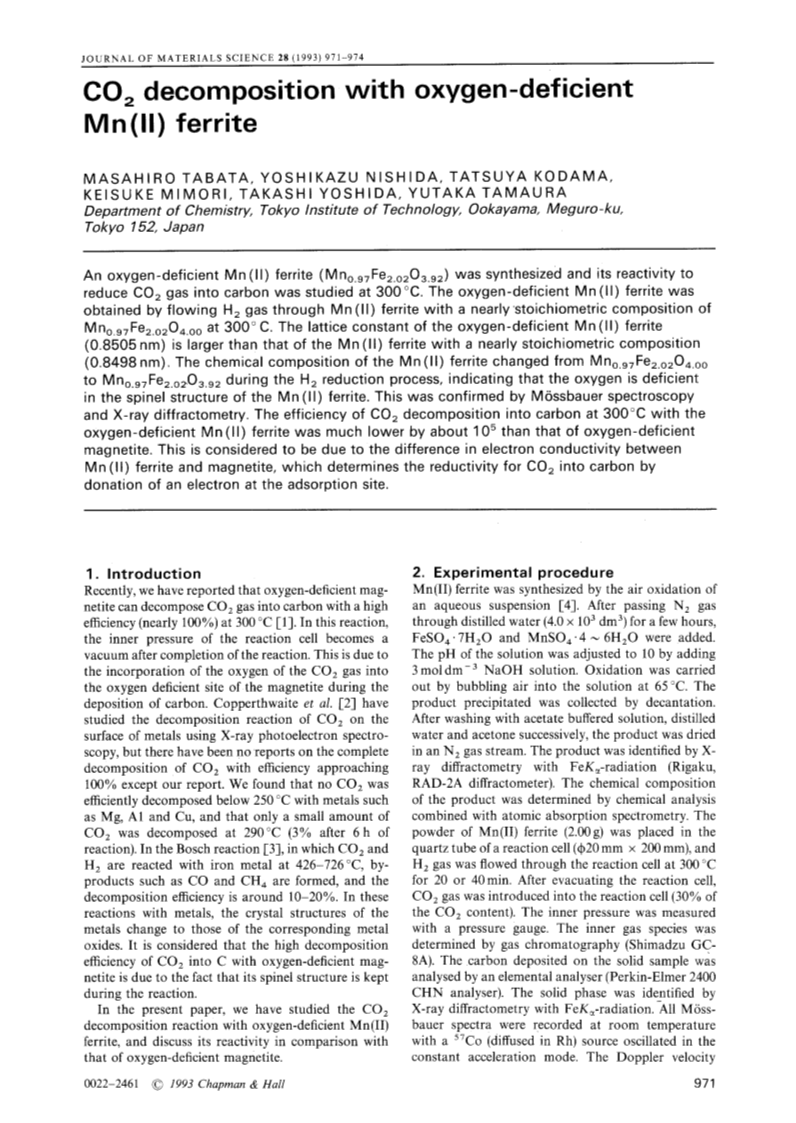

CO2 decomposition with oxygen-deficient Mn(II) ferrite

Article abstract of DOI:10.1007/BF00400881

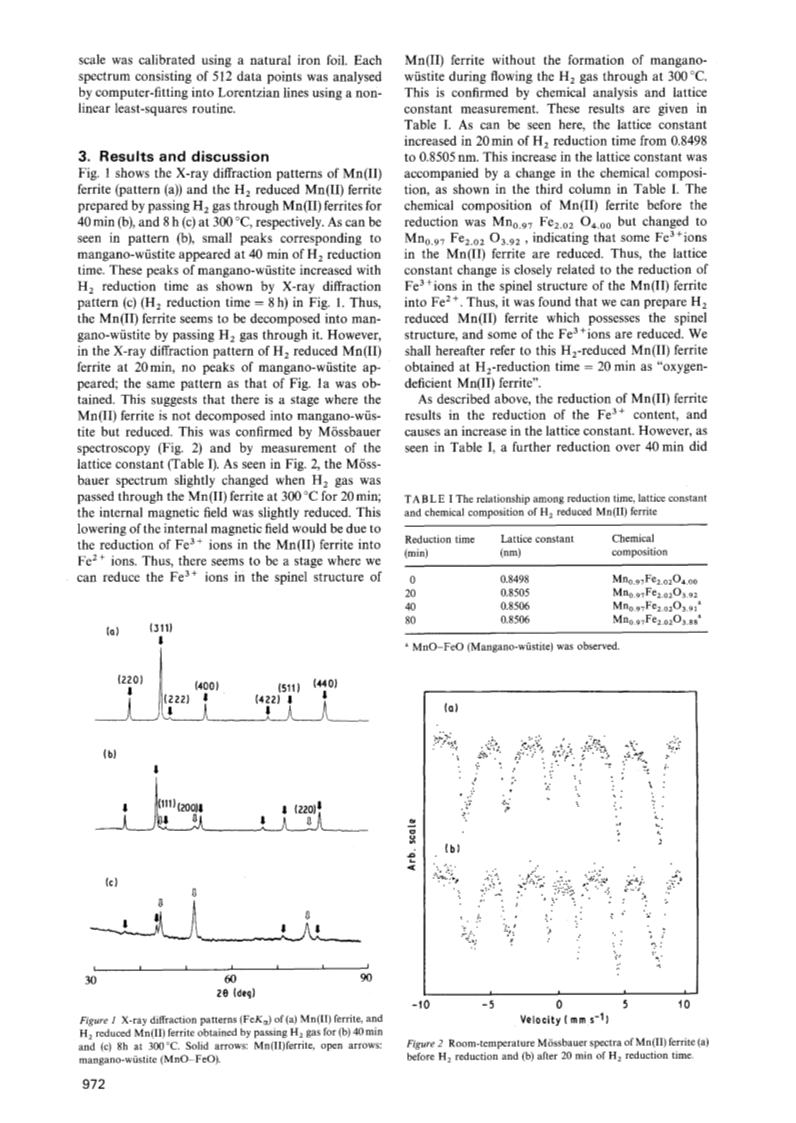

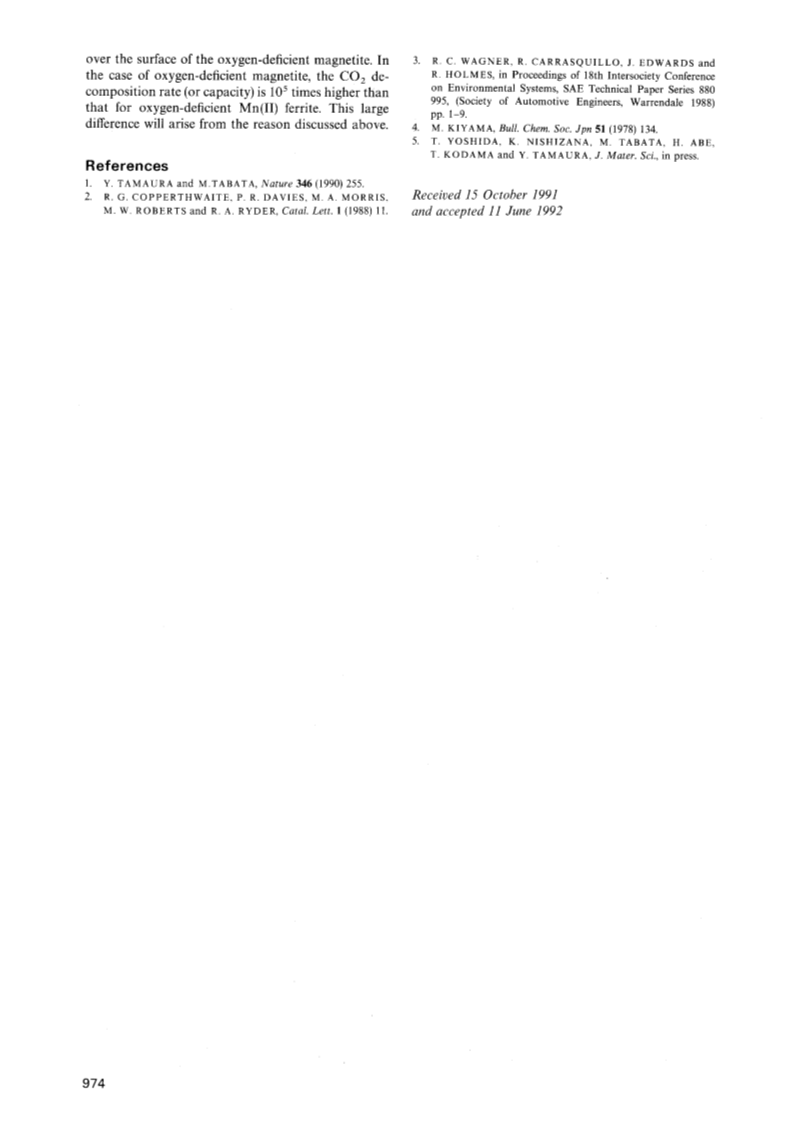

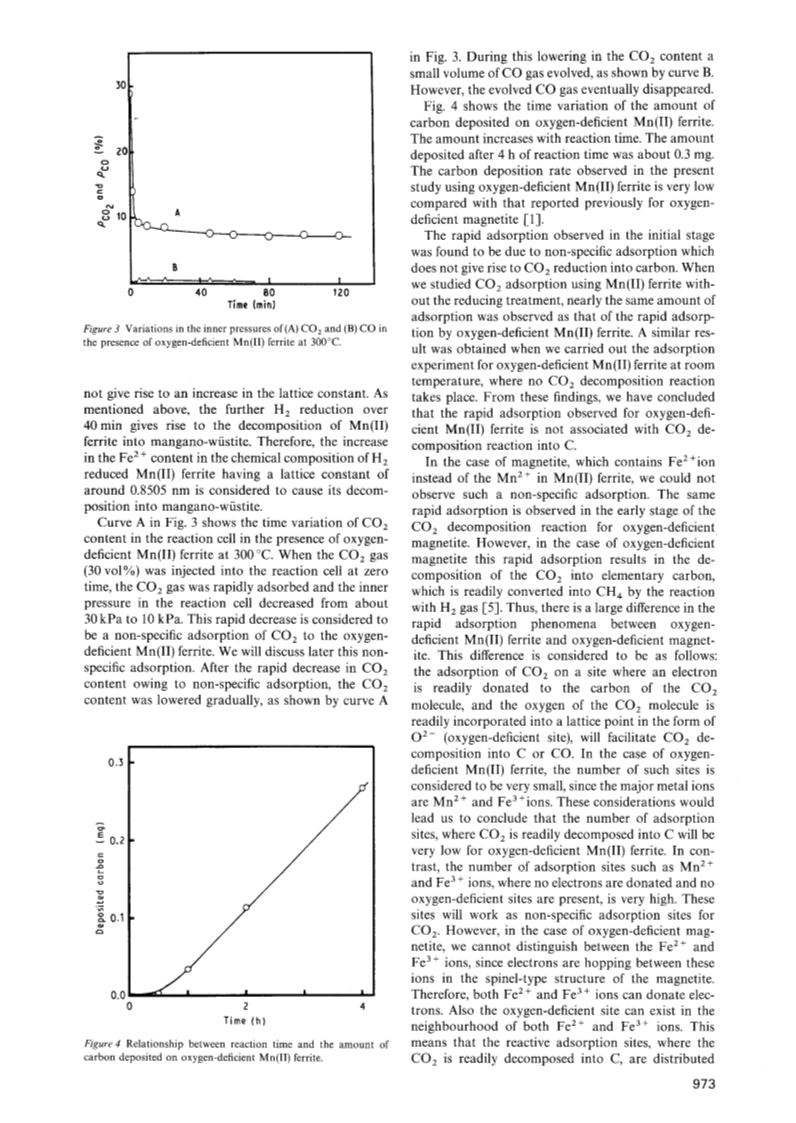

An oxygen-deficient Mn(II) ferrite (Mn_0.97Fe_2.02O_3.92) was synthesized and its reactivity to reduce CO₂ gas into carbon was studied at 300°C. The oxygen-deficient Mn(II) ferrite was obtained by flowing H₂ gas through Mn(II) ferrite with a nearly stoichiometric composition of Mn_0.97Fe_2.02O_4.00 at 300°C. The lattice constant of the oxygen-deficient Mn(II) ferrite (0.8505 nm) is larger than that of the Mn(II) ferrite with a nearly stoichiometric composition (0.8498 nm). The chemical composition of the Mn(II) ferrite changed from Mn_0.97Fe_2.02O_4.00 to Mn_0.97Fe_2.02O_3.92 during the H₂ reduction process, indicating that the oxygen is deficient in the spinel structure of the Mn(II) ferrite. This was confirmed by Mossbauer spectroscopy and X-ray diffractometry. The efficiency of CO₂ decomposition into carbon at 300°C with the oxygen-deficient Mn(II) ferrite was much lower by about 10⁵ than that of oxygen-deficient magnetite. This is considered to be due to the difference in electron conductivity between Mn(II) ferrite and magnetite, which determines the reductivity for CO₂ into carbon by donation of an electron at the adsorption site.
