Tuning cobalt and nitrogen co-doped carbon to maximum catalytic sites by
superabsorbent for efficient oxygen reduction
Mengran Liu, Hai Lin, Zongwei Mei, Jinlong Yang, Jie Lin, Yidong Liu,* and Feng Pan*
M. Liu, H. Lin, Dr. Z. Mei, Dr. J. Yang, Prof. Y. Liu, Prof. F. Pan
School of Advanced Materials, Peking University Shenzhen Graduate School, Shenzhen
518055, China.
E-mail: liuyd@pkusz.edu.cn (Y. Liu); panfeng@pkusz.edu.cn (F. Pan)
J. Lin
Fujian Institute of Subtropical Botany, Xiamen 361006, China
Keywords: transition metal-nitrogen doping carbon catalysts, oxygen reduction reaction,
superabsorbent resin, cobalt content
The electrocatalytic performance and cost of oxygen reduction reaction (ORR) catalysts are
crucial to many renewable energy conversion and storage systems/ devices. Recently,
transition metal-nitrogen doping carbon catalysts (M-N-C) have attracted tremendous
attention, which are effective to reduce costs and exhibit excellent catalytic activities, but are
restricted in large-scale commercial applications by complex preparation processing. Here, a
novel and facile strategy to prepare Co-N-C catalyst is developed. A kind of super absorbent
resin normally found in diaper, poly (acrylic acid-acrylamide), is used to adsorb transition
metal cobalt salt and followed pyrolysis strategy at 800 ºC under argon atmosphere. The resin
plays a multiple role simultaneously, including structural support, dispersing cobalt ions by
coordinate bonds, providing carbon & nitrogen source and so on. Attributed to the conductive
carbon frameworks and abundant catalytic sites, the Co-N-C catalyst exhibits excellent
electrocatalytic performance. High onset potential (0.96 V vs. reversible hydrogen potential,
RHE) and half-wave potential (0.80 V vs. RHE) and a large diffusion-limited current density
(4.65 mA cm−2) are achieved for ORR, comparable or superior to the commercial 20% Pt/C
and reported M-N-C ORR electrocatalysts. This work provides a universal dispersion
technology for Co-N-C catalyst, which makes it a very promising candidate toward ORR.
1
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
1. Introduction
Oxygen reduction reaction (ORR) is a critically important reaction in many renewable
energy conversion and storage systems/ devices, such as fuel cells, metal-air batteries,[1]
and some industrial processes like chlor-alkali electrolysis.[2] Nevertheless, due to the
inherently sluggish kinetics of ORR compared with that of anodic reaction, it
dramatically limits the energy conversion efficiency and turns to be the bottleneck to
develop these energy devices.[3]
Currently, the state-of–the-art catalysts for ORR are still noble metal catalysts
especially platinum (Pt) catalysts owing to low overpotentials and large current
densities.[3a] However, these noble metal catalysts suffer from low earth reserves, high
cost, poisoning effects and insufficient stability that severely limit their large-scale
commercialization development.[4] In view of this, extensive research efforts have been
carried out to overcome above problems, including noble metal-transition metal (such
as Fe, Co, Cu and Ni) alloy with special structure control[4a, 5] and entirely new non-
noble metal materials doped with the active elements, such as metal-free heteroatom-
doped carbon materials,[1c, 6] transition metal-nitrogen doping carbon materials (M-Nx-
C),[7] transition metal nitrides,[8] oxides,[9] sulfides,[10] as well as their hybrids[7b, 11] etc.
Generally, there have been a series of techniques to prepare above catalysts which are
mainly divided into two aspects.[12] The major one is the thermal treatment strategy of
precursors with the help of sol-gel technique,[13] template method[14] and in situ
synthesis,[15] etc. And the other one focuses on new strategies, involving chemical
vapour deposition,[16] the wet-chemical strategy,[17] microwave method,[18] etc.
Among above new-type catalysts, the M-Nx-C (M =Fe and/or Co) catalysts are
believed to be the most promising candidates for cathode catalysts recently.[19]
Particularly, carbon materials with high electron conductivity, excellent corrosion
resistance and tunable surface properties make them good supporters for active sites.[3a,
2
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
20] Normally, The M-Nx-C catalysts are synthesized by thermal treatment of precursors
at certain temperature in an inert environment (nitrogen or argon).[21] Upon pyrolysis,
structure and morphology get changed and active sites for ORR are formed. Although
the catalytic mechanism of this kind of catalysts is still under debate, it is obviously
that the formation of the ORR active sites strongly depends on the composition of
precursor.[19] Since 1964, Jasinski reported that cobalt phthalocyanine could work in
catalyzing the ORR,[22] a lot of N-containing precursors with transition metal have
been studied, which contain phthalocyanine,[23] porphyrin,[24] corrole,[25]
polyacrylonitrile,[26] polypyrrole,[27] polyaniline[28] and polymerizable ionic liquid[29] etc.
Among these N-containing precursors, it is particularly difficult and complex for the
regulation of nitrogen content and the formation of nitrogen functional active groups
with metal and carbon atoms.

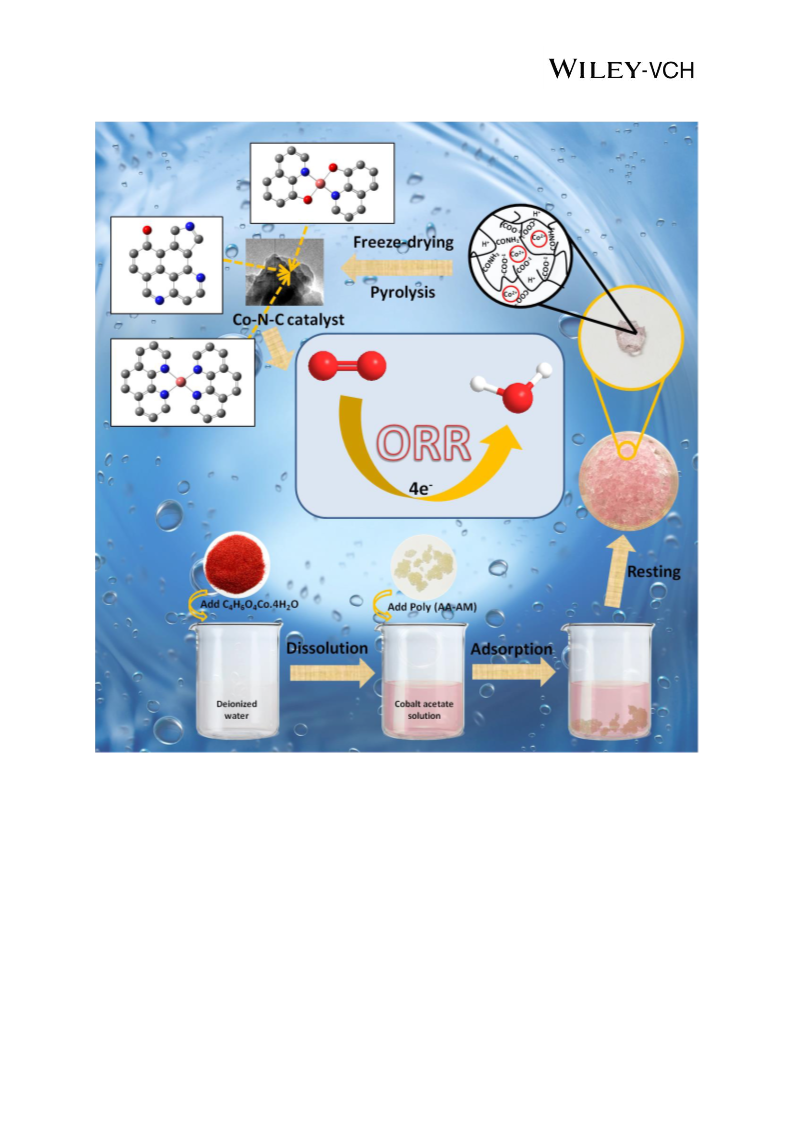

Here in, we develop a novel one-step synthesis and followed pyrolysis method to
prepare Co-Nx-C catalysts. By using inexpensive super absorbent resin poly (Acrylic
acid-Acrylamide) (Poly (AA-AM)) to absorb cobalt salt solution (Co2+@ Poly (AA-
AM)), the aims of high level dispersion spontaneously, structural support without
additional template and easy doping were achieved in one step. Pyrolysis of as-
prepared Co2+@ Poly (AA-AM) was carried out at 800 ºC under argon atmosphere.
Poly (AA-AM) not only plays a role in providing ligands, but also helps to achieve
structural support easily because of the existence of cross-linked networks. On the
other hand, due to the presence of amino and carboxyl groups, the transition metal ions
are selectable, and the ratio of acrylic and acrylamide monomers can also be used to
regulate the nitrogen content of the precursor. Although there are no pyridinium moieties
and the ringforming structure on the Poly (AA-AM) molecule chain, it can be self-assembled
with transition metal ions. After pyrolysis, it was confirmed that pyridinic N was formed to
achieve excellent electrocatalytic performance. The obtained Co-N-C catalysts show flake
3
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
morphology with a high surface area of ~500 m2 g−1, uniform distribution of Co-N
species, and certain nitrogen doping content in a continuous carbon framework. Our
Co-N/C catalysts display superior ORR performances but extremely low cost
compared to most of other ORR electrocatalyst, with a positive half-wave potential of
0.80 V versus reversible hydrogen electrode (RHE). As a whole, the ratio of N atom in
the precursors used in our work is the smallest, but the catalytic performance is equal to or
better than the other works. It shows that the utilization of nitrogen atoms is higher and high
proportion of doping can be achieved.
2. Results and discussion
FT-IR spectra of pure hydrogels Poly (AA-AM) and Co2+@Poly (AA-AM) are presented in
Figure 2a. Several distinct characteristic absorption peaks can be clearly identified from the
spectrum of pure hydrogels, confirming the copolymerizat-ion of AA and AM. Especially, the
two peaks locate at 1650 cm-1 (the absorption peak of carbonyl group C=O connected to the
amide group -CONH2) and 1546 cm-1 (carbonyl group antisymmetric stretching vibration
peak of -COO-) respectively, suggest the existence of the amido groups and the carboxylic
groups in the crosslinking network, which are hydrophilic groups. When hydrogels were
added to the cobalt acetate solution, those ionizable groups on the network chain ionized in
solution, in consequence, the positive ions existed as free-form, while the negative ions still
were connected with network chain. These similarly charged adjacent groups repelled each
other, and then the network expanded, providing space for water molecules and cobalt ion
freely access to crosslinking network. Obviously, the two characteristic peaks mentioned
above of Co2+@Poly (AA-AM) shifted towards lower wavenumbers, about 30 cm-1,
compared with those of pure hydrogels Poly (AA-AM). This is due to Co2+ formed ionic
bonds with -COO- group and formed a stable complexing structure with -CONH2, which
promote the uniform distribution and stability of cobalt ions in hydrogels. In this work,
4
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
hydrogels serving as a superb template that contains rich the group of -COO- and -CONH2
play a significant role on providing structural support and prompting cobalt ions dispersing.
The pyrolysis of as-prepared Co2+@Poly (AA-AM) was performed at high temperature in an
inert atmosphere to complete the transformation of the organic to inorganic phase. The
TGA/DSC tests were carried out to study the thermal decomposition performance of Co2+@
Poly (AA-AM). In the range of low temperature, moisture in the sample volatilizes gradually.
As the temperature rises, the organic groups and other small molecules are heated and
decomposed violently in the inert atmosphere. When the temperature rises above the
carbonization temperature, the non-carbon atoms were gradually eliminated, and the carbon
atoms were further enriched and crosslinked. As the DSC curve of Co2+@Poly (AA-AM)
complex depict (Figure S1), an obvious endothermic peak is observed at about 750 ºC, which
might be a result of the formation of carbonaceous framework.[14b]
Overall, the high ORR catalytic performance is in close connection with the surface property,
the elemental composition and their interaction of the catalysts, for instance, a high active site
density, a proper porosity to facilitate mass transport, and a high degree of carbonization to
achieve high electrical conductivity are essential parameters.[30]
XRD patterns of 800-2 and 800-5 Co-N-C catalysts are displayed in Figure 2b. No obvious
characteristic peak is observed in the XRD pattern of 800-2 Co-N-C, which might result from
the formation of amorphous structures or small crystal grains. However, with the increase of
cobalt content, the crystal structure of Co-N-C catalysts get changed. The diffraction peaks at
44.2º, 51.5º, 75.9º are attributed to the (111), (200) and (220) planes of metallic Co (PDF#15-
0806), respectively. Besides, the characteristic peaks at 31.3º and 38.6º are ascribed to the
(220) and (222) plane of Co3O4 phase (PDF#43-1003), implying the formation of Co-O
moieties. From the results, we suspect that during pyrolysis process, cobalt atoms congregate
first to form metal nanoclusters, and then the rising cobalt content leads to the increasing size
5
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
of crystal, in the meantime, oxygen atoms would participate in for the further formation of
Co-O structure.

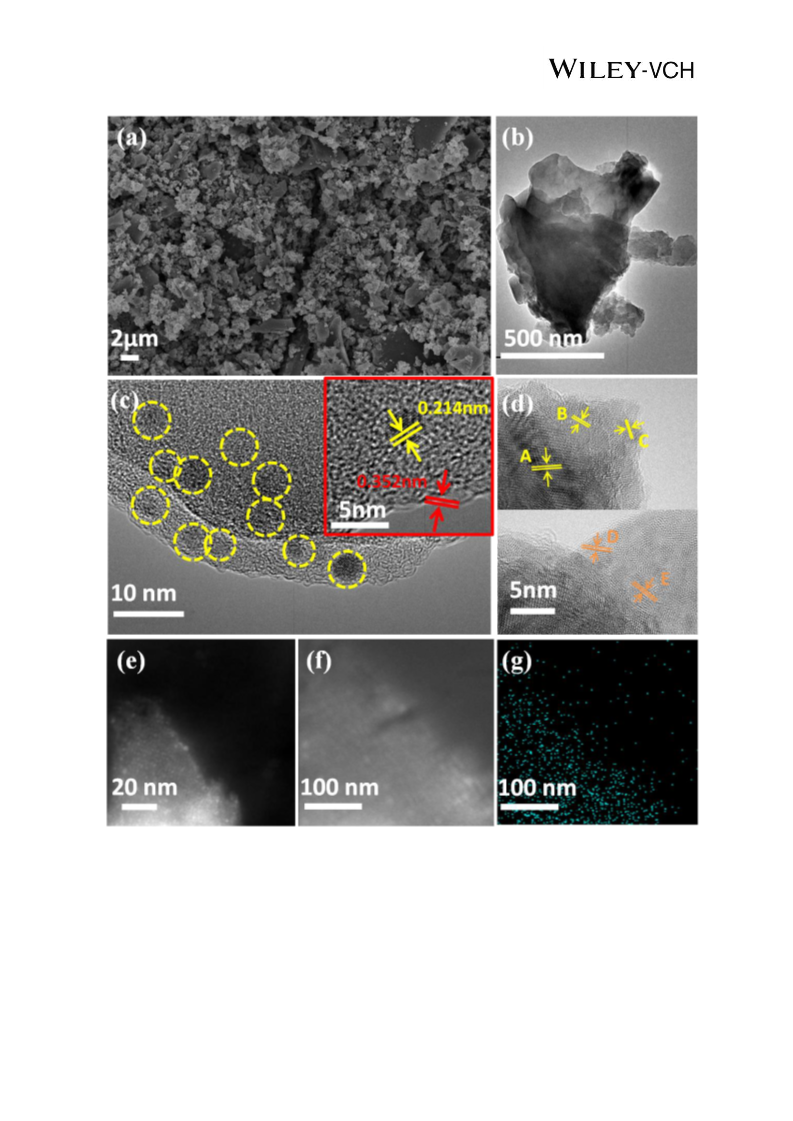

SEM and TEM images are acquired to investigate the morphologies and microstructures of
the catalysts. After the pyrolysis treatment and ball milling, highly carbonized carbonaceous
layer stacked up to particles with an open porous structure was formed. These particles have a
diameter range from about 100 nm to 2 μm (Figure 3a, b). To take further insights into the
surface area and porosity of the catalysts, N2 sorption isotherms of 800-0, 800-2 and 800-5
Co-N-C catalysts were characterized (Figure 2d). All samples exhibited sharp uptakes at a
relatively low N2 partial pressures (<0.01) indicating the existence of micropores (<2 nm).[26]
while 800-2 Co-N-C also showed a well-defined hysteresis loop at higher N2 pressures (from
0.4 to 1.0), which classed as a typical type IV isotherm, suggesting the existence of mesopores
as well.9 The BET specific surface areas show an increase from 315.83 m2 g-1 to 496.85 m2 g-1.
The largest surface area and porosity of 800-2 probably attributes to the well-distributed
cobalt element, which plays a catalytic part in carbonization and the formation of N-C doping.
High-resolution TEM (HRTEM) of 800-2 Co-N-C (Figure 3c) shows that small nanoclusters
(observed easily in the edge area and marked by yellow circles) with a narrow size
distribution about 2-5 nm were embedded in the carbon support uniformly. [14b] As magnified
insert in Figure 3c, these nanoclusters show the lattice spacing of 0.214 nm, which is slightly
larger compared with the standard value of the (111) plane of metallic Co. We speculated that
the larger lattice space may result from the intercalation of nitrogen, oxygen and/or carbon
into the cobalt spaces.[31] The carbonaceous fringes with a d-spacing of 0.352 nm correspond
to the (002) plane of graphitic carbon. Figure 3d shows the HR-TEM image of 800-5 Co-N/C.
The lattice spacing marked at A/B/C in this figure is 0.208 nm, 0.176 nm, and 0.125 nm,
corresponding to the (111) (200) (220) crystal face of metallic cobalt respectively. But the
grain size is much larger than that in 800-2. Besides, the lattice spacing presented at D/E is
0.243 nm and 0.286 nm, corresponding to the (220) (222) plane of Co3O4 respectively. Above
6
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
information obtained from HRTEM images is consistent with XRD patterns. To further
investigate the elemental distribution of Co element in the catalyst, HAADF-STEM (Figure
3e) and HAADF-STEM-EDS mappings (Figure 3g) of 800-2 Co-N-C were conducted. As
displayed in Figure 3e, the bright dots with relative light contrast correspond to Co atoms,
while the carbonized support materials with dark contrast. From HAADF-STEM-EDS
mappings of the edge area (Figure 3g and Figure S2), the catalysts are mainly composed of
C, O, N, and Co elements. The major elements C and N are evenly distributed, while the
distributions of O and Co elements with relatively low proportion are correlated and
interactive clearly, informing that O atoms and nitrogen-doped carbon fragments probably
grabbed around Co containing structure.
The surface chemical composition and state of Co-N-C were further characterized by XPS as
shown in Figure 4. The survey spectrum (shown in Figure 4a and detailed parameters in
Table S1&S2) reconfirms the presence of C, N, O and Co elements contained in Co-N-C
catalysts. When the pyrolysis temperature rising from 700 ºC to 800 ºC, these catalysts show
an increase in C atomic contents, but a decrease in N and O contents, and almost invariant Co
atomic contents. When further rising up to 900 ºC, the sharp decrease in cobalt content may
be due to the fact that cobalt atoms are congregated together and blocked by surface carbon
shells, therefore, some Co atoms cannot be detected by XPS. Simultaneously, C atomic
content still presents a trend of slight increase. The results can inform that the higher
carbonization degree is obtained at higher temperature, which is further enhanced the
electrical conductivity of these catalysts.[12]
The high-resolution C 1s spectra (Figure S3) of the catalysts are deconvoluted into five peaks,
indicating the presence of different carbon species: C=C (284.43 eV), C-C (284.88 eV),
C=O/C-N (286.20 eV), C-O/C=N (288.10 eV) and π-π (289.50 eV). The dominant carbon
specie of the 800-2 Co-N-C- is C=C bonding in sp2 hybridization (284.43 eV), while at the
higher binding energy, 286.20 eV and 288.10 eV, carbon atoms are bound to more
7
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
electronegative heteroatoms. As a result, the electron density of these carbon atoms is lower.
The formed C+ is believed to promote dissociative adsorption of oxygen, leading to four-
electron reduction pathway of ORR.[6] Overall, with the pyrolysis temperature increases, the
percentages of C=C bonds increases as well, while C=O/C-N shows a decrease, indicating a
higher carbonization (the detailed parameters in Table S3). Besides, there is no clear peak
corresponding to a carbon atom bound to a Co atom, implying the absence or low content of
cobalt carbide species, which is in good agreement with the XRD and the later Co 2p analysis
results.
The formation of the Co-N bonds can be confirmed by the fitted high resolution N1s XPS
spectra with an asymmetrical shape, as shown in Figure 4c. There are mainly three types of
the nitrogen species: pyrrolic N (400.1 eV), metal-coordinated Co-Nx (399.2 eV), and
pyridinic N (398.5 eV). Pyridinc-N exists at the edge of graphite plans, and the nitrogen atom
bonds to two carbon atoms, containing a lone electron pair, which can enhance the electron-
donor or basic capacities of the carbon materials. Thereby, it can effectively improve the
adsorption capacity of O2 and onset potential for the ORR.[32] Besides, weak significant
contribution at high binding energy value of more than 401 eV (401.2eV for graphitic N, and
404 eV for oxidized N), indicating that there are seldom nitrogen atoms that truly replace the
carbon atoms in graphene-sheet binding conditions or band to O atoms directly, ascribed to
polymer precursor Poly (AA-AM). From the fitted high resolution N1s XPS spectrums of
800-(0/5) Co-N-C (Figure S4), with the addition of cobalt content, the main peak gradually
shifted to low binding energy, implying the increase of the percentage of pyridinic N in the
total amount of N species. Recent studies reported that both pyridinic nitrogen and Co-Nx
were found to have ORR catalytic activity. Therefore, the enhanced catalytic activity for the
ORR observed on the Co-N-C catalyst should be attributed to the formation of pyridinic
nitrogen and Co-Nx in the process of high-temperature pyrolysis.[33]
8
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
High-resolution Co 2p spectra consist of Co 2p1/2, Co 2p3/2 and their corresponding
satellites. Overall, these two main peaks of 800-2 Co-N-C catalyst (797.50 eV for Co 2p1/2
&782.30 eV for Co 2p3/2) are separated by 15.2 eV, suggesting the mixed valence state of Co.
Compared to 800-2, the two peaks of Co 2p1/2 and Co 2p3/2 of 700-2 Co-N-C are separated
by 15 eV, confirming the only valence state (Figure S5). Obviously, as the cobalt content
rises, the peak intensity of the Co 2p spectra increases, and the peak position gradually shifts
toward the lower binding energy. In detail, the high-resolution Co 2p3/2 spectra of 800-5 Co-
N-C catalyst is deconvoluted into three sharp peaks at about 779.59, 780.72 and 782.30 eV,
attributed to metallic Co, CoxOy and Co-Nx, respectively. Compared to 800-5, the absence of
metallic Co peak at 779.59 eV of 800-2 suggests that no or little inactive Co aggregates are
formed. Furthermore, the largest percentage based on peak areas of Co-Nx species is observed
at 800-2, which is considered to be one of the most effective catalytic sites for ORR.
Raman spectra of the catalysts are shown in Figure 1d & Figure S7. There are two strong
peaks at 1350 cm-1 and 1597 cm-1.These two peaks are assigned to the D band (1350 cm-1)
and G band (1597 cm-1) of carbon, as D band is relative to the disorder and bonding between
heteroatom and carbon, while G band arises from the in-plane vibration of the sp2 carbon
network.[3a] The ratio of the D band and G band ID/IG is generally adopted to detect the
graphitization and disorder of carbon materials. The ID/IG of catalysts Co-N-C-800 increase
with the addition of cobalt from 0.98 to 1.03 (Figure 1d), implying the higher disordered and
richer defects in carbon matrix of the catalysts with a higher cobalt content. The results are
fully consistent with the XPS findings. Moreover, the ID/IG of catalysts 700/800/900-2 Co-N-
C decrease from 1.04 to 0.98 (Figure S7) with the pyrolysis temperature increasing,
indicating that a higher pyrolysis temperature can contribute to a higher graphitization degree.
Moreover, a small peak located at 672 cm-1 demonstrates the existence of Co3O4,[34] consistent
with the results of XRD and HRTEM.
9
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
To investigate the electrocatalytic activity of as-prepared catalysts, CV measurements were
first conducted at 10 mV s-1 in N2 or O2-saturated 0.1M KOH electrolytes. Comparing to the
result that no significant response occurs in N2-saturated solutions, a well- defined cathodic
peak near 0.80 V versus RHE is observed in O2-saturated electrolytes, implying an effective
ORR electrocatalytic activity of Co-N-C catalysts (Figure 5a). Furthermore, the LSV curves
of 800-(0-5) Co-N-C are depicted in Figure 5b and the ORR performance parameters of
catalysts are displayed in Table 1. Overall, the catalysts with relatively low cobalt doped
exhibit better ORR activity with the similar positive onset potential around 0.96 V (800-1,
800-2, 800-3) and the half-wave potential E1/2 of 0.80 V (800-1, 800-2). Especially, the most
positive Eonset and the most positive E1/2 of Co-N-C catalysts were 30 mV less and only 60 mV
less than those of commercial 20% Pt/C respectively. Moreover, those parameter values
exceed some M−N−C catalysts or other kinds of catalysts with much higher costs reported in
the literature (as shown in Table S4 & 5 & 6 & 7). The obtained diffusion-limited current
density of the 800-2 Co-N-C catalyst is 4.65 mA cm−2, even larger than that of the
commercial 20% Pt/C (4.64 mA cm−2).
The 800-0 Co-N-C catalyst without any Co doping shows a relatively limited catalytic activity,
then the catalytic activity is promoted continuously alongside Co doping up to wt.2%. An
obvious enhanced diffusion-limited current density and a positive sifted the half-wave
potential E1/2 can be easily observed. However, with further increasing of Co content, ORR
catalytic activity of Co-N-C catalysts show a trend of decreasing. Accurately, the effect of Co
doping content on ORR catalytic activity is similar to a mountain plot as shown in the insert
in Figure 5b, which is in good agreement with the above material characterization results.
Combined with XPS analysis results, it can be concluded that Co−N species and pyridinic N
play a catalytic role in favoring oxygen reduction reaction. When the cobalt content exceeds
the optimized content, there will be a decrease in catalytic activity which is attributed to the
formation of inactive cobalt aggregation species, metal cobalt and cobalt oxide, verified by
10
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
XRD results. Moreover, increasing the cobalt content also enhance the surface area and
porosity, which is conducive to the exposure of metal-based active sites onto the surface, as
well as the absorption and diffusion of molecular oxygen. Besides the percentages of Co
elements, the pyrolysis temperature is one of the other critical synthesis parameters for the
electrocatalysts. To further investigate the effect of pyrolysis temperature from 700 to 900 ºC
on ORR catalytic activity, as-precursors were fixed in the optimum Co doping content.
Figure S8 presents the LSV curves of 700/800/900-2 Co-N-C catalysts. Compared to 800-2
Co-N-C and 900-2 Co-N-C, the catalytic activity of 700-2 Co-N-C is negligible. According to
above analysis section, it is proved that there is no sign of the formation of Co-N bonds
(Figure S5 & S6). On the other hand, 700-2 Co-N-C is endowed with a slight poor electric
conductivity due to the existence of a certain amount of oxygen-contained groups and the
halfway carbonization. When the temperature rises to 900 ºC, the electrocatalysis
performance of 900-2 Co-N-C catalyst would be affected by the removal of nitrogen elements.
To gain a deep understanding of the reaction kinetics and pathways, the polarization curves of
800-2 Co-N-C were measured at various rotating rates ranging from 200 rpm to 1600 rpm, as
shown in Figure 5c. The onset potentials remain constant while the current densities increase
along with the increasing rotating rates, implying the kinetics-controlled of the ORR process.
According to the Koutecky–Levich (K-L) equation, the corresponding K–L plots under
various potentials of 800-2 Co-N-C were obtained by transforming the RDE data. Obviously,
all of them exhibit excellent linearity (the inset of Figure 5c), suggesting the first-order
reaction kinetics of the ORR toward the concentration of dissolved oxygen. As is known, the
electrocatalytic reduction of O2 in aqueous electrolytes goes through two generally recognized
pathways, two electron pathways or four electron pathways.[30] The number of electrons
transferred per oxygen molecule n was calculated about 3.89 based on the slope of K–L plots,
suggesting a near-four-electron oxygen reduction process. Furthermore, the durability of 800-
2 Co-N-C was also measured. After 2000 continuous cycles (Figure 5d), no obvious changes
11
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
happen to the E1/2 and Eonset, while the diffusion-limited current density exhibited a little
degradation about 7%, implying the stability of the active site requires being further improved.
In addition, the ratio of AM/AA is a vital parameter of super absorbent resin serving as
precursor of nitrogen and carbon source in this work, which may also influence the
electrocatalytic properties of Co-N-C catalysts. Therefore, it is worth to further study in the
next work.
Based on above experimental results, a possible mechanism was proposed to demonstrate the
super catalytic activity of 800-2 Co-N-C catalyst. It is supposed that the pyridinic nitrogen
and nitrogen-coordinated Co serve as catalytic active sites. On one hand, suitable pyrolysis
temperature is mainly beneficial to guarantee a higher carbonization level and an optimal
element proportion. Especially, 800 ºC is the minimum temperature to form nitrogen-
coordinated Co. On the other hand, the appropriate introduction of Co not only offers
nitrogen-coordinated Co active sites, but also contributes to promote the N-doping, porous
structure, and specific surface area of catalysts.[3a]
3. Conclusion
In summary, we developed an effective dispersing technology using super absorbent resin
adsorbing metal ion and followed pyrolysis strategy to fabricate Co-N-C catalyst for ORR.
The resin provides framework as well as doping elements sources to coordinate with metal
ions to form actives sites. In this work, Poly (AA-AM) and cobalt were chosen to realize the
idea. A large number of functional groups, amino and carboxyl, not only provide N and O, but
also contribute to form nitrogen-doped carbon species and nitrogen-coordinated Co active
sites. The Co-N-C catalyst exhibits excellent electrocatalytic performance which is
comparable to the commercialized Pt/C catalyst, but the cost is far below it, which makes the
composite catalyst easy to achieve commercialization instead of Pt-based catalyst. Also the
formula could be modified, that various resins and metal ions provide huge amount of
12
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
possible couples makes the molecular level dispersion technology kind of universal and can
be applied to other related fields.
4. Experimental Section
4.1. Chemicals and reagents
Cobalt (II) acetate tetrahydrate (C4H6O4Co·4H2O), methanol (MeOH) and KOH were
purchased from National reagent (Shanghai, china). Isopropylalcohol [(CH3)2CHOH] was
purchased from Fuyu reagent (Tianjin, China). Nafion solution (DuPont D520, 5%) and
commercial Pt/C (20%) (Johnson Matthey catalysts) used as a standard catalyst was
purchased from Hesen Company (Shanghai, China). All reagents were analytical grade and
deionized water was used throughout this study.
4.2. Characterization
Fourier transform infrared spectrum (FT-IR) of Poly (AA-AM) superabsorbent resin was
verified by a Perkin Elmer Frontier spectrophotometer. The thermogravimetry and differential
scanning calorimetry (TGA/DSC) tests were measured using TGA/DSC simultaneous thermal
analyser (TGA/DSC 1, Swiss Mettler Toledo). X-ray diffraction (XRD) patterns were carried
on X-ray diffractometer (D8 Advance, Bruker) using silicon substrate without diffraction
peak. The surface area and porosity of the Co-N-C catalysts were characterized by N2 sorption
isotherms using an Accelerated Surface Area and Porosimetry System (ASAP 2020 HD88,
Micromeritics). Morphology and structure of the as-prepared Co-N-C were observed by the
field emission scanning electron microscope (FESEM) (ZEISS SUPRA® 55, Carl Zeiss,
Germany). Transmission electron microscopy (TEM) images were obtained from the TEM
(JEM–3200FS, Japan).An Energy Dispersive Spectrometer (EDS) was used in the meanwhile.
Raman Spectra were recorded on an in Via Raman Microscope (iHR320, Horiba, Japan). X-
ray photoelectron spectrum (XPS) measurements were performed at an ESCALAB 250X X-
ray Photoelectron Spectrometer (ESCALAB 250X, Thermo Fisher, England).
4.3. Electrode Preparations
13
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
To prepare the catalyst ink for electrochemical analysis, 10 mg of catalytic powders were
dispersed in a mixed solution containing 100 μL Nafion solution (5 wt %), 400 μL
isopropylalcohol and 1.5 mL deionized water. Subsequently, the mixed solution was
sonicated for 20 min to form a homogeneous catalytic ink. Finally, 10 μL of catalytic ink was
dropped on a glassy carbon disk electrode (0.196 cm2). After being dried at ambient
temperature, the catalyst with a content of 0.25 mg cm−2 was loaded on the working electrode.
As a comparison, a Pt/C (20 wt. %) electrode was obtained with the similar method. The
loading content of Pt/C on the electrode and the test conditions are consistent with Co-N-C
samples.
4.4. Electrochemical Measurements
To investigate the ORR activities of the as-prepared catalysts, a series of electrochemical tests,
including cyclic voltammetry (CV) and linear sweep voltammetry (LSV), were measured. All
electrochemical measurements were performed on SHANGHAI CHENHUA CHI760D/E
electrocatalytic workstation attached with a rotating disk electrode (RDE). The whole testing
process was executed in a normal three-electrode system at room temperature, choosing a
glassy carbon electrode modified with various electrocatalysts as the working electrode, a Pt
wire as the counter electrode, and an Ag/AgCl (in 3 M KCl solution) electrode as the
reference electrode.
Herein, 0.1 M KOH aqueous solution was used as the electrolyte and deaerated by high purity
O2 or N2 according to concrete conditions throughout the testing process. CV experiments
were recorded with a scan rate of 10 mV s−1. LSV experiments were executed at 10 mV s−1
under rotating speeds varying from 200 to 1600 rpm. All the potentials in this work were
referred to the reversible hydrogen electrode (RHE), E (RHE) = E (Ag/AgCl) + 0.976V.
Different publications give diverse definitions of the onset potential (Eonset) of ORR. It is
defined as the potential value corresponding to 5% of the diffusion-limited current density (jL)
in this work.[2a] The mass activity was calculated by normalizing the kinetic-limiting current
14
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
density (jK) to the mass of active materials. The kinetics parameters were obtained from the
mass-transport corrected polarization curve though the Levich-Koutechky equation
(Equation 1):
(1)
Where j is the measured current density and jk is the kinetic current density, respectively. ω is
the electrode rotating rate. B is determined from the slope of the Koutechy-Levich (K-L) plots
based on the Levich equation (Equation 2):
(2)
For Equation (2), n is the number of electrons transferred per oxygen molecule, F the
Faraday constant (96485 C mol-1), C0 the bulk concentration of O2 (1.1*10-3 mol L-3), D0 the
diffusion coefficient of O2 in 0.1 M KOH (1.9*10-5 cm-2 s-1) and γ the kinetic viscosity of the
electrolyte (0.01 cm2 s-1)[7a]. The constant 0.2 is adopted if the rotation rate is expressed in
rpm.
4.5. Fabrication of Co-N/C oxygen reduction reaction electrocatalyst.
4.5.1 Synthesis of Poly (AA-AM) Superabsorbent resin.
3D low cross-linking Poly (AA-AM) was first prepared by radical polymerization with the aid
of the coupling agent, N,N-methylene diacrylamide.[35] Throughout this work, the AA/AM
ratio of Poly (AA-AM) superabsorbent used in experiments was 7:3.
4.5.2 Synthesis of Co-N-C.
Herein, the synthesis process of cobalt, nitrogen-doped carbon materials Co-N-C is illustrated
in Figure 1. Firstly, cobalt ions were embedded in cross-linking Poly (AA-AM)
superabsorbent resin by easy adsorption. Several mg of Cobalt (II) acetate C4H6O4·Co·4H2O
was dissolved in 10 ml of deionized water. Then 0.5 g as-prepared super absorbent resin was
added into the above solution. The solid-liquid mixture was kept at room temperature for 1h.
The obtained products displayed a similar polyhedron shape but a different colour (pink) to
pure hydrogels.
15
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
After that, the prepared hybrid hydrogel was frozen by liquid nitrogen and freeze-dried at -45
ºC in a vacuum lyophilizer for 24 h. Subsequently, the dried mixture were calcined under an
argon atmosphere in a tube furnace at certain temperature for 2h with a heating ramp of 5 ºC
min-1, and then furnace cooled down to room temperature. After ball milling with ethanol for
8h, the obtained products were purified by centrifugation and finally dried at 80 ºC.
To study the effects of the pyrolysis temperature and the cobalt element content on the
catalytic activities, seven kinds of Co-N-C catalysts were prepared using the same method
except for the difference of pyrolysis temperature or metal content. They were named like
800-2 Co-N-C catalyst, which “800” means the temperature of pyrolysis, and “2” represents
the mass percentage of element cobalt in the as-prepared precursor solution and the resin.
Supporting Information
Supporting Information is available from the Wiley Online Library.
Acknowledgements
This work was financially supported by the National Materials Genome Project
(2016YFB0700600),
Shenzhen
Science
and
Technology
Research
Grant
(GJHZ20160229122304608).
Received: ((will be filled in by the editorial staff))
Revised: ((will be filled in by the editorial staff))
Published online: ((will be filled in by the editorial staff))
References
[1]
a) A. Mahmood, W. Guo, H. Tabassum, R. Zou, Adv. Energy Mater. 2016, 6, 1600423;
b) A. Shen, Y. Zou, Q. Wang, R. A. Dryfe, X. Huang, S. Dou, L. Dai, S. Wang,
Angew. Chem., Int. Ed. Engl. 2014, 53, 10804-10808; c) I. T. Kim, M. J. Song, Y. B.
Kim, M. W. Shin, Int. J. Hydrogen Energy 2016, 41, 22026-22033.
[2]
[3]
a) W. Xia, A. Mahmood, Z. Liang, R. Zou, S. Guo, Angew. Chem., Int. Ed. Engl. 2016,
55, 2650-2676; b) J. Lee, B. Jeong, J. D. Ocon, Curr. Appl. Phys. 2013, 13, 309-321.
a) M. Kuang, Q. Wang, P. Han, G. Zheng, Adv. Energy Mater. 2017, 7, 1700193; b)
H.-x. Zhong, J. Wang, Y.-w. Zhang, W.-l. Xu, W. Xing, D. Xu, Y.-f. Zhang, X.-b.
Zhang, Angew. Chem., Int. Ed. Engl. 2014, 53, 14235-14239; c) Y. Qiu, J. Huo, F. Jia,
B. H. Shanks, W. Li, J. Mater. Chem. A 2016, 4, 83-95.
[4]
a) Y. Zhou, K. Neyerlin, T. S. Olson, S. Pylypenko, J. Bult, H. N. Dinh, T. Gennett, Z.
Shao, R. O'Hayre, Energy Environ. Sci. 2010, 3, 1437-1446; b) R. Zhang, Y. Li, L.
Liu, M. Jiang, W. Wang, Ionics 2017, 23, 1849-1859.
16
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
[5]
a) L. Wang, Z. Tang, W. Yan, Q. Wang, H. Yang, S. Chen, J. Power Sources 2017,
343, 458-466; b) T. Toda, H. Igarashi, H. Uchida, M. Watanabe, J. Electrochem. Soc.
1999, 146, 3750-3756; c) S. Liu, I. S. Amiinu, X. Liu, J. Zhang, M. Bao, T. Meng, S.
Mu, Chem. Eng. J. 2018, 342, 163-170.
[6]
[7]
L. Yang, S. Jiang, Y. Zhao, L. Zhu, S. Chen, X. Wang, Q. Wu, J. Ma, Y. Ma, Z. Hu,
Angew. Chem., Int. Ed. Engl. 2011, 50, 7132-7135.
a) J. Gao, N. Ma, Y. Zheng, J. Zhang, J. Gui, C. Guo, H. An, X. Tan, Z. Yin, D. Ma,
ChemCatChem 2017, 9, 1601-1609; b) P. Subramanian, R. Mohan, A. Schechter,
ChemCatChem 2017, 9, 1969-1978.
[8]
[9]
Y. Dong, Y. Deng, J. Zeng, H. Song, S. Liao, J. Mater. Chem. A 2017, 5, 5829-5837.
J. Chen, N. Zhou, H. Wang, Z. Peng, H. Li, Y. Tang, K. Liu, Chem. Commun. 2015,
51, 10123-10126.
[10] S. Dou, L. Tao, J. Huo, S. Wang, L. Dai, Energy Environ. Sci. 2016, 9, 1320-1326.
[11] a) Y. Tong, P. Chen, T. Zhou, K. Xu, W. Chu, C. Wu, Y. Xie, Angew. Chem., Int. Ed.
Engl. 2017, 56, 7121-7125; b) C. H. Choi, M. W. Chung, S. H. Park, S. I. Woo, Phys.
Chem. Chem. Phys. 2013, 15, 1802-1805.
[12] T. He, H. Xue, X. Wang, S. He, Y. Lei, Y. Zhang, R. Shen, Y. Zhang, J. Xiang,
Nanoscale 2017, 9, 8341-8348.
[13] P. H. Matter, E. Wang, M. Arias, E. J. Biddinger, U. S. Ozkan, J. Phys. Chem. B 2006,
110, 18374-18384.
[14] a) X. Song, L. Guo, X. Liao, J. Liu, J. Sun, X. Li, Small 2017, 13, 1700238; b) H.
Huang, Q. Wang, Q. Wei, Y. Huang, Int. J. Hydrogen Energy 2015, 40, 6072-6084.
[15] C. J. Shearer, A. Cherevan, D. Eder, Adv. Mater. 2014, 26, 2295-2318.
[16] D. S. Choi, A. W. Robertson, J. H. Warner, S. O. Kim, H. Kim, Adv. Mater. 2016, 28,
7115-7122.
[17] Z. S. Wu, S. Yang, Y. Sun, K. Parvez, X. Feng, K. Mullen, J. Am. Chem. Soc. 2012,
134, 9082-9085.
[18] U. B. Nasini, V. Gopal Bairi, S. Kumar Ramasahayam, S. E. Bourdo, T. Viswanathan,
A. U. Shaikh, ChemElectroChem 2014, 1, 573-579.
[19] S. Chao, Q. Cui, Z. Bai, H. Yan, K. Wang, L. Yang, Int. J. Hydrogen Energy 2014, 39,
14768-14776.
[20] Y.-P. Zhu, Y. Liu, Y.-P. Liu, T.-Z. Ren, G.-H. Du, T. Chen, Z.-Y. Yuan, J. Mater.
Chem. A 2015, 3, 11725-11729.
[21] S. Fu, C. Zhu, H. Li, D. Du, Y. Lin, J. Mater. Chem. A 2015, 3, 12718-12722.
[22] R. Jasinski, Nature 1964, 201, 1212-1213.
[23] a) L. Ding, J. Qiao, X. Dai, J. Zhang, J. Zhang, B. Tian, Int. J. Hydrogen Energy 2012,
37, 14103-14113; b) W. Li, A. Yu, D. C. Higgins, B. G. Llanos, Z. Chen, J. Am. Chem.
Soc. 2010, 132, 17056-17058.
[24] M. Jahan, Q. Bao, K. P. Loh, J. Am. Chem. Soc. 2012, 134, 6707-6713.
[25] H.-C. Huang, I. Shown, S.-T. Chang, H.-C. Hsu, H.-Y. Du, M.-C. Kuo, K.-T. Wong,
S.-F. Wang, C.-H. Wang, L.-C. Chen, K.-H. Chen, Adv. Funct. Mater. 2012, 22, 3500-
3508.
[26] Y. Wang, J. Yang, R. Du, L. Chen, ACS Appl. Mater. Interfaces 2017, 9, 23731-23740.
[27] R. Bashyam, P. Zelenay, Nature 2006, 443, 63-66.
[28] G. Wu, K. L. More, C. M. Johnston, P. Zelenay, Science 2011, 332, 443-447.
[29] J. Gao, N. Ma, J. Zhai, T. Li, W. Qin, T. Zhang, Z. Yin, Ind. Eng. Chem. Res. 2015, 54,
7984-7989.
[30] J. Masa, W. Xia, M. Muhler, W. Schuhmann, Angew. Chem., Int. Ed. Engl. 2015, 54,
10102-10120.
[31] Y. Qian, Z. Liu, H. Zhang, P. Wu, C. Cai, ACS Appl. Mater. Interfaces 2016, 8,
32875-32886.
17
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
[32] J. Zhang, H. Zhou, X. Liu, J. Zhang, T. Peng, J. Yang, Y. Huang, S. Mu, J. Mater.
Chem. A 2016, 4, 15870-15879.
[33] K. Lee, L. Zhang, H. Lui, R. Hui, Z. Shi, J. Zhang, Electrochim. Acta 2009, 54, 4704-
4711.
[34] X. Liu, I. S. Amiinu, S. Liu, K. Cheng, S. Mu, Nanoscale 2016, 8, 13311-13320.
[35] H. Lin, J. Wuyi Univ., Nat. Sci. Ed. 2016, 35, 6-10.
18
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
Figure 1. Schematic illustration of the preparation procedure and ORR process of the Co-N-C
catalyst.
19
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
Figure 2. (a) FT-IR spectra of pure hydrogels Poly (AA-AM) and Co2+@Poly (AA-AM). (b)
XRD patterns of 800-2 and 800-5 Co-N-C catalysts. (c) Nitrogen adsorption-desorption
isotherms and (d) Raman spectra of 800-0, 800-2 and 800-5 Co-N-C catalysts; the inset of (c)
shows the pore size distribution of 800-2 Co-N-C catalysts.
20
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
Figure 3. (a) SEM image and (b) TEM image of 800-2 Co-N-C catalyst. HRTEM images of
800-2 Co-N-C catalyst (c) and 800-5 Co-N-C catalyst (d). (e) HAADF-STEM image of 800-2
Co-N-C catalyst. And the corresponding elemental mapping for element Co (g) of a part of
this region (f).
21
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
Figure 4. (a) XPS spectrums of 800-0, 800-2 and 800-5 Co-N-C catalysts. High-resolution
XPS spectra of the Co 2p of 800-0, 800-2 and 800-5 Co-N-C catalysts (b) and the N 1s of
800-2 Co-N-C catalyst (c).
22
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
Figure 5. (a) CV curves for 800-2 Co-N-C catalyst at a sweep rate of 10 mV s-1 in N2 and O2-
saturated 0.1M KOH electrolytes, respectively. (b) LSV curves for 800-(0-5) Co-N-C
catalysts at a sweep rate of 10 mV s-1 in an O2-saturated 0.1M KOH electrolyte. (c) LSV
curves for 800-2 Co-N-C catalyst at various rotation rates (values displayed in rpm) in an O2-
saturated 0.1M KOH electrolyte; the inset of (c) shows the corresponding K-L plots derived
from the RDE data. (d) LSV curves of 800-2 Co-N-C catalyst before and after 2000 potential
cycles, respectively.
23
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
Table 1. ORR electrocatalytic performance parameters of 800-(0-5) Co-N-C- from LSV in
alkaline media.
Catalyst Co/N-C)
800-0
Eonset [V vs. RHE]
E1/2 [V vs. RHE]
0.74
Diffusion-limiting current [mA cm−2]
0.85
0.95
0.96
0.96
0.88
0.87
0.99
2.79
4.17
4.65
4.01
3.63
2.61
4.64
800-1
800-2
800-3
800-4
800-5
Pt/C
0.80
0.80
0.76
0.76
0.76
0.86
24
This article is protected by copyright. All rights reserved.

10.1002/cssc.201801480
ChemSusChem
We find a universal dispersing technology using super absorbent resin adsorbing metal
ion and follow pyrolysis strategy to fabricate Co-N-C catalyst for ORR. The resin
provides framework and doping elements sources to form actives sites. The catalyst exhibits
excellent electrocatalytic performance with super low cost, which makes the composite
catalyst easy to achieve commercialization instead of Pt-based catalyst.
Keyword: transition metal-nitrogen doping carbon catalysts, oxygen reduction reaction,
superabsorbent resin, cobalt content
By Mengran Liu, Hai Lin, Zongwei Mei, Jinlong Yang, Jie Lin, Yidong Liu,* and Feng Pan*
Tuning cobalt and nitrogen co-doped carbon to maximum catalytic sites by diaper
superabsorbent for efficient oxygen reduction
25
This article is protected by copyright. All rights reserved.
