142
G.G. Fouga et al. / Thermochimica Acta 494 (2009) 141–146
Ivashentsev and Simkina [9] determined that the chlorination of
MnO by Cl2 begins at 130 ◦C and occurs up to 310 ◦C according to:
MnO(s) + Cl2(g) → MnCl2(l) + (1/2)O2(g),
ꢀG◦ = 0.0058 T(◦C) − 46.9
(7)
(8)
MnO + Cl2 → MnCl2 + (1/2)O2
(4)
Between 310 and 400 ◦C, Mn2O3 was detected in the products
and it also reacts with Cl2 according to:
(2/3)MnO(s) + Cl2(g) → (2/3)MnCl3(g) + (1/3)O2(g),
ꢀG◦ = 0.034 T(◦C) + 45.96
2Mn2O3 + 4Cl2 → 4MnCl2 + 3O2
(5)
They found that formation of MnCl2 starts at 300 ◦C for Mn3O4
(1/2)MnO(s) + Cl2(g) → (1/2)MnCl4(g) + (1/4)O2(g),
ꢀG◦ = 0.0136 T(◦C) + 49.86
and at 430 ◦C for Mn2O3.
(9)
In the present work the starting temperatures for the chlo-
rination of manganese oxides were obtained, since there is no
good agreement in the values reported as mentioned before. The
reactions occurring during manganese oxide chlorination were
identified and formation of high valence manganese oxide was
determined.
MnO(s) + Cl2(g) → (1/2)Mn2Cl4(g) + (1/2)O2(g),
ꢀG◦ = −0.033 T(◦C) + 26.2
(10)
Among these, formation of MnCl2 and Mn2Cl4 are the only ones
that have negative ꢀG◦ values in the range of temperatures con-
sidered. The dimerization reaction (Eq. (11)) is thermodynamically
feasible below 870 ◦C.
2. Experimental
The gases used were Cl2 99.8% purity (Indupa, Argentina) and
Ar 99.99% purity (AGA, Argentina). The solids were MnO powder
(reagent grade, Alfa Aesar Company), and Mn3O4 and Mn2O3 which
950 and 600 ◦C, respectively.
The powder samples of each oxide were characterized by
scanning electron microscopy (SEM 515, Philips Electronics Instru-
ments) and X-ray diffraction (XRD). XRD patterns obtained

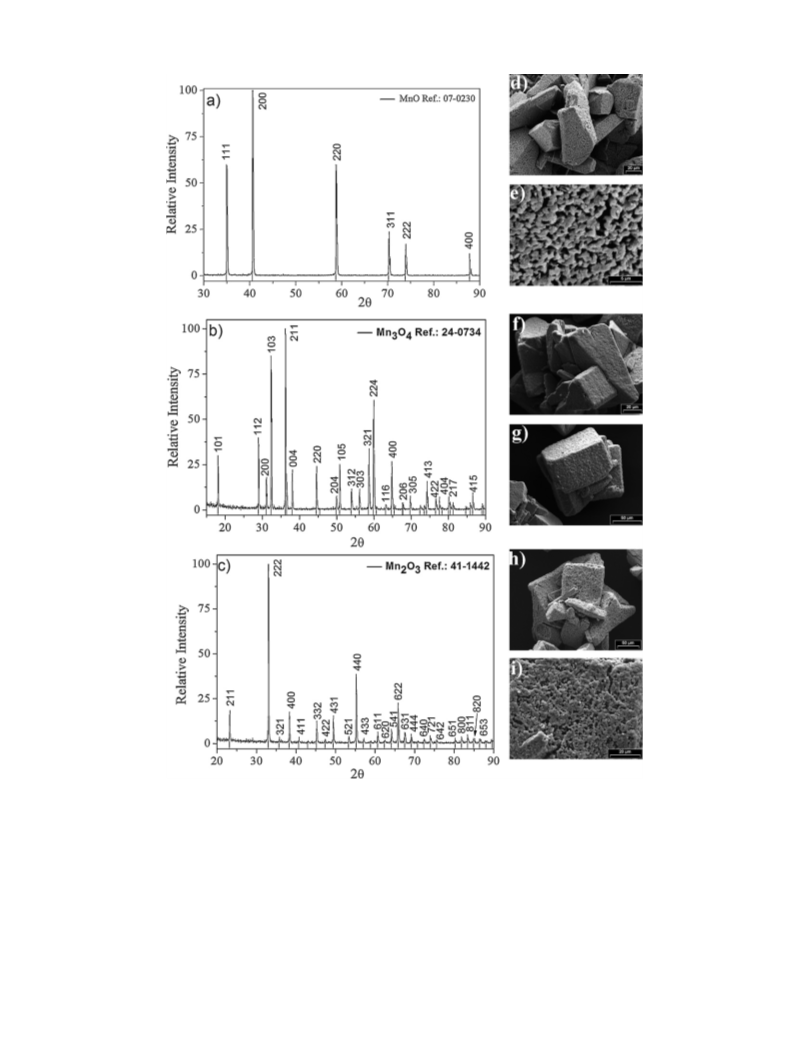

(Fig. 1a–c), are in good agreement with the corresponding refer-
Fig. 1d and e shows the morphology of MnO, it consists of inter-
growth crystals of different sizes ranging between 20 and 80 m.
Micron-order pores were observed in the crystal surface by SEM
(Fig. 1e). A BET area [11] of 0.53 m2/g was determined with N2
(Digisorb 2600, Micrometrics Ins. Corp.) for the initial MnO pow-
der. The morphology of the Mn3O4 and Mn2O3 samples (Fig. 1f–i)
is similar to that of MnO. The high valence oxides are formed by
well-shaped crystal agglomerates greater than 100 m in size. Also
a decrease in the surface porosity was observed.
Isothermal and non-isothermal chlorination reactions were car-
riedoutinathermogravimetricanalyzer(TGA), whichisextensively
described elsewhere [12]. This thermogravimetric analyzer consists
of an electrobalance (Model 2000, Cahn Instruments, Inc.) suitable
for working with corrosive atmospheres, a gas line and an acqui-
sition system. This experimental set-up has a sensitivity of 5 g
while operating at 950 ◦C under a flow of 8 l/h. Samples of 20 mg
were placed in a quartz crucible inside the reactor in an argon flow
of 1.3 l/h. To begin the non-isothermal reactions, a chlorine flow
of 0.8 l/h was introduced and, at the same time, the heating started
with a ramp of 100 C/h. For the isothermal reactions, the solids were
heateduntiltheyreachedthedesirabletemperaturebeforechlorine
injection. The partial pressure of chlorine in the Ar–Cl2 mixture was
35.5 kPa.
2MnCl2(g) → Mn2Cl4(g),
ꢀG◦ = 0.14 T(◦C) − 122.17
(11)
The experimental set-up used allows continuous evacuation of
the reaction products (i.e. O2, MnCl2), leading to low partial pres-
sures of these species, whereas partial pressure of Cl2, which is
given by the incoming chlorine stream, will remain constant at
35.5 kPa. For this reason, the values of ꢀG will be lower than the
values of ꢀG◦, and even with a ꢀG◦ > 0 a reaction could occur.
On the other hand, an opposite situation can be held locally at
certain places. Although the chlorinating gas is a mixture of Cl2–Ar,
in the sample surroundings O2 is being generated and Cl2 is being
is expected to be high. Moreover, the residence time of O2 in the
sample is long due to the low gaseous flow (2.1 l/h) and because
the O2 formed may have to diffuse through a MnCl2 layer before

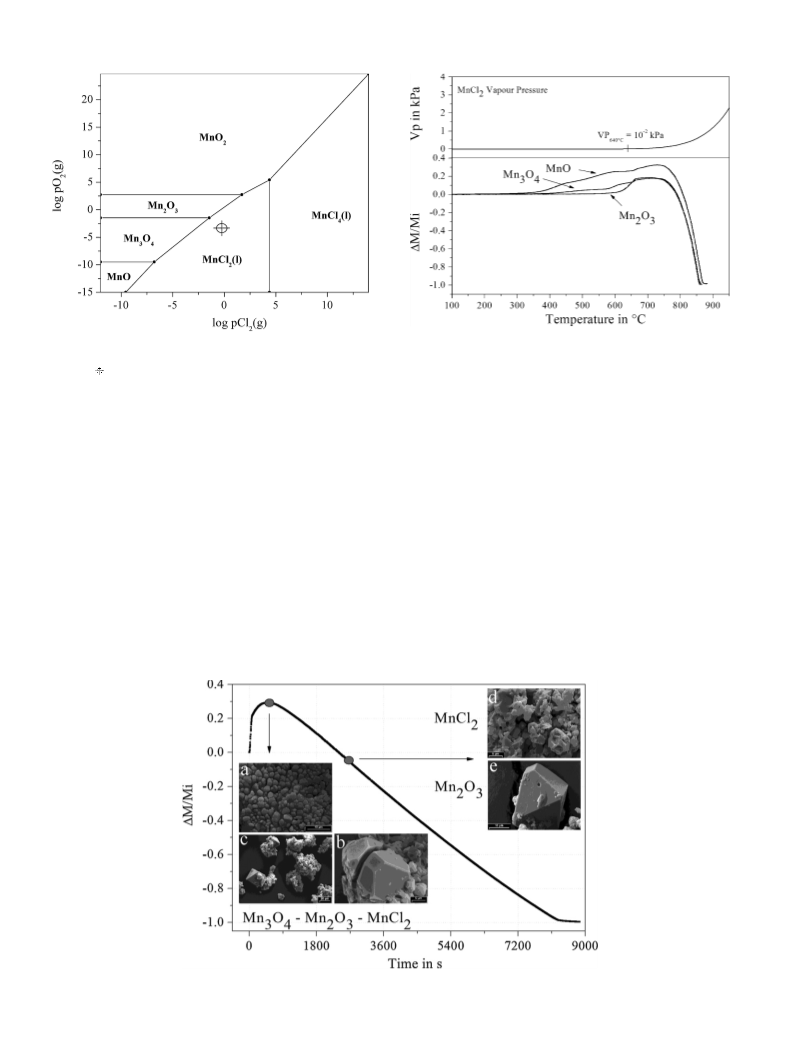

reaching the gaseous phase. A Kellog-diagram [13] (Fig. 2) of the
Mn–Cl–O system at 800 ◦C shows the stability areas of manganese
containing substances as a function of Cl2(g)- and O2(g)-pressures
in the atmosphere at that temperature. It shows that for partial
pressures of Cl2 close to zero value, as expected at the reaction sur-
face, partial pressures of O2 lower than 101.3 kPa (1 bar) are high
enough to allow formation of high valence manganese oxides such
as Mn3O4 and Mn2O3.
Finally, no information is available regarding manganese oxy-
chlorides, with the only exception of the existence of gaseous
MnClO3 that has been reported [13].
4. Results and discussion
4.1. Reactivity
The initial reaction temperature which is associated with the
system reactivity was determined by non-isothermal thermogravi-

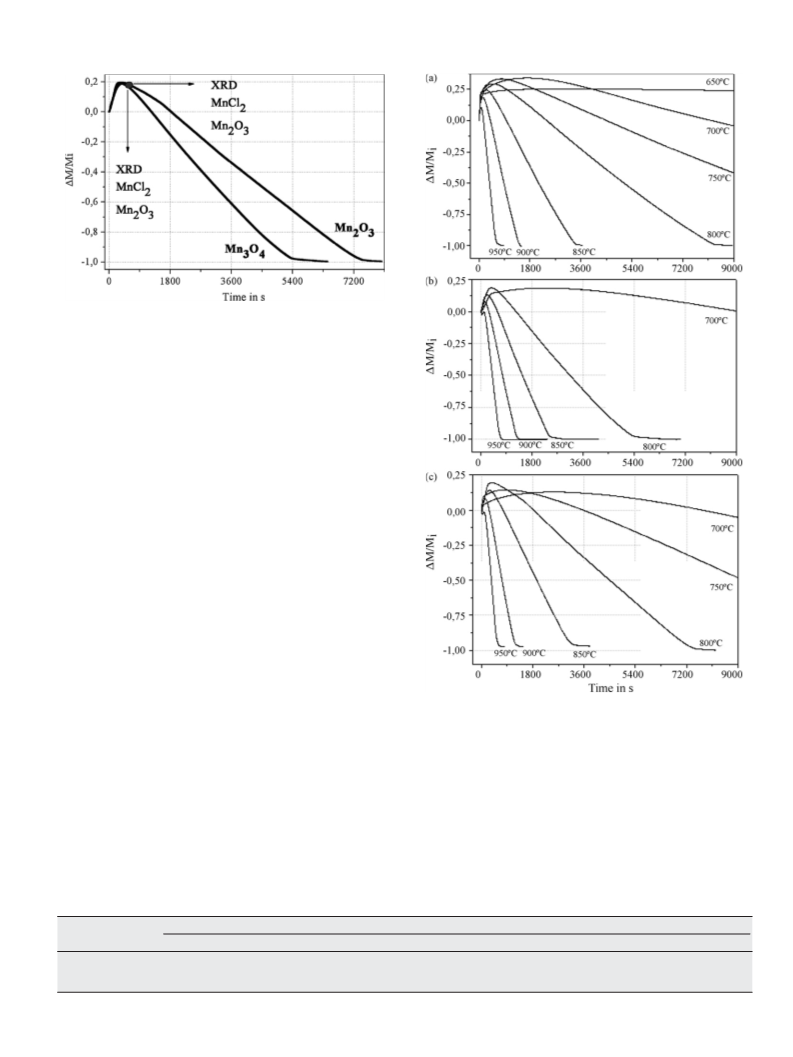

metric measurements. The chlorination curves for MnO, Mn3O4 and
Mn2O3 are shown in Fig. 3. This figure shows the ratio between the
mass change and the initial mass of the sample (ꢀM/Mi) as a func-
tion of temperature. The starting temperatures for the chlorination
of MnO, Mn3O4 and Mn2O3 are 270, 380 and 520 ◦C, respectively.
The TG curves start with a slow mass gain which corresponds
to formation of condensed MnCl2, and high valence oxides, as will
be discussed later. When temperature reaches about 650 ◦C (MnCl2
melting point) there is an increase in the reaction rate, this behav-
ior may be due to the melting of the chloride layer formed that
allows chlorine to easily reach fresh oxide. The mass gain observed
in the maximum of the curves for the three systems are lower than
3. Thermodynamical analysis
Several manganese chlorides are reported, MnCl, MnCl2, MnCl3,
MnCl4 and Mn2Cl4. The values of ꢀG◦ (kJ/mol of Cl2) as a func-
tion of temperature, corresponding to formation of these chlorides
are presented in Eqs. (6)–(10) by mol of chlorine for temperatures
between 650 and 950 ◦C:
2MnO(s) + Cl2(g) → 2MnCl(g) + O2(g),
ꢀG◦ = −0.344 T(◦C) + 689.67
(6)
