Synthesis, Characterization, and Antimicrobial
Properties of Peptides Mimicking Copolymers of
Maleic Anhydride and 4-Methyl-1-pentene
1
1,
1
2,
1,
Marian Szkudlarek , Elisabeth Heine *, Helmut Keul , Uwe Beginn * and Martin Möller *
1
DWI Leibniz Institute for Interactive Materials and Institute of Technical and Macromolecular Chemistry,
RWTH Aachen University, Forckenbeckstraße 50, D-52056 Aachen, Germany;
szkudlarekmh@gmail.com (M.S.); keul@dwi.rwth-aachen.de (H.K.)
Institut für Chemie, Universität Osnabrück, OMC, Barbarastraße 7, D-49076 Osnabrück, Germany
2
*
Correspondence: heine@dwi.rwth-aachen.de (E.H.); ubeginn@uni-osnabrueck.de (U.B.);
moeller@dwi.rwth-aachen.de (M.M.); Tel.: +49-541-9692790 (U.B.); +49-241-8023302 (M.M.)
ꢀ
ꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀ
ꢁꢂꢃꢄꢅꢆ
Received: 9 August 2018; Accepted: 29 August 2018; Published: 4 September 2018
Abstract: Synthetic amphiphilic copolymers with strong antimicrobial properties mimicking
natural antimicrobial peptides were obtained via synthesis of an alternating copolymer of maleic
anhydride and 4-methyl-1-pentene. The obtained copolymer was modified by grafting with
3-(dimethylamino)-1-propylamine (DMAPA) and imidized in a one-pot synthesis. The obtained
copolymer was modified further to yield polycationic copolymers by means of quaternization
with methyl iodide and dodecyl iodide, as well as by being sequentially quaternized with both
of them. The antimicrobial properties of obtained copolymers were tested against Escherichia coli,
Pseudomonas aeruginosa, Staphylococcus epidermidis, and Staphylococcus aureus. Both tested quaternized
copolymers were more active against the Gram-negative E. coli than against the Gram-positive
S. aureus. The copolymer modified with both iodides was best when tested against E. coli and,
comparing all three copolymers, also exhibited the best effect against S. aureus. Moreover, it shows
(limited) selectivity to differentiate between mammalian cells and bacterial cell walls. Comparing the
minimum inhibitory concentration (MIC) of Nisin against the Gram-positive bacteria on the molar
basis instead on the weight basis, the difference between the effect of Nisin and the copolymer is
significantly lower.
Keywords: cationic polymers; imidization; quaternization; antimicrobial properties; hemolytic activity
1
. Introduction
Since in 1960s, Cornell and Donaruma [1] have described 2-methacryloxytropones-based polymers
that exhibited antibacterial activity, and antimicrobial copolymers have since gained significant interest.
Over the last decades, a large number of publications and multiple reviews exploring antimicrobial
polymers have been published. In the 1990s and at the beginning of 21st century, the main focus was
on the synthesis and chemical nature of the polymers [
antimicrobial copolymers regarding their structure as quaternary ammonium salts (QAS) [
phosphonium salts [20 27], sulfonic acid derivatives (salts, sulfonamides), and N-halamines. In most
2
]. For example, Kenawy et al. [
3] classified
4
–
20],
–
recent reviews, the main focus has been on the bactericidal mechanism and influence of relevant
parameters such as molecular weight and charge distribution [28]. The antimicrobial properties of
maleic anhydride copolymers with olefins [29] and styrene [30
960s. In all cases, succinic anhydride functionality was used as a base for further modification in order
to introduce an antibacterial moiety (diamine, aminophenol, etc.). From this perspective, the modified
–32] have been investigated since the
1
Int. J. Mol. Sci. 2018, 19, 2617; doi:10.3390/ijms19092617
www.mdpi.com/journal/ijms

Int. J. Mol. Sci. 2018, 19, 2617
2 of 22
maleic anhydride copolymers belong to one of the groups mentioned above. These polymers are
usually amphiphilic and act as surfactants.
At the same time, antimicrobial peptides represent a large group of natural compounds with a
broad spectrum of antimicrobial activity [33
comes from their amphiphilic structure [34].
–36]. The antimicrobial activity of these molecules also
In the past, much effort has been made to understand the mechanism of cytotoxicity of amphiphilic
peptides. One of the examples is Melittin from bee venom, which has the highest hemolytic activity.
Compared to Magainin from Xenopus frog skin, it has a high content of hydrophobic residues. It has
a 26-amino-acid-residue-long sequence with a characteristic cluster of lysine and arginine residues.
Magainins, 23-residue-long peptides, are essentially toxic for bacterial strains while being poorly
hemolytic [37]. Synthetic peptides of different composition and structure have been widely investigated
for their antimicrobial properties. Particular attention has been paid to peptides, which are only
constituted by nonpolar leucine and charged lysine, so-called LK-peptides [37,38]. These molecules
are ideally amphiphilic and proper choice of the Lys:Leu ratio as well as the chain length enables
designing structures most similar to natural toxins.
With the aim to design an optimum antimicrobial polymer and to set up a structure–function
relationship, many groups, including ours, have constructed amphiphilic polymers with different
backbones and specific cationic and hydrophobic residues in defined ratios mimicking antimicrobial
peptides. An overview on the peptide mimetic design of antimicrobial polymers can be found, e.g.,
in [39]. Specific design can lead to broad-spectrum antibacterials or polymers with Gram-selectivity [40].
The aim of creating a new synthetic, amphiphilic structure with strong antimicrobial properties
comparable to natural antimicrobial peptides led to the choice of an alkene and maleic anhydride
copolymer. Lower alkenes and maleic anhydride yield alternating copolymers. This ensures a constant
1
:1 ratio of the hydrophobic and cationic part similar to those in Leu:Lys 1:1 LK-peptides. The choice
of 4-methyl-1-pentene as a hydrophobic comonomer is based on the similarity of its structure with
leucine (cf. Scheme 1), while the choice of maleic anhydride leaves ample space for further design of
the hydrophilic part by means of chemical modification.
H N
COOH
2
leucine
4
-methyl-1-pentene
Scheme 1. Comparison of the structure of leucine with 4-methyl-1-pentene.
This work covers polymeric quaternary ammonium salts obtained by chemical modification
of maleic anhydride 4-methyl-1-pentene copolymers. The free radical copolymerization of maleic
anhydride with 4-methyl-1-pentene leads to alternating copolymers, which were grafted using
N,N-substituted diamines. Although the antimicrobial activity of nonquaternized N,N-substituted
derivatives has been reported [1], biocidal activity should be enhanced by quaternization of the tertiary
amine groups with different alkyl halides. The higher biological activity of positively charged moieties
can be explained by electrostatic interaction with negatively charged cell surfaces. The advantage
of polycations is based on the higher charge density that allows highly extended adsorption on the
bacterial cell. The expected penetration of the cell wall and disruption of the membrane by the
lipophilic alkane chain releases cytoplasmic constituents and leads to the death of the cell.

Int. J. Mol. Sci. 2018, 19, 2617
3 of 22
2
. Results and Discussion
2
.1. Copolymerization of Maleic Anhydride with 4-Methyl-1-pentene
Alternating copolymers of maleic anhydride with alkenes were obtained by free-radical
copolymerization in solution in the presence of radical initiators [41 45]. However, copolymers
which contain an excess of olefin have also been described in the literature [46 47], but as a general
–
,
rule, alternating copolymers are formed, in particular, when an excess of anhydride was used.
The alternating copolymer of 4-methyl-1-pentene with maleic anhydride (MSA) was synthesized
accordingly via free-radical polymerization. The copolymerization was carried out under homogenous
◦
conditions in anhydrous 2-butanone (MEK) at 80 C in the presence of benzoyl peroxide (BPO) as an
initiator. Scheme 2 depicts the copolymerization reaction of 4-methyl-1-pentene with maleic anhydride.
O
O
O
MEK, BPO
*
CH
2
CH
CH
CH
*
+
80 C
8
h, 77%
n
O
O
O
Scheme 2. Copolymerization of maleic anhydride (MSA) with 4-methyl-1-pentene.
An excess of maleic anhydride was used to ensure the equimolar composition of the resulting
copolymer. The product was separated from the reaction mixture by precipitation in a Et O:MeOH
2
(
(
4:1, vol:vol) mixture. For its molecular weight determination by gel permeation chromatography
GPC), the succinic anhydride units of the copolymer were methanolized at room temperature.
The methanolysis was necessary because maleic anhydride copolymer adsorbed on the inline filter,
impeding any measurement. GPC measurement of the methanolyzed copolymer was performed in
THF with PMMA standards and the determined values were: Mn = 5800 and Mw/Mn = 1.67.
1
The composition of the obtained polymer could not be determined by H-NMR because
1
of overlapping signals of both monomers. Figure 1a depicts a typical H-NMR-spectrum of a
P[MP-alt-MSA] copolymer. The range of overlapping signals between 1 and 4 ppm precludes the
calculation of the polymer composition for the non-methanolyzed copolymers (MSA protons 3.25 ppm)
as well as methanolyzed products (MSA protons 2.8 ppm) [47].
(
1')
CH3
(
1)
H3C
(2)
acetone
CH
(3)
CH2
(
6) (6')
*
CH2 CH
CH
CH
*
n
(
4)
(5)
C
C
(4)
(2)
O
O
O
(6,6')
(3)
(1,1')
10
8
6
4
2
0
σ
ppm
(
a)
Figure 1. Cont.

Int. J. Mol. Sci. 2018, 19, 2617
4 of 22
CH3
CH
H3C
*
CH2
CH2 CH
CH
CH
*
n
C
C
O
O
HDO
OH
O
(1)
H2C
2)
(
aromatic
protons (1)
Benzylic
protons (2)
polymer backbone and side chains
10
8
6
4
2
0
σ
ppm
(
b)
1
) 1H-NMR spectrum of
Figure 1.
(a
) H-NMR spectrum of P[MP-alt-MSA] measured in acetone d ; (
b
6
P[MP-alt-MSA] esterified with benzyl alcohol measured in D O.
2
Treatment of the copolymer with benzyl alcohol in MEK results in the formation of monobenzyl
esters. This method allows determining the content of protons of succinic acid benzyl ester since the
benzyl group’s NMR signals were well separated from the other polymer peaks. Figure 1b depicts the
1
H-NMR spectrum of a P[MP-alt-MSA] copolymer after reaction with benzyl alcohol. The aromatic
protons as well as the benzylic protons are well separated from the signals of the polymer backbone
and the alkyl side groups. The monomer composition was calculated from the integrated signal
intensity of the benzylic protons and that of the alkyl signals between 0.8 and 5.2 ppm according to
Equation (1):
A
m
FMSA
=
(1)
A
m
B
n
+
A—integration value of benzylic proton signal (σ = 4.90–5.30 ppm),
m—number of benzylic protons = 2,
B—integration value of polymer backbone and side chains proton signal (σ = 0.70–4.2),
n—number of protons in signal mentioned in B = 14.
This method was developed for determination of the MSA content in terpolymers, and it was
proved that, without a catalyst, only one carboxyl group was esterified [48]. It is very useful and precise
in the range of error of the used spectroscopic method. The 46
±
5% of calculated content of succinic
anhydride in the copolymer is reasonable and allowed us to assume that an alternating copolymer was
obtained. The composition of the copolymer was also determined by elemental analysis. The obtained
results correspond well to the composition calculated for alternating copolymer (see Table 1).
Table 1. Comparison of the experimental and calculated elemental composition of an alternating
copolymer poly[(4-methyl-1-pentene)-alt-maleic anhydride] (C H O ).
1
0
14
3
Composition
Carbon
Hydrogen
Oxygen
Calculated for C,H,O
Found
65.90
65.54
7.70
7.85
26.40
26.61

Int. J. Mol. Sci. 2018, 19, 2617
5 of 22
2
.2. Grafting of DMAPA onto P[MP-alt-MSA] Copolymer
2
.2.1. Model Reaction of Amidoacidification
Maleic anhydride can easily react with 3-(dimethylamino)-1-propylamine (DMAPA) to yield
3
-(N,N-dimethylamino)propyl maleamic acid (M1). The reaction was carried out in chloroform by
◦
addition of the amine to MSA at room temperature and subsequent heating to 60 C. The reaction is
exothermic and proceeds easily, hence, the heating step was performed to ensure complete reaction.
The product was precipitated in a fivefold excess of acetone and dried. The desired compound has
been obtained as a white powder. Scheme 3 depicts the reaction of maleic anhydride with DMAPA.
H
3
C
N
HO
O
+
2
H H
O
O
CH
3
O
O
HN
(1)
(2)
(
M1)
N
O
O
N
(
M2)
N

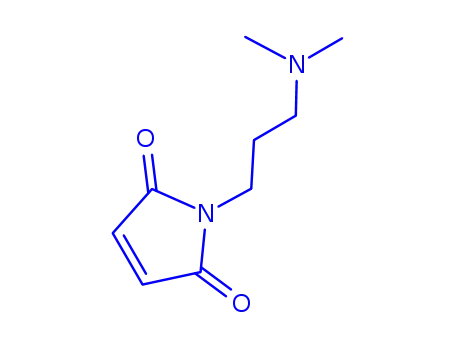

Scheme 3. Model reaction of amidoacidification and imidization of maleic anhydride with
-(dimethylamino)-1-propylamine (DMAPA).
Because of its molecular asymmetry, the product can be easily identified and distinguished
1
from nonreacted MSA by means of H-NMR. In the course of the reaction, the single peak of MSA
around 7 ppm (double bond protons) disappeared and two doublets appeared at 6.33 and 5.96 ppm,
respectively (see Figure 2).
(
1)
H
(2)
H
(6,6')
O
N
H
O H H 2C (3)
C H 2 (4)
H 2C (5)
HDO
N
C H 3
(
6)
H 3C
(
6')
(5)
(
2)
(
1)
(
3)
(4)
6
4
2
0
σ
ppm
1
Figure 2. H-NMR spectra of cis-3-(N,N-dimethylamino)propyl maleamic acid.

Int. J. Mol. Sci. 2018, 19, 2617
6 of 22
2
.2.2. Amidoacidification and Imidization of Poly[(4-methyl-1-pentene)-alt-maleic Anhydride
Scheme 4 depicts the reaction of the anhydride moiety in the polymeric chain (C1) with DMAPA,
yielding amidacid (C2), and followed by thermal imidization, which yields the cyclic N-substituted
imide (C3).
CH CH CH CH
2
+
H
2
N
N
CH CH CH CH
2
O
O
O
O
O
OH NH
C1
C2
2
-H O
N
CH CH CH CH
2
O
N
O
N
C3
Scheme 4. Amidoacidification and imidization of MSA copolymer.
The amidoacidification of maleic anhydride copolymer with N,N-dimethylamino-1-propyl amine
(DMAPA) was performed analogously to the model reaction [18,44,49–60]. The amine was added
dropwise to a dimethylformamide DMF solution of the copolymer. The product precipitated from the
reaction mixture and could be easily obtained in its pure form. Because of the heterogeneity of the
reaction mixture, an excess of amine was used and the mixture was stirred for about 20 h to obtain an
almost quantitative conversion. This intermediate product was separated by filtration and analysed.
The prepared macromolecular amic acid could not be characterized well by means of NMR
spectroscopy because of the occurrence of broad overlapping signals. The IR spectra of the
amidoacidified copolymer C2 shown in Figure 3 corresponded to the comparative spectrum of the
model product (Figure 3 M1) from the reaction of maleic anhydride with DMAPA.
3,0
2,5
2,0
1,5
1,0
0,5
0,0
-1
1
697 cm
M2
C3
M1
C2
500
1000
1500
2000
2500
3000
3500
-1
Wavenumbers / cm
Figure 3. IR spectra of amidoacidified C2, thermally imidized C3, and model compounds M1 and
M2 (3-(N,N-dimethylamino)propyl maleamic acid and 3-(N,N-dimethylaminopropyl)maleimide).
−
1
The characteristic absorption band of cyclic imides in C3 and M2 at 1697 cm are shown.

Int. J. Mol. Sci. 2018, 19, 2617
7 of 22
To determine the content of modified succinic anhydride moieties, elemental analysis was
employed. The standard measurement for carbon, hydrogen, and nitrogen determination showed
a strong correlation to the calculated values for the hydrogen and nitrogen content while measured
content of carbon strongly differed from the calculated value (Table 2). However, the product was
found to be hygroscopic [50] and the standard analytical treatment did not include a drying step.
When one recalculates the elemental composition of the copolymer assuming that each amic acid unit
additionally binds two molecules of water, the determined elemental composition becomes reasonable
(see Table 2, #3).
Table 2. Comparison of the CHN elemental analysis results of the amidoacidified copolymer with
calculated values.
#
Composition
Calculated for C H N O
3
Carbon Hydrogen Nitrogen
#1
#2
#3
64.30
56.23
56.18
9.80
10.07
9.73
9.80
8.74
9.78
15
28
2
Calculated for C H N O ·2H O
15
28
2
3
2
Found
The abovementioned hypothesis was verified in a simple experiment. A small sample of the C2
was dried in vacuo to a constant weight and placed in an open vessel on a very precise balance to
absorb the humidity from air. A rapid increase in weight of the sample was observed. The calculated
difference between initial mass of the sample and the mass after 12 h of exposure to humid air showed
that the composition of the copolymer was C H N O 1.86H O. The difference between the expected
·
15
28
2
3 2
and obtained values can be explained as a result of insufficient drying, absorption of water during
transfer from the drying oven to balance (the initial period of the experiment showed a rapid increase
of the weight), degree of modification lower than assumed 100%, or impurities. Most probably it
should be treated as the combination of several reasons, although the measured value of ~1.9 moles
H O per amic acid unit is very close to the postulated stoichiometric 1:2 composition.
2
2
.2.3. Chemical Imidization
The imidization reaction of amic acid in the presence of a dehydration agent and a base has been
described in many publications [51,52,58–60]. The most common reagents are acetic anhydride in the
presence of triethylamine or sodium acetate. This reaction is usually carried out under mild conditions
◦
(
temperature 80–90 C) and is useful for the synthesis of a wide range of N-substituted imides.
The reaction was first tested by means of a model reaction between cis-3-(3-dimethylaminopropyl
carbamoyl) acrylic acid and acetic anhydride. As depicted in Scheme 3, the substrate (M1) was heated
◦
at 90 C for 4 h in the presence of acetic anhydride (dehydrating agent) and sodium acetate (catalyst).
At the end of the reaction time, the mixture was cooled down and sodium acetate was separated
by filtration. Acetic anhydride, as well as acetic acid formed during the reaction, were distilled off
under reduced pressure. The product was obtained as a brown oily liquid.
1
H-NMR analysis of the crude 3-(3-dimethylaminopropyl)maleimide (see Figure 4) shows trace
signals of double-bond protons (between 6 and 6.5 ppm) from unreacted maleic acid amide, which is
about 2% in respect to maleimide.

Int. J. Mol. Sci. 2018, 19, 2617
8 of 22
(
1)
(1')
H
H
O
O
N
HDO
CH2
(
2)
(5,5',6)
(
5')
H2C
(
3)
CH3
(
6)
H
CH2
(
4)
N
double bond
CH3COO
7)
CH3
protons (opened ring)
(
(5)
acetic acid
(
1,1')
(7)
?
-
CH - amine chain (3,2,4)
2
9
8
7
6
5
4
3
2
1
σ ppm
Figure 4. 1H-NMR spectra of crude 3-(3-dimethylaminopropyl)maleimide. Characteristic peak at
7 ppm confirms the ring formation.
~
However, the singlet at ~7 ppm shows that the five-membered ring has been successfully formed.
The comparison between the signals at = 7 ppm and aliphatic protons ( = 2–4 ppm), which belong
σ
σ
to the amine chain, shows that less than 50% of the material that has been obtained was converted to
the required compound. The excess of aliphatic amine protons cannot be explained by incomplete
conversion of the amic acid because of the very low signal intensity of its double-bond protons. Also,
a very strong signal of acetic acid has been registered, although the sample was kept under vacuum
for long time.
The IR spectrum (Figure 3) shows the characteristic absorption bands of cyclic imides at 1697 and
1
714 cm 1 that confirm the imide formation.
−
The reaction of amidoacidified C2 in the presence of Ac O and both mentioned bases always
2
yielded dark brown products of sometimes even tarry consistency. Although characteristic absorption
bands of imides were observed, no way was found to purify the macromolecular product or at least to
remove the dark color.
2
.2.4. Thermal Imidization
Because of the poor quality of obtained products, other possibilities of imidization were explored.
Thermal imidization of amic acids as a main synthesis method has been described in many organic
chemistry handbooks and publications [18,53–58].
TGA analysis of copolymer 2 was performed in order to determine suitable conditions for the
reaction. The calculated mass difference between amic acid form of the copolymer and its imidized
form was 6.5%. The thermogravimetric analysis showed a weight loss of approximately 7% in the
◦
temperature range between 80 and 130 C, which was attributed to the formation of the cyclic imide
by elimination of water (see Figure 5).

Int. J. Mol. Sci. 2018, 19, 2617
9 of 22
100
~7 %
80
60
40
20
0
0
100
200
300
400
500
600
Temperature / deg C
Figure 5. Thermogravimetric analysis (TGA) measurement of amic acid form C2.
◦
The imidization of C2 was carried out in DMF at 120 C. The imidized copolymer C3 was
obtained in form of a pale cream-colored powder which was soluble in acetone. For comparison,
the amidoacidified C2 was insoluble in acetone. The infrared spectroscopy (see Figure 3) showed a
−
1
characteristic absorption band of imides at 1567 cm
.
The advantage of thermal imidization is its simplicity and the improved product quality as well
as the absence of other reagents. It is of paramount importance for an antibacterial test to avoid the
presence of low-molecular-weight toxic agents, which can cause false positive results.
The molecular weight of the imidized copolymer was measured by THF-GPC. The measurement
showed an increase of the molecular weight of the copolymer after modification from M
n
= 5800 to
Mn = 8800. This increase in M is partially caused by the modification as well as by removal of the low
n
molecular weight fraction during purification. This is indicated also by a change of the polydisperisity
of the sample from Mw/Mn = 1.67 to Mw/Mn = 1.47.
2
.3. Quaternization of C3
The quaternization reaction was carried out in solution according to the method described in the
literature [18,50,53–55,61–63]. The C3 copolymer was dissolved in DMSO and reacted with methyl
iodide to give copolymer C4. With a mixture of methyl iodide and dodecyl iodide (1:1, mol:mol),
copolymer C5 was obtained and applying dodecyl iodide alone yielded copolymer C6. The reaction
was performed at room temperature in the presence of an excess of alkyl iodide (with respect to amine
groups), yielding quantitative conversion of the tertiary amine.
According to the literature, a long alkyl chain within the ammonium group shows better biocidal
properties [2,64,65]. For this reason, three different quaternized polymers have been prepared bearing
trimethyl ammonium, dimethyl-dodecyl ammonium groups, as well as a 1:1 (mol:mol) mixture of
both ammonium moieties as the quaternary ammonium side groups.
The IR spectra of quaternized copolymers showed no significant changes because the absorption
bands characteristic for ammonium salts overlap with absorption bands of the nonquaternized
−
1
copolymer (~1500 and 3000 cm ).
2
.4. Solubility in Selected Solvents
The different polarity of the copolymers C3, C4, C5, and C6 is also reflected in the different
solubility (see Table 3).

Int. J. Mol. Sci. 2018, 19, 2617
10 of 22
Table 3. Solubility of imidized C3 and quaternized C4, C5, and C6 in chosen solvents (10 mg of
copolymer/mL). (+) well soluble (>10 wt %); (−) nonsoluble (<1 wt %).
Solvent
C3
C4
C5
C6
Water
Methanol
Ethanol
Acetone
+
+
+
+
+
+
+
+
+
+
+
−
−
−
−
−
−
+
+
+
+
+
+
−
+
+
+
−
−
−
−
+
2
-Butanone
Ethyl acetate
THF
+
−
+
DMSO
DMF
Chloroform
−
−
+
+
−
THF = tetrahydro furane, DMSO = dimethyl sulfoxide, DMF = dimethylformamide.
The introduction of cationic moieties into the polymeric chains strongly increases the polarity of
the copolymer and has a huge influence on the solubility. While nonquaternized copolymer C3 was well
soluble in all of the chosen solvents, the methyl-iodide-quaternized copolymer C4 was soluble only in
very polar solvents such as water and DMSO but insoluble even in lower alcohols such as methanol and
ethanol. The introduction of long alkyl chains by quaternization with dodecyl iodide makes copolymer
C6 insoluble in water, DMSO, DMF, and alcohols but well soluble in ketones, THF, and chloroform.
The simultaneous quaternization with both methyl iodide and dodecyl iodide (C5) ensures good
solubility in very polar solvents (water, DMSO) as well as less polar as 2-butanone. The solubility of
the quaternized copolymers in water is of utmost importance for antimicrobial investigations.
2
.5. Thermal Properties
Figure 6 depicts the TGA thermograms of copolymer C3 and its quaternized derivatives C4,
C5, and C6. The nonquaternized copolymer C3 (curve 1) is the thermally most stable polymer and
◦
◦
shows only slight weight loss below 200 C. The highest weight loss is observed above 300 C.
Any modification of C3 by quaternization causes a decrease in thermal stability of the polymer due
to Hofmann elimination of the ammonium groups [61]. The Hofmann elimination occurs when
quaternary ammonium salts are exposed to high temperatures and the reaction yields an alkene and a
tertiary amine and a low-molecular-weight compound specific for the counterion (e.g., water, HCl,
HI, etc.).
100
80
60
40
20
0
C6
C5
C4 C3
0
100
200
300
400
500
600
Temperature / deg C
Figure 6. TGA measurement of nonquaternized C3 and quaternized copolymers: C4 (-N(CH )3+),
3
C5 ((-N(CH3)3+ + -N(CH ) C H ), and C6 (-N(CH ) C H ).
+
+
3 2
12 25
3 2 12 25

Int. J. Mol. Sci. 2018, 19, 2617
11 of 22
◦
The quaternization with methyl iodide causes the C4 (curve 2) to decompose above 150 C via a
◦
◦
three-stage thermal degradation. The first stage starts at 150 C and ends at 200 C with a weight loss
of 32% corresponding to the loss of HI (31 wt %). Even partial quaternization with long alkyl-chain
iodide versus methyl iodide increased the thermal stability, as observed in curves 3 and 4 (C5 and C6)
in Figure 6
However, such derivatives also show faster thermal degradation than nonquaternized C3. In all
cases, the investigated copolymers showed a certain weight loss at relatively low temperatures around
◦
1
00 C, most probably caused by a loss of adsorbed water because of the hygroscopic nature of salts.
DSC measurement of dodecyl-iodide-quaternized copolymer is typical for all ammonium
◦
copolymers based on the C3 copolymer in the temperature range of
−
50 to 200 C. Each copolymer
◦
◦
showed two thermal transitions: one at 17 C and a second one in the region of 80–105 C (see Table 4).
The temperature of the second transition seems to depend on the type of quaternizing agent and is
about 20 C higher for copolymers quaternized with dodecyl iodide. There is a correlation with the
◦
TGA data where the presence of dodecyl iodide increased the thermal stability. Since the copolymers
undergo decomposition in this range of temperatures, reverse heating does not reproduce the curves.
Only the first transition is fully reproducible. The fact that the presence of longer alkyl chain gives a
g
higher T value is not in line with the expectations. It is known that polymers which contain longer
alkyl side chains exhibit lower glass transition temperatures than the shorter ones due to the plastifying
effect. Although there has been no melting temperature observed, this phenomenon can be assigned
to the formation of ordered structures on the micro or even nano scale. These types of crystalline
structures usually do not give any measurable thermal response and further investigation is required.
Detailed values of the thermal transition of the investigated copolymers are summarized in Table 4.
Table 4. Transition temperatures for nonquaternized C3 and its cationic modifications.
◦
◦
#
Transition 1 ( C)
Transition 2 ( C)
Functional Group
C3
C4
C5
C6
18
17
17
18
88
85
104
101
-N(CH3)2
+
-N(CH3)3
-N(CH3)3+ + -N(CH ) C H
+
3 2
12 25
+
-N(CH ) C H
3
2
12 25
2
.6. Investigation of Antimicrobial Properties of the Cationic Copolymer
In the World Health Organization’s (WHO) “global priority list of antibiotic-resistant bacteria to
guide research, discovery, and development of new antibiotics” of February 2017, experts agreed on
grouping pathogens according to the species and the type of antibiotic resistance and classified the
results in three priority tiers: critical, high, and medium.
Our selected bacteria belong to genera that were grouped into the priorities critical and high, i.e.,
here, the prevalence of resistance against antibiotic treatments is extremely high. With our research
field, to prepare antimicrobially functional polymers, we would like to contribute to the reduction of
the spread of these bacteria.
Amphiphilic polymers with quaternary ammonium groups are known to have antimicrobial
properties [20]. Thus, the water soluble C3, C4, and C5 were tested for their antimicrobial efficacy.
In order to find the MIC of the copolymers, bacterial growth of strains belonging to clinically
relevant genera was monitored in the presence of all the copolymers. The tests were performed in
◦
microwell plates and the proliferation potential of the bacteria was monitored at 37 C by measuring
the optical density at 612 nm for 20 h using a microwell plate incubator/reader in comparison to a
reference without the respective polymer. The MIC values are summarized in Table 5.

Int. J. Mol. Sci. 2018, 19, 2617
12 of 22
Table 5. Minimum inhibitory concentration (MIC) of the polymeric materials in bidistilled water and
6
Mueller-Hinton broth (MHB) against bacteria (1–2
×
10 cfu/mL) (MIC100: complete growth inhibition
during the monitoring time of 20 h) compared to reference Nisin, and hemolytic effect (HC ).
5
0
MIC100 in µg/mL
Polymer
HC50 in µg/mL
E. coli ATCC
P. aeruginosa
ATCC27853
S. aureus ATCC
6538
S. epidermidis
ATCC 12228
2
3716
C3
C4
C5
20
200
10
100
>>1000
200
>1000
1000
100
20
20
20
100 *
>>1000 **
#
60
NISIN
100
>200
3
3
>>340 +
*
2
Agglutination of red blood cells (RBC) at all concentrations tested 10–1000
µg/mL; ** agglutination of RBC at
0–1000 g/mL; # no agglutination of RBC, + at 340 g/mL = 100 mM Nisin only 10.8% of the RBC are lysed. Nisin
µ
µ
(
Handary 97.9%).
The novelty of this paper is (i) the polymer backbone based on maleic anhydride and
4
-methyl-1-pentene and (ii) the fact that the results obtained for E. coli and S. aureus were not as expected
based on a great amount of papers showing that amphiphilic polymers with different backbones and
manifold kinds of cationic and hydrophobic residues are more active against Gram-positive bacteria
(lower MIC values) than against Gram-negative bacteria.
The polymers are more effective by a factor of 5–10 against the Gram-negative E. coli than
against the Gram-positive S. aureus. This selectivity, although with a lower factor, was also found
in [66], who prepared lysine and arginine mimicking amino and guanidine propyl methacrylamide
copolymers; in the latter, the amine-containing copolymers were best.
Compared to polymer C4 (modified with methyl iodide), polymers C3 (nonquaternized) and C5
(modified with both iodides, methyl and dodecyl iodide) are more active against the Gram-negative
bacteria E. coli and P. aeruginosa, whereas, in the case of S. aureus, C5 was the most active polymer
compared to C3 and C4, with the nonquaternized C3 being the least active in the latter case.
Previous studies in our group, although with a different polymer backbone, have shown that the best
results against S. aureus were obtained with the cationic residue directly linked to the aliphatic residue
without a spacer in between [67], and that longer alkyl chains showed best efficacy [68] and, thus,
confirm these results. Regarding the solubility properties (Table 3), C3 and C5 show similar solubilities
in the different solvents compared to C4. The limited solubility of the latter seems to restrict the effect
against E. coli, P. aeruginosa, and S. aureus since the hydrophilic–lipophilic balance is decisive for the
efficacy of the respective polymer.
Against S. epidermidis, all three polymers are equally active in a comparable range, such as C3 and
C5 against E. coli.
Comparing the MIC for the Gram-negative bacteria gave 5- (C3) to 20-fold (C5) higher values for
P. aeruginosa than for E. coli, meaning that E. coli is 5–20 times better inhibited compared to P. aeruginosa.
Gram-negative bacteria are known to actively secrete outer membrane vesicles (OMVs) from the
outer membrane (OM) [69]. OMV production is correlated with an increased rate of survival upon
antimicrobial peptide treatment [70] In Pseudomonas putida, OMVs are generated, e.g., as a response
to stress caused by cationic surfactants which can contribute to OMV biogenesis, through a physical
mechanism by induction of the curvature of the membrane [71]. Although OMV production is common
in many bacteria, the extent and mechanism of OMV production is species specific, and thus, the higher
MIC values for P. aeruginosa might be due to the level of OMV production, since environmental stresses
result in increased OMV formation by P. aeruginosa [72].
For the Gram-negative bacteria E. coli and P. aeruginosa and for the Gram-positive S. aureus,
C5 quaternized with the long alkyl chain, i.e., the repeat unit structure with the hydrophobic
moiety being directly accompanied by the charged moiety, exhibits a higher efficacy compared to C4
quaternized with methyl iodide (this was also confirmed for functionalized polymers with polglycidol
backbone [73]).

Int. J. Mol. Sci. 2018, 19, 2617
13 of 22
C5 exhibits a more ordered structure due to phase separation and orientation of the hydrophobic
C H chains to hydrophobic domains (see also the discussion on the thermal properties in Section 2.5).
12
25
Whereas polymers C3 and C4 led to an agglutination of human RBC at all concentrations tested
(
10–1000
µ
g/mL), C5 did not agglutinate RBC but showed lysis of 50% of the RBC relative to the
g/mL. The higher value of HC50 compared to the
g/mL) proved that polymer C5 has a selectivity to differentiate between
positive control (HC ) at a concentration of 60
MIC100 against E. coli (10
µ
50
µ
mammalian cells and bacterial cell walls. However, since the values are overall in the same order of
magnitude, the selectivity is low.
Since the investigated antimicrobial copolymers were designed to mimic peptides, a comparison
with a reference compound is needed. The type A lantibiotics, e.g., Pep5 or Nisin, are in general of
linear conformation and all the Nisin type peptides are positively charged [33]. Combination of the
cationic nature and the presence of leucine makes Nisin a good reference.
Nisin is a 34-residue-long peptide which is predominantly active against Gram-positive bacteria
(Nisin is also active against Gram-negative bacteria but only after a pretreatment) [74]. It is generally
accepted that the bacterial plasma membrane is the target for Nisin, and that Nisin kills the cells
by pore formation and inhibition of peptidoglycan synthesis. The pore formation causes collapse of
vital ion gradients, resulting in cell death [75]. In this study, it was shown that Nisin, compared to
the copolymer modified with both iodides, is highly active against Gram-positive bacteria, and, as
expected, 30 to more than 60 times less active against Gram-negative bacteria. Moreover, comparing
the MIC of Nisin against the Gram-positive bacteria on the molar basis instead on the weight basis,
the difference between the effect of Nisin and the copolymer is significantly lower.
This gap indicates that the activity of the peptides is determined not only by the amphiphilic
nature but most probably the secondary peptide structure plays also a substantial role.
3
. Materials and Methods
3
.1. Materials
Maleic anhydride (MSA, Merck, Darmstadt, Germany, for synthesis) was sublimed under reduced
◦
−2
10 bar), benzoyl peroxide (BPO, Merck, for synthesis) was recrystallized
pressure (50 C, 2.4
from a chloroform:methanol mixture (1:5 vol:vol), 2-butanone (MEK, Merck, p.a.), and other solvents
technical grade) were dried over calcium hydride (Fluka, Seelze, Germany) and distilled before use.
-methyl-1-pentene (Aldrich, Darmstadt, Germany, for synthesis), methyl iodide (ABCR, Karlsruhe,
Germany), benzyl alcohol (Merck, for synthesis), dimethyl sulfoxide (Fluka, p.a.), acetic anhydride
Merck, for synthesis), 3-dimethylaminopropylamine (Aldrich), succinic anhydride (Merck, p.a.),
×
(
4
(
triethylamine (Fluka, p.a.), and anhydrous sodium acetate (Merck, p.a.) were used without additional
purification. The inorganic salts sodium chloride, sodium dihydrogen phosphate monohydrate,
and disodium hydrogen phosphate dehydrate (all Merck) were used as received.
Bacteria have been provided by the German Resource Centre for Biological Material.
(Leibniz-Institut DSMZ-Deutsche Sammlung von Mikroorganismen und Zellkulturen GmbH,
Braunschweig, Germany) and (LGC Standards GmbH, Wesel, Germany). Gram-negative bacteria:
Escherichia coli (DSM 498, ATCC 23716) and Pseudomonas aeruginosa (DSM 1117, ATCC 27853).
Gram-positive bacteria: Staphylococcus aureus (ATCC 6538) and Staphylococcus epidermidis (DSM
1
798, ATCC 12228).
Nutrient solutions: (1) NL1: 0.5 g of meat extract (Merck) and 0.3 g of peptone obtained from
casein (Merck) were dissolved in 99.2 g of sterile water; (2) Mueller-Hinton Broth (Carl Roth GmbH,
Karlsruhe, Germany) per L: 2.0 g Beef Extract Powder, 17.5 g Acid Digest of Casein, 1.5 g Starch
pH 7.4 ± 0.2.
Phosphate buffered saline (PBS): 100 mL of phosphate buffer and 1.8 g of sodium chloride were
placed in a 200-mL measuring flask and filled with distilled water ad 200 mL.

Int. J. Mol. Sci. 2018, 19, 2617
14 of 22
3
.2. Measurements/Apparatus
Size exclusion chromatography was performed using a system consisting of an LC 1120 pump
Polymer Laboratories, Church Stretton, UK), a UV detector ERC-7215, an RI detector ERC-7515A
ERMA CR INC., Kawaguchi, Japan),), a precolumn (50 8 mm) of nominal pore size 50 Å,
8 mm) filled with MZ-Gel SDplus of nominal pore size 50, 100, 1000,
(
(
×
and four columns (300
×
and 10,000 Å (MZ-Analysentechnik, Mainz, Germany). The set was calibrated with PMMA and PS
standards from Polymer Laboratories. The sample concentration was 7 mg of polymer in 1 mL of
tetrahydrofuran, and the injected volume of the sample was 100 µL. The tetrahydrofuran was stabilized
with 2,6-di-tert-butyl-4-methylphenol (250 mg/L).
1
H-NMR spectra were obtained on a Bruker DPX-300 spectrometer in acetone-d and D O at
6
2
300 MHz. MestRe-C 4.9.0.0 was used as evaluation software. The solvent peak as the reference signal
was used.
IR spectra were measured with on an FTIR Thermo Nicolet Nexus spectrometer in KBr-pellets
−
1
with a resolution of 4 cm
.
Thermogravimetric analysis (TGA) was performed by means of NETZSCH TG 209c thermo
balance under nitrogen atmosphere at a nitrogen flow of 15 mL/min. Samples of 9–11 mg were placed
−
1
in a standard NETZSCH alumina 85-µL crucible. The heating rate was 10 K min
Differential scanning calorimetry (DSC) measurements were performed by means of a Netzsch
DSC 204 unit. Samples (typical weight: ~9 mg) were enclosed in standard Netzsch 25- L aluminium
crucibles. Indium and palmitic acid were used as calibration standards. Heating and cooling rates
.
µ
◦
−1
were 10 C min
.
CHN elemental analysis was performed by means of a Carlo Erba MOD-1106 elemental analysis
apparatus at the Institute of Organic Chemistry of the RWTH Aachen. Each measurement was
performed twice.
The optical density measurements were performed by means of an Infinite 200 Pro (Tecan,
Männedorf, Switzerland) Multiwell plate Reader/Incubator at a wavelength of 612 nm in cycles of
3
3
3
0 min for 20 h.
.3. Syntheses
.3.1. Poly[(4-methyl-1-pentene)-alt-maleic anhydride] (Copolymer 1, C1)
In a 100-mL round-bottomed flask equipped with a reflux condenser and a valve, maleic anhydride
(
7 g, 71 mmol, 55 mol %) and 4-methyl-1-pentene (5.04 g 60 mmol) were dissolved in dry MEK (35 mL).
To this mixture, BPO (0.3 g, 1.23 mmol, 0.93 mol %) was added and the mixture was degassed three
times by freeze–pump–thaw cycles and filled with nitrogen. The reaction mixture was placed in an oil
◦
bath at 80 C for 8 h. After the given time, the reaction mixture was cooled to ambient temperature
and the polymer was precipitated in a mixture of diethylether:methanol (4:1 vol:vol), separated by
◦
filtration, and dried under vacuum at 40 C for 8 h. The copolymer (9.3 g, 77% yield) was obtained as
a white solid. The molecular weight of the obtained copolymer was determined by gel permeation
chromatography in tetrahydrofuran THF-GPC using PMMA standard: M
The characteristic absorption peaks of IR spectra were: 1852, 1777 (C=O); 927 (C-O-C) cm . Elemental
analysis for C H O ; calculated: C 65.9; H 7.7; O 26.4 wt %, found: C 65.54; H 7.85; O 26.61 wt %.
n w n
= 5800, Đ = M /M = 1.67.
−
1
1
0
14
3
1
H-NMR (acetone-d , δ in ppm): 0.71–4.03; (m, backbone, and side chains)
6
1
3
.3.2. Determination of the Maleic Anhydride Content of C1 by H-NMR
C1 (100 mg) was dissolved in 2-butanone (5 mL) and benzyl alcohol (0.5 g) was added. The mixture
◦
was heated at 50 C under reflux for 18 h. The product was precipitated in a diethylether/methanol
◦
1
(
1:1) mixture and dried under vacuum at 40 C for 8 h. H-NMR (CDCl ,
δ
in ppm): 7.16–7.49 (m, 5H,
3
aromatic); 5.11 (2H, -O-CH -); 0.71–4.03 (m, 14H, backbone, and side chains)
2

Int. J. Mol. Sci. 2018, 19, 2617
15 of 22
3
.3.3. Amidoacidification of C1 to Poly[(4-methyl-1-pentene)-alt-(1-(3-N,N-
dimethylaminopropyl)malemic acid)] (Copolymer 2, C2)
C1 (2.0 g) was dissolved in dry dimethylformamid (DMF) (45 mL) and -(dimethylamino)-1-
propylamine (DMAPA) (1.19 g, 11.7 mmol) was added dropwise for 2 h to the stirred solution using
a syringe pump at room temperature (RT). During the addition phase, precipitation of the product
occurred. The mixture was stirred for an additional 24 h, and the precipitated product, a cream-colored
◦
solid, was filtered off and dried at 40 C under reduced pressure for 8 h. The characteristic absorption
−
1
peaks of IR spectra were: 1714; 1657; 1567 cm
.
3
.3.4. Thermal Imidization of C2 to Poly[(4-methyl-1-pentene)-alt-(1-(3-N,N-
dimethylaminopropyl)maleimide)] (Copolymer 3a, C3a)
◦
Amidoacidified C2 (1.0 g) was dissolved in DMF (20 mL) and heated under reflux at 120 C
◦
for 24 h. The product was precipitated from diethylether and dried under vacuum at 40 C for 5 h.
The molecular weight of the obtained copolymer was determined by THF-GPC using PMMA standard:
−
1
M
n
= 8600, Đ = 1.46. The characteristic absorption peaks of IR spectra were: 1772; 1697 cm . Elemental
analysis for C H O N ; calculated: C 67.7; H 9.8; N 10.5; O 12.0 wt %; found: C 67.09; H 9.70; N 10.11;
15
26
2
2
O 11.10 wt %.
3
.3.5. Chemical Imidization of Amidoacidified C2 (Copolymer 3b, C3b)
The amidoacidified C2 (0.5 g) was dissolved in a mixture of DMF, acetic anhydride, 2-butanone
triethylamine, or sodium acetate (see Table 6 for detailed composition). The reaction mixture was
either heated under reflux or stirred at RT under a protective atmosphere of nitrogen for 12–18 h.
◦
The product was precipitated in diethylether as a dark-brown solid and dried under vacuum at 40 for
2
4 h. The repeated precipitation had no influence on the appearance. The characteristic absorption
−
1
peaks of IR spectra were: 1770; 1697 cm
.
Table 6. Composition of the reaction mixtures, reaction conditions for the chemical imidization of C2,
yield, and appearance of the product.
◦
#
DMF (g)
Ac2O (g)
MEK (g)
Et3N (g)
CH3COONa (g)
T ( C)
t (h) Yield %
Appearance
1
2
3
4
5
6
7
15
15
20
-
-
-
15
15
1.07
1.0
0.55
7
-
-
-
15
15
-
0.1
0.1
1.41
0.8
0.73
1
-
-
-
-
-
RT
80
80
90
90
80
80
12
18
24
18
12
20
18
88
70
62
87
90
78
69
brown powder
brown powder
brown, tarry
grey powder
grey powder
grey powder
brown powder
-
0.1
-
10
-
-
DMF = dimethylformamid, Ac
2 3 3
O = acetic anhydride, MEK = 2-butanone, Et N = triethylamine, CH COONa
=
sodium acetate, RT = room temperature.
3
.3.6. Preparation of Imide C3 in a One-Pot Reaction (Copolymer 3c, C3c)
C1 (3.5 g) was dissolved in dry DMF (20 mL) and placed in a 250-mL round-bottomed flask.
Within 2 h, DMAPA (2.5 g) dissolved in dry DMF (40 mL) was added by means of a syringe pump at
room temperature. The dispersion of the precipitated product was stirred additionally for 12 h and
◦
the mixture was placed in an oil bath heated to 120 C for another 24 h. The product was purified by
◦
precipitation in 400 mL of diethylether. After drying the precipitate under vacuum at 40 C for 8 h,
a cream-colored powder was obtained (3.2 g, 97.5%). The molecular weight of the obtained copolymer
was determined by THF-GPC using PMMA standard: M
absorption peaks of IR spectra were: 1772; 1697 cm . Elemental analysis for C H O N ; calculated:
n
= 9350, Đ = 1.40. The characteristic
−
1
15
26
2
2
C 67.7; H 9.8; N 10.5; O 12.0 wt %; found: C 67.16; H 9.76; N 10.21; O 12.87 wt %.

Int. J. Mol. Sci. 2018, 19, 2617
16 of 22
3
.3.7. Synthesis of Poly[(4-methyl-1-pentene)-alt-(1-(3-N,N,N-trimethylammonium-propyl)-
maleimidoiodide)] by Quaternization of Imidized C3 with Methyl Iodide (Copolymer 4, C4)
Thermally imidized C3a (0.1 g) was dissolved in dimethyl sulfoxide DMSO (4 mL) and placed
in a 25-mL round-bottomed flask. Methyl iodide (0.1 mL) was added and the mixture was stirred at
◦
room temperature for 18 h. The product was precipitated in THF and dried under vacuum at 40 C
for 12 h. The product (0.147 g, 96%) was obtained as a lemon-yellowish powder. Elemental analysis
for C H O N I; calculated: C 47.1; H 7.2; N 6.9; O 7.6; I 31.2 wt %; found: C 46.63; H 7.0; N 6.97;
16
29
2
2
O 7.87 wt %.
3
.3.8. Sequential Quaternization of Imidized C3 with Methyl and Dodecyl Iodide (Copolymer 5, C5)
Thermally imidized C3a (0.3 g) was placed in a 25-mL round-bottomed flask and dissolved in
a mixture of acetone (10 mL) and DMSO (5 mL). Dodecyl iodide (0.164 g, 0.564 mmol, 50% with
respect to the N,N-dimethylammonium groups) of) was added and the mixture was stirred for 48 h.
In a subsequent step, methyl iodide (0.2 g, 1.4 mmol) dissolved in DMSO (5 mL) was added and the
reaction mixture was stirred for another 24 h. The product was precipitated in a THF/hexane (4:1)
◦
mixture, separated, and dried under vacuum at 40 C for 8 h. Elemental analysis for C H O N I ;
43
80
4
4 2
calculated: C 53.2; H8.2; N5.8; O 6.6; I 26.2 wt %; found: C 53.0; H 8.17; N 5.84; O 6.9 wt %.
3
.3.9. Synthesis of Poly[(4-methyl-1-pentene)-alt-(1-(3-N,N-dimethyl-N-dodecylammoniumpropyl)-
maleimidoiodide)] (Copolymer 6, C6)
Thermally imidized C3a (0.1g) was dissolved in acetone (4 mL) and placed in a 25-mL
round-bottomed flask and dodecyl iodide (0.1 mL) was added. The flask was closed with a glass
stopper and the mixture was stirred for 48 h. The product was precipitated in hexane, filtered, and dried
◦
under vacuum at 40 C for 8 h. Elemental analysis for C H O N I; calculated: C 57.6; H 9.0; N 5.0;
27
51
2
2
O 5.7; I 22.7 wt %; found: C 57.56; H 9.06; N 5.01; O 5.88 wt %.
3
.3.10. Synthesis of 3-(N,N-dimethylamino)propyl Maleic Acid Amide (M1)
Maleic anhydride (7.0 g, 71 mmol) was dissolved in dry chloroform (100 mL) and placed in a
50-mL flask. A solution of DMAPA (6.8 g, 67 mmol) in chloroform (20 mL) was added dropwise
and stirred for 1 h at 60 C. After the addition period, the reaction mixture was heated at 60 C for 1 h.
The product was precipitated in a fivefold excess of acetone (with respect to the volume of the reaction
2
◦
◦
◦
mixture), separated, and dried under vacuum at 40 C for 8 h. The product (12.2 g, 88%) was obtained as
−1 1
a white powder. The characteristic absorption peaks of IR spectra were: 1710, 1650, 1588 cm . H-NMR
D O, δ in ppm): 6.33 (dd, 1H, C = CH-CON-, J = 12 Hz); 5.96 (dd, 1H, C = CH-COOH, J = 12 Hz); 3.33
3
3
(
(
2
2
3
3
t, 2H, -NH-CH2-CH -CH -N(CH ) , J = 6 Hz); 3,17 (t, 2H, -NH-CH -CH -CH2-N(CH ) , J = 9 Hz);
2 2 3 2 2 2 3 2
3
,88 (s, 6H, -NH-CH -CH -CH N-(CH ) ); 1,95 ( q, 2H, -NH-CH -CH -CH N-(CH ) ) J = 6 Hz).
2 2 2 3 2 2 2 2 3 2
3
.3.11. Chemical Imidization (Z)-4-(N,N-dimethylamino)propylamino-4-oxobut-2-enoic Acid (M2)
◦
with a reflux condenser for 4 h at 90 C. After cooling to ambient temperature, the reaction mixture
Maleamic acid (1.0 g, 5 mmol) and sodium acetate (0.2 g, 2 mmol) were dissolved in acetic anhydride
30 mL) and heated in a 50-mL round-bottomed flask equipped was filtered to remove sodium acetate,
and acetic anhydride was distilled off under reduced pressure. A brown oily product (0.8 g, 72%) was
(
−
1 1
obtained. The characteristic absorption peaks of the IR spectra were: 1773; 1697 cm . H-NMR (D O,
2
3
δ
in ppm): 6.86 (s, 2H, -OC-CH = CH-CO-); 3.62 (t, 2H, -NH-CH2-CH -CH -N(CH ) , J = 6 Hz); 3.14
2
2
3 2
3
(
t, 2H, -NH-CH -CH -CH2-N(CH ) , J = 9 Hz); 2.86 (s, 6H, -NH-CH -CH -CH N-(CH ) ); 1.98 (q,
2
2
3 2
3
2
2
2
3 2
2
H, -NH-CH -CH -CH N-(CH ) ) J = 6 Hz).
2
2
2
3 2

Int. J. Mol. Sci. 2018, 19, 2617
17 of 22
3
.3.12. Synthesis of 3-(N,N-dimethylamino)propyl Succinamic Acid (M3)
DMAPA (3.6 g, 35 mmol) was added slowly to a solution of succinic anhydride 3.5 g (35 mmol) in
dry acetone (20 mL). The mixture was stirred for 2 h at room temperature. The precipitated product was
filtered and immediately used for the thermal imidization reaction without further characterization.
3
.3.13. Thermal Imidization of (Z)-4-(N,N-dimethylamino)propylamino-4-oxobutanoic Acid (M4)
3
-(N,N-dimethylamino)propyl succinamic acid obtained from the reaction of succinic anhydride
◦
and DMAPA was heated under flowing nitrogen at 170 C for 2 h. A brownish oily liquid (6.3 g,
8%) was obtained. The characteristic absorption peaks of IR spectra were: 1770; 1697 cm
H-NMR (D O,
NH-CH -CH -CH2-N(CH ) , J = 6 Hz); 2.73 (s, 6H, -NH-CH -CH -CH N-(CH ) ); 2.41 (s, 4H,
2 2 3 2 2 2 2 3 2
OC-CH -CH -CO-); 1.85 (q, 2H, -NH-CH -CH -CH N-(CH ) .
−
1
9
.
1
3
δ
in ppm): 3.23 (t, 2H, -NH-CH2-CH -CH -N(CH ) , J = 6 Hz); 2.97 (t, 2H,
2
2
2
3 2
3
-
-
2
2
2
2
2
3 2
3
.4. Antimicrobial Tests
The antibacterial activity of the amphiphilic polymers in solution was determined by measuring
the minimum inhibitory concentration (MIC) using the test bacteria mentioned above. Suspensions
6
◦
of strains with known colony forming units (CFU; 2
×
10 CFU/mL) were incubated at 37 C in
nutrient solution (Mueller-Hinton Broth, MHB) with different concentrations of the polymer samples.
The polymer samples were solubilized in bidistilled water and added to the nutrient solution at a
constant ratio of 1:10. The growth of the bacteria was followed during the incubation over 20 h by
measuring the optical density at 612 nm every 30 min (with 1000 s of shaking at 100 rpm per 30
min cycle by using a microwell plate reader/incubator (TECAN Infinite 200 Pro, Tecan Trading AG,
Männedorf, Switzerland). The testing was performed with defined concentrations specifically for
each polymer until, within the monitoring time of 20 h, no bacterial growth curve was recorded.
All experiments were performed in triplicate duplicates and MIC determination was repeated on three
different days. The polymers were not sterilized. Sterile controls (defined polymer concentrations
in nutrient solution without bacteria) were assessed in every growth curve monitoring testing series.
MICs were determined according to broth microdilution in 96-well microtitre plates [76]. The MIC
corresponds to the concentration of the test substance at which a complete inhibition of the growth of
the inoculated bacteria was observed by comparison with control samples without test substance.
3
.5. Hemolytic Activity
Hemolytic activity was assessed according to the literature [77]. Human erythrocytes (from
healthy donors, red blood cells (RBC), 0, Rh positive, citrate-phosphate-dextrose-adenine-stabilized;
CPDA1 Sarstedt Germany) were obtained by centrifugation (3500 rpm, 12 min) to remove plasma,
washed three times in PBS (0.01 M phosphate buffered saline, Sigma Aldrich Chemie GmbH, Steinheim,
8
8
Germany), and diluted in PBS to obtain a stock solution of 2.5
×
10 –3.0
×
10 /mL RBC. Solutions
of defined polymer concentration (250
µ
8
L) were pipetted into 250
µL of the stock solution, the final
8
◦
amount of RBC being 1.2
×
10 –1.5
×
10 RBC/mL. The RBC were exposed for 60 min at 37 C under
D-shaking, centrifuged thereafter (4000 rpm, 12 min), and the absorption of the supernatant (diluted
3
10-fold in PBS) was determined at 414 nm in a microplate reader. As reference solutions, (i) PBS for
determining spontaneous hemolysis and (ii) 1% Triton X-100 for 100% hemolysis (positive control)
were used. Hemolysis was plotted as a function of polymer concentration and the hemolytic activity
was defined as the polymer concentration that causes 50% hemolysis of human RBC relative to the
positive control (HC ).
50
4
. Conclusions
Maleic anhydride copolymers are versatile, easy-for-modification materials which can be used as
a base for a wide range of antimicrobial copolymers.

Int. J. Mol. Sci. 2018, 19, 2617
18 of 22
The modification of P[MP-alt-MSA] copolymer with diamine to poly[(4-methyl-1-pentene)-
alt-(1-(3-N,N-dimethylaminopropyl)maleimide)] can be performed as a one-pot synthesis without
using any additives in relatively mild conditions.
Poly[(4-methyl-1-pentene)-alt-(1-(3-N,N-
dimethylaminopropyl)maleimide)] can be easily converted into a polycationic material by means
of any alkyl iodide. Sequential quaternization with methyl iodide and dodecyl iodide—which
introduce a hydrophobic long-alkyl-chain moiety, but thanks to methyl iodide, ensure solubility
in polar solvents—shows the best properties in the sense of antimicrobial activity.
The antimicrobial properties of poly[(4-methyl-1-pentene)-alt-(1-(3-N,N,N-trimethylammoniumpropyl)-
maleimidoiodide)] are even lower than the properties of the nonquaternized copolymer.
The polymers are more effective by a factor of 5–10 against the Gram-negative E. coli than
against the Gram-positive S. aureus. Compared to poly[(4-methyl-1-pentene)-alt-(1-(3-N,N,N-
trimethylammoniumpropyl)-maleimidoiodide)], polymers poly[(4-methyl-1-pentene)-alt-(1-(3-N,N-
dimethylaminopropyl)maleimide)] and poly[(1-(3-N,N,N-trimethylammonium-propyl)-maleimidoiodide)-
co-(1-(3-N,N-dimethyl-N-dodecylammoniumpropyl) maleimidoiodide)-alt-(4-methyl-1-penten)] are
more active against the Gram-negative bacteria E. coli and P. aeruginosa, whereas, in the case
of S. aureus, only poly[(1-(3-N,N,N-trimethylammonium-propyl)-maleimidoiodide)-co-(1-(3-N,N-
dimethyl-N-dodecylammoniumpropyl) maleimidoiodide)-alt-(4-methyl-1-penten)] was the most active
polymer compared to the nonquaternized polymer and the polymer quaternized with methyl iodide.
The nonquaternized copolymer was the least active in the latter case.
The MIC of the synthetic copolymers is higher than of the natural peptide Nisin. However,
the freedom in designing the basic polymer, molecular weight, as well as the way of modification and,
in particular, the much lower price of the synthetic compounds show the potential of the presented
strategy to develop new “surface protection”.
Author Contributions: Supervision, U.B. and M.M.; Writing—original draft, M.S., E.H., and H.K.
Acknowledgments: The authors gratefully acknowledge the excellent technical assistance of Rita Gartzen who
performed the antimicrobial tests.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
Cornell, R.J.; Donaruma, L.G. 2-Methacryloxytropones. Intermediates for synthesis of biologically active
polymers. J. Med. Chem. 1965, 8, 388–390. [PubMed]
Tashiro, T. Antibacterial and bacterium adsorbing macromolecules. Macromol. Mater. Eng. 2001, 286, 63–87.
[CrossRef]
Kenawy, E.R.; Mahmoud, Y.A.G. Biologically active polymers, 6-synthesis and antimicrobial activity of some
linear copolymers with quaternary ammonium and phosphonium groups. Macromol. Biosc. 2003, 3, 107–116.
[
CrossRef]
Sanda, F.; Endo, T. Syntheses and functions of polymers based on amino acids. Macromol. Chem. Phys. 1999
00, 2651–2661. [CrossRef]
4.
5.
6.
7.
8.
9.
,
2
Ilker, M.F.; Nusslein, K.; Tew, G.N.; Coughlin, E.B. Tuning the hemolytic and antibacterial activities of
amphiphilic polynorbornene derivatives. J. Am. Chem. Soc. 2004, 126, 15870–15875. [CrossRef] [PubMed]
Rivas, B.L.; Pereira, E.D.; Mondaca, M.A. Biostatic behavior of side chain charged-polycations and
polymer-ag complexes. Polym. Bull. 2003, 50, 327–333. [CrossRef]
Tashiro, T. Removal of bacteria from water by systems based on insoluble polystyrene-polyethyleneimine.
J. Appl. Polym. Sci. 1992, 46, 899–907. [CrossRef]
Hazzizalaskar, J.; Nurdin, N.; Helary, G.; Sauvet, G. Biocidal polymers active by contact.1. Synthesis of
polybutadiene with pendant quaternary ammonium groups. J. Appl. Polym. Sci. 1993, 50, 651–662. [CrossRef]
Nurdin, N.; Helary, G.; Sauvet, G. Biocidal polymers active by contact. II. Biological evaluation of
polyurethane coatings with pendant quaternary ammonium-salts. J. Appl. Polym. Sci. 1993, 50, 663–670.
[CrossRef]

Int. J. Mol. Sci. 2018, 19, 2617
19 of 22
1
1
0. Nurdin, N.; Helary, G.; Sauvet, G. Biocidal polymers active by contact. III. Aging of biocidal polyurethane
coatings in water. J. Appl. Polym. Sci. 1993, 50, 671–678. [CrossRef]
1. Hazzizalaskar, J.; Helary, G.; Sauvet, G. Biocidal polymers active by contact. IV. Polyurethanes based on
polysiloxanes with pendant primary alcohols and quaternary ammonium groups. J. Appl. Polym. Sci. 1995
8, 77–84. [CrossRef]
,
5
1
1
1
1
1
2. Sauvet, G.; Fortuniak, W.; Kazmierski, K.; Chojnowski, J. Amphiphilic block and statistical siloxane
copolymers with antimicrobial activity. J. Appl. Polym. Sci. 2003, 41, 2939–2948. [CrossRef]
3. Ikeda, T.; Hirayama, H.; Suzuki, K.; Yamaguchi, H.; Tazuke, S. Biologically-active polycations. 6. Polymeric
pyridinium salts with well-defined main chain structure. Macromol. Chem. 1986, 187, 333–340. [CrossRef]
4. Li, G.J.; Shen, J.R.; Zhu, Y.L. Study of pyridinium-type functional polymers. II. Antibacterial activity of
soluble pyridinium-type polymers. J. Appl. Polym. Sci. 1998, 67, 1761–1768. [CrossRef]
5. Sauvet, G.; Dupond, S.; Kazmierski, K.; Chojnowski, J. Biocidal polymers active by contact. V. Synthesis of
polysiloxanes with biocidal activity. J. Appl. Polym. Sci. 2000, 75, 1005–1012. [CrossRef]
6. Tashiro, T. Removal of Escherichia-coli from water by systems based on insoluble polystyrene-poly(ethylene
glycol)s, polystyrene-polyethylenimines, and polystyrene-polyethylenepolyamines quaternized. J. Appl.
Polym. Sci. 1991, 43, 1369–1377. [CrossRef]
1
7. Augusta, S.; Gruber, H.F.; Streichsbier, F. Synthesis and antibacterial activity of immobilized quaternary
ammonium-salts. J. Appl. Polym. Sci. 1994, 53, 1149–1163. [CrossRef]
1
1
8. Fields, J.E.; Johnson, J.H. Air Purification Process. U.S. Patent 3,340,680, 1 February 1967.
9. Destais, N.; Ades, D.; Sauvet, G. Synthesis, characterization and biocidal properties of epoxy resins containing
quaternary ammonium salts. Polym. Bull. 2000, 44, 401–408. [CrossRef]
2
0. Kenawy, E.R.; Abdel-Hay, F.I.; El-Raheem, A.; El-Shanshoury, R.; El-Newehy, M.H. Biologically active
polymers: Synthesis and antimicrobial activity of modified glycidyl methacrylate polymers having a
quaternary ammonium and phosphonium groups. J. Control. Release 1998, 50, 145–152. [CrossRef]
1. Kenawy, E.R.; Abdel-Hay, F.I.; El-Shanshoury, A.E.R.R.; El-Newehy, M.H. Biologically active polymers. V.
Synthesis and antimicrobial activity of modified poly(glycidyl methacrylate-co-2-hydroxyethyl methacrylate)
derivatives with quaternary ammonium and phosphonium salts. J. Polym. Sci. Part A Polym. Chem. 2002, 40,
2
2
384–2393. [CrossRef]
2. Kanazawa, A.; Ikeda, T.; Endo, T. Polymeric phosphonium salts as a novel class of cationic biocides.
. Synergistic effect on antibacterial activity of polymeric phosphonium and ammonium-salts. J. Appl.
2
8
Polym. Sci. 1994, 53, 1245–1249. [CrossRef]
2
3. Kanazawa, A.; Ikeda, T.; Endo, T. Novel polycationic biocides-synthesis and antibacterial activity of
polymeric phosphonium salts. J. Polym. Sci. Part A Polym. Chem. 1993, 31, 335–343. [CrossRef]
4. Kanazawa, A.; Ikeda, T.; Endo, T. Polymeric phosphonium salts as a novel class of cationic biocides. 2. Effects
of couter anion and molecular-weight on antibacterial activity of polymeric phosphonium salts. J. Polym. Sci.
Part A Polym. Chem. 1993, 31, 1441–1447. [CrossRef]
2
2
2
2
2
5. Kanazawa, A.; Ikeda, T.; Endo, T. Polymeric phosphonium salts as a novel class of cationic biocides. 9. Effect
of side-chain length between main-chain and active group on antibacterial activity. J. Polym. Sci. Part A
Polym. Chem. 1994, 32, 1997–2001. [CrossRef]
6. Kanazawa, A.; Ikeda, T.; Endo, T. Polymeric phosphonium salts as a novel class of cationic biocides. 10.
Antibacterial activity of filters incorporating phosphonium biocides. J. Appl. Polym. Sci. 1994, 54, 1305–1310.
[
CrossRef]
7. Kanazawa, A.; Ikeda, T.; Endo, T. Polymeric phosphonium salts as a novel class of cationic biocides.
. Synthesis and antibacterial activity of polymeric phosphonium salts and their model compounds
7
containing long alkyl chains. J. Appl. Polym. Sci. 1994, 53, 1237–1244. [CrossRef]
8. Timofeeva, L.; Kleshcheva, N. Antimicrobial polymers: Mechanism of action, factors of activity,
and applications. Appl. Microbiol. Biotechnol. 2011, 89, 475–492. [CrossRef] [PubMed]
2
3
9. Monsanto Company. Pharmaceutical Compositions. GB Patent 1,260,451, 19 January 1972.
0. Patel, H.; Raval, D.A.; Madamwar, D.; Patel, S.R. Polymeric prodrug: Synthesis, release study and
antimicrobial property of poly(styrene-co-maleic anhydride)-bound acriflavine. Angew. Macrom. Chem. 1998
63, 25–30. [CrossRef]
,
2
3
1. Jeong, J.H.; Byoun, Y.S.; Ko, S.B.; Lee, Y.S. Chemical modification of poly(styrene-alt-maleic anhydride) with
antimicrobial 4-aminobenzoic acid and 4-hydroxybenzoic acid. J. Ind. Eng. Chem. 2001, 7, 310–315.

Int. J. Mol. Sci. 2018, 19, 2617
20 of 22
3
2. Jeong, J.H.; Byoun, Y.S.; Lee, Y.S. Poly(styrene-alt-maleic anhydride)-4-aminophenol conjugate: Synthesis
and antibacterial activity. React. Funcct. Polym. 2002, 50, 257–263. [CrossRef]
3
3
3. Bierbaum, G. Antibiotische Peptide-Lantibiotika. Chemother. J. 1999, 8, 204–209.
4. Zasloff, M. Antimicrobial peptides of multicellular organisms. Nature 2002, 415, 389–395. [CrossRef]
[
PubMed]
5. Zasloff, M. Magainins, a class of antimicrobial peptides from xenopus skin-isolation, characterization of
active forms, and partial cdna sequence of a precursor. Proc. Natl. Acad. Sci. USA 1987, 84, 5449–5453.
CrossRef] [PubMed]
3
2
[
3
3
6. Broekaert, W.F.; Terras, F.R.; Cammue, B.P.; Osborn, R.W. Plant Defensins: Novel Antimicrobial Peptides as
Components of the Host Defense System. Plant Physiol. 1995, 108, 1353–1358. [CrossRef] [PubMed]
7. Cornut, I.; Büttner, K.; Dasseux, J.L.; Dufourcq, J. The amphipathic α-helix concept: Application to the de
novo design of ideally amphipathic Leu, Lys peptides with hemolytic activity higher than that of melittin.
FEBS Lett. 1994, 349, 29–33. [CrossRef]
3
8. Beven, L.; Castano, S.; Dufourcq, J.; Wieslander, A.; Wroblewski, H. The antibiotic activity of cationic
linear amphipathic peptides: Lessons from the action of leucine/lysine copolymers on bacteria of the class
Mollicutes. Eur. J. Biochem. 2003, 270, 2207–2217. [CrossRef] [PubMed]
3
4
4
4
4
9. Kuroda, K.; Caputo, G.A. Antimicrobial polymers as synthetic mimics of host-defense peptides.
WIRE Nanomed. Nanobiotechnol. 2013, 5, 49–66. [CrossRef] [PubMed]
0. Lienkamp, K.; Tew, G.N. Synthetic mimics of antimicrobial peptides (SMAMPs). Chem. Eur. J. 2009, 15,
1
1784–11800. [CrossRef] [PubMed]
1. Arnold, M.; Rätzsch, M. The copolymerization of maleic anhydride with propene and isobutene.
Macromol. Chem. 1986, 187, 1593–1596. [CrossRef]
2. Nash, J.F.; Lin, T.-M. Resin Compositions and Method for Controlling Diarrhea. U.S. Patent 3,224,941,
2
1 December 1965.
3. Komber, H. The 1H and 13C NMR spectra of alternating isobutene/maleic anhydride copolymer and the
corresponding acid and sodium salt—A stereochemical analysis. Macromol. Chem. Phys. 1996, 197, 343–353.
[CrossRef]
4
4
4
4
4. Bortel, E.; Styslo, M. On the chemical communications of poly(maleic anhydride-co-isobutene) by means of
hydrolysis, ammoniation or aminations. Macromol. Chem. Phys. 1990, 191, 2653–2662. [CrossRef]
5. Bortel, E.; Styslo, M. On the structure of radically obtained maleic anhydride/C4-alkene copolymers.
Macromol. Chem. Phys. 1988, 189, 1155–1165. [CrossRef]
6. Kenawy, E.R. Biologically active polymers. Iv. Synthesis and antimicrobial activity of polymers containing
8
-hydroxyquinoline moiety. J. Appl. Polym. Sci. 2001, 82, 1364–1374. [CrossRef]
7. Iwabuchi, S.; Watanabe, Y.; Nakahira, T.; Kojima, K. Vinylhydroquinone. V. Tri-n-butylborane-initiated
copolymerization of maleic anhydride and redox property of copolymers. J. Polym. Sci. Polym. Chem. Ed.
1
979, 17, 1721–1726. [CrossRef]
4
8. Szkudlarek, M.; Beginn, U.; Keul, H.; Möller, M. Synthesis of Terpolymers with Homogeneous Composition
by Free Radical Copolymerization of Maleic Anhydride, Perfluorooctyl and Butyl or Dodecyl Methacrylates:
Application of the Continuous Flow Monomer Addition Technique. Polymers 2017, 11, 610. [CrossRef]
9. Kenawy, E.-R.; Sakran, M.A. Controlled release of polymer conjugated agrochemicals. System based on
poly(methyl vinyl ether-alt-maleic anhydride). J. Appl. Polym. Sci. 2001, 80, 415–421. [CrossRef]
0. Lee, W.-F.; Chen, Y.-M. Poly(sulfobetaine)s and corresponding cationic polymers. VIII. Synthesis and
aqueous solution properties of a cationic poly(methyl iodide quaternized styrene-N,N-dimethylaminopropyl
maleamidic acid)copolymer. J. Appl. Polym. Sci. 2000, 80, 1619–1626. [CrossRef]
4
5
5
5
5
1. Kang, Y.; Seo, Y.-H.; Lee, C. Synthesis and Conductivity of PEGME Braneded Poly(ethylene-alt-maleimide)
Based Solid Polymer Electrolyte. Bull. Korean Chem. Soc. 2000, 21, 241–244.
2. Lee, S.S.; Ahn, T.O. Direct Polymer reaction of poly(styrene-co-maleic anhydride): Polymeric imidization.
J. Appl. Polym. Sci. 1998, 71, 1187–1196. [CrossRef]
3. Lee, W.-F.; Hwong, G.-Y. Polysulfobetaines and corresponding cationic polymers. IV. Synthesis and aqueous
solution properties of cationic poly(MIQSDMAPM). J. Appl. Polym. Sci. 1996, 59, 599–608. [CrossRef]

Int. J. Mol. Sci. 2018, 19, 2617
21 of 22
5
5
4. Lee, W.-F.; Huang, G.-Y. Polysulfobetaines and corresponding cationic polymers. VI. Synthesis
and aqueous solution properties of cationic poly(methyl iodide quaternized acrylamide-N,N-
dimthylaminopropylmaleimide copolymer) [poly(MIQADMAPM)]. J. Appl. Polym. Sci. 1996, 60, 187–199.
[CrossRef]
5. Lee, W.-F.; Chen, C.-F. Poly(sulfobetaine)s and corresponding cationic polymers. VII. Thermal degradation
of copolymers derived from poly(acrylamide co-N,N-dimethylaminopropylmaleimide). J. Appl. Polym. Sci.
1
997, 66, 95–103. [CrossRef]
5
5
5
5
6. Rice, L.M.; Grogan, C.H.; Reid, E.E. Hypotensive Agents. III. Dialkylaminoalkyl Pyrrolydine Derivatives.
J. Am. Chem. Soc. 1953, 75, 2261–2262. [CrossRef]
7. Meng, Y.Z.; Tjong, S.C.; Hay, A.S.; Wang, S.J. Synthesis and proton conductivities of phosphonic acid
containing poly-(arylene ether)s. J. Polym. Sci. Part A Polym. Chem. 2001, 39, 3218–3226. [CrossRef]
8. Sung, P.-H.; Chen, C.-Y.; Wu, S.-Y.; Huang, J.Y. Styrene/maleimide copolymer with stable second-order
optical nonlinearity. J. Polym. Sci. Part A Polym. Chem. 1996, 34, 2189–2194. [CrossRef]
9. Liu, Y.L.; Liu, Y.L.; Jeng, R.J.; Chiu, Y.-S. Triphenylphosphine oxide-based bismaleimide and
poly(bismaleimide): Synthesis, characterization, and properties. J. Polym. Sci. Part A Polym. Chem. 2001, 39,
1
716–1725. [CrossRef]
6
0. Wang, C.-S.; Hwang, H.-J. Investigation of bismaleimide containing naphthalene unit. II. Thermal behavior
and properties of polymer. J. Polym. Sci. Part A Polym. Chem. 1996, 34, 1493–1500. [CrossRef]
6
1. Alfaia, A.J.I.; Calado, A.R.T.; Reis, J.C.R. Quaternization reaction of aromatic heterocyclic imines in
methanol—A case of strong anti-reactivity selectivity principle with isoselective temperature. Eur. J. Org. Chem.
2
000, 2000, 3627–3631. [CrossRef]
6
6
6
2. Johnson, T.W.; Klotz, I.M. Preparation and characterization of some derivatives of poly(ethyleneimine).
Macromolecules 1974, 7, 149–153. [CrossRef]
3. Bütün, V.; Armes, S.P.; Billingham, N.C. Selective quaternization of 2-(dimethylamino)ethyl methacrylate
residues in tertiary amine methacrylate diblock copolymers. Macromolecules 2001, 34, 1148–1159. [CrossRef]
4. Vogl, O.; Tirrell, D. Functional polymers with biologically active groups. J. Macromol. Sci. Chem. 1979, A13,
4
15–439. [CrossRef]
6
6
5. Worley, S.D.; Sun, G. Biocidal Polymers. Trends Polym. Sci. 1996, 4, 364–370.
6. Exley, E.E.; Pasley, L.C.; Sahukhal, G.S.; Abel, B.A.; Brown, T.D.; McCormick, C.L.; Heinhorst, S.; Koul, V.;
Choudhary, V.; Elasri, M.O.; et al. Antimicrobial Peptide Mimicking Primary Amine and Guanidine
Containing Methacrylamide Copolymers Prepared by Raft Polymerization. Biomacromolecules 2015, 16,
3
845–3852. [CrossRef] [PubMed]
6
7. He, Y.; Heine, E.; Keusgen, N.; Keul, H.; Moeller, M. Synthesis and Characterization of Amphiphilic
Monodisperse Compounds and Poly(ethylene imine)s: Influence of Their Microstructures on the
Antimicrobial Properties. Biomacromolecules 2012, 13, 612–623. [CrossRef] [PubMed]
6
8. Kiss, E.; Heine, E.T.; Hill, K.; He, Y.C.; Keusgen, N.; Penzes, C.B.; Schnoller, D.; Gyulai, G.; Mendrek, A.;
Keul, H.; et al. Membrane Affinity and Antibacterial Properties of Cationic Polyelectrolytes with Different
Hydrophobicity. Macromol. Biosci. 2012, 12, 1181–1189. [CrossRef] [PubMed]
6
7
7
9. Roier, S.; Zingl, F.G.; Cakar, F.; Schild, S. Bacterial outer membrane vesicle biogenesis: A new mechanism
and its implications. Microb. Cell 2016, 3, 257–259. [CrossRef] [PubMed]
0. Manning, A.J.; Kuehn, M.J. Contribution of bacterial outer membrane vesicles to innate bacterial defense.
BMC Microbiol. 2011, 11, 258–272. [CrossRef] [PubMed]
1. Heredia, R.M.; Boeris, P.S.; Liffourrena, A.S.; Bergero, M.F.; López, G.A.; Lucchesi, G.I. Release of outer
membrane vesicles in Pseudomonas putida as a response to stress caused by cationic surfactants. Microbiology
2
016, 162, 813–822. [CrossRef] [PubMed]
7
7
7
7
2. MacDonald, I.A.; Kuehn, M.J. Stress-induced outer membrane vesicle production by Pseudomonas aeruginosa.
J. Bacteriol. 2013, 195, 2971–2981. [CrossRef] [PubMed]
3. Marquardt, F.; Stöcker, C.; Gartzen, R.; Heine, E.; Keul, H.; Möller, M. Novel Antibacterial Polyglycidols:
Relationship between Structure and Properties. Polymers 2018, 10, 96. [CrossRef]
4. Sahl, H.-G.; Jack, R.W.; Bierbaum, G. Biosynthesis and biological activities of lantibiotics with unique
post-translational modifications. Eur. J. Biochem. 1995, 230, 827–853. [CrossRef] [PubMed]
5. Breukink, E.; de Kruijff, B. The lantibiotic Nisin, a special case or not? Biochim. Biophys. Acta 1999, 1462,
2
23–234. [CrossRef]

Int. J. Mol. Sci. 2018, 19, 2617
22 of 22
7
6. Deutsches Institut für Normung. Medical Microbiology—Susceptibility Testing of Microbial Pathogens to
Antimicrobial Agents—Part 7: Determination of the Minimum Bactericidal Concentration (MBC) with the Method of
Microbouillondilution; Deutsches Institut für Normung: Berlin, Germany, 2009.
7
7. Wang, Y.; Xu, J.; Zhang, Y.; Yan, H.; Liu, K. Antimicrobial and hemolytic activities of copolymers with
cationic and hydrophobic groups: A comparison of block and random copolymers. Macromol. Biosci. 2011
1, 1499–1504. [CrossRef] [PubMed]
,
1
©
2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
