Integrin αvβ3-Targeted [64Cu]CuS Nanoparticles for PET/CT Imaging and Photothermal Ablation Therapy

Article abstract of DOI:10.1021/acs.bioconjchem.8b00690

Copper sulfide (CuS) nanoparticles have been considered one of the most clinical relevant nanosystems because of their straightforward chemistry, small particle size, low toxicity, and intrinsic theranostic characteristics. In our previous studies, radioactive [⁶⁴Cu]CuS nanoparticles were successfully developed to be used as efficient radiotracers for positron emission tomography and for photothermal ablation therapy of cancer cells using near-infrared laser irradiation. However, the major challenge of CuS nanoparticles as a theranostic platform is the lack of a means for effective targeted delivery to the tumor site. To overcome this challenge, we designed and synthesized angiogenesis-targeting [⁶⁴Cu]CuS nanoparticles, which are coupled with cyclic RGDfK peptide [c(RGDfK)] through polyethylene glycol (PEG) linkers using click chemistry. In assessing their tumor-targeting efficacy, we found that the tumor uptakes of [⁶⁴Cu]CuS-PEG-c(RGDfK) nanoparticles at 24 h after intravenous injection were significantly greater (8.6% ± 1.4% injected dose/gram of tissue) than those of nontargeted [⁶⁴Cu]CuS-PEG nanoparticles (4.3% ± 1.2% injected dose/gram of tissue, p < 0.05). Irradiation of tumors in mice administered [⁶⁴Cu]CuS-PEG-c(RGDfK) nanoparticles induced 98.7% necrotic areas. In contrast, irradiation of tumors in mice administered nontargeted CuS-PEG nanoparticles induced 59% necrotic areas (p < 0.05). The angiogenesis-targeting [⁶⁴Cu]CuS nanoparticles may serve as a promising platform for image-guided ablation therapy with high efficacy and minimal side effects in future clinical translation of this novel class of multifunctional nanomaterials.

Full text of DOI:10.1021/acs.bioconjchem.8b00690

Subscriber access provided by Kaohsiung Medical University
Article
#
3
64
Integrin ##-targeted [Cu]CuS Nanoparticles for PET/
CT Imaging and Photothermal Ablation Therapy
Lili Cui, Chiyi Xiong, Min Zhou, Sixiang Shi, Diana S-L Chow, and Chun Li
Bioconjugate Chem., Just Accepted Manuscript • DOI: 10.1021/acs.bioconjchem.8b00690 • Publication Date (Web): 08 Nov 2018
Downloaded from http://pubs.acs.org on November 8, 2018
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 39
Bioconjugate Chemistry
1
2
3
4
Integrin αvβ3-targeted [64Cu]CuS Nanoparticles for PET/CT Imaging and Photothermal
5
6
Ablation Therapy
7
8
9
Lili Cui1#, Chiyi Xiong2#, Min Zhou2,3, Sixiang Shi2, Diana S-L. Chow1*, and Chun Li2*
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1Department of Pharmacological and Pharmaceutical Sciences, College of Pharmacy, University
of Houston, Houston, TX 77024, USA
2Department of Cancer Systems Imaging, The University of Texas MD Anderson Cancer Center,
Houston, TX 77054-1907, USA
3Institute of Translational Medicine, School of Medicine, Zhejiang University, Hangzhou, 310029,
China
#These authors (Lili Cui, Chiyi Xiong) contributed equally.
*Corresponding authors:
Chun Li, Department of Cancer Systems Imaging–Unit 1907, The University of Texas MD
Anderson Cancer Center, 1881 East Road, Houston, TX 77030
E-mail: cli@mdanderson.org
Diana S-L. Chow, Department of Pharmacological and Pharmaceutical Sciences, College of
Pharmacy, University of Houston, Houston, Texas 77204
Email: phar33@central.uh.edu
1
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 2 of 39
1
2
3
4
Abstract
5
6
7
8
Copper sulfide (CuS) nanoparticles have been considered one of the most clinical relevant
nanosystems because of their straightforward chemistry, small particle size, low toxicity, and
intrinsic theranostic characteristics. In our previous studies, radioactive [64Cu]CuS nanoparticles
were successfully developed to be used as efficient radiotracers for positron emission tomography
and for photothermal ablation therapy of cancer cells using near-infrared laser irradiation.
However, the major challenge of CuS nanoparticles as a theranostic platform is the lack of a means
for effective targeted delivery to the tumor site. To overcome this challenge, we designed and
synthesized angiogenesis-targeting [64Cu]CuS nanoparticles, which are coupled with cyclic
RGDfK peptide [c(RGDfK)] through polyethylene glycol (PEG) linkers using click chemistry. In
assessing their tumor-targeting efficacy, we found that the tumor uptakes of [64Cu]CuS-PEG-
c(RGDfK) nanoparticles at 24 h after intravenous injection were significantly greater (8.6%±1.4%
injected dose/gram of tissue) than those of nontargeted [64Cu]CuS-PEG nanoparticles (4.3%±1.2%
injected dose/gram of tissue, p < 0.05). Irradiation of tumors in mice administered [64Cu]CuS-
PEG-c(RGDfK) nanoparticles induced 98.7% necrotic areas. In contrast, irradiation of tumors in
mice administered non-targeted CuS-PEG nanoparticles induced 59% necrotic areas (p < 0.05).
The angiogenesis-targeting [64Cu]CuS nanoparticles may serve as a promising platform for image-
guided ablation therapy with high efficacy and minimal side effects in future clinical translation
of this novel class of multifunctional nanomaterials.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2
ACS Paragon Plus Environment

Page 3 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
7
8
9
Because of their distinctive physicochemical properties, nanoparticles offer a unique
opportunity for combining cancer diagnosis and therapy in a single system, i.e., theranostics.1
Copper sulfide (CuS) nanoparticles are synthesized in one straightforward step, displaying small
particle size (5-20 nm in diameter), low toxicity, and intrinsic theranostic properties. Moreover,
CuS nanoparticles are amenable without surface chemistry changes to 64Cu labeling for positron
emission tomography (PET) imaging and radiotherapy; they also show promise as contrast agents
for photoacoustic imaging and as photothermal coupling agents for photothermal ablation (PTA)
therapy owing to their strong absorption in the near-infrared (NIR) region.2-7 For example, CuS
nanoparticles have been intrinsically labeled with 64Cu for PET imaging and employed for
combined radiotherapy and PTA, taking advantage of the ionizing radiation from β particles
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
64
emitted from Cu and the photothermal conversion property of the CuS nanoparticles.8, 9 The
quantitative imaging provided by these nanoparticles was excellent, while the synergistic
radiotherapy/PTA completely eliminated the primary tumor and prevented potential tumor
metastasis without any apparent toxicity.
Although CuS nanoparticles were proven to be an excellent platform for accurate imaging
and effective therapy, the major challenge is the lack of a means for efficient delivery to the tumor
site.10 In some cases, intratumoral injection has been used to ensure sufficient tumor retention of
64Cu-labeled CuS ([64Cu]CuS) nanoparticles for effective radiotherapy. However, intratumoral
injection is not suitable for treating metastatic lesions or tumors located in sites inaccessible to
minimally invasive interventions. While systemic administration can lead to passive targeting and
tumor accumulation of CuS nanoparticles through the enhanced permeability and retention effect,
the efficiency of passive targeting is highly variable and is influenced by a number of factors, such
3
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 4 of 39
1
2
3
4
5
6
as particle size, surface characteristics, and degree of angiogenesis and permeability of tumor
blood vessels.11
7
8
9
It is highly desirable that CuS nanoparticles are selectively delivered to tumor sites through
active targeting mechanisms to improve therapeutic outcome.1 Among the strategies for active
targeting, targeting angiogenic blood vessels is especially attractive because this approach does
not require nanoparticles entering the extravascular fluid space, a rate-limiting, inefficient process
for nanoparticle delivery. Angiogenesis is required for supporting tumor growth by ensuring
continuous supply of nutrients and oxygen.12 As the cell adhesion molecule integrin αvβ3 is
overexpressed in angiogenic blood vessels.13. It specifically binds to stroma proteins containing
the tripeptide motif arginine-glycine-aspartic acid (RGD), such as fibrinogen, vitronectin,
thrombospondin, and osteopontin.14, 15 Cyclic pentapeptides that have a relatively high and specific
affinity for the RGD sequence of the αvβ3 integrin have been used to improve imaging contrast
with imaging probes and to enhance delivery efficiency of nanoparticles.16-18
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In previous studies, chelator-free [64Cu]CuS nanoparticles synthesized rapidly by a simple
process were shown to possess high radiolabeling stability and high specific activity. Chemically,
64Cu is the same as its naturally abundant natCu used to build CuS nanoparticles. As such, no
radiometal chelator is required for radiolabeling of CuS nanoparticles; [64Cu]CuS nanoparticles
synthesized by doping CuS with tracer amount of 64Cu were shown to be stable and used in both
PET u and a PTA therapy.5 We hypothesized, therefore, that c(RGDfK)-tagged [64Cu]CuS
nanoparticles can increase the tumor-targeting efficiency over untagged nanoparticles and mediate
an effective antitumor effect. In this work, we report the first click-chemistry-assisted synthesis
for the introduction of peptides to the surface to the class of CuS nanoparticles, their
4
ACS Paragon Plus Environment

Page 5 of 39
Bioconjugate Chemistry
1
2
3
4
physicochemical characterization and specific cellular binding in vitro, and in vivo uptake and
5
6
therapeutic effect in tumor xenograft models.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
RESULTS
Synthesis and characterization of CuS-PEG-c(RGDfK) nanoparticles. The reaction
scheme for the introduction of c(RGDfK) peptide to CuS-polyethylene glycol (PEG) nanoparticles
is shown in Figure 1. The c(RGDfK) peptide was synthesized by standard Fmoc solid-phase
1
strategy. The structures of the starting, intermediate, and final products were confirmed by H
NMR (500 MHz) (Figure S1-S4). The side chain amine group on Lys was then reacted with 4-
pentynoic acid to introduce the alkyne functional group, which was confirmed by liquid
chromatography/mass spectrometry (LC/MS; mass calculated for c(RGDfK): 603.68, found:
[M+H+] = 604.33; mass calculated for 4-pentynoic acid–modified c(RGDfK): 683.69, found:
[M+H+] = 684.34).19, 20
5
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 6 of 39
1
2
3
4
Figure1
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

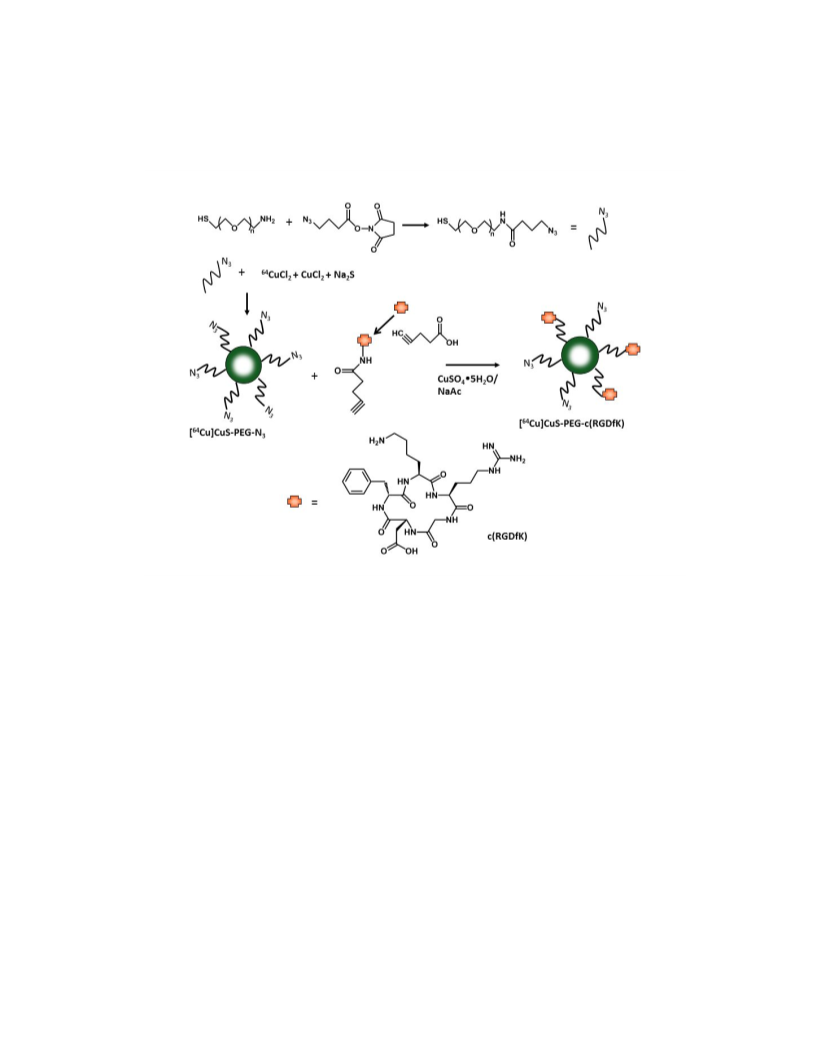

Figure 1. Schematic illustration of the synthesis of [64Cu]CuS-PEG-c(RGDFK) nanoparticles.
CuS-PEG-N3 nanoparticles were rapidly synthesized from CuCl2 and Na2S in the presence
of thiol-PEG-azide in water. The react proceeded at 90ºC for 15 min. 1H NMR spectra showed a
peak at 3.6 ppm characteristic of CH2CH2O repeating units in PEG, suggesting that the CuS
nanoparticles were coated by thiol-PEG-N3 (Figure S5a). The alkyne-modified c(RGDfK) was
attached to the CuS-PEG-N3 nanoparticles through azide-alkyne click chemistry in aqueous phase
in the presence of copper catalyst.21 Analysis of amino acid composition in the resulting CuS-
PEG-c(RGDfK) nanoparticles showed that the molar ration of RGD peptide to PEG chains on the
6
ACS Paragon Plus Environment

Page 7 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
surface of the nanoparticles could be readily controlled by controlling the feeding ratio of alkyne-
modified c(RGDfK) and PEG-N3 (Table S1).
7
8
9
The maximum absorption wavelengths for both CuS-PEG and CuS-PEG-c(RGDfK)
nanoparticles were ~970 nm (Figure S5b), confirming that the modification with c(RGDfK)
peptide did not significantly change the optical property of PEG-CuS nanoparticles.5 The
hydrodynamic sizes of the CuS-PEG and CuS-PEG-c(RGDfK) nanoparticles were 42±0.6 nm and
49.7±0.4 nm, respectively. The zeta potential of CuS-PEG-c(RGDfK) nanoparticles (-11 mV) was
less negative than that of PEG-CuS nanoparticles (-24 mV) because of the positive charge in the
guanidinium group of the arginine in c(RGDfK) (Figure S5c and S5d), suggesting successful
peptide conjugation. TEM images confirmed that the diameters of both CuS-PEG and CuS-PEG-
c(RGDfK) were less than 50 nm, and were spherical and irregular in shape (Fig. S5e). The yields
of peptide molecules conjugated to the surface of CuS-PEG nanoparticles by click chemistry was
87% when the molar ratio of peptide-to-PEG was 0.08:1. The yield decreased to 60% when the
peptide-to-PEG molar radio was increased to 0.6:1 (Table S1).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
To examine the photothermal effect in aqueous solution after peptide modification of the
nanoparticles, we compared the photothermal effect of CuS-PEG-c(RGDfK) nanoparticles with
that of CuS-PEG nanoparticles using two different laser power levels. The temperature was
elevated to 46.1ºC and 45.2ºC at 2 OD (optical density) for CuS-PEG and CuS-PEG-c(RGDfK)
nanoparticles, respectively, at a laser power density of 1 W/cm2. The maximum temperature
increased to 36.9ºC and 35.6ºC for CuS-PEG and CuS-PEG-c(RGDfK) nanoparticles,
respectively, at a laser power density of 0.5 W/cm2 (Figure 2a). The photothermal effect in
aqueous solution did not differ significantly for the two nanoparticles. To assess the photothermal
effect at different concentrations, serial dilutions of the CuS-PEG-c(RGDfK) nanoparticles were
7
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 8 of 39
1
2
3
4
5
6
7
8
9
irradiated with NIR laser at 3 W/cm2. As shown in Figure 2b, the temperature increased linearly
with the concentration of the nanoparticles. The temperature was elevated to 94.3ºC at a
nanoparticle concentration of 1 mM. Furthermore, the photothermal effect of CuS-PEG-c(RGDfK)
nanoparticles was dependent on the laser power. The temperature increased linearly with the
increasing laser power from 0.5 to 2 W/cm2 (Figure 2c).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

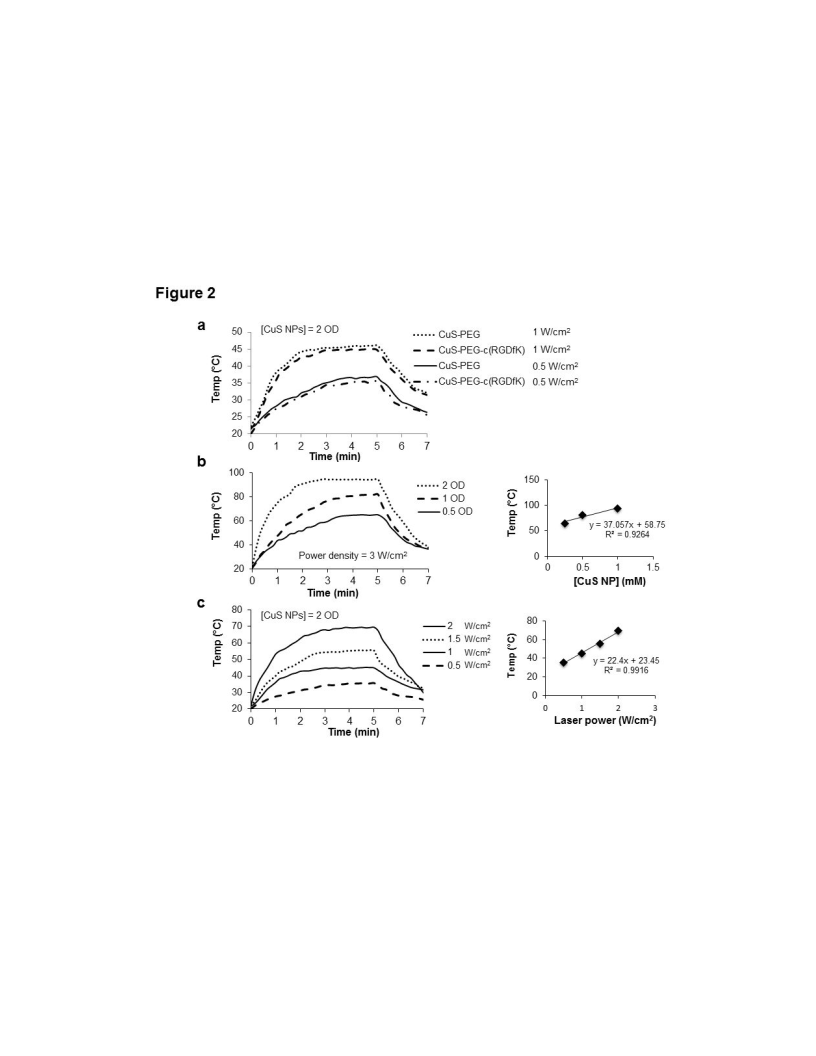

Figure 2. CuS-PEG-c(RGDfK) nanoparticles mediated efficient photothermal effects. (a)
Comparison of the photothermal effects of CuS-PEG and CuS-PEG-c(RGDfK) nanoparticles in
aqueous solution. (b) Photothermal effects of CuS-PEG-c(RGDfK) at different concentrations. (c)
Photothermal effects of CuS-PEG-c(RGDfK) nanoparticles with different levels of laser power.
8
ACS Paragon Plus Environment

Page 9 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
7
8
Cytotoxicity study. The effect of the nanoparticles on cell viability was evaluated by MTS
assay. In HEK 293 cells, the effects of CuS-PEG nanoparticles, CuS-c(RGDfK) nanoparticles, and
gold nanorods on cell viability did not differ significantly (Figure S6a); cell viability was around
100% at lower nanoparticle concentrations and decreased to ~70% at the highest concentration (3
OD, 1.5 mM). In HepG2 cells, no significant difference was observed at the lower nanoparticle
concentrations, whereas CuS-PEG nanoparticles lowered cell viability at Cu concentrations 0.5
mM and higher (Figure S6b). In U87 cells, the viability was around 100% after treatment with all
concentrations of CuS-PEG nanoparticles, CuS-c(RGDfK) nanoparticles, or gold nanorods
(Figure S6c). In all three cell lines, the cell viability was significantly lower than in the other
groups after treatment with cetyltrimethylammonium bromide (CTAB)-stabilized gold
nanoparticles starting from 0.005 mM.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Radiolabeling efficiency and stability. The radiolabeling efficiency and stability of
[64Cu]CuS-PEG-c(RGDfK) nanoparticles is shown in Figure S7. The radiochemical yield was
>98%. After suspension in phosphate-buffered saline solution (PBS) or human plasma at room
temperature for 24 h, CuS-c(RGDfK nanoparticles lost ~0.6% and ~1.7 % of their radioactivity,
respectively. [64Cu]CuS-c(RGDfK) nanoparticles lost about 2.7% and 3.3% radioactivity after 48
h incubation in PBS or human plasma, respectively.
In vitro αvβ3 integrin targeting. The specific binding of CuS-PEG-c(RGDfK)
nanoparticles to αvβ3 integrin was investigated using a sandwich ELISA binding assay.22 Figure
3a shows that CuS-PEG nanoparticles had minimal detectable binding to the αvβ3 integrin, while
the binding to αvβ3 integrin of CuS-c(RGDfK) nanoparticles increased with increasing peptide-
to-PEG ratio. Furthermore, the binding of CuS-PEG-c(RGDfK) (peptide:PEG = 0.13:1 and higher
9
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 10 of 39
1
2
3
4
5
6
7
8
9
ratios) was significantly higher than that of CuS-PEG nanoparticles without peptide. To study the
binding specificity of the CuS-PEG-c(RGDfK) nanoparticles, large excess amounts of c(RGDfK)
peptides (50 μM, 100 μL) were pre-incubated with αvβ3 protein, followed by addition of different
concentrations (1 to 5 OD at 930 nm) of CuS-PEG-c(RGDfK) nanoparticles (peptide:PEG 0.6:1).
Binding of CuS-PEG-c(RGDfK) to αvβ3 was completed blocked at 3 different nanoparticle
concentrations tested (1, 2.5 and 5 OD) (Figure 3b), demonstrating the excellent binding
specificity to αvβ3 integrin.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

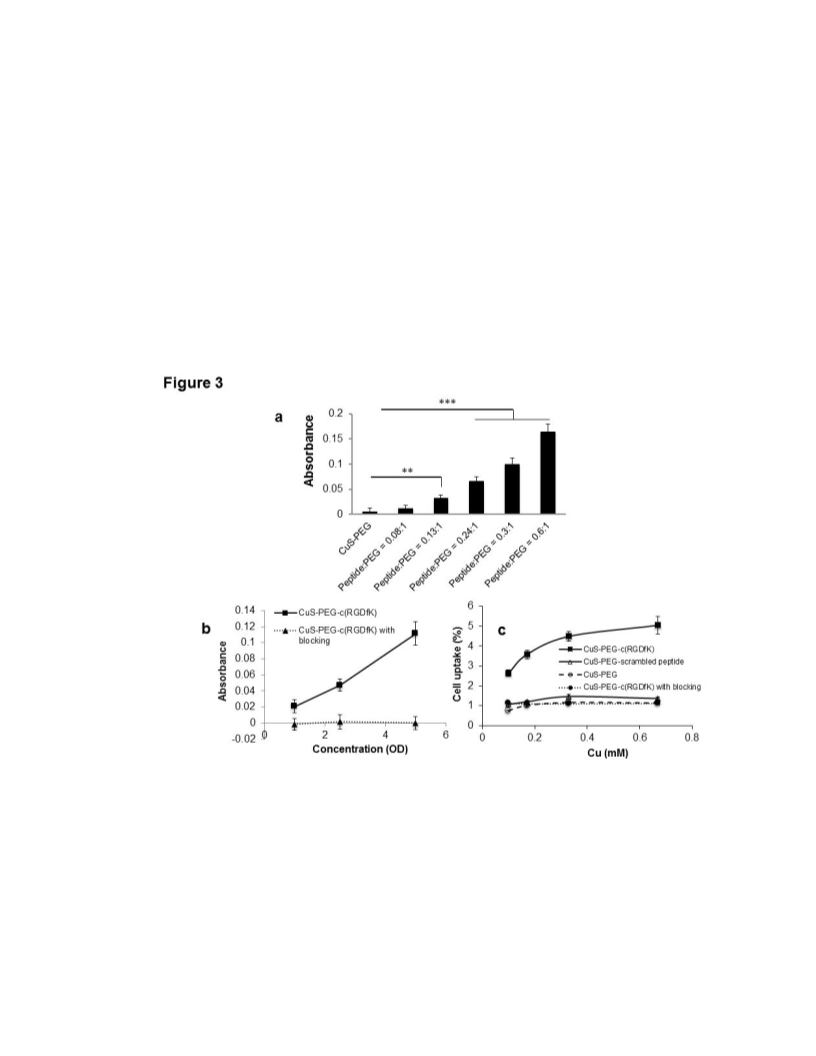

Figure 3. CuS-PEG-c(RGDfK) nanoparticles selectively bound to integrin αvβ3 in vitro. (a)
The binding affinity of CuS-PEG-c(RGDfK) nanoparticles at different concentrations on an
integrin-coated plate using a sandwich ELISA (n=3); *p<0.05, **p<0.01. (b) Comparison of the
10
ACS Paragon Plus Environment

Page 11 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
7
8
9
binding affinities of CuS-PEG-c(RGDfK) nanoparticles and CuS-PEG-c(RGDfK) nanoparticles
blocked with an excess amount of free c(RGDfK) peptide on an integrin-coated plate using a
sandwich ELISA (n=3). (c) Cellular uptake of [64Cu]CuS-PEG and [64Cu]CuS-PEG-c(RGDfK)
nanoparticles in U87 cells (n=6/group).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
We then evaluated cellular uptake of [64Cu]CuS-PEG-c(RGDfK) nanoparticles by U87
glioblastoma cells, which express high levels of integrin αvβ3 receptors. In this study, [64Cu]CuS-
PEG-c(RGDfK) nanoparticles exhibited a significant binding to the integrin-overexpressing cells,
about three-fold higher than the control nanoparticles, whereas the two controls, [64Cu]CuS-PEG
and CuS-PEG-scrambled peptide, were taken up by these cells to a similar extent (Figure 3c).
Moreover, exposure to the free c(RGDfK) peptide blocked this specific binding effect of the
[64Cu]CuS-PEG-c(RGDfK) nanoparticles, and the cellular uptake was decreased to levels
equivalent to those of the control nanoparticles (i.e., CuS-PEG, CuS-PEG-scrambled peptide)
(Figure 3c). Overall, these results highlighted the high specific affinity of the CuS-PEG-
c(RGDfK) nanoparticles to the integrin αvβ3 receptors in vitro.
In vitro photothermal ablation. To demonstrate the targeting effect of the CuS-PEG-
c(RGDfK) nanoparticles for photothermal treatment, U87 cells in culture were incubated with
CuS-PEG or CuS-PEG-c(RGDfK) nanoparticles at the same concentration (3 OD) for 2 h. After
the removal of free nanoparticles, the cells were irradiated with the laser at 3 W/cm2 for 2 min. As
shown in Figure 4a, U87 cells within the laser region were completely depleted after laser
treatment via CuS-PEG-c(RGDfK) nanoparticles, while some U87 cells in the irradiated region
were still alive for U87 cells exposed to CuS-PEG nanoparticles. For both treatments, the cells in
the region outside the laser footprint remained viable. Moreover, this destructive effect was not
11
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 12 of 39
1
2
3
4
5
6
7
8
9
observed in U87 cells treated by NIR laser alone. For quantitative analysis of cell viability, a
similar experiment was performed in which U87 cells were treated with CuS-PEG nanoparticles
or different concentrations of CuS-PEG-c(RGDfK) nanoparticles. The results (Figure 4b and c)
reveal that CuS-PEG-c(RGDfK) nanoparticles mediated a more effective photothermal effect
against U87 cells. Furthermore, the cell killing effect of CuS-PEG-c(RGDfK) nanoparticles + laser
exhibited a concentration-dependent profile. These results indicate that CuS-PEG-c(RGDfK), with
their higher uptake in U87 cells, led to more effective photothermal destruction tumor cells within
the zone of laser irradiation.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

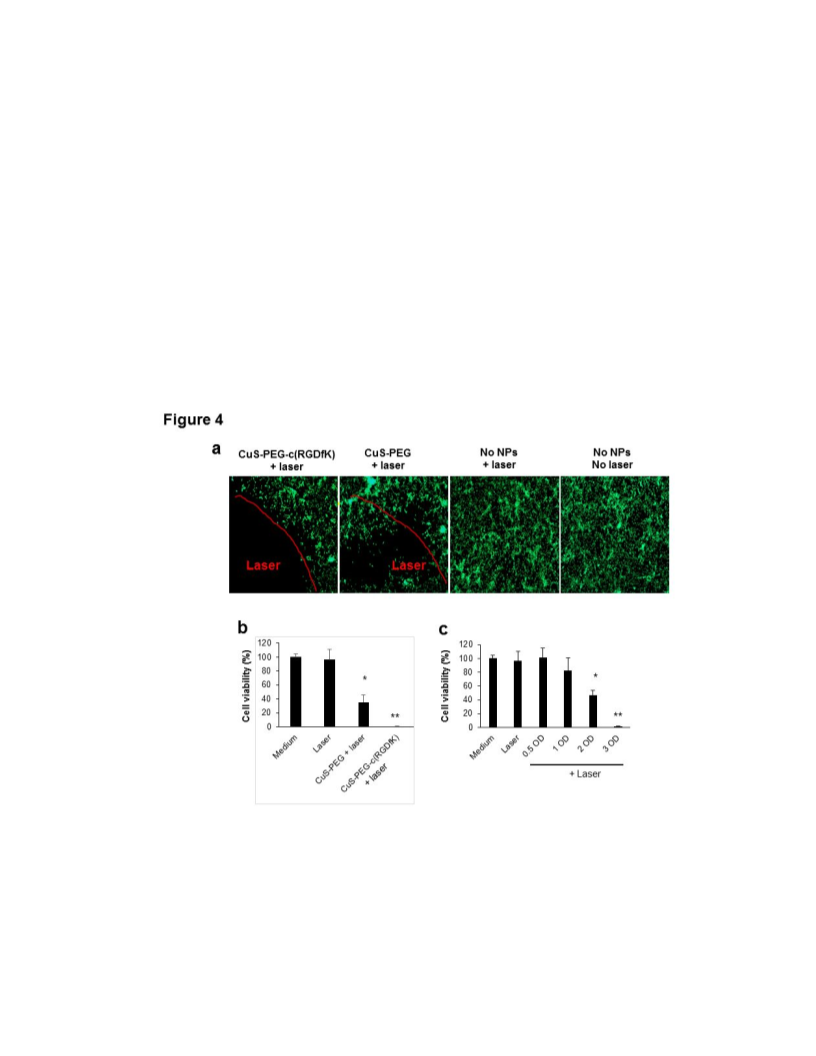

Figure 4. Visualization and quantification of U87 cell ablation after NIR laser treatment in
vitro. (a) Photothermal ablation of U87 cells using NIR laser mediated by CuS-PEG-c(RGDfK)
12
ACS Paragon Plus Environment

Page 13 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
7
8
9
or CuS-PEG nanoparticles (NPs). Representative images are shown. Viable U87 cells were stained
green. (b) Cell viability after treatment with the same concentration of CuS-PEG-c(RGDfK) or
CuS-PEG nanoparticles (1.5 mM) and the same laser power (n=5/group). (c) Cell viability after
treatment with different concentrations (0.25-1.5 mM) of CuS-PEG-c(RGDfK) nanoparticles
(n=5/group; *p<0.05, **p<0.01 compared to blank control).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

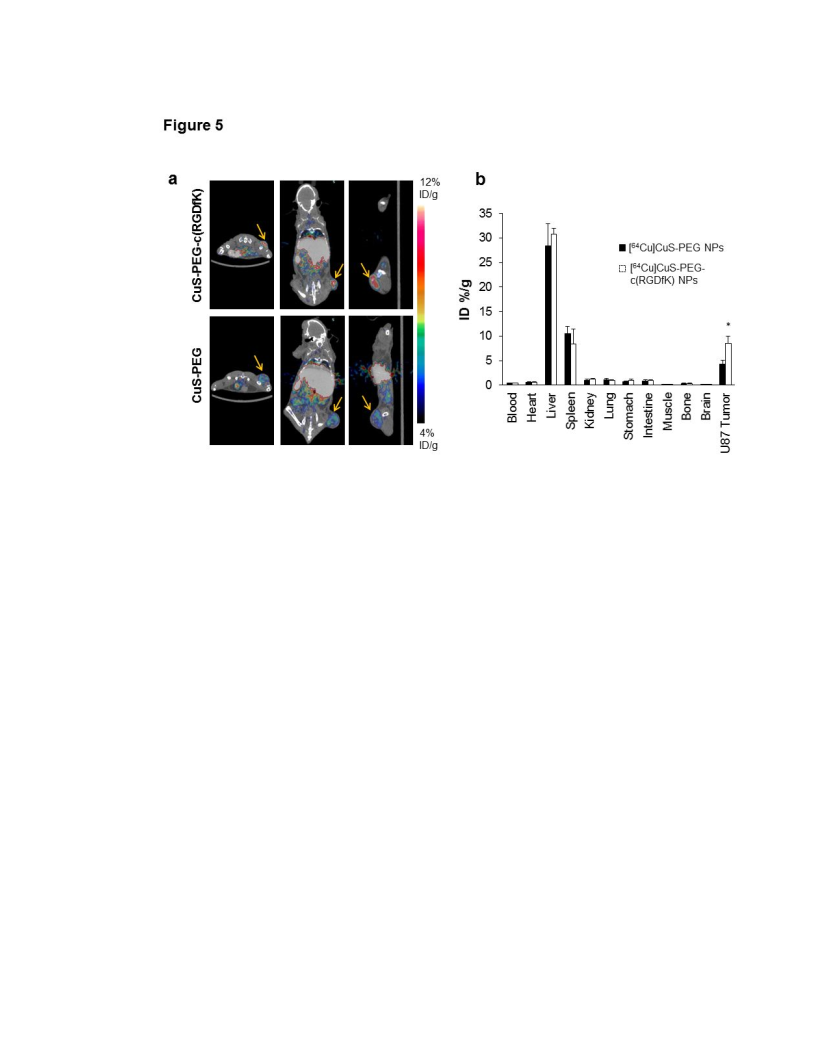

µPET/CT imaging and biodistribution. In vivo PET/CT imaging with [64Cu]CuS-PEG-
c(RGDfK) or [64Cu]CuS-PEG nanoparticles was acquired 24 h after intravenous injection of one
of these nanoparticle formulations into U87 tumor-bearing mice. The results revealed significantly
higher tumor uptake of [64Cu]CuS-PEG-c(RGDfK) nanoparticles than of [64Cu]CuS-PEG
nanoparticles (Figure 5a). On the basis of quantitative region of interest analysis for the
representative PET/CT images, the tumor uptake of targeted [64Cu]CuS-PEG-c(RGDfK)
nanoparticles at 24 h was 10.3%ID/g, whereas the tumor uptake of non-targeted [64Cu]CuS-PEG
nanoparticles was only 4.9%ID/g. The localization of the [64Cu]CuS-PEG-c(RGDfK) and the
[64Cu]CuS-PEG nanoparticles was determined by a biodistribution study in the same groups of
mice (Figure 5b). No significant differences in liver, spleen, and kidney uptake were observed
between [64Cu]CuS-PEG-c(RGDfK) and [64Cu]CuS-PEG. The tumor uptake for [64Cu]CuS-PEG-
c(RGDfK) (9.44 ± 1.18%ID/g) was significantly higher than that of [64Cu]CuS-PEG (4.31 ±
1.36%ID/g) (p<0.05). These results confirmed the observation of higher tumor cell uptake by
[64Cu]CuS-PEG-c(RGDfK) nanoparticles, suggesting the superb targeting efficiency and
specificity of RGD-conjugated CuS nanoparticles in integrin αvβ3–overexpressing tumors.
13
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 14 of 39
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 5. c(RGDfK)-tagged CuS nanoparticles increased the tumor-targeting efficiency over
untagged nanoparticles. (a) PET/CT images of representative nude mice bearing a U87 xenograft
tumor. Images were acquired 24 h after intravenous injection of [64Cu]CuS-PEG-c(RGDfK) or
[64Cu]CuS-PEG nanoparticles. The arrows point to the tumor. (b) Biodistribution of [64Cu]CuS-
PEG and [64Cu]CuS-PEG-c(RGDfK) nanoparticles (NPs) 24 h after intravenous administration of
nanoparticles (n=4/group; p<0.05).
In vivo photothermal ablation therapy. The therapeutic effects of CuS-PEG-c(RGDfK)
and CuS-PEG were examined with an 808-nm continuous-wave laser in U87 tumor-bearing mice.
14
ACS Paragon Plus Environment

Page 15 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
7
8
9
The tumor temperature increased from 38ºC in the mouse that received saline solution and NIR
laser irradiation to 47.7ºC in the mouse treated with CuS-PEG nanoparticles and NIR laser, and
further increased to 58.1ºC in the mouse administered CuS-c(RGDfK) nanoparticles and received
NIR laser (Figure 6a). Histological analysis of the tumors, removed 24 h after laser treatment,
confirmed that the treatment with CuS-PEG-c(RGDfK) nanoparticles and NIR laser led to a greater
necrotic response than treatment with CuS-PEG nanoparticles and NIR laser (Figure 6b and c);
about 98% of tumor tissue was necrotic in the tumors treated with CuS-PEG-c(RGDfK)
nanoparticles, whereas the fraction of necrotized tissue was ~60% in the tumors treated with CuS-
PEG nanoparticles and laser. For the tumors treated with saline solution and laser, the fraction of
necrosis was at the baseline level of <5%.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
15
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 16 of 39
1
2
3
4
5
6
7
8
9

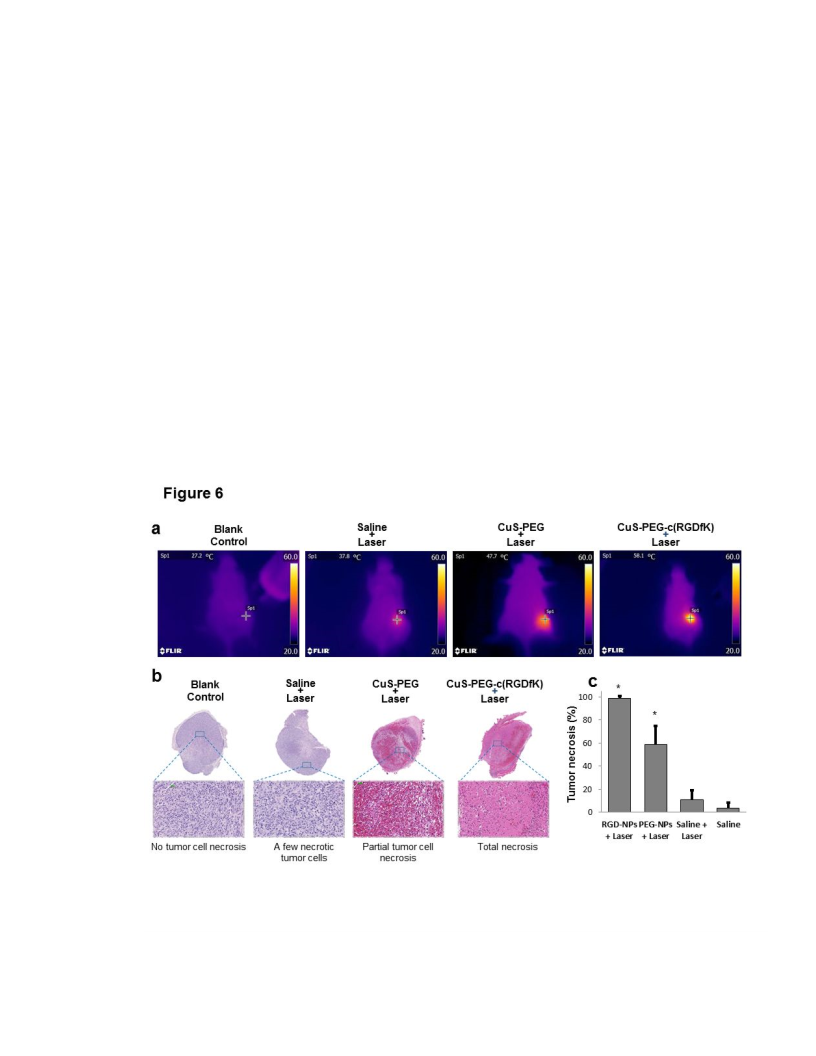

Figure 6. c(RGDfK)-tagged CuS nanoparticles mediated effective photothermal ablation of tumors in U87
xenograft–bearing mice. (a) Temperature at the tumor site during photothermal ablation study. (b) Representative
microphotographs of histologic sections of tumors removed 24 h after photothermal ablation. (c) Quantitative analysis
of the percentage of necrosis induced by different treatments; NPs, nanoparticles. NIR laser treatment was instituted
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
for 3 min at a power density of 4 W/cm2.Discussion
Attaching targeting ligands to the surface of nanoparticles for targeting nanoparticle
delivery to solid tumor have been attempted in numerous preclinical studies, with limited
success.23 Targeting surface receptors expressed in both angiogenic blood vessel and tumor cells
is attractive because even if binding of nanoparticles to tumor cells may be impeded by limited
extravasation into the extravascular fluid space and inefficient convection towards tumor cells,
selective binding to tumor vasculature should still be possible. In this study, we report robust
conjugation of cyclic c(RGDfK) peptide to PEG-coated CuS nanoparticles using click chemistry,
and successful demonstration of selective binding of c(RGDfK)-tagged CuS nanoparticles to αvβ3
integrin both in vitro and in vivo.
Conjugation of c(RGDfK) to the terminus of PEG coating on the surface of CuS
nanoparticles did not affect their optical and photothermal conversion properties. In vitro binding
to αvβ3, evaluated using a modified ELISA assay, showed an increased binding of CuS-PEG-
c(RGDfK) nanoparticles to αvβ3-coated plates with increasing peptide density on the surface of
nanoparticles. Such binding could be completely blocked by free c(RGDfK). In addition, cellular
uptake of CuS-PEG-c(RGDfK) nanoparticles in αvβ3-expressing U87 cells increased with
increasing nanoparticle concentration, which again, could be completely blocked by free
c(RGDfK). These data, together with the finding that CuS-PEG-scrambled peptide did not bind to
αvβ3 integrin, indicate that c(RGDfK)-tagged CuS nanoparticles selectively bind to αvβ3 receptor.
16
ACS Paragon Plus Environment

Page 17 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
7
8
9
In vitro cytotoxicity studies revealed that CuS-PEG-c(RGDfK) nanoparticles and gold
nanoparticles, which are thought to be biocompatible, exhibited similar cytotoxicities in all three
cell lines tested. The viability of HepG2 and U87 cells treated with either of these nanoparticles
was ~100% at all the concentrations tested, from 0.00015 to 1.5 mM, while the viability of HEK
293 cells was decreased slightly, to ~80%, at higher nanoparticle concentrations. In contrast,
CTAB-stabilized gold nanorods that are commonly used in photothermal ablation applications
exhibited significant cytotoxicity in all three cell lines.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
To facilitate quantitative analysis of the biodistribution of nanoparticles in vivo, we labeled
both CuS-PEG and CuS-PEG-c(RGDfK) nanoparticles with the positron emitter 64Cu without the
use of any radiometal chelator as 64Cu was efficiently incorporated into the matrix of CuS
nanoparticles. µPET/CT imaging was applied to assess the in vivo biodistribution of the CuS-PEG-
64
c(RGDfK) nanoparticles. Almost all the Cu (>98%) was successfully integrated into the CuS
nanoparticles at the end of the synthesis. 64Cu-labeled nanoparticles displayed high labeling
stability: the [64Cu]CuS-PEG-c(RGDfK) nanoparticles lost only ~3% of radioactivity after
incubation in PBS or human plasma at room temperature for 48 h. The µPET/CT and
biodistribution studies showed that both [64Cu]CuS-PEG and [64Cu]CuS-PEG-c(RGDfK)
nanoparticles were almost completely cleared from blood circulation 24 h after injection.
[64Cu]CuS-PEG-c(RGDfK) (9.44 ± 1.18%ID/g) was more than twice that of [64Cu]CuS-PEG (4.31
± 1.3%ID/g in the U87 tumor, indicating successful tumor targeting by the [64Cu]CuS-PEG-
c(RGDfK) nanoparticles. Both [64Cu]CuS-PEG and [64Cu]CuS-PEG-c(RGDfK) showed high
uptake values in the liver and the spleen, consisting with a general observation that even with PEG
modification, most nanoparticles are eventually removed by the cells of the mononuclear
phagocytic system. One possible solution to reduce uptake of CuS nanoparticles in the liver and
17
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 18 of 39
1
2
3
4
5
6
7
8
9
the spleen is to make CuS nanodots with average size of less than 6 nm, as have been shown recently.3
These ultrasmall CuS nanodots were cleared via the renal-urinary system and exhibited low uptake
in the liver and the spleen.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Higher uptake of CuS-PEG-c(RGDfK) nanoparticles in tumor cells than CuS-PEG
nanoparticles led to more efficient photothermal killing of U87 tumor cells in vitro with αvβ3-
targeting CuS nanoparticles. Higher tumor deposition of CuS-PEG-c(RGDfK) than CuS-PEG in
vivo resulted in more than 10°C higher temperature elevation of laser-irradiated tumors under the
same laser treatment conditions: a tumor temperature of 47.7ºC was achieved with CuS-PEG
nanoparticles and NIR laser, whereas a much higher temperature of 58.1ºC was achieved with
CuS-PEG-c(RGDfK) nanoparticles and NIR laser instituted for 3 min at a power density of 4
W/cm2. Under the laser treatment conditions used, almost the entire tumor became necrotic with
CuS-PEG-c(RGDfK), whereas only partial tumor ablation was achieved with the CuS-PEG
nanoparticles. These data indicate that successful targeting of CuS-PEG-c(RGDfK) nanoparticles
to tumor vasculature and αvβ3 integrin-expressing tumor cells mediated efficient photothermal
ablation of tumors in vivo.
CONCLUSIONS
We have developed a robust procedure for the introduction of targeting ligand to the surface
of CuS and [64Cu]CuS nanoparticles via PEG linkers using click chemistry. [64Cu]CuS-PEG-
c(RGDfK) demonstrated selective uptake in U87 tumors. PTA ablation of U87 tumors was also
significantly more efficient with CuS-PEG-c(RGDfK) nanoparticles than with non-targeted CuS-
PEG nanoparticles. These results indicate that [64Cu]CuS-PEG-c(RGDfK) can be used not only
18
ACS Paragon Plus Environment

Page 19 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
for molecular imaging of angiogenic blood vessels, but also for PET/CT image-guided PTA
therapy.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
MATERIALS AND METHODS
Materials. 1-Ethyl-3-[3-dimethylaminopropyl]carbodiimide hydrocholoride (EDAC), 4-
(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES), 4-pentynoic acid, acetonitrile,
ammonia hydroxide, benzotriazol-1-yl-oxytripyrrolidinophosphonium hexafluorophosphate (Py-
BOP), bovine serum albumin (BSA), calcein AM, copper chloride, copper sulfate pentahydrate,
DMEM cell culture medium, DMEM cell culture medium without phenol red, dimethyl sulfoxide
(DMSO), ethylenediaminetetraacetic acid (EDTA), ethyl 4-bromobutyrate, ethyl ether, fetal
bovine serum (FBS), hydrochloric acid (HCl), hydroxybenzotriazole (HOBt), hydrazine,
methylene chloride (DCM), N,N-diisopropylethylamine (DIPCDI), 1,3 diisopropylcarbodiimide
(DIPCDI), N-hydroxyl succinimide (NHS), PBS, PBS without Mg and Ca, 0.9% saline solution
(sodium chloride injection), sodium azide, sodium chloride, sodium ascorbate, sodium hydroxide,
sodium sulfate, sodium sulfide nonahydrate, trypsin-EDTA solution 0.25%, triethylsilane (TES),
and trifluoroacetic acid (TFA) were purchased from Sigma-Aldrich (St. Louis, MO). Avidin-
horseradish peroxidase (HRP), dimethylfromamide (DMF), methanol, and piperidine were
purchased from Fisher Scientific (Hampton, NH). The biotin-anti-PEG conjugation kit was
purchased from Abcam (Cambridge, UK). Fmoc-Arg(Pbf)-OH, Fmoc-Asp(Wang resin LL)-
ODmab, Fmoc-Gly-OH, Fmoc-Lys)Mtt)-OH, and Fmoc-Phe-OH were purchased from
Novabiochem (Billerica, MA). Thiol-PEG-amine (MW 5000 Da) was purchased from Nanocs Inc.
64
(New York, NY). CuCl2 was produced by the cyclotron research facility at The University of
19
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 20 of 39
1
2
3
4
5
6
7
8
9
Texas MD Anderson Cancer Center (Houston, TX). Tetramethylbenzidine (TMB) ELISA
substrate solution and stop solution were purchased from Life Technologies (Carlsbad, CA). Wash
buffer (1 PBS with 0.05% Tween 20) was purchased from AbD Serotec (Kidlington, UK).
Integrin αvβ3 protein was purchased from Chemicon International (Temecula, CA).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Synthesis of thiol-PEG-azide. Azide-modified PEG was synthesized as previously
described in the literature.24 Briefly, the starting reactants ethyl 4-bromobutyrate (5.85 g, 30 mmol)
and sodium azide (2.925 g, 45 mmol) were added into DMSO (20 mL) with stirring. The reaction
mixture was stirred for 22 h at 55°C and cooled to room temperature. Water was added to the
reaction mixture and then extracted three times, each with 30 mL of ethyl ether. The combined
organic layer was washed with water and brine, and a rotary evaporator was used to remove the
organic solvent to yield 3.67 g of ethyl 4-azidobtyrate. Ethyl 4-azidobutyrate (3.14 g, 20 mmol)
was dissolved in sodium hydroxide aqueous solution (1 N, 24 mL) with a minimum amount of
methanol to make the solution homogeneous. The reaction mixture was stirred for 3 h at room
temperature. Methanol was removed using a rotary evaporator and then the aqueous solution was
acidified to pH 0 with HCl. After extraction with 50 mL ethyl ether three times, the ether layer
was dried with an excess amount of sodium sulfate and filtered. The ethyl ether was then removed
with a rotary evaporator to afford 2.11 g of 4-azidobutyric acid. N-hydroxyl succinimide (1.65 g,
14.3 mmol) was added into methylene chloride (100 mL), followed by 4-azidobutyric acid (1.68
g, 13 mmol) and EDAC (2.74 g, 14.3 mmol). After stirring for 4 h at room temperature, the reaction
mixture was washed with water and brine, dried with an excess amount of sodium sulfate, and
filtered. The organic solvent was then removed with a rotary evaporator to yield 0.61 g of
succinimidyl 4-azidobutyrate. Succinimidyl 4-azidobutyrate was reacted with thiol-PEG-amine in
0.1 M HEPES with 0.15 M NaCl pH 8.0 for 2 h at a 2:1 molar ratio. The final product was purified
20
ACS Paragon Plus Environment

Page 21 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
by dialysis with a filtration membrane with molecular cut-off of 5,000 Da. Thiol-PEG-azide (SH-
PEG-N3) was collected after lyophilization.
7
8
9
Synthesis of alkyne-modified c(RGDfK) peptide. Alkyne-modified cyclic Arg-Gly-Asp-
Phe-Lys peptide was synthesized using Fmoc solid-phase strategy as described in the literature.18
Amino acids (3 eq) were coupled stepwise on the resin in the presence of DIPCDI (3 eq) and HOBt
(3 eq) as coupling reagents. After removal of the Dmab- and Fmoc-protecting groups using 2%
hydrazine (3 eq) in DMF and 20% piperidine in DMF, respectively, head and tail cyclization on
the resin was carried out in DMF using Py-BOP (3 eq), HOBt (3 eq), and DIPCDI (6 eq) as
coupling agents. After cyclization, Mtt-protecting group was selectively removed by treatment
with TFA/TES/DCM (1/2/97) to yield cyclo- [Lys-Arg(Pbf)-Gly-Asp(resin)-phe]. Then 4-
pentynoic acid (3 eq) and DIPCDI (6 eq) were added in DCM for 30 min, followed by addition of
HOBt (6 eq). After stirring for 2 h at room temperature, the resin with cyclo- [Lys-Arg(Pbf)-Gly-
Asp(resin)-phe]. peptides was added into the 4-pentynoic/DIPCDI/HOBt reaction mixture. After
mixing overnight at room temperature, the resin was washed with 5 mL of DMF and DCM three
times. Final deprotection and cleavage of the peptides from the resin were simultaneously achieved
by treatment with TFA/H2O/TES (95/1/4, v/v/v) to yield alkyne-modified c(RGDfK) peptide. The
product was purified by high-performance liquid chromatography, using the following eluting
conditions: solvent: A, 0.1% TFA in water; B, 0.1% TFA in acetonitrile; gradient: B, 0-10% over
0-10 min; B, 10-50% over 10-12 min; B, 50-80% over 12-20 min; B, 80% to 10% over 20-21 min.
The flow rate was 1 mL/min. The final product was validated using LC/MS time-of-flight mass
spectrometer equipped with a Vydac C-18 column (4.6×250.0 mm, 7-μm particle size, 300-Å pore
size).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
21
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 22 of 39
1
2
3
4
5
6
7
8
9
Synthesis of N3-PEG-CuS nanoparticles. The procedure for the synthesis of N3-PEG-
CuS nanoparticles in water was similar to a general procedure reported previously.5 In brief, 20
mL of aqueous CuCl2 (1 mM) solution was added to 1 mg of thiol-PEG-N3 and stirred for 5 min.
Then, 20 µL of sodium sulfide solution (Na2S, 1 M) was added to the reaction mixture with stirring
at room temperature. The mixture solution turned dark-brown immediately once sodium sulfide
was added. After stirring for 5 min, the mixture was heated to 90°C and stirred for another 15 min
until the color changed to dark green. The mixture was cooled in an ice-water bath.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Synthesis of CuS-PEG-c(RGDfK) nanoparticles. N3-PEG-CuS nanoparticles (20 mL)
were reacted with alkyne-modified c(RGDfK) peptide (PEG:peptide ratio 1:1) at 90ºC in the
presence of copper sulfate and sodium ascorbate (0.05 eq and 0.1 eq, respectively) as the catalysts.
The reaction mixture was stirred for 2 h, then purified through a dialysis membrane with MW CO
6,000-8,000. The overall synthesis scheme for targeted CuS nanoparticles is shown in Figure 1.
Characterization of CuS-PEG-c(RGDfK) nanoparticles. UV-vis spectra of CuS-PEG
and CuS-PEG-c(RGDfK) nanoparticles were examined with a UV-vis DU-800 spectrometer
(Beckman-Coulter, Brea, CA) with a 1.0-cm optical path length quartz cuvette. Under aqueous
conditions, the particle size, size distribution, and surface charge were investigated by dynamic
light scattering (DLS) (Brookhaven Instruments Corporation, Holtsville, NY). Transmission
electron microscopy (TEM) images were acquired using a transmission electron microscope (JEM
2010, JEOL Japan) at an accelerating voltage of 200 kV. Aqueous solution of CuS NPs was
deposited on carbon-enhanced copper grids without negative staining. Amino acid analysis was
used to quantify the amount of peptide attached to the surface of the nanoparticles. For sample
preparation, the nanoparticles were dissolved in ammonia hydroxide and then dried in a hydrolysis
22
ACS Paragon Plus Environment

Page 23 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
tube. Hydrochloric acid (6 N) was added to the tube. After the peptide was hydrolyzed at 110ºC
for 24 h, the mixture was dried and dissolved in water for amino acid analysis.
7
8
9
Sandwich ELISA binding study. Ninety-six–well plates were coated with purified αvβ3
integrin protein at 0.1 μg/well and kept at 4°C overnight. The plates were washed in a washing
buffer (1 PBS with 0.05% Tween 20) after incubation and then blocked with blocking buffer (1
PBS with 2% BSA) at room temperature for 2 h. The blocking buffer was removed, and the plates
were inoculated in triplicate with CuS-PEG (control) or CuS-PEG-c(RGDfK) at a series of
PEG:c(RGDfK) peptide ratios. A solution of nanoparticles (1 OD) was prepared using blocking
buffer containing Ca2+ and Mg2+ and then incubated at room temperature for 1 h. The detection
antibody biotin-anti-PEG, which recognizes the backbone of the PEG molecule, was added at 0.05
μg/well. The plates were incubated at room temperature for 1 h, then washed, and the bound biotin–
anti–PEG was detected using avidin–HRP conjugate at 0.005 μg/well. After washing, 100 μL of
substrate solution was added to each well and the luminescence was read. The resulting
luminescence signal intensity was plotted against PEG:c(RGDfK) peptide ratios. To validate the
binding specificity, a blocking study was performed with incubation of excess c(RGDfK) peptide
similar to the ELISA binding study. The concentration of c(RGDfK) was 50 μM (100 μL/well).
Cell culture. Human hepatocellular carcinoma cells (HepG2), human kidney epithelial
cells (HEK 293), and human glioblastoma cells (U87) were purchased from ATCC (Manassas,
VA) and were cultured in Eagle minimum essential medium. The cell lines were maintained at
37°C in a humidified atmosphere containing 5% CO2. The U87 cells expressed high levels of αvβ3
integrin on the surface of cells.16 HepG2 and HEK 293 cells were used as models for testing the
cytotoxicity of the nanoparticles for liver and kidney cells, respectively. Citrate-stabilized gold
nanoparticles and CTAB-stabilized gold nanorods were used as controls.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
23
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 24 of 39
1
2
3
4
5
6
7
8
9
Cytotoxicity study. HepG2, HEK 293, and U87 cells were seeded separately at a density
of 1104 cells/well in a 96-well plate and incubated for at least 24 h prior to treatment. The cells
were treated with culture medium alone, or gold NPs, gold nanorods, PEG-CuS nanoparticles, and
c(RGDfK)-CuS nanoparticles in culture media, respectively, at different concentrations (1.5, 0.5,
0.15, 0.05, 0.015, 0.005, 0.0015, 0.0005 and 0.00015 mM equivalent [Cu] or [Au]) for 24 h in an
incubator at 37°C in an atmosphere containing 5% CO2. MTS working solution was then pipetted
into each well and the cells were incubated at 37°C for an additional 3 h. The absorption was
measured at 490 nm using an EL800 microplate reader (BioTek Instruments, Winooski, VT).
Each sample was prepared in sextuplet, and the data are reported as means ± standard deviation.
Cellular uptake studies. U87 cells were seeded in a 24-well plate at a density of
6104/well and were incubated for at least 24 h before treatment. [64Cu]CuS-PEG or [64Cu]CuS-
PEG-c(RGDfK) nanoparticles at different concentrations (0.1, 0.17, 0.33 and 0.67 mM equivalent
[Cu]) were added to the wells and incubated at 37C for 2 h. For the blocking assay, the cells were
incubated with a large excess of c(RGDfK) peptide (500 mM) for 2 h, followed by addition of
[64Cu]CuS-PEG-c(RGDfK) nanoparticles at different concentrations. The mixture was incubated
at 37C for 2 h. The cells were then washed three times with PBS and collected after treatment
with 200 μL of trypsin. The cell-associated radioactivity was measured with a Packard Cobra
gamma counter (GMI Inc, Ramsey, MN). Each sample was prepared in sextuplet, and the data are
reported as means ± standard deviation.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Photothermal effect in aqueous solution. To compare the photothermal effects of the
CuS-PEG and CuS-PEG-c(RGDfK) nanoparticles, a 15PLUS laser (Diomed, Andover, MA) with
a continuous-wave, center wavelength of 808 ± 10 nm, was used. To transfer the laser power from
the laser unit to the aqueous solution of nanoparticles, a 5 m, core LCM-001 optical fiber (BioTex
24
ACS Paragon Plus Environment

Page 25 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
7
8
9
Inc., Houston, TX) was attached to a retort stand via a clamp. The end of the fiber was placed
directly above the tube containing the aqueous solution. The temperature changes mediated by
nanoparticles under NIR laser light were measured through an i7 thermal camera (Flir Systems
Inc., Portland, OR). Water was used as the control.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In vitro photothermal ablation study. U87 cells were seeded onto a 24-well plate at a
density of 6104 per well and were incubated for at least 24 h prior to treatment. Cells were washed
three times with PBS and then incubated with CuS-PEG nanoparticles or CuS-PEG-c(RGDfK)
nanoparticles (1.5 mM of [Cu]), n=3) in DMEM at 37°C for 2 h. Cells not incubated with
nanoparticles and not laser irradiated were used as negative controls. After treatment with
nanoparticles, the culture medium was replaced with fresh DMEM without phenol red, and the
cells were irradiated with a diode NIR laser centered at 808 nm at an output power of 3 W/cm2 for
2 min. After the treatment, cells were re-supplied with DMEM containing 10% FBS. After 24 h,
the cells were washed with PBS and stained with 1 µM calcein AM solution (5 µL calcein AM
stock solution added to 10 mL of PBS); viable cells were visualized under a Zeiss Axio
Observer.Z1 fluorescence microscope. To quantify the dead cells after photothermal ablation, U87
cells were treated with nanoparticles and NIR laser irradiation as just described. After the cells
were washed with PBS, MTS working solution was added to the cells, and the absorption was
measured 3 h later at 490 nm using a microplate reader. The data were reported as means ± standard
deviation.
64
Radiolabeling of CuS-PEG-c(RGDfK) nanoparticles. CuCl2 (20 μL, 1000 μCi) was
added to 20 mL of CuCl2 solution (1 mM), followed by 1 mg thiol-PEG-N3. After addition of 2
μL of sodium sulfide solution (1 M) into the dark CuCl2 solution, the mixture was heated to 90°C
for 15 min until the color of the solution turned green. The reaction mixture was transferred to ice-
25
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 26 of 39
1
2
3
4
5
6
7
8
9
cold water to obtain [64Cu]CuS-PEG-N3 nanoparticles. Then alkyne-modified c(RGDfK) peptide
in water (1:1 molar ratio) was added into an aqueous solution of [64Cu]CuS-PEG-N3 nanoparticles
with copper sulfate (0.05 eq.) and sodium ascorbate (0.1 eq.) to catalyze the reaction. The reaction
mixture was stirred at 90°C for 2 h and was purified using a disposable PD 10 column.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The radiolabeling efficiency and stability of labeled nanoparticles were analyzed using
instant thin-layer chromatography (ITLC). The ITLC strips were developed with PBS (pH 7.4)
containing 4 mM EDTA and radioactivity quantified using an IAR-2000 TLC imaging scanner
(Eckert & Ziegler Radiopharma, Berlin, Germany). To study the labeling stability, [64Cu]CuS-
PEG-c(RGDfK) nanoparticles were suspended in PBS or human plasma and incubated at room
64
temperature for 24 h or 48 h. Free Cu2+ ions moved to the top of the ITLC strip, while the
nanoparticles remained at the original spot. The radioactivity at the original spot was recorded as
a percentage of the total radioactivity applied to the ITLC strip.
µPET/CT imaging and biodistribution. All animal studies followed protocols and
guidelines approved by the Institutional Animal Care and Use Committee at The University of
Texas MD Anderson Cancer Center. Eight- to 10-week-old female nude mice (Harlan-Sprague-
Dawley, Indianapolis, IN) were inoculated subcutaneously with human U87 glioblastoma cells
(7×106 cells/mouse) in the right thigh. When tumors had grown to 5-8 mm in diameter, mice were
randomly allocated into two groups (n=3/group). Mice in Group A received an intravenous
injection of [64Cu]CuS-PEG-c(RGDfK) nanoparticles (200 µCi/mouse; 0.2 mL). Mice in Group B
received an intravenous injection of [64Cu]CuS-PEG nanoparticles (200 µCi/mouse; 0.2 mL).
Twenty-four hours after injection of the radiolabeled nanoparticles, the animals were anesthetized
with a mixture of isoflurane and oxygen gas (2% of isoflurane) and placed in a prone position, and
images were acquired using an Inveon µPET/CT scanner (Siemens Medical Solutions, Erlangen,
26
ACS Paragon Plus Environment

Page 27 of 39
Bioconjugate Chemistry
1
2
3
4
5
6
7
8
9
Germany). The µPET and CT images were generated separately and then fused using Inveon
Research Workplace software. After µPET/CT imaging, the mice were euthanized by CO2
inhalation, and their blood, heart, liver, spleen, kidneys, lungs, stomach, intestine, muscle, bone,
brain, and tumor tissues were harvested and weighed; the radioactivity of each tissue was measured
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
64
with a Packard Cobra gamma counter (GMI, Inc., Ramsey, MN). Uptake of Cu-labeled CuS
nanoparticles in various organs was expressed as percentage of injected dose per gram of tissue
(%ID/g). The data were expressed as means ± standard deviation.
In vivo photothermal ablation therapy. When the tumors had grown to 7-10 mm in
diameter, mice were randomly allocated into four groups (n=4 each). Mice in group A were
injected intravenously with CuS-PEG-c(RGDfK) nanoparticles (200 µL, 4 mM/mouse). Mice in
group B were injected intravenously with CuS-PEG nanoparticles (200 µL, 4 mM/mouse). Mice
in group C were injected intravenously with saline solution. Mice in group D were not treated and
were used as a control. Mice in groups A-C were irradiated with NIR laser at 3 W/cm2 for 2 min
24 h after injection. The mice were euthanized at 24 h after laser treatment, and tumors were
removed, snap frozen, and cryosectioned into 1,000-µm sections. The slides were stained with
hematoxylin-eosin and examined under a Zeiss Axio Observer.Z1 fluorescence microscope (Carl
Zeiss AG, Oberkochen, Germany). The images were captured by a Zeiss AxioCam MRc5 color
camera, and the extent of tumor necrosis, expressed as a percentage of the entire tumor area, was
analyzed with Zeiss AxioVision software (version 4.6.3).
Statistical analysis. All data were analyzed using a two-tailed Student t-test. The
cytotoxicity of the nanoparticles was analyzed by using one-way ANOVA, followed by the post-
hoc Tukey test (Graphpad Prism version 5.02; GraphPad Software, La Jolla, CA).
27
ACS Paragon Plus Environment

Bioconjugate Chemistry
Page 28 of 39
1
2
3
4
Supporting Information
5
6
The Supporting Information is available free of charge on the ACS Publications website.
7
8
9
Supplementary tables and figures are provided.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
NOTES
The authors declare no conflicts of interest.
ACKNOWLEDGMENTS
We thank Kathryn Hale at the Department of Scientific Publications, MD Anderson Cancer
Center for editing the manuscript. This work was supported in part by the John S. Dunn
Foundation, by John S. Dunn, Sr. Distinguished Chair in Diagnostic Imaging to Dr. William A.
Murphy Jr., and by the University Cancer Foundation via the Institutional Research Grant program
at the University of Texas MD Anderson Cancer Center. This research was also conducted at the
MD Anderson Center for Advanced Biomedical Imaging in-part with equipment support from
General Electric Healthcare. The Research Animal Support Facility, Research Cyclotron Facility,
NMR Core Facility, and Small Animal Imaging Facility are supported by a Cancer Center Support
Grant from the National Institutes of Health (P30CA016672).
28
ACS Paragon Plus Environment

Page 29 of 39
Bioconjugate Chemistry
1
2
3
4
REFERENCES
5
6
7
8
(1)
Li, C. (2014) A targeted approach to cancer imaging and therapy. Nat. Mater. 13, 110-
115.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(2)
Zhou, M., Ku, G., Pageon, L., and Li, C. (2014) Theranostic probe for simultaneous in
vivo photoacoustic imaging and confined photothermolysis by pulsed laser at 1064 nm in
4T1 breast cancer model. Nanoscale 6, 15228-15235.
(3)
Zhou, M., Li, J., Liang, S., Sood, A. K., Liang, D., and Li, C. (2015) CuS nanodots with
ultrahigh efficient renal clearance for positron emission tomography imaging and image-
guided photothermal therapy. ACS Nano 9, 7085-7096.
(4)
(5)
Zhou, M., Tian, M., and Li, C. (2016) Copper-based nanomaterials for cancer imaging
and therapy. Bioconjug. Chem. 27, 1188-1199.
Zhou, M., Zhang, R., Huang, M., Lu, W., Song, S., Melancon, M. P., Tian, M., Liang, D.,
and Li, C. (2010) A chelator-free multifunctional [64Cu]CuS nanoparticle platform for
simultaneous micro-PET/CT imaging and photothermal ablation therapy. J. Am. Chem.
Soc. 132, 15351-15358.
(6)
(7)
Huang, J., Zhou, J., Zhuang, J., Gao, H., Huang, D., Wang, L., Wu, W., Li, Q., Yang, D.-
P., and Han, M.-Y. (2017) Strong near-infrared absorbing and biocompatible cus
nanoparticles for rapid and efficient photothermal ablation of gram-positive and -negative
bacteria. ACS Appl. Mater. Interfaces 9, 36606-36614.
Zhang, W., Xiao, J., Cao, Q., Wang, W., Peng, X., Guan, G., Cui, Z., Zhang, Y., Wang,
S., Zou, R., Wan, X., Qiu, H., and Hu, J. (2018) An easy-to-fabricate clearable CuS-
superstructure-based multifunctional theranostic platform for efficient imaging guided
chemo-photothermal therapy. Nanoscale 10, 11430-11440.
29
ACS Paragon Plus Environment
