9,10-Phenanthrenedione, 4-nitro-

Base Information

• Chemical Name: 9,10-Phenanthrenedione, 4-nitro-
• CAS No.: 13292-03-0
• Molecular Formula: C14H7NO4
• Molecular Weight: 253.2097
• NSC Number: 10204
• DSSTox Substance ID: DTXSID50157856
• Nikkaji Number: J1.562.938J
• Wikidata: Q83026021
• Pharos Ligand ID: JLFXA1R8FNUQ
• ChEMBL ID: CHEMBL50149
• Mol file: 13292-03-0.mol

Synonyms:4-Nitro-9,10-phenanthrenedione;9,10-Phenanthrenedione, 4-nitro-;13292-03-0;CHEMBL50149;NSC10204;SCHEMBL2599396;DTXSID50157856;4-Nitro-phenanthrene-9,10 dione;4-Nitro-phenanthrene-9,10-dione;4-nitro-9,10-phenanthrene-quinone;BDBM50099742;NSC 10204;NSC-10204;AKOS024405758

Chemical Property of 9,10-Phenanthrenedione, 4-nitro-

Chemical Property:

• Vapor Pressure: 3.66E-09mmHg at 25°C
• Boiling Point: 474.3°C at 760 mmHg
• Flash Point: 244.9°C
• Density: 1.481g/cm³
• XLogP3: 2.3
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 4
• Rotatable Bond Count: 0
• Exact Mass: 253.03750770
• Heavy Atom Count: 19
• Complexity: 428

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

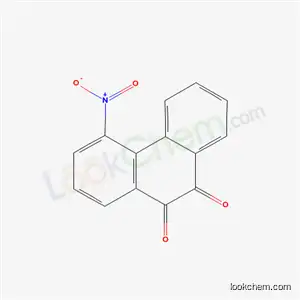

• Canonical SMILES: C1=CC=C2C(=C1)C3=C(C=CC=C3[N+](=O)[O-])C(=O)C2=O

Technology Process of 9,10-Phenanthrenedione, 4-nitro-

There total 7 articles about 9,10-Phenanthrenedione, 4-nitro- which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

9,10-phenanthrenequinone (84-11-7) → 4-nitrophenanthrene-9,10-dione (13292-03-0)

Guidance literature:

With nitric acid;

Reference yield:

4-Nitrophenanthrene (82064-15-1) → 4-nitrophenanthrene-9,10-dione (13292-03-0)

Guidance literature:

With chromium(VI) oxide; acetic acid;

Reference yield:

9,10-phenanthrenequinone (84-11-7) → 4-nitrophenanthrene-9,10-dione (13292-03-0)

Guidance literature:

With nitric acid;

upstream raw materials:

4-Nitrophenanthrene

9,10-phenanthrenequinone

nitric acid

acetic acid

Downstream raw materials:

4,5-dinitro-phenanthrene-9,10-dione
