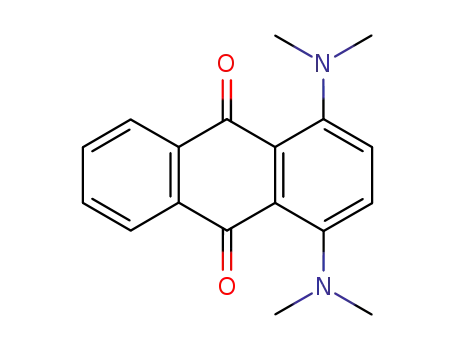

9,10-Anthracenedione, 1,4-bis(dimethylamino)-

Base Information

• Chemical Name: 9,10-Anthracenedione, 1,4-bis(dimethylamino)-
• CAS No.: 56799-32-7
• Molecular Formula: C18H18 N2 O2
• Molecular Weight: 294.353
• European Community (EC) Number: 260-388-4
• DSSTox Substance ID: DTXSID4069131
• Nikkaji Number: J267.111E
• Wikidata: Q81995934
• Mol file: 56799-32-7.mol

Synonyms:1,4-bis(dimethylamino)-9,10-anthraquinone;56799-32-7;9,10-Anthracenedione, 1,4-bis(dimethylamino)-;EINECS 260-388-4;1,4-Bis(dimethylamino)anthraquinone;SCHEMBL187595;DTXSID4069131;1,4-Bis-(dimethylamino)anthraquinone

Chemical Property of 9,10-Anthracenedione, 1,4-bis(dimethylamino)-

Chemical Property:

• Vapor Pressure: 1.12E-09mmHg at 25°C
• Boiling Point: 488.1°Cat760mmHg
• Flash Point: 223.1°C
• PSA: 40.62000
• Density: 1.252g/cm³
• LogP: 2.59400
• XLogP3: 3.1
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 4
• Rotatable Bond Count: 2
• Exact Mass: 294.136827821
• Heavy Atom Count: 22
• Complexity: 418

Purity/Quality:

98%Min ^*data from raw suppliers

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

• Canonical SMILES: CN(C)C1=C2C(=C(C=C1)N(C)C)C(=O)C3=CC=CC=C3C2=O

Technology Process of 9,10-Anthracenedione, 1,4-bis(dimethylamino)-

There total 2 articles about 9,10-Anthracenedione, 1,4-bis(dimethylamino)- which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 78.0%

9,10-dioxo-9,10-dihydroanthracene-1,4-diyl bis(4-methylbenzenesulfonate) (96701-06-3) + dimethyl amine (124-40-3) → 1,4-bis(dimethylamino)-9,10-anthraquinone (56799-32-7)

Guidance literature:

With potassium carbonate; In toluene; at 80 ℃; for 144h;

DOI:10.1016/j.saa.2013.01.085

Reference yield: 48.0%

1,4-difluoroanthracene-9,10-dione (28736-42-7) + N,N-Dimethylhydrazine (57-14-7) → 1,4-bis(dimethylamino)-9,10-anthraquinone (56799-32-7) + 1-Dimethylamino-4-fluoro-anthraquinone (117499-95-3)

Guidance literature:

In pyridine; for 73h; Ambient temperature;

DOI:10.1021/jo00260a022

upstream raw materials:

1,4-difluoroanthracene-9,10-dione

N,N-Dimethylhydrazine

9,10-dioxo-9,10-dihydroanthracene-1,4-diyl bis(4-methylbenzenesulfonate)

dimethyl amine
