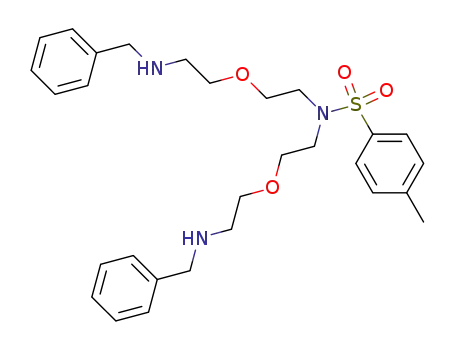

N,N-Bis-[2-(2-benzylamino-ethoxy)-ethyl]-4-methyl-benzenesulfonamide

Base Information

• Chemical Name: N,N-Bis-[2-(2-benzylamino-ethoxy)-ethyl]-4-methyl-benzenesulfonamide
• CAS No.: 177089-48-4
• Molecular Formula: C₂₉H₃₉N₃O₄S
• Molecular Weight: 525.712
• Mol file: 177089-48-4.mol

Synonyms:N,N-Bis-[2-(2-benzylamino-ethoxy)-ethyl]-4-methyl-benzenesulfonamide

Chemical Property of N,N-Bis-[2-(2-benzylamino-ethoxy)-ethyl]-4-methyl-benzenesulfonamide

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of N,N-Bis-[2-(2-benzylamino-ethoxy)-ethyl]-4-methyl-benzenesulfonamide

There total 4 articles about N,N-Bis-[2-(2-benzylamino-ethoxy)-ethyl]-4-methyl-benzenesulfonamide which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

4-Methyl-N,N-bis-[2-(2-{[1-phenyl-meth-(Z)-ylidene]-amino}-ethoxy)-ethyl]-benzenesulfonamide (177089-47-3) → N,N-Bis-[2-(2-benzylamino-ethoxy)-ethyl]-4-methyl-benzenesulfonamide (177089-48-4)

Guidance literature:

With hydrogen; platinum(IV) oxide; In acetic acid; for 6h; Yield given; Ambient temperature;

DOI:10.1021/jo952283x

Reference yield:

1,11-diphthalimido-6-(4-tolylsulphonyl)-3,9-dioxa-6-azaundecane (132930-16-6) → N,N-Bis-[2-(2-benzylamino-ethoxy)-ethyl]-4-methyl-benzenesulfonamide (177089-48-4)

Guidance literature:

Multi-step reaction with 3 steps

1: 98 percent / hydrazine hydrate / ethanol / 5 h / Heating

2: benzene / 4 h / Heating

3: H₂ / PtO₂ / acetic acid / 6 h / Ambient temperature

With hydrogen; hydrazine hydrate; platinum(IV) oxide; In ethanol; acetic acid; benzene;

DOI:10.1021/jo952283x

Reference yield:

6-(4-tolylsulphonyl)-3,9-dioxa-6-azaundecane-1,11-diamine (132930-17-7) → N,N-Bis-[2-(2-benzylamino-ethoxy)-ethyl]-4-methyl-benzenesulfonamide (177089-48-4)

Guidance literature:

Multi-step reaction with 2 steps

1: benzene / 4 h / Heating

2: H₂ / PtO₂ / acetic acid / 6 h / Ambient temperature

With hydrogen; platinum(IV) oxide; In acetic acid; benzene;

DOI:10.1021/jo952283x

upstream raw materials:

4-Methyl-N,N-bis-[2-(2-{[1-phenyl-meth-(Z)-ylidene]-amino}-ethoxy)-ethyl]-benzenesulfonamide

6-(4-tolylsulphonyl)-3,9-dioxa-6-azaundecane-1,11-diamine

1,11-diphthalimido-6-(4-tolylsulphonyl)-3,9-dioxa-6-azaundecane

6-<(4-methylphenyl)sulfonyl>-3,9-dioxa-6-aza-1,11-undecanediol bis(methanesulfonate)

Downstream raw materials:

4,16-di-p-toluenesulfonyl-10,22-dibenzyl-1,7,13,19-tetraoxa-4,10,16,22-tetraazacyclotetracosane

26-benzyl-4,10,16,22-tetraoxa-1,7,13,19-tetraazabicyclo[12.12.3]heptacosane

4,16-di[(4-methylphenyl)sulfonyl]-1,7,13,19-tetraoxa-4,10,16,22-tetraazacyclotetracosane

26-benzyl-7,19-di-p-toluenesulfonyl-4,10,16,22-tetraoxa-1,7,13,19-tetraazabicyclo[12.12.3]heptacosane
