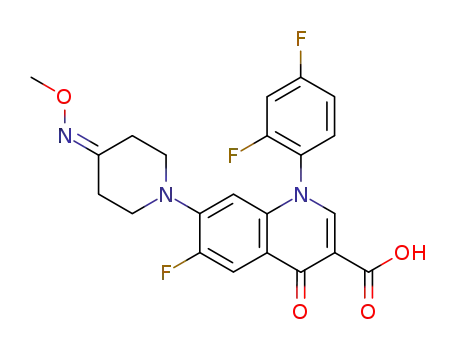

Technology Process of 7-<4-(methoxyimino)piperidinyl>-6-fluoro-1-(2,4-difluorophenyl)-1,4-dihydro-4-oxoquinoline-3-carboxylic acid
There total 8 articles about 7-<4-(methoxyimino)piperidinyl>-6-fluoro-1-(2,4-difluorophenyl)-1,4-dihydro-4-oxoquinoline-3-carboxylic acid which
guide to synthetic route it.
The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:
synthetic route:
- Guidance literature:
-
Multi-step reaction with 5 steps
1: 91 percent / p-toluenesulfonic acid / toluene / 96 h / 130 °C
2: 99 percent / H2 / 20percent Pd/C / ethyl acetate; methanol / 24 h / Ambient temperature
3: 65 percent / pyridine / 48 h / 60 °C
4: 3 N aq. HCl / 48 h / 80 °C
5: aq. NaHCO3 / ethanol; tetrahydrofuran / 24 h / 45 °C
With
pyridine; hydrogenchloride; hydrogen; sodium hydrogencarbonate; toluene-4-sulfonic acid;
palladium on activated charcoal;
In
tetrahydrofuran; methanol; ethanol; ethyl acetate; toluene;
- Guidance literature:
-
Multi-step reaction with 7 steps
1: 1 M aq. NaOH / diethyl ether / 3 h
2: 91 percent / pyridine-SO3, Et3N / dimethylsulfoxide / 1 h / 0 °C
3: 91 percent / p-toluenesulfonic acid / toluene / 96 h / 130 °C
4: 99 percent / H2 / 20percent Pd/C / ethyl acetate; methanol / 24 h / Ambient temperature
5: 65 percent / pyridine / 48 h / 60 °C
6: 3 N aq. HCl / 48 h / 80 °C
7: aq. NaHCO3 / ethanol; tetrahydrofuran / 24 h / 45 °C
With
pyridine; hydrogenchloride; sodium hydroxide; hydrogen; sulfur trioxide pyridine complex; sodium hydrogencarbonate; toluene-4-sulfonic acid; triethylamine;
palladium on activated charcoal;
In
tetrahydrofuran; methanol; diethyl ether; ethanol; dimethyl sulfoxide; ethyl acetate; toluene;
- Guidance literature:
-
Multi-step reaction with 6 steps
1: 91 percent / pyridine-SO3, Et3N / dimethylsulfoxide / 1 h / 0 °C
2: 91 percent / p-toluenesulfonic acid / toluene / 96 h / 130 °C
3: 99 percent / H2 / 20percent Pd/C / ethyl acetate; methanol / 24 h / Ambient temperature
4: 65 percent / pyridine / 48 h / 60 °C
5: 3 N aq. HCl / 48 h / 80 °C
6: aq. NaHCO3 / ethanol; tetrahydrofuran / 24 h / 45 °C
With
pyridine; hydrogenchloride; hydrogen; sulfur trioxide pyridine complex; sodium hydrogencarbonate; toluene-4-sulfonic acid; triethylamine;
palladium on activated charcoal;
In
tetrahydrofuran; methanol; ethanol; dimethyl sulfoxide; ethyl acetate; toluene;
