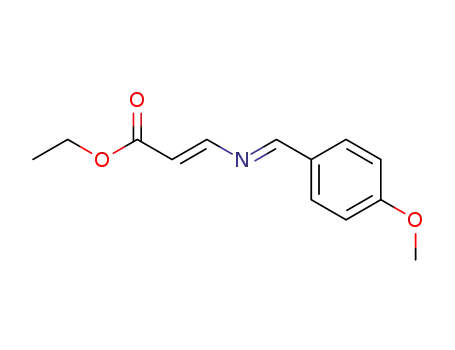

(E)-3-{[1-(4-Methoxy-phenyl)-meth-(E)-ylidene]-amino}-acrylic acid ethyl ester

Base Information

• Chemical Name: (E)-3-{[1-(4-Methoxy-phenyl)-meth-(E)-ylidene]-amino}-acrylic acid ethyl ester
• CAS No.: 244238-87-7
• Molecular Formula: C₁₃H₁₅NO₃
• Molecular Weight: 233.267
• Mol file: 244238-87-7.mol

Synonyms:(E)-3-{[1-(4-Methoxy-phenyl)-meth-(E)-ylidene]-amino}-acrylic acid ethyl ester

Chemical Property of (E)-3-{[1-(4-Methoxy-phenyl)-meth-(E)-ylidene]-amino}-acrylic acid ethyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of (E)-3-{[1-(4-Methoxy-phenyl)-meth-(E)-ylidene]-amino}-acrylic acid ethyl ester

There total 1 articles about (E)-3-{[1-(4-Methoxy-phenyl)-meth-(E)-ylidene]-amino}-acrylic acid ethyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

4-methoxy-benzaldehyde (123-11-5) + 4-(Ethoxycarbonyl)-1,1-diphenyl-1-methyl-2-aza-1λ5-phosphabuta-1,3-diene (152975-95-6) → (E)-3-{[1-(4-Methoxy-phenyl)-meth-(E)-ylidene]-amino}-acrylic acid ethyl ester (244238-87-7)

Guidance literature:

In chloroform; Ambient temperature;

DOI:10.1016/0040-4039(96)01352-4

Reference yield: 72.0%

4-(Ethoxycarbonyl)-1,1-diphenyl-1-methyl-2-aza-1λ5-phosphabuta-1,3-diene (152975-95-6) + (E)-3-{[1-(4-Methoxy-phenyl)-meth-(E)-ylidene]-amino}-acrylic acid ethyl ester (244238-87-7) → 2-(4-Methoxy-phenyl)-1,2-dihydro-pyridine-3,5-dicarboxylic acid diethyl ester

Guidance literature:

In chloroform; at 60 ℃; for 48h;

DOI:10.1021/jo9902650

Reference yield:

methyl 3-pyrrolidinoacrylate (90087-77-7) + (E)-3-{[1-(4-Methoxy-phenyl)-meth-(E)-ylidene]-amino}-acrylic acid ethyl ester (244238-87-7) → 2-(4-methoxy-phenyl)-1,2-dihydro-pyridine-3,5-dicarboxylic acid 5-ethyl ester 3-methyl ester (244238-99-1)

Guidance literature:

at 60 ℃; for 68h;

DOI:10.1021/jo9902650

upstream raw materials:

4-methoxy-benzaldehyde

4-(Ethoxycarbonyl)-1,1-diphenyl-1-methyl-2-aza-1λ⁵-phosphabuta-1,3-diene

Downstream raw materials:

2-(4-methoxy-phenyl)-1,2-dihydro-pyridine-3,5-dicarboxylic acid 5-ethyl ester 3-methyl ester
