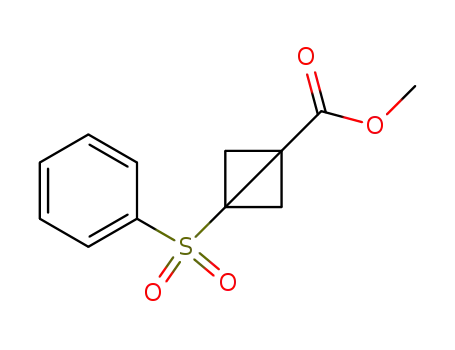

3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid methyl ester

Base Information

• Chemical Name: 3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid methyl ester
• CAS No.: 117487-81-7
• Molecular Formula: C₁₂H₁₂O₄S
• Molecular Weight: 252.291
• Mol file: 117487-81-7.mol

Synonyms:3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid methyl ester

Chemical Property of 3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid methyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid methyl ester

There total 2 articles about 3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid methyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

4-(-phenylsulfonyl)-1,2-epoxybutane (81582-94-7) → 3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid methyl ester (117487-81-7)

Guidance literature:

Multi-step reaction with 2 steps

1: 60 percent / BuLi, CH₃SO₂Cl / hexane; tetrahydrofuran / 0.17 h / ice-cooled temp.

2: 1.) BuLi / 1.) THF, -78 deg C; 2.) THF, -78 deg C; 3.) reflux, 2 h

With n-butyllithium; methanesulfonyl chloride; In tetrahydrofuran; hexane;

DOI:10.1016/S0040-4020(01)80112-5

Reference yield:

carbon dioxide (124-38-9,18923-20-1) + 1-(phenylsulfonyl)bicyclo[1.1.0]butane (80989-84-0) + methyl iodide (74-88-4) → 3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid methyl ester (117487-81-7)

Guidance literature:

With n-butyllithium; Yield given. Multistep reaction; 1.) hexane, THF, -78 deg C;

DOI:10.1016/S0040-4039(00)80361-5

Reference yield: 86.0%

3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid methyl ester (117487-81-7) → 1-azido-3-(phenylsulfonyl)cyclobutane-1-carboxylic acid

Guidance literature:

With N,N,N',N'-tetramethylguanidinium azide; In N,N-dimethyl-formamide; at 80 - 90 ℃; for 2h;

DOI:10.1016/S0040-4039(00)80361-5

upstream raw materials:

carbon dioxide

1-(phenylsulfonyl)bicyclo[1.1.0]butane

methyl iodide

4-(-phenylsulfonyl)-1,2-epoxybutane

Downstream raw materials:

methyl cis-1-azido-3-(phenylsulfonyl)cyclobutane-1-carboxylate

methyl trans-1-azido-3-(phenylsulfonyl)cyclobutane-1-carboxylate

3-Benzenesulfonyl-bicyclo[1.1.0]butane-1-carboxylic acid benzylamide

cis-1-benzylamino-3-(phenylsulfonyl)cyclobutane-1-N-benzylcarboxamide
