A “Turn-On” Michler’s Ketone-Benzimidazole Fluorescent Probe for Selective Detection
of Serum Albumins
6
7
8
9
Palash Jana†, Nishaben Patel‡, Tarushyam Mukherjee†, Virupakshi Soppina‡ and Sriram
Kanvah†*
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
†Department of Chemistry, Indian Institute of Technology Gandhinagar, Palaj, Gujarat 382355,
E-mail: sriram@iitgn.ac.in, kanvah@gmail.com.
‡Department of Biological Engineering, Indian Institute of Technology Gandhinagar, Palaj,
Gandhinagar 382355. E-mail: vsoppina@iitgn.ac.in
Abstract
Interaction of Michler’s ketone-benzimidazole derivatives (MK-1 and MK-2) with serum
albumin proteins was examined by absorption, steady-state, time-resolved fluorescence,
molecular docking and circular dichroism methods. In the presence of albumins, a remarkable
increase in fluorescence intensity and the quantum yield along with dominant color response was
observed for cationic derivative 1 while neutral derivative 2 showed a weaker effect. The studies
reveal synergistic effects of electrostatic, hydrophobic and H-bonding interactions in protein
binding with the fluorophores. Competitive binding studies reveal selective binding of the probe
to the albumin proteins over other commonly occurring analytes in the serum matrix. Bioimaging
studies in HeLa cells showed the cytoplasmic distribution of the fluorophore with intense
fluorescence signal. Serum depletion studies show a significant reduction in the fluorescence
intensity that indicates binding affinity with albumins and their potential use for albumin
detection.
Introduction
-conjugated chromophores bearing electron donating (D) groups and electron withdrawing (A)
groups have found extensive applications in organic electronics and biological applications1-5.
The substitution of donor and acceptor moieties significantly influences the spectroscopic
properties of the chromophores. In particular, amino donors such as N,N-dimethylaniline have
been extensively used as a strong donor for linear and non-linear optical applications6-8.
Michler’s ketone (4,4′-dimethylamino benzophenone), is one such molecule bearing
1

New Journal of Chemistry
Page 2 of 19
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
7
8
9
dimethylamine donating group and is widely used an intermediate in the production of dyes and
pigments, such as crystal violet9. The favorable absorption in the UV region also enabled
investigations into their photophysical and photochemical properties10-14. For most biological
studies, it is preferable to have absorption and emission in the NIR region and appropriate
chemical moieties to improve binding affinity. Taking cognizance of the need for red-emitting
probes, over the years, researchers have developed several push-pull fluorophores for biological
applications15-21. However, reports on push-pull derivatives based on the Michler's ketone
scaffold are limited to their use as photoinitiators22-24 or for chelation25. The optical properties of
Michler’s Ketone reveal an absorption maximum of 365 nm and emission about 500 nm22, and
there are no known reports of these strongly colored derivatives for potential biological use.
Considering the favorable optical properties of Michler’s ketone derivatives, herein we report
utilization of this scaffold for probing the small molecule-protein interactions. To induce
favorable protein or biomolecule interactions, we introduced a biologically active moiety,
benzimidazole, as a substituent. Benzimidazoles are part of many drug molecules exhibiting anti-
bacterial, anti-fungicidal, anti-helminthic and anti-cancer applications26-30 and known to bind
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
with microtubules stopping hyphal growth in fungi or blocking nuclear division31-34
.
Furthermore, benzimidazole derivatives are also structural units in several molecular systems
that have organic electronic or sensing applications35-39. Taking cognizance of these two
scaffolds (Michler’s Ketone and benzimidazole), we report the synthesis of neutral and cationic
fluorophores [Scheme-1] and investigated the absorption and emission in various solvents. We
further probed the protein-ligand interactions involving serum albumins. The molecules show
emission greater than 600 nm and exhibit strong selective emission enhancement in the presence
of serum albumins. Bioimaging studies indicate the cytoplasmic distribution of the fluorophore.
The results (absorption, fluorescence, lifetime studies and binding investigations in the presence
of serum albumins and cellular imaging) are detailed below.
Experimental
All the chemicals, reagents required for the synthesis of the benzimidazole derivatives and
spectroscopic studies were purchased from Sigma-Aldrich, Alfa Aesar, Acros and S. D.
FineChem and were used as such. All the synthesized samples were characterized using 1H NMR
13
and C NMR in CDCl3 or DMSO-D6 using Bruker Avance III-500 MHz NMR spectrometer.
2

Page 3 of 19
New Journal of Chemistry
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
7
8
9
Mass spectral data were obtained using ESI-QToF Waters- Synapt G2S High-resolution mass
spectrometer. UV-Vis absorption spectra were recorded using Analytik Jena specord 210 plus
and the fluorescence emission studies were performed using Horiba-Jobin-Yvon Fluolorog-3
spectrofluorimeter. Typically, the excitation wavelengths were set at the absorption maxima
(λabs) of the compounds under investigation. All the fluorescence spectra were recorded in 10
mm path length quartz cuvette with a slit width of 2 nm. Fluorescence quantum yields of
compounds were estimated using cresyl violet (Φ = 0.56 in EtOH) as a reference standard40. For
the fluorescence measurements, ~10 µM concentrations of chromophores were used. Circular
dichroism (CD) spectra were carried out at room temperature on a Jasco J‐815
spectropolarimeter. The fluorescence lifetime measurements were performed using a picosecond
time-correlated single photon counting (TCSPC) setup (Edinburgh instrument Ltd, Life spec II
model) employing a picosecond light emitting diode laser at 515 nm for the excitation of the neutral
form of the dye and dye-albumin complex. A reconvolution procedure was used to analyze the decay
by using a proper instrument response function (IRF) obtained by using LUDOX, HS-40 colloidal
silica particles in a 40 wt% suspension in water as the light scatterer. The fluorescence decays [I(t)]
were analyzed in general as a sum of exponentials eqn.(1)
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
I(t) = ∑Biꢀexp(−t/τi)
(1)
where Bi and τi are the pre-exponential factors and fluorescence lifetime of the ith component.
Reduced chi-square (χ2) values and the random distribution of the weighted residuals among data
channels were used to judge the acceptance of the fits. The percent error associated with the lifetime
studies is 0.30–13%. Knr has been calculated through following eqn.(2)
Knr= (1-)/(2)
Albumin binding studies with dyes were conducted in phosphate buffer solution. The desired
compounds were prepared as per the synthetic methodology is given in Scheme-1. In a typical
procedure, the synthesis of Michler’s Ketone derivatives was achieved through synthetic
scheme-1 given below. First, the keto group of Michler’s derivative 5 is converted to olefin 4
through a Wittig reaction in the presence of methyltriphenylphosphonium bromide. Formyl
product 3is achieved through a Vilsmeier-Haack reaction. Condensation of aldehyde 3 with
3

New Journal of Chemistry
Page 4 of 19
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
nitrile derivative of benzimidazole yields MK-2 which on methylation with methyl iodide yields
cationic derivative 1.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

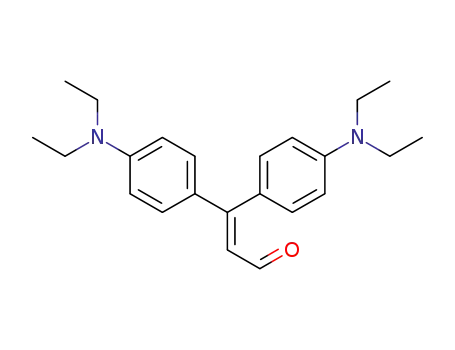

Scheme-1: Synthetic scheme for the preparation of the benzimidazole derivatives of Michler’s
Ketone.
Synthesis of MK-2
Compound 3 was obtained through previously published literature41. Compound 3 [0.807 mmol,
1equiv] and 2-benzoimidazolyl acetonitrile [1.2 mmol, 1.5equiv] and 0.5mmol of piperidine
were mixed in 20mL anhydrous methanol. The mixture was refluxed at 110C for 5h and the
reaction was monitored by thin layer chromatography (TLC) until the consumption of the
aldehyde. Upon completion, the contents of the reaction were cooled to room temperature, the
solvent was evaporated and the residue was washed with diethylether and hexane. 30ml of diethyl
ether was added to the residue, the precipitate obtained was filtered and dried under vacuum for 1h to
afforded MK-2 as a red solid (170 mg, 0.751mmol). Yield:70%
2-(1H-Benzoimidazol-2-yl)-5,5-bis-(4-diethylamino-phenyl)-penta-2,4-dienenitrile(2):Yield
1
70%(150mg): HNMR (500MHz, CDCl3)  (ppm): 9.43(s,1H), 8.12-8.10(d, J=10 Hz,1H), 7.66-
7.64(t, J=5Hz,1H), 7.38-7.35(t, J=5Hz,1H), 7.35-7.33(d, J=10Hz, 2H) 7.22-7.20(q, J=5Hz,2H),
7.12-7.10(d, J=10Hz,2H), 7.07-7.04(d, J=10Hz,1H), 6.65-6.61(q, J=5Hz, 4H) 3.44-3.399
4

Page 5 of 19
New Journal of Chemistry
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
7
8
9
(m,8H), 1.24-1.19 (m,12).13C-NMR (125MHz, CDCl3):  (ppm)158.48, 149.17, 148.72, 148.05,
146.98, 144.21, 133.13, 132.90, 131.39, 127.89, 125.12, 123.15, 122.72, 119.12, 118.10, 117.48,
110.92, 110.78, 110.46, 96.22, 44.49, 44.36, 12.76, 12.765 HRMS (ESI-Q-TOF): C32H35N5
[M+H]+ : cal. m/z 490.2965 , found, 490. 2940 m/z.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Synthesis of MK-1
In a 25 mL round bottomed flask, MK-2 [0.40mmol, 1equiv] in 15ml of dry THF was added
followed by the addition of 10 equiv. of methyl iodide. The mixture was refluxed at 90C for
24h. After completion of the reaction the solvent was evaporated and the residue was washed
with diethyl ether and hexane. Desired product was purified by column chromatography initially
with 30% ethyl acetate/ hexane to remove the starting material and later with 5% MeOH/CH2Cl2.
Evaporation of the solvent followed by drying affordedMK-1 as a dark-red solid. (80mg
0.143mmol). Yield: 60%
2-[1-Cyano-4,4-bis-(4-diethylamino-phenyl)-buta-1,3-dienyl]-1,3-dimethyl-3H-benzoimidazol-
1
1-ium iodide1: Yield 60% (80mg) HNMR (500MHz, DMSO-d6)  (ppm): 8.02-8.00(q,
J=2.5Hz, 2H), 7.69-7.67(q, J=2.5Hz,2H), 7.65-7.63(d, J=10Hz,1H) 7.38-7.36(d,
J=10Hz,2H)7.25-7.23(d, J=10Hz, 2H) 7.01-6.98(d, J=10Hz,1H) 6.81-6.77(q, J=5Hz,4H)
4.01(s,1H), 3.47-3.41(m, 8H), 1.17-1.13(m,12H)13C-NMR (125MHz, DMSO-d6):  (ppm)164.17,
157.89, 150.69, 150.44, 149.84, 146.67, 134.02, 132.69, 132.37, 126.96, 126.13, 123.98,
1115.76, 115.53, 113.94, 113.81, 111.78, 111.35, 111.11, 82.68, 44.42, 44.21, 33.46, 12.99,
12.97HRMS (ESI-Q-TOF): C34H40N5 [M]+ : cal. m/z 518.3278 , found, m/z 518.3269. NMR
+
spectral data are given in Fig S13-S16.
Molecular Docking study:
Insilico docking studies were carried out using the Glide module (XP) of Schrödinger
Maestro v11.3 software. The entire docking process was performed in the following steps:
Protein preparation, receptor grid generation, ligand preparation and ligand docking. The desired
crystal structure of the BSA protein was downloaded from the protein data bank (PDB ID:
4F5S). The protein was further prepared by the help of protein preparation wizard and water
molecules were removed and polar hydrogens were added. Grid around the active site of the
5

New Journal of Chemistry
Page 6 of 19
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
7
8
9
protein was generated by receptor grid generation module; and MK-1 and MK-2 molecules were
drawn in 2D sketcher and the energy optimized structures were obtained by the help of LigPrep
module. Thereafter the ligands were docked onto the specific site of BSA (Sudlow’s site II)
using the Glide docking ligands module of Schrodinger and the docked conformations were
visualized and represented using the Maestro v11.3.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Cell culture and Imaging
HeLa cell line was a kind gift from Roop Mallik lab (TIFR, Mumbai). The cells were cultured in
DMEM (Dulbecco’s Modified Eagle Medium) supplemented with 10% FBS (fetal bovine
serum) and 2mMGlutaMAX (Gibco) at 37°C with 5% CO2. For fluorescence imaging, HeLa
cells were seeded on coverslips at a cell density of 1.5x105/well in a 6-well plate. The cells were
then incubated with 1 M probe in the culture medium for 60 min at 37°C in the CO2 incubator.
For serum depletion experiment, HeLa cells were seeded on coverslips at a cell density of
1.5x105/well in a 6-well plate. The cells were then incubated with 1 M probe in a cell culture
medium for 60 min at 37°C in the CO2 incubator. Next, the cells were washed with PBS and
incubated with serum-free media for the following time-points: 0 h, 1 h, 2 h, and 3 h. Coverslips
were fixed for each time-point. Before fixing, coverslips were rinsed three times with phosphate
buffer solution (PBS), fixed in freshly prepared 4% PFA (paraformaldehyde) in PBS for 5
minutes, and quenched with 50 mM ammonium chloride in PBS for 5 min. The coverslips were
mounted using Prolong Gold (Life Technologies). Images were obtained using the epi-
fluorescence microscope (Nikon EclipseTi-U) equipped with DS-Qi1 camera (Nikon).
Data analysis
ImageJ software (nih.gov) was used for microscope image analysis and quantification. Cells
were randomly selected to perform the quantification. Value of maximum/mean fluorescence
intensity was obtained from ImageJ for the red filter. Background fluorescence was subtracted
from this mean value. This fluorescence intensity values were plotted, and statistical analysis
was performed using Origin software.
6

Page 7 of 19
New Journal of Chemistry
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
Results and Discussion
5
6
Absorption and Emission
7
8
9
Two Michler’s ketone derivatives were synthesized bearing a cationic (MK-1) and neutral
benzimidazole (MK-2) moieties. The molecular unit bears a nitrile group on the double bond
serving as an additional acceptor group along with benzimidazole moiety. The nitrile group on
the double bond also restricts double bond rotation and may enable aggregation induced
emission characteristics42-44. The presence of both electron donating (diethylamine) and acceptor
(benzimidazole) moieties results in strong charge separation. The absorption and emission of the
MK derivatives are shown in Fig-1. The cationic derivative (MK-1) has an absorption maximum
at 530 nm in acetonitrile, while the neutral derivative (MK-2) shows an absorption maximum at
490 nm (Table-1). The bathochromic shifts in the absorption maxima are attributed to the
improved electron acceptor strength of the cationic benzimidazole moiety. Solvent polarity
variations do not affect the absorption maxima for both the MK derivatives indicating weak
solvent stabilization45. The emission spectra of the MK-1 and 2 are given in Fig2a and Fig2b.
Similar to the absorption, bathochromic emission shifts were observed for the cationic derivative
(~645-650 nm) over neutral derivative (emission maxima ~595 nm-600 nm). Solvent polarity
dependent emission shifts were not observed despite having strong donor and acceptor groups.
This is due to the greater flexibility of the molecule hindering the formation of strong charge
separated states and subsequent weaker solvent stability of the excited state species. The
quantum yields of emission with respect to cresyl violet were calculated for (MK-1) and are
found to be low (0.00147) revealing strong non-radiative energy losses due to bond-rotations and
competitive electron transfer to nitrile and benzimidazole groups.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
7

New Journal of Chemistry
Page 8 of 19
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Fig.1Absorption spectra of a) MK-2 and b) MK-1 in solvents of varying polarity
Fig.2 Emission spectra of a) MK-2 and b) MK-1 in solvents of varying polarity. Excitation
wavelength used is 490 for MK-2 and 530 nm for MK-1.
Table-1: Absorption and emission data of Michler’s Ketone derivatives 1 and 2 in solvents.
MK-1
MK-2
Solvent
THF
abs(nm)
538
em(nm)
645
abs(nm)
488
em(nm)
581
1,4-dioxane
CH3CN
DMSO
DMF
501
530
532
530
643
644
650
648
490
490
504
498
580
600
607
600
MeOH
543
643
500
604
H2O
534
650
493
632
8

Page 9 of 19
New Journal of Chemistry
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
Binding with Albumins
5
6
7
8
While the compounds are weakly fluorescent, we hypothesized that the favorable absorption and
emission behavior could be immensely useful in investigating the biomolecular interactions. For
this, we have chosen serum albumins (Bovine serum albumin (BSA) and Human serum albumin
(HSA), common transport proteins that are abundantly found in the bloodstream with remarkable
binding ability17, 46, 47. In the presence of the albumin proteins, MK-1 shows a moderate red-shift
(~18 nm) in the absorption maxima, revealing the interaction of the chromophore with the
protein [Fig-3a]. Titration of the chromophore with albumin yields significant emission intensity
enhancement (~78 fold) along with enhanced quantum yields (from 0.0014 to 0.093, 66 folds)
[Fig 3b] indicating favorable binding of the probe with albumin proteins. The observations with
HSA are similar with ~60 fold emission intensity enhancement (Fig.S1). On the other hand, the
neutral derivative MK-2 shows little effects on the absorption maxima (Fig S2a and S3a). The
emission maxima show a small hypsochromic shift (5-10 nm) with weak intensity enhancement
(~1.5 fold increments) [Fig. S2b & Fig.S3b]. The hypsochromic emission shifts reveal potential
interaction of the fluorophore with the hydrophobic domains of the protein matrix. These
observations further reiterate strong interactions of the cationic group in MK-1, resulting in
enhanced emission signal for MK-1 with proteins. Distinct visual colors were also noted upon
addition of albumin [inset: Fig 3a]. To evaluate the general utility of identifying the albumin
content, a strip test was also performed for HSA & BSA in 200M concentration [Fig. S4] revealing
color changes in the presence of the albumin.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
9

New Journal of Chemistry
Page 10 of 19
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
7
8
9
Fig. 3a) Absorption spectra and (b) fluorescence spectra of an ensemble of MK-1 (10 μM) in PBS
buffer (10mM) solution after the addition of different amounts of BSA from 0–15M. ex. =540nm,
Each solution was mixed and left for 1 min before recording the spectra. Inset: MK-1 without BSA
and (MK-1+BSA) seen under a UV lamp (365 nm).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Fluorescence lifetime measurements
To support the investigations, fluorescence decay experiments were measured. In aqueous PBS
buffer solution, fluorophore MK-1 shows a lifetime of 0.54ns due to its non-fluorescent nature.
However, after the addition of 15µM BSA to the dye solution (10 µM) in 10mM PBS buffer, the
decay times became slower (Fig.4). The average excited state lifetime of MK-1 in the presence
of BSA was calculated to be 1.24ns. In the case of HSA, similar observations were noted with
excited state lifetime of 1.19ns as shown in Table-2. This increase of the lifetime value in the
presence of BSA and HSA and suggests binding of the MK-1 to BSA or HSA. The binding of
the ligand with the proteins result in changes to non-radiative decay rates from = 1.84 ns-1 in the
buffer solution to Knr =0.731 ns-1, Knr = 0.783 ns-1in the presence of BSA and HSA respectively.
Fig.4 Lifetime decay profile of MK-1 in PBS buffer solution with BSA & HSA at 515 nm excitation.
10

Page 11 of 19
New Journal of Chemistry
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
Table 2 Average lifetime data of MK-1 in the presence of BSA and HSA.
5
6
7
8
2
Component
MK-1
B1(%)
93.71
16.79
19.72
B2(%)
6.29
B3(%)
-
1 (ns)
0.01
0.09
0.1
2(ns)
1.07
1.03
0.98
3(ns)
-
<>(ns)
0.54
1.24
1.19
1.2
1.3
1.2
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
MK-1+ BSA
MK-1+ HSA
64.75
62.32
2.6
(18.46)
(17.96)
2.49
CD measurements
To investigate the conformational changes of serum albumin upon dye binding, we performed
circular dichroism measurements. Native protein (BSA) exhibits two negative peaks at 222 nm
and 208nm respectively48 as depicted in Fig-5. The negative peaks increase drastically from
208nm to 225nm with the addition of MK-1 & MK-2. The loss of the 208 nm CD band (Fig. 5)
reveals that upon the interaction of the probes, structures of BSA and HSA are modified
drastically. Similar results were obtained with HSA. From the CD observations, it is clear that
both the dyes interact with albumin effectively inducing strong conformational changes18.
However, fluorescence intensity changes of MK-1 are more dramatic than for MK-2 and this
could be due to the presence of additional binding forces from the positively charged groups.
Fig.5 CD spectra of a) BSA b) HSA with the presence of MK-1 & MK-2 in PBS buffer (10mM,
pH 7.4) at 298K
11

New Journal of Chemistry
Page 12 of 19
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
Binding Site Determination
5
6
7
8
Albumins contain three α-helical domains I, II, III that are further divided into two subdomains A &
B. The two major binding sites are located within sub domain IIA and IIIA sometimes referred to as
Sudlow site I (Warfarin binding sites) and II (Ibuprofen binding site) respectively16, 49. Hydrophobic
interactions are a dominant operative force for the site-I while interactions within site-II involved H-
bonding, electrostatic interaction, van der Waals forces, and hydrophobic forces. Both the cavities
play an important role in drug development, especially in pharmacokinetics and pharmacodynamics25,
50, 51. Binding of the fluorophore to the protein can directly influence the fluorescence of the protein
and the fluorophore through its interaction with the protein microenvironment and accessibility to the
solvent. Such interaction can result in emission quenching or enhancement apart from hypsochromic
or bathochromic emission shifts. MK-1 is essentially non-fluorescent in aqueous media and the
binding of the fluorophore to the albumin yields strong color and enhanced emission intensity
indicating a strong interaction of the dye with albumin binding pockets. Titration of the dye with BSA
yields a binding constant of 2.68 x 105M-1 suggesting good binding affinity of the fluorophore with
BSA with a 1:1 binding fit [Fig.S5]. The limit of detection for BSA was found to be 816 nM [Fig.S6].
In the case of HSA,the experimental data also supports a 1:1 binding model with a measured binding
constant of 3.07 x 104 M-1 [Fig. S7] with the detection limit of 1.30M [Fig.S8].
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Fig. 6 Competitive binding plot of ibuprofen and warfarin in the presence of a) BSA b) HSA in
PBS buffer solution.
12

Page 13 of 19
New Journal of Chemistry
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
Competitive Assay and Selectivity
5
6
7
8
Competitive binding experiments with ibuprofen and warfarin were also performed to understand the
nature of the binding interaction of MK-1 with albumin proteins. For this experiment, we mixed dye
(MK-1) solution, 1mM solution of warfarin or ibuprofen and titrated with different concentration of
serum albumins. In the case of BSA, ibuprofen showed a greater reduction (47% displacement of the
ligand) of fluorescence intensity as compared to warfarin (13% displacement) [Fig. 6 and Fig.S9]. The
observed results suggest that MK-1 predominantly bind to Sudlow’s site-II of BSA. Increased
addition of ibuprofen displaces the fluorophore from its binding domain resulting in the emission
losses. In the case of HSA, the fluorescence intensity of MK-1 shows a smaller reduction (around
15% displacement) suggesting that MK-1 may interact equally with both the binding sites [Fig.S10].
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
One of the important criteria for the practical use of the probes is selectivity. For evaluation of
the selectivity toward BSA and HSA, we tested different biological analytes (Lysozyme, trypsin,
hemoglobin) along with amino acids (aspartic acid, lysine, and cysteine) and inorganic salts
(NaCl, KCl, CaCl2), the common constituents of the serum albumin. The results summarized in
the Fig.7 show largest emission response for BSA and HSA while the response with other
interfering analytes is insignificant. Competitive emission binding studies of MK-1 in the
presence of BSA and HSA with other analytes [Fig.S11] reveal its affinity for albumins.
Fig.7 Histogram of MK-1at 645nm in FBS buffer solution (10mM, pH = 7.4, containing 1%
DMSO) with various analytes. 1) dye alone 2) Aspartic acid (0.5M), 3) Lysine (0.5M) 4)
Cysteine (0.5M) 5) KCl (0.5M), 6) NaCl (0.5) 7) CaCl2 (0.5M) 8) Lysozyme (15µM) 9) Trypsin
(15µM) 10) Catalase (15µM) 11) Hemoglobin(15µM) 12) BSA(15µM) 13) HSA (15µM)
13

New Journal of Chemistry
Page 14 of 19
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
Docking Study
5
6
7
8
To better understand the fluorophore-protein interactions and the ensuing emission response, we
performed in silico docking study for MK-1 & MK-2 with BSA. MK-1 interacts with Arg409 of
the BSA protein through -cation with a docking score -3.3 Kcal mol-1 (Fig 8). However, MK-2
shows H- bonding with Gln389 and -cation interactions with Arg409 amino acid involving
dock score of -3.6 Kcal mol-1. Apart from revealing the information regarding the interacting
amino acids, it demonstrates that benzimidazole moieties of MK-1 and MK-2 were exposed to
solvent and two N,N-diethyl phenyl groups of MK-1 were located at site-II amino acid pocket,
which in turn, may restrict the single bond rotation of N,N-diethyl groups [Fig.8C&D] and
consequently contributing to the enhanced emission intensity. On the other hand, in MK-2, one
donor group was located in the amino acid pocket, and another was exposed to the surrounding
solvent environment, giving rise to a twisted conformation in the binding site of BSA
[Fig.8A&B] resulting in weaker emission response. We expect similar kind of interaction with
HSA due to the structural similarity of HSA with BSA.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
14

Page 15 of 19
New Journal of Chemistry
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
7
Fig.8 Molecular Docking models; Best docking conformation and the interaction diagram of
MK-2[(A) and (B) respectively], MK-1[(C) and (D) respectively] with BSA protein.
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Cellular imaging
Upon treatment of HeLa cells with 1 M MK-1, we observed intense red fluorescence (Fig. 8).
However, the dye showed the uniform cytoplasmic distribution and did not show any specific
subcellular localization. The MK-1 concentration used (1 M) for bioimaging studies showed
negligible cell death. Notably, no significant cell death (30%) was observed even when cells
were treated with 10 M MK-1 [Fig.S12]. Remarkably, MK-1 showed higher specificity to
serum albumins, a major component for cell growth. Therefore, we decided to further explore
MK-1 under serum-free conditions (Fig.9) in a time-dependent manner (0h, 1h, 2h, and 3h).
Interestingly, a significant decrease in fluorescence intensity was observed within an hour of
serum depletion (Fig.9). However, no further decrease in the fluorescent intensity was observed
in subsequent time points. Taken together, our data indicate that MK-1 has higher specificity for
serum albumin. This study highlights the possibility of using Michler’s Ketone scaffold as an
efficient fluorescence probe for detection and monitoring of albumins.
15

New Journal of Chemistry
Page 16 of 19
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Fig.9 Serum depletion leads to a decrease in MK-1 fluorescence. Fluorescence images of HeLa
cells incubated with MK-1 at 1 M concentration for 60 min, followed by serum depletion for
0h, 1h, 2h, and 3h (A-D). Excitation at 561 nm for the red channel (630-720 nm). Quantification
of fluorescence intensity for each time-point (E). Yellow dashed line – Cell boundary; Asterisk -
Nucleus; Scale bar – 10 m. n = 11-15 cells for quantification. P values were calculated using
two-sample t-test: ***p<0.005, **p<0.05, *p<0.5.
16

Page 17 of 19
New Journal of Chemistry
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
Conclusions
5
6
7
8
In conclusion, we synthesized neutral and cationic -conjugated Michler-benzimidazole
derivatives with absorption and emission in the visible regions. Furthermore, MK-1 is highly
selective towards the recognition of serum albumin even in the complex sample media
containing various interfering biomolecular analytes. The drug displacement study reveal
possible propensity of the dye towards domain IIIA (Sudlow site II) in case of BSA and spread out
in both domain sites of HSA. Cellular imaging studies with HeLa cells demonstrate cytoplasmic
distribution and decreased fluorescence in the absence of serum indicate affinity of the dye to albumin.
Overall, the remarkable properties of MK-1 could be beneficial as a practical probe for various
molecular biology and biomedical applications.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Supporting Information
Additional figures and spectral characterization data (Fig S13-S16) are provided
Acknowledgments
SK acknowledges a financial grant from BRNS (Board of Research in Nuclear Sciences), India;
37(2)/14/05/2016). VS acknowledges DBT (Grant No: BT/PR15214/BRB/10/1449/2015 and
BT/RLF/Re-entry/45/2015) and DST-SERB (Grant No: ECR/2016/000913) for financial
support. PJ, NP, TM acknowledge IIT Gandhinagar for their fellowship. General infrastructural
support from IIT Gandhinagar acknowledged.
References
1.
2.
3.
4.
5.
6.
R. Sen, S. P. Singh and P. Johari, J. Phys.Chem. A, 2018, 122, 492-504.
A. S. Klymchenko, Acc. Chem. Res., 2017, 50, 366-375.
Y. Li, T. Liu, H. Liu, M.-Z. Tian and Y. Li, Acc. Chem. Res., 2014, 47, 1186-1198.
W. Zhang, J. Yao and Y. S. Zhao, Acc. Chem. Res., 2016, 49, 1691-1700.
D. Li, W. Hu, J. Wang, Q. Zhang, X.-M. Cao, X. Ma and H. Tian, Chem. Sci., 2018, 9, 5709-5715.
B. J. Coe, J. A. Harris, I. Asselberghs, K. Wostyn, K. Clays, A. Persoons, B. S. Brunschwig, S. J.
Coles, T. Gelbrich and M. E. Light, Adv. Funct. Mater., 2003, 13, 347-357.
B. Ruiz, Z. Yang, V. Gramlich, M. Jazbinsek and P. Günter, J. Mater. Chem., 2006, 16, 2839-2842.
H. Agnihotri, A. K. Vasu, V. Palakollu and S. Kanvah, Photochem. Photobiol. Sci., 2015, 14, 2159-
2167.
7.
8.
9.
10.
A. Noack, A. Schröder and H. Hartmann, Angew.Chem.Int. Ed., 2001, 40, 3008-3011.
Y. Fujita, K. Higuchi, H. Nishikiori, N. Tanaka and T. Fujii, J. Photochem. Photobiol. A: Chem.,
2006, 179, 156-160.
11.
J. A. Mondal, H. N. Ghosh, T. K. Ghanty, T. Mukherjee and D. K. Palit, J. Phys.Chem. A, 2006, 110,
3432-3446.
17

New Journal of Chemistry
Page 18 of 19
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
12.
13.
Y.-P. Zhao, L.-Y. Yang and R. S. H. Liu, Green Chem., 2009, 11, 837-842.
M. V. Barnabas, A. D. Liu, A. D. Trifunac, V. V. Krongauz and C. T. Chang, J. Phys. Chem., 1992, 96,
212-217.
14.
15.
16.
17.
18.
19.
20.
21.
D. I. Schuster, M. D. Goldstein and P. Bane, J. Am. Chem. Soc., 1977, 99, 187-193.
K. Rajasekhar, C. J. Achar and T. Govindaraju, Org. Biomol. Chem., 2017, 15, 1584-1588.
G. Chakraborty, A. K. Ray, P. K. Singh and H. Pal, Chem.Commun., 2018, 54, 8383-8386.
V. S. Jisha, K. T. Arun, M. Hariharan and D. Ramaiah, J. Phys.Chem. B, 2010, 114, 5912-5919.
V. S. Jisha, K. T. Arun, M. Hariharan and D. Ramaiah, J.Am.Chem. Soc., 2006, 128, 6024-6025.
N. Barbero, C. Butnarasu, S. Visentin and C. Barolo, Chem. Asian J., 2019, 0.
N. Johnsson and K. Johnsson, ACS Chem. Biol., 2007, 2, 31-38.
Y. G. Ermakova, T. Sen, Y. A. Bogdanova, A. Y. Smirnov, N. S. Baleeva, A. I. Krylov and M. S.
Baranov, J. Phys. Chem. Lett., 2018, 9, 1958-1963.
M.-A. Tehfe, F. Dumur, B. Graff, F. Morlet-Savary, J.-P. Fouassier, D. Gigmes and J. Lalevee,
Macromolecules, 2013, 46, 3761-3770.
H. Mokbel, F. Dumur, B. Graff, C. R. Mayer, D. Gigmes, J. Toufaily, T. Hamieh, J. P. Fouassier and
J. Lalevée, Macromol. Chem. Physics, 2014, 215, 783-790.
G. Lemercier, C. Martineau, J.-C. Mulatier, I. Wang, O. Stephan, P. Baldeck and C. Andraud, New
J. Chem., 2006, 30, 1606-1613.
A. O. Elzoghby, W. M. Samy and N. A. Elgindy, J. Controlled Release, 2012, 157, 168-182.
G. Kaur and O. Silakari, Bioorg. Chem., 2018, 80, 24-35.
M. K. Kim, H. Shin, K.-s. Park, H. Kim, J. Park, K. Kim, J. Nam, H. Choo and Y. Chong, J. Med.
Chem., 2015, 58, 7596-7602.
B. Maji, K. Kumar, M. Kaulage, K. Muniyappa and S. Bhattacharya, J. Med. Chem., 2014, 57,
6973-6988.
T. L. Mistry, L. Truong, A. K. Ghosh, M. E. Johnson and S. Mehboob, ACS Infectious Diseases,
2017, 3, 54-61.
S. Subramanian, A. Costales, T. E. Williams, B. Levine, C. M. McBride, D. Poon, P. Amiri, P. A.
Renhowe, C. M. Shafer, D. Stuart, J. Verhagen and S. Ramurthy, ACS Med. Chem. Lett., 2014, 5,
989-992.
M.-J. Clement, K. Rathinasamy, E. Adjadj, F. Toma, P. A. Curmi and D. Panda, Biochemistry, 2008,
47, 13016-13025.
A. Kamal, A. V. S. Rao, V. L. Nayak, N. V. S. Reddy, K. Swapna, G. Ramakrishna and M. Alvala, Org.
Biomol. Chem., 2014, 12, 9864-9880.
D. Vela-Corcia, D. Romero, A. de Vicente and A. Perez-Garcia, Sci. Rep., 2018, 8, 1-12.
B. Geißel, V. Loiko, I. Klugherz, Z. Zhu, N. Wagener, O. Kurzai, C. A. M. J. J. van den Hondel and J.
Wagener, Nature Commun., 2018, 9, 3098.
E. Horak, P. Kassal and I. Murkovic Steinberg, Supramol. Chem., 2018, 30, 838-857.
K. Aich, S. Das, S. Goswami, C. K. Quah, D. Sarkar, T. K. Mondal and H.-K. Fun, New J. Chem.,
2016, 40, 6907-6915.
G. B. Bodedla, K. R. Justin Thomas, M.-S. Fan and K.-C. Ho, J. Org. Chem., 2016, 81, 640-653.
A. J. T. Lou, S. Righetto, C. Barger, C. Zuccaccia, E. Cariati, A. Macchioni and T. J. Marks, J. Am.
Chem. Soc., 2018, 140, 8746-8755.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
Y.-C. Wu, J.-Y. You, K. Jiang, H.-Q. Wu, J.-F. Xiong and Z.-Y. Wang, Dyes Pigments, 2018, 149, 1-7.
A. M. Brouwer, Pure Appl.Chem., 2011, 83, 2213-2228.
Y. Yang, H. Xu, F. Liu, H. Wang, G. Deng, P. Si, H. Huang, S. Bo, J. Liu, L. Qiu, Z. Zhen and X. Liu, J.
Mater. Chem. C, 2014, 2, 5124-5132.
M. Paramasivam and S. Kanvah, J. Phys.Chem. C, 2016, 120, 10757-10769.
B.-K. An, J. Gierschner and S. Y. Park, Acc. Chem. Res., 2011, 45, 544-554.
42.
43.
18

Page 19 of 19
New Journal of Chemistry
View Article Online
DOI: 10.1039/C9NJ01972C
1
2
3
4
5
6
7
8
44.
45.
46.
47.
G. Fan and D. Yan, Sci. Reports, 2014, 4, 4933.
C. Reichardt, Chem. Rev., 1994, 94, 2319-2358.
S. Samanta, S. Halder and G. Das, Anal. Chem., 2018, 90, 7561-7568.
P. Singh, L. S. Mittal, S. Kaur, S. Kaur, G. Bhargava and S. Kumar, Sensors Act. B: Chem., 2018,
255, 478-489.
48.
49.
A. Divsalar, M. J. Bagheri, A. A. Saboury, H. Mansoori-Torshizi and M. Amani, J. Phys.Chem. B,
2009, 113, 14035-14042.
Y.-Y. Wu, W.-T. Yu, T.-C. Hou, T.-K. Liu, C.-L. Huang, I. C. Chen and K.-T. Tan, Chem. Commun.,
2014, 50, 11507-11510.
F. Kratz and B. Elsadek, J. Contr.Release, 2012, 161, 429-445.
F. Kratz, J. Contr. Release, 2008, 132, 171-183.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
50.
51.
Graphical Abstract
Enhanced emission and selective binding with Albumins
19
