PAPER
www.rsc.org/obc | Organic & Biomolecular Chemistry
Synthesis of hyperbranched poly(aryl amine)s via a carbene insertion approach
Anton Blencowe,†a William Fagour,a Chris Blencowe,a Kevin Cosstickb and Wayne Hayes*a
Received 13th March 2008, Accepted 18th March 2008
First published as an Advance Article on the web 22nd April 2008
DOI: 10.1039/b804392m
A novel diazirine functionalised aniline derivative, 3-(3-aminophenyl)-3-methyldiazirine 1, was prepared
and employed as an AB2-type monomer in the synthesis of hyperbranched polymers; thus providing the
first instance in which polyamines have been prepared via carbene insertion polymerisation. Photolysis
of the monomer 1 in bulk and in solution resulted in the formation of hyperbranched poly(aryl amine)s
with degrees of polymerisation (DP) varying from 9 to 26 as determined by gel permeation
chromatography (GPC). In solution, an increase in the initial monomer concentration was generally
found to result in a decrease in the molecular weight characteristics of the resulting poly(aryl amine)s.
Subsequent thermal treatment of the poly(aryl amine)s caused a further increase in the DP values up to
a maximum of 31. Nuclear magnetic resonance (NMR) spectroscopic analysis revealed that the
increase in molecular weight upon thermal treatment resulted from hydroamination of styrenic species
formed in the initial photopolymerisation or activation of diazirine moieties.
process possessed enhanced solubility and processability whilst
Introduction
retaining highly desirable magnetic properties similar to their
Hyperbranched polyamine macromolecules (including den-
linear analogues. Highly conjugated hyperbranched poly(amino
drimers) have received significant attention over the past 20 years
arylene)s prepared from functionalised triphenylamines exhibit
as a result of their wide range of potential biomedical and
a variety of enhanced functional properties, such as polyradical
cations with high-spin states,12 high light-emitting efficiencies and
photoconductivity,10,11 and, therefore, have potential in an array
of technological applications in organic electronics, photonics and
spintronics.
materials applications, including adhesives, printing inks, dyes,
fixative agents, cationic dispersants, chelating agents and scavenger
resins.1 The most widely developed dendritic polyamines are the
poly(propylene imine) (PPI) series developed by Meijer and co-
workers.2 However, PPI dendrimers are prepared via a labour
intensive multi-step divergent strategy involving repetitive Michael
additions and reductions. More recently, Haag and co-workers
have produced hyperbranched analogues3 of PPI dendrimers
by utilising poly(ethylene imine)s (PEI) as branching scaffolds.
Modified PEI/PPI hyperbranched polymers and PPI dendrimers
are currently being investigated for a number of biochemical
applications, including non-viral gene transfer vector design,3,4
drug delivery5,6 and as antimicrobial agents.7 Hyperbranched ally-
lamines have been prepared via palladium catalysed decarboxyla-
tive multi-branching ring-opening polymerisation of cyclic carba-
mates, such as 5,5-dimethyl-6-ethenylperhydro-1,3-oxazin-2-one,
using primary or secondary amines as initiators.8 Although the
monomers do not contain branch points, branching units are gen-
erated through propagation reactions leading to the formation of
hyperbranched polyamines with a degree of polymerisation (DP)
between 16 and 47, and a degree of branching (DB) between 44 and
81%. Hyperbranched polyanilines9 and poly(amino arylene)s10,11
have also been investigated thoroughly for their potential ap-
plication to conducting and magnetic polymeric materials—
hyperbranched m-polyanilines prepared via a palladium catalysed
After successfully developing a carbene insertion polymeri-
sation approach to hyperbranched polyethers,13 we decided to
investigate the preparation of hyperbranched polyamines via a
similar strategy. Herein, we present the foremost preparation of
hyperbranched polyamines using a diazirine functionalised aniline
derivative, 3-(3-aminophenyl)-3-methyldiazirine 1, as an AB2-type
monomer. The polymerisation proceeds by way of photochemical
activation of the diazirine moieties yielding highly reactive car-
benes that are capable of inserting into N–H bonds to afford
secondary (linear units) and tertiary (branched units) amines.
The polymerisation process was examined at various monomer
concentrations and in a variety of inert fluorinated solvents and
the resulting hyperbranched polyamines were analysed via GPC,
and NMR, UV-vis and IR spectroscopies.
Results and discussion
The aminodiazirine
1 was prepared in 4 steps from 3-
aminoacetophenone 2 (Scheme 1) using a similar procedure to that
reported by Liu et al.14 The acetophenone derivative 2 was firstly
converted to its corresponding benzylimine 3 through reaction
with benzylamine in the presence of zinc(II) chloride. The crude
imine 3 was subsequently reacted with hydroxylamine-O-sulfonic

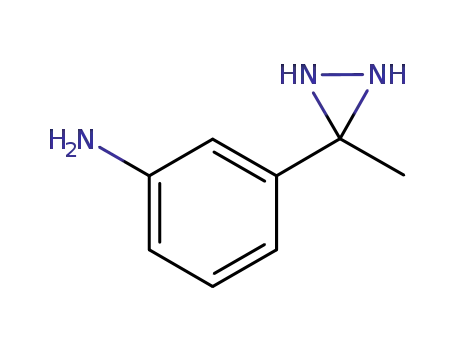

acid (HOSA) in liquid ammonia to afford the diaziridine 4, which
was then oxidised to the aminodiazirine 1 using chromic acid.15
Polymerisation of the aminodiazirine monomer 1 (Scheme 2)
was conducted in bulk, as suspensions in perfluorinated solvents
and in solution. Initially, the monomer 1 and solvent were added
aDepartment of Chemistry, The University of Reading, Whiteknights,
Reading, UK RG6 6AD. E-mail: w.c.hayes@reading.ac.uk.; Tel: +44 (0)118
378 6491
bInvista (UK), P.O. Box 401, Wilton Site, Middlesbrough, Cleveland, UK
TS6 8JJ
† Current address: Polymer Science Group, Department of Chemical
and Biomolecular Engineering, The University of Melbourne, Parkville,
Melbourne, Victoria 3010, Australia.
This journal is
The Royal Society of Chemistry 2008
Org. Biomol. Chem., 2008, 6, 2327–2333 | 2327
©

View Article Online
Scheme
1 Synthesis of 3-(3-aminophenyl)-3-methyldiazirine 1: (a)
BnNH2, ZnCl2, ꢀ; (b) NH3, HOSA, −78 ◦C; (c) NaCr2O7, H2SO4.
Fig. 1 GPC RI traces of poly(aryl amines)s prepared: (a) from photolysis
of monomer 1 in bulk (P1c), hexafluorobenzene (P1d) and perfluoropy-
ridine (P1e); (b) from photolysis and thermolysis of monomer 1 in bulk
(P2c) and hexafluorobenzene (P2d); (c) at monomer concentrations of
0.08, 0.17, 0.34, 0.68 and 1.35 M (P3a–e, respectively).
been well established17 that conventional calibration with linear
polymers underestimates the molecular weight characteristics of
hyperbranched macromolecules, it enabled comparison of the
polyamines prepared via different conditions without providing
absolute molecular weights.
The polyamines P1a–c prepared via photolysis in bulk or as
suspensions had comparable molecular weights corresponding to
a DP of 9 (Table 1). Solution phase polymerisations conducted
in hexafluorobenzene (C6F6) and perfluoropyridine (C5F5N) af-
forded polyamines P1d–e, which possessed DPs of 13 and 14,
respectively. The difference in molecular weight of polyamines
prepared in solution and those in bulk is believed to arise from
the close proximity of the monomers in bulk and suspension
photopolymerisations, which results in the formation of azines18
that compete with the desired carbene insertion mechanism.
Upon thermal treatment all the polymers increased in molecular
weight to afford polyamines P2a–d with DPs of 12–31. This
increase was most prominent for polymer P2d, for which the
DP more than doubled. This increase in Mw can clearly be
observed in the GPC RI trace of polymer P2d (Fig. 1, (b)), which
shows the disappearance of a low molecular weight shoulder
present at ca. 0.6 kDa in the trace of polymer P1d (Fig. 1, (a))
and a significant increase in the upper molecular weight range
from ca. 10 to 50 kDa. The observed increase in molecular
weight was postulated to occur as result of: (i) the formation of
reactive carbenes from the activation of diazirine or diazoalkane
moieties present after the initial photopolymerisation, and/or
(ii) hydroamination of styrenic species formed from 1,2-hydrogen
migration of photogenerated carbenes.19,20
Scheme 2 Synthesis of hyperbranched polyamines from the aminodi-
azirine 1.
to a glass vial fitted with a stirrer bar, which was argon flushed and
sealed. The vial was placed 2 cm away from a 125 watt high-power
mercury vapour lamp and irradiated for 24 h. Suspension phase
reactions were vortexed at 1200 rpm prior to irradiation to produce
a fine suspension of the monomer in the solvent, which was
maintained during the reaction with rapid stirring. Perfluorinated
solvents were employed to eliminate any unwanted reaction of
the photogenerated carbenes with the reaction medium, as the
inherent strength of C–F bonds (DHbond ≈ 488 kJ mol−1) deters
carbene insertion. The solvent was removed in vacuo and the
residue dried to afford polyamines P1a–e (94–99%) as yellow to
brown solids. To ensure complete decomposition of the diazirine
moieties and any diazoalkanes (formed via isomerisation of the
diazirines16) the polymers were heated at 150 ◦C in vacuo for
12 h to afford polyamines P2a–e, respectively, as glassy brown
solids with a reduction in weight of 0–4%. All of the polymers
with the exception of P2e were soluble in methanol, N,N-
dimethylformamide (DMF) and dimethylsulfoxide (DMSO). The
insolubility of P2e was attributed to extensive intermolecular
cross-linking upon thermal treatment.
In order to investigate the effect of monomer concentration on
the photopolymerisation a series of reactions were conducted. As
the monomer concentration was increased from 0.08 to 0.68 M the
molecular weight and polydispersity of the resulting polyamines
The polymers were analysed by GPC coupled with RI detection
(Fig. 1) using linear polystyrene calibrants. Although it has
2328 | Org. Biomol. Chem., 2008, 6, 2327–2333
