ꢀꢀꢀꢁ
4ꢀ ꢀM. Hakimi et al.: Synthesis and spectral and structural characterization of MPAP
(P=N)ring, δbendꢀ=ꢀ465 w (N–P–N) cm−1. Raman: δasꢀ=ꢀ1415 m 0.86 Å with s.u. of the constraintꢀ=ꢀ0.001 and Uisoꢀ=ꢀ1.2 Ueq of
(CH2), νasꢀ=ꢀ1172 m (PN)ring, νꢀ=ꢀ1049 s (C–N), νsꢀ=ꢀ894 m the corresponding parent atom. Diagrams of the molecu-
(P=N)ring, δbendꢀ=ꢀ712 m (P=N)ring, δrockꢀ=ꢀ588 s (P=N)ring
,
lar structure and unit cell were created using the programs
31
δbendꢀ=ꢀ432 m (N–P–N), δtwistꢀ=ꢀ154 s (N–P–N) cm−1. P NMR Ortep [23, 24] and Diamond [25]. Crystal data and details
(250 MHz, CDCl3): δꢀ=ꢀ5.12 ppm.
of the data collection and refinement are given in Table 4.
Selected bond lengths and angles of the compound are
listed in Table 1 and the hydrogen bond geometries in
Table 2.
4.3 Crystal structure determination
CCDC 1842613 (MPAP) contains the supplemen-
A suitable crystal of MPAP was chosen, and its X-ray dif- tary crystallographic data for this paper. These data
fraction analysis was performed at Tꢀ=ꢀ95 K using a Super- can be obtained free of charge from The Cambridge
and a CCD detector (Atlas S2). The data was processed
with CrysAlis [20]. The structure was solved with the
charge flipping algorithm Superflip [21] and refined
5 Supporting information
by full-matrix least-squares on F2 using the program
Jana2006 [22]. Anisotropic displacement parameters
31P NMR, FT-IR, and Raman spectra of MPAP and the
were used for all non-hydrogen atoms. Hydrogen atoms
31P NMR spectrum of hexachlorocyclotriphosphazene
on carbon were kept at geometrically expected positions
are given as supplementary material available online
and refined as riding atoms with Uisoꢀ=ꢀ1.2 Ueq of the cor-
(DOI: 10.1515/znb-2018-0136).
responding parent atom. Positions of hydrogen atoms on
nitrogen were refined using the N–H bond length restraint
References
Table 4:ꢀCrystal data and structure refinement for MPAP.
[1] E. Çil, M. Arslan, F. Aslan, A. I. Öztürk, Phosphorus Sulfur Sili-
Empirical formula
Formula weight, g mol−1
Crystal size, mm3
Temperature, K
Crystal system
Space group
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ

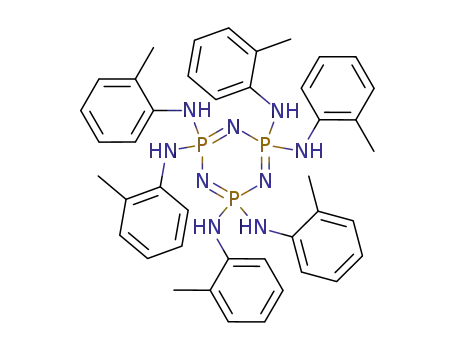

C42H48N9P3
771.8
0.37ꢁ×ꢁ0.09ꢁ×ꢁ0.06
95
Monoclinic
P21/n
con Relat. Elem. 2003, 178, 1037.
[2] H. R. Allcock, Chemistry and Application of Phosphazenes,
Wiley Interscience, New York, 2003.
[3] J. H. Goedemoed, K. De Groot, A. M. E. Claessen, R. J. Scheper,
J. Control. Release 1991, 17, 235.
[4] Y. S. Sohn, Y. J. Jun in Polyphosphazenes for Biomedical Appli-
cations (Ed.: A. K. Andrianov), John Wiley, Hoboken,
New Jersey, 2009, p. 249.
Unit cell dimensions
a, Å
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ
7.6535(1)
20.3655(2)
24.7152(3)
94.1974(10)
3841.96(8)
4
b, Å
[5] H. Tang, P. N. Pintauro, J. Appl. Polym. Sci. 2001, 79, 49.
[6] G. Dotelli, M. C. Gallazzi, C. M. Mari, F. Greppi, E. Montoneri,
A. Manuelli, J. Mater. Sci. 2004, 39, 6937.
c, Å
β, deg
Volume, Å3
[7] M. Gleria, R. D. Jaeger, Phosphazenes A Worldwide Insight,
Nova Science Publishers, New York, 2004.
Z
Calculated density, g cm−3
Absorption coefficient, mm−1
F(000), e
1.33
[8] K. Inoue, T. Yamauchi, T. Itoh, E. Ihara, J. Inorg. Organomet.
Polym. Mater. 2007, 17, 367.
1.8
1632
[9] C. S. Reed, J. P. Taylor, K. S. Guigley, M. M. Coleman, H. R.
Allcock, Polym. Eng. Sci. 2000, 40, 465.
θ range for data collection, deg
hkl ranges
3.6–76.3
−9ꢁ≤ꢁhꢁ≤ꢁ9, −25ꢁ≤ꢁkꢁ≤ꢁ25,
−30ꢁ≤ꢁlꢁ≤ꢁ31
58421/8022/0.032
8022/6/506
0.0290/0.0923
0.0312/0.0940
1.85a
[10] M. A. Olshavsky, H. R. Allcock, Macromolecules 1995, 28, 6188.
[11] C. A. Allen, D. G. Cummings, A. E. Grey, R. E. Mcatee, R. R.
Mccaffrey, J. Membr. Sci. 1987, 33, 181.
Reflections collected/independent/Rint ꢃ
Data/restraints/parameters
R1/wR2 [Iꢁ>ꢁ3σ(I)]
ꢃ
ꢃ
ꢃ
ꢃ
ꢃ
[12] M. Hakimi, Z. Mardani, K. Moeini, F. Mohr, E. Schuh, H. Vahedi,
Z. Naturforsch. 2012, 67b, 452.
R1/wR2 (all data)
[13] M. Hakimi, Z. Mardani, K. Moeini, E. Schuh, F. Mohr, Z. Natur-
forsch. 2013, 68b, 267.
Goodness of fit on F2
Largest diff. peak/hole, e Å−3
0.31/−0.35
[14] M. Hakimi, Z. Mardani, K. Moeini, E. Schuh, F. Mohr, Z. Natur-
forsch. 2013, 68b, 272.
aJana2006 does not refine the weighting scheme. Therefore, the
goodness of fit is usually fairly above 1, especially for well-exposed
data, bearing information about the bonding electrons.
[15] M. Hakimi, Z. Mardani, K. Moeini, M. Minoura, H. Raissi,
Z. Naturforsch. 2011, 66b, 1122.
Brought to you by | University of Texas at El Paso
Authenticated
Download Date | 11/2/18 10:04 AM
