Porphyryl Acryclic Acids
Hz, 4H), 8.85 (d, J ) 4.7 Hz, 2H), 9.39 (d, J ) 4.7, 2H), 9.97 (d,
J ) 15.8 Hz, 1H); 13C NMR (100.6 MHz, CDCl3) δ 51.9, 74.7,
108.6, 119.1, 120.1, 126.5, 126.6, 127.47, 127.5, 129.5, 130.9,
131.9, 132.4, 133.06, 133.1, 133.2, 133.3, 139.7, 141.0, 141.1,
141.7, 142.4, 144.7, 165.0; UV-vis (CH2Cl2) λmax (log ε) 429 (5.4),
547 (4.3), 587 (4.2) nm; TOF MS LD+ (C44H28N4NiO2) calcd for
[M] 702.1566, found 702.1531.
139.8, 141.2, 141.8, 142.5, 142.6, 145.6, 146.2 (br), 150.4, 157.6,
164.4; UV-vis (CH2Cl2) λmax (log ε) 413 (5.5), 432 (5.2), 508 (4.4),
543 (4.3), 585 (4.3), 635 (4.0) nm; TOF MS LD+ (C81H54N8NiO4)
calcd for [M + H] 1261.3700, found 1261.366.
Reaction of 7 with Ethyl Diazoacetate. Synthesis of 15-17.
Ethyl 2-(Triphenylphosphoranylidene)-5-[(5,10,15-triphenylpor-
phyrinato-20-yl)nickel(II)]azino-3-oxopent-4-enoate 15. Ethyl dia-
zoacetate (20.6 mg, 0.18 mmol) in CH2Cl2 (1 mL), PPh3 (47.3 mg,
0.18 mmol), and NEt3 (0.013 mL, 0.09 mmol) in CH2Cl2 (0.5 mL)
were added to a solution of acyl chloride 7 generated from 5 (30
mg, 0.045 mmol) in anhydrous CH2Cl2 (5 mL). The reaction was
stirred for 2 h (TLC control) at 35 °C under argon, and the resulting
mixture was diluted with hexane and quickly filtered through a short
column of silica. The volatiles were removed in vacuo, and the
solid residue was washed with hexane (3 × 5 mL) and dried under
vacuum to give 15 (32.2 mg, 70%) as a pale purple solid: Rf 0.4
(CH2Cl2/hexane, 1:1 v/v); 1H NMR (400 MHz, CD2Cl2) δ 1.45 (t,
J ) 7.0 Hz, 3H), 4.44 (q, J ) 7.0 Hz, 2H), 6.84 (d, J ) 15.4 Hz,
1H), 7.54 (m, 9H), 7.74 (m, 15H), 8.00 (m, 6H), 8.68 (dd, J ) 5.0
Hz, 5.0 Hz, 4H), 8.83 (d, J ) 5.0 Hz, 2H), 9.38 (d, J ) 5.0, 2H),
9.80 (d, J ) 15.4 Hz, 1H); 31P NMR (162 MHz, CD2Cl2) 44.26;
13C NMR (150.9 MHz, CD2Cl2) δ 14.2, 62.5, 110.2, 120.0, 120.8,
127.2, 127.3, 128.2, 128.7, 128.8, 131.2, 131.8, 131.9, 132.4, 132.5
(m), 132.9, 133.1, 133.6, 133.7, 133.8, 133.9, 136.0, 140.4, 140.5,
141.6, 141.7, 141.9, 142.6, 143.2, 145.8, 148.6, 162.6; TOF MS
LD+ (C63H45N6NiO3P) calcd for [M + 2H - O] 1008.2852, found
1008.2845; calcd for [M - H2O - PPh3] 745.1862, found 745.1868.
Ethyl 2-Diazenyl-5-[(5,10,15-triphenylporphyrinato-20-yl)nick-
el(II)]-3-hydroxypenta-2,4-dienoate 16. yield 12 mg (35%); Rf 0.6
(ethyl acetate/hexane, 2:1 v/v); 1H NMR (400 MHz, CDCl3) δ 1.38
(t, J ) 7.0 Hz, 3H), 4.32 (q, J ) 7.0 Hz, 2H), 6.75 (br, 1H), 7.35
(d, J ) 15.8 Hz, 1H), 7.71 (m, 9H), 7.99 (m, 6H), 8.67 (dd, J )
5.3 Hz, 5.0 Hz, 4H), 8.85 (d, J ) 5.3 Hz, 2H), 9.44 (d, J ) 5.3,
2H), 10.06 (d, J ) 15.8 Hz, 1H), 12.46 (br, 1H); UV-vis (CH2Cl2)
(E)-4-Bromophenyl 3-[(5,10,15-Triphenylporphyrinato-20-yl)-
nickel(II)]acrylate 11. To a solution of acyl chloride 7 generated
from 5 (30 mg, 0.045 mmol) in anhydrous CH2Cl2 (5 mL) were
added 4-bromophenol (15.6 mg, 0.09 mmol) in CH2Cl2 (1 mL) and
NEt3 (0.013 mL, 0.09 mmol) in CH2Cl2 (0.5 mL). The reaction
was stirred for several hours (TLC control) at 35 °C under argon,
and the resulting mixture was worked up as described above. The
crude product was purified by flash chromatography on silica
(CH2Cl2/hexane, 1:1 v/v) to give 11 (25.1 mg, 68%) as a violet
1
solid: mp 173 °C; Rf 0.25 (CH2Cl2/hexane ) 1/1, v/v); H NMR
(400 MHz, CDCl3) δ 6.50 (d, J ) 15.2 Hz, 1H), 7.24 (d, J ) 8.8
Hz, 2H), 7.61 (d, J ) 8.8 Hz, 2H), 7.71 (m, 9H), 7.99 (m, 6H),
8.66 (d, J ) 5.2 Hz, 2H), 8.70 (d, J ) 5.2 Hz, 2H), 8.87 (d, J )
5.2 Hz, 2H), 9.44 (d, J ) 5.2 Hz, 2H), 10.08 (d, J ) 15.2 Hz, 1H);
13C NMR (100.6 MHz, CDCl3) δ 108.3, 118.5, 119.3, 120.4, 123.1,
123.6, 125.1, 126.5, 126.6, 127.5, 127.6, 129.2, 130.8, 132.0, 132.1,
132.5, 132.6, 133.05, 133.1, 133.5, 139.7, 141.1, 141.8, 142.5,
145.7, 149.5, 163.9; UV-vis (CH2Cl2) λmax (log ε) 430 (5.3), 547
(4.3), 592 (4.3) nm; TOF MS LD+ (C47H29BrN4NiO2) calcd for
[M] 818.0827, found 818.0826.

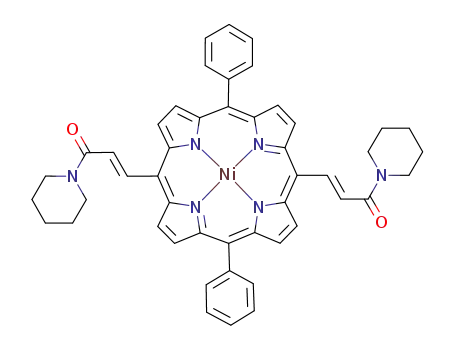

(2E,2′E)-3,3′-[(5,15-Diphenylporphyrinato-10,20-diyl)nickel(II)]-
bis(1-(piperidin-1-yl)prop-2-en-1-one) 12. To a solution of acid 6
(30 mg, 0.045 mmol) in anhydrous THF (5 mL) were added SOCl2
(0.013 mL, 0.18 mmol) in 1 mL of THF and DMF (2-3 drops)
under argon, and the mixture was stirred for 2 h. The volatiles were
removed under reduced pressure, and the remaining purple-greenish
acyl chloride 8 was dissolved in anhydrous THF (5 mL). NEt3
(0.013 mL, 0.09 mmol) in THF (1 mL) was added, and stirring
was continued for 15 min. Piperidine (0.09-0.225 mmol) dissolved
in THF (1 mL) was added, and the reaction was stirred for 30 min
(TLC control) at rt under argon. The mixture was filtered through
a plug of silica and washed with ethyl acetate, followed by removal
of the solvents in vacuo. The residue was purified by flash
chromatography on silica with ethyl acetate/hexane ) 1:2 to give
12 (16 mg, 44%) as a green-purple solid: mp 282 °C; Rf 0.15 (ethyl
λ
max(A) 433 (1.0), 547 (0.1), 592 (0.09) nm; TOF MS LD+
(C45H32N6NiO3) calcd for [M + Na] 785.1787, found 785.1779.
(2E,4E)-Ethyl 3-Hydroxy-5-[(5,10,15-triphenylporphyrinato-20-
yl)nickel(II)]penta-2,4-dienoate 17. Phosphazine 15 (32 mg, 0.31
mmol) was dissolved in dichloromethane and allowed to stand for
24 h. The solvent was removed under reduced pressure, and the
residue was recrystallized from CH2Cl2-MeOH to give 17 (18 mg,
78%) as a violet solid: mp >300 °C; Rf 0.0 (ethyl acetate/hexane,
1:2 v/v); 1H NMR (600 MHz, CDCl3) δ 1.46 (t, J ) 7.0 Hz, 3H),
4.47 (q, J ) 7.0 Hz, 2H), 6.84 (d, J ) 15.2 Hz, 1H), 7.59 (s, 1H),
7.71 (m, 9H), 7.99 (m, 6H), 8.67 (dd, J ) 4.7, 4.7 Hz, 4H), 8.85
(d, J ) 5.2 Hz, 2H), 9.37 (d, J ) 5.2, 2H), 9.79 (d, J ) 15.2 Hz,
1H); 13C NMR (150.9 MHz, CDCl3) δ 14.2, 62.2, 109.7, 119.7,
120.6, 126.9, 127.0, 127.9, 128.0, 131.1, 132.4, 132.8, 133.5, 133.6,
133.7, 135.7, 140.2, 141.4, 141.6, 142.3, 142.9, 145.6, 147.8, 162.5;
UV-vis (CH2Cl2) λmax (log ε) 435 (5.8), 547 (4.8), 597 (4.8) nm;
TOF MS LD+ (C45H32N4NiO3) calcd for [M + 2H + 2Na]
782.1780, found 782.1621.
1
acetate/hexane ) 1/2, v/v); H NMR (400 MHz, CDCl3) δ 1.67
(m, 12H), 3.54 (m, 4H), 3.82 (m, 4H), 6.67 (d, J ) 15.2 Hz, 2H),
7.70 (m, 6H), 7.96 (m, 4H), 8.74 (d, J ) 4.7 Hz, 4H), 9.32 (d, J )
4.7 Hz, 4H), 9.80 (d, J ) 15.2 Hz, 2H); 13C NMR (100.6 MHz,
CDCl3) δ 24.2, 25.2, 26.3, 43.1, 46.6, 112.1, 119.0, 126.7, 127.6,
131.5, 132.7, 132.9, 133.0, 139.5, 140.6, 141.1, 164.0; UV-vis
(CH2Cl2) λmax (log ε) 436 (5.5), 557 (4.6), 604 (4.6) nm; TOF MS
LD+ (C48H42N6NiO2) calcd for [M] 792.2723, found 792.2720.
(E)-4-[5,15-Bis(3-methoxyphenyl)porphyrin-10-yl]phenyl 3-[(5,10,
15-Triphenylporphyrinato-20-yl)nickel(II)]acrylate 14. To a solu-
tion of acyl chloride 7 generated from 5 (30 mg, 0.045 mmol) in
anhydrous CH2Cl2 (5 mL) were added 5-(4-hydroxyphenyl)-10,20-
bis(3-methoxyphenyl)porphyrin 13 (26.3 mg, 0.43 mmol) in CH2Cl2
(1 mL) and NEt3 (0.013 mL, 0.09 mmol) in CH2Cl2 (0.5 mL). The
reaction was stirred for 24 h (TLC control) at 35 °C under argon,
and the resulting mixture was worked up as described above.
Purification by flash chromatography on silica (ethyl acetate/hexane,
1:2 v/v) afforded 14 (27.6 mg, 51%) as a purple solid: mp 247 °C;
Rf 0.8 (ethyl acetate/hexane, 1:2 v/v); 1H NMR (400 MHz, CDCl3)
δ -2.97 (s, 2H), 4.05 (s, 6H), 6.73 (d, J ) 15.8 Hz, 1H), 7.40 (m,
2H), 7.74 (m, 13H), 7.89 (m, 4H), 8.04 (m, 6H), 8.35 (m, 2H),
8.72 (dd, J ) 4.7, 4.7 Hz, 4H), 8.94 (d, J ) 4.7 Hz, 2H), 9.02 (dd,
J ) 4.7, 4.7 Hz, 4H), 9.12 (d, J ) 4.7 Hz, 2H), 9.37 (d, J ) 4.7
Hz, 2H), 9.58 (d, J ) 4.7 Hz, 2H), 10.28 (m, 2H); 13C NMR (100.6
MHz, CDCl3) δ 55.1, 104.5, 108.3, 113.1, 119.0, 119.3, 119.5,
120.2, 120.3, 126.6, 126.7, 127.3, 127.4, 127.5, 127.6, 129.8, 130.5,
131.0, 131.1 (br), 132.0, 132.5, 133.1, 133.2, 133.5, 134.9, 139.7,
General Procedure: Synthesis of 20-22 via Cross-Metathesis.
A mixture of allyl porphyrin (0.3 mmol), acrylate (1.5-3.0 mmol),
and Grubbs II catalyst (25.5 mg, 0.03 mmol) in dry CH2Cl2 (25
mL) was stirred at 35 °C under argon for 12 h (TLC control). The
solution was filtered through a plug of silica and washed with
CH2Cl2. The solvent was removed under reduced pressure followed
by recrystallization of the solid residue from CH2Cl2-MeOH to
give 20-22 (78-90%).
(E)-Methyl 4-[(5,10,15-Triphenylporphyrinato-20-yl)nickel(II)]-
but-2-enoate 20. Porphyrin 18 (174 mg, 0.3 mmol), methyl acrylate
(129 mg, 1.5 mmol), and Grubbs II catalyst (25.5 mg, 0.03 mmol)
gave 20 (153 mg, 80%) a violet solid: mp >300 °C; Rf 0.45 (ethyl
acetate/hexane, 1:5 v/v); 1H NMR (400 MHz, CDCl3) δ -2.74 (s,
2H), 3.55 (s, 3H), 5.72 (d, J ) 15.8 Hz, 1H), 5.87 (d, J ) 5.9 Hz,
2H), 7.76 (m, 9H), 7.94 (m, 1H), 7.99 (m, 6H), 8.81 (br, 4H), 8.91
(d, J ) 4.8 Hz, 2H), 9.34 (d, J ) 4.8 Hz, 2H); 13C NMR (100.6
MHz, CDCl3) δ 37.4, 51.4, 113.2, 120.0, 120.3, 123.0, 126.6, 127.8,
J. Org. Chem. Vol. 74, No. 4, 2009 1495
