Article
Inorg. Chem., Vol. 48, No. 11, 2009
4779
3.95 (s, 2H), 6.93-6.94 (d, 1H), 6.96-6.97 (d, 1H), 7.11-7.14 (m,
2H), 7.15-7.17 (t, 1H), 7.34-7.35 (d, 1H), 7.36-7.37 (d, 1H),
7.52-7.55 (t, 1H), 7.62-7.66 (m, 2H), 7.69-7.70 (d, 2H),
8.52-8.53 (d,1H), 8.54-8.55 (d, 1H). The trace is shown in the
Supporting Information. MSES+: m/z + Li+ = 433.21.
Synthesis of L3: Tris(2-[2,3-dimethoxy Phenyl] 6-Pyr-
idylmethyl) Amine. Br3TPA (400 mg, 0.76 mmol) and Pd
(PPh3)4 (41 mg, 0.035 mmol) were suspended under argon in
degassed toluene (100 mL). Sodium carbonate (11 mL of a 2 M
aqueous solution) and commercially available 2,3-dimethoxy-
phenylboronic acid (280 mg, 1.58 mmol) dissolved in ethanol
(5 mL) were added under argon. The reaction mixture was refl-
uxed under argon for several days, until no more Br3TPA was
detected by thin-layer chromatography (several days). The or-
ange-colored solution was then evaporated to dryness. The re-
maining oil was dissolved in methylene chloride, and this organic
phase was washed with aqueous sodium carbonate and distilled
water and dried over magnesium sulfate. After filtration and
concentration by rotary evaporation, the medium was deposited
at the top of a column filled with silica and mounted with acetone.
The column was washed with diethyl ether and the compound
eluted with acetone. A brownish oil (320 mg, 61%) was obtained.
Elem anal. calcd for C42H42N4O6, %: C, 72.19; H, 6.06. Found,
%: C, 72.19; H, 5.98. 1H NMR, δ, ppm, CDCl3: 3.65 (s, 9H), 3.86
(s,9H), 4.06 (s, 6H), 6.93-7.70 (m, 18H). The trace is shown in the
Supporting Information. MSES+: m/z + H+ = 699.23.
free OH- signal in IR spectroscopy, strongly supports the pre-
sence of the [L2*Fe-OH-FeCl3]+Cl- structure. All spectro-
scopic data are shown in the Supporting Information.
Preparation of L2*FeCl3. A total of 100 mg (0.12 mmol) of
the green compound was dissolved under argon in CH3CN. The
solution was transferred into a Schlenk tube containing several
drops of 10% zinc amalgam. The medium was stirred and
became bright orange over 10 min. This solution turned out to
be extremely oxygen-sensitive, becoming dark violet in the case
of a leak into the reaction vessel. The addition of diethyl ether
allowed precipitation of an orange solid material, which was
recrystallized from CH3CN/Et2O. A total of 80 mg was
obtained, corresponding to an 83% yield. Even in the solid
state, this compound is difficult to handle. We believe that this is
the reason why a satisfactory elemental analysis could not be
obtained. Elem anal. calcd for C33H31Cl3Fe2N4O4, %: C, 51.73;
H, 4.05; Fe, 14.63; Cl, 13.91. Found, %: C, 50.21; H, 3.82; Fe,
13.17; Cl, 13.05. Spectroscopic data are detailed in the text and
shown in the Supporting Information.
Single crystals were obtained by slow diffusion of diethyl
ether in a sealed tube containing a CH3CN solution of L2FeCl2,
a CH3CN solution of L2*Fe2Cl3, and a THF solution of
L3FeCl2. Single crystals of [L1FeCl2]0 were obtained by layering
with diethyl ether a CH3CN solution of L1FeCl2 that was
previously oxygenated.
X-Ray Analysis. Single crystals of [L1FeCl2]2O CH3CN,
L2FeCl2, L3FeCl2 THF, and L2*Fe2Cl3 OEt2 were mounted
3
Preparation of the FeCl2 Complexes. Details are given for
L1FeCl2, but the following procedure applies to all complexes:
150 mg (0.35 mmol) of free L1 was dissolved in a Schlenck tube
containing 20 mL of dry and degassed THF. A total of 40 mg
(0.31 mmol) of anhydrous FeCl2 was dissolved in a second
Schlenck tube containing 10 mL of dry and degassed THF. The
solution of FeCl2 was transferred under argon in the Schlenck
containing the ligand, and the medium was stirred overnight.
The solvent was then evaporated to dryness, and the compound
was extracted with dry and degassed CH3CN, filtered under an
inert atmosphere, and concentrated. The addition of diethyl
ether afforded a yellow solid, which was washed thoroughly
with this solvent, prior to being dried under vacuum conditions.
A total of 140 mg (82%) of L1FeCl2 with good analytical and
spectroscopic data could be obtained. Spectroscopic data are
detailed in the text and shown in the Supporting Information.
Oxygenation of L2FeCl2. A total of 150 mg (0.22 mmol) of
the ferrous complex was dissolved under argon in 50 cm3 of
CH3CN in a Schlenk tube. Dry dioxygen was bubbled for 15 s,
and the medium was kept under oxygen in the stopped Schlenk
and stirred over 48 h. The solvent was evaporated. The dark-
green solid was then thoroughly washed with diethyl ether and
dried under vacuum conditions. At this stage, the diethyl ether
fractions were collected and evaporated to dryness. The 1H
NMR spectrum of this colorless remaining material (ca. 50 mg)
corresponded to pure L2 ligand (superimposable spectroscopic
NMR data). No trace of L2* (modified ligand) could be detected
by mass spectroscopy, the only signal being that of L2 + H+ at
m/z = 563.29. The dark-green material was recrystallized from
CH3CN/Et2O to afford 70 mg of a microcrystalline dark-green
solid, corresponding to a 78% yield based on the formula given
below. Spectroscopic data are detailed in the text and shown in
the Supporting Information.
3
3
on a Nonius Kappa-CCD area detector diffractometer (Mo KR,
λ = 0.71073 A). Quantitative data were obtained at 173 K for all
˚
complexes. The complete conditions of data collection (Denzo
software) and structure refinements are given in the Supporting
Information. The cell parameters were determined from reflec-
tions taken from one set of 10 frames (1.0° steps in φ angle), each
at 20 s exposure. The structures were solved using direct
methods (SIR97) and refined against F2 using the SHELXL97
software (Kappa CCD Operation Manual; Nonius B.V.: Delft,
The Netherlands, 1997. Sheldrick, G. M. SHELXL97; Univer-
::
::
sity of Gottingen: Gottingen, Germany, 1997). The absorption
was not corrected. All non-hydrogen atoms were refined aniso-
tropically. Hydrogen atoms were generated according to stereo-
chemistry and refined using a riding model in SHELXL97.

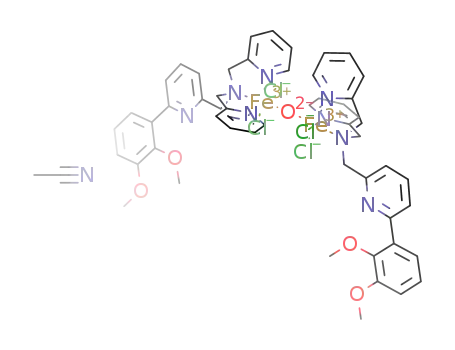

Crystal Data for [L1FeCl2]2O CH3CN. Red crystals,
monoclinic, space group C 2/c, a = 34.5912(13) A, b =
3
˚
˚
˚
12.9475(6) A, c = 12.7992(4) A, β = 103.575(2), V = 5572.2
(4) A , Dcalcd = 1.436 g cm-3, Z = 4. For 8083 unique observed
3
˚
reflections with I > 2σ(I) and 351 parameters, the discrepancy
indices are R = 0.0915 and Rw = 0.2469.
Crystal Data for L2FeCl2. Yellow crystals, monoclinic, space
˚
˚
˚
group P21/c, a = 9.004(5) A, b = 28.319(5) A, c = 12.962(5) A, β
= 104.882(5), V = 3194(2) A , Dcalcd = 1.434 g cm-3, Z = 4. For
3
˚
9282 unique observed reflections with I > 2σ(I) and 406 para-
meters, the discrepancy indices are R = 0.0445 and Rw = 0.0897.
Crystal Data for L3FeCl2 THF. Yellow crystals, orthor-
3
˚
hombic, space group Pbca, a = 15.7653 (3) A, b = 22.9257 (3)
˚
A, c = 2426.43 (4) A, V = 8769.9 (2) A , Dcalcd = 1.305 g cm-3
,
3
˚
˚
Z = 4. For 11669 unique observed reflections with I > 2σ(I) and
523 parameters, the discrepancy indices are R = 0.0584 and Rw
= 0.1778.
Crystal Data for L2*Fe2Cl3 OEt2. Yellow crystals,
3
˚
orthorhombic, space group P212121, a = 12.397 (3) A, b =
Elem anal. calcd for C33H32N4O5Cl4Fe2, %: C, 48.45; H,
3.94; N, 6.85; Fe, 13.65; Cl, 17.33. Found, %: C, 48.09; H, 4.33;
N, 6.66; Fe, 13.01; Cl, 16.81.
3
˚
˚
˚
14.716(3) A, c = 20.345(5) A, V = 3711.6(15) A , Dcalcd = 1.437
g cm-3, Z = 4. For 8399 unique observed reflections with I >
2σ(I) and 431 parameters, the discrepancy indices are R =
0.0608 and Rw = 0.1477.
MSES+: m/z = 638.1325, C33H31ClFeN4O+4 . Molecular
conductimetryvalueat c = 5. 10-3 mol L-1: Λ = 86 S mol-1 cm2.
The addition of dilute Et3N to a solution of this compound in
CH3CN resulted in the loss of the ligand-to-metal charge transfer
(LMCT) absorption and a continuous absorption increase be-
tween 580 and 320 nm, in line with the occurrence of a deprotona-
tion process. This observation, together with the absence of any
Results
Ligands L1-3 (see Figure 1) were prepared by the
reaction of 2,3-dimethoxyphenylboronic acid with the
