Phenylene-Linked Multiporphyrin Arrays
J. Phys. Chem. B, Vol. 113, No. 23, 2009 8017
transfer obtained for ZnZnFbΦ. The simulations for
ZnZnMgΦ also yield Lnonequiv ) (10 ( 2 ps)-1 for energy
transfer between nonadjacent Zn* and the magnesium porphyrin
(mediated by the intervening zinc porphyrin), which is only
slightly larger than the value of (14 ( 2 ps)-1 derived for
nonadjacent transfer between Zn* and the free base porphyrin
(mediated by the intervening zinc porphyrin) in ZnZnFbΦ. The
simulations for ZnFbFbΦ afford a rough estimate of (17 ps)-1
for energy transfer between nonadjacent Zn* and the free base
porphyrin (mediated by the free base porphyrin). This value is
determined primarily from the shorter Zn* lifetime (2.4 ps) in
this triad compared to that for the ZnFbΦ dyad (2.8 ps) (Figure
1) because the simulations are not particularly sensitive to the
rate constant for bidirectional Fb*Fb / FbFb* energy transfer,
which thus could not be determined.
Triad ZnFbMgΦ contains three different chromophores with
different excited-state energies as shown in Figure 3. Excitation
at 540 nm gives the best selective excitation of the zinc or
magnesium porphyrin versus the free base porphyrin trap site
and, on the basis of the relative ground-state absorption
extinction coefficients, should produce ∼70% Zn*FbMg and
∼30% ZnFbMg*. (The results of the simulations are not
particularly sensitive to this initial population ratio in the range
70/30-50/50 and are incorporated in the reported error limits.)
The values of the rate constants for energy transfer from either
Zn* or Mg* to the free base porphyrin were set equal to those
obtained from the respective ZnFbΦ and MgFbΦ dyads
(Figure 4). Simulation of the kinetic profile for the triad then
required Lnonequiv ) (10 ( 3 ps)-1 for nonadjacent transfer
between Zn* and the magnesium porphyrin (mediated by the
free base porphyrin). This value is the same as the value of (10
( 2 ps)-1 for energy transfer between the same two nonadjacent
sites but mediated by a zinc porphyrin in ZnZnMgΦ.
The differences in electronic couplings are dictated by the
detailed nature of the linker-mediated through-bond (superex-
change) interactions between the porphyrins.15 In the case of
the phenylene-linked arrays, the greater rates of energy transfer
between adjacent sites may also reflect the onset of through-
space (dipole-dipole) contributions to the electronic coupling.20
(2) The trends observed in the values for the rate constants
for energy transfer between nonadjacent porphyrins in the
phenylene-linked arrays parallel those for energy transfer
between adjacent porphyrins. In particular, the rate constants
for energy transfer between nonadjacent porphyrins (mediated
by intervening porphyrin X) increase in the order Zn*XFb f
ZnXFb* ((15 ps)-1) < Zn*XMg f ZnXMg* ((10 ps)-1). In
addition, these rate constants for energy transfer between
nonadjacent sites are typically a factor of 5-7-fold smaller than
those involving adjacent sites, which are Zn*Fb f ZnFb*
((2.8 ps)-1) < Zn*Mg f ZnMg* ((1.6 ps)-1). The trend observed
in the rate constants for energy transfer between nonadjacent
versus adjacent porphyrins in the phenylene-linked arrays
parallels that observed for the diphenylethyne-linked arrays
wherein the rates for nonadjacent energy transfer are 5-10-
fold smaller than those for adjacent energy transfer.15
The key implication of the present study of the phenylene-
linked porphyrin arrays is that the pairwise treatment of
interactions in the larger arrays is insufficient to account for
the energy-transfer dynamics. This observation reinforces the
conclusions drawn from earlier studies of multiporphyrin
architectures bearing diphenylethyne linkers.15 The fact that
energy transfer between nonadjacent sites is an important feature
of the multiporphyrin arrays has both negative and positive
implications for the design of devices based on such structural
motifs. On one hand, interactions between nonadjacent sites in
a molecular photonic device might compromise functionality
by shunting the flow of energy to unwanted sites. On the other
hand, it may be possible to design energy-capture and energy-
transfer devices wherein the connectivity and branching afford
enhanced energy-transfer efficiency via (beneficial) nonadjacent
pathways for energy flow. In this regard, prior modeling studies
concerning the design of molecular architectures for efficient
light harvesting did not consider interactions between nonad-
jacent sites.27 Subsequently, it was found that energy transfer
between nonadjacent sites underpins the operation of an
electrochemically driven molecular switch in which porphyrins
are connected in a T configuration.28
IV. Discussion
The rate constants for energy transfer determined for the
phenylene-linked porphyrin arrays provide new insights into the
nature of energy flow in these types of multicomponent
architectures. These insights, along with those previously gained
from studies of porphyrin arrays bearing other types of linkers,
have implications for the rational design of larger constructs
wherein the goal is to capture and direct the flow of energy.
We address these issues in more detail below.
The key observations from the studies of the phenylene-linked
porphyrin dyads and triads studied herein can be drawn from
inspection of Figures 4 and 5 and Table 1. These observations
are as follows.
The observation that energy transfer between nonadjacent
sites in both the phenylene- and diphenylethyne-linked porphyrin
arrays is 5-10-fold slower than energy transfer between adjacent
sites further suggests that this magnitude of scaling between
the rates of the two types of processes is a relatively general
characteristic of these constructs. This knowledge could be
utilized to evaluate the efficacy of initial designs of large
multicomponent architectures prior to a substantial investment
of time in the synthesis of the arrays. Furthermore, this
knowledge could be useful in the modeling of the energy-
transfer dynamics of complex multicomponent porphyrinic
arrays wherein the rates of nonadjacent energy transfer might
not be readily measurable. A hypothetical example is discussed
below.

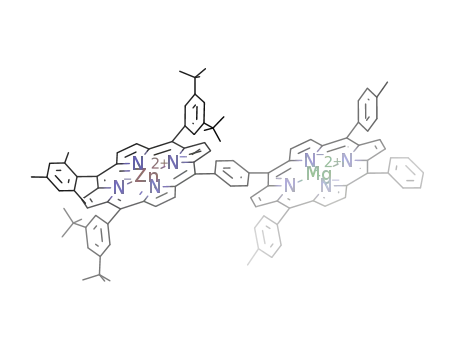

(1) The rate constants for energy transfer between adjacent
porphyrins in the phenylene-linked arrays increase in the order
Zn*Zn / ZnZn* [(4 ps)-1] ≈ Mg*Fb f MgFb* [(4.1 ps)-1
]
< Zn*Fb f ZnFb* [(2.8 ps)-1] < Zn*Mg f ZnMg*
[(1.6 ps)-1]. These trends parallel those previously observed for
diphenylethyne-linked porphyrins for which Zn*Zn / ZnZn*
[(30 ps)-1] ≈ Mg*Fb f MgFb* [(31 ps)-1] < Zn*Fb f ZnFb*
[(24 ps)-1] < Zn*Mg f ZnMg* [(9 ps)-1].15 The relatively small
differences in the energy-transfer rates between the various pairs
of sites in a given class of array reflect subtle differences in the
electronic coupling between the porphyrins. The electronic
coupling is expected to be sensitive to a variety of factors
including the HOMO and LUMO orbital densities at the site of
linker attachment in each unit.26 The somewhat larger differences
in the energy-transfer rates between analogous pairs of sites in
the phenylene- versus diphenylethyne-linked arrays also reflect
differences in the electronic couplings between the porphyrins.
Consider a linear 12-mer composed of a donor site (A) and
an acceptor site (C) with 10 intervening equivalent sites (B).
Simulations were performed for this architecture using the
kinetic scheme shown in Figure 6. The results for several rate-
constants sets are given in Table 2. All of the simulations used
excitation starting totally on site A and rate constants for energy
