A new method for the synthesis of 5-bromo(aryl)methylene-substituted hydantoins

Article abstract of DOI:10.1007/s10593-008-0167-5

It has been shown that bromination of 5-aryl-5-benzylidene-3,5-dihydro-4H- 2-methylthioimidazol-4-one in methylene chloride at room temperature leads to the addition of bromine at the double bond, but the the reaction of 5-aryl-3,5-dihydro-4H-2-methylthio-5-(2-pyridylmethylene)imidazol-4-one gave complex compound of the starting materials. After boiling both of the compounds obtained in ethanol the corresponding 5-[bromo(aryl)methylene]imidazolidine-2,4- diones were obtained.

Full text of DOI:10.1007/s10593-008-0167-5

Chemistry of Heterocyclic Compounds, Vol. 44, No. 9, 2008
A NEW METHOD FOR THE SYNTHESIS
OF 5-BROMO(ARYL)METHYLENE-
SUBSTITUTED HYDANTOINS*
R. L. Antipin, E. K. Beloglazkina, A. G. Magouga, A. N. Chernysheva, and N. V. Zyk
It has been shown that bromination of 5-aryl-5-benzylidene-3,5-dihydro-4H-2-methylthioimidazol-4-one
in methylene chloride at room temperature leads to the addition of bromine at the double bond, but the
the reaction of 5-aryl-3,5-dihydro-4H-2-methylthio-5-(2-pyridylmethylene)imidazol-4-one gave complex
compound of the starting materials. After boiling both of the compounds obtained in ethanol the
corresponding 5-[bromo(aryl)methylene]imidazolidine-2,4-diones were obtained.
Keywords: 5-aryl-3,5-dihydro-4H-2-methylthioimidazol-4-ones, hydantoins, imidazoline-2,4-diones,
bromination, addition-elimination.
In recent years hydantoins (4-oxoimidazolidin-2-ones) and 2-thiohydantoins (4-oxoimidazolidine-
2-thiones) have been actively investigated in connection with the wide spectrum of their biological activity.
Apart from this hydantoins and thiohydantoins are precursors in the synthesis of a wide range of organic
compounds, for example, amino acids [1-5].
We have shown previously that 3-methyl-5-benzylidenethiohydantoin reacts with bromine in acetic
acid, adding Br2 at the C=C double bond, with further substitution of one of the bromine atoms by an ethoxy
group on reaction with ethanol [6, 7].
In this work the possibility of obtaining 5-bromo(aryl)methylene-substituted hydantoins by the
bromination of 2-aryl- and hetarylmethylene-substituted 2-thiohydantoins has been demonstrated. The 5-aryl-
3,5-dihydro-4H-2-methylthioimidazol-4-ones were obtained by a previously described method [8]. Bromination
of S-alkylated derivatives of 2-thiohydantoin were carried out by slow addition of a solution of 1.1 equiv of
bromine in CH2Cl2 to a solution of compound 1 or 2 in the same solvent. From the bromination of 2-methylthio-
5-(phenylmethylene)-3-phenyl-3,5-dihydro-4H-imidazol-4-one we isolated the product of the addition of
bromine to the double bond of the 2-thiohydantoin 3, which degraded on standing. In the case of the S-alkylated
derivative of 2-thiohydantoin containing a pyridomethylene substituent at position 5, a complex of 2-methyl-
1
thio-5-(2-pyridylmethylene)-3.5-dihydro-4H-imidazol-4-one with bromine 4 was formed. In the H NMR
spectrum signals of aromatic systems of this compound are shifted to the weak-field region. Boiling both
compounds 3 and 4 in ethanol gave compounds 5 and 6, containing a bromoarylmethylene unit.
_______
* Dedicated to Academician B. A. Trofimov on his 70th jubilee.
__________________________________________________________________________________________
M. V. Lomonosov Moscow State University, Moscow 119992, Russia; e-mail:
majouga@org.chem.msu.ru. Translated from Khimiya Geterotsiklicheskikh Soedinenii, No. 9, 1406-1408,
September, 2008. Original article submitted May 15, 2008
0009-3122/08/4409-1135©2008 Springer Science+Business Media, Inc.
1135

Compounds 5 and 6 are hydantoins, i.e., hydrolysis of the methylthio group occurs in the course of the reaction.
A similar substitution of an SMe group by an oxygen atom has been described previously in the literature [9],
but it usually takes place under more vigorous conditions.
Ph
N
SMe
O
Br
N
Br
EtOH
H2O, ∆
Ph
Br2
CH2Cl2
R = Ph
3
Ph
N
Ph
N
O
O
SMe
O
N
N
Ph
N
H
Br
SMe
2Br2
Br2
O
R
EtOH
H2O, ∆
R
CH2Cl2
R = 2-Py
5, 6
1, 2
N
·
N
4
1, 5 R = Ph, 2, 6 R = 2-Py
So we have developed a suitable method for the preparation of 5-[bromo(aryl)methylene]imidazoline-
2,4-diones starting from the available 5-arylmethylene-3,5-dihydro-4H-2-methylthioimidazol-4-ones. The
reaction occurs by addition-elimination, accompanied by hydrolysis of the methylthio groups. Note that this
hydrolysis does not require the use of an acid catalyst as described in the literature examples [9], which gives
this reaction promise for the transformation of substrates which are sensitive to the presence of acids.
EXPERIMENTAL
1H NMR spectra were recorded on a Bruker AVANCE instrument (400 MHz) with HMDS as internal
standard. Elemental analyses of the compounds synthesized were carried out on a Carlos-Erba CHN analyzer.
5-Bromo-5-[(bromo)benzyl]-2-methylthio-3-phenyl-3,5-dihydro-4H-imidazol-4-one (3). A solution
of bromine (0.06 g, 0.37 mmol) in CH2Cl2 (10 ml) was added with stirring at room temperature to a solution of
2-methylthio-5-phenylmethylene-3-phenyl-3,5-dihydro-4H-imidazol-4-one (1) in methylene chloride (10 ml),
stirring was continued for 2 h, monitored by TLC. Compound 3 (0.12 g, 83%) was obtained as a yellow oil
1
which crystallized on standing in the air after evaporation of the solvent in vacuum. Mp 172°C. H NMR
spectrum (CDCl3), δ, ppm: 7.45 (10H, m, C6H5), 5.94 (1H, s, CHBr), 2.89 (3H, s, SCH3). Found, %: C 45.01;
H 3.23; N 6.07. C17H14Br2N2OS. Calculated, %: C 44.90; H 3.08; N 6.16.
Complex of 2-Methylthio-5-(2-pyridyl)methylene-3-phenyl-3,5-dihydro-4H-imidazol-4-one (2) and
Bromine (4). The reaction was carried out as for the preparation of compound 3. Complex compound 4 was
obtained as a yellow powder from compound 2 (0.2 g, 0.68 mmol) and bromine (0.13 g, 0.75 mmol); mp 144°C
1
(decomp.) H NMR spectrum (DMSO-d6), δ, ppm (J, Hz): 9.03 (1H, dd, J6,4 = 1, J6,5 = 5, H-6 Py); 8.84 (1H, dd,
1136

J3,5 = 1, J3,4 = 8, H-3, Py); 8.23 (1H, ddd, J4,6 = 1, J4,3 = 8, J4,5 = 8, H-4 Py); 7.68 (1H, ddd, J5,3 = 1, J5,6 = 5, J5,4 = 8,
H-5 Py); 7.14 (5H, m, C6H5); 6.95 (1H, s, CH=); 2.56 (3H, s, SCH3). Found, % C 31.33; H 2.41; N 7.06.
C16H13Br4N3OS. Calculated, %: C 31.22; H 2.11; N 6.82.
5-[Bromo(phenyl)methylene]-3-phenylimidazolidine-2,4-dione (5). Ethanol (5 ml) was added to
compound 3 (0.1 g, 0.22 mmol). The mixture was boiled for 1-2 min, a light-yellow precipitate which formed on
1
cooling was filtered and dried in air. Yield 0.06 g (80%) of compound 5. Mp 211-213°C. HNMR spectrum
(CDCl3), δ, ppm: 10.21 (1H, s, NH); 6.98 (10H, m, C6H5). Found, %: C 56.10; H 3.21; N 8.24. C16H11BrN2O2.
Calculated, %: C 55.98; H 3.21; N 8.16.

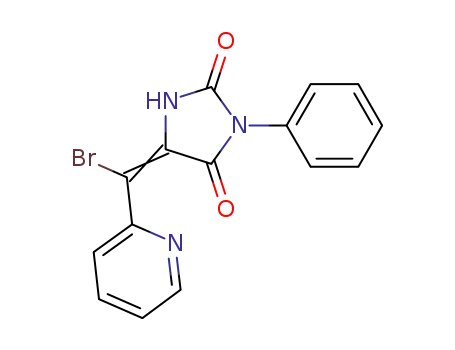

5-[bromo(2-pyridyl)methylene]-3-phenylimidazolidine-2,4-dione (6) was made analogously to
1
compound 5 from compound 4 (0.1 g, 0.16 mmol) with a yield of 0.05 g (89%); mp 192-195°C. H NMR
spectrum (CDCl3), δ, ppm (J, Hz): 11.78 (1H, s, NH); 8.66 (1H, dd, J6,5 = 4.9, J6,3 = 1, H-6 Py); 8.25 (1H, dd,
J3,4 = 8, J3,5 = 1, H-3 Py); 7.93 (1H, ddd, J4,6 = 1, J4,5 = 7.7, J4,3 = 8, H-4 Py); 7.42 (6H, m, C6H6+Py). Found, %:
C 52.20; H 3.09; N 11.99. C15H10BrN3O2. Calculated, %: C 52.33; H 2.91; N 12.21.
This project was carried with financial help from RFFI (grant No. 08-03-00707).
REFERENCES
1.
2.
3.
J. R. Lewis, Nat. Prod. Rep.,17, 57 (2000).
T. Lindel and H. Hoffmann, Tetrahedron Lett., 38, 8935 (1997).
J. Charton, A. C. Gassiot, S. Girault-Mizzi, M.-A. Debreu-Fontaine, P. Melnyk, and Ch. Sergheraert,
Bioorg. Med. Chem. Lett., 15, 4833 (2005).
4.
A. Degterev, Z. Huang, M. Boyce, Y. Li, P. Jagtap, N. Mizushima, G. D. Cuny, T. Mitchison,
M. Moskowitz, and J. Yuan, Nat. Chem. Biol., 1, 112 (2005).
5.
6.
7.
8.
A. I. Khodair, Carbohydr. Res., 331, 445 (2001).
D. A. Hahn, M. J. McLean, and H. T. Murphy, J. Am. Chem. Soc., 60, 1927 (1938).
M. J. McLean and D. R. Seeger, J. Am. Chem. Soc., 66, 2020 (1944).
A. G. Mazhuga, E. K. Beloglazkina, S. Z. Vatsadze, N. A. Frolova, and N. V. Zyk, Izv. AN, Ser. Khim.,
2734 (2004).
9.
G. G. Muccioli, J. H. Poupaert, J. Wouters, B. Norberg, W. Poppitz, G. K. E. Scriba, and
D. M. Lambert, Tetrahedron, 59, 1301 (2003).
