Neonicotinoid Insecticides
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
(dd, J1 = 3.2 Hz, J2 = 8.4 Hz, 1H, Py-H), 7.60–7.76 (m,3H,
Ph-H), 7.33 (d, J = 8.0 Hz, 1H, Py-H), 4.53(d, J = 16.4, 1H,
Py-CH2), 4.23 (d, J = 16.4 Hz, 1H, Py-CH2), 3.85–3.89 (m, 4H),
3.12–3.18 (m, 1H), 2.92 (s, 3H, NCH3), 2.83–2.94 (m, 1H),
1.14 (t, J = 7.0 Hz, 3H, NCH2CH3); IR (KBr, cmÀ1) 3256,
3079, 1683, 1542, 1310, 758; MS (EI + 70 eV) m/z (%): 448.8
(M+, 5.3), 126.2(67.4), 122.5 (100), 96.0 (54.2); Anal. Calcd
for C20H21Cl2FN6O3: C, 49.72; H, 4.37; N, 17.41. Found: C,
49.70; H, 4.38; N, 17.39.
When different substituents Ar were introduced to the
nitenpyram analogues, their insecticidal activities
decreased in the order C4H3O, 3,5-Cl2-Ph > 2-Cl-Ph,
C4H3S, 2-Cl-Ph > 2-F-Ph > 3-(CH3)2N-Ph, 4-(CH3)3C-Ph,
Ph, which indicated that Ar was strongly related to
their insecticidal potency. When Ar group was contained
in the electron-withdrawing group, the corresponding
nitenpyram analogues showed good insecticidal activities.
On the other hand, the nitenpyram analogues with the
electron-donating group showed the much less activity.
These observations may be related to their relatively strong
affinities with their target.
N-[(4Z)-4-[[(6-Chloro-3-pyridinyl)methyl]ethylamino]-3-methyl-
5-nitro-1,2,3,6-tetrahydropyrimidin-1-yl]-2-chlorobenzamide
(3c).
Yield, 68.9%; mp 208–210ꢀC; 1H NMR (DMSO-d6),
d 9.94(s, 1H, NNHCO), 8.32 (d, J = 2.4 Hz, 1H, Py-H), 7.75
(dd, J1 = 3.0 Hz, J2 = 8.0 Hz, 1H, Py-H), 7.50–7.80 (m, 4H, Ph-
H), 7.32 (d, J = 8.2 Hz, 1H, Py-H), 4.51(d, J= 16.0, 1H, Py-CH2),
4.21 (d, J = 16.0 Hz, 1H, Py-CH2), 3.82–3.87 (m, 4H), 3.10–
3.16 (m, 1H), 2.95 (s, 3H, NCH3), 2.80–2.92 (m, 1H), 1.12
(t, J = 7.2 Hz, 3H, NCH2CH3); IR (KBr, cmÀ1) 3253, 3080,
1679, 1541, 1309, 749; MS (EI + 70 eV) m/z (%): 465.7 (M+,
5.6), 138.0 (100), 126.2(64.7), 112.4 (50.4); Anal. Calcd for
C20H22Cl2N6O3: C, 51.62; H, 4.77; N, 18.06. Found: C, 51.69;
H, 4.71; N, 18.11.
EXPERIMENTAL
Melting points were measured using an uncorrected RK-1 micro-
scopic melting-point apparatus. 1H NMR spectra were recorded on
a Bruker AVANCE (400 MHz) spectrometer with DMSO-d6 as the
solvent and TMS as the internal standard. The IR spectra were
obtained from KBr disks in the range 4000–400 cmÀ1 on a Nicolet
5DXFT-IR spectrophotometer. Combustion analyses for elemental
composition were made with a Perkin-Elmer 2400 instrument. All
microwave experiments were performed using YL8023B1 micro-
wave reactor possessing a single-mode microwave cavity producing
controlled irradiation at 2.45GHz.
General synthetic procedure for synthesis of 1 and 4. Starting
from 2-chloro-5-chloro-methylpridine, a set of (E)-N-(6-chloro-3-
pyridylmethyl)-N-ethyl-1-chloro-2-nitroethylene-1-amine and 1 was
prepared on the basis of the procedures in the literatures [17,18].
The substituent benzoyl hydrazine was also prepared according to
the procedures given in the literatures [19].
General synthetic procedure for synthesis of 3a–3j. Ethanol
(20 mL) was added to a mixture of nitenpyram 1 (2.65 g,
9.8 mmol), substituent benzoyl hydrazine (11.95 mmol), and
formaldehyde (1.96 mL, 37%) in a microwave reactor. The
resulting mixture was heated to 70–75ꢀC for 5min with
temperature maintained for 25 min. After completion of the
reaction, the mixture was cooled to room temperature and filtered
to give the solid products 3a–3j, which were washed with
ethanol and dried in air. Tetrahydropyrimidine derivatives 3a–3j
were obtained in high purity (>98% by 1H NMR) and did not
require further purification. The analytical data for the compounds
3a–3j were summarized as follows.
N-[(4Z)-4-[[(6-Chloro-3-pyridinyl)methyl]ethylamino]-3-
methyl-5-nitro-1,2,3,6-tetrahydropyrimidin-1-yl]-2-bromobenzamide
1
(3d). Yield, 73.4%; mp 213–215ꢀC; H NMR (DMSO-d6), d
9.92(s, 1H, NNHCO), 8.30 (d, J = 2.4 Hz, 1H, Py-H), 7.73(dd,
J1 = 3.2 Hz, J2 = 8.0 Hz, 1H, Py-H), 7.53–7.76 (m, 4H, Ph-H), 7.30
(d, J = 8.0 Hz, 1H, Py-H), 4.50(d, J = 16.0, 1H, Py-CH2), 4.23
(d, J = 16.0 Hz, 1H, Py-CH2), 3.80–3.86 (m, 4H), 3.12–3.17
(m, 1H), 2.94 (s, 3H, NCH3), 2.82–2.90 (m, 1H), 1.14 (t,
J = 7.2 Hz, 3H, NCH2CH3). IR (KBr, cmÀ1) 3258, 3088,
1671, 1546, 1314, 739; MS (EI + 70 eV) m/z (%): 509.6
(M+, 7.8), 183.7 (100), 156.8 (42.3), 126.2 (65.3); Anal.
Calcd for C20H22BrClN6O3: C, 47.12; H, 4.35; N, 16.49.
Found: C, 47.18; H, 4.39; N, 16.41.
N-[(4Z)-4-[[(6-Chloro-3-pyridinyl)methyl]ethylamino]-3-methyl-
5-nitro-1,2,3,6-tetrahydropyrimidin-1-yl]-3,5-dichlorobenzamide
94
95
96
97
98
99
(3e).
Yield, 71.3%; mp 209–211ꢀC; 1H NMR (DMSO-d6),
d 9.93 (s, 1H, NNHCO), 8.33 (d, J = 2.0 Hz, 1H, Py-H), 7.76
(dd, J1 = 3.0 Hz, J2 = 8.2 Hz, 1H, Py-H), 7.58–7.73 (m, 3H, Ph-H),
7.34 (d, J = 8.0 Hz, 1H, Py-H), 4.52 (d, J = 16.2, 1H, Py-CH2),
4.22 (d, J = 16.2Hz, 1H, Py-CH2), 3.81–3.87 (m, 4H), 3.11–3.17
(m, 1H), 2.94 (s, 3H, NCH3), 2.81–2.92 (m, 1H), 1.16
(t, J = 7.0Hz, 3H, NCH2CH3); IR (KBr, cmÀ1): 3257, 3083, 1684,
2544, 1308, 823, 703; MS (EI + 70 eV) m/z (%): 499.5 (M+, 3.5),
174.1 (100), 147.2 (69.4), 126.3 (67.5); Anal. Calcd for
C20H21Cl3N6O3: C, 48.06; H, 4.24; N, 16.82. Found: C, 48.12; H,
4.32; N, 16.88.
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120

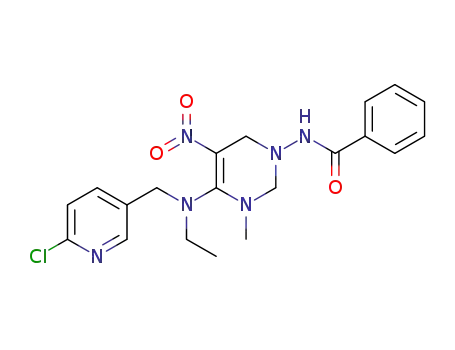

N-[(4Z)-4-[[(6-Chloro-3-pyridinyl)methyl]ethylamino]-3-
methyl-5-nitro-1,2,3,6-tetrahydropyrimidin-1-yl]benzamide
1
(3a).
Yield, 72.5%; mp 235–237ꢀC; H NMR (DMSO-d6), d
N-[(4Z)-4-[[(6-Chloro-3-pyridinyl)methyl]ethylamino]-3-methyl-
5-nitro-1,2,3,6-tetrahydropyrimidin-1-yl]-4-methylbenzamide
9.97(s, 1H, NNHCO), 8.36 (d, J = 2.4 Hz, 1H, Py-H), 7.78
(dd, J1 = 3.2 Hz, J2 = 8.0 Hz, 1H, Py-H), 7.47–7.57 (m, 5H, Ph-
H), 7.36 (d, J = 8.0 Hz, 1H, Py-H), 4.54(d, J = 16.0, 1H, Py-
CH2), 4.21 (d, J = 16.0Hz, 1H, Py-CH2), 3.79–3.83 (m, 4H),
3.10–3.17 (m, 1H), 2.95 (s, 3H, NCH3), 2.84–2.92 (m, 1H),
1.13 (t, J = 7.2 Hz, 3H, NCH2CH3); IR (KBr, cmÀ1) 3252,
3077, 1682, 1541, 1311, 752; MS (EI + 70eV) m/z (%): 430.5
(M+, 7.5), 126.2(64.5), 104.1 (100),78.5 (67.4); Anal. Calcd for
C20H23ClN6O3: C, 55.75;H, 5.38; N, 19.50. Found: C, 55.67;
H, 5.31; N, 19.58.
(3f).
Yield, 72.8%; mp 219–220ꢀC; 1H NMR (DMSO-d6),
d 9.93 (s, 1H, NNHCO), 8.31 (d, J = 2.0 Hz, 1H, Py-H),
7.76 (dd, J1 = 3.2 Hz, J2 = 8.2 Hz, 1H, Py-H), 7.42–7.64
(m, J = 8.2 Hz, J = 8.2 Hz, 4H, Ph-H), 7.34 (d, J = 8.0 Hz, 1H,
Py-H), 4.53(d, J = 16.2, 1H, Py-CH2), 4.23 (d, J = 16.2 Hz, 1H,
Py-CH2), 3.82–3.85 (m, 4H), 3.13–3.17 (m, 1H), 2.97
(s, 3H, NCH3), 2.81–2.94 (m, 1H), 2.36 (s, 3H, Ph-CH3), 1.15
(t, J = 7.2 Hz, 3H, NCH2CH3); IR (KBr, cmÀ1): 3251, 3080,
1682, 1541, 1308, 805; MS (EI + 70 eV) m/z (%): 445.1
(M+, 5.3), 126.3(61.5), 119.0 (100), 92.3 (72.5); Anal. Calcd for
C21H25ClN6O3: C, 56.69; H, 5.66; N, 18.89. Found: C, 56.75;
H, 5.73; N, 18.95.
N-[(4Z)-4-[[(6-Chloro-3-pyridinyl)methyl]ethylamino]-3-methyl-
5-nitro-1,2,3,6-tetrahydropyrimidin-1-yl]-2-fluorobenzamide
(3b).
Yield, 70.5%; mp 213–215ꢀC; 1H NMR (DMSO-d6),
d 9.92(s, 1H, NNHCO), 8.35 (d, J = 2.0 Hz, 1H, Py-H), 7.78
