Synthesis and biological evaluation of genistein-IR783 conjugate: Cancer cell targeted delivery in MCF-7 for superior anti-cancer therapy

Article abstract of DOI:10.3390/molecules24224120

The flavonoid-based natural product genistein is a biologically active compound possessing promising anti-oxidant and anti-cancer properties. Poor pharmacokinetics along with low potency limit however the therapeutic application of genistein in cancer the

Full text of DOI:10.3390/molecules24224120

molecules
Article
Synthesis and Biological Evaluation of
Genistein-IR783 Conjugate: Cancer Cell Targeted
Delivery in MCF-7 for Superior Anti-Cancer Therapy
Yang Guan 1,2,3,†, Yi Zhang 3, Juan Zou 2, Li-Ping Huang 1,†, Mahendra D. Chordia 3, Wei Yue 4,
Jin-Jun Wu 2,* and Dong-Feng Pan 3,
*
1
College of Pharmacy, Jiangxi University of Traditional Chinese Medicine, Nanchang, Jiangxi 330004, China;
guanyang1671@163.com (Y.G.); jxnchlp@163.com (L.-P.H.)
2
3
4
International Institute for Translational Chinese Medicine, Guangzhou University of Chinese Medicine,
Guangzhou, Guangdong 510006, China; zoujuangzy@163.com
Department of Radiology and Medical Imaging, Charlottesville, VA 22903, USA;
zhangy87@gmail.com (Y.Z.); mdc3x@virginia.edu (M.D.C.)
Department of Endocrinology, University of Virginia, Charlottesville, VA 22903, USA;
WY9C@hscmail.mcc.virginia.edu
*
Correspondence: wujinjun@gzucm.edu.cn (J.-J.W.); DP3R@hscmail.mcc.virginia.edu (D.-F.P.);
+86-159-1435-8366 (J.-J.W.); Tel.: +1-(434)-243-2893 (D.-F.P.)
†
Authors equally contributed to the paper.
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Received: 23 October 2019; Accepted: 12 November 2019; Published: 14 November 2019
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: The flavonoid-based natural product genistein is a biologically active compound possessing
promising anti-oxidant and anti-cancer properties. Poor pharmacokinetics along with low potency
limit however the therapeutic application of genistein in cancer therapy. In order to overcome those
limitations and to expand its therapeutic window of efficacy, we sought to covalently attach genistein
with a heptamethine cyanine dye—IR 783—for cancer cell targeting and enhanced delivery to tumors.
Herein we report the synthesis, a selective detailed characterization and preliminary in vitro
biological evaluation of genistein-IR 783 conjugate . The conjugate displayed improved potency
against human breast cancer MCF-7 cells (10.4 1.0 M) as compared with the parent genistein
(24.8 0.5 M) or IR 783 (25.7 0.7 M) and exhibited selective high uptake in MCF-7 as against
the normal mammary gland MCF-10A cells in various assays. In the cell viability assay, conjugate
exhibited over threefold lower potency against MCF-10A cells (32.1 1.1 M) suggesting that the
anti-cancer profile of parent genistein is significantly improved upon conjugation with the dye IR783.
Furthermore, the genistein-IR783 conjugate was shown to be especially accumulated in MCF-7
/in vivo
4
4
±
µ
±
µ
±
µ
4
±
µ
4
cancer cells by fluorescent intensity measurements and inverted fluorescence microscopy in fixed cells
as well as in live cells with time via live cell confocal fluorescence imaging. The mechanism-based
uptake inhibition of conjugate
as a macropinocytosis inhibitor. For the first time we have shown amiloride inhibited uptake of
cyanine dye by about ~40%. Finally, genistein-IR 783 conjugate was shown to be localized in MCF-7
4 was observed with OATPs inhibitor BSP and in part with amiloride,
4
tumor xenografts of mice breast cancer model via in vivo near infrared fluorescence (NIRF) imaging.
In conclusion, conjugation of genistein with cyanine dye IR783 indeed improved its pharmacological
profile by cancer cell selective uptake and targeting and therefore warrants further investigations as a
new anti-cancer therapeutics derived from natural product genistein.
Keywords: genistein; breast cancer; targeted drug delivery; tumor targeting; near infrared
Molecules 2019, 24, 4120; doi:10.3390/molecules24224120
www.mdpi.com/journal/molecules

Molecules 2019, 24, 4120
2 of 17
1. Introduction
Genistein, one of the oldest known isoflavone-based natural products, is isolated from a variety of
plants, especially from soy and fava beans. It displays a wide range of biological activities, including
general antioxidant and anticancer properties. Currently it is under extensive research investigations
for anti-cancer activity against various types of tumors, especially breast cancer [
bio-molecular targets are established for the observed bioactivity of genistein in cancer and other
cells. These include but are not limited to estrogen receptors (ER), protein tyrosine kinases (PTK) [ ],
1,2]. Numerous
3
mammalian DNA topoisomerase II, peroxisome proliferator-activated receptors (PPARs) etc. In some
cases genistein is known to activate/stimulate a biological target, for example it acts as an agonist on
ER [4] or activates PPARs [5,6], while in other cases it inhibits/suppresses some biological function of
the target, for example DNA topoisomerase [
to humans through these bioactivities. However, genistein exhibits paltry oral bioavailability and
poor pharmacokinetics, which are unsuitable characteristics to develop it as an anticancer agent [ 10].
Selective delivery of genistein to cancer cells is necessary to improve its anticancer pharmacological
profile considering the promising biological activities it possesses [ 10]. Genistein’s low toxicity at
7,8]. All in all genistein offers beneficial health effects
9,
9,
higher doses allows further structural modifications for selective cancer-cell targeting and delivery to
extract higher therapeutic value. In this regard, to explore optimal potential of genistein as therapeutics
a structural modification by conjugating it with cancer cell targeting molecules seems to be a highly
attractive scientific endeavor.
Cancer-cell-specific targeting and tumor delivery of anticancer agents are considered a “Holy Grail”
of drug development and one of the most widely sought but highly complex technologies. Many tools
and techniques have been developed and applied to achieve this goal, for example macromolecular
assemblies such as nanoparticles, nano-emulsions, micelles, liposomes and antibody conjugates [11
Especially, in the case of genistein, liquid crystal formulation [14], peptide-hyaluronate conjugate [15
micelle-like nanoparticles [16 17], and liposomal compositions [18] have been reported. Although these
–13].
]
,
methods exhibit certain advantages such as focused concentrated drug delivery to tumors, they also
pose however serious drawbacks such as lack of standardization and reproducibility in the synthesis
of macroscopic assemblies, consistency in drug loading and therefore precise drug dosing upon
administration, longer half-life for clearance from blood, and longer retention in liver/kidneys causing
side effects that are difficult to address. Further advancement of these potentially effective anticancer
therapies is delayed because of their undesirable and intricate pharmacology. These difficulties can
be circumvented by the conjugation of potentially promising anticancer agent with cancer targeting,
biologically innocuous small molecules such as synthetic peptides [19], non-coding RNA [20] or
heptamethine cyanine dyes [21]. Recently it has been demonstrated that a variety of cancer cell lines
express higher levels of certain types of organic anion transport peptides (OATPs) and the hypoxic
conditions in which tumors thrive possess special affinity towards certain selective heptamethine
cyanine dyes [22,23]. Overexpression of OATPs allow enhanced transport of charged heptamethine
cyanine dyes across the cell membrane and their storage in liposomes in cancer cells. In addition these
dyes do not possess any apparent biological activities [22]. We recently demonstrated that radiolabeled
cyanine dye molecules can be used to detect and diagnose cancer lesions [24
of cancer cell-specific delivery and targeting of drug-cyanine dye conjugates to tumors have been
described by us and other laboratories [26 32]. Considering ongoing research on genistein in our
,25]. Additional reports
–
laboratory [33], we sought to improve its therapeutic potential by conjugating it with a cyanine dye.
Recent development along those lines are described here.
IR-783 is a well-defined heptamethine cyanine dye with high water solubility and a charged
structure with two sulfonic acid side chains which make it a promising candidate carrier molecule to
conjugate with genistein. IR-783 was shown to be recruited in cancer cells and did not exhibit any
known cytotoxicity [34–36]. The chlorine atom on the bridging ring of IR-783 is known to be reactive
towards a variety of nucleophiles, especially phenolate ion, [34
,37]. Using this known chemistry,
we synthesized the first genestein-IR-783 conjugate . Following its detailed characterization and
4

Molecules 2019, 24, 4120
3 of 17
verification of high purity, an in vitro biological evaluation in the breast cancer cell line MCF-7 in
comparison with noncancerous MCF-10A cells was first carried out. Cancer cell selective targeting
ability, time and dose dependent accumulation in cells by confocal microscopy, quantitative estimation
by LCMS analysis were demonstrated. A potential mechanism of action on uptake was investigated.
The in vivo tumor targeting properties of genistein-IR783 conjugate 4 via near infrared fluorescence
imaging were then acquired in MCF-7 breast cancer xenograft-bearing mice and the results acquired
from these studies clearly demonstrated that conjugate 4 was accumulated in tumors.
2. Results
2.1. Chemistry

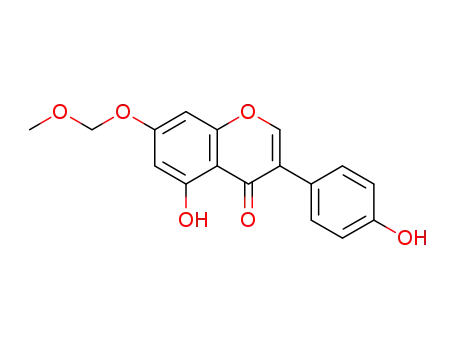

Genistein was first selectively protected with a MOM group at the 7-OH position as previously
reported [38], then the mono-MOM-protected genistein was subsequently deprotonated at the 40-OH
position with sodium hydride and the resulting 40-phenolate was conjugated with IR 783. The crude
product was treated with 1M HCl to remove the MOM protection. Purification of the conjugate on
a silica column afforded a green solid in 86% overall yield as shown in Scheme 1. The structure of
genistein-IR 783 conjugate was thoroughly characterized by spectroscopic analysis such as 1H-NMR
and UV-VIS near-infrared fluorescence (NIRF) and MS data. Analytical HPLC was performed to
ascertain the purity of genistein-IR783 conjugate 4 using a UV/VIS detector at two separate wavelengths
(280 and 750 nm). The purity of the homogenous sample was observed to be >95% (Figure 1).
All spectroscopic data were in agreement with the assignment of structure to the conjugate (see
Supplementary Materials).
Scheme 1. Detailed chemical synthesis scheme of the genistein-IR 783 conjugate 4.

Molecules 2019, 24, 4120
4 of 17
Figure 1. Characterization and purity of genistein-IR 783 conjugate
characterization and purity assignment at two separate wavelengths indicating presence of both
genistein ( max = 280 nm) and IR783 ( max = 750 nm) chromophores. Panel . Fluorescence emission
intensity measurements at varied concentration of conjugate by fluorimeter (Excitation 750 nm). Panel
. Concentration dependent fluorescence intensity observation in 96 well/plate at 800 nm (emission) by
Li-COR®.
4. Panel A. HPLC chromatographic
λ
λ
B
4
C

Molecules 2019, 24, 4120
5 of 17
2.2. In Vitro Cell Uptake Assay
Uptake of genistein-IR 783 conjugate
4
was evaluated in both in MCF-7 cells and MCF-10A cells.
The qualitative and quantitative uptake of genistein-IR 783 conjugate was analyzed and measured
by a variety of methods. First, by simply measuring the near-infrared fluorescence exhibited by cells
upon incubation with conjugate 4 and normalizing with the protein content from cells in each well
after thorough washing, although this is not true quantitative measure of conjugate uptake since the
IR783 part of the molecule is emitting fluorescence, but it was a quick and semi-quantitative enough
assay to compare the relative dose-dependent uptake. Figure 2 (Panel A) shows the concentration-
dependent uptake in MCF-7 cells in comparison with MCF-10A cells and clearly indicates that uptake
in MCF-7 cells was significantly higher than in MCF-10A cells at all concentrations tested. This
observation is in agreement with the other related studies where heptamethine cyanine dyes were used
to target cancer cells [22]. Fluorescence intensity per cell was analyzed under conditions of higher
concentrations (5–75 M) and incubation for 4 h. Compared to MCF-10A, MCF-7 cells had more uptake
in a dose-dependent manner when treated with genistein-IR 783 conjugate
4 (Figure 2, Panel A). In the
second more sensitive experiment, fluorescence intensity measurements were performed on actual
number of cells which consumed conjugate by cell counting (FACS) in a time dependent manner and
quantified over time. Figure 2, Panel B left side depicts the fluorescence intensity histograms observed
over time, which are graphically plotted in the right side for up to 6 h, to show rapid uptake. From
FACS cell cytometry fluorescence measurements it appears that there were two distinct phases, first a
rapid onset of uptake of conjugate
to a slow and steady uptake. The cancer cell-selective cellular uptake and presence of genistein-IR
783 conjugate was confirmed by inverted fluorescence and confocal microscopy of fixed cells from
cell cultures. Fluorescence microscopic images of MCF-7 and MCF-10A cell cultures on cover slips
(embedded in 6-well) under incubation with same concentration (10 M) genistein-IR 783 conjugate
4 which happens over a 6 h period and later stabilizes over days
4
4
for 14 h, were acquired. DAPI was used as nuclear stain for reference and Cy-7 channel (excitation
at 750 nm, NIRF emission at 800 nm) was used for fluorescence. The images were processed with
varying intensities of fluorescence signal for optimized image, the data as shown in Figure 2, panel C
(see the Supplementary Materials for additional confocal imaging data on the uptake of conjugate
4 in
MCF-7 and MCF-10A cells). The MCF-7 cells clearly show higher NIRF signals (Cy7, red color) as
compared with MCF-10A cells, further confirming the cancer cell- specific targeting of genistein-IR
783 conjugate 4. Figure 2, panel D depicts the live MCF-7 cell confocal imaging with time keeping all
other conditions the same. An acquisition of fluorescence video over time convincingly confirms the
intracellular accumulation of conjugate 4.
2.3. Mechanism-Based Cellular Uptake of Conjugate
MCF-7 and MCF-10A cells when incubated with genisteine-IR783 conjugate
4 in the presence
and in the absence of OATP inhibitor BSP reveal the cancer cell selective inhibition of conjugate
uptake in a significant way, as expected in MCF-7 cells (t-test, two tailed p value 0.009). The MCF-10A
cells did not inhibit uptake in significant manner, (t-test two tailed p value 0.0928) as shown in
Figure 3, panel A. In addition to OATPs, an endocytosis-based mechanism was also tested for uptake
using three separate inhibitors. Clathrin-, caveolae- and macropinocyte-based endocytosis was
evaluated by chlorpromazine, methyl-
previously [39 40]. It was observed that although all mechanisms played some role in the uptake,
the micropinocytosis inhibitor had a significant impact on uptake, as shown in Figure 3, panel B.
β-cyclodextrin and amiloride inhibitors, respectively, as reported
,

Molecules 2019, 24, 4120
6 of 17
Figure 2. Concentration dependent comparative cellular uptake of Genistein-IR 783 conjugate
. Intracellular uptake of conjugate by MCF-7 and MCF-10A cells, as observed by fluorescence at
various concentrations by Li-COR®. Panel
. Cell number normalized time dependent quantitative
uptake as measured by fluorescence intensity by FACS cell analyzer, left panel observed histograms
and right graphical depiction of rate of quantitative uptake. Panel . Inverted fluorescence microscopic
images of cell culture of MFC-7 and MCF-10 cells for confirmation of cell specific intracellular uptake
of conjugate at 10 magnification. Panel . Time dependent intracellular accumulation of conjugate in
4. Panel
A
4
B
C
×
D
MCF-7 live cell as observed by continuous confocal microscopic imaging at 60× magnification.
2.4. In Vitro Cell Viability Studies.
The growth inhibitory effects of genistein-IR 783 conjugate
IR 783 was next evaluated, first in MCF-7 cells at two separate concentrations (25 and 50
observe effect of conjugation. As shown in Figure 4 at both concentrations conjugate was a more
effective anticancer agent. Upon observing the relative effects of conjugate as an anticancer agent,
the cytotoxicity properties were evaluated by counting cell numbers of both MCF-7 and MCF-10A cells
after a certain time of incubation. The conjugate was observed to be more potent in MCF-7 cells than
MCF-10A ones by the dose response curves. The dose response curves are presented in Figure 4 Panel
B indicating improved potency of conjugate (IC50 = 10.4 1.0 M) as compared with both parent
genistein (IC50 = 24.8 0.5 M) and carrier IR783 (IC50 = 25.7 0.7 M). Especially carrier IR 783 is
less toxic to normal cells (IC50 = 50.59 0.3
M) as compared with genistein (IC50 = 24.99 ± 0.3 µM).
As shown in Figure 2, the uptake rate of genistein-IR 783 has reached the equilibrium after incubation
with conjugate for 3 days in MCF-7 cells, which indicated that concentration of conjugate has
reached the saturation level.
4
in comparison with genistein and
µM) to
4
4
4
4
±
µ
±
µ
±
µ
±
µ
4
4

Molecules 2019, 24, 4120
7 of 17
Figure 3. Mechanism based uptake of conjugate. Panel
A. OATP inhibitor BSP inhibits conjugate
uptake significantly in MCF-7 cells (t-test, two tailed p value 0.009), When compared with MCF-10A
cells the uptake is not suppressed with BSP (p value 0.28). Comparison between MCF-7 and 10A
cells is significant (p value 0.021). Panel
B. As compared to the control group, chlorpromazine and,
methyl- -cyclodextrin and amiloride groups showed remarkable significance. Experiments were
β
performed in triplicate and data represent as mean
∗ p < 0.05; ∗∗ p < 0.01; ∗∗∗ p < 0.001
±
SD, significant difference versus control group,
2.5. In Vivo Targeting Assay in Mouse Bearing Breast Tumor Xenograft.
The tumor-targeting ability of genistein-IR 783 conjugate in a MCF-7 breast cancer-bearing
xenograft model was demonstrated by in vivo near infrared fluorescence imaging. Mice injected with
genistein-IR 783 conjugate (100 nM, intraperitoneally, i.p.) were live imaged upon establishing MCF-7
cancer xenograft in athymic ovariectomized mice as reported previously [41]. IVIS imaging post 12 h
and 2 days injection of conjugate clearly indicate the presence of near infrared fluorescence signal in
tumors as shown in representative mouse in Figure 5.
4
4
4

Molecules 2019, 24, 4120
8 of 17
Figure 4. Determination of relative IC50 of genistein-IR 783 conjugate
Viability of MCF-7 cells (panel ) and Viability of MCF-10A cells (panel
at two separate concentrations of conjugate 4 in MCF-7 and MCF-10A cells (panel C).
4
on MCF-7 and MCF-10A cells.
A
B). Comparative cell viability
Figure 5. A representative example of an in vivo near infrared fluorescence imaging of mice bearing
MCF-7 tumor xenografts injected with genistein-IR 783 conjugate 4 at two separate time points.
3. Discussion
Genistein is an isoflavone natural product possessing a wide spectrum of biological activity,
and its drug-like properties have been extensively studied to explore potential therapeutic effects.
Especially the antineoplastic activity of genistein in various cancer cells such as breast, prostate,
brain, colon and others has attracted huge interest [42,43]. Mechanistically the anticancer activity of

Molecules 2019, 24, 4120
9 of 17
genistein is attributed to variety of factors. It exhibits anti-angiogenic, protein-tyrosine kinase and DNA
topoisomerase inhibitory and estrogen receptor modulatory activity amongst many other beneficial
anticancer activities. All these anti-cancer activities ultimately result in disrupted intracellular signal
transduction and/or DNA fragmentation at a molecular level thus resulting in suppressed cancer cell
growth, induction of cell differentiation, apoptosis, and G2/M cell cycle arrest.
Genistein may cause these effects either separately or synergistically. However, to realize the
optimal anticancer activity of genistein, it must be delivered to the tumor microenvironment and
selectively taken up by cancer cells. Owing to genistein’s poor pharmacological properties such
as low water solubility and moderate potency its full therapeutic potential is yet to be realized in
in vivo studies. In order to expand the therapeutic potential of genistein as an anticancer agent via its
delivery to the tumor environment and cancer cell selective uptake we sought to conjugate it with a
heptamethine cyanine dye (HCD).
Certain heptamethine cyanine dyes are shown to possess special propensity to accumulate in
cancer cells [21,32,44]. We proposed that upon conjugation with HCD, the bioavailability of genistein
to the tumor would improve as the water solubility will be increased and cancer cell-selective uptake of
the conjugate would further enhance the anti-cancer activity. Towards this goal a new genistein-HCD
conjugate was successfully synthesized as follows: genistein possesses multiple phenolic hydroxyl
groups (at the 40, 5 and 7 positions), of which the 5-OH is the least reactive and is involved in hydrogen
bonding with carbonyl groups. The 40 and 7 phenolic hydroxyl groups of genistein were presumed
to contribute poorly to its anti-cancer properties. The 40-OH-glycosylated derivatives of genistein
do not appear to be deleterious for anticancer activity [43,45]. First, it was difficult to control the
reactivity between the 7 and 40-OH groups resulting in the formation of regioisomers. In order to
distinguish the reactivity between these two OH groups and to obtain a single conjugate, the protection
of the 7-OH was first realized through a MOM group [38] since modification of the 40-OH-hydroxyl
group does not interfere with the observed biological activities. The 7-OH MOM-protected genistein
was then selectively conjugated through the 40-OH with IR 783. HCD, IR 783 is known to have high
affinity with cancer cells and is now under extensive investigation from mechanistic to drug-carrying
abilities [21
upon MOM group deprotection and characterized by 1H-NMR and mass spectrometry for the chemical
composition (see Supplementary Materials). As expected, conjugate did not display much change in
near infrared fluorescence properties as compared with IR 783 (Figure 1).
Upon realization of genistein-IR 783 conjugate , we next evaluated its cancer cell-targeting
biological properties in MCF-7 breast cancer cells and compared it with that to equivalent noncancerous
breast epithelial cells MCF-10A for selective targeting. The accumulation of conjugate in MCF-7 cells
was first analyzed by Li-COR as shown in Figure 2, panel A. The left side depicts well plate pictures,
in which MCF-7 cells clearly have enhanced uptake of conjugate in a concentration-dependent manner
(from 5 M to 75 M) as compared with MCF-10A cells. The quantitative estimation of normalized
,22,31,36,44]. As shown in Scheme 1 the desired conjugate was obtained as single isomer
4
4
4
4
µ
µ
fluorescence intensity in those two well plates are shown in right side of panel A. At all concentrations
tested, the normalized fluorescence intensity per 1000 cells in both MCF-7 and MCF-10A cell lines
clearly revealed that MCF-7 cells have increased uptake. Next the uptake of conjugate
with time at 25 M was analyzed using Li-COR, as the incubation time is extended the uptake appears
to increase faster at earlier time points (0 min. up to 4 h) and taper off 4 h later, as depicted in Figure 2B.
Confocal microscopy of either fixed cells or live cells further confirmed the uptake of conjugate at a
4 in these cells
µ
4
microscopic level. Live cell imaging evidently confirmed with time the fluorescence intensity increased
from 5 min through 3 h (Figure 2D).
Once the uptake of conjugate
4 was observed and validated, next we investigated its intracellular
mechanism of uptake, especially since it has been reported that overexpression of certain types of
organic anion transport peptides (OATPs) in several types of cell lines [23] are responsible for having
high propensity to carry the heptamethine cyanine dyes inside cells. The overexpression of OATPs
in breast cancer is an emerging area of research. Studies by Wlcke et al. showed higher expression

Molecules 2019, 24, 4120
10 of 17
of OATPs family between MCF-7 cells and MCF-10A cells because of OATP2A1 and OATP4C1, and
they found that MCF-7 cells may be more sensitive than MCF-10A cells for OATP-specific anticancer
agents [46]. In our study, BSP an inhibitor of OATPs effectively competes with conjugate
suppresses uptake of conjugate and causes significant inhibition (Figure 3A). However, because BSP
is being nonselective inhibitor of OATPs, from the current studies we were unable to distinguish which
subtype of OAPTs is responsible for the uptake of conjugate . As the MCF-7 cell line is known to
express a set of certain types of OATPs, it’s worth studying if some selective OATP is responsible for
the uptake of conjugate , but these studies were beyond the scope of the present work. In addition,
4 and
4
4
4
endocytosis-mediated pathways for uptake were studied and a macropinocytosis inhibitor, amiloride,
was found to be significantly affect the conjugate uptake (Figure 3B). These mechanistic studies
indicated that multiple intricate pathways for cellular uptake of conjugate
overall result in relatively higher uptake in cancer cells versus normal cells.
Next, we evaluated the potency of genistein-IR 783 conjugate in cell viability studies. From the
dose-dependent studies of MCF-7 and MCF-10A cells it was clear that conjugate was selective in
targeting cancer cells. It was discovered that not only the conjugate was more potent to MCF-7 cells
(10.4 1.0 M) than genistein (24.8 0.5 M) but it was less potent to MCF-10A cells (32.1 1.1 M),
4 are feasible and may thus
4
4
±
µ
±
µ
±
µ
suggesting the possibility of cancer cell specific delivery (Figure 4A,B). These observations indeed
support the notion that IR-783 is responsible for carrying genistein into the intracellular compartment of
cancer cells far better than in normal cells, and this observation was in agreement with the other related
studies where heptamethine cyanine dyes were used to target cancer cells [22]. These results also
suggest that it will be also worth evaluating the cancer cell targeting ability of this conjugate
cell types. Due to the moderate potency of genistein as an anticancer agent it must be administered in
comparatively high doses [43 47]. With limited cancer targeting properties it may cause undesired
4 in other
,
side effects and therefore its advancement as an anticancer agent was hindered. Conjugation with the
heptamethine cyanine dye IR-783 improved the cancer cell-targeting properties of genistein in MCF-7
cells compared with non-cancer MCF-10A cells used as a control.
The delivery of conjugate
to confirm tumor-specific targeting, mice bearing MCF-7 xenografts were injected with genistein-IR
783 conjugate and in vivo near infrared imaging with an IVIS scanner was performed. As is evident
4 to the tumor microenviroment was then studied by imaging. In order
4
from the images shown in Figure 5 tumors were visualized upon systemic administration. Although
for therapeutic evaluation much more work is needed, the work presented here indeed indicates that
the genistein-IR 783 conjugate
genistein. Since the conjugate
4
4
has the potential to be efficacious drug as compared with the parent
improved the targeting profile of the parent genistein, it is worthy of
further investigation. Whether this enhanced anti-cancer activity reflects in vivo therapeutic efficacy
of breast cancer in a mice model needs to be validated. In future work we will evaluate the in vivo
anticancer activity along with genistein and access the efficacy and toxicity of the conjugate 4.
4. Conclusions
A conjugate of genistein with IR 783 has been successfully synthesized and thoroughly
characterized. The conjugate
4 was then evaluated for cancer cell-selective targeting in the MCF-7
breast cancer cell line in comparison with non-cancerous MCF-10A cells. The results from our studies
suggest that IR 783 acts as a superior carrier for the delivery of genistein to cancer cells. The conjugate
exhibited better anti-cancer properties compared with the parent genistein. The results of this study
prove our hypothesis that cancer cell targeting profiles of potential anticancer agents can be significantly
improved by conjugating it with IR 783.

Molecules 2019, 24, 4120
11 of 17
5. Materials and Methods
5.1. General Chemisty
Krebs-Henseleit (KH) buffer pH 7.4 was prepared as with 118 mM NaCl, 23.8 mM NaHCO3,
4.83 mM KCl, 0.96 mM KH2PO4, 1.20 mM MgSO4, 12.5 mM HEPES, 5.0 mM glucose, and 1.53 mM
CaCl2. Final covalently attached conjugate was primarily characterized by 1H-NMR and its molecular
composition was assigned via mass analysis. The purity of conjugate was analyzed and confirmed
1
by HPLC. H-NMR data were collected on 300 or 500 MHz spectrometers (Varian, Palo Alto, CA,
USA) using standard parameters; chemical shifts are reported in ppm (δ) with reference to residual
non-deuterium labeled solvent. Coupling constants are reported in Hz. A preparative HPLC system
Varian Prostar system equipped with pumps, 210; column valve module, 500; fraction collector, 701
and a PDA detector was utilized to purify newly synthesized intermediates and final compound
using either DENALI
Alltech Apollo C18 semi-preparative column (5
Guard cartridge system (10 10 mm I.D.) columns (Grace Davison Discovery Sciences, CA, USA).
™
238 DE C18 SPRING preparative column (120 Å, 250
×
25 mm) and/or an
µ
m, 250 10 mm) with a Phenomenex C18 Security
×
×
Two separate mobile phases: Solvent A (0.1% TFA in water) and Solvent B (0.1% TFA in 80% aqueous
acetonitrile) were used to elute HPLC. The gradient for mobile phase was varied as per the need of
purification of specific compounds and fractions were monitored at dual wavelengths 280 and 750 nm.
A flow rate of 12 mL/min and 3 mL/min was implemented for the preparative and semi-preparative
column chromatography respectively. Analytical HPLC was performed using Alltech’s Econosphere
C18 reverse phase column (3
µm, 4.6 mm ID
×
150mm) at a flow rate of 0.5 or 1.0 mL/min with
gradient of Solvents A and B as required and monitored at 750 nm. Mass spectrometric analysis of
new compounds was performed by matrix-assisted laser desorption/ionization time-of-flight mass
spectrophotometer (MALDI-TOF-MS) at the University of Virginia’s the W.M. Keck Biomedical Mass
Spectrometry Laboratory using a Bruker Daltonics system (Santa Clara, CA, USA). UV-Vis spectra
were acquired on UV-Vis spectrometer with a path length of 1 cm with spectral width 250–800 nm
(Biomate 5, Thermo Spectronic, Rochester, NY, USA) and analyzed by VISIONlite software (Thermo
Scientific, Waltham, MA, USA). Fluorescence emission spectra for conjugate were acquired on Horiba
FluoroMax 4 spectrofluorometer (JOBIN YVON/HORIBA, Edison, NJ, USA) with various excitation
wavelengths (slit width 5 nm and integration time of 0.2 s) for all measurements. The emission spectra
were acquired from 700–900 nm. Spectral data were analyzed and plotted with Origin software (Origin
Lab, Northampton, MA, USA). A Li-COR® instrument (LICOR Biotechnologies, Lincoln, NE, USA)
was used for quantitative near infrared fluorescence (NIRF) signal measurement of cellular uptake
studies. Emission wavelength of 800 nm was used for acquiring the fluorescence data with standard
parameters. All parameters were kept constant for acquiring fluorescence intensity for given specific
study and wherever necessary the fluorescence data was normalized to protein. An IX81 inverted
microscope (Olympus, Shinjuku City, Tokyo, Japan) equipped with six-position fluorescence filter
turret was used for confocal imaging of MCF-7 and MCF-10A cells as well as fixated tumor tissue using
Cyanine 7 near infrared channel. Slidebook software (Version 6.0, Intelligent Imaging Innovations Inc.
Denver, CO, USA) was utilized for image collection and data processing. Flow cytometry experiments
were performed on BD FACSCANTOTM III Cell analyzer (FACSCAN, Becton Dickinson, San Jose, CA,
USA). In vivo near infrared fluorescence (NIRF) imaging of breast cancer xenograft bearing mice was
performed on an IVIS Spectrum instrument Xenogen (Caliper Life Science, Hopkinton, MA, USA) with
an excitation wavelength of 745 nm and observed emission wavelength at 820 nm. The NIRF in vivo
imaging data were analyzed and presented with Living Image software (4.1).
5.2. Synthesis and Characterization of Genistein-IR783 Conjugate
Briefly, genistein was first selectively MOM-protected at the 7-OH position (see Supplemental
Materials for detailed procedures), the MOM-protected genistein was conjugated with IR 783 under
basic conditions followed by MOM deprotection using dil. HCl (1.0 M) yielding the final genistein-IR

Molecules 2019, 24, 4120
12 of 17
783 conjugate as shown in Scheme 1. The genistein-IR 783 conjugate
4
was first purified by column
chromatography over silica gel and thoroughly characterized by spectroscopic analyses including
1H-NMR, UV-VIS, near infrared fluorescence (NIRF) and MS data. Prior to biological studies the purity
and homogeneity of conjugate 4 was ascertained by analytical HPLC.
5.3. Spectroscopic Evaluation of Conjugate (UV-VIS and Fluorescence).
5.3.1. UV-VIS Spectra
A solution (10 µM) of conjugate 4 was prepared in DMSO and serially diluted. UV-Vis absorption
measurements of diluted solutions were acquired (250–800 nm) and the data were processed and
analyzed with VISIONlite software.
5.3.2. Fluorescence Spectra
Fluorescence emission spectra were acquired with spectral range of 400–900 nm, with 5 nm
slit width, 0.2 s integration time for all measurements. Different concentrations for genistein-IR 783
conjugate
4 were prepared by dissolving the solid green sample in DMSO. Fluorescence spectra were
measured by adding 3 mL aliquots of the stock solutions into a quartz cuvette with 1 cm path length.
Spectra data were recorded and processed, fluorescence intensities were normalized and plotted
with Origin software. The concentration dependent (0.060, 0.976, 39, 156 and 625
intensities were recorded for the genistein-IR 783 conjugate.
µM) fluorescence
5.3.3. Partition Coefficient
The hydrophilic characteristics of conjugate
then adding octanol followed by vigorous mixing. In brief, the purified conjugate
0.5 mL water was mixed with 0.5 mL of n-octanol, and the resulting biphasic mixture was stirred
thoroughly for 10 min, and centrifuged at 4000 rpm for 5 min. at final concentration of 2.83 M (this
4
was measured by dissolving it first in water and
4
(2.78 mg) in
µ
concentration of solution was within the linear range to observe the correlation between fluorescence
probe concentration and fluorescence intensity). Aliquots (in triplicate) from each organic and aqueous
layer (50 µL) were carefully withdrawn with pipette and transferred into 96-well plate. The fluorescence
intensity of individual well from the well plate was measured via the CCD camera of a Xenogen IVIS
Spectrum system equipped with a filter set of λEx/Em = 745/820 nm (auto exposure, medium bining,
F stop = 2). Circular regions of interest (ROI) on each well were drawn for measuring fluorescence
intensity of individual well in the form of average radiance (p/s/cm2/sr) using software Living Image
4.1. Log P was calculated using the equation: log ([fluorescence intensity in octanol]/[fluorescence
intensity in water]) to access partition coefficient. Solvent corrected normalized fluorescence intensities
were first used to calculate log P [48].
5.4. Cellular Uptake Assays
Uptake of genistein-IR 783 conjugate 4 by MCF-7 cells were evaluated by multiple methods for
qualitative and quantitative analysis. IMEM containing 5% fetal bovine serum (FBS) (Invitrogen,
Carlsbad, CA, USA) and 1% penicillin/streptomycin (GIBCO, CA, USA,) growth media was used
for MCF-7 cell culture as described earlier [41]. Immortalized MCF-10A cells were derived from
non-transformed epithelial cell line of human fibrocystic mammary tissue and cell culture was
purchased from American Type Culture Collection (ATCC, VA, USA). Cell culture medium DMEM/F12
supplemented with epidermal growth factor 40 ng/mL (BioVision, Milpitas, CA, USA), cholera toxin
100 ng/mL (Calbiochem, Darmstadt, Germany), 5% horse serum (Invitrogen, Carlsbad, CA, USA),
insulin 10 µg/mL (Sigma, St. Louis, MS, USA), hydrocortisone 500 ng/mL (Sigma), 1% penicillin and
streptomycin were used to proliferate MCF-10A cells. All cell lines were cultured in the incubator at
37 ◦C in a 5% CO2 humidified atmosphere (CO2 water Jacketed incubator, series II, Forma Scientific,
Merietta, OH, USA). MCF-7 and MCF-10A cells were cultured in their respective media as mentioned

Molecules 2019, 24, 4120
13 of 17
and were used for flowing studies [49]. In the first experiment, the comparative cell uptake was
performed by measuring relative fluorescence intensity (emission 800 nm) of both MCF-7 and MCF-10A
cells at various concentrations. Both cell types were plated in separate multiple six well plates and
incubated for two days to attain about 80–90% confluence, the media from each well was removed and
fresh media added along with genistein-IR 783 conjugate at various concentrations in triplicate for
4 h. For concentration-dependent studies the same plates were replicated for various concentrations
of genistein-IR 783 conjugate incubation. The individual well NIRF signal intensity measurement in
whole 96 well plate was performed on a Li-COR® system (emission observed at 800 nm). The signal
intensity from each well was normalized to protein content of the same well as measured by a standard
Bradford assay (Bio-Rad, Hercules, CA, USA). The data was analyzed and presented with Prism
Graphpad software version 5 (GraphPad Software Inc., La Jolla, CA, USA). In the second experiment,
time-dependent cellular uptake measurements by FACS cell analyzer of MCF-7. The MCF-7 cells
were plated in 6 well/plate (1
confluence, the medium was replaced with a fresh medium supplanted with genistein-IR 783 conjugate
(1
g/mL). The cells were further incubated for various time points at 37 ◦C in a 5% CO2 humidified
×
106 cells/well) and incubated for two days to attain about 80–90%
µ
atmosphere. At each time points cells in well were washed three times (1 mL) with PBS to remove the
old medium and conjugated adhered to the cell surface. Finally cells were harvested, centrifuged at
1000 rpm for 3 min supernatant were removed, and cell pellet resuspended in PBS prior to cell analyzer
experiment. The fluorescence intensity of cells from each well from whole plate was analyzed using a
BD FACSCANTOTM III instrument.
5.5. Mechanistic Cellular Uptake Assays
5.5.1. OATPs Inhibition
MCF-7 and MCF-10A cells (~6
×
104 per well) were seeded on 6-well culture plates and incubated
at 37 ◦C in a 5% CO2 humidified atmosphere for 24 h. In order to determine whether genistein uptake
and accumulation in cancer cells were dependent on OATPs, cells were divided to two groups: Group
1 was pre-treated with 250
for 1 h prior to incubating with the genistein-IR 783 conjugate
and only incubated with genistein-IR 783 (25 M). After 4 h incubation, cells in both groups were
µM bromosulfophthalein (BSP, a known competitive inhibitor of OATPs)
4
(25 M); Group 2 was without BSP
µ
µ
washed with PBS containing 5% FBS. Li-COR was used to measure NIRF signal intensity of each well
from whole plate and the protein content from each well was used to normalize NIRF intensity data as
described above by a Bradford assay (Bio-Rad). Upon completion of treatment, cells from each well
were washed twice with saline. Cells were counted using a Coulter counter for actual cell numbers by
preparing as nuclei as follows: sequential addition of 1 mL HEPES-MgCl2 solution (0.01 M HEPES and
1.5 mM MgCl2) and 0.1 mL ZAP solution (0.13 M ethylhexadecyldimethylammonium bromide in 3%
glacial acetic acid (v/v), Sigma), to suspended cells for fixing up nuclei for counting. GraphPad Prism
software (was used for processing the cell count data.
5.5.2. Macropinocytosis Inhibition
About MCF-7 cells (1
×
106 cells/well) were incubated with culture media in six well plates at
37 C, after 24 h, the cells were preincubated with endocytic inhibitors including chlorpromazine
(10 mg/mL), methyl-
-cyclodextrin (10 mmol/L) and amiloride (50 mmol/L) for 30 min at 37 ◦C in a
5% CO2 humidified atmosphere. Then, genistein-IR783 conjugate (1 g/mL) was added to cells for
◦
β
4
µ
another 4 h. The cells were washed three times with PBS to remove the old medium from the cell
surface. The cells were then harvested, centrifuged at 1000 rpm for 3 min, and resuspended in PBS.
Finally, the cells were processed and examined using a BD FACS Canto III system (FACSCAN, Becton
Dickinson, San Jose, CA, USA).

Molecules 2019, 24, 4120
14 of 17
5.6. In Vitro Cell Viability Assays
About 6
in six well plates at 37 ◦C, two days after incubation the media was removed and along with fresh
media cells were independently treated with genistein, IR 783 and genistein-IR 783 conjugate for
×
104 MCF-7 and MCF-10A cells were first individually incubated with culture media
4
3 days in triplicate for separate well plates. Ethanol or DMSO was used to dissolve the conjugate
and genistein and its final concentration was less than 0.1% in cell media during the experiment.
Cells were washed carefully twice with saline after the treatment. For total cell counting nuclei were
prepared by sequential addition of 1 mL HEPES-MgCl2 solution (0.01 M HEPES and 1.5 mM MgCl2)
and 0.1 mL ZAP solution (0.13 M ethylhexadecyldimethylammonium bromide in 3% glacial acetic acid
(v/v), Sigma), as standard protocol. Cells as fixed nuclei were finally counted on a Coulter counter for
assessment of cell growth and viability [41,50,51].
5.7. In Vivo MCF-7 Breast Cancer Xenograft Bearing Mice Model
A breast tumor MCF-7 xenograft model was used for in vivo tumor targeting properties of
genistein-IR 783 conjugate 4. Protocol for Animal experiments (SCXK 2011-0029) was approved by the
Guangzhou University of Chinese Medicine Animal Care and Use Committee (Guangzhou, China),
and studies were conducted in accordance with the ethical standards and national guidelines. Female
Balb/c nu/nu nude mice (4–6 weeks) were obtained from Laboratory Animal Center of Sun Yat-Sen
University (Guangzhou, China). In addition, part of animal work performed at University of Virginia
was approved by Animal Study Committee’s requirements for the care and use of laboratory animals in
research, the mice were handled and processed according to current guidelines of National Institutes of
Health Model Procedure of Animal Care and Use. Female athymic mice (3–4 weeks old) were obtained
from Charles River Laboratory (Wilmington, MA, USA). All the mice were housed in a pathogen-free
environment under controlled conditions of light and humidity and received food and water ad libitum
for the course of studies.
5.8. In Vivo NIRF Imaging of Mice Bearing MCF-7 Breast Tumors
In an assigned group of mice (n = 5), 100nM of genistein-IR 783 conjugate
4 was injected
intraperitoneally. Post 12 h and 48 h injection of conjugate NIRF images were acquired on Xenogen
IVIS Spectrum instrument. Parameters for image acquisition were as follows: Excitation wavelength
745 nm, emission observed at 820 nm, with auto exposure (f/stop = 2). Imaging data were analyzed
and presented at the same scale of fluorescence intensity with Living Image 4.1 software. Region of
Interests (ROIs) measurement were obtained from all tumors by manual drawing of circles as available
in software. The non-tumor bearing part of body of mice was used to measure as background ROIs.
Subtracting the background ROIs from the tumor ROIs measurement revealed normalized fluorescence
intensities for tumors. The fluorescence emission was reported as photons per second per centimeter
square per steradian (p/s/cm2/sr) [52].
5.9. Statistical Analysis
All data were shown as means
GraphPad software to determine statistical significance. A p value of less than 0.05 was considered
±
standard deviation. Student’s t-test is used from the
statistically significant.
Supplementary Materials: The following are available online at http://www.mdpi.com/1420-3049/24/22/4120/s1,
Figure S1–S5: Spectra of compound 2,3 and 4.
Author Contributions: D.-F.P. and M.D.C. designed the experiment, analyzed the data. Y.G., Y.Z., M.D.C., J.-J.W.
and J.Z. performed the experiments and wrote the paper. M.D.C., W.Y. and L.-P.H. commented the manuscript.
All authors have read and approved the manuscript.
Funding: This work was supported by National Natural Science Foundation of China (81703803),
Natural Science Foundation of Guangdong province (2017A030310464), The Natural Science
Foundation of Jiangxi Province(20192BAB215060), The Natural Science Foundation of Jiangxi

Molecules 2019, 24, 4120
15 of 17
Province(20171BAB205083),Jiangxi Provincial Traditional Chinese Medicine First-class Discipline Special Research
Fund(JXSYLXK-ZHYAO119,JXSYLXK-ZHYAO137),and Ph.D Programs Foundation of Jiangxi University of
Traditional Chinese Medicine(2018WBZR015).
Acknowledgments: Part of this study was done at Department of Radiology and Medical Imaging and Department
of Medicine Division of Endocrinology and Metabolism, University of Virginia.
Conflicts of Interest: The authors declare no conflicts of interest.
References
1.
Abotaleb, M.; Samuel, S.M.; Varghese, E.; Varghese, S.; Kubatka, P.; Liskova, A.; Büsselberg, D. Flavonoids in
Cancer and Apoptosis. Cancers 2018, 11, 28. [CrossRef] [PubMed]
2.
Kabała-Dzik, A.; Rzepecka-Stojko, A.; Kubina, R.; Iriti, M.; Wojtyczka, R.D.; Buszman, E.; Stojko, J. Flavonoids,
bioactive components of propolis, exhibit cytotoxic activity and induce cell cycle arrest and apoptosis in
human breast cancer cells MDA-MB-231 and MCF-7 – a comparative study. Cell. Mol. Boil. 2018, 64, 1–10.
[CrossRef]
3.
Zhang, H.W.; Hu, J.J.; Fu, R.Q.; Liu, X.; Zhang, Y.H.; Li, J.; Liu, L.; Li, Y.N.; Deng, Q.; Luo, Q.S.; et al. Flavonoids
inhibit cell proliferation and induce apoptosis and autophagy through downregulation of PI3Kgamma
mediated PI3K/AKT/mTOR/p70S6K/ULK signaling pathway in human breast cancer cells. Sci. Rep. 2018
8, 11255. [CrossRef] [PubMed]
,
4.
5.
6.
7.
Ho, M.X.; Poon, C.C.W.; Wong, K.C.; Qiu, Z.C.; Wong, M.S. Icariin, but Not Genistein, Exerts Osteogenic
and Anti-apoptotic Effects in Osteoblastic Cells by Selective Activation of Non-genomic ERalpha Signaling.
Front Pharmacol. 2018, 9, 474. [CrossRef]
Wang, L.; Waltenberger, B.; Pferschy-Wenzig, E.M.; Blunder, M.; Liu, X.; Malainer, C.; Blazevic, T.; Schwaiger, S.;
Rollinger, J.M.; Heiss, E.H.; et al. Natural product agonists of peroxisome proliferator-activated receptor
gamma (PPARgamma): A review. Biochem. Pharmacol. 2014, 92, 73–89. [CrossRef]
Xu, L.; Liu, J.T.; Li, K.; Wang, S.Y.; Xu, S. Genistein inhibits Ang II-induced CRP and MMP-9 generations via
the ER-p38/ERK1/2-PPARgamma-NF-kappaB signaling pathway in rat vascular smooth muscle cells. Life Sci.
2019, 216, 140–146. [CrossRef]
Mizushina, Y.; Shiomi, K.; Kuriyama, I.; Takahashi, Y.; Yoshida, H. Inhibitory effects of a major soy isoflavone,
genistein, on human DNA topoisomerase II activity and cancer cell proliferation. Int. J. Oncol. 2013
43, 1117–1124. [CrossRef]
,
8.
9.
Varinska, L.; Gal, P.; Mojžišov
Int. J. Mol. Sci. 2015, 16, 11728–11749. [CrossRef]
Shehata, E.M.; Elnaggar, Y.S.; Galal, S.; Abdallah, O.Y. Self-emulsifying phospholipid pre-concentrates (SEPPs)
for improved oral delivery of the anti-cancer genistein: Development, appraisal and ex-vivo intestinal
permeation. Int. J. Pharm. 2016, 511, 745–756. [CrossRef]
á, G.; Mirossay, L.; Mojžiš, J. Soy and Breast Cancer: Focus on Angiogenesis.
10. Yang, Z.; Kulkarni, K.; Zhu, W.; Hu, M. Bioavailability and pharmacokinetics of genistein: Mechanistic
studies on its ADME. Anti-Cancer Agents Med. Chem. 2012, 12, 1264–1280. [CrossRef]
11. Lambert, J.M.; Berkenblit, A. Antibody–Drug Conjugates for Cancer Treatment. Annu. Rev. Med. 2018
69, 191–207. [CrossRef] [PubMed]
,
12. Sau, S.; Alsaab, H.O.; Bhise, K.; Alzhrani, R.; Nabil, G.; Iyer, A.K. Multifunctional nanoparticles for cancer
immunotherapy: A groundbreaking approach for reprogramming malfunctioned tumor environment.
J. Control. Release 2018, 274, 24–34. [CrossRef] [PubMed]
13. Trail, P.A.; Dubowchik, G.M.; Lowinger, T.B. Antibody drug conjugates for treatment of breast cancer: Novel
targets and diverse approaches in ADC design. Pharmacol. Ther. 2018, 181, 126–142. [CrossRef] [PubMed]
14. Danciu, C.; Berkó, S.; Varju, G.; Balázs, B.; Kemény, L.; Németh, I.B.; Cioca, A.; Petrus, , A.; Dehelean, C.;
Cosmin, C.I.; et al. The Effect of Electroporation of a Lyotroic Liquid Crystal Genistein-Based Formulation in
the Recovery of Murine Melanoma Lesions. Int. J. Mol. Sci. 2015, 16, 15425–15441. [CrossRef]
15. Kim, H.; Choi, J.-S.; Kim, K.S.; Yang, J.-A.; Joo, C.-K.; Hahn, S.K. Flt1 peptide–hyaluronate conjugate
micelle-like nanoparticles encapsulating genistein for the treatment of ocular neovascularization.
Acta Biomater. 2012, 8, 3932–3940. [CrossRef]
16. Pham, J.; Brownlow, B.; Elbayoumi, T. Mitochondria-Specific Pro-Apoptotic Activity of Genistein Lipidic
Nanocarriers. Mol. Pharm. 2013, 10, 3789–3800. [CrossRef]

Molecules 2019, 24, 4120
16 of 17
17. Pham, J.; Grundmann, O.; Elbayoumi, T. Mitochondriotropic Nanoemulsified Genistein-Loaded Vehicles for
Cancer Therapy. Adv. Struct. Saf. Stud. 2015, 1265, 85–101.
18. Phan, V.; Walters, J.; Brownlow, B.; Elbayoumi, T. Enhanced cytotoxicity of optimized liposomal genistein via
specific induction of apoptosis in breast, ovarian and prostate carcinomas. J. Drug Target 2013, 21, 1001–1011.
[CrossRef]
19. Ruoslahti, E. Tumor penetrating peptides for improved drug delivery. Adv. Drug Deliv. Rev. 2017, 110, 3–12.
[CrossRef]
20. Adams, B.D.; Parsons, C.; Walker, L.; Zhang, W.C.; Slack, F.J. Targeting noncoding RNAs in disease.
J. Clin. Investig. 2017, 127, 761–771. [CrossRef]
21. Wang, Y.; Liu, T.; Zhang, E.; Luo, S.; Tan, X.; Shi, C. Preferential accumulation of the near infrared heptamethine
dye IR-780 in the mitochondria of drug-resistant lung cancer cells. Biomaterials 2014, 35, 4116–4124. [CrossRef]
[PubMed]
22. Yang, X.; Shi, C.; Tong, R.; Qian, W.; Zhau, H.E.; Wang, R.; Zhu, G.; Cheng, J.; Yang, V.W.; Cheng, T.; et al. Near
IR heptamethine cyanine dye-mediated cancer imaging. Clin. Cancer Res. 2010, 16, 2833–2844. [CrossRef]
[PubMed]
23. Shi, C.; Wu, J.B.; Chu, G.C.-Y.; Li, Q.; Wang, R.; Zhang, C.; Zhang, Y.; Kim, H.L.; Wang, J.; Zhau, H.E.; et al.
Heptamethine carbocyanine dye-mediated near-infrared imaging of canine and human cancers through the
HIF-1α/OATPs signaling axis. Oncotarget 2014, 5, 10114–10126. [CrossRef] [PubMed]
24. Xiao, L.; Zhang, Y.; Yue, W.; Xie, X.; Wang, J.-P.; Chordia, M.D.; Chung, L.W.; Pan, D. Heptamethine Cyanine
Based 64Cu - PET Probe PC-1001 for Cancer Imaging: Synthesis and In Vivo Evaluation. Nucl. Med. Boil.
2013, 40, 351–360. [CrossRef] [PubMed]
25. Zhang, Y.; Xiao, L.; Popovic´, K.; Xie, X.; Chordia, M.D.; Chung, L.W.; Williams, M.B.; Yue, W.; Pan, D. Novel
Cancer-Targeting SPECT/NIRF Dual-modality Imaging Probe 99mTc -PC-1007: Synthesis and Biological
Evaluation. Bioorganic Med. Chem. Lett. 2013, 23, 6350–6354. [CrossRef]
26. Wu, J.B.; Lin, T.-P.; Gallagher, J.D.; Kushal, S.; Chung, L.W.K.; Zhau, H.E.; Olenyuk, B.Z.; Shih, J.C. Monoamine
Oxidase A Inhibitor–Near-Infrared Dye Conjugate Reduces Prostate Tumor Growth. J. Am. Chem. Soc. 2015
137, 2366–2374. [CrossRef]
,
27. Jiang, Z.; Pflug, K.M.; Usama, S.M.; Kuai, D.; Yan, X.; Sitcheran, R.; Burgess, K.; Yan, D.X. Cyanine-Gemcitabine
Conjugates as Targeted Theranostic Agents for Glioblastoma Tumor Cells. J. Med. Chem. 2019, 62, 9236–9245.
[CrossRef]
28. Lv, Q.; Yang, X.; Wang, M.; Yang, J.; Qin, Z.; Kan, Q.; Zhang, H.; Wang, Y.; Wang, D.; He, Z.
Mitochondria-targeted prostate cancer therapy using a near-infrared fluorescence dye–monoamine oxidase
A inhibitor conjugate. J. Control. Release 2018, 279, 234–242. [CrossRef]
29. Lv, Q.; Wang, D.; Yang, Z.; Yang, J.; Zhang, R.; Yang, X.; Wang, M.; Wang, Y. Repurposing antitubercular
agent isoniazid for treatment of prostate cancer. Biomater. Sci. 2019, 7, 296–306. [CrossRef]
30. Yang, X.-G.; Mou, Y.-H.; Wang, Y.-J.; Wang, J.; Li, Y.-Y.; Kong, R.-H.; Ding, M.; Wang, D.; Guo, C. Design,
Synthesis, and Evaluation of Monoamine Oxidase A Inhibitors—Indocyanine Dyes Conjugates as Targeted
Antitumor Agents. Molecules 2019, 24, 1400. [CrossRef]
31. Yi, X.; Zhang, J.; Yan, F.; Lu, Z.; Huang, J.; Pan, C.; Yuan, J.; Zheng, W.; Zhang, K.; Wei, D.; et al. Synthesis of
IR-780 dye-conjugated abiraterone for prostate cancer imaging and therapy. Int. J. Oncol. 2016, 49, 1911–1920.
[CrossRef] [PubMed]
32. Yang, Z.; Lee, J.H.; Jeon, H.M.; Han, J.H.; Park, N.; He, Y.; Lee, H.; Hong, K.S.; Kang, C.; Kim, J.S. Folate-Based
Near-Infrared Fluorescent Theranostic Gemcitabine Delivery. J. Am. Chem. Soc. 2013, 135, 11657–11662.
[CrossRef] [PubMed]
33. Tang, L.; Singh, R.; Liu, Z.; Hu, M. Structure and Concentration Changes Affect Characterization of UGT
Isoform-Specific Metabolism of Isoflavones. Mol. Pharm. 2009, 6, 1466–1482. [CrossRef] [PubMed]
34. Bouteiller, C.; Clavé, G.; Bernardin, A.; Chipon, B.; Massonneau, M.; Renard, P.-Y.; Romieu, A. Novel
Water-Soluble Near-Infrared Cyanine Dyes: Synthesis, Spectral Properties, and Use in the Preparation of
Internally Quenched Fluorescent Probes. Bioconjugate Chem. 2007, 18, 1303–1317. [CrossRef] [PubMed]
35. Harrison, V.S.R.; Carney, C.E.; MacRenaris, K.W.; Waters, E.A.; Meade, T.J. Multimeric Near IR–MR Contrast
Agent for Multimodal In Vivo Imaging. J. Am. Chem. Soc. 2015, 137, 9108–9116. [CrossRef] [PubMed]
36. Zhang, E.; Luo, S.; Tan, X.; Shi, C. Mechanistic study of IR-780 dye as a potential tumor targeting and drug
delivery agent. Biomaterials 2014, 35, 771–778. [CrossRef]

Molecules 2019, 24, 4120
17 of 17
37. Flanagan, J.H.; Khan, S.H.; Menchen, S.; Soper, S.A.; Hammer, R.P. Functionalized Tricarbocyanine Dyes as
Near-Infrared Fluorescent Probes for Biomolecules. Bioconjugate Chem. 1997, 8, 751–756. [CrossRef]
38. Qiang, X.; Sang, Z.; Yuan, W.; Li, Y.; Liu, Q.; Bai, P.; Shi, Y.; Ang, W.; Tan, Z.; Deng, Y. Design, synthesis
and evaluation of genistein-O-alkylbenzylamines as potential multifunctional agents for the treatment of
Alzheimer’s disease. Eur. J. Med. Chem. 2014, 76, 314–331. [CrossRef]
39. McMahon, H.T.; Boucrot, E. Molecular mechanism and physiological functions of clathrin-mediated
endocytosis. Nat. Rev. Mol. Cell Boil. 2011, 12, 517–533. [CrossRef]
40. Doherty, G.J.; McMahon, H.T. Mechanisms of Endocytosis. Annu. Rev. Biochem. 2009, 78, 857–902. [CrossRef]
41. Yue, W.; Wang, J.P.; Hamilton, C.J.; Demers, L.M.; Santen, R.J. In situ aromatization enhances breast tumor
estradiol levels and cellular proliferation. Cancer Res. 1998, 58, 927–932. [PubMed]
42. Russo, M.; Russo, G.L.; Daglia, M.; Kasi, P.D.; Ravi, S.; Nabavi, S.F.; Nabavi, S.M. Understanding genistein in
cancer: The “good” and the “bad” effects: A review. Food Chem. 2016, 196, 589–600. [CrossRef] [PubMed]
43. Popiołkiewicz, J.; Polkowski, K.; Skierski, J.S.; Mazurek, A.P. In vitro toxicity evaluation in the development
of new anticancer drugs—genistein glycosides. Cancer Lett. 2005, 229, 67–75. [CrossRef] [PubMed]
44. Yi, X.; Yan, F.; Wang, F.; Qin, W.; Wu, G.; Yang, X.; Shao, C.; Chung, L.W.; Yuan, J. IR-780 Dye for Near-Infrared
Fluorescence Imaging in Prostate Cancer. Med. Sci. Monit. 2015, 21, 511–517. [PubMed]
45. Li, H.-Q.; Ge, H.-M.; Chen, Y.-X.; Xu, C.; Shi, L.; Ding, H.; Zhu, H.-L.; Tan, R.-X. Synthesis and Cytotoxic
Evaluation of a Series of Genistein Derivatives. Chem. Biodivers. 2006, 3, 463–472. [CrossRef] [PubMed]
46. Wlcek, K.; Svoboda, M.; Sellner, F.; Krupitza, G.; Jaeger, W.; Thalhammer, T. Altered expression of organic
anion transporter polypeptide (OATP) genes in human breast carcinoma. Cancer Boil. Ther. 2008, 7, 1450–1455.
[CrossRef]
47. Pavese, J.M.; Farmer, R.L.; Bergan, R.C. Inhibition of cancer cell invasion and metastasis by genistein.
Cancer Metastasis Rev. 2010, 29, 465–482. [CrossRef]
48. Guan, Y.; Zhang, Y.; Xiao, L.; Li, J.; Wang, J.P.; Chordia, M.D.; Liu, Z.Q.; Chung, L.W.; Yue, W.; Pan, D.
Improving Therapeutic Potential of Farnesylthiosalicylic Acid: Tumor Specific Delivery via Conjugation
with Heptamethine Cyanine Dye. Mol. Pharm. 2017, 14, 1–13. [CrossRef]
49. Masamura, S.; Santner, S.J.; Heitjan, D.F.; Santen, R.J. Estrogen deprivation causes estradiol hypersensitivity
in human breast cancer cells. J. Clin. Endocrinol. Metab. 1995, 80, 2918–2925.
50. Santen, R.J.; Song, R.X.; Zhang, Z.; Kumar, R.; Jeng, M.-H.; Masamura, A.; Lawrence, J.; Berstein, L.; Yue, W.
Long-term estradiol deprivation in breast cancer cells up-regulates growth factor signaling and enhances
estrogen sensitivity. Endocr. -Relat. Cancer 2005, 12, S61–S73. [CrossRef]
51. Yue, W.; Wang, J.; Li, Y.; Fan, P.; Santen, R.J. Farnesylthiosalicylic acid blocks mammalian target of rapamycin
signaling in breast cancer cells. Int. J. Cancer 2005, 117, 746–754. [CrossRef] [PubMed]
52. Xiao, L.; Zhang, Y.; Berr, S.S.; Chordia, M.D.; Pramoonjago, P.; Pu, L.; Pan, D. A novel near-infrared
fluorescence imaging probe for in vivo neutrophil tracking. Mol. Imaging 2012, 11, 372–382. [CrossRef]
[PubMed]
Sample Availability: Sample of the conjugate 4 is available from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
