[18F]/19F exchange in fluorine containing
compounds for potential use in F-labelling
18
strategies
Elisabeth Blom, Farhad Karimi, and Bengt Langstrom
Ã
˚
¨
Exchange of [18F]fluoride with 19F in various organofluorine compounds in concentrations ranging from 0.06 to 56 mM was
explored. We aimed to explore whether exchange reactions can be a potential useful labelling strategy, when there are no
requirement of high specific radioactivity. Parameters such as solvents, temperature, conventional vs microwave heating,
and the degree of fluorine load in some aromatic and alkyl compounds were investigated with regard to radiochemical

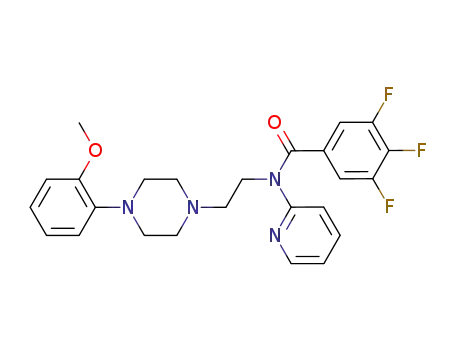

yield and specific radioactivity. A series of fluorobenzophenones (1–6), 1-(4-fluorophenyl)ethanone (7), various activated
and deactivated fluoro benzenes (8–16), N-(pentafluorophenyl)benzamide (17), (pentafluorophenyl)formamide (18),
(tridecafluorohexyl)benzene (19) and tetradecafluorohexane (20) were subjected to [18F]/19F exchange. To test this
strategy to label biologically active molecules containing fluorine atoms in an aryl group, two analogues of WAY-100635
(21–22), Lapatinib (23), 2,5,6,7,8-pentafluoro-3-methylnaphthoquinone (24) and 1-(2,4-difluorophenyl)-3-(4-fluorophenyl)-
propan-1-one (25) were investigated. The multi-fluorinated molecules containing an electron-withdrawing group were
successfully labelled at room temperature, whereas the monofluorinated, as well as those containing an electron-donating
group, required heating for the exchange reaction to take place.
Keywords: nucleophilic 18F-fluorination; halogen exchange; organofluorine compounds; perfluoro compounds
(20), two analogues of WAY-100635 (21–22), Lapatinib (23),
2,5,6,7,8-pentafluoro-3-methylnaphthoquinone (24) and 1-(2,4-
difluorophenyl)-3-(4-fluorophenyl)propan-1-one (25).
Introduction
Positron emission tomography (PET) is a non-invasive imaging
technique allowing in vivo measurements and quantification of
biological and biochemical processes.1–3 PET is not only a
diagnostic tool in oncology, cardiology, and neurology, but also
used in drug development.4,5 It might also find applications in
other fields where there are questions related to response
systems, as in plant physiology. There are a number of positron-
emitting radionuclides like 15O, 13N, 11C, 18F, 76Br, and 124I, as
well as metals including 68Ga and 64Cu with various properties of
interest. Radionuclides like 11C and halogens, especially 18F, are
of particular interest due to their synthetic potential.6,7 As time
is an important parameter in labelling, we were interested in
developing a fluorous8-labelling strategy, using polyfluorinated
compounds as a way to control reactivity, and facilitate the
separation of these fluorous precursors from their non-fluorous
products, by using fluorous solid-phase extraction9 as an
efficient technology for fast and reliable purification. We wanted
to explore the F-exchange for two reasons: (1) there are already
a number of drugs containing one or more fluorine atoms
and (2) in some drug-development studies, specific radioactivity
is not mandatory, i.e. to perform pharmacokinetic studies,
making it possible to use F-exchange as a labelling method.
We therefore explored [18F]/19F exchange in a series of
fluorobenzophenones (1–6), 1-(4-fluorophenyl)ethanone (7),
various activated and deactivated fluoro benzenes (8–16),
N-(pentafluorophenyl)benzamide (17), (pentafluorophenyl)for-
mamide (18), (tridecafluorohexyl)benzene (19), tetradecafluorohexane
Results and discussion
Fluorine is a small, highly electronegative atom.10 Covalently
bound fluorine is larger than a hydrogen atom but occupies a
smaller van der Waals volume than a methyl, amino, or hydroxyl
group.11 Fluorine substituent effects on pharmacokinetics and
pharmacodynamics are often observed.12,13 The replacement of
a hydrogen atom or a hydroxyl group by a fluorine atom is a
strategy that is therefore used often by medicinal chemists in
drug development.14 The replacement of a hydrogen atom by a
fluorine atom can alter the pKa, dipole moment, lipophilicity,
hydrogen-bonding properties, or chemical reactivity.15
Halogen exchange is well known,16,17 but is rarely been
applied in 18F-labelling18–20 because tracers with high-specific
radioactivity are generally desired.21 Therefore, it was interesting
to explore the scope of 18/19F exchange reactions and its
limitations with respect to specific radioactivity. Twenty-two
fluorinated compounds were used in these 18/19F exchange
Department of Biochemistry and Organic Chemistry, Box 576, Husargatan 3,
BMC, S-751 23 Uppsala, Sweden
˚
*Correspondence to: Bengt Langstro¨m, Department of Biochemistry and Organic
Chemistry, Box 576, Husargatan 3, BMC, S-751 23 Uppsala, Sweden.
E-mail: Bengt.Langstrom@biorg.uu.se
J. Label Compd. Radiopharm 2009, 52 504–511
Copyright r 2009 John Wiley & Sons, Ltd.

E. Blom et al.
experiments
methanone (1), phenyl(3,4,5-trifluorophenyl)methanone (2), not explored in this study.
(Scheme
1):
(pentafluorophenyl)(phenyl)- The labelling position in the multi-fluorinated compounds was
(3,4-difluorophenyl)(phenyl)methanone (3), (4-fluorophenyl)-
The effect of solvent on the fluorine-exchange reaction was
(phenyl)methanone (4), (3-fluorophenyl)(phenyl)methanone (5), investigated. Solutions of (pentafluorophenyl)(phenyl)metha-
(2-fluorophenyl)(phenyl)methanone (6), 1-(4-fluorophenyl)etha- none (1; 150 mL, 0.31 mM) were reacted repeatedly with n.c.a.
none (7), hexafluorobenzene (8), (trifluoromethyl)benzene (9), [18F]fluoride at room temperature for 15 min in different
1,2,3,4,5-pentafluoro-6-(trifluoromethyl)benzene (10), 1, 2, 3, 4, 5- solvents or mixtures of solvents. When N,N-dimethylformamide
pentafluoro-6-nitrobenzene (11), (pentafluorophenyl)amine (12), (DMF) was used, the incorporation of 18F was 2571% (n = 3). No
2,3,4,5,6-pentafluoro-N-methylaniline (13), pentafluorophenol radiolabelled product was obtained in 1-n-butyl-3-methylimida-
(14), 2,3,5,6-tetrafluoro-4-(trifluoromethyl)phenol (15), 1,2,3,4,5- zolium trifluoromethanesulfonate (ionic liquid) or a mixture of
pentafluoro-6-methoxybenzene (16), N-(pentafluorophenyl) ionic liquid/acetonitrile (1:1). In a mixture of acetonitrile and
benzamide (17), (pentafluorophenyl)formamide (18), (trideca- DMF (1:9) or in pure acetonitrile lower incorporation of 17 and
fluorohexyl)benzene (19) and tetradecafluorohexane (20)) 5%, respectively, were observed. The highest incorporation was
(Figure 1). Approximately the same amount of no-carrier-added obtained in dimethyl sulfoxide (DMSO) (9771% (n = 4)).
(n.c.a.) [18F]fluoride (E0.5 GBq) was used in each experiment.
A series of experiments were set up in DMSO to explore the
impact of concentration and temperature on this exchange
reaction. The incorporation of [18F]fluoride was approximately
99% when 1 was used at a concentration of 0.46 mM at room
temperature (reaction volume 150 mL). When the concentration
of 1 was decreased to 0.23 and 0.11 mM, the incorporation
decreased to 94 and 90%, respectively, at room temperature. At
a lower concentration (0.06 mM), the incorporation at room
R-18
F
+
R-F + [18F-]
19F-
R-F = 1-20
R = aryl, alkyl
Scheme 1. General 18/19F exchange reaction.
O
O
O
F
F
O
F
F
F
F
F
F
F
F
F
F
(4)
(2)
(3)
(1)
F
O
O
O
F
F
F
F
F
CH3
F
F
(8)
(7)
(6)
(5)
CF3
NO2
NH2
CF3
F
F
F
F
F
F
F
F
F
F
F
F
F
(10)
F
F
(9)
(11)
(12)
H3C
OH
OH
OCH3
NH
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
CF3
F
F
(14)
(15)
(13)
(16)
F
F
H
N
H
N
F
H
F
F
CF3(CF2)5
CF3(CF2)4CF3
O
O
F
F
F
F
F
(20)
(17)
(18)
(19)
Figure 1. Organofluorine compounds used in this study.
J. Label Compd. Radiopharm 2009, 52 504–511
Copyright r 2009 John Wiley & Sons, Ltd.
www.jlcr.org

E. Blom et al.
temperature was decreased to 75%, but heating at 1501C for
Pentafluorophenyl compounds containing an electron-with-
15 min decreased the incorporation yield to 40%. Further drawing group are susceptible to nucleophilic attack at room
investigation of this reaction showed that, upon heating and temperature, at reaction rates proportional to the electron-
during HPLC purification, one of the fluorine atoms was withdrawing strength of the group.26 Moderate incorporation
substituted by a hydroxyl group, (identified by GC-MS).
yields of compounds 8,27 10, and 1128,29 were obtained due to
The impact on incorporation yield of the number of fluorine their electron-withdrawing substituents. The exchange reaction
atoms present and their position in the substrate was explored did not occur with substrate 9, which has no fluorine atoms on
using compounds 2–7. The exchange reaction took place in the benzene ring. When 1,2,3,4,5-pentafluoro-6-(trifluoro-
DMSO at room temperature when more than one fluorine atom methyl)benzene (10) was used as precursor in the 18F-labelling
was present in the molecule (2 and 3), as shown in Table 1, but reaction (3.75 mM), labelled compound 15 was obtained in
not in the monofluorinated compounds 4–7. Compound 3 has 1371% (n = 2) yield, in addition to labelled compound 10
been evaluated as a binder to the oestrogen receptor by (7172 %, n = 2). Compound 15 was identified using co-elution
combined quantitative structure–activity relationship models in HPLC. This substitution reaction has previously been
and multilinear regression analyses.22
published.30 Compound 15 does not undergo any exchange
However, the incorporation yield of (4-fluorophenyl)(phenyl)- reaction at room temperature, so the fluorine exchange must
methanone23 (4), (2-fluorophenyl)(phenyl)methanone (6) and 1- take place before the substitution with a hydroxyl group.
(4-fluorophenyl)ethanone24 (7)was increased dramatically when
As expected, the reaction of [18F]fluoride with compounds
the exchange reaction was performed in DMSO at 1501C 12–15 gave no radiolabelled product at room temperature
(Table 2). The reactivity of these carbonyl-substituted aryl because of the electron-donating substituents. However,
fluorides decreased in the order para4ortho4meta, consistent labelled 16 was obtained at room temperature. The impact of
with an SNAr mechanism.25
microwave vs conventional heating on the incorporation of 18F
The scope and limitations of this method were explored in compounds 12–16 was explored, as shown in Table 4. The
further, using the activated and deactivated fluorobenzenes 18/19F exchange reaction was accelerated by increasing
8–16. The 18F-labelling syntheses were performed at various the temperature, using conventional or microwave heating.
concentrations at room temperature, as shown in Table 3.
The incorporation yields were very similar when the exchange of
these compounds with electron-donating substituents was
performed in either DMF or DMSO, for 15 min with conventional
heating or 1–5 min with microwave heating. The data presented
in Table 4 are from the reactions in DMF. The hydrogen bond-
donating groups present in compounds 12–15 and 17–18 are
also well known to reduce the reactivity.31
