Role of some food-grade synthesized flavonoids on the control of ochratoxin a in aspergillus carbonarius

Article abstract of DOI:10.3390/molecules24142553

Ochratoxin A (OTA) is a mycotoxin with a serious impact on human health. In Mediterranean countries, the black Aspergilli group, in particular Aspergillus carbonarius, causes the highest OTA contamination. Here we describe the synthesis of three polyphenolic flavonoids: 5-hydroxy-6,7-dimethoxy-flavone (MOS), 5,6-dihydroxy-7-methoxy-flavone (NEG), and 5,6 dihydroxy-flavone (DHF), as well as their effect on the prevention of OTA biosynthesis and lipoxygenase (LOX) activity in A. carbonarius cultured in a conducive liquid medium. The best control effect on OTA biosynthesis was achieved using NEG and DHF. In fungal cultures treated with these compounds at 5, 25, and 50 μg/mL, OTA biosynthesis significantly decreased throughout the 8-day experiment. NEG and DHF appear to have an inhibiting effect also on the activity of LOX, whereas MOS, which did not significantly inhibit OTA production, had no effect on LOX activity. The presence of free hydroxyls in catecholic position in the molecule appears to be a determining factor for significantly inhibiting OTA biosynthesis. However, the presence of a methoxy group in C-7 in NEG could slightly lower the molecule’s reactivity increasing OTA inhibition by this molecule at 5 μg/mL. Polyphenolic flavonoids present in edible plants may be easily synthesized and used to control OTA biosynthesis.

Full text of DOI:10.3390/molecules24142553

molecules
Article
Role of Some Food-Grade Synthesized Flavonoids on
the Control of Ochratoxin A in Aspergillus carbonarius
Alessandra Ricelli 1,
*
, Martina De Angelis 1,2 , Ludovica Primitivo 1,2 , Giuliana Righi 1,
Carla Sappino 2 and Roberto Antonioletti 1
1
Institute of Molecular Biology and Pathology-CNR P.le Aldo Moro 5, 00185 Rome, Italy
Department of Chemistry, Sapienza University, P.le A Moro 5, I-00185 Rome, Italy
2
*
Correspondence: alessandra.ricelli@cnr.it
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 6 June 2019; Accepted: 11 July 2019; Published: 13 July 2019
Abstract: Ochratoxin A (OTA) is a mycotoxin with a serious impact on human health.
In Mediterranean countries, the black Aspergilli group, in particular Aspergillus carbonarius,
causes the highest OTA contamination. Here we describe the synthesis of three polyphenolic
flavonoids: 5-hydroxy-6,7-dimethoxy-flavone (MOS), 5,6-dihydroxy-7-methoxy-flavone (NEG),
and 5,6 dihydroxy-flavone (DHF), as well as their effect on the prevention of OTA biosynthesis
and lipoxygenase (LOX) activity in A. carbonarius cultured in a conducive liquid medium. The best
control effect on OTA biosynthesis was achieved using NEG and DHF. In fungal cultures treated with
these compounds at 5, 25, and 50 µg/mL, OTA biosynthesis significantly decreased throughout the
8-day experiment. NEG and DHF appear to have an inhibiting effect also on the activity of LOX,
whereas MOS, which did not significantly inhibit OTA production, had no effect on LOX activity. The
presence of free hydroxyls in catecholic position in the molecule appears to be a determining factor
for significantly inhibiting OTA biosynthesis. However, the presence of a methoxy group in C-7 in
NEG could slightly lower the molecule’s reactivity increasing OTA inhibition by this molecule at
5 µg/mL. Polyphenolic flavonoids present in edible plants may be easily synthesized and used to
control OTA biosynthesis.
Keywords: flavones; aromatic hydroxylation; Aspergillus carbonarius; ochratoxin A; lipoxygenase
1. Introduction
Ochratoxin A (OTA) is a secondary metabolite, toxic for humans and animals, which is synthesized
by several fungi of the Aspergillus and Penicillium species. Such fungi are frequently encountered as
contaminants of many foodstuffs; in particular, Penicillium species are found more commonly in cold
climates and Aspergillus species more frequently in warm climates [1].
OTA has various acute and chronic toxic effects [
as a group 2B by the International Agency for Research on Cancer (IARC) [
for its maximum presence in foodstuffs have been established by most governmental jurisdictions,
e.g., the European Union [ ]. Acute mycotoxicoses have a rapid onset and an obvious toxic response,
2
] on humans and animals and has been classified
3]. Consequently, thresholds
4
whereas chronic toxicity is characterized by low-dose exposure over a long period and also results in
serious toxic effects [5].
Worldwide, approximately 25% of food crops are affected by mycotoxins causing a loss of nearly
109 tons of foodstuff per year [
6,7]. Among the occurring mycotoxins, OTA is found in varying amounts
in a wide variety of commodities such as raisins, barley, soy products, and coffee [6].
OTA contamination’s economic costs result mainly from yield loss, losses in livestock and animal
productivity, reduced value of raw food materials when contaminated below the tolerated limit,
and trade impacts [8]. Further costs include expenditures for implementation of sampling and analyses,
Molecules 2019, 24, 2553; doi:10.3390/molecules24142553
www.mdpi.com/journal/molecules

Molecules 2019, 24, 2553
2 of 10
to run the regulatory programs organized by the dedicated agencies, and segregation and disposal of
contaminated food [9].
Although the decontamination of mycotoxins present in feeds or foods somehow may be possible,
the elaboration of a strategy to prevent the biosynthesis of mycotoxins in the first instance is the
priority. Unfortunately, attempts to control OTA contamination by means of continuous surveillance of
agricultural crops, animal feedstuffs, and human foods through the entire production chain, have been
largely unsuccessful. Oxidative stress has been shown to play a crucial role in both OTA biosynthesis
and OTA toxicity; in particular, the significant role of lipoxygenase (LOX) activity has been observed in
some OTA producing Aspergillus [10].
Several studies have been performed using antioxidant molecules [11
research path. Antioxidants can both counteract the adverse effects of reactive oxygen species (ROS)
generated under OTA contamination and control the biosynthesis of the toxin itself [14 15]. Given that
–13], a still promising
,
in most cases OTA biosynthesis takes place in food raw materials and foods, many studies of this
contaminant’s prevention have evaluated extracts from plants that are edible or otherwise already
known for their beneficial health properties [16].
In order for the bioactive molecules present in such plants to be studied, they must be extracted
with solvent mixtures or synthesized, depending on the balance of each protocol’s costs and benefits.
Flavonoids are among the most important bioactive molecules identified in the extracts of plants known
to popular medicine. Several studies have highlighted their bioactive potential, and, in particular, their
antioxidant, anti-inflammatory, and antiviral activities [17–20].
In this study, we considered three polyphenolic flavones: 5-hydroxy-6,7-dimethoxy-flavone
(mosloflavone, MOS), 5,6-dihydroxy-7-methoxy-flavone (negletein, NEG), and 5,6-Dihydroxy-flavone
(DHF) (Figure 1).
Figure 1. Structure of the studied polyphenolic flavones.
The first two compounds are present in some plants used in folk medicine, such as Centaurea
clementei (Boiss) (negletein) [21], and Desmos chinensis (Lour.) (mosloflavone) [22], their antioxidant
characteristics are well known and several studies have found that they have beneficial effects on
human health [23]. MOS and NEG were obtained by a simple synthesis starting from the 7-methyl ether
of crysin, similarly to what was described in Righi et al. [24]. The third compound (DHF), as far as we
know, has not been detected in nature and is not a commercial product, but is structurally related to NEG
and MOS and has been obtained through a specific synthetic protocol [25]. The only available studies
of DHF’s biological activity are, to our knowledge, that conducted by Gao et al. [26] testing the effect of
hydroxyl substituents at positions 5, 6, or 7 in the A-ring of the 5,6,7-trihydroxyflavone on rat intestinal
alfa-glucosidase inhibition, and that conducted by Lombardo et al. [27] investigating the cytotoxic and
antioxidant activities of baicalein, mosloflavone, negletein, and 5,6-dihydroxyflavone at very low and
physiologically relevant levels, on two different cell lines, L-6 myoblasts and THP-1 monocytes.
In our study, MOS and NEG, were synthesized from 7-methyl ether of crysin by means of a quick
and easy synthetic method, previously described in [24]. DHF was synthesized from 6-hydroxy-flavone
by using the synthetic method reported in [25]. MOS, NEG, and DHF were subsequently used to
treat OTA-producing Aspergillus carbonarius cultures. The effect of the synthesized molecules on OTA
biosynthesis, fungal growth, and LOX activity were investigated.

Molecules 2019, 24, 2553
3 of 10
2. Results
We prepared MOS
4
and NEG
5
by a simple synthesis consisting of two steps to introduce the
oxygenated moieties into the activated aromatic A-ring; a bromination followed by a substitution and
a methanolysis protocol on 5-hydroxy-7-methoxy-flavone (7-methyl-ether of crysin) 1. DHF 7 was
obtained by a direct hydroxylation of the aromatic A-ring of 6-hydroxy-flavone 6.
2.1. Synthesis of Mosloflavone 4, Negletein 5, and 5,6-Dihydroxy-flavone 6
The bromination step on
1 was performed by tetrabutylammonium tribromide (TBATB)
in chloroform at room temperature; this reagent showed a very high efficiency but a low
regioselectivity (Scheme 1). In fact, we obtained in good yields, a mixture (about 1:2 respectively)
of two regioisomers: The monobromo derivatives

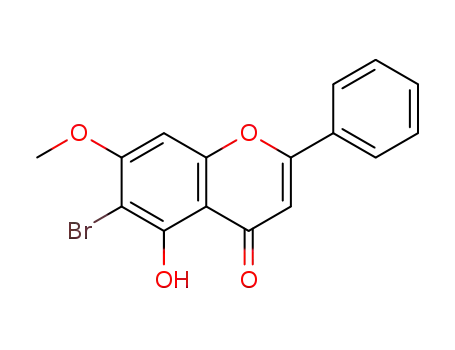

2 (5-hydroxy-7-methoxy-8-bromo-flavone) and
3
(5-hydroxy-6-bromo-7-methoxy-flavone). The two bromides were not separable by common
chromatographic techniques, their structures were demonstrated previously by Righi et al. [24]. In this
study we used the mixture of bromides 2 and 3 to obtain directly by methanolysis the molecule 4.
Scheme 1. Synthesis of mosloflavone (MOS) and negletein (NEG).
The methanolysis consisted of mixing at room temperature a solution of NaOMe in MeOH with a
suspension of CuBr in dimethylformamide (DMF), the obtained mixture was added to the solution of
the aromatic bromides (2 + 3
) in DMF at 120 ◦C. This reaction is regiospecific and leads only to one
product: The 5-hydroxy-6,7-dimethoxy-flavone
in good yield, as reported in [24].
4 (mosloflavone). The substitution reaction can occur,
Subsequently the mosloflavone 4 was demethylated in C-6 by reaction with hydrobromic acid and
acetic acid, at reflux conditions, and, in this manner, we prepared the 5,6-dihydroxy-7-methoxy-flavone
5 (negletein) in high yield (Scheme 1).
The third molecule to be tested was
7 (5,6-dihydroxy-flavone), which was synthetized from
6-hydroxy-flavone by the ipervalent iodine oxidant 2-iodoxybenzoic acid (IBX) as reported in [25].
6
In this oxidative reaction, IBX proved to be an excellent reagent for a highly regioselective aromatic
hydroxylation of monohydroxylated-flavone, generating the corresponding cathecolic system as
illustrated in Scheme 2.

Molecules 2019, 24, 2553
4 of 10
O
O
Ph
O
O
Ph
IBX, DMSO
25°C 1hr, 96%
HO
OH
OH
6
7
5,6-Dihydroxy-flavone (DHF)
Scheme 2. Synthesis of 5,6-dihydroxy-flavone (DHF).
2.2. Effect of MOS, NEG, and DHF on A. carbonarius Growth and OTA Biosynthesis
To evaluate the influence of MOS, NEG, and DHF on A. carbonarius growth and OTA production,
each compound was added at concentrations ranging from 5 to 50 g/mL in Erlenmeyer flasks (50 mL)
filled with 25 mL of synthetic liquid medium Czapek-Dox plus yeast extract 0.5% (CDY 0.5%) and
inoculated with 3
105 conidia. The selected medium is conducive for both A. carbonarius growth
µ
×
and OTA biosynthesis. The evaluation of A. carbonarius growth and OTA production trend was
conducted after 3, 5, and 8 days of incubation at 25 ◦C corresponding to the beginning and the end of
the exponential growth phase, and to the onset of the plateau phase, respectively (Figure 2).
Figure 2. Effect of the addition of mosloflavone (MOS,) negletein (NEG), and 5,6-dihydroxy-flavone
(DHF) on ochratoxin A (OTA) biosynthesis by A. carbonarius cultured at 25 ◦C in CDY 0.5% medium.
The amount of OTA in the cultural filtrate of the untreated cultures (Cont) was 7, 98, and 209 ng/mL
after 3, 5, and 8 days respectively. Means marked by the same letter are not significantly different
(Fisher’s Protected LSD Test, p ≤ 0.05).
The amount of OTA found in the cultural filtrate of the untreated cultures was 7, 98, and 209 ng/mL
after 3, 5, and 8 days respectively. In A. carbonarius cultures treated with MOS at any of the tested
concentrations, the biosynthesis of OTA was not significantly affected throughout the duration of the
experiment. When the fungus was treated with NEG, OTA production was significantly controlled.
In particular, a reduction in OTA production of more than 60% compared to untreated cultures (Cont)
was observed even when NEG was added at only 5
obtained when NEG was added at 50 g/mL. These reduction levels were maintained throughout the
duration of the experiment. The addition of DHF at 5 g/mL to the culture of A. carbonarius led to a
µg/mL, and a reduction of more than 90% was
µ
µ
reduction of toxin concentration of about 30% only in the early phases of the experiment (after a 3-day
incubation). When incubation times were more protracted (5 or 8 days) the compound completely lost
its effect. Instead, when DHF was used at 25 µg/mL or 50 µg/mL, OTA production was about 90%

Molecules 2019, 24, 2553
5 of 10
inhibited after 3 days of incubation; even at 8 days of incubation, the inhibitive effect was maintained
at the same level. None of the tested compounds had any effect on fungal growth (data not shown).
2.3. Effect of MOS, NEG, and DHF on LOX Activity in A. carbonarius
We verified LOX activity in A. carbonarius cultures treated with MOS, NEG, and DHF (Figure 3a–c).
The analysis was accomplished by measuring the absorbance units/mg protein (Abs U/mg protein).
LOX is capable of producing allyl hydroperoxides from polyunsaturated fatty acids that have a system
of alternating cis double bonds. Such hydroperoxides can induce the biosynthesis of several mycotoxins
in different fungi, e.g., aflatoxins, sterigmatocistin, and OTA produced by A. flavus, A. nidulans and
A. carbonarius [28]. NEG and DHF, which are effective at inhibiting the biosynthesis of OTA in the
assayed A. carbonarius isolate, also inhibit LOX activity, whereas MOS, which did not significantly
inhibit OTA production, did not.
Figure 3. Effect of mosloflavone (MOS) (a); negletein (NEG) (b); 5,6-dihydroxy-flavone (DHF) (c),
on lipoxygenase (LOX) activity in A. carbonarius cultured in CDY 0.5% medium. Means marked by
the same letter are not significantly different (Fisher’s Protected LSD Test, p
cultures; AbsU = absorbance units.
≤
0.05). Cont = untreated

Molecules 2019, 24, 2553
6 of 10
3. Discussion
Different flavonoids are accumulated in plant tissues as a response to biotic and abiotic stress
such as pathogen and insect attack, UV radiation, and wounding [29].
They have been reported to play a variety of roles in plants, such as UV protection, pigmentation,
growth regulation, stimulation of nitrogen-fixing nodules, and disease resistance [30,31].
Some flavonoids, such as MOS and NEG, have been extensively studied mainly due to their
promising antimicrobial, antitumor, and neuroprotective activity [20
is available on other molecules, despite their structural relation to MOS and NEG; for example,
few studies have been done on 5,6-dihydroxy-flavone 26 27]. In any case, thus far none of the three
molecules considered here has been evaluated as possible means of countering OTA biosynthesis.
We prepared MOS and NEG from crysin-7-methyl-ether by the synthetic process described
,23,32]. However, little information
7
[
,
4
5
1
in [24] that consisted of a simple two-step synthesis (bromination and methanolysis), in order to
introduce the oxygenated moieties into the activated aromatic A-ring (Scheme 1). However, we modified
the protocol by skipping the acetylation of the bromide mixture (
already characterized [24]. Therefore, we directly submitted the mixture to methanolysis, obtaining as
the only product the 5-hydroxy-6,7-dimethoxy-flavone (MOS). Through careful, fine management of
the demethylation reaction time we selectively obtained the product of mono-demethylation . This
2 and 3) since the two regioisomers were
4
5
enabled a high yield (82%) while shortening the process. NEG was easily obtained through MOS
demethylation (94% yield from MOS). DHF was obtained in high yield (96%) by a direct hydroxylation
of the aromatic A-ring following the protocol described in [25] which is the best assessed synthetic
process in terms of yield (Scheme 2).
The timeframe of the evaluation of A. carbonarius growth and OTA production trends (with 3,
5, and 8 days of incubation) has allowed us to monitor both the progress of fungal growth (primary
metabolism) and the possible production of OTA (produced by secondary metabolism). MOS’s scarce
and transient capacity to inhibit OTA biosynthesis could be due to the presence of two methoxy groups
(C-6 and C-7) in the molecule. In particular, the second methoxy group’s presence in C-6 dramatically
lowers the molecule’s reactivity. MOS’s poor reactivity does not allow the molecule to neutralize ROS
that are formed, for example, as a result of LOX activity (Figure 3a). The correlation between the
inhibition of LOX activity and the decrease of OTA production has been reported in A. ochraceus [10
]
and in A. carbonarius [28].
The cultures treated with NEG significantly inhibited OTA production (Figure 2). In particular,
a significant and long-lasting effect is evident starting from treatment at 5 µg/mL, a result due perhaps
to two free hydroxyl groups in a catecholic position (C-5, C-6).
A remarkable inhibition is evident when DHF is added to the fungal culture. In particular, it lasts
for only 3 days when DHF is added at 5 g/mL, but is both more inhibitive and longer lasting when
DHF is added at 25 g/mL and 50 g/mL (Figure 2). The inhibition of OTA biosynthesis can be
µ
µ
µ
correlated with the inhibition of LOX activity (Figure 3a–c). This could result from two free hydroxyl
groups’ presence in cathecolic position in DHF, which may render the molecule so highly reactive that
its antioxidant effect is quickly exhausted if the concentration is not high enough.
Both NEG and DHF have a catecholic position (C-5, C-6), but NEG’s C-7 position is occupied
by a methoxy group. This substitution could slightly lower the reactivity of the molecule preventing
NEG from reacting too hastily with the radicals. This could account for the better OTA inhibition of
NEG at 5
µg/mL compared to that of DHF at the same concentration, that probably reacts too quickly
with ROS.
The presence of free hydroxyl in catecholic position in the molecule appears to be a determining
factor for exerting a significant inhibitory effect on OTA biosynthesis, but the methoxy group’s presence
in C-7 also appears to influence the considered biological system. MOS’s lack of efficacy therefore
could be due to the presence of a further methyl ether in C-6 which impairs the cathecolic structure.

Molecules 2019, 24, 2553
7 of 10
4. Materials and Methods
The solvents and the reagents used in this study were purchased by Sigma-Aldrich S.r.l.
(Milan, Italy). The solvents were HPLC grade. Flash column chromatography was conducted
on Silica gel 230-400 mesh (Merck S.p.A., Milan, Italy). Reactions were monitored by TLC using Merck
silica gel 60F-254 plates and visualized under UV light at 254
(10% sol in EtOH).
λ and/or by phosphomolybdic acid
NMR spectra were recorded on a Mercury 3000 instrument (Varian, Palo Alto, CA, USA)
(1H, 300 MHz; 13C, 75 MHz). Chemical shifts were calculated from the residual solvent signals of δH
2.04 ppm and δC 206.0 ppm in acetone-d6, δH 7.24 ppm and δC 77.0 ppm in chloroform-d1, δH 2.49 ppm
and δC 39.5 ppm in DMSO-d6. Melting points were measured on a FP80 instrument (Mettler-Toledo,
Columbus, OH, USA) and were uncorrected. Synthetic media for fungal growth were purchased by
Difco (Becton, Dickinson and C., Franklin Lakes, NJ, USA).
4.1. Synthesis of 5-hydroxy-7-methoxy-8-bromo-flavone 2, and 5-hydroxy-6-bromo-7-methoxy-flavone 3
TBATB (1590 mg, 3.73 mmol) was added in one portion to a solution of
chloroform (14 mL). The mixture was left stirring at room temperature for 2 h, and then the mixture was
diluted with water (30 mL) and extracted with ethyl acetate (3 30 mL). The extracts were washed with
brine (2 20 mL), dried over anhydrous Na2SO4, and the solvent evaporated under reduced pressure.
After purification by chromatography on silica gel a 1:2 mixture of and (1204 mg, 3.47 mmol, 93%)
1 (1000 mg, 3.73 mmol) in
×
×
2
3
was obtained as yellow powder. The two isomers were inseparable by common techniques and were
utilized in the next reaction without further purification.
4.2. Synthesis of 5-hydroxy-6,7-dimethoxy-flavone 4 (MOS)
To a suspension of CuBr (330 mg, 2.31 mmol) in DMF (7.0 mL) a 25% solution of NaOMe in
methanol (21.0 mL, 92.33 mmol) was added at room temperature and left under stirring until a bright
blue color appeared (about 1 h). This solution was added to a mixture of two bromo-phenol compounds
◦
2
and
3
(1000 mg, 2.88 mmol) in DMF (9.5 mL) at 120 C in 2 mL portions. The mixture was left
stirring for 5 h, then cooled to room temperature, quenched with a cold 2 M solution of HCl in water
(40 mL) and extracted with ethyl acetate (3
50 mL). The extracts were washed with brine (3 × 50 mL),
dried over anhydrous Na2SO4, and the solvent evaporated under reduced pressure. Compound
×
4
(710 mg, 2.38 mmol, 82% yield) was obtained, as yellow powder, after chromatography on silica
gel (hexane/ethyl acetate 8:2). Data agreed with those reported in literature [26]. M.p.: 155–159 ◦C.
1H-NMR (chloroform-d1) (ppm): 12.67 (1H, s, C5-OH), 7.87–7.84 (2H, m, C20-H, C60-H), 7.55–7.53
δ
(3H, m, C30-H, C40-H, C50-H), 6.66 (1H, s, C8-H), 6.55 (1H, s, C3-H), 3.95 (3H, s, CH3O), 3.90 (3H, s,
CH3O). 13C-NMR, 182.4, 164.2, 159.3, 153.2, 153.0, 132.4, 131.7, 131.1, 128.7, 125.9, 106.0, 105.4, 90.1.
4.3. Synthesis of 5,6-dihydroxy-7-methoxy-flavone 5 (NEG)
A solution of
in water) was refluxed for 3 h, then the solution was cooled to room temperature and poured onto
ice. The resulting precipitate was filtered, washed with water (3 15 mL), and dried in the oven
(60 ◦C) overnight. Compound
(542 mg, 1.91 mmol, 95% yield) was obtained as yellow powder. M.p.
235–238 ◦C. 1H-NMR (dimethylsulfoxide-d6)
(ppm): 12.47 (s, OH-5), 8.05 (s, OH-6), 7.87 (m, 2H,
C20-H, C60-H), 7.56 (m, 3H, C30-H, C40-H, C50-H), 6.98 (s, 1H, C8-H), 6.79 (s, 1H, C3-H), 3.14 (3H, s,
OCH3). 13C-NMR (dimethylsulfoxide-d6)
(ppm): 182.5, 164.0, 153.3, 151.2, 146.1, 132.1, 130.1, 129.2,
4 (600 mg, 2.00 mmol) in acetic acid (37 mL) and hydrobromic acid (15.2 mL, 47%
×
5
δ
δ
126.5, 126.4, 105.8, 105.6, 90.6. Other data agreed with those reported in [22].
4.4. Synthesis of 5,6-diydroxy-flavone 7 (DHF)
To a stirred solution of 5-hydroxy-flavone
6 (510 mg, 2.0 mmol) in DMSO (20 mL) was added,
in portionwise, 1.2 eq of IBX (680 mg, 2.4 mmol), prepared as described in [33]. The reaction was

Molecules 2019, 24, 2553
8 of 10
stirred at room temperature for 1 h, during the reaction a chromatic change from yellow to brown was
observed. At the end, H2O (20 mL) and an excess of Na2S2O3 were added, and the solution was stirred
until it returned yellow. Ethyl acetate (30 mL) was added to the mixture, which was then treated with
pH 8.5 buffer solution to remove o-iodobenzoic acid. The aqueous phase was extracted with ethyl
acetate (3
Na2SO4. After evaporation in vacuum of the solvent, the product was isolated by chromatographic
purification on silica gel. The 5,6-diydroxy-flavone was obtained as yellow solid (487 mg, 1.92 mmol,
96% yield). Data agreed with those reported in literature [26]. M.p. 190–193 ◦C. 1H-NMR (methanol-d4)
×
20 mL). The collected organic phases were washed with a brine (3
×
20 mL) and dried over
7
δ
(ppm): 7.90 (m, 2H, C20-H, C60-H), 7.55–7.45 (m, 3H, C30-H, C40-H, C50-H), 7.26 (d, 1H, J = 8.9 Hz,
C7-H), 7.00 (d, 1H, J = 8.9 Hz, C8-H), 6.71 (s, 1H, C3-H). 13C-NMR (methanol-d4)
δ (ppm) 184.1, 164.8,
150.1, 145.3, 140.0, 131.9 131.4, 129.0, 126.4, 121.7, 111.0, 106.8, 105.0.
4.5. Fungal Cultures
An A. carbonarius isolate from wine grapes grown in the countryside of Manduria (Taranto, Italy)
able to produce high concentrations of toxin (2.0–2.5 µg/mL medium) under the experimental conditions
was used. The isolate was maintained in Czapek-Dox Agar (CDA) slants at 25 ◦C, and, after 10 days,
conidia were scraped off the cultures and put in sterile distilled water. The conidia suspension was
counted by a Thoma counting chamber (Merck KGaA, Darmstadt, Germany) and 3
×
105 conidia
were inoculated in each one of the 50 mL-Erlenmeyer flasks filled with 25 mL of CDY. This medium
is conducive for both A. carbonarius growth and OTA biosynthesis. Fungal growth was evaluated
by weighing the mycelial part of A. carbonarius cultures, filtered through filter paper on a separatory
funnel, after drying at 80 ◦C for 48 h.
4.6. OTA Extraction and Analysis, LOX Activity Determination
OTA was quantitatively extracted from cultural filtrate acidified by 1% of 0.1 M H3PO4 by using
CHCl3 following the protocol described in [28]. The determination of LOX activity has been conducted
following the procedure described in the same article.
4.7. Statistical Analysis
Data are presented as the value of mean
separate experiments. Mean values were evaluated using ANOVA and compared using Fisher’s
±
SD of three independent measurements from three
Protected LSD Test (p ≤ 0.05).
Author Contributions: Conceptualization, A.R. and R.A.; methodology, G.R. and R.A.; validation, A.R. and G.R.;
formal analysis, C.S. and A.R.; investigation, M.D.A., L.P. and C.S.; writing—original draft preparation, A.R. and
R.A.; writing—review and editing, M.D.A, L.P., G.R., C.S.; project administration, G.R. and A.R.
Funding: This research received no external funding.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
Wang, Y.; Wang, L.; Liu, F.; Wang, Q.; Nimal Selvaraj, J.; Xing, F.; Zhao, Y.; Liu, Y. Ochratoxin A producing
fungi biosynthetic pathway and regulatory mechanisms. Toxins 2016, 8, 83. [CrossRef] [PubMed]
El Khoury, A.; Atoui, A. Ochratoxin A: General overview and actual molecular status. Toxins 2010, 2, 461–493.
[CrossRef] [PubMed]
International Agency for Research on Cancer (IARC). Some naturally occurring substances: Food items
and constituents, heterocyclic aromatic amines and mycotoxins. In IARC Monographs on the Evaluation of
Carcinogenic Risks to Humans; IARC: Lyon, France, 1993; p. 56.
4.
Commission, E. Commission regulation (EC) No. 1881/2006 of 19/12/2006 Setting maximum levels for certain
contaminants in foodstuffs. Off. J. Eur. Union L 2006, I364, 4–5.

Molecules 2019, 24, 2553
9 of 10
5.
6.
Heussner, A.H.; Bingle, L.E.H. Comparative ochratoxin toxicity: A review of the available data. Toxins 2015
7, 4253–4282. [CrossRef] [PubMed]
Channaiah, L.H.; Maier, D.E. Best Stored Maize Management Practices for the Prevention of Mycotoxin
Contamination. In Mycotoxin Reduction in Grain Chains, 1st ed.; Leslie, J.F., Logrieco, A.F., Eds.; John Wiley &
Sons, Ltd.: Chichester, UK, 2014; pp. 78–87.
,
7.
8.
9.
Pittet, A. Natural occurrence of mycotoxins in foods and feeds, an updated review. Rev. Med. Vet. 1998, 149,
479–492.
Neme, K.; Mohammed, A. Mycotoxin occurrence in grains and the role of postharvest management as
mitigation strategies. A review. Food Control 2017, 78, 412–425. [CrossRef]
Atanasova-Penichon, V.; Barreau, C.; Richard-Forget, F. Antioxidant secondary metabolites in cereals:
Potential involvement in resistance to Fusarium and mycotoxin accumulation. Front. Microbiol. 2016, 7, 566.
[CrossRef] [PubMed]
10. Reverberi, M.; Punelli, F.; Scarpari, M.; Camera, E.; Zjalic, S.; Ricelli, A.; Fanelli, C.; Fabbri, A.A.
Lipoperoxidation affects ochratoxin A biosynthesis in Aspergillus ochraceus and its interaction with wheat
seeds. Appl. Microbiol. Biotechnol. 2010, 85, 1935–1946. [CrossRef] [PubMed]
11. Morcia, C.; Tumino, G.; Ghizzoni, R.; Bara, A.; Salhi, N.; Terzi, V. In Vitro evaluation of sub-lethal
concentrations of plant-derived antifungal compounds on Fusaria growth and mycotoxin production.
Molecules 2017, 22, 1271. [CrossRef]
12. Montenegro, C.D.; Goncalves, G.F.; De Oliveira, A.A.; Lira, A.B.; Cassiano, T.T.M.; De Lima, N.T.R.;
Barbosa, J.M.; Diniz, M.D.F.M.; Pessoa, H.L.F. In silico study and bioprospection of the antibacterial and
antioxidant effects of flavone and its hydroxylated derivatives. Molecules 2017, 22, 869. [CrossRef]
13. Wang, J.; Yue, Y.D.; Tang, F.; Sun, J. TLC Screening for antioxidant activity of extracts from fifteen bamboo
species and identification of antioxidant flavone glycosides from leaves of Bambusa textilis McClure. Molecules
2012, 17, 12297–12311. [CrossRef] [PubMed]
14. Robens, J.; Cardwell, K. The costs of mycotoxin management to the USA.: Management of aflatoxins in the
United States. J. Toxicol. Toxin Rev. 2003, 22, 139–152. [CrossRef]
15. Sorrenti, V.; Di Giacomo, C.; Acquaviva, R.; Barbagallo, I.; Bognanno, M.; Galvano, F. Toxicity of ochratoxin
A and its modulation by antioxidants: A review. Toxins 2013, 5, 1742–1766. [CrossRef] [PubMed]
16. Zhang, J.; Chen, H.; Sumarah, M.W.; Gao, Q.; Wang, D.; Zhang, Y. veA gene acts as a positive regulator of
conidia production, ochratoxin A biosynthesis, and oxidative stress tolerance in Aspergillus niger. J. Agric.
Food Chem. 2018, 66, 13199–13208. [CrossRef]
17. Vaya, J.; Belinky, P.A.; Aviram, M. Antioxidant constituents from licorice roots: Isolation, structure elucidation
and antioxidative capacity toward LDL oxydation. Free Radic. Biol. Med. 1997, 23, 302–313. [CrossRef]
18. Barreca, D.; Bellocco, E.; Leuzzi, U.; Gattuso, G. First evidence of C- and O-glycosyl flavone in blood orange
(Citrus sinensis (L.) Osbeck) juice and their influence on antioxidant properties. Food Chem. 2014, 149, 244–252.
[CrossRef] [PubMed]
19. Kim, M.K.; Yun, K.J.; Lim, D.H.; Kim, J.; Jang, Y.P. Anti-inflammatory properties of flavone di-C-glycosides
as active principles of Camellia mistletoe, Korthalsella japonica. Biomol. Ther. 2016, 24, 630–637. [CrossRef]
20. Choi, H.J.; Song, H.H.; Lee, J.S.; Ko, H.J.; Song, J.-H. Inhibitory effects of norwogonin, oroxylin A,
and mosloflavone on enterovirus 71. Biomol. Ther. 2016, 24, 552–558. [CrossRef]
21. Gonzalez Collado, I.; Macias, F.A.; Massanet, G.M.; Rodriguez, L. Flavonoids from Centaurea clementei.
J. Nat. Prod. 1985, 48, 819–822. [CrossRef]
22. Van Kiem, P.; Van Minh, C.; Hoang, T.H.; Jung, J.L.; Im, S.L.; Young, H.K. Phenolic constituents with inhibitory
activity against NFAT transcription from Desmos chinensis. Arch. Pharm. Res. 2005, 28, 1345–1349. [CrossRef]
23. Phan, C.W.; Sabaratnam, V.; Bovicelli, P.; Righi, G.; Saso, L. Negletein as a neuroprotectant enhances the
action of nerve growth factor and induces neurite outgrowth in PC12 cells. Biofactors 2016, 42, 591–599.
[CrossRef] [PubMed]
24. Righi, G.; Antonioletti, R.; Silvestri-Proietti, I.; D’Antona, N.; Lambusta, D.; Bovicelli, P. Convergent synthesis
of mosloflavone, negletein and baicalein from crysin. Tetrahedron 2010, 66, 1294–1298. [CrossRef]
25. Barontini, M.; Bernini, R.; Crisante, F.; Fabrizi, G. Selective and efficient oxidative modifications of flavonoids
with 2-iodoxybenzoic acid. Tetrahedron 2010, 66, 6047–6053. [CrossRef]

Molecules 2019, 24, 2553
10 of 10
26. Gao, H.; Nishioka, T.; Kawabata, J.; Kasai, T. Structure-activity relationship for alpha-glucosidase inhibition
of baicalein, 5,6,7-trihydroxyflavone: The effect of A-ring substitution. Biosci. Biotechnol. Biochem. 2004, 68,
369–375. [CrossRef] [PubMed]
27. Lombardo, E.; Sabellico, C.; Hajek, J.; Stankova, V.; Filipsky, T.; Balducci, V.; De Vito, P.; Leone, S.; Bavavea, E.I.;
Proietti-Silvestri, I.; et al. Protection of cells against oxidative stress by nanomolar levels of hydroxyflavones
indicates a new type of intracellular antioxidant mechanism. PloS ONE 2013, 8, e60796. [CrossRef] [PubMed]
28. Antonioletti, R.; Viglianti, A.; Cristofoli, S.; Ricelli, A. Role of some neosynthesized styryl heterocycles in
ochratoxin A control in Aspergillus carbonarius. Curr. Org. Chem. 2016, 20, 2029–2035. [CrossRef]
29. Cheynier, V.; Comte, G.; Davies, K.M.; Lattanzio, V.; Martens, S. Plant phenolics: Recent advances on their
biosynthesis, genetics and ecophysiology. Plant Physiol. Biochem. 2013, 72, 1–20. [CrossRef]
30. Cartea, M.E.; Francisco, M.; Soengas, P.; Velasco, P. Phenolic compounds in Brassica vegetables. Molecules
2011, 16, 251–280. [CrossRef]
31. Kumar, S.; Pandey, A.K. Chemistry and biological activities of flavonoids: An overview. Sci. World J. 2013
,
162750. [CrossRef]
32. Havermann, S.; Chovolou, Y.; Humpf, H.U.; Watjen, W. Modulation of the Nrf2 signalling pathway in Hct116
colon carcinoma cells by baicalein and its methylated derivative negletein. Pharm. Biol. 2016, 54, 1491–1502.
[CrossRef]
33. Frigerio, M.; Santagostino, M.; Sputore, S. A user-friendly entry to 2-iodoxybenzoic acid (IBX). J. Org. Chem.
1999, 64, 4537–4538. [CrossRef]
Sample Availability: Samples of the compounds mosloflavone, negletein are available from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
