Synthesis and structure of acetyl-substituted oxocyclohexanecarboxylates

Full text of DOI:10.1134/S1070428010040287

ISSN 1070-4280, Russian Journal of Organic Chemistry, 2010, Vol. 46, No. 4, pp. 594–596. © Pleiades Publishing, Ltd., 2010.
Original Russian Text © V.E. Subbotin, V.V. Sorokin, A.G. Golikov, A.P. Kriven’ko, 2010, published in Zhurnal Organicheskoi Khimii, 2010, Vol. 46, No. 4,
pp. 601–603.
SHORT
COMMUNICATIONS
Synthesis and Structure of Acetyl-Substituted
Oxocyclohexanecarboxylates
V. E. Subbotin, V. V. Sorokin, A. G. Golikov, and A. P. Kriven’ko
Chernyshevskii Saratov State University, ul. Astrakhanskaya 83, Saratov, 410012 Russia
e-mail: Ubique@rambler.ru
Received July 7, 2009
DOI: 10.1134/S1070428010040287
Dicarbonyl-substituted hydroxycyclohexanones
with similar substituents (Ac or COOR) have been
studied in sufficient detail [1]. Much less data are
available on analogous compounds having different
substituent groups (COR and COOR) [2]. However,
such derivatives are promising from the viewpoint of
their biological activity and design of carbo- and hetero-
cyclic systems with specified functionalization pattern.
spectral methods and chemical transformations. Com-
pounds Ia–Ic were synthesized by condensation of
aromatic aldehydes with ethyl acetoacetate or acetyl-
acetone to give ethyl 2-benzylidene-3-oxobutanoate
(IIa) or 3-arylmethylidenepentane-2,4-diones IIb and
IIc, followed by Michael addition. Intramolecular al-
dolization of intermediate A gave cyclohexanecarbox-
ylates Ia–Ic in up to 80% yield.
1
We now report on the synthesis of new ethyl
3-acetyl-2-aryl-4-hydroxy-4-methyl-6-oxocyclohexane-
carboxylates Ia–Ic whose structure was determined by
The spectral data (IR and H NMR) for the synthe-
sized compounds confirmed only the presence of car-
bonyl-containing fragments but not their position, so
O
O
MeC(O)CH2C(O)Me
piperidine
O
O
O
O
PhCHO, piperidine
Me
OEt
O
Me
Me
OEt
Ar
Ph
O
Ac
OEt
IIa
O
Me
Me
MeC(O)CH2C(O)OEt
piperidine
O
O
ArCHO, piperidine
Me
Me
A
Me
Ar
IIb, IIc
Ar
O
Ar
O
Ac
Ac
NH2OH
OEt
OEt
HO
Me
HO
Me
O
NOH
Ia–Ic
IIIa–IIIc
O
Ar
Ac
O
EtO
HO
Me
A
B
Ar = Ph (a), 3-O2NC6H4 (b), 4-MeOC6H4 (c).
594

SYNTHESIS AND STRUCTURE OF ACETYL-SUBSTITUTED OXOCYCLOHEXANE...
595
δ, ppm
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
4.0 3.5
3.0 2.5
2.0 1.5
δ, ppm
Two-dimensional NOESY spectrum of ethyl 3-acetyl-4-hydroxy-4-methyl-6-oxo-2-phenylcyclohexanecarboxylate (Ia).
that alternative structure B cannot be ruled out. The
structure of the products was unambiguously deter-
mined on the basis of the two-dimensional NOESY
spectrum of compound Ia, which displayed coupling
between methyl protons in the acetyl substituent and
protons in the 4-methyl group. Such coupling is pos-
sible only if the above groups are attached to neighbor-
ing carbon atoms. In addition, cross peaks with 2-Hax,
3-Hax, 5-Hax, and 5-Heq were observed (see figure).
Ethyl 3-acetyl-2-aryl-4-hydroxy-4-methyl-6-oxo-
cyclohexanecarboxylates Ia–Ic (general procedure).
A mixture of 18 mmol of compound IIa–IIc and
18 mmol of acetylacetone or ethyl acetoacetate was
cooled to 10–15°C, a solution of 2 ml of piperidine in
10 ml of ethanol was added dropwise, and the mixture
was kept for 78 h at room temperature. The precipitate
was filtered off and recrystallized from ethanol.
Ethyl 3-acetyl-4-hydroxy-4-methyl-6-oxo-2-
phenylcyclohexanecarboxylate (Ia). Yield 72%,
mp 104–105°C. IR spectrum, ν, cm–1: 3434 (OH),
Mutual arrangement of the ester and acetyl groups
was also proved by chemical transformation, specifi-
cally by reaction of cyclohexanecarboxylates Ia–Ic
with hydroxylamine. It is known that reactions of
diacetylhydroxycyclohexanones with hydroxylamine
involve heterocyclization with participation of the
1,3-dioxo fragment and formation of isoxazoles and
that bis(ethoxycarbonyl)-substituted analogs react via
nucleophilic replacement at the endocyclic carbonyl
group with formation of oximes [2]. The reactions of
compounds Ia–Ic with hydroxylamine gave the corre-
sponding oximes, ethyl 3-acetyl-2-aryl-4-hydroxy-6-
hydroxyimino-4-methylcyclohexanecarboxylates IIIa–
1
1722 (C=O, ester), 1705 (C=O), 1602 (Ac). H NMR
spectrum, δ, ppm: 1.03 s (3H, CH3CO), 1.31 s (3H,
CH3), 1.68 t (3H, CH2CH3), 2.02 s (1H, OH), 2.49 d
(1H, 5-Hax), 2.63 d (2H, 5-Heq), 3.27 d (1H, 3-H),
3.71 d (1H, 1-H), 3.93 t (1H, 2-H), 4.04 m (2H,
OCH2). Found, %: C 67.58; H 7.24. C18H22O5. Calcu-
lated, %: C 67.91; H 6.97.
Ethyl 3-acetyl-4-hydroxy-4-methyl-2-(3-nitro-
phenyl)-6-oxocyclohexanecarboxylate (Ib). Yield
80%, mp 127–130°C. IR spectrum, ν, cm–1: 3430
(OH), 1724 (C=O, ester), 1707 (C=O), 1696 (Ac),
1
1
IIIc, whose IR and H NMR spectra were consistent
1528 (NO2). H NMR spectrum, δ, ppm: 1.05 s (3H,
with the assumed structure.
CH3CO), 1.32 s (3H, CH3), 1.68 t (3H, CH2CH3),
2.02 s (1H, OH), 2.60 d (1H, 5-Hax), 2.68 d (1H,
5-Heq), 3.23 d (1H, 3-H), 3.64 d (1H, 1-H), 3.86 t (1H,
2-H), 4.05 m (2H, OCH2). Found, %: C 59.26; H 6.05;
Ethyl 2-benzylidene-3-oxobutanoate (IIa) and
3-arylmethylidenepentane-2,4-diones IIb and IIc were
reported in [3, 4].
RUSSIAN JOURNAL OF ORGANIC CHEMISTRY Vol. 46 No. 4 2010

SUBBOTIN et al.
596
N 4.05. C18H20O7N. Calculated, %: C 59.50; H 5.83;
N 3.85.
ppm: 1.11 s (3H, CH3CO), 1.32 s (3H, CH3), 1.72 t
(3H, CH2CH3), 2.02 s (1H, OH), 2.46 d (1H, 5-Hax),
2.64 d (1H, 5-Heq), 3.24 d (1H, 3-H), 3.65 d (1H, 1-H),
3.82 s (1H, NHOH), 3.88 t (1H, 2-H), 4.08 m (2H,
OCH2). Found, %: C 57.12; H 5.81; N 7.01.
C18H22N2O7. Calculated, %: C 57.14; H 5.86; N 7.40.
Ethyl 3-acetyl-4-hydroxy-2-(4-methoxyphenyl)-
4-methyl-6-oxocyclohexanecarboxylate (Ic). Yield
78%, mp 137–140°C. IR spectrum, ν, cm–1: 3416
(OH), 1726 (C=O, ester), 1696 (C=O), 1589 (Ac).
1H NMR spectrum, δ, ppm: 1.09 s (3H, CH3CO),
1.32 s (3H, CH3), 1.69 t (3H, CH2CH3), 2.02 s (1H,
OH), 2.45 d (1H, 5-Hax), 2.60 d (1H, 5-Heq), 3.23 d
(1H, 3-H), 3.64 d (1H, 1-H), 3.83 s (3H, OCH3), 3.86 t
(1H, 2-H), 4.05 m (2H, OCH2). Found, %: C 65.32;
H 6.94. C19H24O6. Calculated, %: C 65.50; H 6.94.

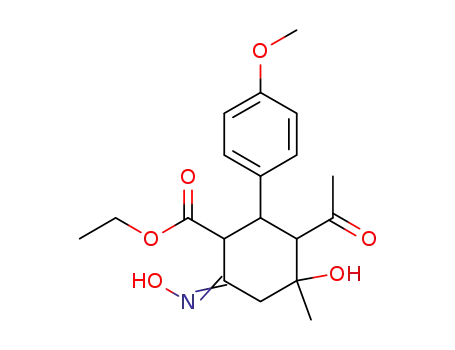

Ethyl 3-acetyl-4-hydroxy-6-hydroxyimino-
2-(4-methoxyphenyl)-4-methylcyclohexanecarbox-
ylate (IIIc). Yield 57%, mp 65–67°C. IR spectrum, ν,
cm–1: 3501 (OH), 3360 (NHOH), 1728 (C=O, ester),
1
1703 (Ac), 1644 (N=C). H NMR spectrum, δ, ppm:
1.07 s (3H, CH3CO), 1.30 s (3H, CH3), 1.70 t (3H,
CH2CH3), 2.01 s (1H, OH), 2.65 d (1H, 5-Hax), 2.67 d
(1H, 5-Heq), 3.12 d (1H, 3-H), 3.65 d (1H, 1-H), 3.81 s
(1H, NHOH), 3.83 s (3H, OCH3), 3.86 t (1H, 2-H),
4.02 m (2H, OCH2). Found, %: C 62.88; H 6.93;
N 4.05. C19H25NO6. Calculated, %: C 62.80; H 6.93;
N 3.85.
Ethyl 3-acetyl-2-aryl-4-hydroxy-6-hydroxy-
imino-4-methylcyclohexanecarboxylates IIIa–IIIc
(general procedure). A solution of 2.5 mmol of hy-
droxylamine hydrochloride in 3 ml of water was added
dropwise over a period of 5 min to a solution of
2.5 mmol of cyclohexanecarboxylate Ia–Ic in 15 ml of
ethanol. The mixture was heated for 3 h under reflux
and was kept for 78 h at room temperature. The precip-
itate was filtered off, washed with water and diethyl
ether, and recrystallized from ethanol.
The IR spectra were measured in KBr on a Specord
1
M-80 spectrometer. The H NMR spectra were
recorded on a Varian-400 instrument at 400 MHz using
CDCl3 as solvent and tetramethylsilane as internal
reference. The progress of reactions and the purity of
products were monitored by TLC on Silufol UV-254
plates; spots were visualized under UV light or by
treatment with iodine vapor. The melting points were
determined using glass capillaries and were not
corrected.
Ethyl 3-acetyl-4-hydroxy-6-hydroxyimino-4-
methyl-2-phenylcyclohexanecarboxylate (IIIa).
Yield 51%, mp 109–112°C. IR spectrum, ν, cm–1: 3475
(OH), 3220 (NHOH), 1725 (C=O, ester), 1703 (Ac),
1
1656 (N=C). H NMR spectrum, δ, ppm: 1.09 s (3H,
CH3CO), 1.31 s (3H, CH3), 1.70 t (3H, CH2CH3),
2.00 s (1H, OH), 2.44 d (1H, 5-Hax), 2.60 d (1H,
5-Heq), 3.23 d (1H, 3-H), 3.64 d (1H, 1-H), 3.81 s (1H,
NHOH), 3.86 t (1H, 2-H), 4.05 m (2H, OCH2). Found,
%: C 64.68; H 7.01; N 4.20. C18H23NO5. Calculated,
%: C 64.85; H 6.95; N 4.20.
REFERENCES
1. Kriven’ko, A.P. and Sorokin, V.V., Russ. J. Org. Chem.,
1999, vol. 35, p. 1097.
2. Emelina, E.E., Gindin, V.A., and Ershov, B.A., Zh. Org.
Khim., 1987, vol. 23, p. 2565.
3. Pratt, E.F. and Werbel, E., J. Am. Chem. Soc., 1950,
vol. 72, p. 4638.
4. Ponomarev, O.A., Piven’ko, P.S., and Lavrushin, V.F.,
Ethyl 3-acetyl-4-hydroxy-6-hydroxyimino-
4-methyl-2-(3-nitrophenyl)cyclohexanecarboxylate
(IIIb). Yield 45%, mp 96–98°C. IR spectrum, ν, cm–1:
3507 (OH), 3320 (NHOH), 1726 (C=O, estert), 1638
1
(Ac), 1527 (NO2), 1652 (N=C). H NMR spectrum, δ,
Ukr. Khim. Zh., 1980, vol. 46, p. 972.
RUSSIAN JOURNAL OF ORGANIC CHEMISTRY Vol. 46 No. 4 2010
