Reactivity of ortho-β-enaminone-phenyl palladium complexes. Insertion of CO into the Pd-C bond to give the first acyl C,N,O-pincer complexes. sequential insertion of dimethylacetylenedicarboxylate into the enaminone C-H bond and of isocyanide into the Pd-

DOI: 10.1021/om1005403

Source and publish data:

Organometallics p. 5693 - 5707 (2010)

Update date:2022-07-29

Topics:

Authors:

Vicente, Jose

Chicote, Maria Teresa

Martinez-Martinez, Antonio Jesus

Abellan-Lopez, Antonio

Bautista, Delia

Read Full Text PDF DownLoad Join now for total 90,000,000 free articles

Article abstract of DOI:10.1021/om1005403

Insertion of CO into the Pd-C_aryl bond of complexes [PdI{C ₆H₄{NHC(Me)CHC(O)Me}-2}(N^N)] afforded the benzoyl derivatives [PdI{C(O)C₆H₄{NHC(Me)CHC(O)Me}-2}(N^N)] [N^N = 4,4′-di-tert-butyl-2,2′-dipyrid

Full text of DOI:10.1021/om1005403

Organometallics 2010, 29, 5693–5707 5693

DOI: 10.1021/om1005403

Reactivity of ortho-β-Enaminone-phenyl Palladium Complexes. Insertion

of CO into the Pd-C Bond to Give the First Acyl C,N,O-Pincer

Complexes. Sequential Insertion of Dimethylacetylenedicarboxylate

into the Enaminone C-H Bond and of Isocyanide into the Pd-C Bond.

A New Photooxigenation/Cyclization Process^†

ꢀ

Jose Vicente,* Marıa Teresa Chicote, Antonio Jesus Martınez-Martınez, and

ꢀ

Antonio Abellan-Lopez

ꢀ

Grupo de Quımica Organometalica, Departamento de Quımica Inorganica, Universidad de Murcia,

ꢀ

Apartado 4021, 30071 Murcia, Spain

Delia Bautista

SAI, Universidad de Murcia, Apartado 4021, 30071 Murcia, Spain

Received May 31, 2010

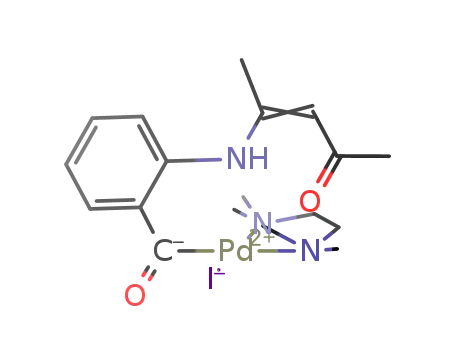

Insertion of CO into the Pd-C_arylbond of complexes [PdI{C₆H₄{NHC(Me)CHC(O)Me}-2}-

(N^∧N)] afforded the benzoyl derivatives [PdI{C(O)C₆H₄{NHC(Me)CHC(O)Me}-2}(N^∧N)] [N^∧N =

4,4⁰-di-tert-butyl-2,2⁰-dipyridyl (^tBubpy) (1a), N,N,N⁰,N⁰-tetramethylethylenediamine (tmeda) (1b)].

The reactions of [Pd{C,C-C₆H₄{NHdC(Me)CHC(O)Me}-2}(tmeda)]OTf (OTf = CF₃SO₃) with

excess CO and tmeda (2:1) or HOTf (1:1) produced the dinuclear benzoyl complex [{Pd{C,N,

O-{C(O)C₆H₄{NC(Me)CHC(O)Me}-2}₂(μ-tmeda)] (2) or [Pd₂{μ-O,C,N,O⁰-{OdCC₆H₄{NC(Me)-

CHC(O)Me}-2}₂}] (3), respectively. The latter reacted with anionic or neutral ligands to give

complexes Bu₄N[{Pd{C,N,O-{C(O)C₆H₄{NC(Me)CHC(O)Me}-2}₂(μ-OH)] (4), Q[Pd{C,N,O-{C-

(O)C₆H₄{NC(Me)CHC(O)Me}-2}}Cl] [Q = PPN (5a), NMe₄(5b)], or [{Pd{C,N,O-{C(O)C₆H₄-

{NC(Me)CHC(O)Me}-2}L] (L = CN^tBu (6a), CNXy (6b), PPh₃(6c), NH₃(6d), NH₂Me (6e), MeCN

(6f), dmso (6g)), respectively. The reaction of dimethylacetylenedicarboxylate (DMAD) with [PdI-

{C₆H₄{NHC(Me)CHC(O)Me}-2}(tmeda)] (1:1) afforded [PdI{C₆H₄{NHC(Me)C{Z-C(CO₂Me)d

CH(CO₂Me)}C(O)Me}}-2}(tmeda)] (7Z), resulting from the insertion of the alkyne into the C-

(sp²)-H bond of the enaminone substituent. 7Z isomerized into the E analogue (7E) when heated in

toluene at 95 °C and reacted in two steps with AgClO₄and XyNC (1:1:2) to give the C,N,O-pincer

derivative Pd{C,N,O-{C(dNXy)C₆H₄{NC(Me)C{C(CO₂Me)dCHCO₂Me)}C(O)Me}-2}(CNXy)]

(8) as a mixture of the Z and E isomers. The latter complex converted, after a photochemical oxy-

genation, into the palladacycle [Pd{C,N,O-{C(dNXy)C₆H₄{N(dmoc)}-2](CNXy)] 2CHCl₃(9),

where the imino substituent dmoc is the cycle 1,2-di(methoxycarbonyl)-3-oxocyclopent-1-ene-4-yl.

Compound 8 or 9 reacted with triflic or picric acid to give the species Pd{C,N,O-{C(dNHXy)C₆H₄-

{NC(Me)C{C(CO₂Me)dCHCO₂Me)}C(O)Me}-2}(CNXy)]OTf (10) or [Pd{C,N,O-{C(dNXy)C₆-

H₄{N(dmoc)}-2](CNXy)] Hpic (11; Hpic = picric acid), respectively. The crystal structures of

complexes 2, 3, 5a, 6b, 6c, 6e, 7Z, 7E, and 10 have been determined.

Introduction

alkenes,^3,20allenes,^19,20carbodiimides,^21,22isothiocyanates,^9,22

nitriles,^22,23cyanamides²²). These reactions are of interest

because they are involved in many stoichiometric and catalytic

palladium-mediated organic transformations.^{3,5,6,9,10,12-14,17,24}

We are studying the synthesis of ortho-functionalized aryl

metal complexes and their reactivity toward unsaturated mo-

lecules (isocyanides,^1-11CO,^{1,3,5,9,11-16}alkynes,^{3-6,11,12,17-19}

ꢀ
