Synthesis of a new family of 2-ethylidene-γ-unsaturated δ-amino esters via microwave activated Stille coupling

Article abstract of DOI:10.1007/s00726-009-0392-y

A simple approach to a new family of enantiomerically enriched polyunsaturated t-Boc-protected-δ-amino esters is described, via microwave promoted Stille coupling of (Z)-methyl-2-bromobutenoate with stannylated allylamines. The reaction conditions are mild and selective and disclose a simple way to 1-substituted butenoates of defined geometry.

Full text of DOI:10.1007/s00726-009-0392-y

Amino Acids (2010) 39:175–180
DOI 10.1007/s00726-009-0392-y
ORIGINAL ARTICLE
Synthesis of a new family of 2-ethylidene-c-unsaturated d-amino
esters via microwave activated Stille coupling
•
Gabriella Barozzino Consiglio Francesca Gaggini
•
•
Alessandro Mordini Gianna Reginato
Received: 24 July 2009 / Accepted: 11 November 2009 / Published online: 26 November 2009
Ó Springer-Verlag 2009
Abstract A simple approach to a new family of enanti-
omerically enriched polyunsaturated t-Boc-protected-d-
amino esters is described, via microwave promoted Stille
coupling of (Z)-methyl-2-bromobutenoate with stannylated
allylamines. The reaction conditions are mild and selective
and disclose a simple way to 1-substituted butenoates of
defined geometry.
enzyme inhibitors or antibiotics (Wipf et al. 2005; Garbe
et al. 2004; Tamamura et al. 2003; Yang et al. 1999).
Basically, in many cases, the isosteric replacement of a
dipeptide unit requires the preparation of a d-amino acid.
Very recently, this class of compounds has stimulated a
great interest since, as in the homologous b- and c-pep-
tides, conformational analysis of d-peptides revealed a
considerable potential of secondary structure formation
(Sengupta et al. 2006; Baldauf et al. 2006; Ananda et al.
2005; Baldauf et al. 2004). In particular, it has been shown
that the elongation of the backbone of the amino acid
constituents might enrich the field of folded structures and
for this reason d-peptides and d-amino acids are considered
a useful tool also in peptides and foldamers design and in
material sciences (Hill et al. 2001; Baldauf et al. 2005). For
these reasons, we envisaged unsaturated d-amino acids as
those reported in Fig. 1, bearing an ethylidenic conjugated
double bond, as an interesting class of new molecules that
could be exploited, for instance, as rigid spacers (Chen
et al. 1995; Georgsson et al. 2005; Douat-Casassus et al.
2007) and as Michael acceptor-binding sites for the design
of new enzyme inhibitors (Johnson et al. 2002; Steindl
et al. 2005). To the best of our knowledge, this class of
compounds has not been reported so far.
Keywords Amino acids ꢀ d-Amino esters ꢀ
Stille coupling ꢀ Acrylates ꢀ Microwave
Introduction
Peptidomimetics are valuable tools for conformational
investigations of bioactive peptides and proteins, and for
the development of peptide leads for pharmaceuticals
(Olson et al. 1993; Bursavich and Rich 2002; Hanessian
et al. 1997). In particular, the replacement of the peptide
amidic moiety with a chemically more resistant and in vivo
stable functionality is an important research area in
medicinal chemistry. In recent years, many non-hydroly-
sable mimetics have been developed and among the others
the relatively rigid tri-substituted (E)-alkene W [(E)–
C(R) = CH)] isosters have been used in a number of
Results and discussion
G. Barozzino Consiglio ꢀ F. Gaggini
Dipartimento di Chimica Organica ‘‘Ugo Schiff’’,
University of Florence, via della Lastruccia 13,
50019 Sesto Fiorentino (Firenze), Italy
Stemming from our interest in the use of naturally occur-
ring amino acids as building blocks for organic synthesis
(Reginato et al. 1999; 2005a, b; Ciardi et al. 2007; Regi-
nato et al. 2007) we were particularly attracted by the
possibility of designing a new and flexible method to
prepare orthogonally protected polyunsaturated-d-amino
esters such as 3 (Scheme 1). Key intermediates in our
A. Mordini ꢀ G. Reginato (&)
Istituto di Chimica dei Composti Organometallici
(ICCOM-CNR), Via Madonna del Piano 10,
50019 Sesto Fiorentino (Firenze), Italy
e-mail: gianna.reginato@iccom.cnr.it
123

176
G. Barozzino Consiglio et al.
Fig. 1 2-ethylidene-gamma-
unsaturated delta-amino esters
reactions have been achieved in solution as well as on solid
phase (Larhed et al. 2002; Maleczka et al. 2000). Thus, to
improve the yields and find milder reaction conditions, we
decided to investigate the effect of microwave irradiation
on our coupling process, and we were pleased to find that
under optimized conditions, namely at 80°C, with a 200 W
microwave source for 30 min in toluene, the reaction led to
NH2
COOH
R'
R
approach were chiral t-Boc-protected stannylallylamines 1,
which are easily accessible from amino acids using stan-
dard procedures developed in our laboratories (Reginato
et al. 1996). This compounds are versatile synthons, and
can be coupled with several electrophiles under Pd catal-
ysis (Stille conditions) to afford a wide range of c-substi-
tuted allylamines 4 (Reginato et al. 1996), or dienylamines
5 (Reginato et al. 2005a, b) (Scheme 1). This protocol is
mild, stereospecific, highly chemoselective and suitable for
chiral substrates (Reginato et al. 1997, 1998, 2000).
Accordingly, we envisaged that d-amino esters 3 could
be simply obtained using 2-bromo-alkenoates 2 as coupling
partners. Although 1-alkenyl halides are probably the most
widely used organic electrophiles in Stille coupling (Farina
et al. 1998), to our knowledge 2-bromoalkenoates have
never been employed before, thus, to select the best
experimental conditions, we decided to perform some
model reactions. We used stannylallylamine 1a and the
commercially available (E)-methyl-2-bromobutenoate 2a
as coupling partners (Scheme 2). The reaction was per-
formed in DMF with the commonly used Pd(PPh3)4 as
catalyst and the anticipated amino ester 3a was actually
recovered in 55% yield after 24 h at 80°C. The use of a
different catalyst such as Pd(AsPh3)4 (Reginato et al.
2005a, b) or a higher reaction temperature did not improve
the final yield.
1
quantitative conversion of stannane 1a. H NMR analysis
of the crude mixtures showed that no isomerization of the
double bonds occurred as exclusively the anticipated iso-
mer 3 having E, Z geometry was recovered and, after
workup and chromatography, isolated in 76% yield.
Substituted acrylate fragments are valuable building
blocks in organic chemistry participating in many asym-
metric transformations; however, few good routes exist to
prepare even simple 1-substituted species (Biswas et al.
2005; Mani et al. 2006). To exploit the generality of this
reaction, three different stannanes (6–8) were used and
the results obtained clearly show that the formation of
1-substituted butenoates (9–11) always occurs smoothly
(Table 1, entries 1–3). Finally, the same reaction condi-
tions were applied to a range of three different chiral non-
racemic stannylallylamines (1b–d) derived, respectively,
from phenylalanine, valine and leucine and the corre-
sponding d-amino esters (3a–d) were recovered in good
yields after purification (Table 1, entries 4–6).
It is known that the synthetic elaboration of dipeptides
can be challenging because of their sensitivity (Diaz and
Ferreira 2001). To verify if our reaction condition were
mild enough to be used also with such substrates, we
prepared dipeptido stannane 12 according to a reported
procedure (Reginato et al. 2005a, b). Once again the
expected coupling compound 13 (Scheme 3) was obtained
in good yield, after purification.
Over the past few years, the efficiency of microwave
flash heating in accelerating cross-coupling reactions has
been successfully demonstrated and very fast Stille
It is remarkable that compound 13 was obtained as a
1
single diastereoisomer as both H and 13C NMR spectra
showed no peaks due to epimerization at the d-carbon of
the amino ester moiety, thus confirming that no racemi-
zation of the starting material or isomerization of the
double bond occurred. Finally, to demonstrate that d-amino
esters 3 are capable of undergoing typical reactions asso-
ciated with peptide synthesis, t-Boc-aminoester 3a was
NHBoc
R
R
E
4
E
Pd(0)
COOMe
NHBoc
R'
NHBoc
Br
SnBu3
2
COOMe
R'
R
COOMe
AA
Pd(0)
3
1
NHBoc
NHBoc
Br
Br
2
R
COOMe
76%
SnBu3
Pd(0)
Pd[PPh3]4
Toluene
1a
3a
NHBoc
MW 80°C, 200 W, 30 min
R
R
5
Scheme 2 Optimized conditions for the coupling of stannylallyl-
amine 1 with methyl-2-bromo-butenoate
Scheme 1 Stille coupling of stannylallylamines with electrophiles
123

Synthesis of a new family of 2-ethylidene-c-unsaturated d-amino esters
Table 1 MW activated coupling of 2 with stannanes
177
or dipeptides to obtain a novel family of polyunsaturated
d-amino esters which were previously unreported.
Entry
Stannanea)
Product
Isolated yield
SnBu3
Experimental
COOMe
75%
1
General
6
9
COOMe
Stannanes 1a–d (Reginato et al. 1996) 8 (Dabdoub et al.
2001) and 12 (Reginato et al. 2005a, b) were synthesized
according to the published procedure. [Pd(PPh3)4] was
freshly prepared and stored under nitrogen atmosphere.
Unless otherwise stated, all reagents were purchased from
commercial suppliers and used without purification. All
air-sensitive reactions were performed using Schlenk
techniques. Tetrahydrofuran was freshly distilled immedi-
ately prior to use from sodium/benzophenone. Toluene and
DMSO were dried over sodium and stored under nitrogen
SnBu3
S
S
68%
72%
2
3
b)
7
SnBu3
COOMe
11
8
NHBoc
NHBoc
COOMe
SnBu3
66%
4
˚
over 4-A molecular sieves. Petroleum ether, unless speci-
fied, is 40–60°C boiling fraction. Reactions were moni-
tored by TLC on SiO2 plates, detection was made using a
KMnO4 basic solution. Flash column chromatography was
performed using glass columns (10–50 mm wide) and SiO2
(230–400 mesh). 1H-NMR spectra were recorded with 200
or 400 MHz spectrometers. 13C-NMR spectra were recor-
ded at 50.3 or 100.6 MHz. Chemical shifts were deter-
mined relative to the residual solvent peak (CHCl3, d
7.26 ppm for 1H-NMR; CHCl3, d 77.0 ppm for 13C-NMR).
Coupling constants (J) were reported in Hertz. Polarimetric
measurements were performed in CHCl3 solution at
k = 589 nm, the temperature was specified case by case.
The mass spectra were recorded under electronic impact
conditions (EIMS) at 70 eV ionizing potential.
3b
1b
NHBoc
NHBoc
COOMe
COOMe
SnBu3
SnBu3
81%
70%
5
6
1c
3c
NHBoc
NHBoc
3d
1d
a
Reaction conditions: toluene, [Pd(PPh3)4] cat; MW, 80°C, 200 W,
30 min
b
Reaction time: 50 min
All microwave irradiation experiments were carried out
using a CEM Focused MicrowaveTM Synthesis System,
Model Discover microwave oven equipped with an infrared
temperature control system. All microwave reactions were
performed in sealed 10 mL microwave vials.

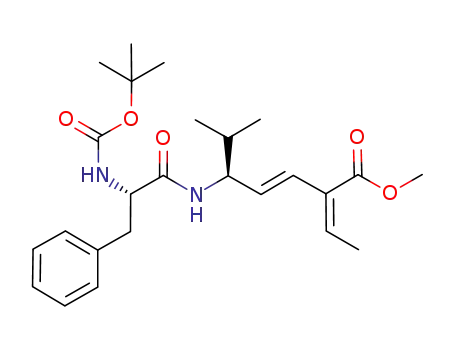

deprotected with TFA and the free amine 14 was
coupled with t-Boc-phenylalanine using DEPC/DIEA
(diethylcyano-phosphonate/diisopropylethylamine) proce-
dure. After purification, the expected dipeptide 15 was
indeed obtained in 79% yield (Scheme 4).
General procedure for cross-coupling reaction
with methyl 2-bromo-but-2-enoic carboxylate
In summary, we have shown that organostannanes can
be coupled with the commercially available (E)-methyl-2-
bromobutenoate in mild conditions under MW activation.
The procedure discloses an easy access to (Z)-1-substituted
butenoates and has been applied to chiral stannylated
allylamines derived from naturally occurring amino acids
Methyl-2-bromo-but-2-enoic carboxylate 2 (2 eq) was
dissolved in toluene together with a catalytic amount of
Pd(PPh3)4 (0.05 eq). Stannane 1a–d (1 eq) was then added
and the mixture heated to 80°C by microwave irradiation at
Scheme 3 Coupling of
dipeptido stannane 12 with
methyl-2-bromo-butenoate
O
O
BocHN
COOMe
BocHN
2a
MW
N
N
SnBu3
H
H
13
12
80°C 200W
45'
69%
123

178
G. Barozzino Consiglio et al.
Scheme 4 Deprotection and
coupling with Boc-PHE-OH of
delta-amino ester
O
COOMe
Boc-PHE-OH
BocHN
COOMe
H2N
3a
N
H
TFA
DIA
DEPC
14
15
79%
200 W (value previously settled on the Microwave oven)
for 30 min or 1 h depending on the substrate. The solution
was diluted with ether and treated with a NaOH (1 M)
solution. The mixture was filtered, extracted with ether and
the organic phase washed with brine and dried. The crude
product obtained after evaporation was purified by flash
chromatography.
7.90; N, 4.01. Calc. for C20H27NO4: C, 69.54; H, 7.88; N,
4.05 [a]2D3 = -5.1 (c = 0.84, CHCl3).
(5S)-(E)-5-tert-butoxycarbonylamino-2-eth-(Z)-ylidene-7-
methyl-oct-3-enoic acid methyl ester 3c
Methyl-2-bromo-but-2-enoic carboxylate
2
(133 mg,
0.7 mmol) was dissolved into toluene (2 mL) together with
Pd(PPh3)4 (30 mg, 0.025 mmol) and stannane 1c (250 mg,
0.5 mmol). The mixture was heated to 80°C by microwave
irradiation for 45 min. After work-up and purification
(petroleum ether–AcOEt = 5:1), 126 mg of pure 3c were
obtained as a pale yellow oil (yield 81%). 1H NMR
(200 MHz, CDCl3): d 6.81 (q, 1H, J = 7.4 Hz); 6.29–6.22
(E)-5-tert-Butoxycarbonylamino-2-eth-(Z)-ylidene-
pent-3-enoic acid methyl ester 3a
Methyl-2-bromo-but-2-enoic carboxylate
2
(70 mg,
0.4 mmol) was dissolved into toluene (1 mL) together with
Pd(PPh3)4 (23 mg, 0.02 mmol) and stannane 1a (115 mg,
0.3 mmol). The mixture was heated to 80°C by microwave
irradiation for 30 min. After work-up and purification
(petroleum ether–AcOEt = 4:1), 58 mg of pure 3a were
obtained as a colorless oil (yield 76%). 1H NMR (200 MHz,
CDCl3): d 6.82 (q, 1H, J = 7.3 Hz); 6.30–6.22 (dapp, 1H,
JAB = 16.4 Hz); 6.09–5.98 (dtapp, 1H, JAB = 16.4 Hz,
J = 5.9 Hz); 4.63 (bs, 1H); 3.88–3.80 (m, 2H); 3.74 (s, 3H);
1.85 (d, 3H, J = 7.3 Hz); 1.42 (s, 9H). 13C NMR
(50.3 MHz, CDCl3) d: 166.7; 155.7; 148.1; 132.2; 128.9;
122.5; 79.9; 51.9; 42.5; 28.2; 14.6. MS m/z 199 (29);
57(100). Elemental analysis: found: C, 61.22; H, 8.26; N,
5.51. Calc. for C13H21NO4: C, 61.16; H, 8.29; N 5.49.
(dapp, 1H, JAB = 15.9 Hz); 6.01–5.90 (ddapp, 1H, JAB
=
15.9 Hz, J = 6.2 Hz); 4.42 (bs, 1H); 4.26–4.07 (m, 1H);
3.74 (s, 3H); 1.89(d, 3H, J = 7.4 Hz); 1.79–1.52 (m, 2H);
1.44–1.33 (m, 1H); 1.43 (s, 9H); 0.92 (d, 3H, J = 6.6 Hz);
0.91 (d, 3H, J = 6.6 Hz). 13C NMR (50.3 MHz, CDCl3) d:
167.5; 155.3; 138.2; 136.2; 130.3; 121.1; 79.3; 51.6; 51.4;
44.8; 28.4; 24.8; 22.6; 22.5; 14.7. MS m/z 198 (6); 57(100).
Elemental analysis: found: C, 65.60; H, 9.41; N, 4.37. Calc.
for C17H29NO4: C, 65.57; H, 9.39; N, 4.50. [a]2D3 = -20.8
(c = 0.77, CHCl3).
(5S)-(E)-tert-butoxycarbonylamino-2-eth-(Z)-ylidene-6-
methyl-hept-3-enoic acid methyl ester 3d
(5S)-(E)-5-tert-butoxycarbonylamino-2-eth-(Z)-ylidene-6-
phenyl-hex-3-enoic acid methyl ester 3b
Methyl-2-bromo-but-2-enoic carboxylate
2
(186 mg,
1.0 mmol) was dissolved into toluene (2 mL) together with
Pd(PPh3)4 (35 mg, 0.03 mmol) and stannane 1d (352 mg,
0.7 mmol). The mixture was heated to 80°C by microwave
irradiation for 45 min. After work-up and purification
(petroleum ether–AcOEt = 6:1), 144 mg of pure 3d were
obtained as a pale yellow oil (yield 70%). 1H NMR
(200 MHz, CDCl3): d 6.80 (q, 1H, J = 7.4 Hz); 6.27–
6.19 (dapp, 1H, JAB = 16.0 Hz); 6.01–5.90 (ddapp, 1H,
JAB = 16.0 Hz, J = 6.4 Hz); 4.53 (bs, 1H); 4.11–3.94
(m, 1H); 3.73 (s, 3H); 1.88(d, 3H, J = 7.4 Hz); 1.87–1.70
(m, 1H); 1.44 (s, 9H); 0.93 (d, 3H, J = 2.19 Hz); 0.89
(d, 3H, J = 2.19 Hz). 13C NMR (50.3 MHz, CDCl3) d:
167.5; 155.5; 138.1; 134.3; 130.4; 122.4; 79.3; 58.3; 51.6;
32.7; 28.4; 18.7; 18.3; 14.6. MS m/z 198 (38); 57(100).
Elemental analysis: found: C, 64.57; H, 9.11; N, 4.69. Calc.
for C16H27NO4: C, 64.62; H, 9.15; N, 4.71. [a]2D3 = -9.0
(c = 1.25, CHCl3).
Methyl-2-bromo-but-2-enoic carboxylate
2
(270 mg,
1.5 mmol) was dissolved into toluene (3 mL) together with
Pd(PPh3)4 (60 mg, 0.05 mmol) and stannane 1b (527 mg,
1.0 mmol). The mixture was heated to 80°C by microwave
irradiation for 45 min. After work-up and purification
(petroleum ether–AcOEt = 5:1), 228 mg of pure 3b were
obtained as a pale yellow oil (yield 66%). 1H NMR
(200 MHz, CDCl3): d 7.41–7.10 (m, 5H); 6.78 (q, 1H,
J = 7.4 Hz); 6.21–6.13 (dapp, 1H, JAB = 16.0 Hz); 6.07–
5.96 (ddapp, 1H, JAB = 16.0 Hz, J = 5.4 Hz); 4.61–4.38
(m, 2H); 3.72 (s, 3H); 2.88–2.84 (m, 2H); 1.81(d, 3H,
J = 7.4 Hz); 1.40 (s, 9H). 13C NMR (50.3 MHz, CDCl3)
d: 166.4; 155.1; 138.5; 137.3; 134.8; 130.1; 129.6; 128.2;
126.4; 122.0; 79.4; 53.9; 51.6; 41.7; 28.3; 14.6. MS m/z
289 (3); 57(100). Elemental analysis: found: C, 69.57; H,
123

Synthesis of a new family of 2-ethylidene-c-unsaturated d-amino esters
(Z)-2-phenyl-but-2-enoic acid methyl ester 9
179
0.2 mmol). The mixture was heated to 80°C by microwave
irradiation for 45 min. After work-up and purification
(petroleum ether–AcOEt = 6:1) 63 mg of pure 13 were
Methyl-2-bromo-but-2-enoic carboxylate
2
(85 mg,
1
0.5 mmol) was dissolved into toluene (1 mL) together with
Pd(PPh3)4 (21 mg, 0.02 mmol) and stannane 6 (110 mg,
0.3 mmol). The mixture was heated to 80°C by microwave
irradiation for 30 min. After work-up and purification
(petroleum ether–AcOEt = 5:1) 41 mg of pure 9 were
obtained as a colorless oil (yield 75%). Spectroscopic data
were in agreement with those reported in the literature
(Mani et al. 2006).
obtained as a pale yellow oil (69%). H NMR (400 MHz,
CDCl3): d 7.22–7.12 (m, 5H); 6.73 (q, 1H, J = 7.3 Hz);
6.42 (bs, 1H); 6.12 (d, 1H, JAB = 16.0 Hz); 6.14–6.10
(ddapp, 1H, JAB = 16.0 Hz, J = 6.8 Hz); 5.03–4.90 (m,
1H); 4.20–3.90 (m, 1H); 4.32–4.15 (m, 1H); 3.66 (s, 3H);
3.01-2.96 (m, 2H); 1.78 (d, 3H, J = 7.2 Hz); 1.71–1.63 (m,
1H); 1.33 (s, 9H); 0.82 (d, 3H, J = 6.5 Hz); 0.91 (d, 3H,
J = 6.5 Hz). 13C NMR (50.3 MHz, CDCl3) d: 170.3;
166.3; 155.4; 138.5; 136.7; 134.8; 132.9; 129.3; 128.6;
123.4; 80.2; 56.9; 56.3; 51.7; 38.2; 32.4; 28.3; 18.7; 18.2;
14.7. MS m/z 388 (2); 91 (76), 57(100). Elemental analysis:
found: C, 67.58; H, 8.21; N, 6.27. Calc. for C25H36N2O5:
C, 67.54; H, 8.16; N, 6.30. [a]2D3 = -13.0 (c = 1.25,
CHCl3).
(E)-2-thiophen-2-yl-but-2-enoic acid methyl ester 10
Methyl-2-bromo-but-2-enoic carboxylate
2
(70 mg,
0.4 mmol) was dissolved into toluene (1 mL) together with
Pd(PPh3)4 (25 mg, 0.02 mmol) and stannane 7 (150 mg,
0.4 mmol). The mixture was heated to 80°C by microwave
irradiation for 50 min. After work-up and purification
(petroleum ether–AcOEt = 5:1) 51 mg of pure 10 was
obtained as a pale yellow oil (yield 68%). 1H NMR
(200 MHz, CDCl3): d 7.37 (d, 1H, J = 5.1 Hz); 7.23 (q,
1H, J = 7.3 Hz); 7.07–7.03 (m, 1H); 6.97 (d, 1H,
J = 3.7 Hz); 3.77 (s, 3H); 1.91 (d, 3H, J = 7.3 Hz). 13C
NMR (50.3 MHz, CDCl3) d: 167.1; 142.0; 135.2; 128.3;
127.8; 126.1; 126.3; 52.2; 15.9.. MS m/z 182 (90); 123
(100). Elemental analysis: found: C, 59.37; H, 5.57. Calc.
for C9H10O2S, C, 59.32; H, 5.53.
(E)-5-[(2S)-2-tert-butoxycarbonylamino-3-phenyl-
propionylamino)]-2-eth-(Z)-ylidene-pent-3-enoic acid
methyl ester 15
Amino ester 3a (50 mg, 0.22 mmol) was dissolved into
CH2Cl2 (2 mL) and, after cooling at -10°C, reacted with
TFA (0.5 mL). After 15 min, the solvent was evaporated to
give the deprotected amino acid 14 which was immediately
reacted with Boc-Phe-OH (58 mg, 022 mmol) and diiso-
propylamine (67 mg, 0.7 mmol) and diethylcyanophosph-
onate (54 mg, 0.33 mmol). The reaction mixture was stirred
overnight, then diluted with ethyl acetate (5 mL) and an
NH4Cl saturated solution (5 mL). After extraction, evapo-
ration and purification (petroleum ether–AcOEt = 5:1)
76 mg of 15 were obtained (yield 79%). 1H NMR (200 MHz,
CDCl3): d 7.30–7.26 (m, 2H); 7.23–7.19 (m, 3H); 6.82
(q, 1H, J = 7.4 Hz); 6.21–6.17 (dapp, 1H, JAB = 16.0 Hz);
5.98–5.89 (m, 1H ? 1H); 5.04 (bs, 1H); 4.35–4.27 (m, 1H);
3.92–3.88 (m, 2H); 3.74 (s, 3H); 3.10–3.01 (m, 2H); 1.86
(d, 3H, J = 7.0 Hz); 1.39 (m, 9H). 13C NMR (50.3 MHz,
CDCl3) d: 170.8; 167.2; 155.3; 138.9; 136.6; 130.2; 129.8;
129.2; 128.6; 126.9; 123.9; 80.2; 56.1; 51.8; 41.8; 38.7; 28.3;
14.8. MS m/z 402 (1); 346 (3); 57(100). Elemental analysis:
found: C, 65.70; H, 7.49; N, 6.98. Calc. for C22H30N2O5: C,
65.65; H, 7.51; N, 6.96. [a]2D3 = -0.32 (c = 1.05, CHCl3).
(E)-2-ethylidene-dec-3-ynoic acid methyl ester 11
Methyl-2-bromo-but-2-enoic carboxylate
2
(70 mg,
0.4 mmol) was dissolved into toluene (1 mL) together with
Pd(PPh3)4 (25 mg, 0.02 mmol) and stannane 8 (80 mg,
0.2 mmol). The mixture was heated to 80°C by microwave
irradiation for 30 min. After work-up and purification
(petroleum ether–AcOEt = 30:1) 31 mg of pure 11 were
obtained as a pale yellow oil (yield 72%). 1H NMR
(200 MHz, CDCl3): d 7.22 (q, 1H, J = 7.1 Hz); 3.77
(s, 3H,); 2.42 (t, 2H, J = 6.7 Hz); 2.00 (d, 3H,
J = 7.1 Hz); 1.34–1.17 (m, 8 H); 0.92 (t, 5H, J = 6.2 Hz).
13C NMR (50.3 MHz, CDCl3) d: 166.1; 147.3; 130.9;
118.2; 98.0; 51.2; 31.3; 29.4; 28.7; 22.7; 19.7; 16.6; 14.1.
Elemental analysis: found: C, 75.02; H, 9.91. Calc. for
C13H20O2, C, 74.96; H, 9.68.
(5S)-(E)-[(2S)-2-tert-butoxycarbonylamino-3-phenyl-
propionylamino)]-2-eth-(Z)-ylidene-6-methyl-hept-3-enoic
acid methyl ester 13
References
Ananda K, Vasudev PG, Sengupta A, Raja KMP, Shamala N,
P (2005) Polypeptide helices in hybrid peptide
Balaram
sequences. J Am Chem Soc 127:16668
Methyl-2-bromo-but-2-enoic carboxylate
2
0.4 mmol) was dissolved into toluene (1 mL) together with
(74 mg,
Baldauf C, Gunther R, Hofmann H-J (2004) d-Peptides and d-amino
acids as tools for peptide structure design: a theoretical study.
J Org Chem 69:6214
Pd(PPh3)4 (35 mg, 0.03 mmol) and stannane 12 (100 mg,
123

180
G. Barozzino Consiglio et al.
Baldauf C, Gunther R, Hofmann H-J (2005) Control of helix
formation in vinylogous c-peptides by (E)- and (Z)-double
bonds: a way to ion channels and monomolecular nanotubes.
J Org Chem 70:5351
Baldauf C, Gunther R, Hofmann H-J (2006) Helix formation in
a,c- and b,c-hybrid peptides: theoretical insights into mimicry of
a- and b-peptides. J Org Chem 71:1200
Biswas K, Borner C, Gimeno J, Goldsmith PJ, Ramazzotti D, So
ALK, Woodwars S (2005) Expedient synthesis of b, b-disubsti-
tuted a-methylenepropionates. Tetrahedron 61:1433
Bursavich MG, Rich DH (2002) Designing non-peptide peptidomi-
metics in the 21st century: inhibitors targeting conformational
ensembles. J Med Chem 45:541
Chen I, Trilles RV, Tilley JW (1995) Asymmetric synthesis of a novel
phenylogous amino acid mimicking an extended dipeptide.
Tetrahedon Lett 36:8715
Ciardi C, Romerosa A, Serrano-Ruiz M, Gonsalvi L, Peruzzini M,
Reginato G (2007) Synthesis of new enantiomerically enriched
b-hydroxy-c-amino phosphines by selective transformation of
naturally occurring amino acids. J Org Chem 72:7787
Dabdoub MJ, Dabdoub VB, Baroni ACM (2001) Hydrozirconation
of stannylacetylenes: a novel and highly efficient synthesis of 1,
1-diiodo-, 1, 1-dibromo- and mixed (Z)- or (E)-1-iodo-1-bromo-
1-alkenes using 1, 1-hetero-bimetallic reagents. J Am Chem Soc
123:9694
Mani NS, Mapes CM, Wu J, Deng X, Jones TK (2006) Stereoselec-
tive synthesis of Z-a-aryl-a, b-unsaturated esters. J Org Chem
71:5039
Olson GL, Bolin DR, Bonner MP, Bos M, Cook CM, Fry DC, Graves
BJ, Hatada M, Hill DE, Kahn M, Madison VS, Rusiecki VK,
Sarabu R, Sepinwall S, Vincent GP, Voss ME (1993) Concepts
and progress in the development of peptide mimetics. J Med
Chem 36:3039
Reginato G, Mordini A, Messina F, Degl’Innocenti A, Poli G (1996)
A new stereoselective synthesis of chiral c-functionalized (E)-
allylic amines. Tetrahedron 52:10985
Reginato G, Mordini A, Caracciolo M (1997) Synthetic elaboration of
the side chain of (R)-2, 2-dimethyl-3-(tert-butoxycarbonyl)-4-
ethynyloxazolidine: a new regio- and stereoselective strategy to
d-functionalized b-amino alcohols. J Org Chem 62:6187
Reginato G, Mordini A, Degl’Innocenti A, Manganiello S, Capper-
ucci A, Poli G (1998) Stannylcupration of chiral c-amino
acetylenic esters: stereocontrolled synthesis of 3-tributylstannyl
c-amino (E)-alkenoates as precursors of 4-stannylated pyrroli-
nones. Tetrahedron 54:10227
Reginato G, Mordini A, Valacchi M, Grandini E (1999) Silylcupra-
tion of (R)-2, 2-dimethyl-3-(tert-butoxycarbonyl)-4-ethynylox-
azolidine:
a stereoselective approach to the synthesis of
c-silylated saturated and unsaturated a-amino acids. J Org Chem
64:9211
Diaz LC, Ferreira ET (2001) Allyltrichlorostannane additions to
chiral dipeptide aldehydes. Tetrahedron Lett 42:7159
Douat-Casassus C, Marchand-Geneste N, Diez E, Gervois N, Jotereau
F, Quideau S (2007) Synthetic anticancer vaccine candidates:
rational design of antigenic peptide mimetics that activate tumor-
specific T-cells. J Med Chem 50:1598
Reginato G, Mordini A, Verrucci M, DeglInnocenti A, Capperucci A
(2000) A new approach to non racemic saturated and unsaturated
5-aminoalkyl methyl ketones. Tetrahedron Asymmetr 11:3759
Reginato G, Gaggini F, Mordini A, Valacchi M (2005a) Stereoselec-
tive synthesis of dienylamines: from amino acids to E-alkene
dipeptide isosters. Tetrahedron 61:6791
Farina V, Krishnamurthy V, Scott WJ (1998) The Stille reaction.
Wiley, New York
Garbe D, Sieber SA, Bandur NG, Knert U, Marahiel MA (2004)
Enzymatic cyclisation of peptidomimetics with incorporated (E)-
alkene dipeptide isosteres ChemBioChem 5:1000
Georgsson J, Skold C, Plouffe B, Linderberg G, Botros M, Larhed M,
Nyberg F, Gallo-Payet N, Gogoll A, Karlen A, Hallberg A
(2005) Angiotensin II pseudopeptides containing 1, 3, 5-trisubsti-
tuted benzene scaffolds with high AT2 receptor affinity. J Med
Chem 48:6620
Reginato G, Meffre P, Gaggini F (2005b) Ethynylglycine synthon
from Garner’s aldehyde: a useful precursor for the synthesis of
non-natural amino acids. Amino Acids 29:81
Reginato G, DiCredico B, Andreotti D, Mingardi A, Paio A, Donati D
(2007) A new versatile and diastereoselective synthesis of
polysubstituted 2-oxopiperazines from naturally occurring amino
acids. Tetrahedon Asymmetry 18:2680
Sengupta A, Aranvida S, Shamala N, Raja KMP, Balaram P (2006)
Structural studies of model peptides containing b-, c- and
d-amino acids. Org Biomol Chem 4:4214
Hanessian S, McNaughton-Smith G, Lombart H-G, Lubell WD
(1997) Design and synthesis of conformationally constrained
amino acids as versatile scaffolds and peptide mimetics.
Tetrahedron 53:12789
Steindl T, Laggner C, Langer TJ (2005) Human rhinovirus 3C
protease: generation of pharmacophore models for peptidic and
nonpeptidic inhibitors and their application in virtual screening.
Chem Inf Model 45:716
Hill DJ, Mio MJ, Prince RB, Hughes TS, Moore JS (2001) A field
guide to foldamers. Chem Rev 101:3893
Tamamura H, Koh Y, Ueda S, Sasaki Y, Yamasaki T, Aoki M, Maeda
K, Watai Y, Arikuni H, Otaka A, Mitsuya H, Fujii N (2003)
Reduction of peptide character of HIV protease inhibitors that
exhibit nanomolar potency against multidrug resistant HIV-1
strains. J Med Chem 46:1764
Wipf P, Xiao J, Jiang J, Belikova NA, Tyurin VA, Fink MP, Kagan
VE (2005) Mitochondrial targeting of selective electron scav-
engers: synthesis and biological analysis of hemigramicidin—
TEMPO conjugates. J Am Chem Soc 127:12469
Johnson TO, Hua Y, Luu HT, Brown EL, Chan F, Chu SS, Dragovich
PS, Eastman BW, Ferre RA, Fuhrman SA, Hendrickson TF,
Maldonado FC DA, Metthews III, Patick AK, Reich SH,
Skalitzky DJ, Worland ST, Yang M, Zalman LS (2002)
Structure-based design of a parallel synthetic array directed
toward the discovery of irreversible inhibitors of human
rhinovirus 3C protease. J Med Chem 45:2016
Larhed M, Moberg C, Hallberg A (2002) Microwave-accelerated
homogeneous catalysis in organic chemistry. Acc Chem Res
35:717
Maleczka RE, Lavis JM, Clark DH, Gallagher WP (2000) Micro-
wave-assisted one-pot hydrostannylation/Stille couplings. Org
Lett 2:3655
Yang H, Sheng XC, Harrington EM, Ackermann K, Garcia AM,
Lewis MD (1999) Synthesis of sulfur-containing olefinic peptide
mimetic farnesyl transferase inhibitors using the Nozaki–
Hiyama–Kishi reaction and cuprate SN20 displacements. J Org
Chem 64:242
123
