COPPER-MEDIATED OXIDATIVE CYCLIZATION OF
HETEROCYCLICALLY SUBSTITUTED ALDIMINES
Daniela Pufky-Heinrich,a Michael Ciesielski,b Loubna Gharnati,b Olaf
Walter,b and Manfred Doering*b
a Institute of Technical Chemistry, University of Stuttgart, 70550 Stuttgart,
Germany, daniela.pufky@itc.uni-stuttgart.de
b* Karlsruhe Institute of Technology (KIT), Campus North, Institute of Technical
Chemistry (ITC-CPV), P.O. Box 3640, 76021 Karlsruhe, Germany, E-mail:
manfred.doering@kit.edu
Abstract – Copper-mediated cascade reactions were performed with
heterocyclically substituted aldimines. These oxidative heterocyclizations include
sequences of oxidations and cycloadditions or nucleophilic additions which take
place in the coordination sphere of copper ions. When two heterocyclically
substituted aldimines were reacted in the presence of copper (II) salts under air,
pyridine derivatives were produced. In one case a 1,4-diazatricyclo-[3.2.1.02,7]oct-
3-ene was also formed. The basic structure of this new tetracyclic compound
contains five new chirale carbon atoms. This cage-like structure has been revealed
by X-ray crystallography. The synthesis of 2H-pyrroles by copper-assisted
conversions of the aldimines with dimethylacetylene carboxylate or quinones was
also described.
INTRODUCTION
Until recently, copper-mediated cyclization were rather seldom used for nitrogen-carbon bonding in the
chemistry of heterocycles. Now, they are applied more frequently,1 as they allow for the formation of ring
structures under mild conditions, in the presence of functional groups, and in a stereoselective manner. A
milestone in the development of this type of reaction was the discovery of a highly efficient synthesis
method of 1,2,3-triazoles by Sharpless2 and Meldal3 in 2002. This method based on a copper-catalyzed
[3+2] cycloaddition has been applied widely.4 Meanwhile, similar ring closure reactions have been

1812
HETEROCYCLES, Vol. 81, No. 8, 2010
reported for the production of substituted pyrroles,5 imidazoles,6 and saturated five-membered
heterocycles.7, 8 In addition, some copper-mediated aza-Diels-Alder reactions9, 10 have become known,
which allow for the production of nitrogen-containing six-membered rings. The long known copper-
catalyzed Ullmann reaction is increasingly applied for intramolecular conversion1 and plays an important
role in the synthesis of nitrogen-containing ring structures. However, only a few cases of copper-mediated
heterocyclization with ring formation by oxidative nitrogen-carbon bonding have been reported so far.
One of the very few examples is the oxidative cyclization of semicarbazones11 and syntheses of nitrogen-
bridged heterocycles developed by Junjappa et al.12 and our working group.13-18
The present report will deal with novel reactions which consist of various sequences of oxidation and
cycloaddition steps or nucleophilic additions that entirely take place in the coordination sphere of the
copper. These reactions show the performance of copper-mediated heterocyclizations and largely extend
the application of this reaction principle.
For the reactions mentioned here (scheme 1), heterocyclically substituted aldimines (1) are applied as
initial substances. Depending on their structure, their reaction partner, and the conditions chosen, they are
converted either into pyridine derivatives (2), the new heterocycle (3), or into the 2H-pyrroles (4), (5),
and (6).
R2
R3
R1
O
R2
N
R1
HO
R2
R3
O
N
R4
R1
R4
R2
R1
N
Path A
Path C
O
Me
OH
R3 R2
H
N
O
Me
2
1
4
5/6
R1, R2 = heteroaryl
R4 = H, Me
R1, R2 = heteroaryl
R3 = Ar, CH2-R4
R4 = H, Me
R1, R2 = heteroaryl
R3 = H, Me, Ar
Path B
R2
R2
N
R1
R1
R4
N
R4
3
R1 = 1-methylimidazol-2-yl
R2 = 2-pyridyl
R4 = Me
Scheme 1.
General procedure for copper-mediated oxidative heterocyclization of aldimines (1)

HETEROCYCLES, Vol. 81, No. 8, 2010
1813
RESULTS AND DISCUSSION
In the presence of 4 equivalents of copper(II) chloride per molecule imine and NEt3, the Schiff bases (1a-
1e) react according to path A (scheme 1), with the terpyridines (2a), (2c-2e) or the triple substituted
pyridine derivative (2b) being formed. First, the copper(I) complexes of the heterocycles are generated.
The products are released by the addition of aqueous ammonia solution, with the copper ions being
removed as water-soluble tetraamine complexes. The heterocycles (2a-2e) and the corresponding isolated
yields are summarized in Table 1.
Surprisingly, the reaction of (1d) produced the compound (3) and the pyridine derivative (2d) (scheme 1,
path B).
The compound (3) has a cage-like structure (Figure 1). To the best of our knowledge, this is the first
report about it. This polycycle contains a distorted tetrahydropyridine unit that is bridged by a C-N bond
via C7, C8, and C10 as well as an aciridine, pyrrolidine, and a tetrahydropyrazine ring each. Based on the
bonding lengths, the C-N double bond was found at N3 and C6 (1.281 Å). The C-N single bonds have
typical values of sp3-hybridized carbon atoms (1.46-1.51 Å).19 The basic structure of (3) contains five
chiral carbon atoms (C7, C8, C9, C10 and C11). This corresponds to 16 different stereoisomers, but
several of them cannot exist owing to the rigid fused-ring system. According to the NMR studies of the
reaction solution, the isolated stereoisomer (3) is the main diastereomer (S,S,S,S,S and R,R,R,R,R). Only
traces of another stereoisomer were detected.
Scheme 2 shows a reaction cascade that explains both the formation of the pyridine derivatives (2) and
that of the compound (3). Accordingly, the imine is coordinated with copper (II) in the first step of the
conversion reaction. Then, it oxidizes to 2-aza-1,3-diene by a two-electron oxidation. Two molecules of
the latter react with each other in a [4+2] cycloadditon (aza-Diels-Alder reaction). This part of the
reaction sequence has already been described: As reported by Wulff et al.,20 2-aza-1,3 diene is the 4π
component reacting with the C-C double bond of a second molecule acting as dienophile.
Figure1. X-Ray structure of 2,6-dimethyl-5,8-bis[1-methyl-1H-imidazole-2yl]-3,7-di-pyridine-2-yl-1,4
diazatricyclo[3.2.1.02,7]oct-3ene (3), (hydrogen atoms in the periphery cycles are omitted)

1814
HETEROCYCLES, Vol. 81, No. 8, 2010
Table 1. Synthesis of pyridine derivatives (2) by the oxidative [4+2] cycloaddition of aldimines (1)
R2
R2
R4
R1
R4
R2
1) 6 Cu2+, NEt3, EtOH, 1h, 80 °C
R1
N
2 x
R4
H
N
2) 10% NH3-solution
1
2
Entry
Substrate (1)
R1
R2
R4
Yield (%) of (2)
Me
N
1
1a
H
H
2a (53)
2b (32)
N
N
Me
N
Me
N
2
3
1b
1c
N
N
Ph
Ph
Ph
N
N
H
2c (46)
N
Me
N
N
4
5
1d
1e
CH3
H
2d (12), 3 (10)
2e (40)
N
N
N
In the further course of the reaction cascade, the tetrahydropyridine derivative (A) formed is oxidized to
dihydropyridine (B) by two copper(II) ions. From the dihydropyridine (B), an imino fragment is
eliminated and the pyridine (2) ring formed. However, the dihydropyridine generated by the conversion
of (1d) may undergo another reaction instead. By a renewed [4+2] cycloaddition, compound (3) may be
formed: This means that the heterocycles (2) and (3) are formed via the same intermediate. Hence, 3
equivalents of copper(II) chloride per molecule (1) are required. Because two molecules of (1) are

HETEROCYCLES, Vol. 81, No. 8, 2010
1815
converted during the reaction cascade a total amount of 6 equivalents copper(II) is needed to form one
equivalent of (2) and (3), respectively. According to our findings, the yields are increased significantly,
when a slight copper excess is used21. The excess reactant largely prevents the formation of imidazo[1,5-
a]-pyridines which would otherwise be formed as by-products.
R2
N
R1
R4
{HN=CH-R1}
-
R4 R2
R2
R2
R2
N
2
N
2 Cu2+, 2 NEt3
R1
[4+2]
R4
R1
N
R1
R4
R2
R1
R4
R2
cycloadditon
-2 Cu+, -2HNEt3
R4
R4
N
N
N
B
R2
R1
R1
R4
R2
A
[4+2]
cycloadditon
4 Cu2+,
4 NEt3
N
-4 Cu+,
- 4HNEt3
R1
N
R
R1
R4
4
R2
R1
N
2x
R4
3
R2
1
Scheme 2.
Mechanism of the copper-mediated formation of (2) and (3)
Copper ions may activate the Schiff bases (1) for further oxidative heterocyclizations. The aldimines (1a),
(1b), and (1f) react with dimethyl-acetylenedicarboxylate, 1,4-benzoquinone or 1,4-naphthoquinone to
substituted 2H-pyrroles (scheme 1, path C). A plausible mechanism of these heterocyclizations is
represented in scheme 3. Accordingly, the aldimines (1) are first deprotonated with NEt3.
The resulting anions attack the carbon atoms of the electron-poor double or triple bonds. Another
nucleophilic addition takes place, this time at the carbon atom of the imino group.
The thus formed intermediate cyclization products22 are oxidized to the products (4), (5), and (6) by
copper(II) ions in two single-electron oxidation steps. This reaction is accompanied by a rearrangement.
Contrary to the synthesis mentioned above, this type of reaction first forms the ring structure, while the
oxidation process takes place subsequently. In the absence of oxygen, 2 equivalents of a copper(II) salt
per mole of the Schiff base are required. In the presence of oxygen, this cyclization may also take place as

1816
HETEROCYCLES, Vol. 81, No. 8, 2010
a copper-catalyzed process, because the copper(I) ions formed are reoxidized. The isolated yields of (4),
(5), and (6) are listed in Table 2.
R2
R3
R1
MeO2C
2 NEt3, 2 Cu2+
-2 HNEt3
N
R2
R3
CO2Me
HN
R1
CO2Me
CO2Me
C2(CO2Me)2
4
R1
R3 R2
N
NEt3
R1
N
HNEt3
a)
R3 R2
HNEt3
-NEt3
H
O
O
R2
R3
R2
R3
OH
R1, R2 = MeIm, Py, Ph
R3 = Me, Ph, Py
N
R1
HO
OH
2 NEt3, 2 Cu2+
-2 HNEt3
HN
R1
HO
5, 6
Synthesis of the compound (4), (5), and (6), a) MeOH, 1.5 h, 0 °C - 80 °C
Scheme 3.
Copper specificity of all reactions mentioned was demonstrated by experiments performed without metal
salt or in the presence of redox-stable zinc(II) chloride with the remaining conditions being identical. No
heterocycles were formed. However, the presence of copper ions is no sufficient requirement for the
formation of cyclization products. The complexation behavior of the imine (1) also is of significance.
Therefore, these reactions have only been observed if both R1 and R2 are heteroaryl substituents. Only
those Schiff bases react, which may bind to copper as tridental chelate ligands. The imines (1a), (1b), and
(1f) with their heterocyclic substituents R1 and R2 fulfill this requirement and are suitable substrates.
In summary, we have developed a novel heterocyclization route for the formation of nitrogen-containing
heterocycles. Thus, the oxidation and cyclization steps may be repeat in a cascade-like manner and take
place in the coordination sphere of copper ions. They are suited for the formation of nitrogen-containing,
five-membered and six-membered rings as well as for the setup of cage-like structures. Furthermore,
these substances might serve as potential ligands for metal complexes.

HETEROCYCLES, Vol. 81, No. 8, 2010
1817
Table 2. Copper-assisted formation of 2H-pyrrols from aldimines (1)
O
R2
R2
R3
R3
R1
N
OH
OH
R2
R3
R1
N
N
MeO2C
C
C CO2Me
N
O
R3 R2
H
MeO2C
R1
R1
Cu2+, NEt3,
MeOH
Cu2+, NEt3,
MeOH
CO2Me
HO
HO
5a
4
1
6
Entry
Substrate (1)
1a
R1
R2
R3
Product yield (%)
1
Me
4a (27)[a]
N
Me
Me
N
N
2
3
1b
1f
4b (19)[a]
4f (25)[a]
N
N
Me
N
4
5
1a
1a
Me
Me
5a (9)[b]
N
N
Me
N
6a (41)[b]
N
6
1f
6f (76)[a]
N
[a] with air oxygen; [b] without air oxygen.
EXPERIMENTAL
NMR spectra were recorded with Bruker 250 MHz (250 MHz for 1H and 62 MHz for 13C). The ESI-MS
data were obtained by an LD/MSD-1100-spectrometer from Hewlett Packard Company. IR spectra were
recorded by a 2000-FT-IR-Spektrometer (KBr pressling).
Unless stated otherwise, all synthesis steps were performed under argon atmosphere.
The starting compounds were synthesized according literature known procedures:

1818
HETEROCYCLES, Vol. 81, No. 8, 2010
1-pyridine-2-ylethaneamine (a),23 1-pyridine-1-ylpropaneamine (d),24 C-phenyl-C-pyridine-2-yl-
methaneamine (f),25 The other amines were commercially available.
The crystal data for C26H26N8 (3) were recorded by a Nonius-Kappa-CCD 1000 diffractometer. M =
450.55, orthorhombic, Pna(2), a = 20.2315(15) Å, b = 10.0265(7) Å, c = 11.2033(8) Å,  = 90°,  = 90°,
 = 90°, V = 2272.6(3) Å3, Z = 4, Dc= 1.317 g cm-3, X-ray source Mo K (radiation),  = 0.71073 Å, F
(000) = 952, T = 183 K, R1 = 0.0673, wR2 = 0.1190. For searches relating to single-crystal X-ray
diffraction data, the Cambridge Structural Database was used.26 Data were corrected for polarization and
Lorentz effects, and an experimental absorption correction was performed with SADABS.27
Synthesis of 1-(1-Methyl-1H-imidazol-2-yl)ethaneamine (b)
Part I: A solution of NaOAc (15.67 g, 191 mmol) and NH4Cl (13.24 g, 191 mmol) in 80 mL H2O was
heated up to 60 °C and 1-(1-methyl-1H-imidazole-2-yl)ethanone28 (15.77 g, 127 mmol) was added in a
dropwise manner. The mixture was stirred for 2h at 60 °C, followed by neutralization with NaOH. The
formed precipitate was filtered and recrystallized using EtOH. 1-(1-methyl-1H-imidazol-2-yl)ethanone
1
oxime was a colorless solid: yield: 15.06 g (85%); mp 176 °C: ESI-MS m/z 139 (100, M+); H NMR
(CDCl3): δ 11.32 (s, 1H), 7.18 (d, J = 0.8 Hz, 1H,), 6.92 (d, J = 0.8 Hz, 1H,), 3.78 (s, 3H), 2.19 (s, 3H);
13C NMR (CDCl3): δ 149.37, 143.04, 127.67, 125.11, 36.27, 12.58.
Part II: A mixture of the respective oxime (7.16 g, 5.15 mmol) and NaOAc (7.94 g, 103 mmol) in 40 mL
water and 15 mL EtOH was heated up to 60 °C. Zinc dust (13.47 g, 206 mmol) was added in small
portions to the solution within 30 min, heated afterwards to reflux for 1h, and filtered through a glass frit
under hot conditions. The remaining solid was boiled three times in 30 mL EtOH/H2O (1:1). After
another filtration, the combined filtrates were set to pH = 5 with conc. HCl, reduced to a small volume
and cooled on ice. The amine was generated by the addition of KOH until the organic layer formed.
Extraction with 40 mL THF (5x), drying of the combined organic layers over KOH and Na2SO4, and
distillation in vacuo gave the final product as a colorless liquid: yield: 5.68 g (88%); Bp 58-68 °C
1
(0.3 mbar); H NMR (CDCl3): δ 6.85 (d, J = 1.1 Hz, 1H,), 6.72 (d, J = 1.1 Hz, 1H), 4.05 (q, J = 6.7 Hz,
13
1H,), 3.59 (s, 3H), 3.59 (s, 3H), 1.69 (s, 1H), 1.42 (d, J = 6.7 Hz, 3H); C NMR (CDCl3): δ 152.15,
127.13, 121.26, 44.29, 32.87, 23.86.
General Procedure for the Synthesis of Aldimines (1)
A solution of the amines desired (10 mmol in 5 mL absolute EtOH) was cooled to 0 °C and the
corresponding aldehydes (10 mmol in 15 mL absolute EtOH) were added. After 30 min of stirring, the ice
bath was removed and the solution was continued to be stirred at room temperature. Volatile components
of the mixture were removed under reduced pressure and the crude product was dried in vacuo. The
1
imines (1a-f) were used without any further purification. Characterization was done exclusively with H

HETEROCYCLES, Vol. 81, No. 8, 2010
1819
NMR spectroscopy.

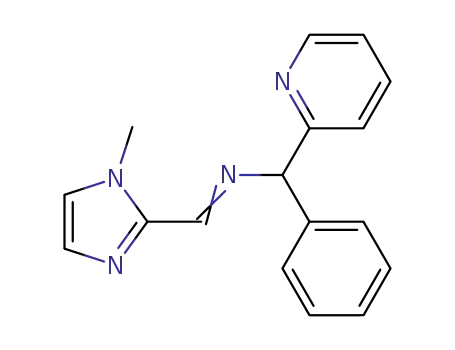

N-((1-Methyl-1H-imidazol-2-yl)methylene)-1-(pyridin-2-yl)ethane-amine (1a)
Colorless solid: yield: 2.10 g (98%); 1H NMR (CD3OD): δ 8.48 (m, 1H), 8.41 (s, 1H), 7.83 (m, 1H), 7.62
(m, 1H), 7.30 (m, 1H), 7.21 (d, J = 1.1 Hz, 1H), 7.21 (d, J = 1.1 Hz, 1H), 4.63 (q, J = 6.7 Hz, 1H), 4.06 (s,
3H), 1.59 (d, J = 6.7 Hz, 3H).
N-[1-(1-Methyl-1H-imidazol-2-yl)ethyl]-N-[(1-methyl-1H-imidazol-2-yl)methylen]amine (1b)
Colorless solid: yield: 2.13 g (98%); 1H NMR (CD3OD):δ 8.26 (s, 1H), 7.04 (d, J = 1.1 Hz, 1H), 6.91 (d, J
= 1.2 Hz, 1H), 6.87 (d, J =1.1 Hz, 1H), 6.76 (d, J = 1.2 Hz, 1H), 4.72 (q, J = 6.7 Hz, 1H), 3.90 (s, 3H),
3.58 (s, 3H), 1.64 (d, J =6.7 Hz, 3H).
1-(Pyridin-2-yl)-N-((1-trityl-1H-imidazol-4-yl)methylene)ethane-amine (1c)
1
Colorless solid: yield: 4.38 g (99%); H NMR (CDCl3) δ 8.45 (m, 1H), 8.29 (s, 1H), 7.55 (m, 1H), 7.40
(m, 2H), 7.26 (m, 9 Hz), 7.05 (m, 8H), 4.52 (q, J = 6.7 Hz, 1H), 1.53 (d, J = 6.7 Hz, 3H).
N-((1-Methyl-1H-imidazol-2-yl)-methylene)-1-(pyridin-2-yl)propane-1-amine (1d)
Colorless solid: yield: 2.25 g (98%); 1H NMR (CD3OD); δ 8.47 (m, 1H), 8.34 (s, 1H), 7.58 (m, 1H), 7.38
(m, 1H), 7.09 (m, 1H), 7.04 (d, J =1.1 Hz, 1H) 6.87 (d, J = 1.1 Hz, 1H), 4.25 (t, J = 6.5 Hz,1H), 3.99 (s,
3H), 1.91 (m, 2H), 1.91 (t, J = 7.4 Hz, 3H).
1-(Pyridin-2-yl)-N-(quinolin-2-yl-methylene)ethane-amine (1e)
Yellow solid: yield: 2.59 g (99%);1H NMR (CDCl3): δ 8.70 (s, 1H), 8.57 (m, 1H), 8.19 (m, 3H), 7.82 (d,
1H), 7.71 (m, 2H), 7.55 (m, 2H), 7.16 (m, 1H), 4.84 (q, J =6.7 Hz, 1H), 1.68 (d, J = 6.7, 3H).
N-[(1-Methyl-1H-imidazol-2-yl)methylene]-N-[phenyl(pyridin-2-yl)methyl]amine (1f)
Colorless solid: yield: 2.73 g (99%); 1H NMR (CD3OD): δ 8.35 (s, 2H), 7.72 (m, 1H), 7.56 (m, 1H), 7.22
(m, 6H), 7.13 (d, J = 1.1 Hz, 1H), 6.98 (d, J =1.1 Hz, 1H), 5.61 (s, 1H), 4.02 (s, 3H).
General Procedure for the Synthesis of (2a), (2c), and (2e)
10.0 mmol of the imines 1a, 1c, and 1e were dissolved in 20 mL absolute EtOH. After adding a solution
of 40.0 mmol CuCl2 in 20 mL absolute EtOH, the mixture was heated to reflux and 40.0 mmol of NEt3
were added. The reaction solution was stirred for 60 min at the same temperature. After cooling to room
temperature, the organic layers were removed under reduced pressure and 30 mL of 10% NH4OH were
added to the residue. The mixture was stirred for 30 min under air, followed by extraction with EtOAc
(3x). The combined organic layers were dried over sodium sulfate and the solvent was removed under
reduced pressure. The residues were purified by column chromatography (EtOAc and neutral Al2O3) to
afford pyridine derivatives (2a), (2c), and (2e) in yields of 53%, 46%, and 40% as colorless crystals
respectively.
6’-(1-Methyl-1H-imidazol-2-yl)-2,2’:4’,2’-terpyridine (2a)
mp 173 °C; 1H NMR (CDCl3): δ 9.08 (d, J = 1.7 Hz, 1H), 8.83 (d, J = 1.7 Hz, 1H), 8.75 (m, 2H), 8.40 (m,

1820
HETEROCYCLES, Vol. 81, No. 8, 2010
1H), 8.03 (m, 1H), 7.82 (m, 2H), 7.33 (m, 2H), 7.19 (d, J = 1.0 Hz, 1H), 7.04 (d, J = 1.0 Hz, 1H), 4.29
ppm (s, 3H); 13C NMR (62 MHz, CDCl3): δ 156.14, 155.74, 154.72, 150.70, 150.03, 149.33, 148.47,
145.07, 136.79, 128.26, 124.49, 123.77, 121.16, 120.96, 120.27, 117.51, 36.78; ESI-MS m/z 313 (100%,
M+). Anal. Calcd for C19H15N5: C, 72.83; H, 4.82; N, 22.35. Found: C, 72.44; H, 7.98; N, 22.46.
6’-(1-Trityl-1H-imidazol-4-yl)-2,2’:4’,2’’-terpyridine (2c)
mp 206 °C; 1H NMR (CDCl3): δ 8.88 (d, J = Hz, 1H), 8.69 (m, 1H), 8.62 (m, 1H), 8.58 (d, J = Hz, 1H),
8.40 (m, 1H), 7.99 (m, 1H), 7.66 (m, 3H), 7.57 (s, 1H), 7.31 (m, 10H), 7.17 (m, 7H); 13C NMR (CDCl3):
δ 156.74, 156.48, 155.48, 150.25, 149.38, 148.65, 142.41, 139.52, 137.22, 137.12, 130.21, 128.63, 123.99,
121.81, 121.67, 120.83, 117.43; ESI-MS m/z 542 (100%, M+). Anal. Calcd for C37H27N5: C, 82.05; H,
5.02; N, 12.93. Found: C, 82.04; H, 5.22; N, 12.75.
6’-(Quinolin-2-yl)-2,2’:4’,2’’-terpyridine (2e)
mp 171 °C; 1H NMR (CDCl3): δ 9.34 (d, 1H, J = 1.6 Hz, 1H), 9.15 (d, J = 1.6 Hz, 1H), 8.83 (m, 2H), 8.73
(m, 2H), 8.29 (m, 2H), 8.11 (m, 2H), 7.87 (m, 3H), 7.75 (m, 1H), 7.56 (m, 1H), 7.36, (m, 1H); 13C NMR
(CDCl3): δ 156.36, 156.11, 155.15, 150.02, 149.14, 148.63, 147.97, 136.86, 136.57, 129.96, 128.36,
127.52, 126.70, 123.81, 123.63, 121.37, 119.32, 119.16, 118.93; ESI-MS m/z 360 (100%, M+). Anal.
Calcd for C24H16N4: C, 79.98; H, 4.47; N 15.54. Found: C, 78.82; H, 4.67; N, 15.14.
2,4,6-Tris(1-methyl-1H-imidazol-2-yl)pyridine (2b)
The imine (1b) (2.17 g, 10 mmol) was dissolved in 20 mL absolute EtOH and a solution of CuCl2 (5.38 g,
40.00 mmol) in 20 mL absolute EtOH was added. While heating to reflux, 4.05 g NEt3 (40 mmol) were
added and the reaction mixture was stirred for another 15 min under reflux. Subsequently, the solution
was cooled to ambient temperature, followed by a removal of the solvent under reduced pressure. 50 mL
NH4OH (10%) were added and the resulting mixture was stirred at room temperature for 15 min in the
presence of oxygen. The solution was extracted with EtOAc (3x), washed with a solution of ammonium
acetate and the combined organic layers were dried over Na2SO4. After filtration the solvent was removed
under reduced pressure. Compound (2b) was purified by column chromatography (Al2O3, acetone): yield:
1
32%; mp 198 °C; H NMR (CDCl3): δ 8.33 (s, 2H), 7.09 (m, 3H), 6.95 (m, 3H), 4.03 (s, 6H), 3.83 (s,
3H); 13C NMR (CDCl3): δ 149.88, 145.11, 139.72, 129.46, 128.70, 124.26, 123.85, 121.17, 35.85, 35.01;
ESI-MS m/z 318 (100%, M+). Anal. Calcd for C17H17N7: C, 63.93; H, 5.37; N, 30.70. Found: C, 62.95; H,
5.37; N, 31.37.
Synthesis of (2d) and (3)
2.25 g (9.85 mmol) of compound (1d) were dissolved in 20 mL absolute EtOH and a solution of CuCl2
(5.30 g, 39.40 mmol) in 20 mL absolute EtOH was added. While heating to reflux, 3.99 g of NEt3
(39.40 mmol) were added. The reaction mixture was stirred for 30 min under reflux, cooled to ambient
temperature and volatile components were removed under reduced pressure. Subsequently, 40 mL of 10%

HETEROCYCLES, Vol. 81, No. 8, 2010
1821
NH4OH were added and the resulting solution was stirred in air for 30 min, followed by extraction with
CHCl3 (3x). The combined organic layers were washed with a solution of NH4OAc, dried over Na2SO4,
filtered and the solvent was removed under reduced pressure. The crude product was purified by column
chromatography (Al2O3, acetone) and recrystallized from EtOAc/n-hexane to give 2d (12%) and 3 (10%)
as colorless crystals.
3’,5’-Dimethyl-6’-(1-methyl-1H-imidazol-2-yl)-2,2’:4’,2’’-terpyridin (2d)
mp 152 °C, 1H NMR (CDCl3): δ 8.69 (m, 1H), 8.60 (m, 1H), 7.72 (m, 3H), 7.25 (m, 1H), 7.05 (d, J = 1.1
13
Hz, 1H), 6.89 (d, J = 1.1 Hz, 1H), 3.73 (s, 6H), 2.14 (s, 3H), 2.08 (s. 3H); C NMR (CDCl3): δ 157.74,
156.57, 152.51, 149.77, 148.72, 147.02, 144.82, 135.52, 135.19, 130.29, 128.35, 126.23, 123.07, 122.54,
121.17, 121.10, 120.52, 33.25, 15.65; ESI-MS m/z 341 (100%, M+). Anal. Calcd for C21H19N5: C, 73.88;
H, 5.61; N, 20.51. Found: C, 73.51; H, 5.86; N, 21.01.
2,6-Dimethyl-5,8-bis[1-methyl-1H-imidazole-2yl]-3,7-di-pyridine-2-yl-1,4-diazatricyclo[3.2.1.02,7]oct-
3ene (3)
mp 216 °C; 1H NMR (CDCl3): δ 8.75 (m, 1H), 8.69 (m, 1H) , 8.58 (m, 1H), 7.79 (m, 3H), 7.37 (m, 1H),
7.21 (m, 1H), 7.07 (d, J = 1.0 Hz, 1H), 6.81 (d, J = 1.1 Hz, 1H), 6.73 (d, J =1.1 Hz, 1H), 6.69 (d, J =1.0
Hz, 1H), 4.12 (q, J = 0.7 Hz, 1H), 3.91 (s, 3H), 3.62 (s, 1H), 3.17 (s, 3H), 1.44 (s, 3H), 0.94 (d, J = 0.7 Hz,
3H); 13C NMR (CDCl3): δ 157.74, 156.57, 152.51, 148.77, 148.72, 147.02, 144.82, 135.52, 135.19,
130.29, 128.35, 126.23, 123.07, 122.54, 121.17, 121.10, 120.52, 33.25, 15.65; ESI-MS m/z 450 (100%,
M+). Anal. Calcd for C26H26N8: C, 69.31; H, 5.82; N, 24.87. Found: C, 68.97; H, 5.79; N, 24.14.
Dimethyl 2-methyl-2,5-bis(1-methyl-1H-imida-zol-2-yl)-2H-pyrrole-3,4-dicarboxylate (4a)
To an ice-cooled solution of 1a (0.82 g, 3.77 mmol) in 10 mL MeOH, CuCl2 (0.051 g, 0.38 mmol in 5 mL
MeOH), dimethyl acetylenedicarboxylate (0.54 g, 3.77 mmol), and NEt3 (0.038 g, 0.38 mmol) were
added. While stirring vigorously, dry air was bubbled through the solution for 3h at room temperature.
The mixture was concentrated under reduced pressure and the crude product was purified by column
chromatography (Al2O3, EtOAc). The product was colorless crystals: yield: 0.26 g (19%) mp 167 °C; 1H
NMR (CDCl3): δ 7.08 (d, J = 1.1 Hz, 1H), 6.96 (d, J = 1.1 Hz, 1H), 6.90 (d, J = 1.2 Hz, 1H), 6.72 (d, J =
13
1.2 Hz, 1H), 3.97 (s, 3H), 3.92 (s, 3H), 3.72 (s, 3H), 3.36 (s, 3H), 1.99 (s, 3H); C-NMR (CDCl3): δ
165.13, 161.56, 159.97, 155.91, 142.47, 140.32, 129.36, 130.39, 127.52, 125.99, 123.79, 83.32, 53.23,
52.94, 36.27,34.00, 23.68 ; IR (cm-1): 3118, 2949, 2843, 1743, 1714, 1576, 1434, 1331, 1280, 1235; ESI-
MS m/z 357 (47%, M+). Anal. Calcd for C17H19N5O4: C, 57.12; H, 5.36; N, 19.60. Found: C, 56.76; H,
5.51; N, 19.58.
Dimethyl 2-methyl-5-(1-methyl-1H-imidazol-2-yl)-2-(pyridin-2-yl)-2H-pyrrole-3,4-dicarboxylate (4b)
CuCl2 (1.35 g, 10.00 mmol in 10 mL absolute MeOH) and dimethyl acetylenedicarboxylate (0.71 g,
5.00 mmol) were added to an ice-cooled solution of 1b (1.07 g, 5.00 mmol) in 15 mL absolute MeOH.

1822
HETEROCYCLES, Vol. 81, No. 8, 2010
The mixture was stirred for 10 min at 0 °C and NEt3 (0.51 g, 5.00 mmol) was added in drops while
stirring for 30 min on ice, followed by 2h at room temperature. After concentrating the solution, 50 mL
NH4OH (10%) were added in the presence of air and the solution was extracted five times with 30 mL
CHCl3. The combined organic phases were washed with 20 mL of 5.0 M NH4OAc, dried over Na2SO4
and the solvent was removed in vacuo. The crude product was purified by column chromatography (silica
gel, 1. EtOAc/n-hexane, 2. EtOAc/acetone) and the solvent was removed to afford (4b) as colorless
crystals: yield: 0.30 g (17%); mp 171 °C; 1H NMR (CDCl3): δ 8.46 (m, 1H), 7.53 (m, 1H), 7.20 (m, 1H),
7.11 (m, 1H), 7.07 (d, J = 1.1 Hz, 1H), 6.92 (d, J = 1.1 Hz, 1H), 3.94 (s, 3H), 3.92 (s, 3H), 3.69 (s, 3H),
1.97 (s, 3H); 13C NMR (CDCl3): δ 165.42, 161.98, 157.67, 157.34, 149.41, 140.14, 138.77, 136.95,
130.04, 125.60, 123.09, 121.34, 87.68, 53.16, 52.64, 36.25, 22.30; IR (cm-1) 2949, 2843, 1736, 1713,
1579, 1435, 1426, 1328, 1275, 1253; ESI-MS m/z 355 (37%, (M+H)+). Anal. Calcd for C18H18N5O4: C,
61.01; H, 5.12; N, 15.81. Found: C, 61.08; H, 5.10; N, 15.52.
Dimethyl 5-(1-methyl-1H-imidazol-2-yl)-2-phenyl-2-(pyridin-2-yl)-2H-pyrrole-3,4-dicarboxylate (4f)
A solution of 1f (0.80 g, 2.90 mmol) in 10 mL absolute MeOH was cooled to – 15 °C and CuCl2 (0.78 g,
5.80 mmol in 10 mL absolute MeOH) was added in drops, followed by the addition of dimethyl-
acetylenedicarboxylate (0.41 g, 2.90 mmol) and NEt3 (0.29 g, 2.90 mmol). The mixture was stirred for
30 min in an ice bath and for 2h at room temperature. Organic layers were removed under reduced
pressure and 50 mL NH4OH (10%) were added. The solution was extracted with 30 mL EtOAc (6x), the
combined organic layers were washed with 20 mL NH4OAc (5.0 M) and dried over Na2SO4. The solution
was concentrated to a few milliliters and cooled to – 30 °C. The precipitate formed was recrystallized on
EtOAc and purified by column chromatography (silica gel, EtOAc/n-hexane 2:1). (4f) colorless crystals:
yield: 0.30 g (25%); mp 185 °C; 1H NMR (CDCl3): δ 8.42 (m, 1H), 7.60 (m, 1H), 7.45 (m, 1H), 7.20 (m,
3H), 7.09 (d, J = 0.9 Hz, 1H), 6.93 (d, J = 0.9 Hz, 1H), 3.97 (s, 3H), 3.91 (s, 3H), 3.67 (s, 3H); 13C NMR
(CDCl3): δ 165.16, 162.44, 160.30, 159.46, 157.51, 149.10, 140.16, 139.55, 137.83, 136.55, 130.26,
128.43, 128.38, 128.27, 125.82, 124.94, 123.08, 93.58, 53.16, 52.57, 36.31; IR (cm-1): 2952 (s), 2842 (w),
1748, 1711, 1571 (s), 1428 (s), 1327 (s), 1276 (s), 1251 (s), 1158 (s); ESI-MS m/z 417 (22%, (M+H)+).
Anal. Calcd for C23H20N4O4: C, 66.34; H, 4.84; N, 13.45. Found: C, 65.83; H, 4.65; N, 13.42.
1-Methyl-3-(1-methyl-1H-imidazol-2-yl)-1-(pyridin-2-yl)-1H-isoindole-4,7-diol (5a)
1a (0.80 g, 3.75 mmol in 10 mL absolute MeOH) and CuCl2 (2.02 g, 15.0 mmol in 10 mL absolute
MeOH) were mixed at -15 °C. 1,4-benzoquinone (0.41 g, 3.75 mmol in 15 mL absolute MeOH) and NEt3
(1.52 g, 15.0 mmol) were added and the mixture was stirred for 30 min on ice, followed by 1h at room
temperature. Volatile components were removed under reduced pressure and the remaining crude product
was dissolved in 50 mL of 10% NH4OH. The solution was extracted with 30 mL CHCl3 (3x) and the
extract washed (3x) with 5.0 M NH4OAc (25 mL). After removal of the organic layers under reduced

HETEROCYCLES, Vol. 81, No. 8, 2010
1823
pressure, the solid was purified (silica gel, EtOAc) and recrystallized (EtOAc/n-hexane) to afford (5a) as
yellow crystals: yield: 0.11 g (9%); mp 188 °C; 1H NMR (CDCl3):δ 14.24 (s, 1H), 11.98 (s, 1H), 8.47 (m,
1H), 7.68 (m, 1H), 7.19 (m, 1H), 7.11 (d, J = 1.1 Hz, 1H), 7.03 (d, J = 1.1 Hz, 1H), 6.89 (m, 1H), 4.29 (s,
13
3H), 1.81 (s, 3H); C NMR (CDCl3): δ 164.01, 160.91,147.67, 157.16, 145.78, 141.32, 140.09, 138.59,
126.62, 125.94, 123.11, 122.66, 122.16, 121.30, 119.37, 82.23, 37.46, 26.63; IR (cm-1): 3456, 2964, 1640,
1442, 1576, 1442, 1262, 1093, 1031; ESI-MS m/z: 320 (18%, M+). Anal. Calcd for C18H16N4O2: C, 67.49,
H, 5.03, N, 17.49. Found: C, 67.22; H, 5.16; N, 17.63.
1-Methyl-3-(1-methyl-1H-imidazol-2-yl)-1-(py-ridin-2-yl)-1H-benzo[f]isoindole-4,9-diol (6a)
1a (0.64 g, 3.00 mmol) was dissolved in 10 mL absolute MeOH and cooled to -10 °C. CuCl2 (1.61 g,
12 mmol in 15 mL absolute MeOH) and 1,4-naphthoquinone (0.48 g, 3.00 mmol in 20 mL absolute
MeOH) were added to the suspension followed by a few min of cooling in an ice bath. NEt3 (1.21 g,
12.0 mmol) was added and the solution was stirred for 1h on ice and 1h at room temperature. The volume
of the mixture was reduced and 50 mL NH4OH (10%) were added, while stirring in air. The crude
product was filtered, washed with water, and purified by column chromatography (silica gel, EtOAc) to
afford (6a) as yellow crystals: yield: 0.45 g (41%); mp 260 °C; 1H NMR (CDCl3): δ 15.40 (s, 1H), 12.63
(s, 1H), 8.54 (m, 1H), 8.39 (m, 1H), 8.25 (m, 1H), 7.69 (m, 2H), 7.48 (m, 2H), 7.20 (m, 1H), 7.17 (d, J
=1.1 Hz, 1H), 7.05 (d, J = 1.1 Hz, 1H), 4.33 (s, 3H), 1.87 (s, 3H); 13C NMR (62 MHz): δ 165.03, 160.92,
147.68, 144.09, 141.56, 141.04, 138.54, 129.47, 129.01, 127.52, 126.33, 125.89, 125.32, 124.65, 123.00,
122.57, 121.02, 116.85, 81.46, 37.68, 27.35; IR (cm-1): 3442; 2970, 1583, 1476, 1368, 1359, 1029; ESI-
MS m/z 370 (9%, M+). Anal. Calcd for C22H18N4O2: C, 71.34; H, 4.90; N, 15.13. Found: C, 71.22; H,
4.90; N, 15.11.
3-(1-Methyl-1H-imidazol-2-yl)-1-phenyl-1-(pyridin-2-yl)-1H-benzo[f]isoindole-4,9-diol (6f)
A solution composed of (1f) (0.69 g, 2.50 mmol in 8 mL MeOH), CuCl2 (0.034 g, 0.25 mmol in 2 mL
MeOH), 1,4-naphthoquinone (0.40 g, 2.50 mmol in 35 mL MeOH), and NEt3 (0.025 g, 0.25 mmol) was
stirred for 4h at room temperature, while bubbling dry air through the solution. The precipitate formed
was filtered and recrystallized from EtOH to afford (6f) as yellow crystals: yield: 0.82 g (76%):. mp
279 °C; 1H NMR (CDCl3): δ 15.84 (s, 1H), 12.64 (s, 1H), 8.70 (m, 1H), 8.35 (m, 1H), 8.21 (m, 1H), 8.07
(m, 2H), 7.71 (d, J = 1.1 Hz, 1H), 7.55 (m, 3H), 7.43 (d, J = 1.1 Hz, 1H), 7.21 (m, 3H), 7.11 (m, 2H), 4.31
(s, 3H);13C NMR (CDCl3): 163.09, 159.56, 148.16, 143.54, 141.53, 141.42, 139.77, 128.73, 128.02,
127.91, 127.75, 127.60, 127.35, 127.18, 126.10, 125.86, 124.40, 124.09, 122.61, 122.15, 177.17, 86.88,
37.49; IR (cm-1): 437, 1635, 1438, 1350, 1022; ESI-MS m/z 432 (7%, M+). Anal. Calcd for C27H20N4O2:
C, 74.99, H, 4.66, N, 12.95. Found: C, 74.29; H, 4.63; N, 12.87.

1824
HETEROCYCLES, Vol. 81, No. 8, 2010
ACKNOWLEDGEMENTS
We are grateful to the Deutsche Forschungsgemeinschaft (DFG) for financial support.
REFERENCES AND NOTES
1. S. R. Chemler and P. H. Fuller, Chem. Soc. Rev., 2007, 36, 1153.
2. V. V. Rostovtsev, L. G. Green, V. V. Fokin, and K. B. Sharpless, Angew. Chem. Int. Ed., 2002, 41,
2596.
3. C. W. Tornoe, C. Christensen, and M. Meldal, J. Org. Chem., 2002, 67, 3057.
4. V. D. Bock, H. Hiemstra, and J. H. van Maarseveen, Eur. J. Org. Chem., 2006, 51.
5. S. Kamijo, C. Kanazawa, and Y. Yamamoto, J. Am. Chem. Soc., 2005, 127, 9260.
6. C. Kanazawa, S. Kamijo, and Y. Yamamoto, J. Am. Chem. Soc., 2006, 128, 10662.
7. W. Z. Gao, X. M. Zhang, and M. Raghunath, Org. Lett., 2005, 7, 4241.
8. C. Najera and J. M. Sansano, Angew. Chem. Int. Ed., 2005, 44, 6272.
9. E. Jnoff and L. Ghosez, J. Am. Chem. Soc., 1999, 121, 2617.
10. O. G. Mancheno, R. G. Arrayas, and J. C. Carretero, J. Am. Chem. Soc., 2004, 126, 456.
11. R. Noto, M. Gruttadauria, P. Lomeo, V. Frenna, and G. Werber, J. Heterocycl. Chem., 1995, 32,
1277.
12. H. O. Barun, H. Ila, H. Junjappa, and O. M. Singh, J. Org. Chem., 2000, 65, 1583.
13. M. E. Bluhm, M. Ciesielski, H. Görls, and M. Döring, Angew. Chem. Int. Ed., 2002, 41, 2962.
14. M. E. Bluhm, M. Ciesielski, O. Walter, and M. Döring, Inorg. Chem., 2003, 42, 8878.
15. M. Ciesielski, D. Pufky, and M. Döring, Tetrahedron, 2005, 61, 5942.
16. M. Ciesielski, O. Walter, and M. Döring, J. Inorg. Biochem., 2001, 86, 475.
17. M. Döring, M. Ciesielski, and H. Görls, J. Inorg. Biochem., 1999, 74, 117.
18. M. Döring, M. Ciesielski, O. Walter, and H. Görls, Eur. J. Inorg. Chem., 2002, 1615.
19. J. March, Advanced Organic Chemistry. 4th Ed.; Wiley Interscience: New York, 1992.
20. G. Wulff and H. Böhnke, Angew. Chem., 1986, 98, 101; Angew. Chem., Int. Ed. Engl., 1986, 25, 90.
21. The dependencies of yield and selectivity on the reagent amount have been studied in detail on the
example of the synthesis of pyridine (2a). If copper(II) was applied stoichiometrically (3 mol per
mol aldimine) only 39% of (2a) was obtained but 8% of the corresponding imidazo[1,5-a]-pyridine
was found as a by-product. If the amount of of Cu(II) was enhanced to 4 equivalents per mol
aldimine the yield of (2a) increased to 53% and only 2% of the imidazo[1,5-a]-pyridine was obtained.
If an even higher excess of Cu(II) was applied the yield of (2a) decreased again. However, the yield
of (2a) was moderate at all reagent concentratioms owing to the formation of several other side
products. As a characteristic by-product of this reaction the corresponding ketone (1-acetylpyridine)

HETEROCYCLES, Vol. 81, No. 8, 2010
1825
was isolated. Its formation can be explained by an oxidative scission of the aldimine.
22. A plausible alternative to the stepwise mechanism to give this intermediate is a concerted
mechanism (1,3-dipolar cycloaddition).
23. H. Brunner and M. Niemetz, Monatsh. Chem., 2002, 133, 115.
24. J. D. Bower and G. R. Ramage, J. Chem. Soc., 1955, 2834.
25. S. O. Winthrop and G. Gavin, J. Org. Chem., 1959, 24, 1936.
26. F. H. Allen and O. Kennard, Chem. Design Automation News, 1993, 8, 31.
27. Siemens area detector absorption program, Siemens, 1997.
28. D. H. Davies, J. Hall, and E. H. Smith, J. Chem. Soc., Perkin Trans. 1, 1991, 2691.
