The Journal of Organic Chemistry
Article
1H), 7.42−7.27 (m, 6H), 7.13 (t, J = 7.2 Hz, 2H), 7.00 (t, J = 7.2 Hz,
1H), 5.07 (d, J = 4.8 Hz, 1H), 5.07−4.99 (m, 2H),4.88 (t, J = 12.0
Hz, 1H), 4.31 (dd, J = 8.4, 3.2 Hz, 1H), 4.19−4.10 (m, 1H), 4.01 (d, J
= 7.2 Hz, 1H), 3.96−3.87 (m, 1H), 3.63 (s, 3H), 3.11 (td, J = 18.0,
4.0 Hz, 2H), 2.77 (t, J = 10.8 Hz,1H), 1.50 (s, 3H), 1.40 (s, 3H), 1.33
(d, J = 6.4 Hz, 3H), 1.07 (d, J = 6.4 Hz, 3H); 13C{1H} NMR (100
MHz, CDCl3) δ: 171.6#, 168.9#, 157.5#, 137.7, 135.8, 129.1, 128.5,
128.3, 128.1, 127.9, 126.8#, 94.7#, 73.2#, 67.5, 60.4, 58.7#, 55.3#, 52.6,
43.5, 38.6, 28.5, 25.0, 19.8, 18.4 (#minor rotamer); mp75−76 °C;
ESI-HRMS calcd for ([M + Na]+), found. HRMS (ESI) m/z: [M +
Na]+ calcd for C31H40N4O9Na 635.2693; found 635.2657.
69.2, 68.6, 67.3, 66.3, 57.0, 38.0, 37.4, 35.7, 28.7, 26.9, 25.1, 24.1,
22.0, 19.4, 16.7, 10.0; HRMS (ESI) m/z: [M + Na]+ calcd for
C34H46N6O7SNa 705.3046; found 705.3052.

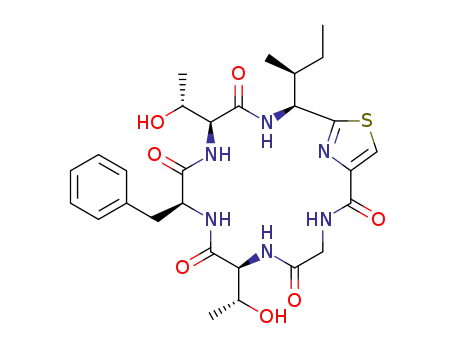

Synthetic Microcyclamide MZ602 (1). To a solution of compound
23 (10 mg, 0.01 mmol) in CH2Cl2 (5 mL) was added TFA (1.5 mL)
at 0 °C. Then, the mixture was warmed to room temperature and
stirred until TLC showed complete consumption of the starting
material (∼14 h). The organic phase was concentrated under reduced
pressure, and the residue was purified by flash column chromatog-
raphy (CH2Cl2/MeOH, 10:1) to give 1 as a glassy solid (7.6 mg,
86%). {Observed for compound 1:[α]D22−24.3 (c 0.7, MeOH), lit.4
24
1
Cbz-Gly-L-Thr(ψMe,MePro)-L-Phe-L-Thr(ψMe,MePro)-OMe (20). Ac-
cording to the method G, the tetrapeptide 19 (122 mg, 0.2 mmol)
reacted with 2,2-dimethoxypropane to give the desired pseudoproline
protected tetrapeptide 20 (94 mg, 72%) as a colorless oil. EtOAc/
petroleum ether (2:3, v/v) was used as an eluent. [α]D25−20.9 (c 3.5,
microcyclamide MZ602: [α]D + 53 (c 0.06, MeOH)}; H NMR
(400 MHz, DMSO) δ: 8.53 (t, J = 5.6 Hz, 1H), 8.22 (s, 1 H), 8.15 (d,
J = 7.2 Hz, 1H), 8.09 (d, J = 7.6 Hz, 1H), 7.83 (d, J = 7.6 Hz, 1H),
7.74 (d, J = 8.8 Hz, 1H), 7.30−7.16 (m, 5H), 5.16 (br s, 1H), 5.11
(dd, J = 8.4, 5.6 Hz, 1H), 4.84 (br s, 1H), 4.49 (m, 1H), 4.16 (m,
1H), 4.02−3.82 (m, 5H), 3.32 (m, 1H), 2.87 (dd, J = 14.0, 10.8 Hz,
1H), 2.05−1.97 (m, 1H), 1.46−1.39 (m, 1H), 1.15−1.06 (m, 1H),
1.09 (d, J = 6.4, 3H), 0.87 (d, J = 6.8, 3H), 0.86 (t, J = 7.2, 3H), 0.82
(d, J = 6.0, 3H); 13C{1H} NMR (100 MHz, DMSO) δ: 172.0, 170.6,
169.9, 169.1, 168.8, 161.1, 148.8, 138.0, 129.2, 128.2, 126.4, 124.0,
66.1, 65.3, 61.0, 60.7, 55.1, 54.4, 43.6, 39.2, 37.2, 24.6, 20.5, 20.2,
15.7, 11.8; HRMS (ESI) m/z: [M + Na]+ calcd for C28H38N6O7SNa
625.2420; found 625.2380.
1
CHCl3); H NMR (400 MHz, DMSO) δ: 8.90 (d, J = 8.8 Hz, 1H),
7.38−7.15 (m, 10H), 5.02 (q, J = 12.4 Hz, 2H), 4.55 (q, J = 8.0 Hz,
1H), 4.18−4.13 (m, 2H), 4.06 (t, J = 6.0 Hz, 1H),3.87 (d, J = 6.0 Hz,
1H), 3.66 (s, 3H), 3.40 (dd, J = 16.8, 6.0 Hz, 1H), 3.04 (dd, J = 16.8,
6.0 Hz, 1H), 2.96−2.83 (m, 2H), 1.54 (s, 3H), 1.45 (s, 3H), 1.43 (s,
3H), 1.40 (s, 3H), 1.34 (d, J = 6.0 Hz, 3H), 1.10 (d, J = 6.0 Hz, 3H);
13C{1H} NMR (100 MHz, CDCl3) δ: 170.6, 168.9, 167.8, 166.0,
156.2, 136.5, 135.6, 129.5, 128.7, 128.5, 128.0, 127.4, 97.3, 97.1, 75.9,
74.3, 66.8, 65.6, 60.4, 54.0, 53.4, 43.9, 40.7, 26.6, 26.0, 23.9, 23.4,
19.9, 19.1; HRMS (ESI) m/z: [M + Na]+ calcd for C34H44N4O9Na
675.3006; found 675.2979.
Boc-L-Phe-L-Thr(Bzl)-OAllyl (3). The reaction was performed
according to the method A using compound 7 (2.0 g, 7.5 mmol)
and compound 6 (1.8 g, 7.5 mmol) as substrates and stirred for 18 h.
The crude mixture was purified by flash column chromatography to
give compound 3 as a colorless oil (3.4 g, 90%). EtOAc/petroleum
ether (1:1, v/v) was used as an eluent. [α]D25 + 28.9 (c 4.0, CHCl3);
1H NMR (400 MHz, CDCl3) δ: 7.34−7.25 (m, 5H), 7.23−7.20 (m,
5H), 6.62 (d, J = 9.6 Hz, 1H), 5.87−5.77 (m, 1H), 5.28 (dq, J = 17.2,
1.6 Hz, 1H), 5.21 (dq, J = 10.4, 1.2 Hz, 1H), 5.04 (br s, 1H), 4.65
(dd, J = 9.2, 2.4 Hz, 1H), 4.59 (dt, J = 6.0, 1.2 Hz, 1H), 4.53 (d, J =
12.0 Hz, 2H), 4.44 (br s, 1H), 4.35 (d, J = 11.6 Hz, 1H), 4.13 (qd, J =
6.4, 2.4 Hz, 1H), 3.14 (dd, J = 14.0, 6.0 Hz, 1H), 3.05 (dd, J = 12.8,
6.4 Hz, 1H), 1.39 (s, 9H), 1.16 (d, J = 6.4 Hz, 3H); 13C{1H} NMR
(100 MHz, CDCl3) δ: 171.9, 169.9, 155.3, 137.8, 136.6, 131.6, 129.6,
129.5, 129.4, 128.7, 128.6, 128.4, 127.9, 127.8, 127.0, 119.0, 80.1,
74.3, 70.9, 66.1, 56.8, 55.7, 38.3, 28.3, 16.2; HRMS (ESI) m/z: [M +
Na]+ calcd for C28H36N2NaO6 519.2471; found 519.2466.
Cbz-Gly-L-Thr(ψMe,MePro)-L-Phe-L-Thr(ψMe,MePro)-L-Ile-Thz-OAllyl
(21). Following the general method C, 20a was obtained from 20
(260 mg, 0.4 mmol) and used for the next step without purification.
Following the general method E, 5a was obtained from 5 (142 mg, 0.4
mmol) and used for the next step without purification. Following the
general method B, the desired tetrapeptide 21 (220 mg, 63% for two
steps) was obtained as a colorless oil. EtOAc/petroleum ether (1:1, v/
1
v) was used as an eluent. [α]D25−84.7 (c 0.5, CH3OH); H NMR
(400 MHz, CD3OD) δ: 8.29 (s, 1H), 7.42−7.14 (m, 10H), 6.05 (ddt,
J = 16.8, 10.8, 1.2 Hz, 1H), 5.40 (dd, J = 16.8, 1.2 Hz, 1H), 5.27 (dd, J
= 10.8, 1.2 Hz, 1H), 5.13−5.07 (m, 2H), 5.04 (d, J = 6.0 Hz, 1H),
4.80 (d, J = 6.0 Hz, 2H), 4.65−4.61 (m, 1H), 4.25−4.18 (m, 1H),
4.13 (d, J = 7.6 Hz, 1H), 3.97 (t, J = 6.4 Hz, 1H), 3.81 (d, J = 6.4 Hz,
1H), 3.61 (d, J = 16.8 Hz, 1H), 3.23 (d, J = 16.8 Hz, 1H), 3.07−2.94
(m, 2H), 2.11 (br s, 1H), 1.77−1.68 (m, 2H), 1.62 (s, 3H), 1.48 (s,
3H), 1.45 (s, 3H), 1.43 (d, J = 6.4 Hz, 3H), 1.24 (d, J = 6.4 Hz, 3H),
0.99 (t, J = 6.4 Hz, 3H), 0.90 (t, J = 6.4 Hz, 3H); 13C{1H} NMR
(100 MHz, CD3OD) δ: 173.5, 170.7, 170.3, 169.8, 168.5, 162.3,
158.7, 147.3, 138.2, 137.5, 133.4, 130.7, 129.7, 129.4, 129.0, 128.9,
128.2, 118.8, 98.1, 97.9#, 77.3, 76.9, 67.8#, 67.2, 66.8, 58.4#, 55.4#,
44.6#, 40.6, 39.9, 27.2, 27.0, 26.7, 24.2, 19.9, 19.1#, 15.8#, 12.1#
(#minor rotamer); HRMS (ESI) m/z: [M + Na]+ calcd for
C45H58N6O10SNa 897.3833; found 897.3803.
Boc-Gly-L-Thr(Bzl)-OAllyl (4). The reaction was performed
according to the method A using Boc-Gly-OH 8 (2.0 g, 11.4
mmol) and L-Thr(Bzl)-OAllyl 6 (2.8 g, 11.4 mmol) as substrates, and
stirred overnight. The crude mixture was purified by flash column
chromatography to give compound 4 as a colorless oil (4.0 g, 86%).
25
EtOAc/petroleum ether (1:1, v/v) was used as an eluent. [α]D
−
15.2 (c 3.0, MeOH); 1H NMR (400 MHz, CDCl3) δ: 7.34−7.23 (m,
5H), 6.91 (d, J = 9.2 Hz, 1H), 5.82 (ddt, J = 10.4, 5.6, 1.2 Hz, 1H),
5.40 (br. s, 1H), 5.28 (dd, J = 16.8, 1.2 Hz, 1H),5.10 (d, J = 10.4 Hz,
1H), 4.70 (dd, J = 9.2, 2.0 Hz, 1H), 4.60 (dd, J = 13.2, 5.6 Hz, 1H),
4.56 (d, J = 12.0 Hz, 1H), 4.51 (dd, J = 13.2, 5.6 Hz, 1H), 4.36 (d, J =
12.0 Hz, 1H), 4.17 (dq, J = 6.0, 2.0 Hz, 1H), 3.86 (dq, J = 16.8, 5.6
Hz, 2H), 1.53 (s, 9H), 1.31 (d, J = 6.0 Hz, 3H); 13C{1H} NMR (100
MHz, CDCl3) δ: 170.2, 170.1, 156.0, 137.8, 131.6, 128.4, 127.8,
118.9, 80.0, 74.2, 70.7, 66.1, 56.6, 44.2, 28.3, 16.1; ESI-HRMS calcd
Cyclo-[Gly-L-Thr(ψMe,MePro)-L-Phe-L-Thr(ψMe,MePro)-L-Ile-Thz] (23).
Following the method C and method D, linear peptide 21 (88 mg, 0.1
mmol) generate the intermediate 22. Next, 22 was added to a solution
of HATU (76 mg, 0.2 mmol) and HOBt (14 mg, 0.1 mmol) in
CH2Cl2/DMF (3/1, 100 mL) at room temperature. The mixture
(0.001 M) was stirred until TLC showed complete consumption of
the starting material (∼24 h). The reaction was quenched by
saturated NH4Cl (50 mL) and extracted with CH2Cl2 (3 × 50 mL).
The combined organic phase was washed with H2O, dried (Na2SO4)
and concentrated under reduced pressure. The residue was purified by
flash column chromatography (CH2Cl2/MeOH, 30:1) to give
compound 23 as colorless oil (38 mg, 55% for three steps).
+
for C21H30N2O6Na ([M + Na] ) 429.2002, found 429.2011. HRMS
(ESI) m/z: [M + Na]+ calcd for C21H30N2O6Na 429.2002; found
429.2011.
Boc-L-Ile-Thz-OAllyl (5). To a solution of compound 9 (115 mg,
0.5 mmol) in CH2Cl2 (10 mL) was added pentafluorophenyl
diphenylphosphinate (FDPP) (200 mg, 0.5 mmol) and triethylamine
(TEA) (125 mg, 1.0 mmol) at room temperature. After stirring for 15
min, 10 (40 mg, 0.125 mmol) and PPh3 (270 mg, 1.0 mmol) was
added into the solution and heated to reflux for further 5 h away from
light. After cooling to 0 °C, 1,8-diazabicycloundec-7-ene (DBU) (228
mg, 1.5 mmol) and bromotrichloromethane (248 mg, 1.25 mmol)
were introduced via spyringe over 5 min and stirred for further 30 min
at room temperature. The solvent was quenched with saturated
NH4Cl solution and extracted with DCM (20 mL × 3). The
[α]D25−86.5 (c 0.1, CHCl3); H NMR (400 MHz, CD3OD) δ: 8.26
1
(s, 1 H), 8.17 (br. s, 1H),7.29−7.27 (m, 2H), 7.20−6.95 (m, 5H),
5.12 (d, J = 16.8 Hz, 1H), 4.73−4.68 (m, 1H), 4.43−4.37 (m, 1H),
4.34−4.27 (m, 2H), 3.65 (d, J = 16.8 Hz, 1H), 3.44 (s, 1H), 3.18−
3.07 (m, 2H), 2.96 (dd, J = 14.8, 5.6 Hz, 1H), 2.65−2.55 (m, 1H),
1.72 (s, 2H), 1.66−1.62 (m, 12H), 1.57−1.49 (m, 3H), 0.95−0.82
(m, 9H); 13C{1H} NMR (100 MHz, CD3OD) δ: 171.9, 170.3, 169.5,
168.7, 168.4, 136.5, 130.6, 130.1, 129.6, 129.0, 128.2, 98.8, 78.4, 77.4,
F
J. Org. Chem. XXXX, XXX, XXX−XXX
