Tetrahedron Letters 51 (2010) 1155–1157
Contents lists available at ScienceDirect
Tetrahedron Letters
journal homepage: www.elsevier.com/locate/tetlet
An efficient microwave-assisted synthesis of dihydropyrazinones and
bis-benzoylketones
a
a
b
Mamun M. Hossain a, , Rabiul M. Islam , Sukanta K. Saha , Mohammad K. Islam
*
a Department of Chemistry, Faculty of Science, Jahangirnagar University, Savar, Dhaka 1342, Bangladesh
b Faculty of Life Science, Mawlana Bhashani Science and Technology University, Tangail 1902, Bangladesh
a r t i c l e i n f o
a b s t r a c t
Article history:
Microwave-assisted modified Sandmeyer reactions of oximinoacetanilides, themselves obtained from
substituted primary aromatic amines, in concentrated H2SO4 give isatins. N-Acetylisatins undergo ring
cleavage and subsequent ring closing with alkanediamines in the presence of ethanol under MW irradi-
ation to give the corresponding dihydropyrazinones in excellent yields. Modification of the reaction con-
ditions affords bis-benzoylketones under MW irradiation.
Received 2 September 2009
Revised 30 November 2009
Accepted 11 December 2009
Available online 21 December 2009
Ó 2009 Elsevier Ltd. All rights reserved.
Since the publication of the first paper on organic synthesis un-
der microwave (MW) dielectric heating, the field has expanded
dramatically.1–4 The use of MW irradiation minimizes the forma-
tion of unwanted by-products and reduces the need for organic
solvents to a minimum, or even solvent-free.5,6 Isatins and related
compounds have beneficial biological effects, including antifungal,
antiviral, and antiproliferative activities.7,8 Hence, there is signifi-
cant interest in the design of various isatins and related com-
pounds as drugs in the field of medicinal organic chemistry.9–11
In addition, the reactions of carbonyl moieties at the b-position
of various isatins and N-acetylisatins, are important.12–14 Accord-
ingly, we report on the MW-assisted synthesis and the character-
ization of several N-acetylisatins and their transformations into
dihydropyrazinones and bis-benzoylketones using alkanediamines
in excellent yields.
yield 81%, conventional yield 66%, decomposed at 298 °C). The IR
(KBr, disc) spectrum of 2a showed absorptions at 1758 (s, C@O, lac-
tam), 1684 (s, C@O), and 1625 (s, C@O, amide) cmꢀ1 for the three
carbonyl groups, respectively. In addition, 2a showed signals in
the 1H NMR spectrum (DMSO-d6) at d 7.82 for the aromatic proton
(C4-H) as a doublet and the C6-H proton appeared at d 7.64 as a
doublet of doublets. The CH3 protons appeared as a singlet at d
2.41. The microanalysis data were consistent with the structures
of products 2a–c.
An important aspect of this work was the ring cleavage of
N-acetylisatins 2a–c with ethanol and their subsequent cycliza-
tion with alkanediamines (Scheme 1). The N-acetylisatin
2
(3.0 mmol) was dissolved in distilled ethanol and the appropriate
diamine (3.0 mmol) was added to the mixture. The reaction mix-
ture was irradiated under MW conditions for 40–50 s. The extent
of the reaction was monitored by TLC (EtOAc–MeOH–n-hexane,
2:1:5) after irradiation. Cooling, followed by neutralization of
the reaction mixture with 2% aq HCl solution gave a yellow solid
mass. Recrystallization of the crude solid from EtOAc afforded
compounds 1a–d (>80% yield, conventional yield was found to
be <70%). A few reactions of acetylisatins with alkanediamines
were studied previously using conventional heating.14–16 A plau-
sible mechanism involves nucleophilic attack by ethanol at the
lactam carbonyl carbon of N-acetylisatin and subsequent ring
cleavage to generate keto ester B (Scheme 2). Next, nucleophilic
attack of the alkanediamine on the ester carbonyl carbon fol-
lowed by elimination of ethanol and intramolecular cyclization
gives dihydropyrazinone C.
A microwave oven (Shikoku Instrumentation Co. Ltd, Japan,
power range: 0–650 W at 2.45 GHz) was used. The temperature
gradient of the reactor was 2–5 °C/s and each reaction was carried
out at least three times to ensure accuracy.
The ring closing reaction of oximinoacetanilides 4a–c with con-
centrated H2SO4 to give isatins 3a–c in 85–95% yields (conven-
tional yields below 80%) was carried out under MW conditions
for 10 s. It is worth noting that the interaction of H2SO4 with
MW irradiation was found to be problematic. In particular, pro-
longed exposure to MW irradiation resulted in decomposition of
the products. To prevent decomposition, a short pulse irradiation
technique was applied (5 s/irradiation). Two 5 s pulses were suffi-
cient to complete the cyclization to give isatins 3a–c. Acetylation of
3a–c in Ac2O/pyridine under MW irradiation for 50–70 s afforded
the corresponding N-acetylisatins 2a–c in excellent yields (2a:
The NMR spectra and microanalyses of pyrazinones 1a–d were
consistent with the structures shown.17 The melting point (190–
192 °C, lit.14 189–191 °C) and the spectral data of bromopyrazi-
none 1b corresponded well with that reported earlier for the same
compound obtained by conventional heating.
* Corresponding author. Tel.: +88 02 891 4393; fax: +88 02 779 1052.
E-mail address: chemmamun2@yahoo.com (M.M. Hossain).
0040-4039/$ - see front matter Ó 2009 Elsevier Ltd. All rights reserved.
doi:10.1016/j.tetlet.2009.12.057

1156
M. M. Hossain et al. / Tetrahedron Letters 51 (2010) 1155–1157
O
4
7
R
5
O
3
R
R
MW, 10 s
2
50-70 sec
MW,
CH
NOH
O
O
conc. H2SO4
70 oC
1
pyridine
N
Ac2O,
6
O
N
N
H
125 oC
COCH3
2a R = 5-Cl (81%)
(93%)
H
3a R = 5-Cl
3b R = 5-Br (88%)
3c R = H (85%)
(86%)
4a R = 4-Cl
4b R = 4-Br
4c R = H
2b R = 5-Br
2c R = H (92%)
EtOH, 110oC
NH2(CH2)nNH2
2. dioxane
NH2(CH2)3NH2
0-5 oC, 90 min
1. EtOH
MW,
40-50 sec
O
40-50 s
MW,
90 oC
2
3'
1
2'
R
4'
CH3COHN
R
O
O
NHCOCH3
R
NH
1'
3
NH
HN
(CH2)3
N4
6'
n
O
O
n = 2,3
NHCOCH3
1eR = 5-Cl (62%)
1f R = 5-Br (66%)
1g R = H (58%)
n=2 (82%)

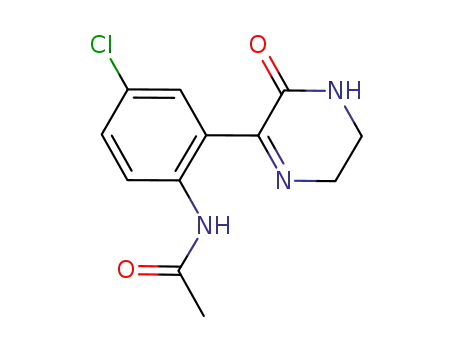

1a R = 5'-Cl,
1b R = 5'-Br, n=2 (85%)
1c R = H,
n=2
(80%)
1d R = H, n=3
(81%)
Scheme 1.
Scheme 2.
Alternatively the N-acetylisatin 2 (3.0 mmol) in distilled ethanol
(5.0 mL) was irradiated under MW conditions for 40–50 s followed
by cooling.18 Next, dioxane (8.0 mL) and 1,3-diaminopropane
(1.5 mmol) were added and reaction mixture was stirred at
0–5 °C for 90 min. The crude solid obtained after work-up was
chromatographed on silica gel (cyclohexane, ethyl acetate, and
methanol as eluents). Removal of the solvent under reduced pres-
sure gave a brown crystalline solid, which was recrystallized from
a mixture of CHCl3 and EtOAc. The above-mentioned reaction con-
ditions facilitated the addition of the intermediate ester B (Scheme
2) to the diamine in a 1:2 molar ratio and afforded the bis-ben-
zoylketones 1e–g in fairly good yields. The analytical data for com-
pounds 1e–g were consistent with the structures shown.
Typically, MW-dielectric heating plays an important role in the
rapid formation of molecules in higher yields compared to reac-
tions carried out using classical heating. In conclusion, we have
demonstrated that microwave irradiation could be employed effi-
ciently for the synthesis of biologically important isatins and their
related heterocyclic compounds. The MW-assisted synthesis was
more advantageous over classical heating with regard to reaction
time, solvent quantity, and product yield in almost every case. A
possible explanation for the formation of the products in short
reaction times lie in the fact that the MW provides elevated heat-
ing rates which shortens reaction times.
References and notes
1. Giguere, R. J.; Bray, T. L.; Duncan, S. M. Tetrahedron Lett. 1986, 27, 4945.
2. Kingstone, H. M.; Stephen, J. H. J. Am. Chem. Soc. 1997, 3, 5.
3. Gedye, R.; Smith, F.; Westaway, K.; Ali, H.; Baldisera, L.; Laberge, L.; Rousell,
J. Tetrahedron Lett. 1986, 27, 279.
4. Strauss, C. Aust. J. Chem. 1999, 83.
5. Loupy, A.; Petit, A.; Hamelin, J.; Boullet, F. T.; Jacquault, P.; Mathé, D. Synthesis
1998, 1213.
6. Hossain, M. M.; Kawamura, Y.; Yamashita, K.; Tsukayama, M. Tetrahedron 2006,
62, 8625.
7. Giselle, C.; Ferreira, A. J. Braz. Chem. Soc. 2006, 17, 1.
8. Hossain, M. M.; Islam, N.; Khan, R.; Islam, M. R. Bangladesh J. Pharmacol. 2007, 2,
66.
9. Salvam, P.; Murugesh, N.; Chandramohan, M.; Clereq, D. E. Ind. J. Pharm. Sci.
2004, 66, 465.
10. Islam, M. R.; Mohsin, M. Bangladesh J. Pharmacol. 2007, 2, 7.
11. Solis, P. N.; Wright, C. W.; Anderson, M. M.; Gupta, M. P.; Phillipson, J. D. Planta
Med. 2007, 59, 250.
12. Islam, M. R.; Abedin, J.; Khayer, K. Indian J. Chem., Sect. B 2001, 40, 240.
13. Islam, M. R.; Abedin, J.; Hossain, M. M.; Duddeck, H. J. Bangladesh Chem. Soc.
1998, 11, 71.
14. Bergman, J.; Vallberg, H. Acta Chem. Scand 1997, 51, 742.
15. Franke, A. Liebigs Ann. Chem. 1982, 794.

M. M. Hossain et al. / Tetrahedron Letters 51 (2010) 1155–1157
1157
16. Joshi, B. S.; Likhate, M. A.; Viswanathan, N. Indian J. Chem., Sect. B 1984, 23, 114.
17. Compound 1a: 1H NMR (400 MHz, CD3OD): d 10.68 (br s, NH), 9.88 (br s, NH),
7.58 (d, 1H, J = 1.6 Hz, C20–H, ArH), 7.37 (dd, 1H, J = 7.6 Hz, J = 1.6 Hz, C40–H,
ArH), 7.15 (d, 1H, J = 7.6 Hz, C50-H, ArH), 4.12 (t, 2H, J = 8.1 Hz, C-5), 3.21 (br m,
2H, C-6), 2.50 (s, 3H, CH3). Compound 1e: 1H NMR (400 MHz, CD3OD): d 9.21 (s,
2H, 2 ꢁ NH), 7.76 (d, 2H, J = 1.9 Hz, C6–H, ArH ꢁ 2), 7.54 (dd, 2H, J = 8.1 Hz,
J = 1.9 Hz, C4–H, ArH ꢁ 2), 6.84 (d, 2H, J = 8.1 Hz, C3–H, ArH ꢁ 2), 3.52 (m, 4H,
2 ꢁ CH2), 2.55 (s, 6H, 2 ꢁ CH3), 1.38 (m, 2H, CH2).
Compounds 1a–d: N-Acetylisatin 2a (545.5 mg, 3.0 mmol) was dissolved in
distilled ethanol and the appropriate diamine (3.0 mmol) was added to the
mixture. The reaction mixture was irradiated using a microwave for 40–50 s.
Cooling followed by neutralization of the reaction mixture with 2% aqueous
HCl solution gave a yellow solid mass. Recrystallization of the crude solid from
EtOAc gave compound 1a.
Compounds 1e–g: N-Acetylisatin 2a (545.5 mg, 3.0 mmol) was dissolved in
distilled ethanol (5.0 mL) and the resulting reaction mixture was irradiated
using a microwave for 40–50 s. The mixture was cooled to rt and dioxane
(8.0 mL) was added followed by propan-1,3-diamine (1.5 mmol) and the
reaction mixture was stirred at 0–5 °C for 90 min. The obtained crude solid was
chromatographed on silica gel using cyclohexane, EtOAc and MeOH as eluent.
Removal of the solvent under reduced pressure gave a brown crystalline solid,
which was recrystallized from a mixture of CHCl3 and EtOAc to give 1e.
18. Representative procedures: Compounds 3a–c: Oximinoacetanilide 4a (0.99 g,
5.0 mmol) was mixed with concentrated sulfuric acid (5.0 mL) and the
resulting mixture was irradiated (20% radiation) using a microwave oven for
10 s (5 s ꢁ 2 irradiation). The extent of the reaction was monitored by TLC
(CH2Cl2–EtOAc, 5:1). Neutralization of the reaction mixture with 20% aq
Na2CO3 solution gave an orange solid mass. Recrystallization of crude solid
from methanol afforded compound 3a.
