Trapping Reactions of the Sulfenyl and Sulfinyl Tautomers of
Sulfenic Acids
Murugaeson R. Kumar and Patrick J. Farmer*
Department of Chemistry and Biochemistry, Baylor University, Waco, Texas 76798, United States
ABSTRACT: Sulfenic acids react as both nucleophiles and
electrophiles, which may be attributable to interconversion
between sulfenyl and sulfinyl tautomers. We demonstrate one-
pot trapping of both tautomeric forms of glutathione sulfenic
acid by LCMS. The sulfinyl tautomers are characterized by
reaction with nucleophilic reagents such as dimedone and
cyanide, giving unique products that are analogous to
corresponding adducts of aldehydes. Likewise, we show that
aldehyde reactive reagents such as silyl enol ethers also react
with glutathione sulfenic acid to give products characteristic of
both sulfenyl and sulfinyl tautomers.
ulfenic acids are initial products of biological thiol
oxidations and as such act as a direct indicator of oxidative
In a typical experiment, GSH (1 mM) was reacted with H2O2
S
(1.2 equiv) in the presence of dimedone (5 mM) in pH 7

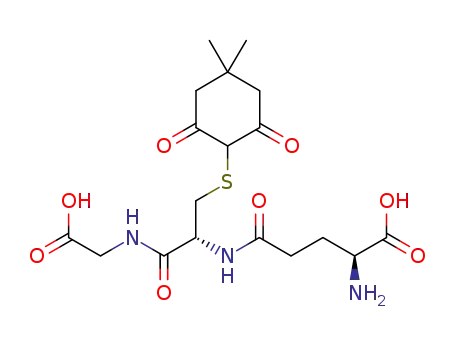

buffered aqueous solution. In Figure 1, the expected dimedone
thioether derivative (1) is seen, as well as the hitherto unknown
xathinedione (2). Compound 2 is rationalized as deriving from
stress, which is important in the diagnosis and treatment of
chronic illness.1−4 For example, oxidation of glutathione, GSH,
by peroxide produces the sulfenic acid GSOH, in eq 1, as
characterized by variety of a protocols, most notably by mass
spectrometry;5−17 GSOH further reacts with the parent thiol to
form the stable oxidized disulfide GSSG, in eq 2. Transient
sulfenic acids in the biological milieu are most commonly
characterized by S-alkylation with acidic carbon enolates such
as dimedone, DmH, in eq 3, and subsequently characterized by
fluorescence or proteomic mass spectrometry.18
GSH + H2O2 → GSOH + H2O
(1)
GSOH + GSH → GSSG + H2O
(2)
GSOH + DmH → GSDm + H2O
(3)
Sulfenic acids react as nucleophiles or electrophiles, which
may be attributable to interconversion between sulfenyl and
sulfinyl tautomers, Scheme 1.19,20 Recent DFT studies have
Scheme 1
examined the equilibration between hydrogen thioperoxide
tautomers, HSOH and H2SO, confirming the sulfenyl as the
lowest energy state, but inclusion of water molecules
dramatically lowers the energy of the sulfinyl tautomer.21 In
this work, we report trapped products derived from glutathione
(GSH) oxidation that most reasonably derive from distinct
tautomers, and thus may provide a method to characterize the
tautomeric equilibration in situ.
Figure 1. Selective ion chromatogram and mass spectra of compounds
3 and 4 obtained in the oxidation of GSH (1 mM) with peroxide (1.2
mM) in the presence of dimedone (5 mM).
Received: November 4, 2016
Accepted: December 16, 2016
Published: December 16, 2016
© XXXX American Chemical Society
A
DOI: 10.1021/acschembio.6b00980
ACS Chem. Biol. XXXX, XXX, XXX−XXX

ACS Chemical Biology
Articles
the sulfinyl tautomer, by analogy to similar xanthenediones
formed in reactions of aldehydes with dimedone, species 3 in
Scheme 2.22,23 The Orbitrap LC/MS in the positive ion mode
Scheme 3
Scheme 2
using the gradient elution method with 0.1% formic acid−
acetonitrile solvent mixture is used to identify reaction products
as [M + H+] singly charged ion peaks, with expected isotope
patterns for 34S and 13C abundances. Single Ion Chromato-
grams (SICs) are shown to confirm that the observed species
are present in the reaction mixture and separated on the LC
column prior to ionization.
Quantification of the peak areas of the respective SICs gives a
ratio of 1/2 at ca. 1000:1, suggesting a moderate free energy
difference between the tautomers.24 We have no data on the
rate of interconversion between the tautomers, but the
observation of both suggest that it is slow. One caveat is that
species 1 is formed by a single bimolecular step, while 2 derives
from a series of coupling reactions. Both 1 and 2 are also
observed in reactions of GSH with other oxidants such as
hypochlorite and ozone.
The possible presence of the sulfinyl tautomer led us to try
other reactions characteristic of aldehydes. The Mukaiyama
aldol reaction of aldehydes with silyl enol ethers yields 1,3
hydroxyketones,25 e.g., species 4 in Scheme 3. When GSH is
oxidized in the presence of 1-trimethylsiloxycyclohexene,
multiple cyclohexone adducts are observed, Figure 2. As
rationalized in Scheme 3, the sulfenyl tautomer GSOH acts as a
nucleophile in a Mukaiyama-like addition to the olefin,
generating species 5. The sulfinyl tautomer GS(O)H undergoes
an aldol-like electrophilic reaction to give species 6. A similar
quantification of SICs gives the ratio of the initial products 5/6
as ca. 3:1, much lower than expected but perhaps due to the
relative rates of the aldol and Mukaiyama reactivities. A second
molecule of 1-trimethylsiloxycyclohexene can further undergo
aldol type condensation with 5 to yield 7, Scheme 3, and
likewise species 8 can be formed from 6 by a Knoevenagel-like
type reaction. The selective ion chromatogram of species 8 has
Figure 2. Selective ion chromatogram and mass spectra of products 5
and 6, obtained in oxidation of GSH (1 mM) with peroxide (1.2 mM)
in the presence of 1-trimethylsiloxycyclohexene (5 mM).
two peaks, suggesting it is a mixture of cis- and trans- tautomers,
Figure 2.
We tested the silyl enol ether trap’s ability to distinguish
between tautomers generated in the aqueous peroxidation of
methimazole, 9, Scheme 4. A recent report suggested sulfenyl
10 and S-oxide 11 tautomers, but not the sulfinyl 12.26 In the
absence of a trap, the nominal sulfenic acid mass is seen,
attributable to any tautomer. However, in the presence of the 1-
B
DOI: 10.1021/acschembio.6b00980
ACS Chem. Biol. XXXX, XXX, XXX−XXX

ACS Chemical Biology
Articles
Scheme 4
Scheme 5
trimethylsiloxycyclohexene, adducts attributable to all three
tautomers are observed as shown in Figure 3; quantification of
the SIC areas assigned to tautomers 10, 11, and 12 gives a
relative abundance as 100:54:1, respectively.
Figure 4. Mass spectra of products glutathione adducts of cyanide
obtained in oxidation of GSH (1 mM) with peroxide (1.2 mM) in the
presence of varying KCN: (a, b) 5 mM and (c) 20 mM.
Scheme 6
Figure 3. Mass spectra of products methimazole sulfenic acid obtained
in the oxidation of GSH (1 mM) with peroxide (1.2 mM) in the
presence of 1-trimethylsiloxycyclohexene (5 mM).
Another characteristic reaction of aldehydes is the
nucleophilic addition of cyanide generating cyanohydrins, eq
4.27 Indeed, the addition of KCN to the reaction mixtures
during GSOH generation obtains products corresponding to
the mono- and bis-cyano adducts, species 13 and 14 shown in
Scheme 5, with MS data shown in Figure 4. A second addition
of cyanide to the cyanohydrins is unknown, but a
dicyanosulfanyl species 14 appears at high cyanide concen-
trations. The thiocyanide adduct, GSCN 15, is also observed,
which may form by condensation of GSOH with HCN or by
elimination of HCN from the dicyanide 14. At low cyanide
concentrations, the ratio of 15 to 13 from their respective SIC
peak areas is 100:2.
RHC = O + HCN → RHC(OH)CN
As a proof-of-concept demonstration, we applied the
aldehyde-reactive reagents to trap the sulfenic tautomers of
the Morin intermediate,28 19 and 20 in Scheme 6, proposed in
(4)
the oxidative transformation of ampicillin 16 to cephalosporin
18.29 Peroxidation of 16 in the presence of 1-trimethylsilox-
ycyclohexene produces trapped species 21 and 22, character-
istic of both sulfenyl and sulfinyl tautomers, respectively, Figure
C
DOI: 10.1021/acschembio.6b00980
ACS Chem. Biol. XXXX, XXX, XXX−XXX

ACS Chemical Biology
Articles
5; SIC quantification of the tautomers gives a ratio of 100:15.
When the same reaction was carried out in the presence of
AUTHOR INFORMATION
■
Corresponding Author
*E-mail: Patrick_Farmer@Baylor.edu.
ORCID
Patrick J. Farmer: 0000-0001-9911-999X
Notes
The authors declare no competing financial interest.
ACKNOWLEDGMENTS
■
We thank K. L. Shuford and J. L.Wood for their comments and
insights during the preparation of this report, which is based
upon work supported by the National Science Foundation (PJF
CHE-1057942), and from Baylor University Mass Spectroscopy
Facility.
REFERENCES
■
(1) Gupta, V., and Carroll, K. S. (2014) Sulfenic acid chemistry,
detection and cellular lifetime. Biochim. Biophys. Acta, Gen. Subj. 1840,
847−875.
(2) Mansuy, D., and Dansette, P. M. (2011) Sulfenic acids as reactive
intermediates in xenobiotic metabolism. Arch. Biochem. Biophys. 507,
174−185.
Figure 5. Mass spectra of products Morin intermediate sulfenic acid
obtained in oxidation of ampicillin (1 mM) with peroxide (1.2 mM) in
the presence of 1-trimethylsiloxycyclohexene (5 mM).
(3) Paulsen, C. E., and Carroll, K. S. (2013) Cysteine-mediated redox
signaling: chemistry, biology, and tools for discovery. Chem. Rev. 113,
4633−4679.
(4) Poole, L. B., and Nelson, K. J. (2008) Discovering mechanisms of
signaling-mediated cysteine oxidation. Curr. Opin. Chem. Biol. 12, 18−
24.
potassium cyanide, analogous sulfenyl and sulfinyl derivatives,
23 and 24 respectively, were observed in a ratio of 100:89
calculated from their SIC plots, Figure 6.
(5) Reddie, K. G., Seo, Y. H., Muse Iii, W. B., Leonard, S. E., and
Carroll, K. S. (2008) A chemical approach for detecting sulfenic acid-
modified proteins in living cells. Mol. BioSyst. 4, 521−531.
(6) Jacob, C., Knight, I., and Winyard, P. G. (2006) Aspects of the
biological redox chemistry of cysteine: from simple redox responses to
sophisticated signalling pathways. Biol. Chem. 387, 1385−1397.
(7) Nakamura, N. (1983) A stable sulfenic acid, 9-triptycenesulfenic
acid: its isolation and characterization. J. Am. Chem. Soc. 105, 7172−
7173.
(8) Boschi-Muller, S., Azza, S., Sanglier-Cianferani, S., Talfournier, F.,
Van Dorsselear, A., and Branlant, G. (2000) A sulfenic acid enzyme
intermediate is involved in the catalytic mechanism of peptide
methionine sulfoxide reductase from Escherichia coli. J. Biol. Chem.
275, 35908−35913.
(9) Mansuy, D. (2011) Brief historical overview and recent progress
on cytochromes P450: adaptation of aerobic organisms to their
chemical environment and new mechanisms of prodrug bioactivation.
Ann. Pharm. Fr. 69, 62−69.
(10) Bui, V.-M., Weng, S.-L., Lu, C.-T., Chang, T.-H., Weng, J. T.-Y.,
and Lee, T.-Y. (2016) SOHSite: incorporating evolutionary
information and physicochemical properties to identify protein S-
sulfenylation sites. BMC Genomics 17 (Suppl 1), 9.
(11) Carballal, S., Radi, R., Kirk, M. C., Barnes, S., Freeman, B. A.,
and Alvarez, B. (2003) Sulfenic acid formation in human serum
albumin by hydrogen peroxide and peroxynitrite. Biochemistry 42,
9906−9914.
(12) Aversa, M. C., Bonaccorsi, P., Madec, D., Prestat, G., and Poli,
G. (2012) The Fabulous Destiny of Sulfenic Acids, in Innovative
Catalysis in Organic Synthesis (Andersson, P. G., Ed.), pp 47−76,
Wiley-VCH Verlag GmbH & Co. KGaA.
(13) Gupta, V., Paritala, H., and Carroll, K. S. (2016) Reactivity,
Selectivity, and Stability in Sulfenic Acid Detection: A Comparative
Study of Nucleophilic and Electrophilic Probes. Bioconjugate Chem. 27,
1411−1418.
(14) Gupta, V., and Carroll, K. S. (2016) Rational design of reversible
and irreversible cysteine sulfenic acid-targeted linear C-nucleophiles.
Chem. Commun. 52, 3414−3417.
Figure 6. Mass spectra of products Morin intermediate sulfenic acid
obtained in oxidation of ampicillin (1 mM) with peroxide (1.2 mM) in
the presence of KCN (5 mM).
In all reactions studied here, the sulfenyl tautomer
predominates over the sulfinyl, but not to the extent that
theoretical literature would predict. Especially important, in our
view, is the analogous reactivity of sulfinyl tautomers and
aldehydes, which may lead to new chemical strategies to
identify and discriminate sulfenic acid tautomers in biological
systems.
D
DOI: 10.1021/acschembio.6b00980
ACS Chem. Biol. XXXX, XXX, XXX−XXX

ACS Chemical Biology
Articles
(15) Poole, T. H., Reisz, J. A., Zhao, W., Poole, L. B., Furdui, C. M.,
and King, S. B. (2014) Strained cycloalkynes as new protein sulfenic
acid traps. J. Am. Chem. Soc. 136, 6167−6170.
(16) Devarie-Baez, N. O., Silva Lopez, E. I., and Furdui, C. M. (2016)
Biological chemistry and functionality of protein sulfenic acids and
related thiol modifications. Free Radical Res. 50, 172−194.
(17) Gupta, V., and Carroll, K. S. (2015) Profiling the reactivity of
cyclic C-nucleophiles towards electrophilic sulfur in cysteine sulfenic
acid. Chem. Sci. 7, 400−415.
(18) Benitez, L. V., and Allison, W. S. (1974) The inactivation of the
acyl phosphatase activity catalyzed by the sulfenic acid form of
glyceraldehyde 3 phosphate dehydrogenase by dimedone and olefins.
J. Biol. Chem. 249, 6234−6243.
(19) Freeman, F., Bui, A., Dinh, L., and Hehre, W. J. (2012)
Dehydrative cyclocondensation mechanisms of hydrogen thioperoxide
and of alkanesulfenic acids. J. Phys. Chem. A 116, 8031−8039.
(20) Alkorta, I., and Elguero, J. (2004) Classical versus redox
tautomerism: substituent effects on the keto/enol and sulfoxide/
sulfenic acid equilibria. Tetrahedron Lett. 45, 4127−4129.
(21) Freeman, F. (2015) Mechanisms of reactions of sulfur hydride
hydroxide: tautomerism, condensations, and C-sulfenylation and O-
sulfenylation of 2,4-pentanedione. J. Phys. Chem. A 119, 3500−3517.
(22) Greenhill, J. V. (1971) The reactions with aldehydes of
enaminones derived from dimedone. J. Chem. Soc. C, 2699−2703.
(23) Li, M., and Gu, Y. (2012) Reversible Alkylation of Dimedone
with Aldehyde: A Neglected Way for Maximizing Selectivity of Three-
Component Reactions of Dimedone and an Aldehyde. Adv. Synth.
Catal. 354, 2484−2494.
(24) Sayle, R. A. (2010) So you think you understand tautomerism?
J. Comput.-Aided Mol. Des. 24, 485−496.
(25) Matsuo, J., and Murakami, M. (2013) The Mukaiyama Aldol
Reaction: 40 Years of Continuous Development. Angew. Chem., Int. Ed.
52, 9109−9118.
(26) Chipiso, K., and Simoyi, R. H. (2016) Kinetics and Mechanism
of Oxidation of Methimazole by Chlorite in Slightly Acidic Media. J.
Phys. Chem. A 120, 3767−3779.
(27) Gregory, R. J. H. (1999) Cyanohydrins in Nature and the
Laboratory: Biology, Preparations, and Synthetic Applications. Chem.
Rev. 99, 3649−3682.
(28) Morin, R. B., Jackson, B. G., Mueller, R. A., Lavagnino, E. R.,
Scanlon, W. B., and Andrews, S. L. (1963) Chemistry of
Cephalosporin Antibiotics. III. Chemical Correlation of Penicillin
and Cephalosporin Antibiotics. J. Am. Chem. Soc. 85, 1896−1897.
(29) Chauvette, R. R., Pennington, P. A., Ryan, C. W., Cooper, R. D.
G., Jose, F. L., Wright, I. G., Van Heyningen, E. M., and Huffman, G.
W. (1971) Chemistry of cephalosporin antibiotics. XXI. Conversion of
penicillins to cephalexin. J. Org. Chem. 36, 1259−1267.
E
DOI: 10.1021/acschembio.6b00980
ACS Chem. Biol. XXXX, XXX, XXX−XXX
