A novel synthetic approach to 27-aryltetrabenzo[5,10,15]triazaporphyrins

Article abstract of DOI:10.1016/j.mencom.2011.03.011

Magnesium 27-aryltetrabenzo[5,10,15]triazaporphyrinates were obtained by heating of phthalodinitrile, arylacetonitrile and magnesium powder.

Full text of DOI:10.1016/j.mencom.2011.03.011

Mendeleev
Communications
Mendeleev Commun., 2011, 21, 92–93
A novel synthetic approach to
27-aryltetrabenzo[5,10,15]triazaporphyrins
Valery V. Kalashnikov,a Victor E. Pushkareva,b and Larisa G. Tomilova*a,b
a Institute of Physiologically Active Compounds, Russian Academy of Sciences, 142432 Chernogolovka,
Moscow Region, Russian Federation. Fax: +7 496 524 9508; e-mail: kalashn2000@mail.ru
b Department of Chemistry, M. V. Lomonosov Moscow State University, 119991 Moscow, Russian Federation.
Fax: +7 495 939 0290; e-mail: tom@org.chem.msu.ru
DOI: 10.1016/j.mencom.2011.03.011

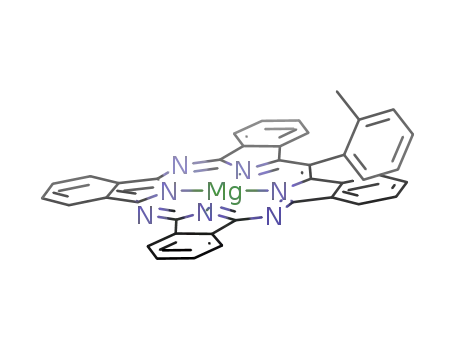

Magnesium 27-aryltetrabenzo[5,10,15]triazaporphyrinates were obtained by heating of phthalodinitrile, arylacetonitrile and magnesium
powder.
CN
Tetrabenzo[5,10,15]triazaporphyrins are close analogues of phthalo-
cyanines differing in the presence of a hydrocarbon bridge instead
of the nitrogen atom in the meso-position. Although they are widely
used as photoconductive materials,1 fluorescent markers in medi-
cine2,3 and gas sensors,4 the number of methods for their prepara-
tion is limited. It was recently reported5 that 1,4,8,11,15,18,22,25-
octahexyltetrabenzo[5,10,15]triazaporphyrin was isolated as a
side product in the synthesis of 1,4,8,11,15,18,22,25-octahexyl-
phthalocyanine by treatment of 3,6-dihexylphthalodinitrile with
lithium pentoxide in n-pentanol, whereas no tetrabenzo[5,10,15]-
triazaporphyrin derivatives but only substituted phthalocyanines
were formed from 4,5-disubstituted phthalodinitriles.
A synthesis of copper tetrabenzo[5,10,15]triazaporphyrin by
heating a mixture of phthalodinitrile, 3-methylenephthalimidine
and copper chloride at 250°C was first reported in 1938.6 One of
the general methods for synthesizing tetrabenzo[5,10,15]triaza-
porphyrins involves treatment of phthalodinitrile with organoman-
ganese reagents followed by refluxing in a high-boiling solvent.7,8
Studies on the synthesis of 27-phenyltetrabenzo[5,10,15]triaza-
porphyrins by reaction of 1,3-diiminoisoindoline with phenyl-
acetic acid in the presence of template agents at 280°C have
been published recently.9,10 However, these approaches are either
unpractical as they involve several stages and anhydrous con-
ditions,8 or result in hardly separable mixtures of metal com-
plexes.10
The low solubility of tetrabenzo[5,10,15]triazaporphyrin com-
plicates its isolation in individual form because chromatographic
purification cannot be used. The incorporation of a non-coplanar
substituent at a meso-position of the macrocyclic system should
increase the solubility of the target products and hence facilitate
preparation of pure individual compounds.
Here we report on novel approach to 27-aryltetrabenzo-
[5,10,15]triazaporphyrins by simple heating to 300°C of phthalo-
dinitrile accessible in industrial amounts with arylacetonitriles
possessingreactivehydrogenatomsinthepresenceofmagnesium
metal. The primary products are the corresponding magnesium
complexes 1 (Scheme 1).†
N
CN
N
Mg
240–300 °C
R
R
N
N
N
Mg
+
N
NC
N
1a–e
from 1a H2SO4
a R = H
N
b R = o-Me
c R = m-Me
d R = p-Me
NH
N
R
N
N
HN
e R = p-OMe
N
2a
Scheme 1
version of phthalodinitrile occurred in another 5 min. The yield
(11%) was 2% higher than that in the fusion method.
Owing to the high solubility of magnesium complexes of
27-aryltetrabenzo[5,10,15]triazaporphyrins in organic solvents,
the products were separated by column chromatography. The
synthesis resulted in dark-blue crystalline compounds soluble in
most of common organic solvents (benzene, chloroform, acetone,
dimethylsulfoxide) but insoluble in hexane and methanol. The elec-
tronic absorption (UV-VIS) spectra of the products are characterised
by intense bands in the long-wave region (600–675 nm, Q-bands)
and less intense bands in the short-wave region (350–450 nm,
†
Synthesis of magnesium complexes 1a–e (general procedure). A flask
equipped with a reflux condenser and an inert gas inlet and containing a
mixture of phthalodinitrile (2.0 mmol), arylacetonitrile (0.5 mmol) and
magnesium powder (0.5 mmol) was placed under argon in an oil bath
heated to 190°C. The resulting reddish-orange melt soon turned cyan and
then was heated with a gradual temperature increase from 195–200°C to
290–300°C and kept for 2 h at that temperature. The resulting dark blue crys-
talline product was dissolved with heating in THF. The solution was filtered
from the magnesium phthalocyanine admixture, then chromatographed on
a column with silica gel using THF as the eluent. The cyan-colored fraction
was chromatographed once again on silica gel (hexane–THF, 5:1). The solvent
was removed in vacuo and the dark-blue precipitate was refluxed in methanol
for 15 min. The product was filtered off and dried in vacuo at 140°C.
For 1a: yield 9%. UV-VIS [THF, lmax/nm (I/Imax)]: 397 (0.437), 443
(0.195), 594 (0.174), 618 (0.176), 648 (0.674), 670 (1.000). 1H NMR
(DMSO-d6) d: 9.53 (d, 2H, b2-HAr, J 7.5 Hz), 9.43 (m, 4H, b1-HAr),
7.94–8.29 (m, 11H, g1-HAr, g2-HAr, HPh), 7.66 (t, 2H, g3-HAr, J 7.5 Hz),
6.98 (d, 2H, b3-HAr, J 8.1 Hz). MS (MALDI-TOF), m/z: 612 [M+].
The target 27-aryltetrabenzo[5,10,15]triazaporphyrin com-
plexes 1 were also prepared by microwave irradiation of the
reactants. As we have shown previously, optimum yields of
substituted phthalocyanines are reached by applying a microwave
power of 650–700 W for 6–10 min.11 To synthesise compound
1a, a mixture of phthalodinitrile, phenylacetonitrile and magne-
sium powder was kept at 600 W for 8 min.‡ It was found that the
melt acquired a phthalocyanine colour in 2 min. Complete con-
© 2011 Mendeleev Communications. All rights reserved.
– 92 –

Mendeleev Commun., 2011, 21, 92–93
Hm-Tol
β2-H
B-bands). The nature of the aryl substituent in the magnesium
β1-H
α1-H
β3-H
α3-H
complex insignificantly affects the character of the spectra and
the positions of the absorption band maxima. Figure 1 shows the
UV-VIS of complex 1a in tetrahydrofuran as an example.
The mass spectra (MALDI-TOF) of the complexes obtained
exhibit molecular ion peaks which contain signals matching the
isotopic composition of magnesium.
α2-H
2.01 3.97
4.24 6.20 2.25
2.10
7.0
7.5
8.0
8.5
1
Complexes 1 were also characterised by H and 13C NMR
spectroscopy. The signals in the spectra were assigned using two-
dimensional (2D) techniques. Figure 2 presents a 1H–1H COSY
spectrum of complex 1c having characteristic cross-peaks as an
example. A specific feature of the spectrum is that the signals
of a3-H protons are shifted upfield by 2.39 ppm with respect to
those of a1-H protons; this effect is because the former are located
in the shielding cone of the aryl substituent arranged orthogonally
to the macrocycle plane. A similar effect, albeit not so pronounced,
is also observed for the b3-HAr and b2-HAr protons, which are
shielded by 0.58 and 0.32 ppm, respectively, relative to b1-HAr.
Conversely, in the case of a2-H protons, weak deshielding of signals
by 0.09 ppm with respect to a1-H is observed, which suggests that
weakening of the magnetic effect of the meso-aryl group occurs.
The signals of carbon atoms in the 13C NMR spectrum of 1c were
assigned using 1H–13C COSY and DEPT-135 techniques, as well
as the scarce literature data.5 Note that the methine carbon atom in
1c is deshielded (d 125.88) with respect to the meso-unsubstituted
analogue,5 which displays the corresponding signal at d 104.6.
The magnesium complexes 1 can be readily demetallated to
give free 27-aryl-29H,31H-tetrabenzo[5,10,15]triazaporphyrins 2.
N
Me
N
N
N
Mg
N
N
α3-H
β3-H
9.0
9.5
N
α1-H
α2-H
β1-H
β2-H
9.5
9.0
8.5
8.0
7.5
7.0
d/ppm
Figure 2 1H–1H COSY NMR spectrum of compound 1c (aromatic region)
in DMSO-d6.
In fact, treatment of compound 1a with concentrated sulfuric
acid gave the respective ligand 2a in a quantitative yield;§ it was
characterised by MALDI-TOF mass spectrometry (see Online
Supplementary Materials, Figure 1S) and UV-VIS spectroscopy
(Figure 1). The electronic spectrum of this ligand, similarly to that
of compounds 1 with C2v symmetry, is also characterised by a
split Q-band. It is evident from Figure 1 that demetallation
increases the degree of this splitting: the Q1 component is shifted
hypsochromically by 5 nm, whereas the Q2 band shows a batho-
chromic shift of 15 nm.
1.0
0.8
2a
0.6
0.4
0.2
0.0
1a
The ligand 2 has been proved to be promising in syntheses of
sandwich rare-earth metal complexes that represent a new type
of complexes of these elements.
300
400
500
600
700
800
l/nm
Online Supplementary Materials
Supplementary data associated with this article can be found
in the online version at doi:10.1016/j.mencom.2011.03.011.
Figure 1 Electronic absorption spectra of magnesium complex 1a and the
corresponding free-base ligand 2a in THF.
For 1c: yield 10%. UV-VIS [THF, lmax/nm (I/Imax)]: 397 (0.432), 444
(0.180), 594 (0.173), 619 (0.187), 648 (0.653), 670 (1.000). 1H NMR
(DMSO-d6) d: 9.53 (d, 2H, b2-HAr, J 7.5 Hz), 9.43–9.45 (m, 4H, b1-HAr),
8.23–8.26 (m, 4H, g1-HAr), 7.93–7.99 (m, 6H, g2-HAr, Hm-Tol), 7.67 (t, 2H,
g3-HAr, J 7.5 Hz), 7.05 (d, 2H, b3-HAr, J 8.1 Hz), 2.65 (s, 3H, HMe). 13C NMR
(DMSO-d6) d: 155.32, 152.30, 151.16, 138.63 (C-5, C-7, C-12, C-14, C-19,
C-21, C-26, C-28), 141.73, 141.64 (Cm-Tol-1, Cm-Tol-3), 139.35, 139.06, 138.85,
138.22 (C-4a, C-7a, C-11a, C-14a, C-18a, C-21a, C-25a, C-28a), 132.24,
130.02, 129.10, 128.76 (Cm-Tol-2, Cm-Tol-4, Cm-Tol-5, Cm-Tol-6), 129.72, 129.42
(C-9, C-10, C-16, C-17), 127.64 (C-2, C-24), 126.92 (C-3, C-23), 125.88
(C-27), 124.30 (C-1, C-25), 122.74, 122.54, 122.45 (C-4, C-8, C-11,
C-15, C-18, C-22), 21.25 (C–Me). MS (MALDI-TOF), m/z: 626 [M+].
For characteristics of complexes 1b,d,e, see Online Supplementary
Materials.
References
1 D. R. Teller, S. K. DeMeutter and B. Kaletta, US Patent 5134048, 1992
(Chem. Abstr., 1992, 116, 146001m).
2 G. E. Renzoni, D. C. Schindele, L. J. Theodore, C. C. Leznoff, K. L.
Fearon and B. V. Pepich, US Patent 5135717, 1992.
3 W. B. Dandliker and Mao-Lin Hsu, US Patent 5641878, 1997 (Chem.
Abstr., 1997, 127, 965P).
4 J. Silver, K. R. Rickwood and M. T. Ahmet, US Patent 5318912, 1994
(Chem. Abstr., 1994, 121, 1034P).
5 A. N. Cammidge, M. J. Cook, D. L. Hughes, F. Nekelson and M. Rahman,
Chem. Commun., 2005, 930.
6 C. E. Dent, J. Chem. Soc., 1938, 1.
7 P. A. Barrett, R. P. Linstead, G. A. P. Tuey and J. M. Robertson, J. Chem.
Soc., 1939, 1809.
‡
A mixture of phthalodinitrile (0.77 g), phenylacetonitrile (0.18 g) and
magnesium powder (0.11 g) was irradiated at 600 W for 8 min in a
8 C. C. Leznoff and N. B. McKeown, J. Org. Chem., 1990, 55, 2186.
9 N. E. Galanin, E. V. Kudrik and G. P. Shaposhnikov, Zh. Org. Khim.,
2002, 38, 1251 (Russ. J. Org. Chem., 2002, 38, 1200).
10 N. E. Galanin, E. V. Kudrik and G. P. Shaposhnikov, Zh. Obshch. Khim.,
2005, 75, 689 (Russ. J. Gen. Chem., 2005, 75, 651).
11 E. G. Kogan, A. V. Ivanov, L. G. Tomilova and N. S. Zefirov, Mendeleev
Commun., 2002, 54.
Samsung M1915NR microwave oven to afford compound 1a, yield 11%.
§
27-Phenyl-29H,31H-tetrabenzo[b,g,l,q][5,10,15]triazaporphyrin 2a.
The magnesium complex 1a (10 mg, 0.016 mmol) was dissolved in con-
centrated H2SO4 and kept for 1 min, then poured onto ice. The precipitate
was filtered off, washed consecutively with H2O to neutral pH and 80%
aqueous MeOH (3×20 ml) and finally dried in vacuo.Yield 98%. UV-VIS
[THF, lmax/nm (I/Imax)]: 380 (0.719), 590 (0.257), 617 (0.369), 643 (0.658),
685 (1.000). MS (MALDI-TOF), m/z: 589 [M+].
Received: 21st July 2010; Com. 10/3571
– 93 –
