Journal of the American Chemical Society
COMMUNICATION
Scheme 2. Schematic Representation of the Self-Assembly of
the MnL2n-type Complexes Derived from Ligand 3
Figure 2. 1H NMR (500 MHz, 300 K) observation of the self-assembly
of Pt(II)12L24 complex 2 in (aÀc) 60:40 TFE/DMSO and (dÀf)
DMSO. Shown are spectra of (a, d) free ligand 1 and the the mixture
(b, e) 12 and (c, f) 24 h after complexation with Pt(NO3)2. The structure
converged only in TFE/DMSO. It should be noted that signal broad-
ening for giant Pt(II) complexes is inevitable because of their tumbling
motion, which is slow on the NMR time scale.
Figure 4. CSI-TOF mass spectrum of Pt(II)6L12 cube 4 (SbF6À salt).
The inset shows expanded spectra of the n = 10 peak (observed and
simulated).
afforded high-quality data from which the Pt(II)12L24 spherical
shell was confirmed. No unusual bond lengths or angles were
observed, and almost perfect square-planar orientation of the
four pyridyl groups around each Pt(II) center was confirmed.
Importantly, these structural features of 2 are essentially the same
as those of Pd(II)12L24 spheres with the same shell framework,
whose crystal structures have been determined previously.6
The remarkable durability of 2 toward acidic solution is
worthy of note. The NMR spectrum of 2 hardly changed upon
addition of excess nitric acid (480 equiv) to a DMSO solution of
2 (Figure 3a). In contrast, the Pd(II) analogue could not tolerate
acidic conditions and immediately decomplexed into a unassign-
able mixture of oligomers because of the labile nature of the
Pd(II)Àpyridine coordination (Figure 3b).
Figure 3. 1H NMR spectra (500 MHz, DMSO-d6, 300 K) of (a) Pt
complex 2 and (b) its Pd analogue in DMSO upon the addition of excess
DNO3.
into a single product was observed after 24 h (Figure 2b,c). The
considerable broadening of the signals was attributed to the
tumbling motion of a giant product that was slow on the NMR
time scale.7 The diffusion-ordered spectroscopy (DOSY) NMR
spectrum also indicated the formation of a single product with a
diffusion coefficient of 6.31 Â 10À11 m2/s, which is comparable
to that of the Pd(II)12L24 sphere formed from Pd(II) ions and
ligand 1.8 This structural convergence was not observed without
TFE: in DMSO only, the NMR spectrum of an initially formed,
unassignable mixture remained unchanged over 24 h (Figure 2e,f).
Addition of another protic solvent such as EtOH or acetic acid
was ineffective.

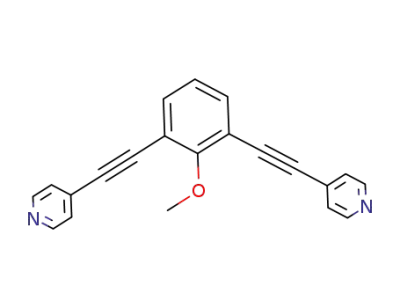

When the extended ligand 3 was employed, we unexpectedly
observed the self-assembly of Pt(II)6L12 cube 4 rather than a
Pt(II)12L24 sphere analogous to 2, though the same ligand gave
the the Pd(II)12L24 sphere (5) quantitatively (Scheme 2).8,10
The formation of cube 4 was confirmed by CSI-TOF-MS and 1D
and DOSY NMR spectroscopy (see the Supporting In-
formation). After counterion exchange with SbF6À, CSI-TOF-
MS revealed a series of [M À n(SbF6À)]n+ peaks (n = 6À10) for
4 (Figure 4). All of the m/z values of these peaks agreed with the
formulas of 4 (SbF6À salt) (e.g, m/z calcd for [M À 9(SbF6À)]9+,
621.7547; found, 621.7552]. High acid durability (toward
DNO3) was again observed for cube 4 (Figure S5 in the
Supporting Information).
The Pt(II)12L24 composition of 2 (SbF6À salt) was confirmed
by cold-spray ionization time-of-flight mass spectrometry (CSI-
TOF-MS)9 from a series of [M À n(SbF6À)]n+ peaks (n =
10À15), each of which was further resolved into an isotopic
distribution pattern consistent with theoretical simulations (see
the Supporting Information). The rigid shell framework of
Pt(II)12L24 was revealed by X-ray crystallographic analysis
(Figure 1). Single crystals were obtained by slow diffusion of
isopropyl acetate vapor into a DMSO solution of 2 (SbF6À salt).
Because of the severe disorder of solvent molecules and coun-
terions in the large void of the crystals, the diffraction with a
conventional X-ray diffractometer was too weak to be solved.
However, high-flux, low-divergence synchrotron X-ray irradiation
We assume that the M6L12 cube structure11 exists as a
metastable local-minimum structure on the potential surface
for the self-assembly process. Even in the presence of TFE, the
Pt(II)Àpyridine interaction is much stronger than the Pd-
(II)Àpyridine interaction. Thus, the Pt(II)6L12 cube is trapped
at the local minimum and not further converted into the
Pt(II)12L24 structure, whereas the Pd(II) counterpart is not deeply
13318
dx.doi.org/10.1021/ja2059236 |J. Am. Chem. Soc. 2011, 133, 13317–13319
