dashed line, are quite ordinary and the discotic core serves as
a mesogen to drive the hexagonal columnar assembly. On the
other hand, in the columnar assembly of LC compounds listed
below the dashed line in Figure 1, roughly three to four
molecules assemble conically to give a supramolecular
mesogenic core.[10] We also found that compounds 5bOT and
6aPN display a micellar cubic (Cub) mesophase above the
temperature range for the columnar mesophase.
As a proof of concept, we investigated the assembly of the
newly obtained LC compounds under conditions analogous to
those for 2TP, by applying a rectangular-shaped 1.0 Hz E field
(10–50 VppmmÀ1) of alternating current in the sandwich-type
glass cell composed of patterned ITO electrodes with a gap of
5 mm. To our surprise, regardless of the structures of core and
branched paraffinic tails, assembly and lattice dimensions,
seven discotic LC compounds 3HPB, 4aTTF–4cTTF, 5aOT, 5cOT
,
and 6bPN, as well as 2TP, responded to the applied E field. As
shown in Figure 2c–g,i, and k, POM images of these
compounds at their LC mesophase displayed site-selectively
a dark field in a part, operating at an E field, of the sample,
which is sandwiched by the ITO electrodes. The largest
attainable film thickness with unidirectional columnar ori-
entation, as confirmed by POM, appeared to reach the
millimeter range (Figure 3). For facilitating the POM obser-
vation, we chose 6bPN with a small optical interference and
prepared its film samples with thickness values of 25, 50, 75,
100, 250, and 500 mm. Then, each LC film was heated, and the
resulting isotropic melt was allowed to cool to the LC
mesophase temperature in an applied E field. As shown in
Figure 3a–f, all LC films displayed a dark field in POM, for
which a higher voltage was necessary to make the thicker film
entirely non-birefringent. For confirming the homeotropic
columnar orientation in the 500 mm-thick film, we measured
small-angle X-ray scattering (SAXS) patterns by orientating
the film plane of the sample parallel to the incident X-ray
beam (Figure 3g). As shown in Figure 3h, the SAXS pattern,
observed before E-field treatment, was conical, which indi-
cates that the sample is macroscopically not anisotropic. In
contrast, after the LC film was annealed under an applied
E field (3.9 VppmmÀ1), only two explicit diffuse spots resulted
in the equatorial direction (Figure 3i). The q values (which
correspond to d-spacings) for the observed diffuse spots
(1.80 nmÀ1) agreed well with those expected for a (100)
reflection of the hexagonal lattice (1.78 nmÀ1), demonstrating
that the (100) plane of the lattice is oriented homeotropically
to the film plane. Such a thick LC film composed of
unidirectionally oriented columns is unprecedented.
Although several methods, for example, substrates with
special surface coatings,[11] are known to realize homeotropic
columnar orientation of certain discotic LC molecules, the
largest attainable film thickness with uniform orientation is in
most cases around 20 mm.
Figure 2. Polarizing optical micrographs (POM) under crossed polar-
izers. a) 1COR at 1408C, b) 2TP at 1108C, c) 3HPB at 1408C, d) 4aTTF at
1058C, e) 4bTTF at 1058C, f) 4cTTF at 1008C, g) 5aOT at 1758C, h) 5bOT
at 1658C, i) 5cOT at 2108C, j) 6aPN at 1008C, k) 6bPN at 938C, l and
m) 4bTTF at 1058C. The dashed lines represent the borders of E-field-
operating and non-operating parts. a)–k) A sandwich-type glass cell
composed of patterned ITO electrodes with a gap of 5 mm, at which
an E field (10–50 VppmmÀ1) was site-selectively applied to a part of
each sample, located between the ITO electrodes, from a vertical
direction relative to the substrate. l) and m) A glass cell composed of
comb-type ITO electrodes with a gap of 50 mm was used, as which an
E field (27.5 VppmmÀ1) was site-selectively applied to a part of the
sample, located between the ITO electrodes, from a horizontal
direction relative to the substrate. m) The micrograph was taken after
rotation of the sample by 458 around the optical axis of the
configuration in (l).

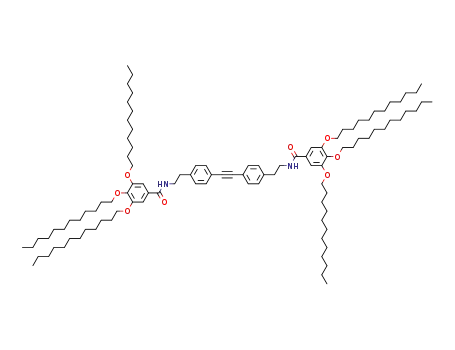

These three compounds commonly bear side chains that are
identical to those of 1COR and 2TP. For investigating the
flexibility of the design startegy targeting at E-field respon-
sive liquid-crystalline molecules, we also synthesized 4bTTF
/
4cTTF and 5aOT/5cOT, which are structurally diversified ver-
sions of their parent molecules in terms of the number of
spacing methylene units between the core and amide parts
and the pattern of branching in the paraffinic tail attached to
the amide handle. In addition to these discotic molecules,
nondiscotic references 6aPN and 6bPN, bearing a phthalonitrile
(PN) core, were synthesized. By means of differential
scanning calorimetry (DSC), POM, and X-ray diffraction
(XRD) analysis, we confirmed that all these compounds are
liquid-crystalline and assemble columnarly (see the Support-
ing Information). However, there are some variations. Judg-
ing from the values of intercolumnar distances summarized in
Figure 1, the assembly of the LC compounds, listed above the
With only one exception, 3HPB, 4aTTF–4cTTF, 5cOT, and
6bPN, which can be oriented in an E field, all showed that their
homeotropic columnar orientation, developed by the action
of the E field, was maintained even after the applied E field
was switched off. In contrast, when 5aOT with aromatic amide
handles directly attached to the discotic core was monitored
after switching off the E field, roughly 30% of the dark field
Angew. Chem. Int. Ed. 2011, 50, 7865 –7869
ꢀ 2011 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
