68
J.-L. Chen et al. / Inorganic Chemistry Communications 15 (2012) 65–68
[17] J.-L. Chen, W. Gu, X.-F. Cao, H.-R. Wen, R. Hong, Luminescent triply-bridged dicop-
per(I) complex possessing 3,5-bis{6-(2,2′-dipyridyl)}pyrazole as a bis-chelating
ligand, Journal of Coordination Chemistry 64 (2011) 1903–1913.
Province (No. GJJ10151), and the Science Foundation of State Key
Laboratory of Structural Chemistry (No. 20110015) for the financial
support.

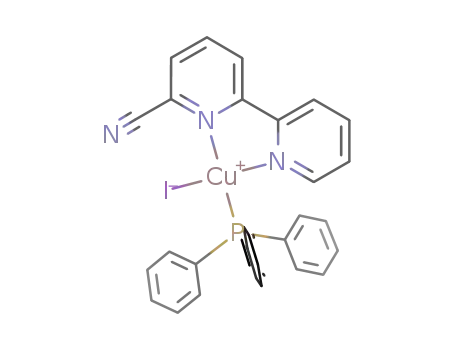

[18] Synthesis. For 1, a mixture of PPh3 (129.0 mg, 0.492 mmol) and CuI (46.8 mg,
0.246 mmol) in CH2Cl2 (20 mL) was stirred for 3 h at room temperature. To this
resulting colorless solution was added dropwise with stirring a solution of cbpy
(44.6 mg, 0.246 mmol) in CH2Cl2 (5 mL). The mixture was stirred for another
2 h, and the solvent was evaporated at reduced pressure to give an orange resi-
due. Pure orange crystals were obtained by slow diffusion of petroleum ether
into a CH2Cl2 solution. Yield: 96.7 mg, 0.152 mmol, 62%. Anal. Calcd. for C29H22-
CuIN3P: C, 55.0; H, 3.5; N, 6.6. Found: C, 55.2; H, 3.8; N, 6.4%. For 2, an analogous
procedure to 1 was adopted except that CuI was displaced with CuBr. The orange-
yellow crystals were afforded by slow diffusion of petroleum ether into a CH2Cl2
solution. Yield: 58%. Anal. Calcd. for C29H22BrCuN3P: C, 59.4; H, 3.8; N, 7.2. Found:
C, 59.6; H, 4.1; N, 7.0%. For 3, a mixture of PPh3 (117.6 mg, 0.448 mmol) and Cu
(ClO4)2·6H2O (41.6 mg, 0.112 mmol) in CH2Cl2 (10 mL) was stirred for 5 h at
room temperature. To this resultant colorless solution was added dropwise
with stirring a solution of cbpy (20.3 mg, 0.112 mmol) in CH2Cl2 (5 mL). The mix-
ture was stirred for another 3 h, and the solvent was evaporated at reduced pres-
Appendix A. Supplementary material
CCDC 831454, 831453, and 831452 contain the supplementary
crystallographic data for 1–3, respectively. These data can be obtained
free of charge from the Cambridge Crystallographic Data Centre via
Supplementary data to this article can be found online at doi:10.
1016/j.inoche.2011.09.040.
References
sure to give
a yellow residue. Pure yellow crystals were obtained by slow
[1] P.C. Ford, E. Cariati, J. Bourassa, Photoluminescence properties of multinuclear
copper(I) compounds, Chemical Reviews 99 (1999) 3625–3647.
[2] D.R. McMillin, K.M. McNett, Photoprocesses of copper complexes that bind to
DNA, Chemical Reviews 98 (1998) 1201–1219.
[3] N. Armaroli, G. Accorsi, F. Cardinali, A. Listorti, Photochemistry and photophysics
of coordination compounds: copper, Topics in Current Chemistry 280 (2007)
69–115.
[4] T. Bessho, E.C. Constable, M. Graetzel, A.H. Redondo, C.E. Housecroft, W. Kylberg,
M.K. Nazeeruddin, M. Neuburger, S. Schaffner, An element of surprise—efficient
copper-functionalized dye-sensitized solar cells, Chemical Communications
(2008) 3717–3719.
[5] S. Perruchas, X.F.L. Goff, S. Maron, I. Maurin, F. Guillen, A. Garcia, T. Gacoin, J.-P.
Boilot, Mechanochromic and thermochromic luminescence of a copper iodide
cluster, Journal of the American Chemical Society 132 (2010) 10967–10969.
[6] N. Armaroli, G. Accorsi, M. Holler, O. Moudam, J.-F. Nierengarten, Z. Zhou, R.T.
Wegh, R. Welter, Highly luminescent CuI complexes for light-emitting electro-
chemical cells, Advanced Materials 18 (2006) 1313–1316.
[7] Q. Zhang, Q. Zhou, Y. Cheng, L. Wang, D. Ma, X. Jing, F. Wang, Highly efficient
green phosphorescent organic light-emitting diodes based on CuI complexes, Ad-
vanced Materials 16 (2004) 432–436.
diffusion of petroleum ether into a CH2Cl2 solution. Yield: 69.3 mg, 0.080 mmol,
71%. Anal. Calcd. for C47H37ClCuN3O4P2: C, 65.0; H, 4.3; N, 4.8. Found: C, 65.2; H,
4.6; N, 4.5%.
[19] Crystal data for
1 (CCDC 831454): C29H22CuIN3P, M=633.91, triclinic, P 1,
a=9.5392(9) Å, b=9.7743(9) Å, c=15.5917(15) Å, α=89.2440(10)°,
β=83.7480(10)°, γ=71.5920(10)°, V=1370.8(2) Å3, Z=2, T=296(2) K,
μ(Mo Kα)=2.003 mm−1, Dc =1.536 g cm−1, λ=0.71073 Å, 2θ=50°. The struc-
ture, refined on F2, converged for 4456 unique reflections (Rint =0.0239) and
3342 observed reflections with IN2σ(I) to give R1 =0.0336 and wR2 =0.0769
and a good-of-fit=0.990. Crystal data for 2 (CCDC 831453): C29H22BrCuN3P,
M=586.92, triclinic, P 1, a=8.670(4) Å, b=9.511(4) Å, c=17.055(7) Å,
α=89.631(4)°, β=87.973(5)°, γ=67.419(5)°, V=1297.8(9) Å3, Z=2, T=296
(2) K, μ(Mo Kα)=2.465 mm−1, Dc =1.502 g cm−1, λ=0.71073 Å, 2θ=49.98°.
The structure, refined on F2, converged for 4180 unique reflections
(Rint =0.0211) and 3271 observed reflections with IN2σ(I) to give R1 =0.0355
and wR2 =0.0924 and a good-of-fit=1.035. Crystal data for 3 (CCDC 831452): C-
48H39Cl3CuN3O4P2, M=953.65, monoclinic, P21/c, a=15.8564(12) Å,
b=14.7892(11) Å, c=20.8431(15) Å, β=111.1230(10)°, V=4559.4(6) Å3,
Z=4,
T=296(2)
K,
μ(Mo
Kα)=0.772 mm−1
,
Dc =1.389 g cm−1
,
λ=0.71073 Å, 2θ=52.22°. The structure, refined on F2, converged for 8933
unique reflections (Rint =0.0475) and 5586 observed reflections with IN2σ(I)
to give R1 =0.0675 and wR2 =0.1948 and a good-of-fit=1.031.
[8] M. Nishikawa, K. Nomoto, S. Kume, K. Inoue, M. Sakai, M. Fujii, H. Nishihara, Dual
emission caused by ring inversion isomerization of a 4-methyl-2-pyridyl-pyrim-
idine copper(I) complex, Journal of the American Chemical Society 132 (2010)
9579–9581.
[20] D.R. Evans, C.A. Reed, Reversal of H2O and OH− ligand field strength on the mag-
netochemical series relative to the spectrochemical series. Novel 1-equiv water
chemistry of iron(III) tetraphenylporphyrin complexes, Journal of the American
Chemical Society 122 (2000) 4660–4667.
[9] T. McCormick, W.-L. Jia, S. Wang, Phosphorescent Cu(I) complexes of 2-(2′-pyridyl
benzimidazolyl)benzene: impact of phosphine ancillary ligands on electronic and
photophysical properties of the Cu(I) complexes, Inorganic Chemistry 45 (2006)
147–155.
[21] P.F. Barron, L.M. Engelhardt, P.C. Healy, J.D. Kildea, A.H. White, Conformational
isomerism in mixed-ligand complexes of 2,2′-bipyridine and triphenylphosphine
with copper(I) halides, Inorganic Chemistry 27 (1988) 1829–1834.
[22] X.-H. Zhou, T. Wu, D. Li, Structural variations and spectroscopic properties of cop-
per(I) complexes with bis(schiff base) ligands, Inorganica Chimica Acta 359
(2006) 1442–1448.
[10] D.G. Cuttell, S.M. Kuang, P.E. Fanwick, D.R. McMillin, R.A. Walton, Simple Cu(I)
complexes with unprecedented excited-state lifetimes, Journal of the American
Chemical Society 124 (2002) 6–7.
[11] C.S. Smith, C.W. Branham, B.J. Marquardt, K.R. Mann, Oxygen gas sensing by lumi-
nescence quenching in crystals of Cu(xantphos)(phen)+ complexes, Journal of
the American Chemical Society 132 (2010) 14079–14085.
[23] Y.-J. Shi, S.-J. Chen, B. Huang, X.-T. Chen, Y. Zhang, X.-Z. You, The preparation,
crystal structure and properties of
a mixed-ligand copper(I) complex [CuI
[12] C.K. Ryu, M. Vitale, P.C. Ford, Photoluminescence properties of the structurally
analogous tetranuclear copper(I) clusters Cu4X4(dpmp)4 (X = I, Br, Cl; dpmp =
2-(diphenylmethyl)pyridine), Inorganic Chemistry 32 (1993) 869–874.
[13] A. Tsuboyama, K. Kuge, M. Furugori, S. Okada, M. Hoshino, K. Ueno, Photophysical
properties of highly luminescent copper(I) halide complexes chelated with 1,2-
bis(diphenylphosphino)benzene, Inorganic Chemistry 46 (2007) 1992–2001.
[14] H. Araki, K. Tsuge, Y. Sasaki, S. Ishizaka, N. Kitamura, Luminescence ranging from red
to blue: a series of copper(I)–halide complexes having rhombic {Cu2(μ-X)2} (X = Br
and I) units with N-heteroaromatic ligands, Inorganic Chemistry 44 (2005)
9667–9675.
[15] J.-L. Chen, B. Wu, W. Gu, X.-F. Cao, H.-R. Wen, R. Hong, J. Liao, B.-T. Su, Synthesis and
characterization of mono- and dinuclear copper(I) complexes with 3-(2-pyrimidi-
nyl)-1,2,4-triazine, Transition Metal Chemistry 36 (2011) 379–385.
[16] J.-L. Chen, P. Song, J. Liao, H.-R. Wen, R. Hong, Z.-N. Chen, Y. Chi, Luminescent homo-
dinuclear copper(I) halide complexes based on the 3,5-bis{6-(2,2′-dipyridyl)}pyra-
zole ligand, Inorganic Chemistry Communications 13 (2010) 1057–1060.
(PPh3)(DPPZ)]·DMF, Journal of Molecular Structure 650 (2003) 27–32.
[24] W.-J. Wang, C.-H. Lin, J.-S. Wang, S.-W. Tang, Synthesis and characterization of
copper(I) complexes with triazole derivative ligands containing an α-diimine
moiety, Molecular Crystals & Liquid Crystals 456 (2006) 209–219.
[25] G. Kickelbick, M. Amirnasr, A.D. Khalaji, S. Dehghanpour, Synthesis, characteriza-
tion, and crystal structures of [Cu(ca2en)(PPh3)(X)] (X = Cl, Br, I, NCS, N3) com-
plexes, Australian Journal of Chemistry 56 (2003) 323–328.
[26] G. Saha, K.K. Sarkar, P. Datta, P. Raghavaiah, C. Sinha, Synthesis, spectroscopic
properties, structural characterization and electrochemistry of mixed ligand com-
plexes of copper(I) halide with PPh3 and naphthylazoimidazole, Polyhedron 29
(2010) 2098–2104.
[27] C.A. Hunter, M.N. Meah, J.K.M. Sanders, Dabco-metalloporphyrin binding: ternary
complexes, host–guest chemistry and the measurement of π–π interactions, Jour-
nal of the American Chemical Society 112 (1990) 5773–5780.
